RB Components Sprinter 170 Extended Ceiling Braces - L-Track Support

RB Components Sprinter 170 Extended Ceiling Braces - L-Track Support

At West Coast Vans, we choose RB Components gear for builders who want purpose-built van hardware with clear dimensions and real installation requirements. Need help confirming fitment or planning the surrounding build? Ask Us Product Questions Anytime.

WCV EXPERT TIP

Lay out ceiling loads and brace spacing before insulation or ceiling panels, and confirm tool access at the front bracket.

PRODUCT OVERVIEW

RB Components Sprinter 170 Extended Ceiling Braces - L-Track Support creates reinforced ceiling attachment points in a Mercedes-Benz Sprinter 170 Extended for L-track or other overhead anchors.

The source specifies 0.060-inch galvanized-steel braces, supplied rivets and self-tapping screws, front-to-back orientation, adjustable spacing, and a tight-access installation note.

BEST FOR

• SPRINTER 170 EXTENDED CEILINGS: Designed for the 170 Extended chassis.

• CEILING L-TRACK INSTALLS: Adds a solid mounting surface for track or tie-down anchors.

• PRE-PANEL STRUCTURAL BUILDS: Installs before the finished ceiling to create known attachment points.

TECHNICAL SPECIFICATIONS

• VENDOR: RB Components

• PRODUCT: Sprinter 170 Extended Ceiling Braces - L-Track Support

• PRODUCT DETAIL 1: .060 galvanized steel braces

• PRODUCT DETAIL 2: mounting hardware provided (3/16 aluminum rivets and self tapping screws provided)

• PRODUCT DETAIL 3: provides solid mounting surface for ceiling mounted l-track or tie down anchors

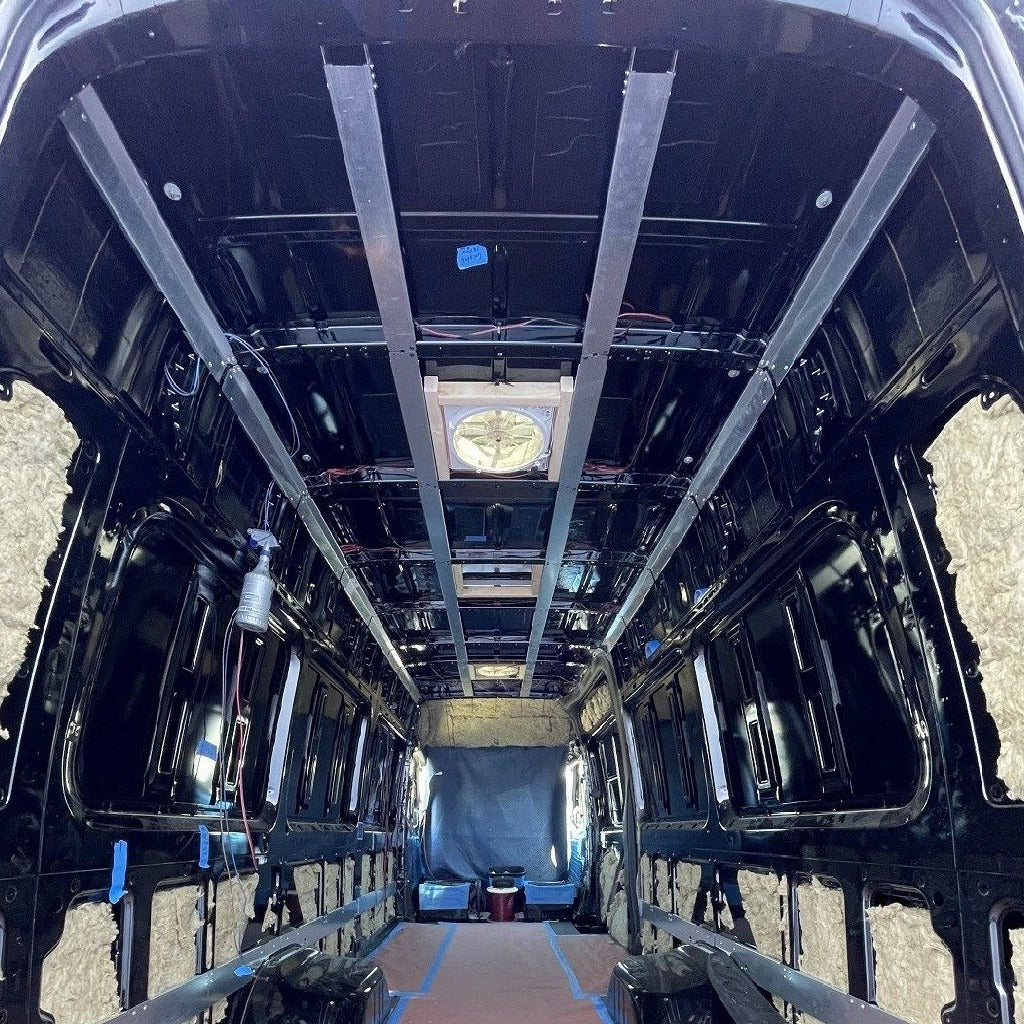

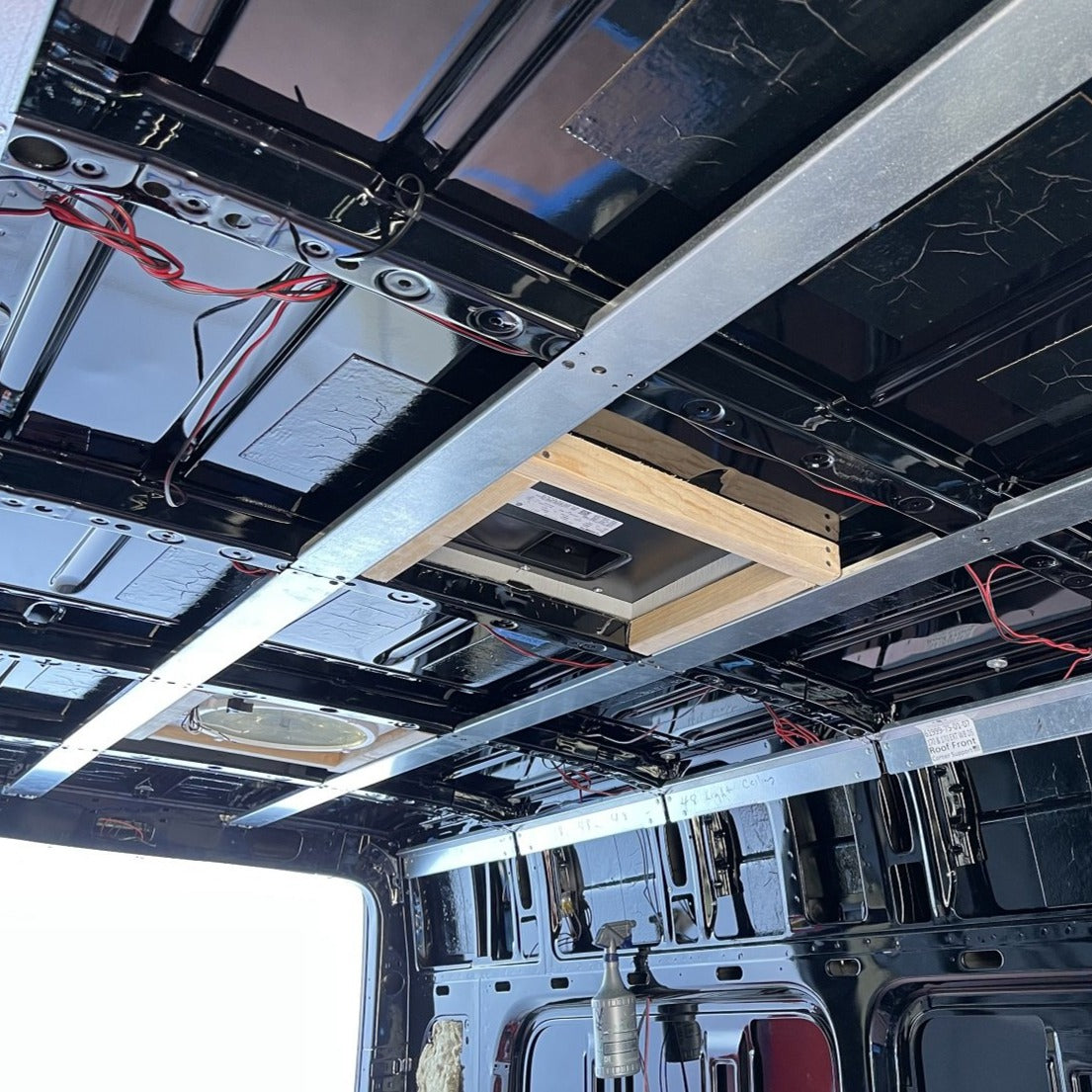

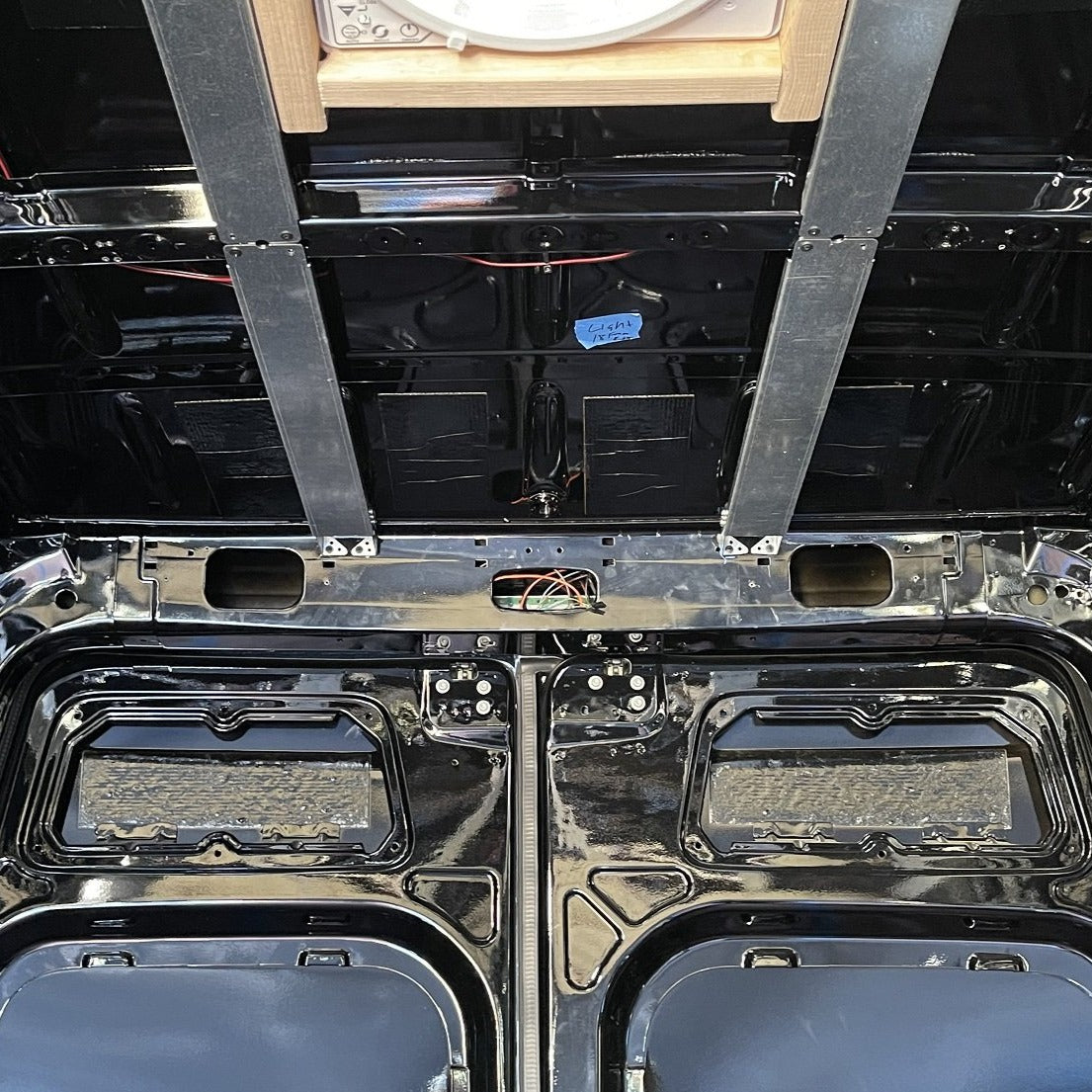

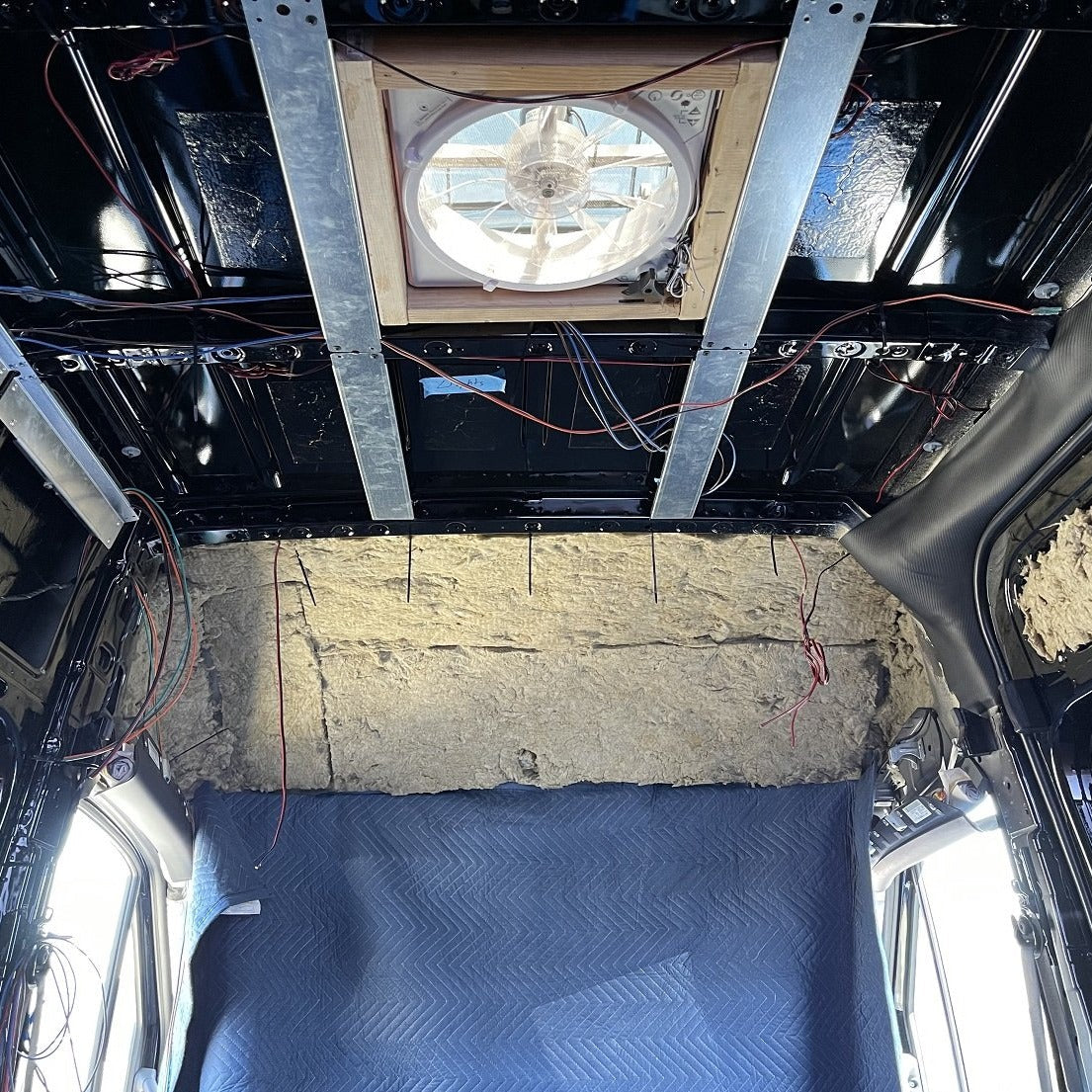

• PRODUCT DETAIL 4: parallel bracing that runs front to back of your Sprinter 170 EXT van

• PRODUCT DETAIL 5: can be mounted in any width accross the ceiling to provide support

• MADE IN: the U.S.A.

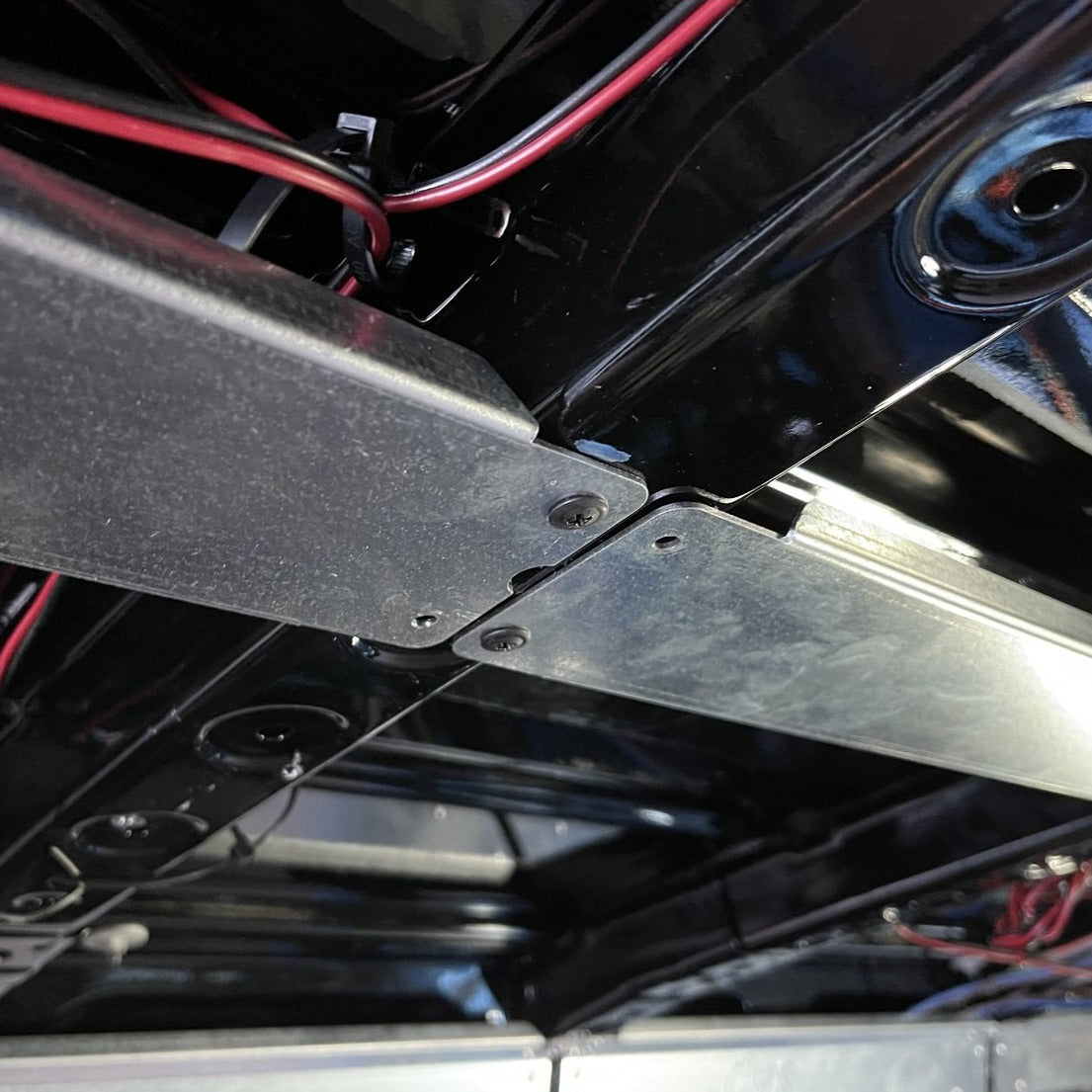

• NOTE: pictures show parts screwed in. For install these will be riveted into place.

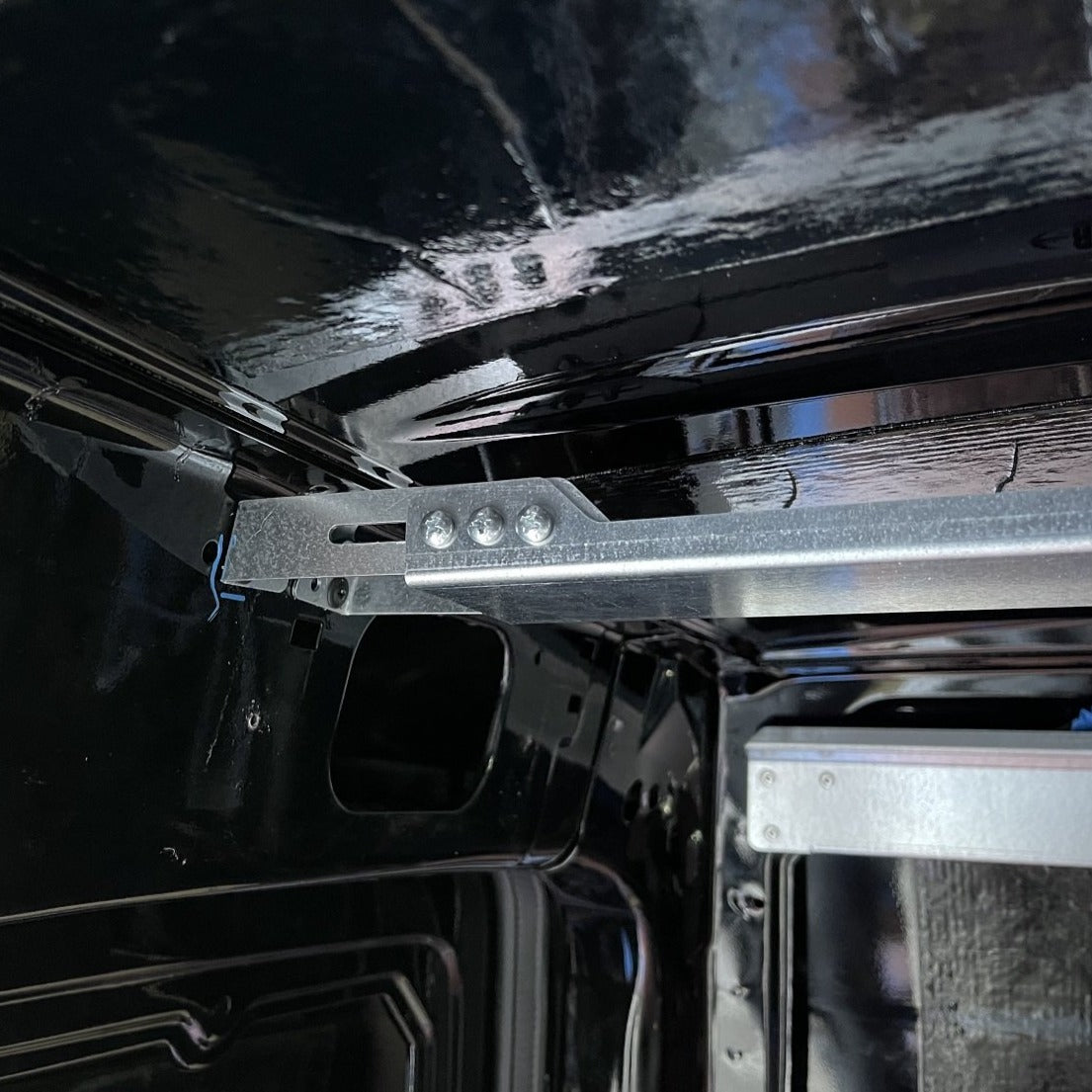

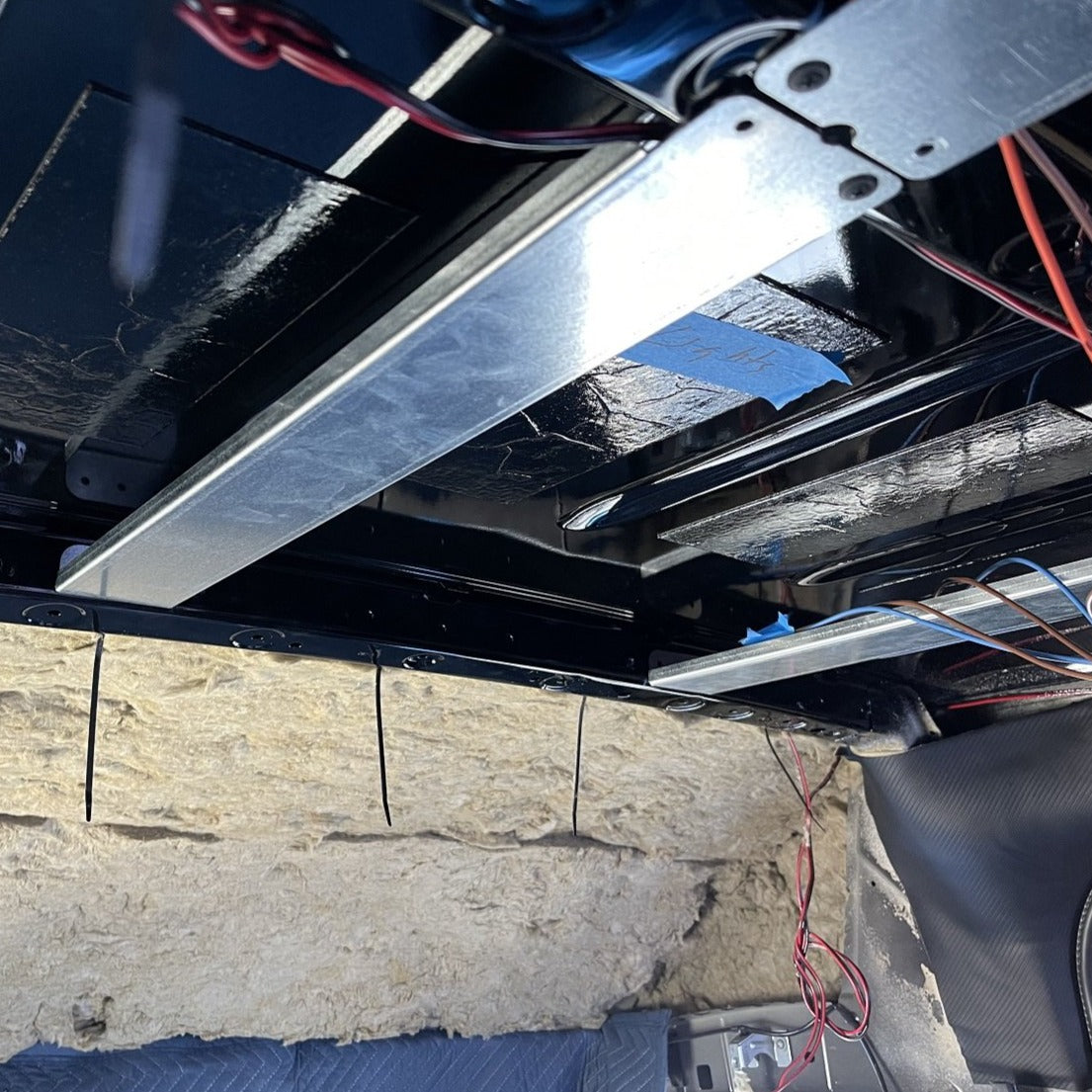

• PRODUCT DETAIL 8: Front bracket may require a 90 deg screw gun head to install screws as rivet gun will not fit

• PRODUCT DETAIL 9: RB Components Ceiling braces allow you more time to focus on your build. Our ceiling brace kits are made from .060 thick galvanized steel and come with 3/16 rivets to securely hold them in place. These are great when adding l-track or any other ceiling brackets to your ceiling when a secure mounting option is needed.

FEATURES

• GALVANIZED STEEL: Uses 0.060-inch galvanized-steel braces.

• ADJUSTABLE WIDTH PLACEMENT: Runs front to back and can be spaced across the ceiling for the planned system.

• INSTALLATION HARDWARE: Includes 3/16-inch aluminum rivets and self-tapping screws.

COMMON PAIRINGS

• CEILING L-TRACK: Mount compatible track only after brace alignment and load planning.

• CEILING PANELS: Record brace locations before covering them with insulation and finish panels.

• TIE-DOWN ANCHORS: Use rated anchors and consider the full roof and fastener load path.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter 170 Extended.

• WHEELBASE: 170 Extended only.

• ROOF HEIGHT: Confirm roof-rib geometry and final ceiling depth in the specific van.

• REQUIREMENTS: Requires riveting into position; the front bracket may require a 90-degree screw-gun head because rivet-gun access is limited.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What are the braces made from?

A: They are made from 0.060-inch galvanized steel.

Q: Is mounting hardware included?

A: Yes, 3/16-inch aluminum rivets and self-tapping screws are included.

Q: What can mount to the braces?

A: They provide a solid surface for ceiling L-track or other properly engineered anchors.

Q: When should they be installed?

A: West Coast Vans recommends installing and documenting them before insulation and ceiling panels.
