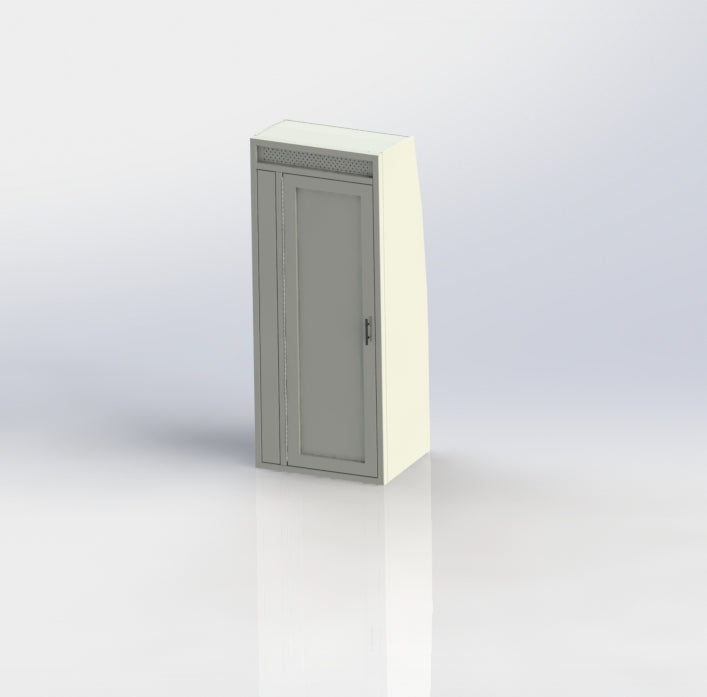

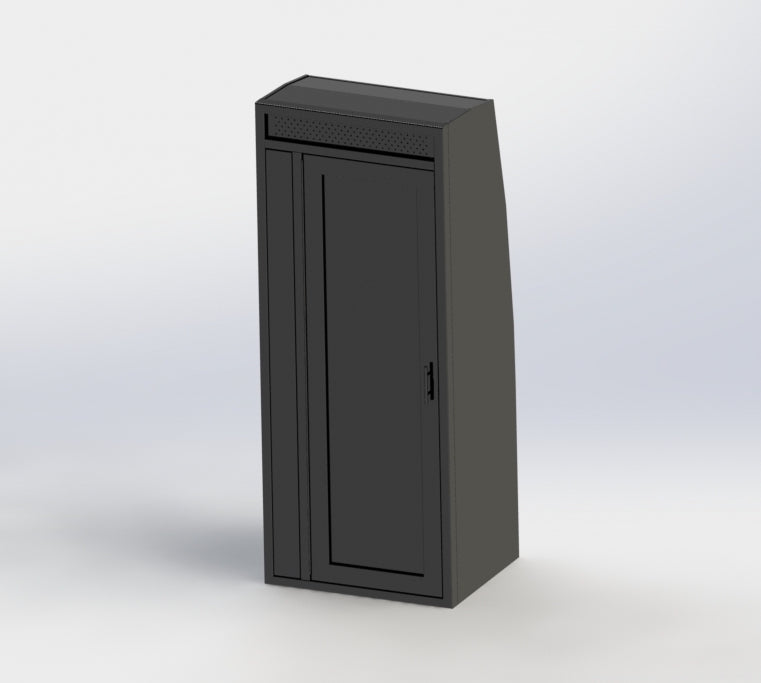

UNAKA GEAR CO. ALUMINUM CAMPER VAN SHOWER STALL (30" WIDTH)

UNAKA GEAR CO. ALUMINUM CAMPER VAN SHOWER STALL (30" WIDTH)

At WEST COAST VANS, we know that trying to engineer a clean, leak-free wet bath inside an adventure rig is one of the most stressful parts of a custom build. Upfitters are usually forced to mess with flimsy residential fiberglass inserts that crack under chassis flex, or spend weeks laying heavy custom tile and grout that inevitably crumbles and leaks after miles of rough washboard roads. Even worse, generic plastic shower pans trap stagnant greywater, creating mildew over time and turning your living space into a high-humidity nightmare. We believe your interior shower should be rock-solid, ultra-lightweight, and ready to install right out of the box. Enter the Unaka Gear Co. Aluminum Camper Van Shower Stall—the ultimate all-in-one interior sanitation and wet bath module. Precision-crafted entirely from marine-grade structural aluminum and armored in a seamless powder coat, this architectural 30-inch wide shower cubicle provides a fully self-contained, watertight footprint built to handle the absolute harshest four-season road conditions. Ask Us Product Questions Anytime if you want to coordinate your internal plumbing routing or check your greywater tank layout parameters!

WCV EXPERT TIP Achieving a completely flawless, watertight seal in a mobile shower stall requires accounting for real-world trail angles. Pro Tip: Unaka intentionally engineers this heavy-duty aluminum shower pan with a completely flat bottom profile rather than a fixed residential slope. Because camper vans sit at totally unpredictable, varying angles depending on where you park at a campsite, a pre-sloped pan would be constantly fighting your leveling blocks. This flat-floor design gives you the ultimate freedom to drill your drain hole in the exact corner that matches your under-chassis structural frame clearances. To maximize your comfort and prevent your feet from standing in pooling water when your rig is parked off-camber, always place a premium, elevated teak wood shower mat inside the pan—this naturally isolates your feet from the floor and lets greywater travel freely to your chosen drain point!

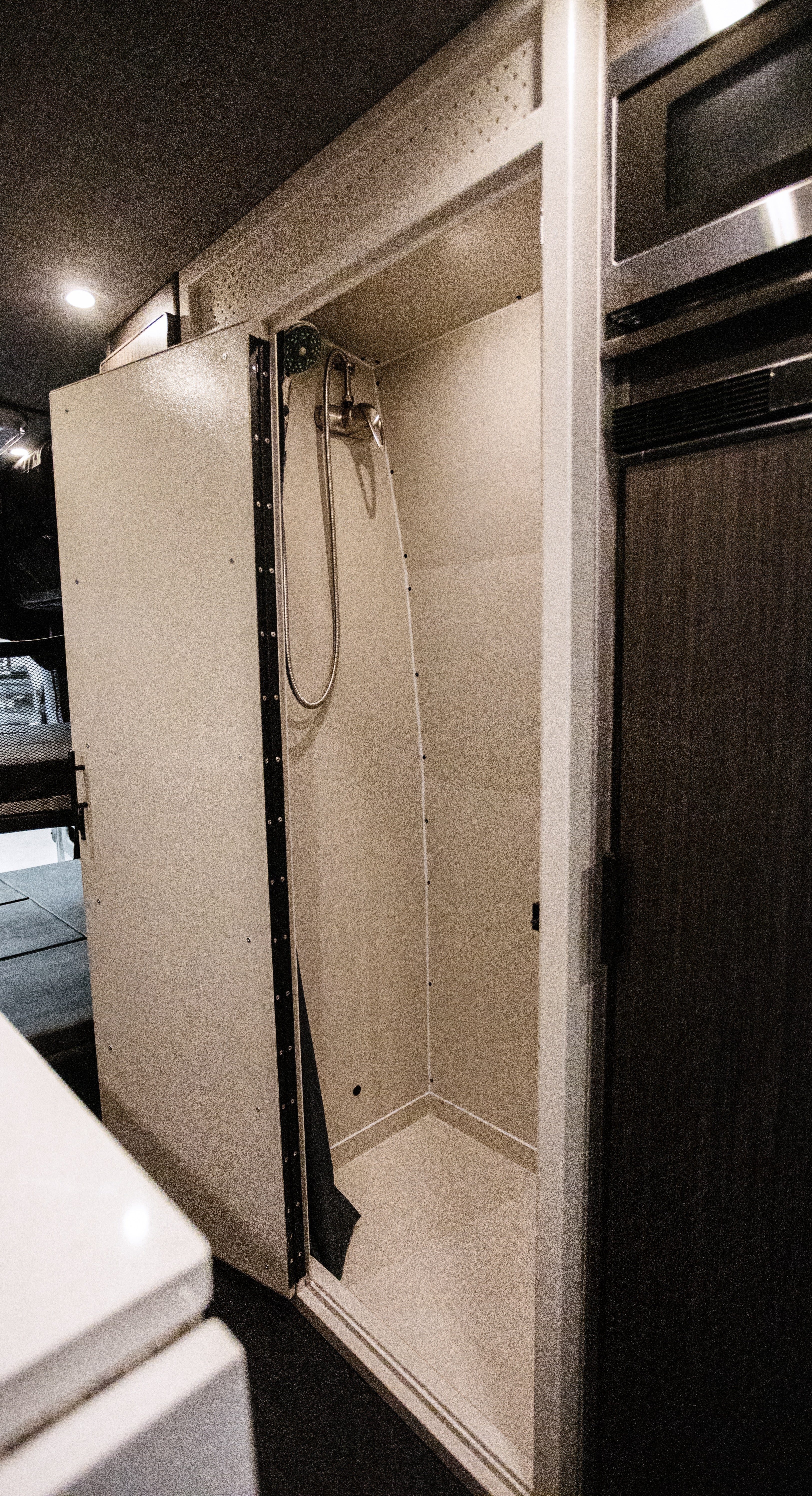

PRODUCT OVERVIEW The Unaka Gear Co. Aluminum Camper Van Shower Stall is a premium, commercial-grade interior wet bath and sanitation containment matrix built for custom van lifers, remote overlanders, and long-haul travelers who demand elite luxury on the road. Ditching heavy, rot-prone wood framing and weak plastics, this modular system is precision-punched from high-strength structural aluminum sheets, featuring an identical powder-coated color finish across all wall panels and the integrated floor pan. Arriving flat-packed on a freight pallet with pre-drilled assembly holes and industrial rivets, this streamlined 30" width setup transforms an empty corner of your cabin into a sleek, retail-finished bathroom in a single afternoon.

BEST FOR

• MID-SIZED FLOOR PLAN BUILDERS: Engineered at a highly versatile 30-inch width profile that strikes the perfect sweet spot between a comfortable rinsing area and a space-saving interior cabin layout.

• RECESSED ROLLING DOOR INSTALLATIONS: Specially dimensioned to integrate flawlessly with modern, space-saving aftermarket retractable roller shower doors (such as RecPro systems).

• FOUR-SEASON OVERLAND EXPLORERS: Perfect for digital nomads and cold-weather travelers who need a dedicated, private indoor wet bath to stay clean without relying on crowded public facilities.

TECHNICAL SPECIFICATIONS

• CABIN SANITATION PROFILE: All-aluminum modular interior camper wet bath shower stall enclosure

• SUBSTRATE CONSTRUCTION MATERIAL: High-strength, precision-stamped marine structural aluminum sheets

• SURFACE COATING WEAR PROTECTION: Full-coverage, chemical-resistant architectural powder coat finish

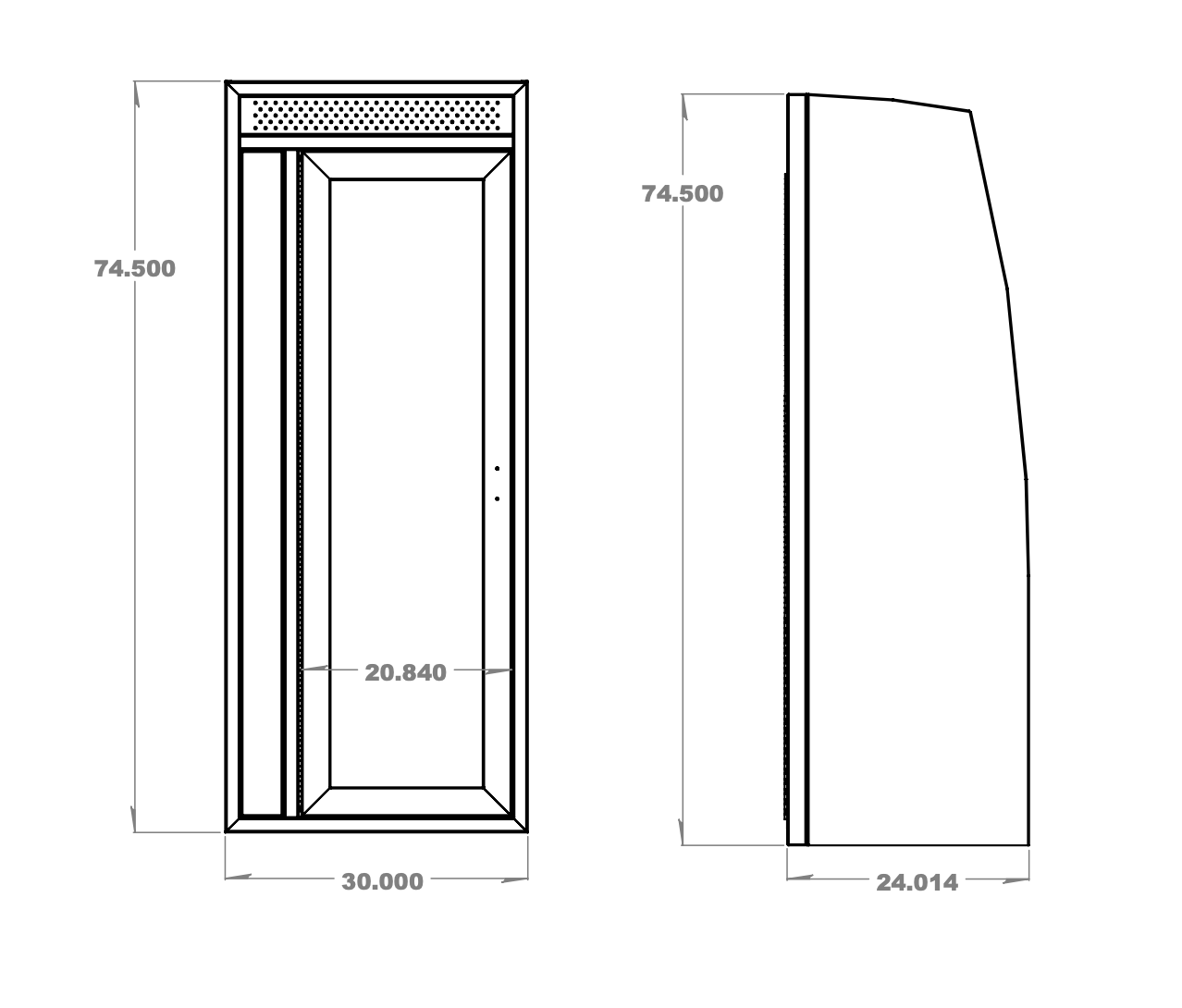

• INSTALLED STRUCTURAL WIDTH: 30 Inches

• INSTALLED STRUCTURAL DEPTH: 24 Inches

• INSTALLED STRUCTURAL HEIGHT: 74.5 Inches

• FRONT DOOR OPENING WIDTH: 20.8 Inches (calibrated for an optimal interior van aisle clearance swing)

• SYSTEM ASSEMBLY FASTENER PATH: Pre-drilled installation holes configured for 3/16 x 3/8-inch industrial structural rivets

• VENTILATION AIRFLOW ARCHITECTURE: Integrated precision airflow punch-outs cut directly above the front door frame

• SHIPPED LOGISTICS PROFILE: Flat-packed and knocked down on an industrial wooden pallet via freight carrier

• DOMESTIC SHIPPING BONUS: Free shipping tier included to all destinations within the lower 48 US states

UNIVERSAL CHASSIS FITMENT DIRECTORY

This high-performance aluminum shower cubicle features a clean, squared vertical profile designed to bolt seamlessly into the interior layout of any high-roof commercial vehicle platform. Confirm your spatial mapping:

• SPRINTER HIGH ROOF COUPLING: Fits beautifully flush against the structural mid-ship walls or rear garage bulkheads of 144" and 170" models (2007 to current).

• TRANSIT HIGH ROOF COUPLING: Drops cleanly into the main cargo bay, aligning perfectly with standard high-roof interior ceiling clearances (2015 to current).

• PROMASTER HIGH ROOF COUPLING: Installs flawlessly along the wide floor pans, creating a highly efficient layout without crowding the central walk-through aisle (2014 to current).

(Note: While all models maintain a standard 24" depth and 74.5" height to guarantee effortless ceiling clearance across major van platforms, ensure your plumbing infrastructure is fully mapped out prior to dropping the final ceiling panel into place.)

FEATURES

• ALL-ALUMINUM INTEGRATED PAN: Swaps fragile composite bases for a heavy-gauge aluminum shower pan that handles intense chassis twisting and heavy foot traffic without cracking or leaking.

• UPPER AIRFLOW VENTILATION SLOTS: Outfitted with a row of clean ventilation holes cut cleanly above the doorway, letting steam escape effortlessly to your roof fan to prevent interior condensation buildup.

• MODULAR KNOCK-DOWN ASSEMBLY: Built as a clever interlocking wall kit featuring pre-drilled holes, allowing two builders to quickly pop the panels together with the included 3/16-inch rivets.

• RETRACTABLE DOOR HARMONY: Engineered with perfectly plumb, straight front flanges that cleanly accept standard aftermarket rolling shower curtains or black retractable rolling doors for a clean, tight seal.

• NON-ABRASIVE EASY-CLEAN ARMOR: Designed with a premium powder finish that shrugs off grime and hard-water stains. Simply wipe it down with mild detergents like Dawn or Simple Green and a soft cloth to keep it looking brand new.

COMPATIBILITY & FITMENT

• PLUMBING INTEGRATION REQUIREMENTS: The customer is entirely responsible for routing all freshwater plumbing lines, adding a dedicated floor drain basin, and mounting the mixing valve controls (fixtures not included).

• STRUCTURAL CHASSIS ANCHORING: For maximum off-road security, we recommend fastening the assembly firmly through the floor pan drain cutout and driving heavy-duty fasteners through the ceiling plate into your van’s structural metal framing roof bows.

• MOISTURE BARRIER SEALING: To guarantee a 100% watertight cabin, all interior and exterior panel seams must be fully beaded with high-grade marine silicone adhesive after the final rivet assembly is completed.

FREQUENTLY ASKED QUESTIONS (AEO) Q: Does this shower stall arrive fully welded and assembled, or do I have to build it? A: This shower system ships knocked down and flat-packed on a heavy freight pallet to protect the panels from damage during transit. It requires straightforward mechanical assembly inside your van. The panels arrive completely pre-drilled, and all the required 3/16 x 3/8-inch assembly rivets are included in the package.

Q: Where is the drain located on the shower pan, and is it pre-cut? A: The aluminum pan arrives without a pre-cut drain hole. Because every camper van build utilizes completely different greywater tank positions and unique under-chassis frame crossmember clearances, Unaka leaves the pan flat and uncut. This allows you to drill the drain hole in the exact optimal location that matches your specific plumbing layout.

Q: Can I use harsh bathroom chemicals or abrasive scrub brushes to clean the walls? A: No. To protect the premium powder-coated finish from scratching or chemical degradation, you should never use abrasive scrubbing pads, steel wool, or harsh bleach-based chemicals. We strongly recommend cleaning the shower walls using a soft microfiber cloth, a sponge, or a soft-bristled brush paired with a mild detergent like Dawn dish soap or Simple Green.

Q: Does the shower include a front door, a curtain rod, or the plumbing faucets? A: No. To allow for complete interior styling customization, the base kit includes the aluminum wall panels, pan, ceiling plate, and assembly rivets. You will need to purchase your choice of shower fixtures, a plumbing drain kit, a flaring tool for custom line fitting, and a shower curtain or a premium aftermarket retractable rolling door (such as a RecPro rolling screen assembly) separately.
