At West Coast Vans, we choose RB Components gear for builders who want purpose-built van hardware with clear dimensions and real installation requirements. Need help confirming fitment or planning the surrounding build? Ask Us Product Questions Anytime.

WCV EXPERT TIP

Build and load-test the complete tray at a conservative weight because capacity changes with plywood width, fasteners, floor structure, and L-track mounting.

PRODUCT OVERVIEW

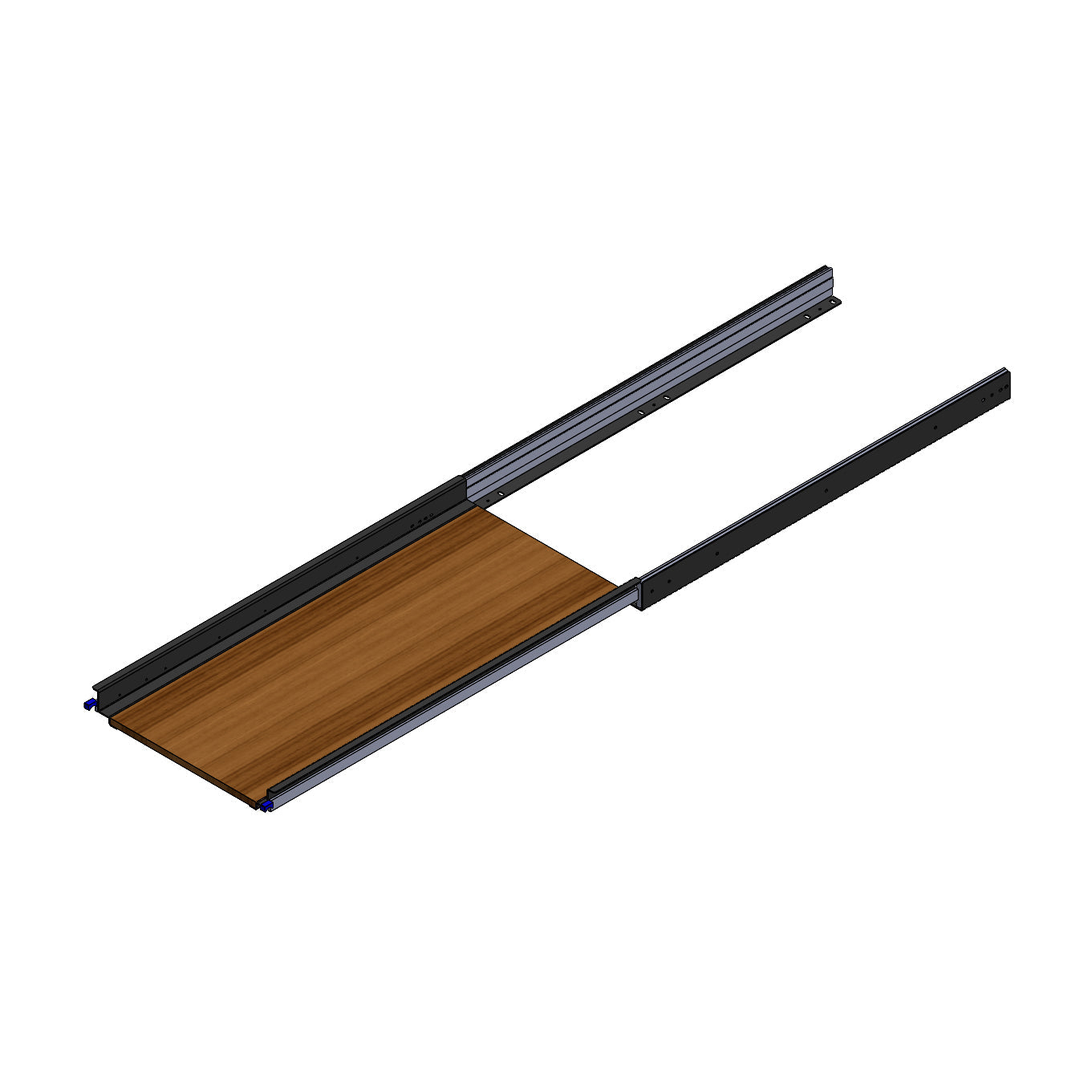

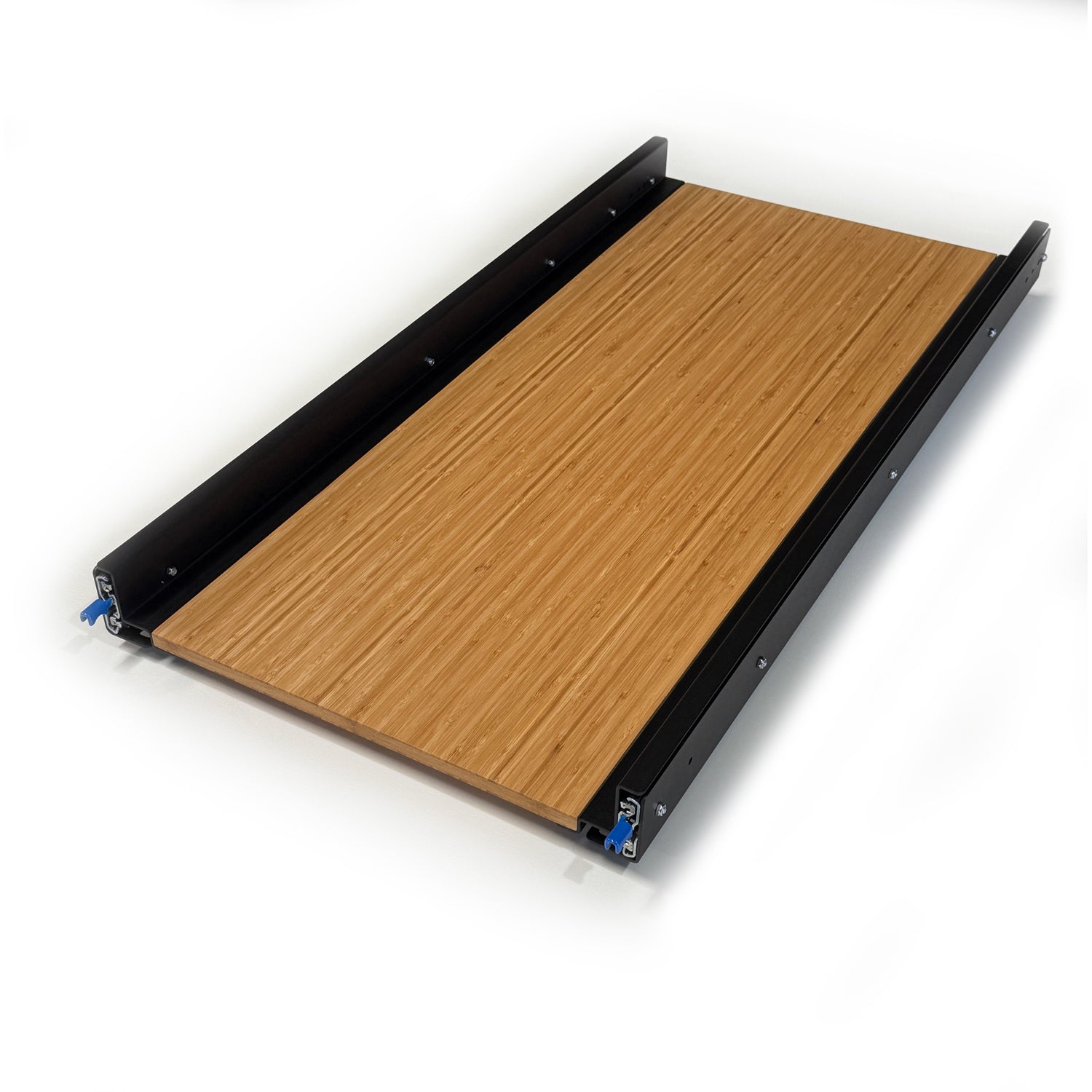

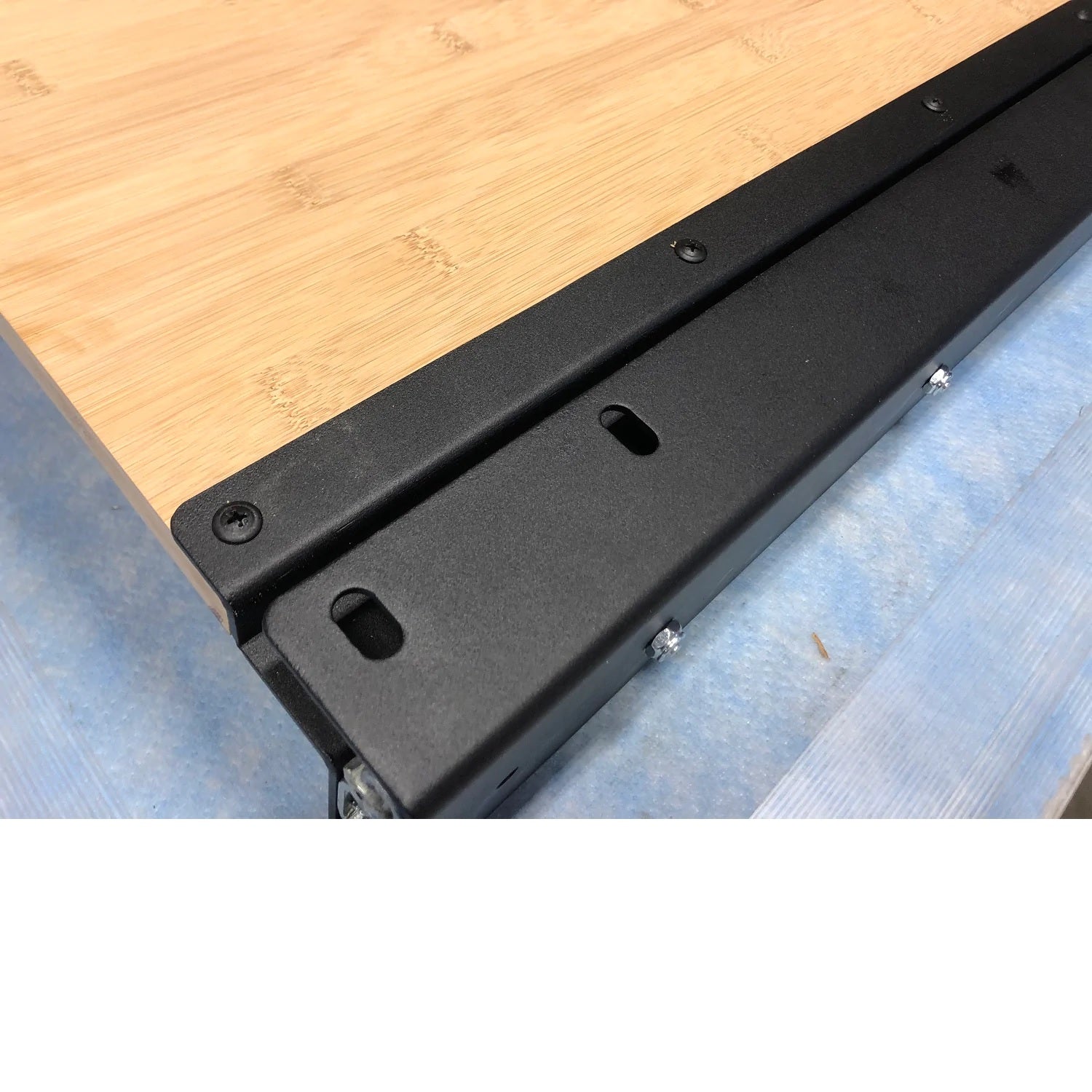

RB Components 48-Inch DIY Slide Tray Kit - Custom-Width Cargo supplies the slide hardware needed to build a custom-width pull-out cargo tray with builder-provided 3/4-inch plywood.

The source includes slide length, lock arrangement, mounting options, load-rating conditions, excluded plywood, and additional L-track components.

BEST FOR

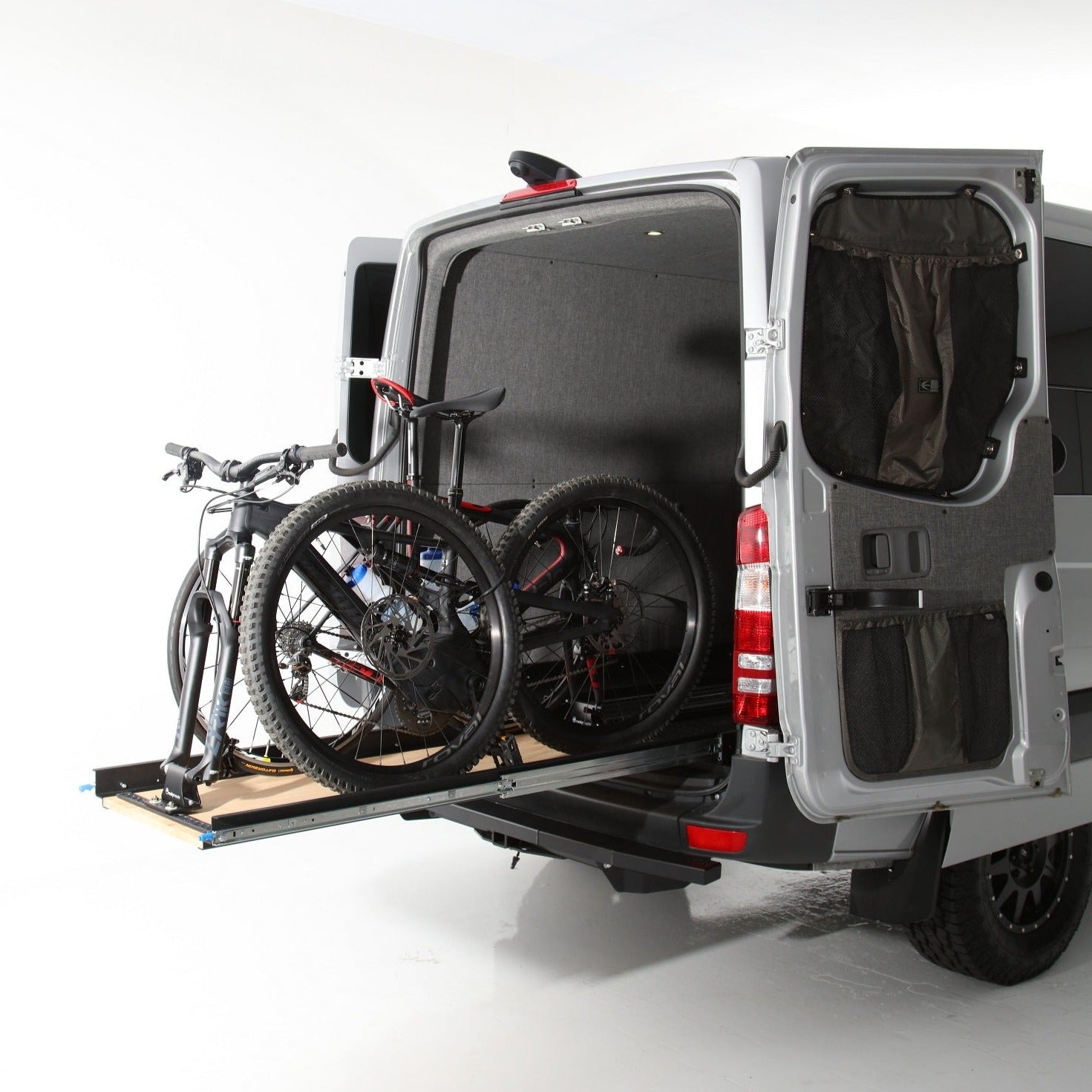

• BIKE AND GEAR GARAGES: Creates a pull-out tray for bikes, camping equipment, or other rear cargo.

• CUSTOM-WIDTH BUILDS: Lets the builder size the 3/4-inch plywood floor to the available bay.

• LOW-PROFILE STORAGE: Uses a slim slide arrangement for tight under-bed or garage spaces.

TECHNICAL SPECIFICATIONS

• VENDOR: RB Components

• PRODUCT: 48-Inch DIY Slide Tray Kit - Custom-Width Cargo

• PRODUCT DETAIL 1: 48" Full Slide out

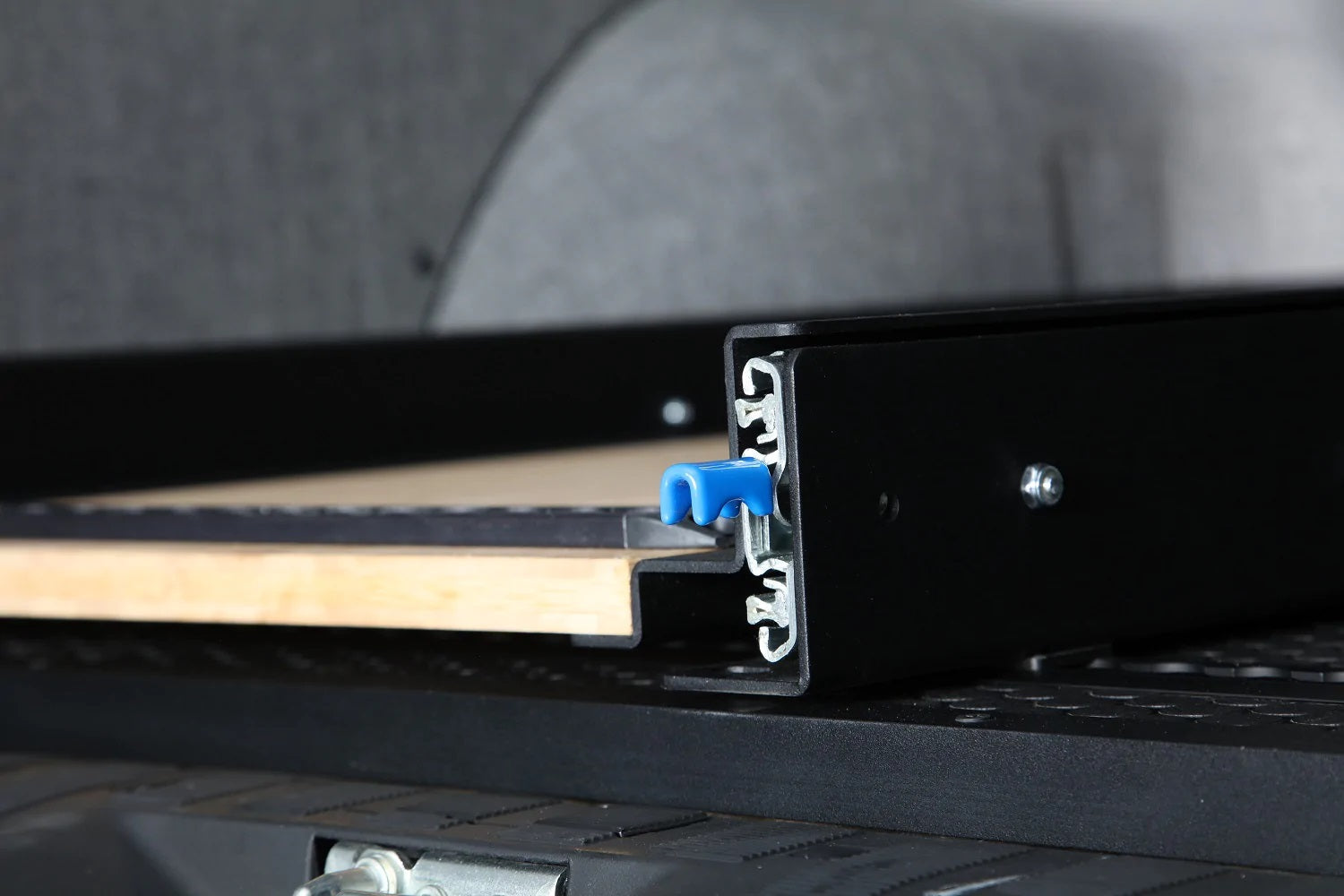

• PRODUCT DETAIL 2: Double Slide Locks

• PRODUCT DETAIL 3: Overall length including release lever 49.25

• PRODUCT DETAIL 4: Add Your Custom Width 3/4" Plywood Floor To Make Any Width Tray Slide You Want Plywood NOT included

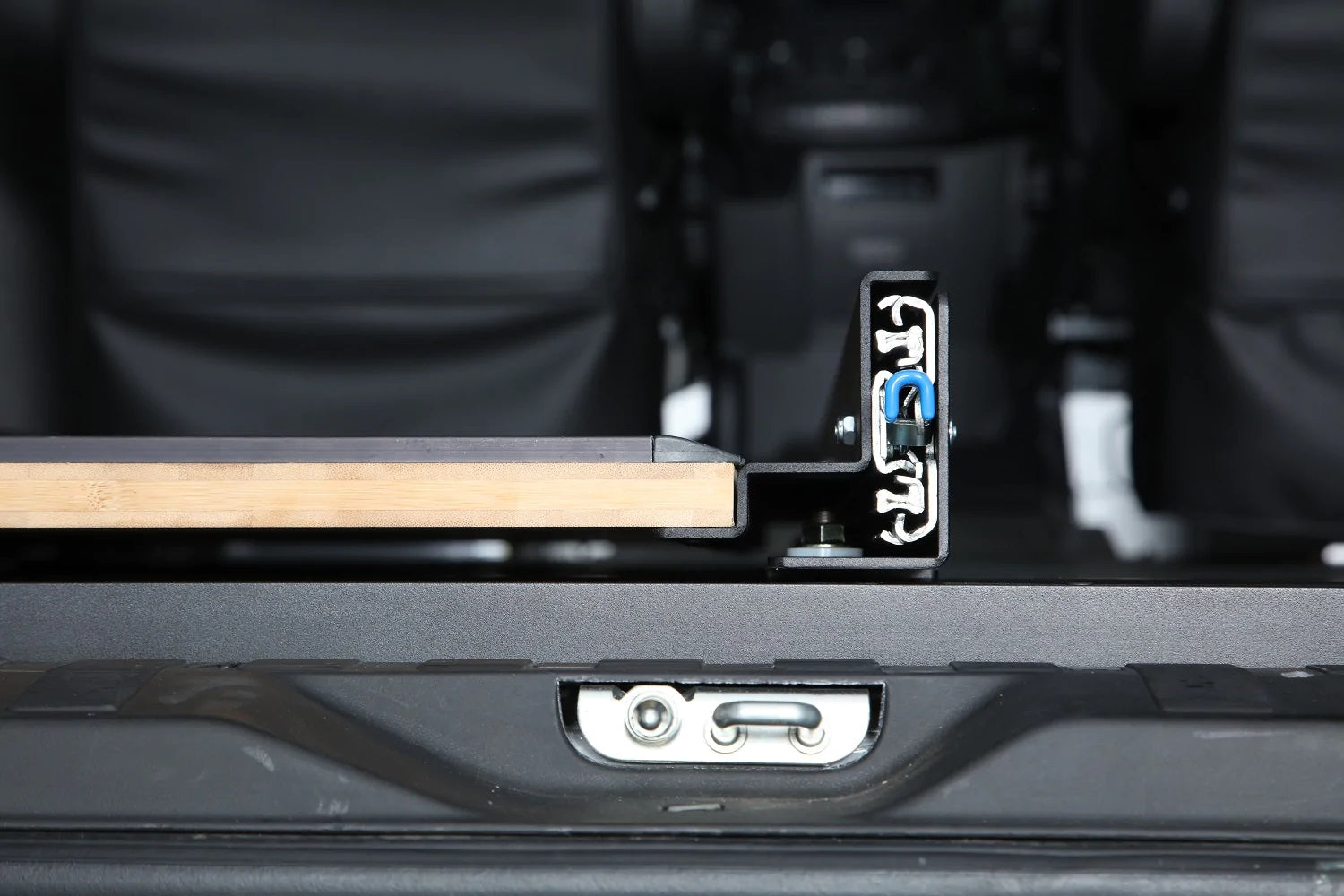

• PRODUCT DETAIL 5: Slim Design to Fit Tight Spaces

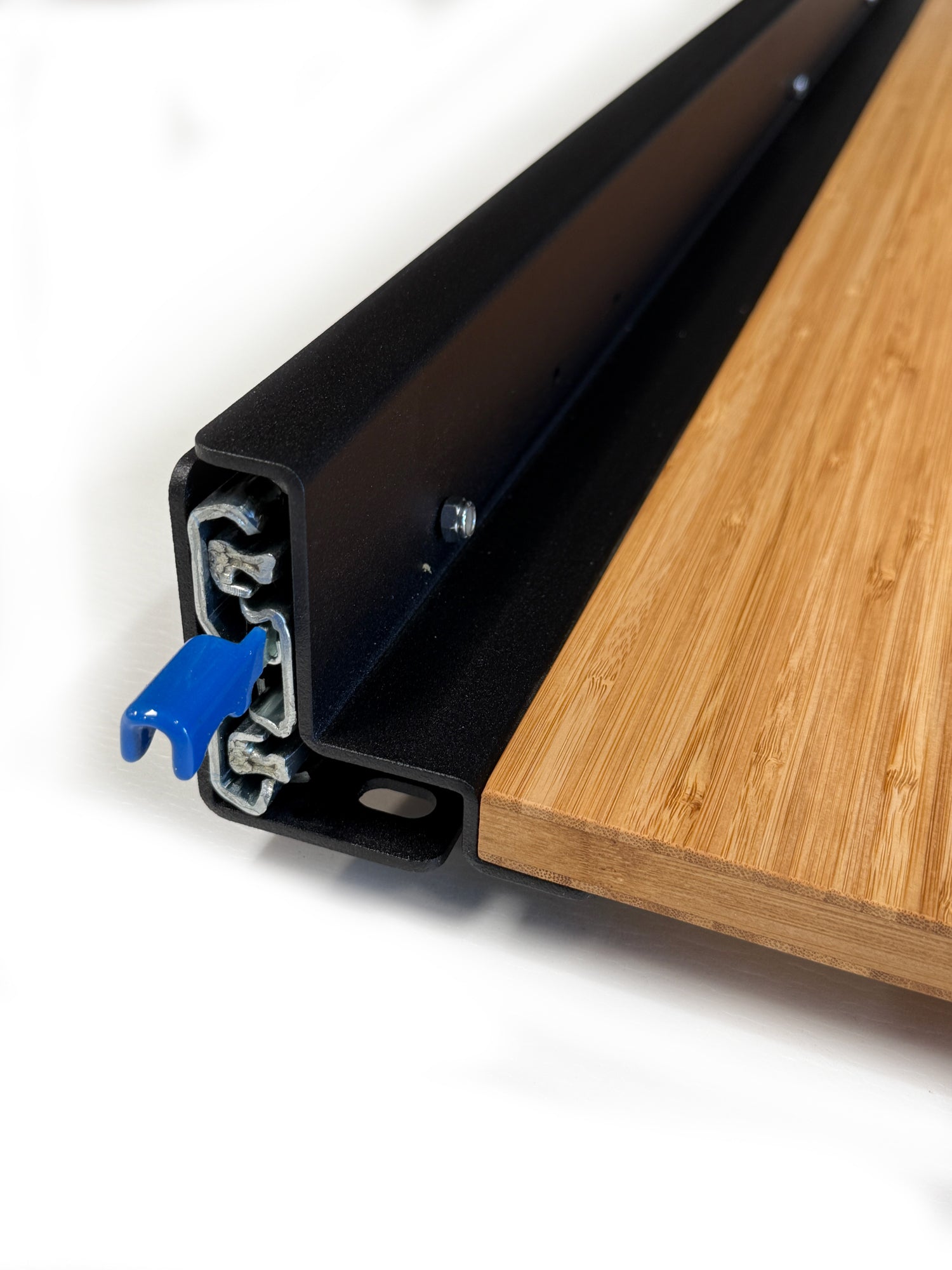

• PRODUCT DETAIL 6: Low Profile Design

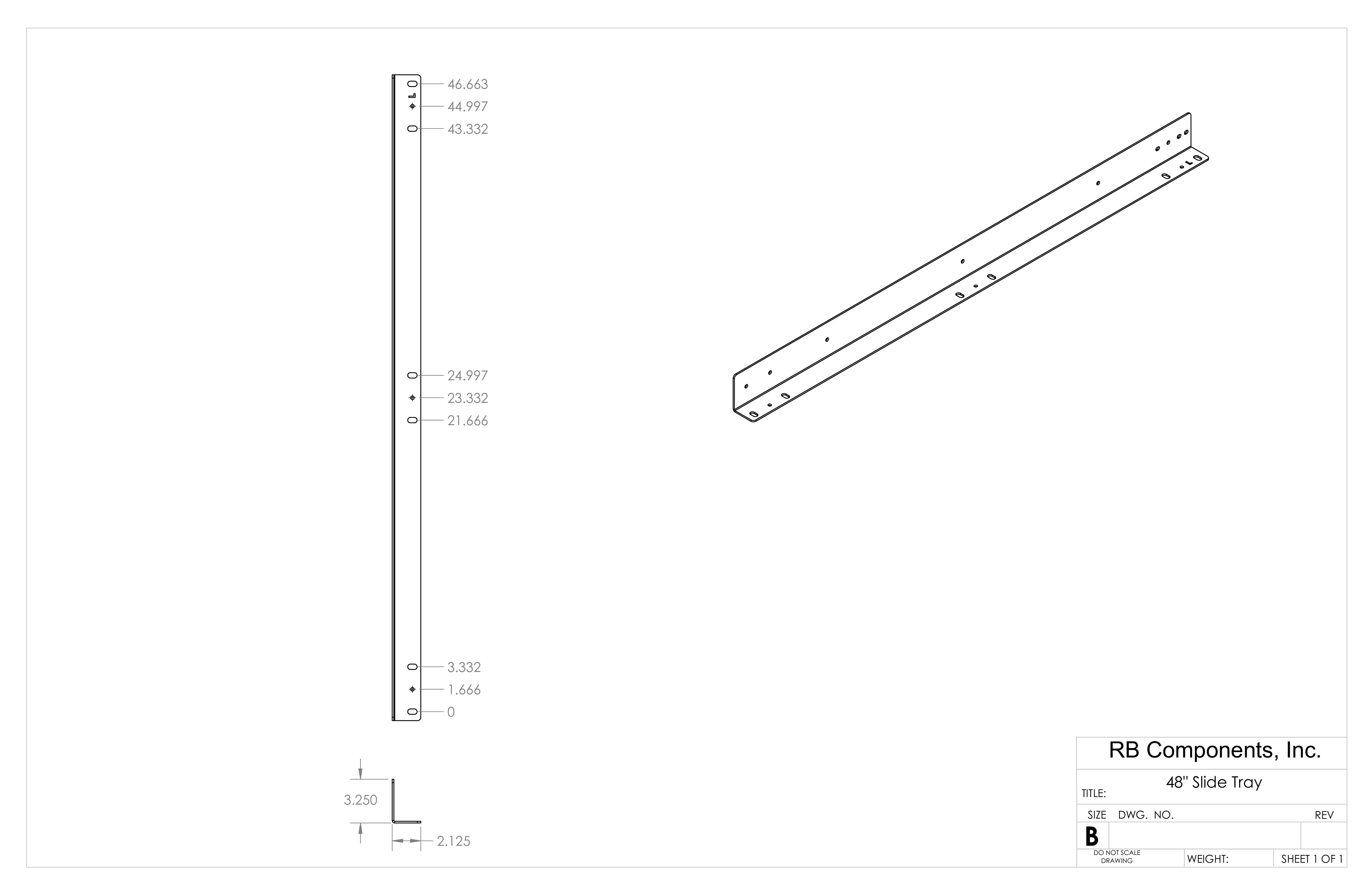

• PRODUCT DETAIL 7: Made to Fit L-Track or be Floor Mounted (hardware not provided).

• MADE IN: the U.S.A.

• PRODUCT DETAIL 9: Wood Floor Not Provided

• PRODUCT DETAIL 10: click "HERE" for installation instructions

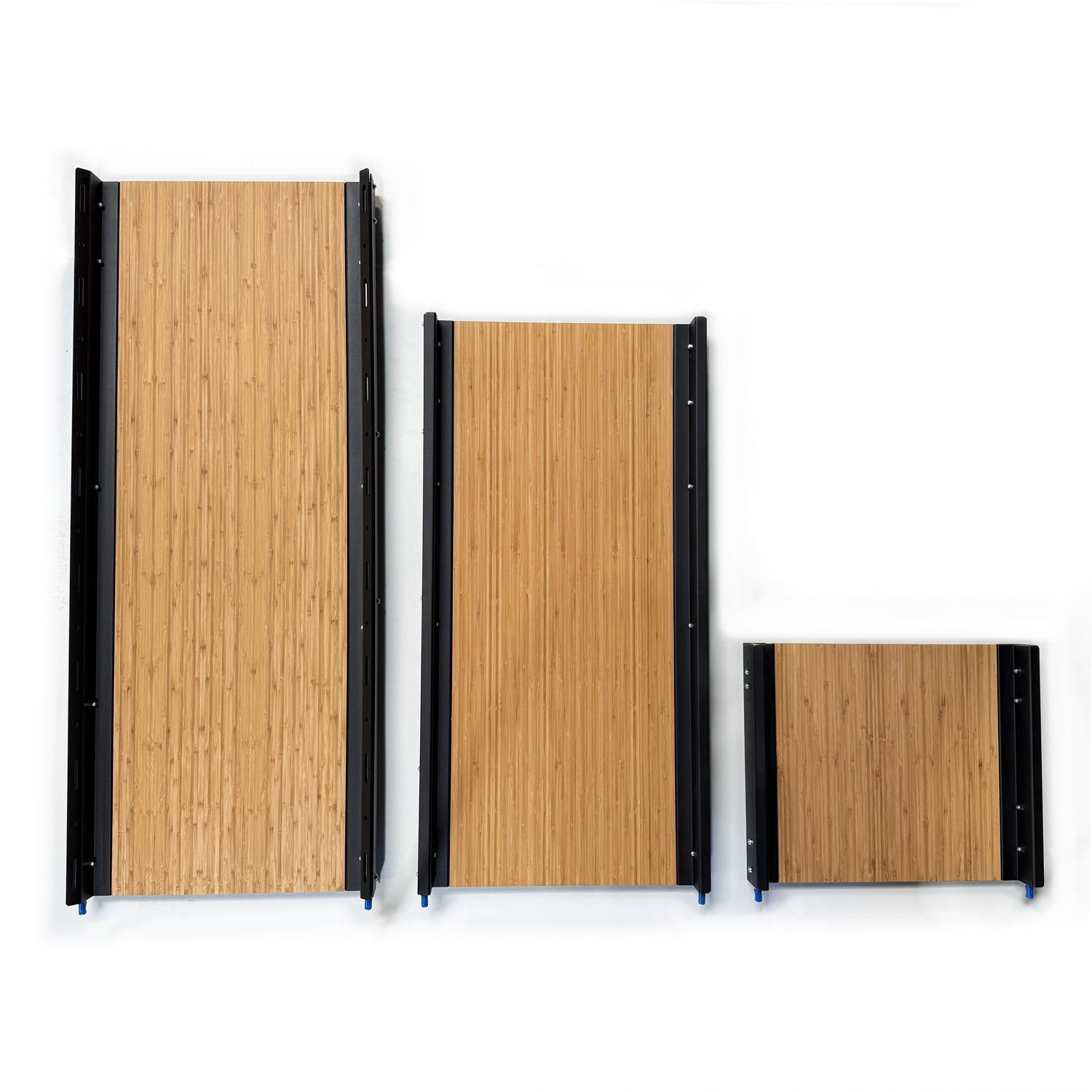

• PRODUCT DETAIL 11: RB Components DIY Slide Tray Kits are perfect for stowing bikes, camping gear or any other misc. items you may have. Available in multiple depth slides. Our DIY tray was designed to give you all the necessary hardware and you provide the floor to fit your width.

• PRODUCT DETAIL 12: Slides are rated at 500lbs. This rating will vary depending on your chosen mounting method. Hard mounting to floor and thru bolting will provide the highest capacity. Mounting to L Track as shown will reduce the weight capacity and should be tested based on L Track attachment method

• PRODUCT DETAIL 13: To mount to L-Track you will need the following items:

• PRODUCT DETAIL 14: #2506 - L-Track Fitting with Threaded Stud (4pcs)

• PRODUCT DETAIL 15: Aluminum L-track

FEATURES

• 48-INCH FULL EXTENSION: Uses the full-extension slide and release length specified below.

• DOUBLE SLIDE LOCKS: Locks the tray hardware as described in the source.

• CUSTOM FLOOR WIDTH: Builder supplies the 3/4-inch plywood floor to suit the desired tray width.

COMMON PAIRINGS

• 3/4-INCH PLYWOOD: Required and not included.

• FLOOR OR L-TRACK MOUNTING: Choose a suitable hard-mount or compatible L-track attachment method.

• L-TRACK STUD FITTINGS: The source lists four threaded-stud fittings and aluminum L-track for track mounting.

COMPATIBILITY & FITMENT

• CHASSIS: Universal van or trailer cargo area with adequate depth and structural mounting.

• WHEELBASE: Not wheelbase-specific; verify the 49.25-inch overall release-lever length.

• ROOF HEIGHT: Not roof-height-specific; confirm vertical cargo and bed-platform clearance.

• REQUIREMENTS: Builder provides 3/4-inch plywood and mounting hardware. Capacity depends on mounting method; L-track mounting reduces the stated slide rating.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Is the plywood floor included?

A: No, the builder supplies a custom-width 3/4-inch plywood floor.

Q: What is the slide rating?

A: The slides are rated at 500 pounds, but actual capacity depends on the complete mounting method and structure.

Q: Can it mount to L-track?

A: Yes, with the additional compatible fittings and track listed below, but capacity is reduced and must be tested.

Q: What should I measure?

A: West Coast Vans recommends checking the 49.25-inch overall length, cargo width, bed clearance, and full extension path.
