At West Coast Vans, we choose RB Components gear for builders who want purpose-built van hardware with clear dimensions and real installation requirements. Need help confirming fitment or planning the surrounding build? Ask Us Product Questions Anytime.

WCV EXPERT TIP

Treat this as camp furniture, not an occupied travel seat, and verify wall or storage-box structure before mounting the steel frame.

PRODUCT OVERVIEW

RB Components 58-Inch Folding Bench - Carbon Fiber Vinyl provides folding lounge seating for a camper van or trailer and uses the upholstery, frame, dimensions, and mounting arrangement listed below.

These products are not DOT-rated travel seats. They are intended for parked lounge or sleeping use and require the specified wall mounts, support legs, or RB storage box arrangement.

BEST FOR

• CAMP LOUNGE SEATING: Ideal for parked use as a folding bench or sofa inside a camper van or trailer.

• FLEXIBLE CARGO LAYOUTS: Folds toward the wall to open floor space when the seating is not in use.

• SOFA STORAGE BOX SYSTEMS: Pairs with the compatible RB shallow or deep storage box and required support arrangement.

TECHNICAL SPECIFICATIONS

• VENDOR: RB Components

• PRODUCT: 58-Inch Folding Bench - Carbon Fiber Vinyl

• PRODUCT DETAIL 1: 58" Folding Bench Seat ONLY Designed to fit 144WB Vans

• PRODUCT DETAIL 2: Carbon Fiber Vinyl with Charcoal Stitching

• PRODUCT DETAIL 3: Steel frame

• PRODUCT DETAIL 4: Not D.O.T. rated

• PRODUCT DETAIL 5: Bench sits 13-3/4" off the floor

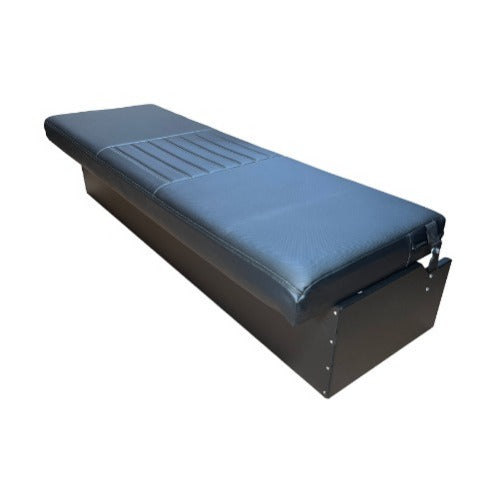

• PRODUCT DETAIL 6: Can mount to Wall or RB Sofa Storage Box (purchased separately)

• PRODUCT DETAIL 7: Folds up flat to mounting wall for more storage

• PRODUCT DETAIL 8: Durable Foam Cushion

• PRODUCT DETAIL 9: Furniture mounted to the RB Shallow Sofa storage box WILL require the bench support legs. Mounting furniture to RB Deep Sofa Storage box will NOT REQUIRE bench support legs.*

• PRODUCT DETAIL 10: RB's folding bench seat is a versatile design that is not only comfortable but its practical. The bench seat can be mounted to the wall of your van or trailer using our wall mounts or RB storage boxes. Find the option that works best for your build.

• PRODUCT DETAIL 11: Seated Position |

• LENGTH:

• PRODUCT DETAIL 13: 58" |

• DEPTH:

• PRODUCT DETAIL 15: 26" ( 28" off the wall ) |

• HEIGHT:

• PRODUCT DETAIL 17: 18.5" ( to top of cushion ) |

• PRODUCT DETAIL 18: Stowed Position |

• PRODUCT DETAIL 19: 5-1/2" ( off the wall ) |

• PRODUCT DETAIL 20: 37-1/2" ( from the floor to top of cushion ) |

FEATURES

• FOLDING FRAME: Uses a steel frame that folds toward the mounting wall for cargo flexibility.

• DURABLE CUSHIONING: Includes the upholstery and foam cushion described in the source details.

• WALL OR BOX MOUNTING: Mounts to the wall or compatible RB sofa storage box as specified.

COMMON PAIRINGS

• RB SOFA STORAGE BOX: Select the matching length and depth; shallow boxes require support legs where stated.

• WALL MOUNT STRUCTURE: Use suitable vehicle reinforcement when mounting the furniture directly to the wall.

• CARGO FLOOR PLAN: Confirm seated, folded, and sleeping dimensions against doors, cabinets, and aisle space.

COMPATIBILITY & FITMENT

• CHASSIS: Van or trailer interior with adequate structural mounting and the listed width; observe Sprinter 144 wheelbase notes where stated.

• WHEELBASE: Check the exact product note: some 58-inch models are designed for 144 wheelbase vans, while the 76-inch bench has a passenger-side 144 wheelbase restriction.

• ROOF HEIGHT: Not roof-height-specific; confirm seated headroom and folded clearance.

• REQUIREMENTS: Not DOT rated. Do not occupy while driving. Requires compatible wall mounting or RB storage box hardware and support legs where specified.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Can passengers ride on this seat while driving?

A: No, the source states that this furniture is not DOT rated.

Q: Can it mount to an RB storage box?

A: Yes, compatible models can mount to an RB sofa storage box; shallow boxes require support legs where stated.

Q: Does it fold for cargo space?

A: Yes, the frame folds toward the mounting wall to reduce its footprint.

Q: How should fit be checked?

A: West Coast Vans recommends comparing the seated, folded, and sleeping dimensions with the full van layout.
