At West Coast Vans, exterior storage should open without requiring a full campsite evacuation. This sealed 3 mm aluminum box uses split doors, exterior L-track, gas struts, and 750 or 1000 mm heights; Ask Us Product Questions Anytime before choosing box size and rack placement.

WCV EXPERT TIP

Mock up the loaded center of gravity and cycle both rear doors before drilling; exterior cargo changes hinge load and body clearance quickly.

PRODUCT OVERVIEW

Tec Vanlife Aluminum Split-Door Storage Box - Sealed Cargo adds rear-door cargo capacity using the aluminum construction, mounting pattern, weather sealing, door-side choice, and dimensions listed below.

Confirm the rear-door hinge generation, supporting rack or bracket system, door load, latch access, and complete opening clearance before installation.

BEST FOR

• REAR-DOOR GEAR STORAGE: Moves bulky equipment outside the living area for easier access.

• MODULAR EXTERIOR SYSTEMS: Uses MOLLE, slots, carriage bolts, shelves, or accessory mounting patterns described below.

• ADVENTURE EQUIPMENT BUILDS: Useful for recovery gear, outdoor equipment, and other properly secured cargo.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

• PRODUCT: Aluminum Split-Door Storage Box - Sealed Cargo

• SIZE: Height 1000 mm, Height 750mm

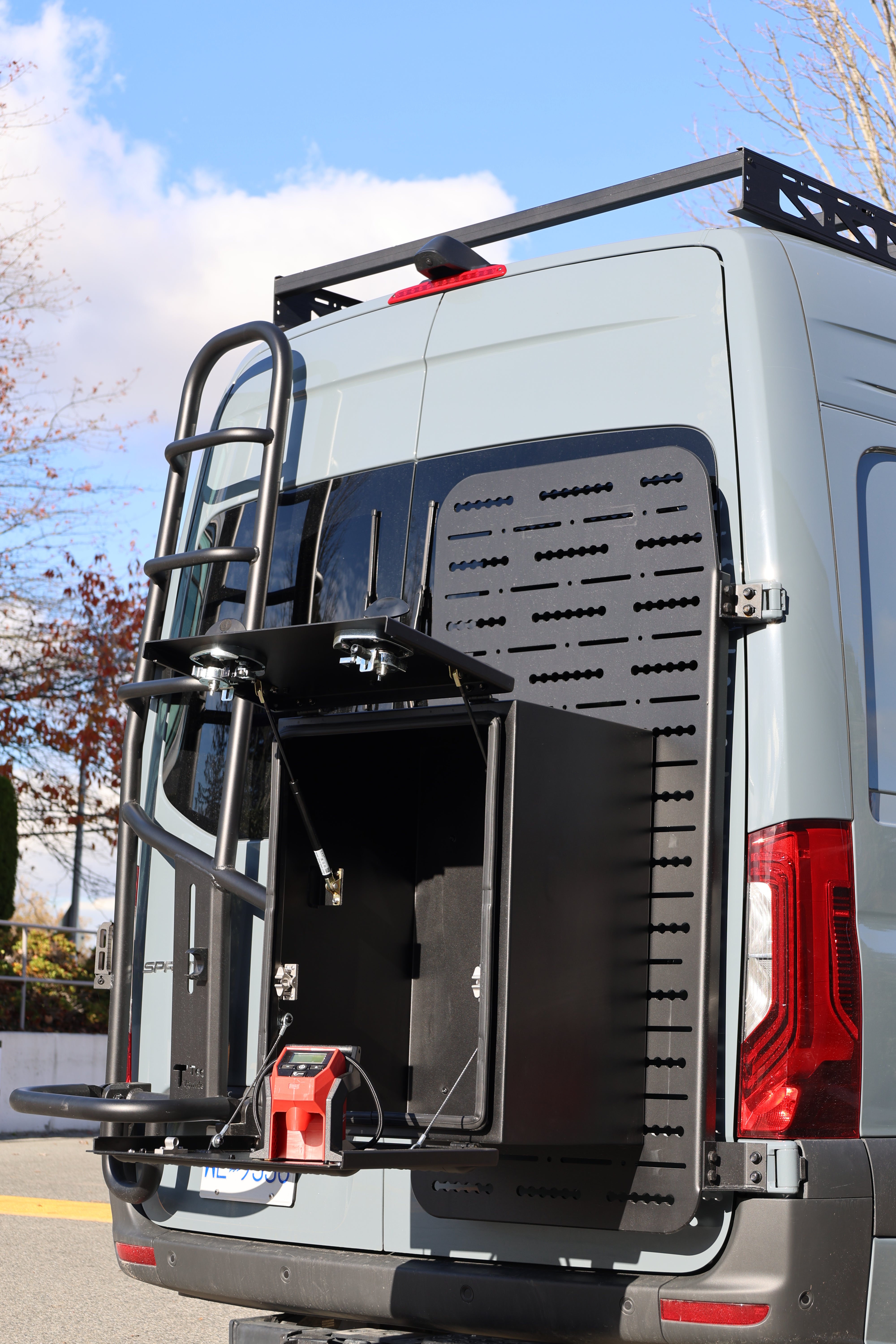

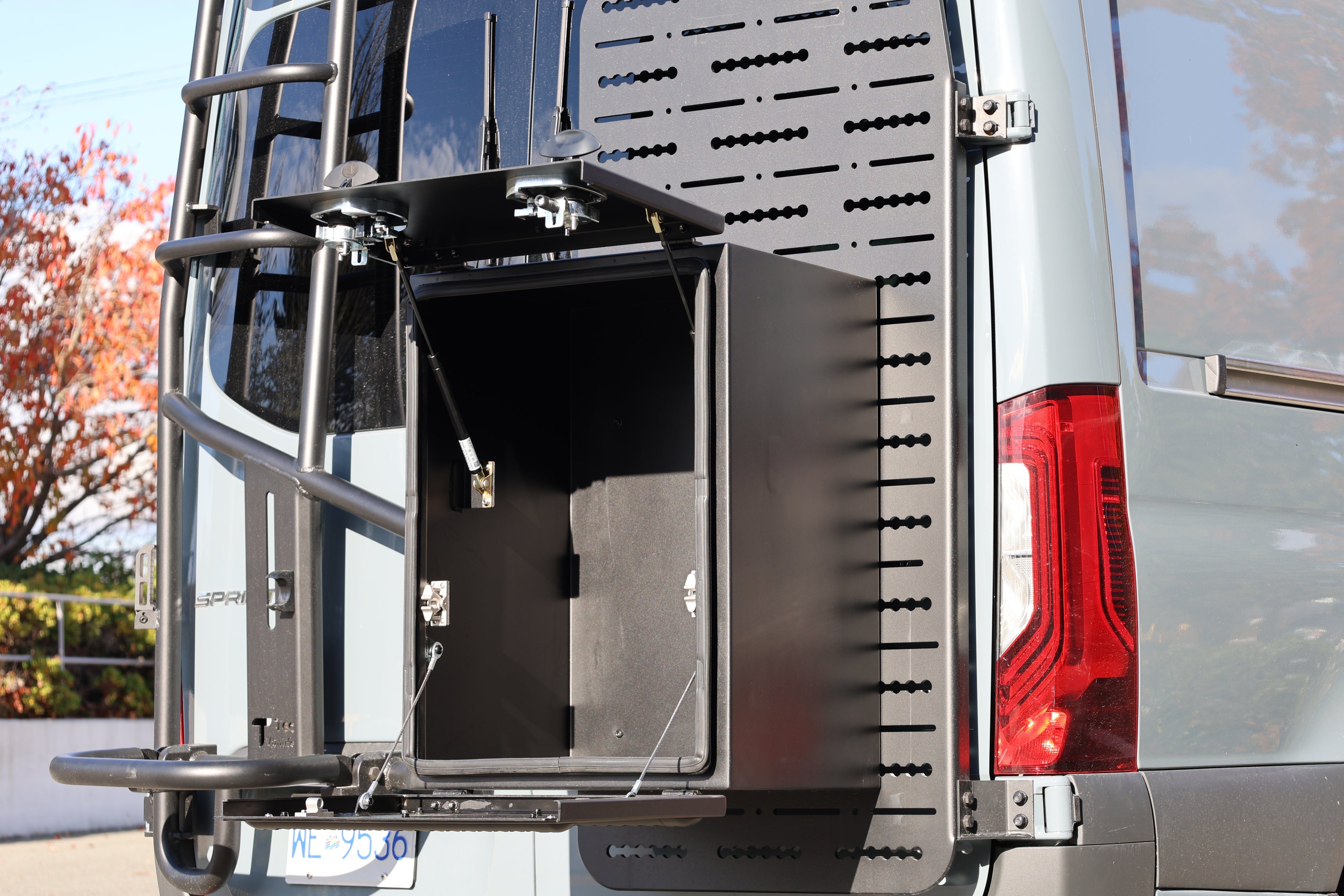

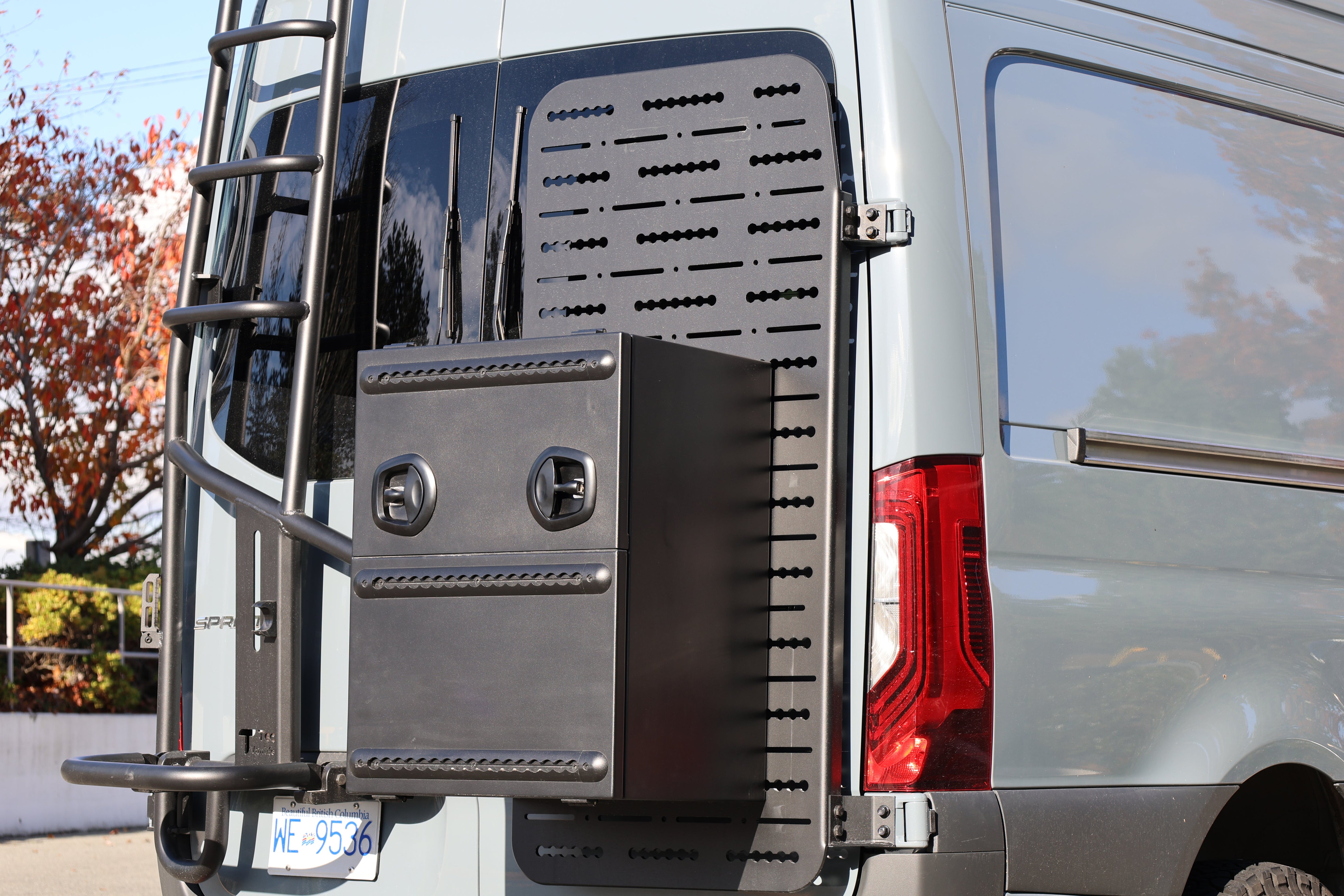

• FITMENT: Heavy duty all aluminum storage box designed for the Sprinter rear door gear rack.

• SHIPPING: FREE shipping to the lower 48 states.

• CONFIGURATION NOTE: Robust storage with a split door design and front facing L-tracks. Available in two sizes to suit different gear requirements.

• CONSTRUCTION: Constructed from premium 3mm thick aluminum for maximum durability and strength

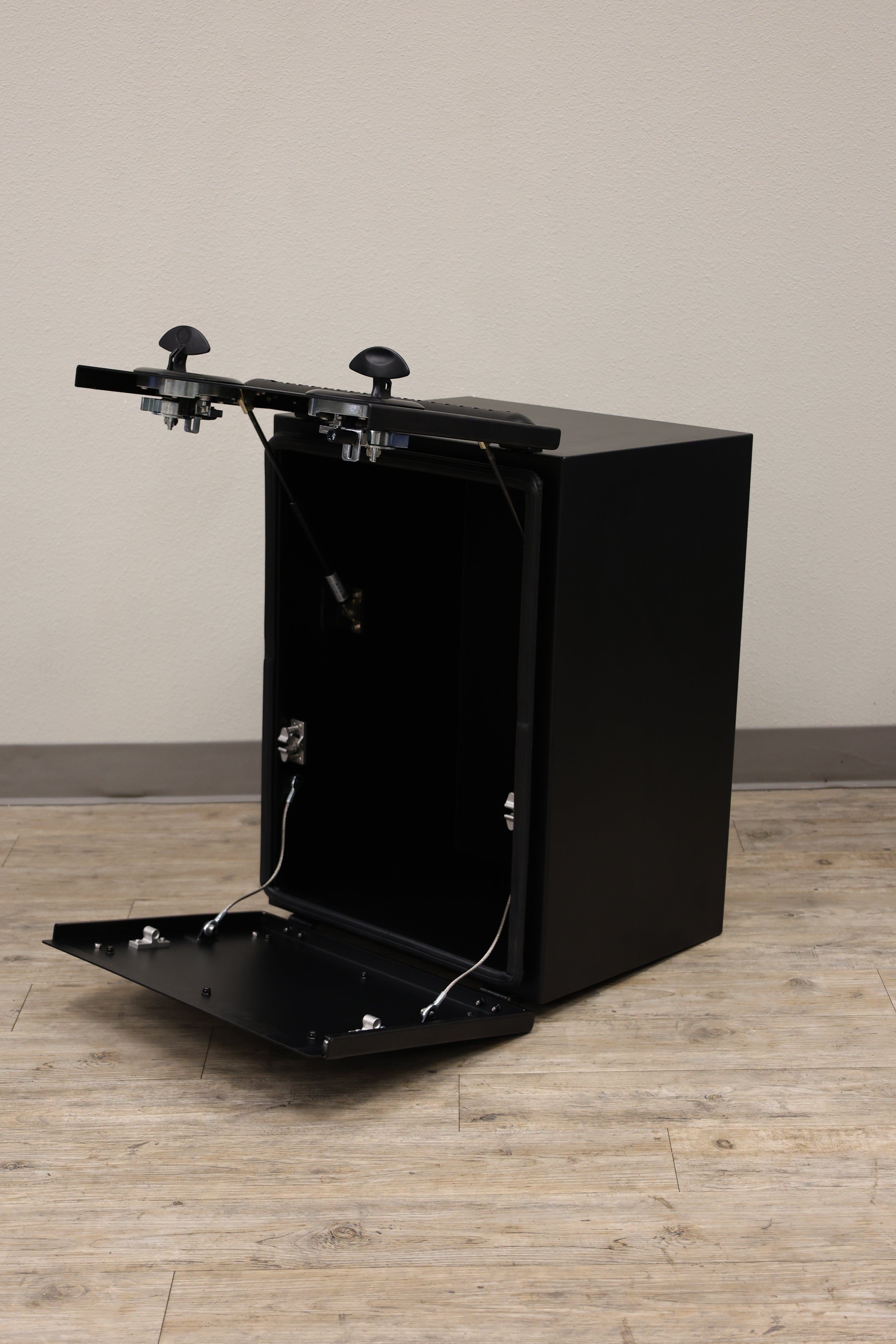

• CONFIGURATION NOTE: Split door design allows convenient access to gear without fully opening the unit

• INSTALLATION: Integrated exterior L-Tracks for adaptable mounting of additional gear and accessories

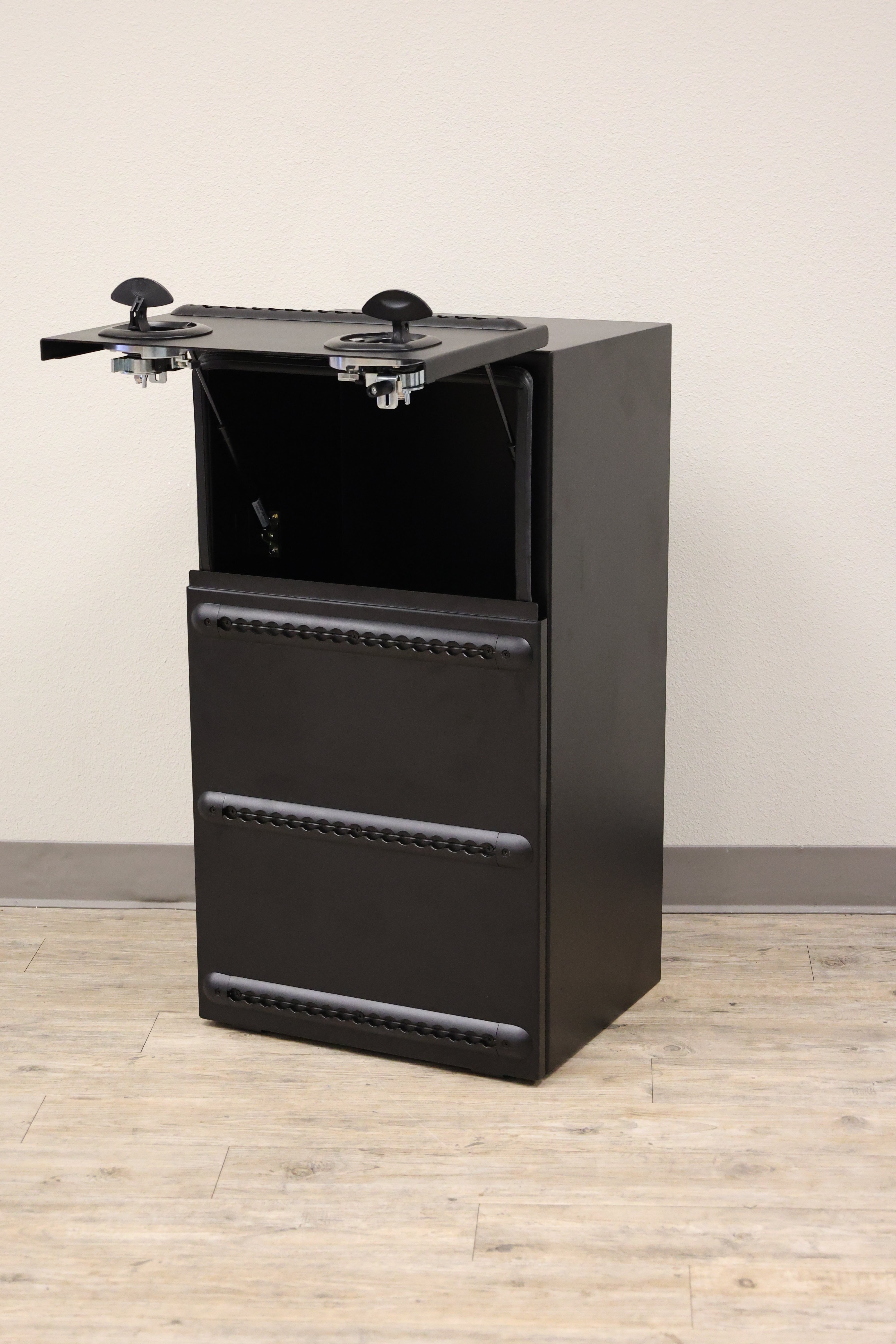

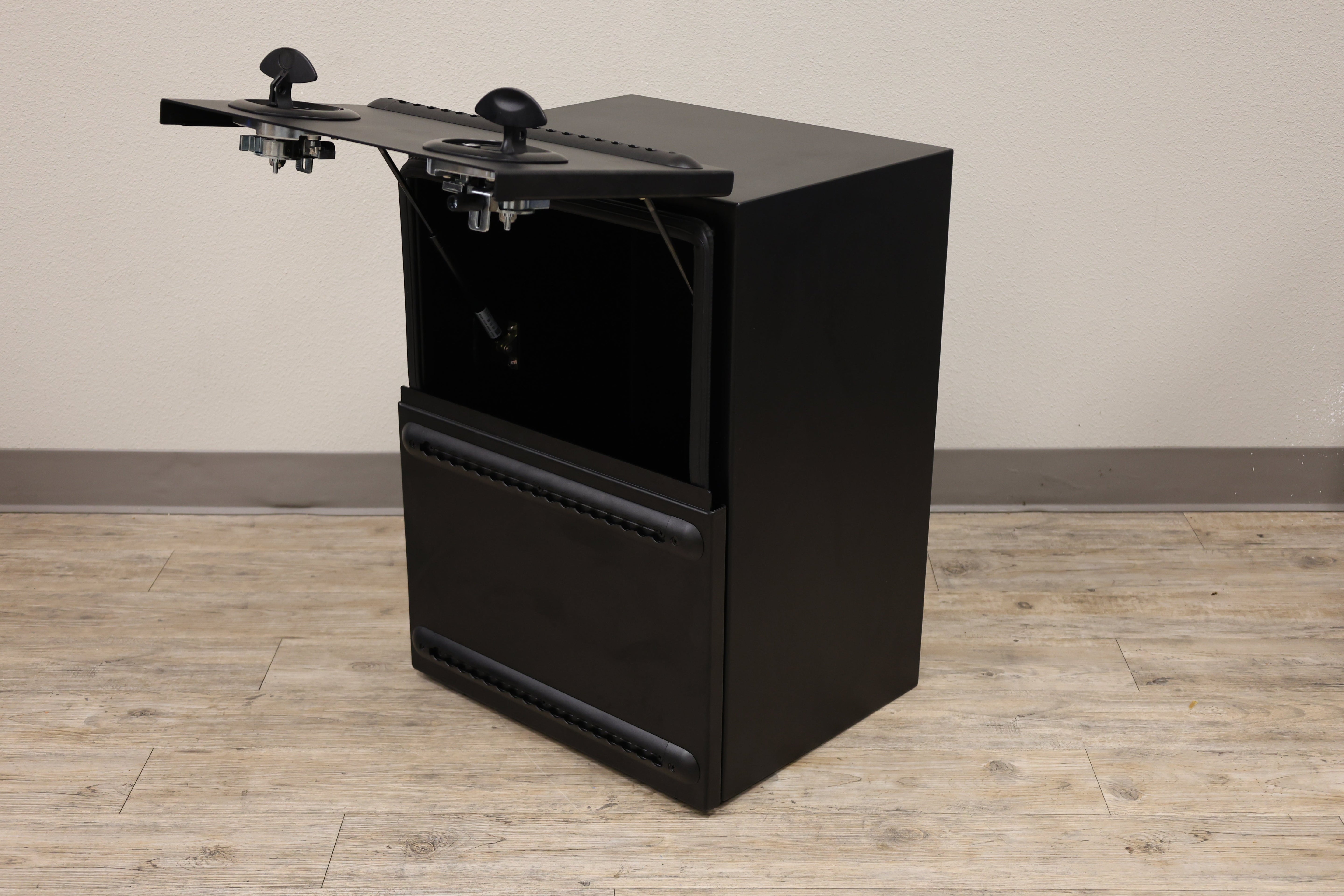

• CONFIGURATION NOTE: Top door supported by dual gas struts for effortless self opening

• DESIGN NOTE: Zero rust design eliminates corrosion from road salt and snow exposure

• PLUMBING: Premium rubber seal creates a watertight, dustproof barrier against highway driving rain

• AVAILABLE OPTIONS: Available in Large (39.4" / 100 cm) with removable shelf or Regular (29.5" / 75 cm) with open interior

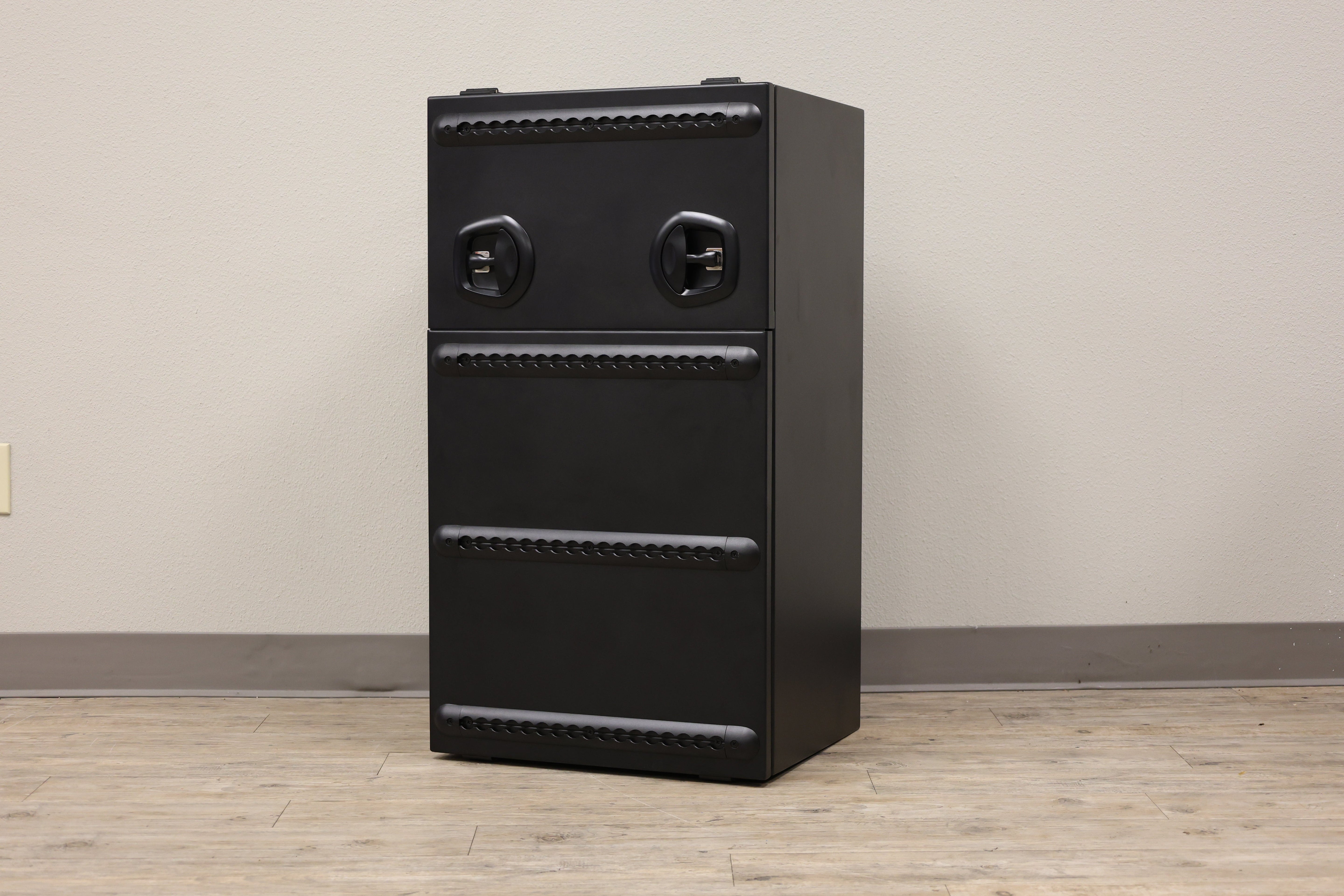

• INCLUDED COMPONENTS: Includes built in locking mechanism with option for secondary padlock

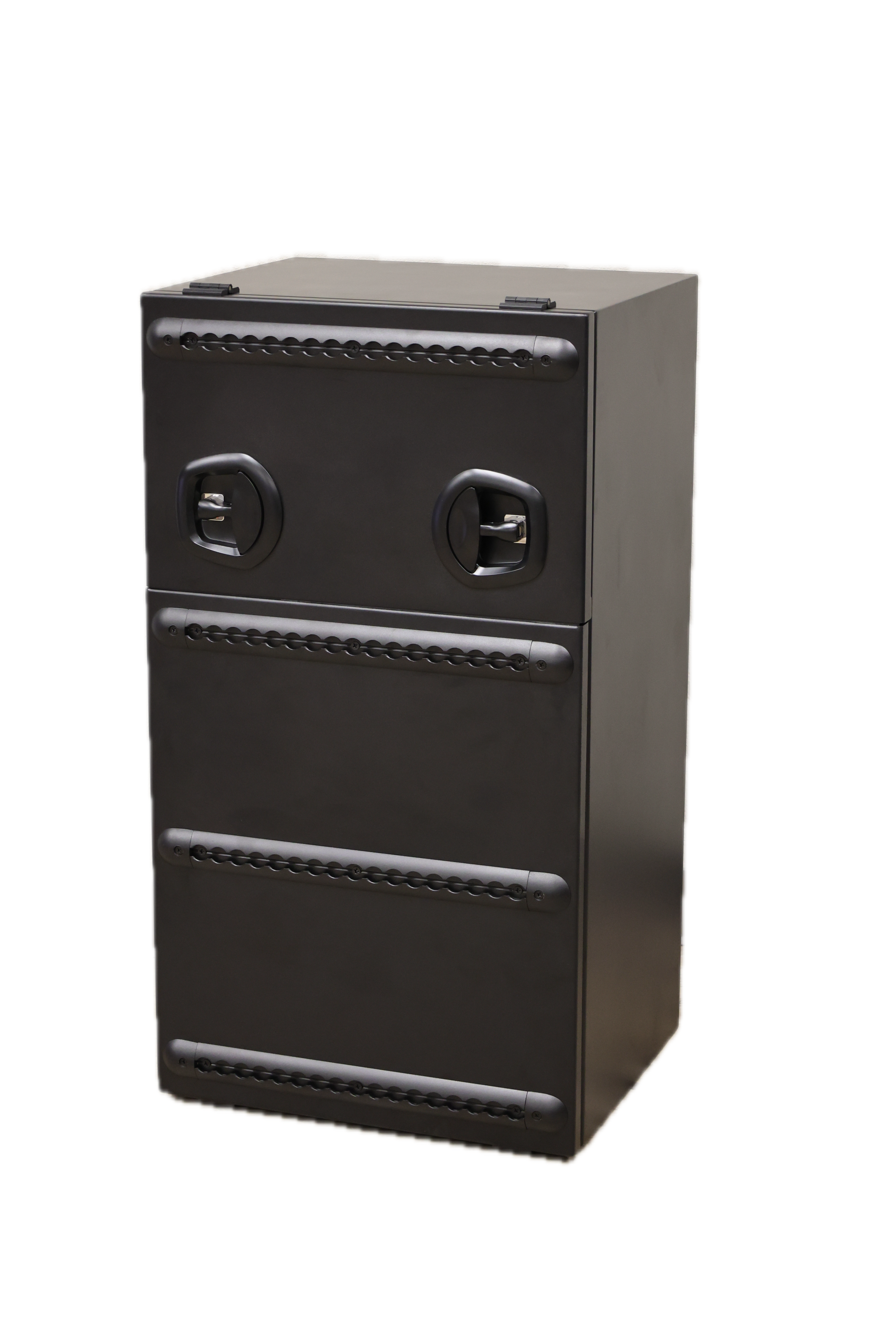

• EXTERIOR DIMENSIONS: 21.7" W x 17.7" D x 39.4" H (550 mm x 450 mm x 1000 mm)

• BEZEL WIDTH: 1.5" (38 mm)

• INTERIOR DIMENSIONS: 18.7" W x 14.7" D x 36.4" H (474 mm x 374 mm x 924 mm)

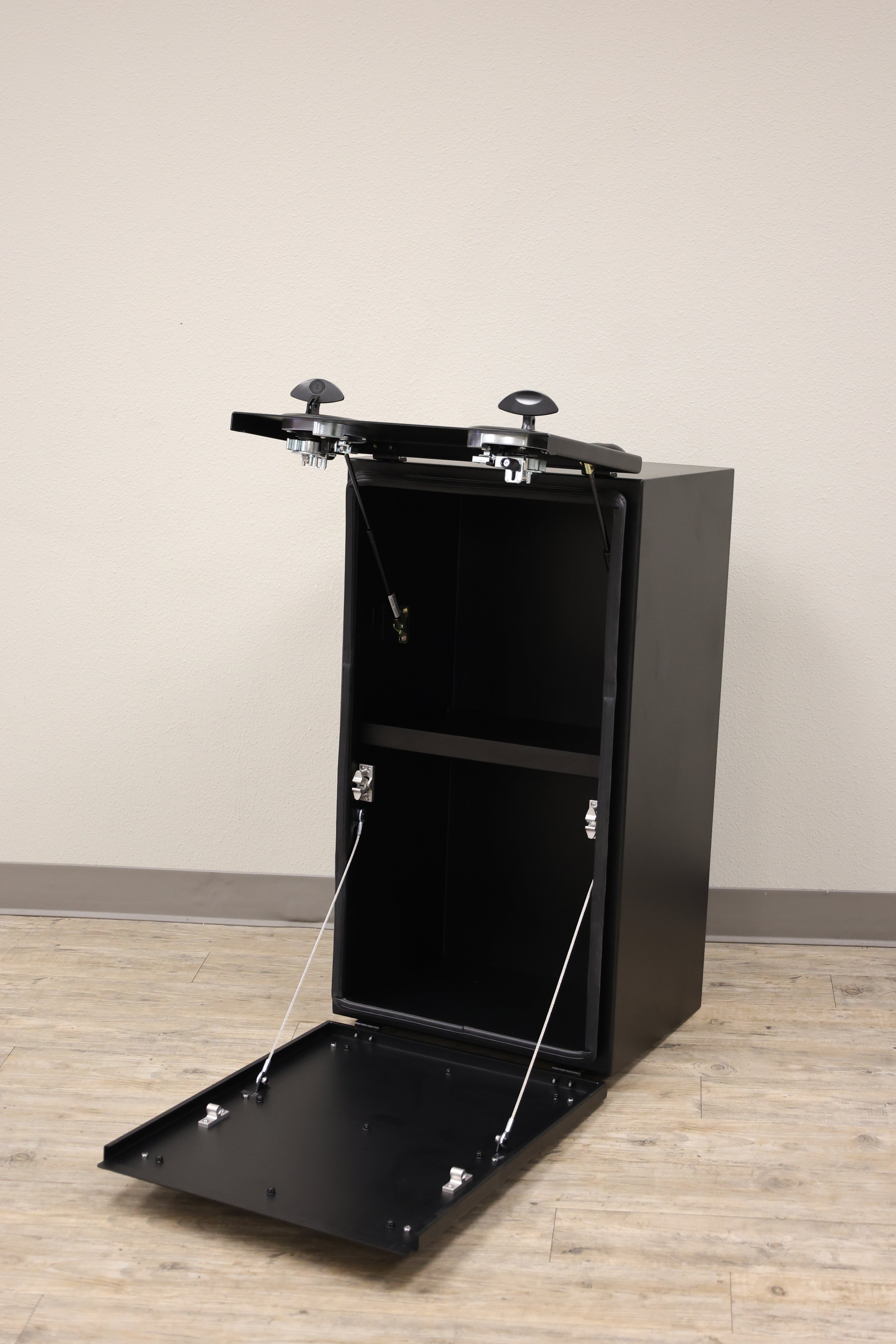

• INTERNAL CONFIG: Includes removable shelf at 19.5" mid point

• WEIGHT: 64.7 lbs (29.35 kg)

• REGULAR MODEL: Regular Model

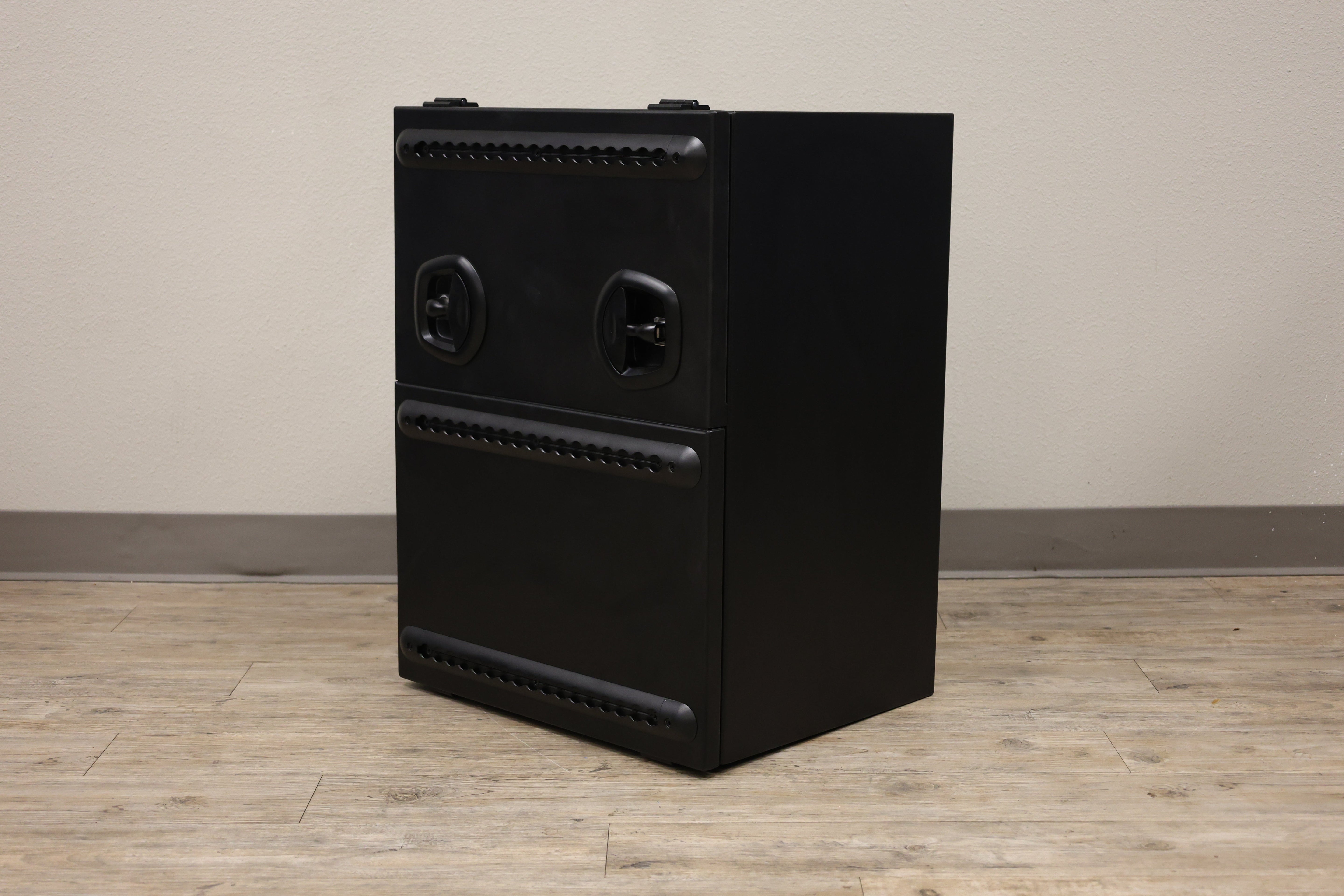

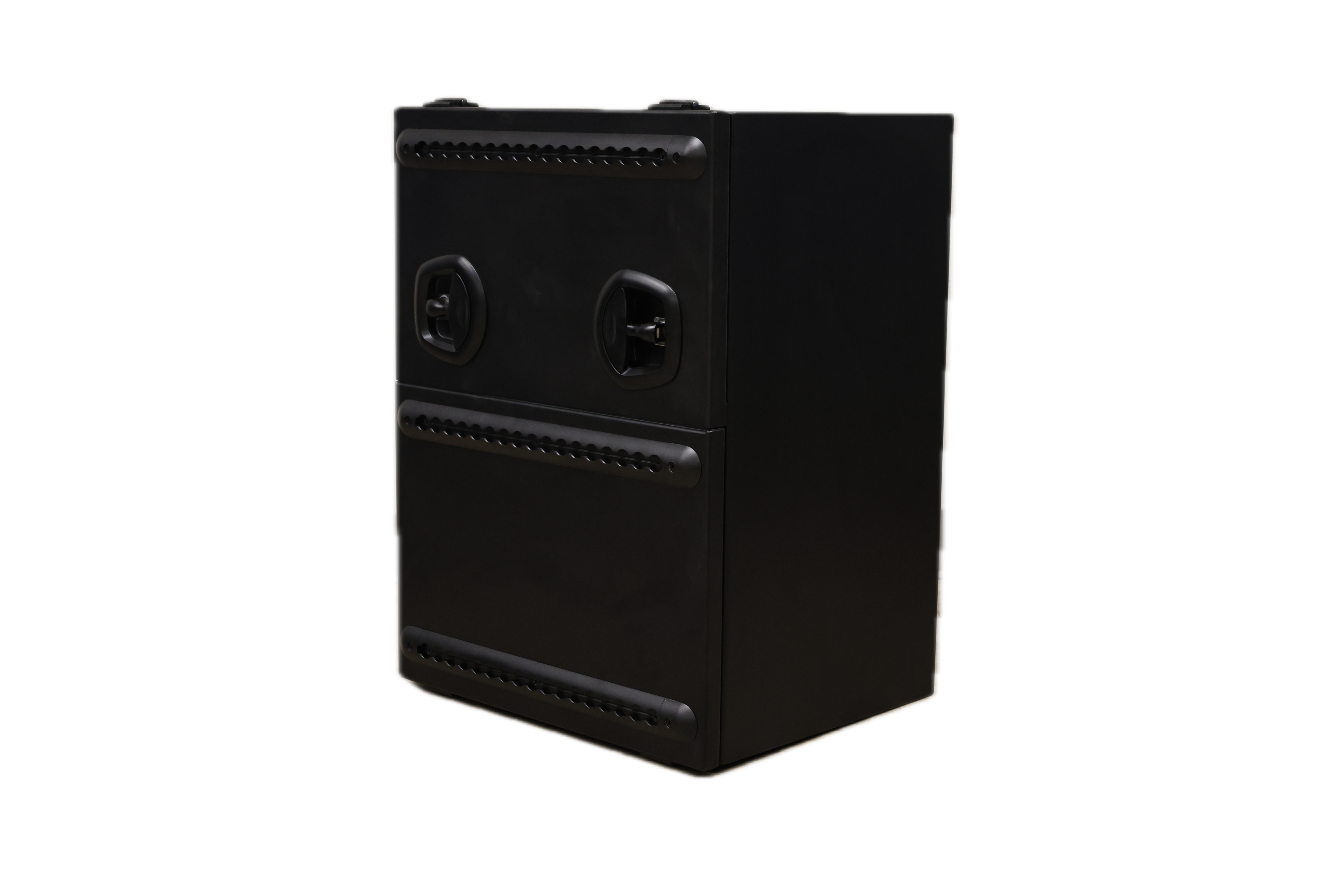

• EXTERIOR DIMENSIONS: 21.7" W x 17.7" D x 29.5" H (550 mm x 450 mm x 750 mm)

• INTERIOR DIMENSIONS: 18.7" W x 14.7" D x 26.5" H (474 mm x 374 mm x 674 mm)

• INTERNAL CONFIG: Open interior

• WEIGHT: 48.5 lbs (22 kg)

• CONSTRUCTION: The Aluminum Split Door Storage Box is crafted from high grade 3mm aluminum to deliver robust storage capacity with a clean, professional aesthetic. Unlike standard welded boxes, this unit is constructed with no visible welding points, providing a seamless finish that matches the premium look of modern van builds.

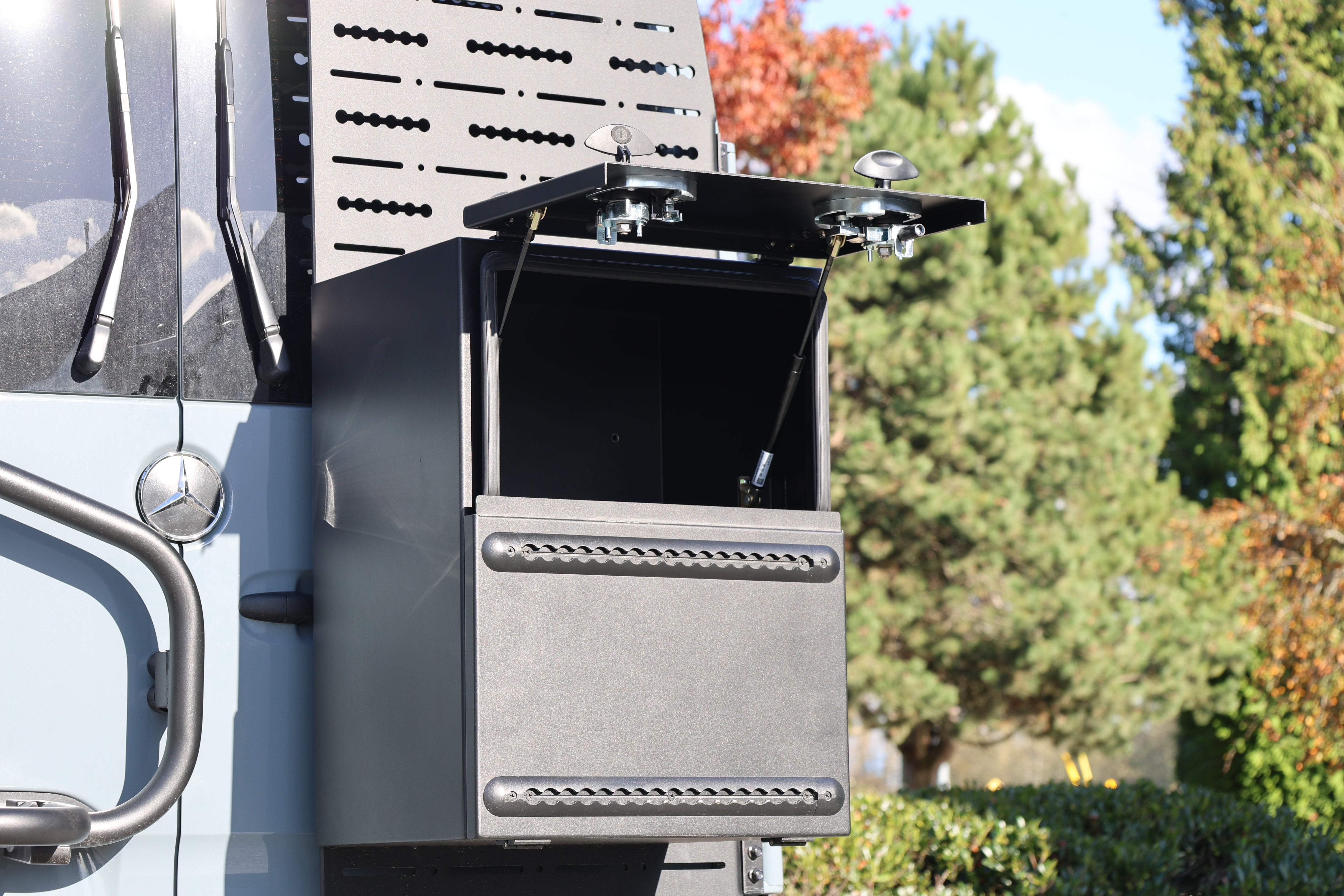

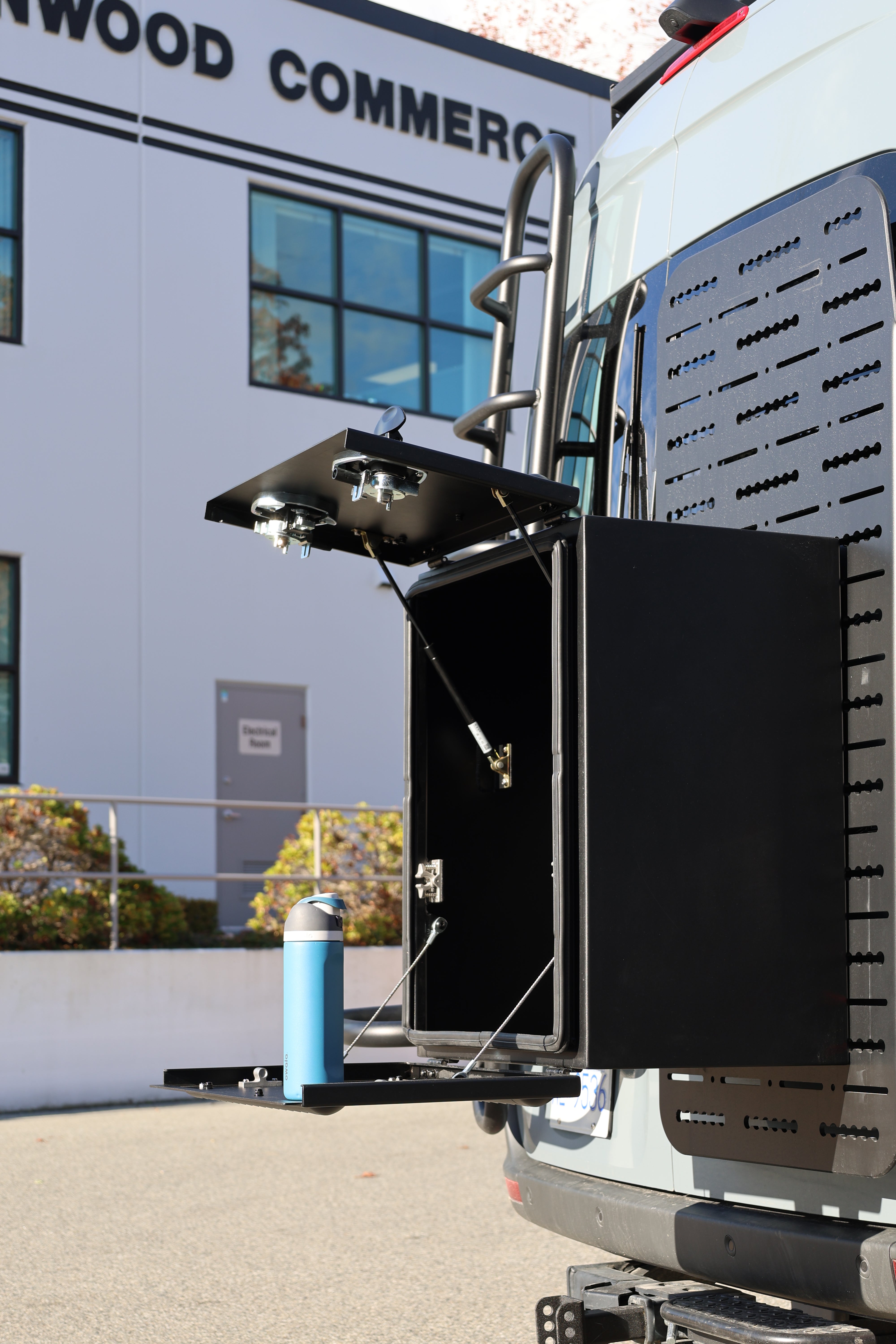

• INSTALLATION: Designed for versatility, this box features a unique split door system. The top door is supported by dual gas struts for smooth operation, allowing quick access to essentials without exposing the entire contents of the box. The exterior is upgraded with integrated L-Tracks, providing a dedicated mounting interface for recovery boards, tools, or additional accessories.

• THE INTERIOR IS TAILORED TO THE BOX SIZE: the Large model includes a removable shelf for organized storage, while the Regular model offers a spacious open cavity for bulkier items. To protect your gear, the doors are lined with premium rubber seals to guard against the elements, and the unit is finished with a dual locking system to ensure security on the road.

• INSTALLATION: 1. Will mounting a box this size damage my rear door hinges or cause the door to sag over time?

• CONFIGURATION NOTE: No, these boxes are relatively lightweight for their volume (48.5 lbs or 64.7 lbs), so they will not damage your hinges. However, please make sure the total weight does not exceed your rack's limit. If you are using our gear rack, the limit is 180 lbs. If you use another brand, please check their specific rating.

• DOES THE BOX OBSTRUCT THE REAR: 2. Does the box obstruct the rear parking sensors or cause the blind spot monitoring system to beep constantly in reverse?

• INSTALLATION: This depends on how high you mount it. If it is mounted too low, it might trigger the sensors. You can fix this by mounting the box higher up or adjusting the angle of your sensors.

• FITMENT: 3. Is this box compatible with existing Sprinter carrier plates from brands like Owl Vans, Aluminess, or other standard panels?

• FITMENT: This depends on the gear rack. Please check the measurements or contact us before purchasing to ensure it fits your setup.

• ROOF SYSTEM: 4. Is the weatherproof seal capable of withstanding high pressure car washes and driving rain at highway speeds?

• CONFIGURATION NOTE: The box is highly weather resistant. It utilizes premium rubber seals to protect against rain and road spray. However, due to the split door design, it does not feature a continuous single piece seal like our regular models. We recommend avoiding direct high pressure water spray at the door seam.

• CONFIGURATION NOTE: 5. Does the box interfere with the rear door opening fully (180 vs 270 hinges) or hitting the side of the van?

• INSTALLATION: This depends on your gear rack settings. After installing, check the door opening angle carefully to make sure the box doesn't hit the side of the van. You may need to install a limit stop on your door hinge or use a check strap to stop the door earlier.

• HOW SECURE IS THE LOCKING MECHANISM: 6.How secure is the locking mechanism against theft for high value items?

• CONSTRUCTION: The box features a dual point locking system to resist prying, with the option to add secondary padlocks for double security. The aluminum construction further reinforces the unit against forced entry.

FEATURES

• ALUMINUM CONSTRUCTION: Uses the welded or formed aluminum and powder-coated finish stated below.

• MODULAR MOUNTING: Provides the source-listed hole, slot, MOLLE, shelf, or accessory interface.

• DOOR-SPECIFIC CONFIGURATION: Preserves driver/passenger side, hinge-generation, latch, seal, and limit-cable details.

COMMON PAIRINGS

• COMPATIBLE REAR-DOOR RACK: Use the required supporting rack or approved mounting structure for the selected box.

• OPTIONAL STORAGE SHELVES: Choose shelves sized for the exact horizontal, vertical, or box-width configuration.

• CARGO RESTRAINTS: Secure every stored item and respect the complete door and mounting-system load capacity.

COMPATIBILITY & FITMENT

• CHASSIS: Vehicle rear-door installation with a compatible RB rack or approved supporting structure; confirm chassis before ordering.

• WHEELBASE: Not wheelbase-specific; rear-door geometry and supporting hardware determine fit.

• ROOF HEIGHT: Confirm vertical clearance for the selected horizontal or vertical box and full door opening.

• REQUIREMENTS: Verify door side, hinge generation, supporting rack, fasteners, door load, latch access, weather seal, shelves, and body clearance.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Does the gear rack fit pre-2019 Sprinter hinges?

A: No, the source states that the rear-door gear rack works only with 2019+ rear-door hinges.

Q: Can the boxes use shelves?

A: Yes, compatible adjustable shelf options are listed separately.

Q: Can the box hinge left or right?

A: Where stated, the storage box can be mounted with either left- or right-hand hinging.

Q: What should be checked before loading?

A: West Coast Vans recommends checking the supporting rack, door load, hinges, latch access, and full opening clearance.
