Alpine Van Works Sprinter 20mm Wheel Spacers - Wider Track

Alpine Van Works Sprinter 20mm Wheel Spacers - Wider Track

At West Coast Vans, wheel clearance is a measurement problem before it becomes a style upgrade. The Alpine Van Works Sprinter 20mm Wheel Spacers - Wider Track changes track width and suspension clearance with wheel-specific hardware; Ask Us Product Questions Anytime before confirming wheel type and torque procedure.

WCV EXPERT TIP

Confirm factory steel versus aftermarket alloy wheels, clean the mating surfaces, and follow the exact torque and retorque procedure below.

PRODUCT OVERVIEW

Alpine Van Works Sprinter 20mm Wheel Spacers - Wider Track is a 20 mm hub-centric spacer set for compatible Mercedes-Benz Sprinter 2500 wheel configurations.

Factory-steel and aftermarket-alloy selections use different supplied fasteners and procedures, and factory Mercedes aluminum wheels are specifically excluded.

BEST FOR

• DIY VAN BUILDS: For builders integrating the exact chassis and product requirements shown below.

• SPACE-EFFICIENT INTERIORS: Adds function without ignoring clearance, access, or serviceability.

• BUILDER-PLANNED INSTALLS: Works best when structure, mounting hardware, and adjacent systems are mapped first.

TECHNICAL SPECIFICATIONS

• VENDOR: Alpine Van Works, LLC

• PRODUCT: AVW Sprinter 20mm Wheel Spacers

• SOURCE SKUS: AVW-S-WHLSPF, AVW-S-WHLSPA

• VARIANT OPTIONS: Wheel Type: Factory Steel, Aftermarket Alloy

• VEHICLE FITMENT: Enhance the look and stability of your Mercedes-Benz Sprinter 2500 with AVW Sprinter 20mm Wheel Spacers.

• DIMENSIONS: These hub-centric spacers provide a wider wheel track for improved aesthetics and stability on and off-road.

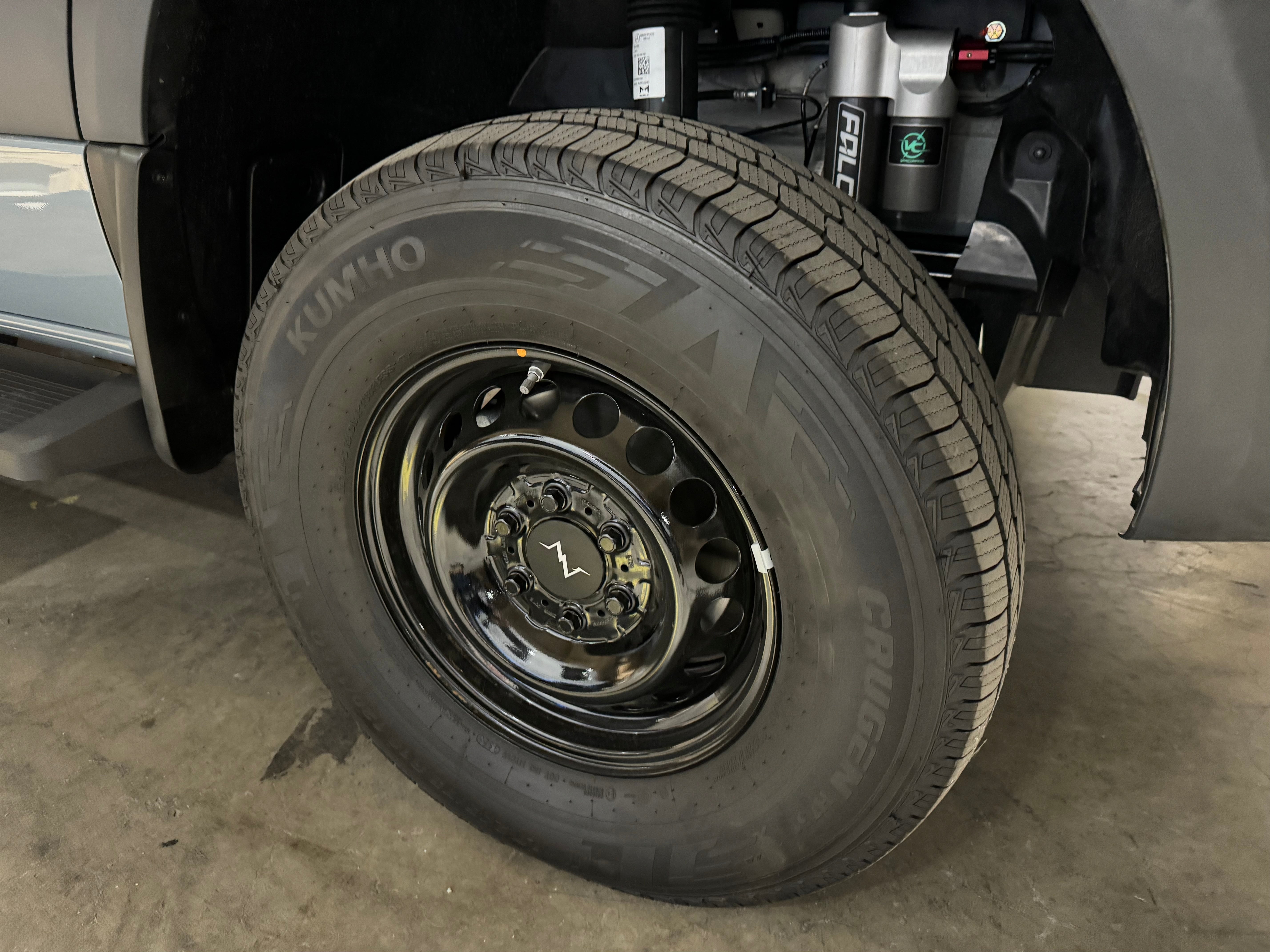

• DIMENSIONS: Our 20 mm thick (just under 1") spacers allow you to fit larger tires on factory wheels or fit aftermarket suspension like the Van Compass 4.3, Agile Rip Kit or the King suspension without rubbing your tire on the shock.

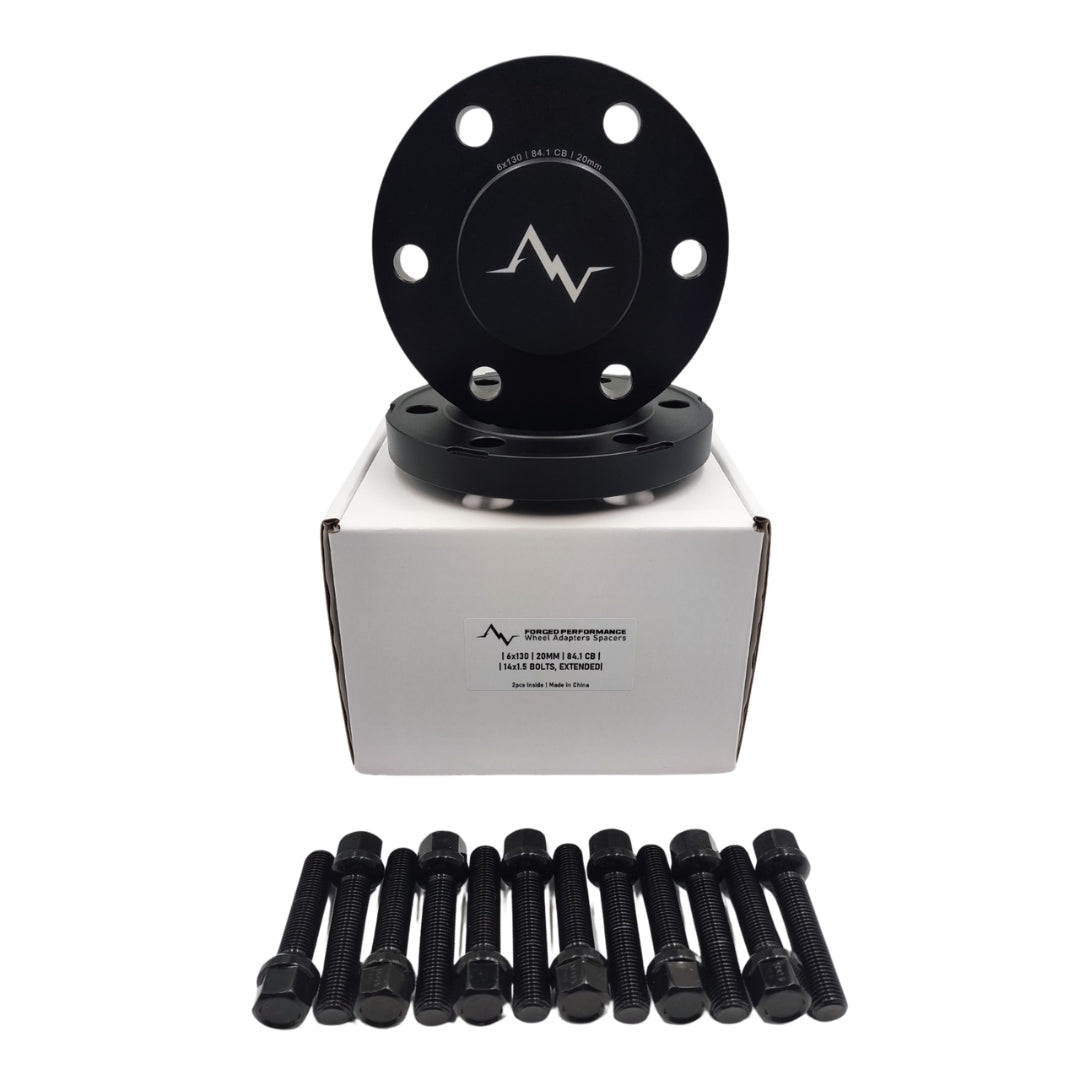

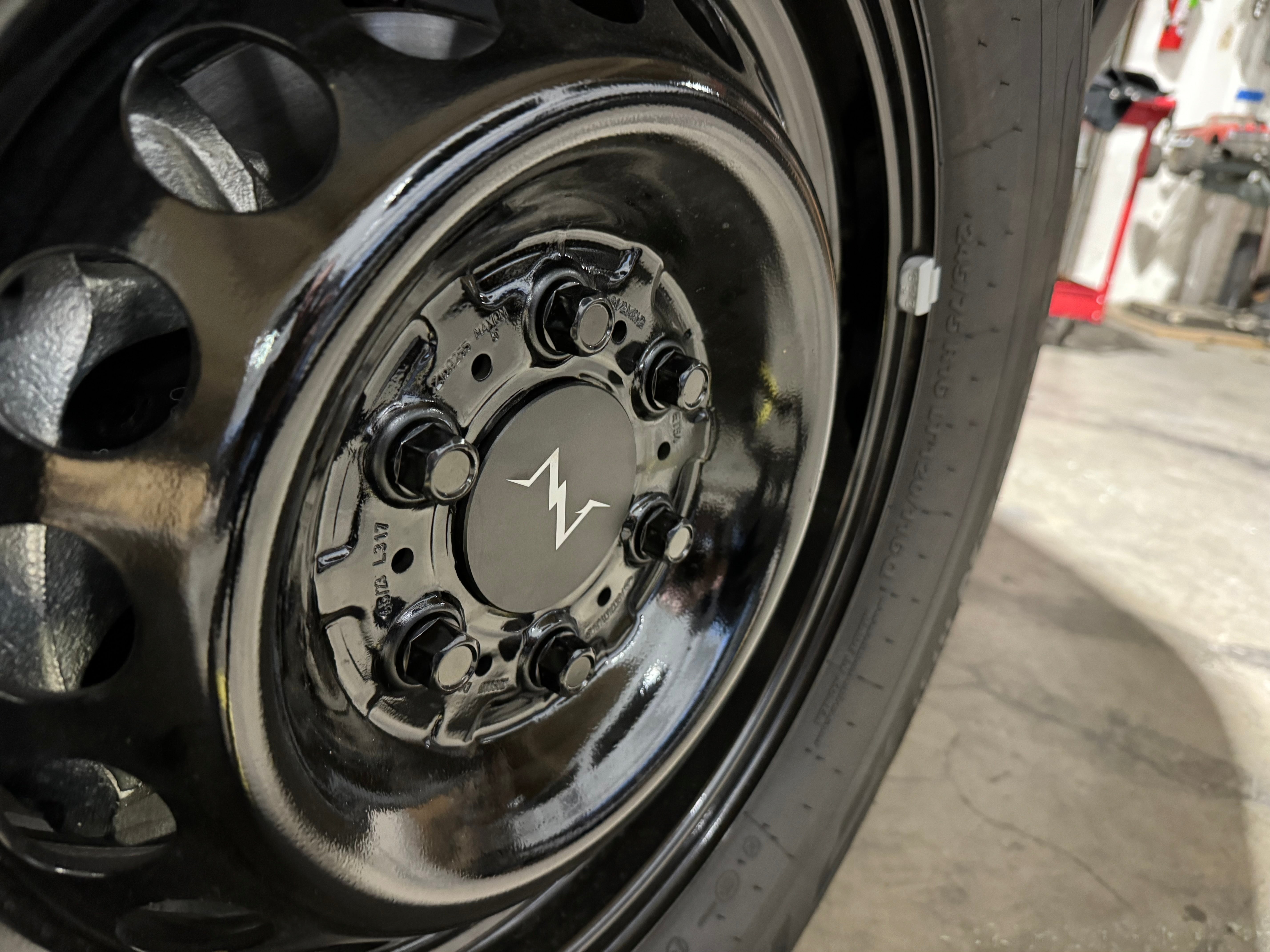

• MATERIAL OR CONSTRUCTION: Factory Steel Wheels

• INCLUDED COMPONENTS: If you choose the spacers for Factory Steel Wheels it comes with extended lug bolts to replace your factory lug bolts.

• INCLUDED COMPONENTS: Wheel spacers are sold as a set of 4.

• WHEEL SYSTEM NOTE: Studs & lug nuts are included.

• REQUIREMENT OR EXCLUSION: The factory plastic hubcap will no longer fit.

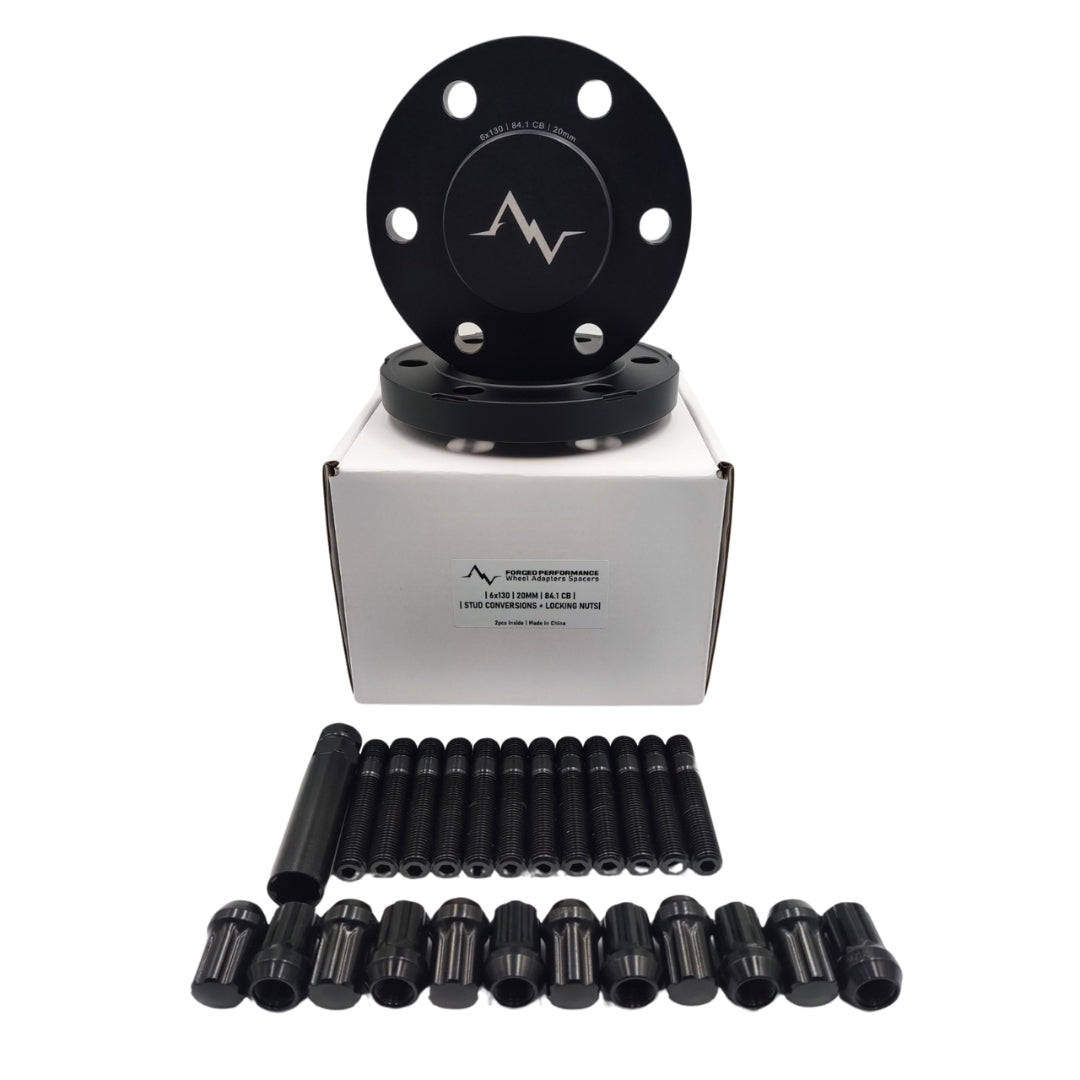

• MATERIAL OR CONSTRUCTION: Aftermarket Aluminum Alloy Wheels

• MATERIAL OR CONSTRUCTION: If you choose the spacers for Aftermarket Aluminum Alloy Wheels, the factory lug bolts are replaced with studs and tamper resistant lug nuts.

• INCLUDED COMPONENTS: It also comes with a lug key.

• INSTALLATION: Use Red locktite on the new lug studs into the hub is optional.

• INSTALLATION: If you use locktite you do NOT need to retorque at 100 miles.

• INSTALLATION: If you don't use locktite you need to retorque at 100 miles.

• INSTALLATION: Torque lug studs to 25ft lbs

• INSTALLATION: New lug nuts torque to 120ftlbs NO LOCKTITE

• NOTE: These DO NOT work with factory Mercedes Aluminum Alloy Wheels.

FEATURES

• SOURCE-SPECIFIC FIT: Maintains the original chassis, parent-product, and option requirements.

• BUILDER-FOCUSED INSTALLATION: Keeps mounting, clearance, hardware, and safety decisions visible.

• DURABLE CONSTRUCTION: Uses the materials and finish described in the technical specifications.

COMMON PAIRINGS

• COMPATIBLE PARENT SYSTEM: Pair only with the vehicle, window, seat, table, or storage system named below.

• STRUCTURAL MOUNTING: Use the source-listed hardware and suitable vehicle or furniture reinforcement.

• FULL-LAYOUT CLEARANCE: Check doors, seats, beds, cabinets, windows, and travel paths before final fastening.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter configuration stated in the source.

• WHEELBASE: Not wheelbase-specific unless the source product title or options state otherwise.

• ROOF HEIGHT: Not roof-height-specific unless mounting location or interior clearance requires otherwise.

• REQUIREMENTS: Select factory-steel or aftermarket-alloy configuration, exclude factory Mercedes aluminum wheels, follow supplied fastener instructions, and observe the exact torque, Loctite, and 100-mile retorque requirements.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Will these fit factory Mercedes aluminum wheels?

A: No, the source specifically states they do not fit factory Mercedes aluminum alloy wheels.

Q: What wheel options are supported?

A: Choose the factory-steel or aftermarket-aluminum-alloy configuration and use its supplied fasteners.

Q: What are the torque requirements?

A: Follow the technical specifications: studs and lug nuts use different torque values, with retorque dependent on the approved Loctite procedure.

Q: Are they sold individually?

A: No, the source states the spacers are sold as a set of four.
