At West Coast Vans, the best daytime floor space is sometimes hiding underneath the nighttime bed. This electric elevator system retracts to 63 x 55 inches, expands to 77 x 55, and includes a folding mattress; Ask Us Product Questions Anytime before engineering wall supports and landing points.

WCV EXPERT TIP

Engineer the structural mounting and secondary bed supports before wiring the lift, then test the emergency release with the bed empty.

PRODUCT OVERVIEW

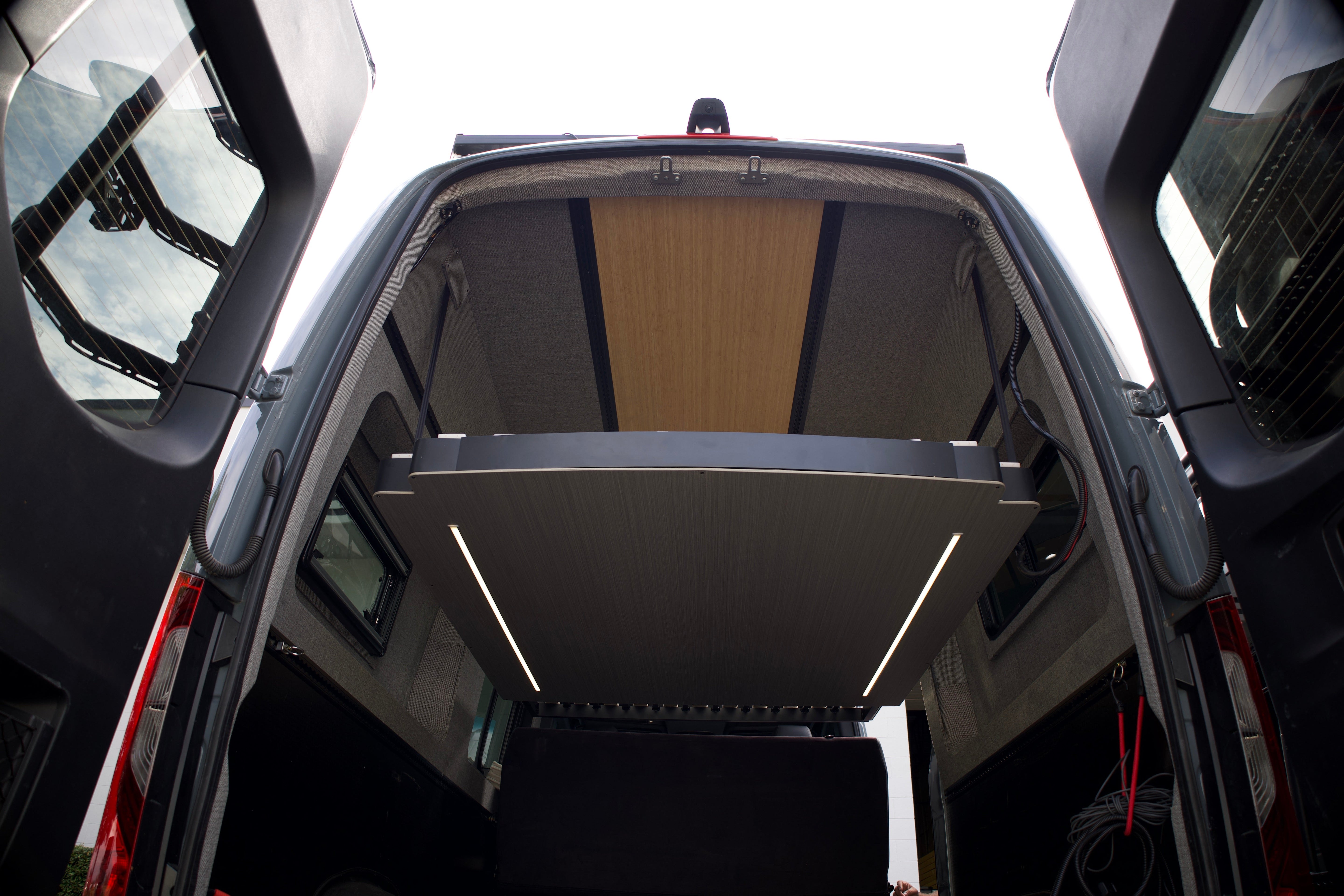

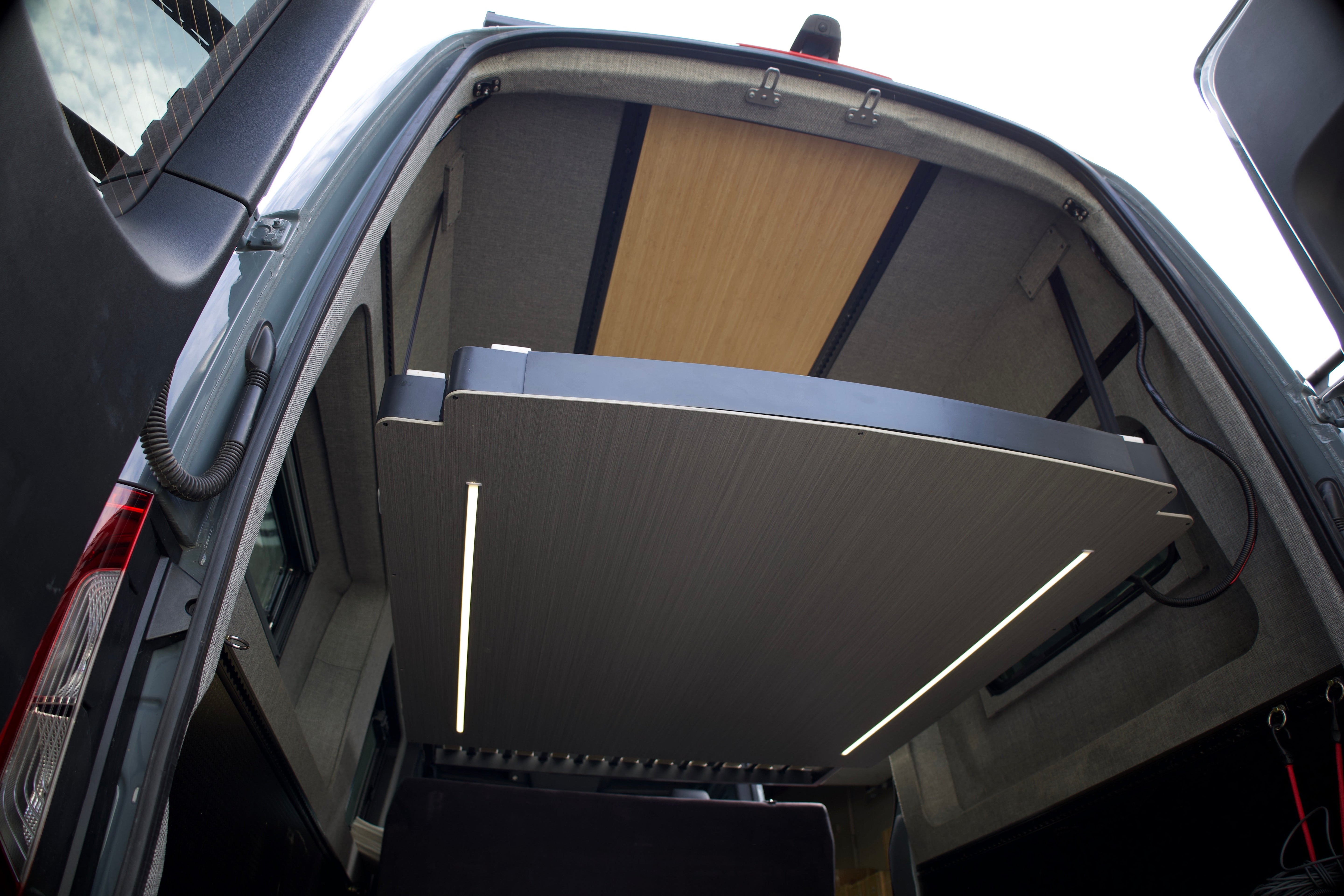

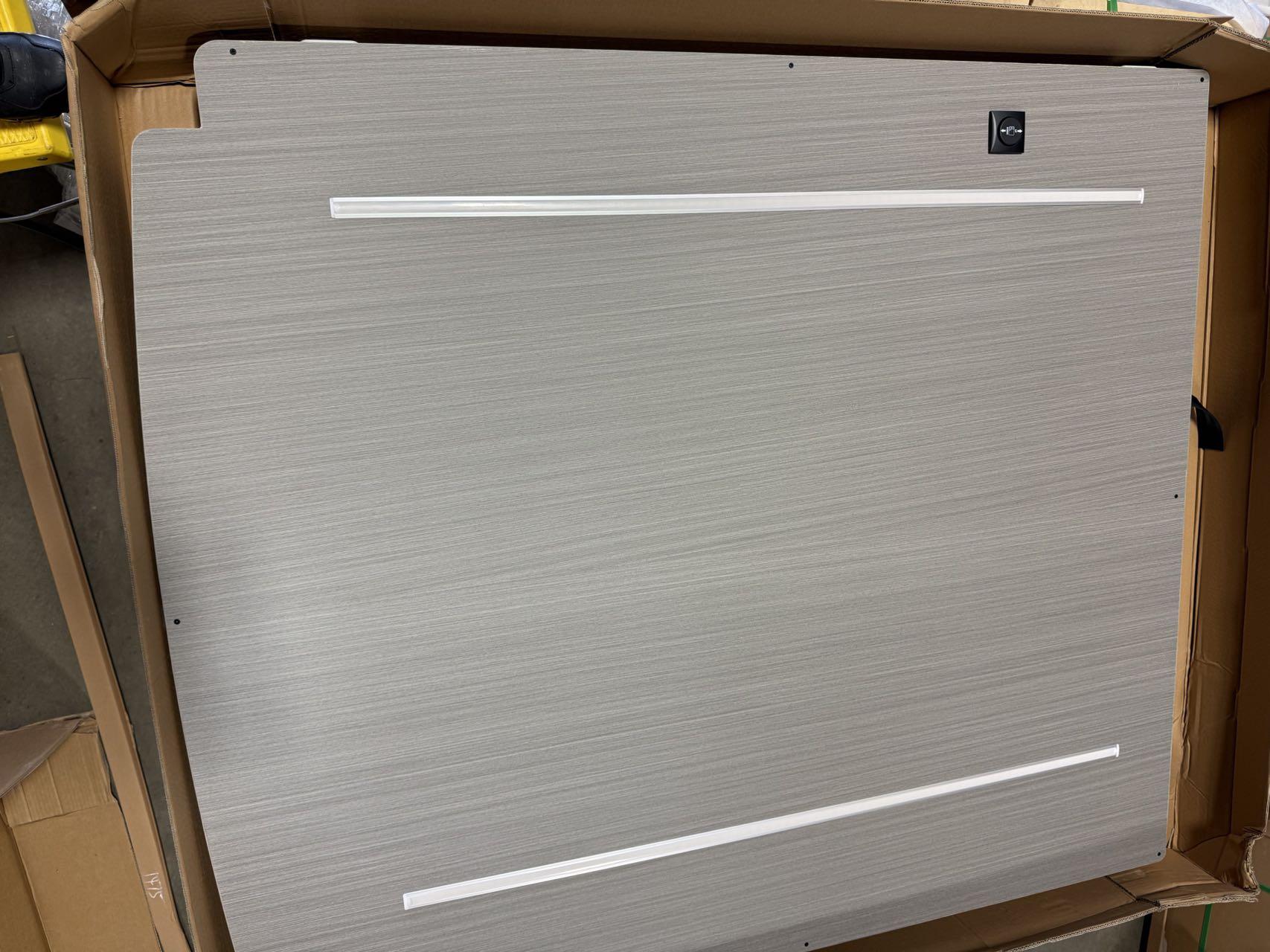

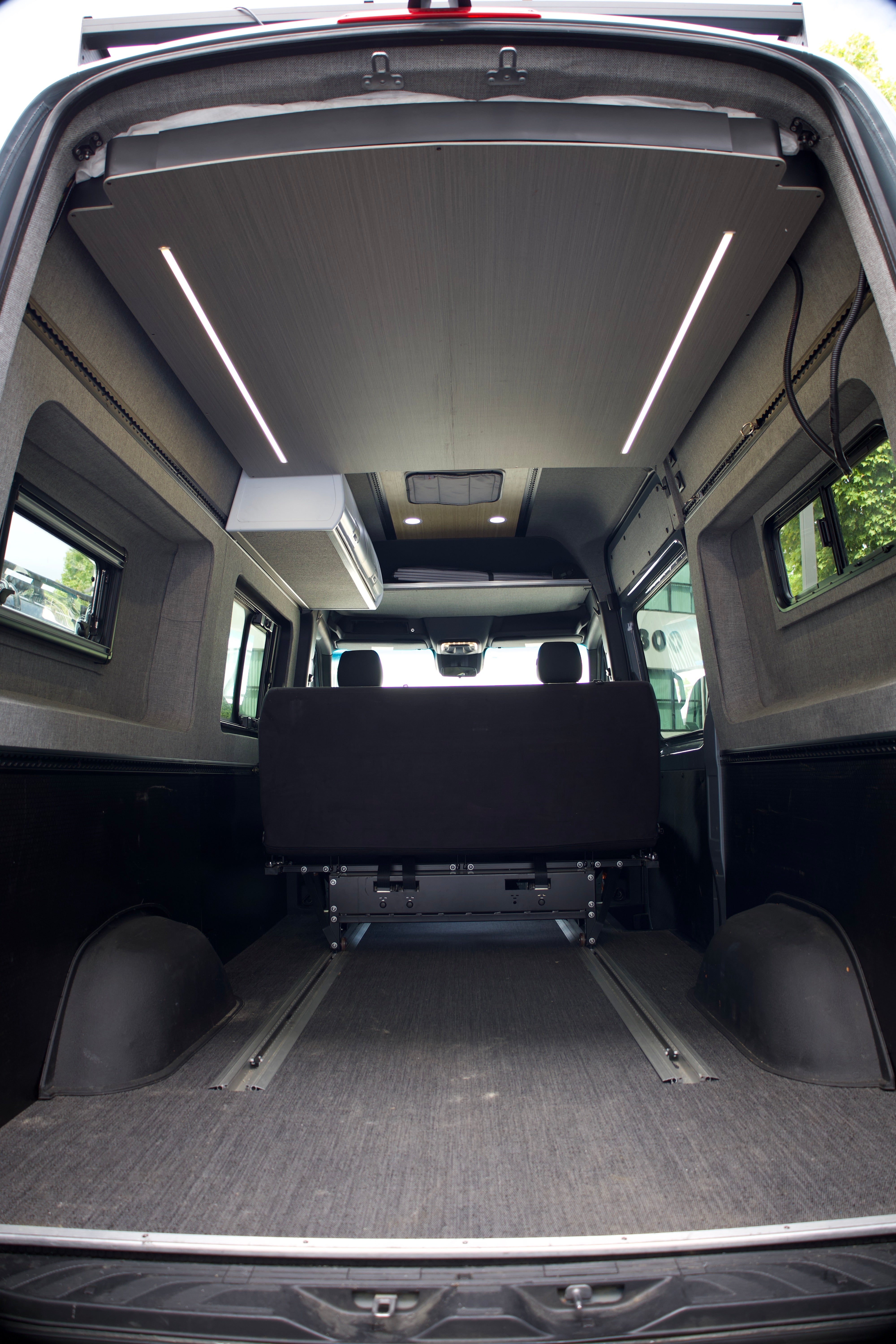

Tec Vanlife Expandable Elevator Bed - Electric Space Saver uses an electric lift to move a two-person sleeping platform overhead when it is not in use.

The frame measures 63 x 55 inches retracted and manually expands to 77 x 55 inches, with a 3.1-inch frame and included 2-inch bi-fold mattress.

BEST FOR

• DAY/NIGHT FLOOR SPACE: Raises the bed overhead so the living or cargo area can serve a second purpose during the day.

• TWO-ADULT SLEEPING: Expands manually to the listed 77 x 55-inch sleeping footprint.

• MULTI-CHASSIS BUILDS: Can be integrated into Sprinter, Transit, ProMaster, and other properly reinforced van interiors.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

• PRODUCT: Expandable Elevator Bed - Electric Space Saver

• BED SYSTEM: Expandable electric elevator bed system for camper vans, designed to save interior space during the day and provide a full size sleeping platform at night.

• SHIPPING: 400 flat rate shipping to the Lower 48 states. Free warehouse pickup available.

• BED SYSTEM: Electric lift system raises and lowers the bed platform by switch

• BED SYSTEM: Manual extension system expands the sleeping surface from 63" to 77" long

• BED PLATFORM SIZE: Retracted 63" x 55" size helps preserve living space during the day

• BED SYSTEM: Expands to a 77" x 55" sleeping surface with enough room for two adults

• PROFILE HEIGHT: Low profile 3.1" (80 mm) frame helps preserve interior headroom

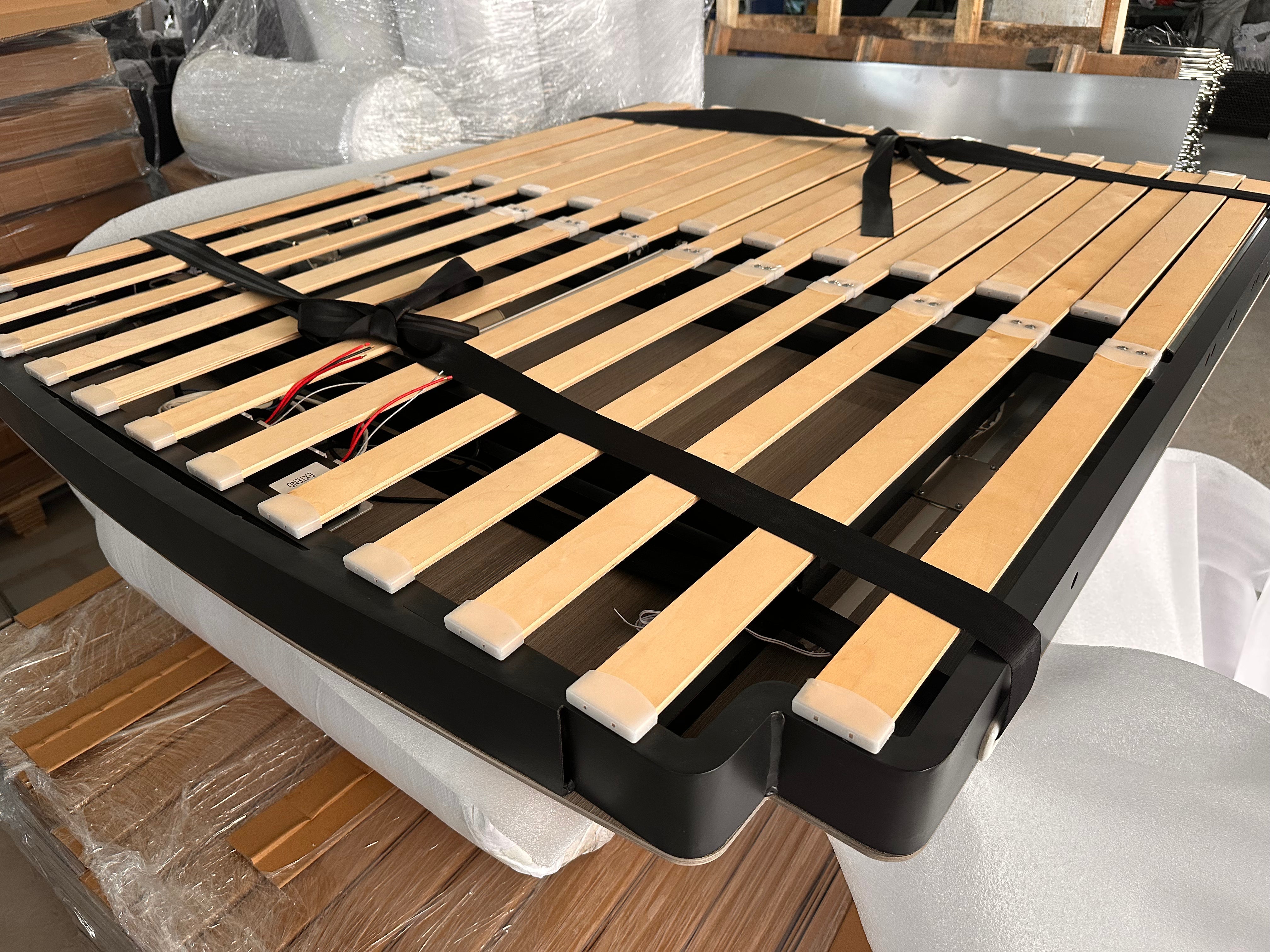

• CONSTRUCTION: 3" powder coated aluminum frame for strength and corrosion resistance

• BED SYSTEM: Includes 2" bi-fold mattress designed to fold with the bed platform

• BED SYSTEM: Manual emergency release allows the bed to be lowered during electrical issues

• INSTALLATION: Suitable for Sprinter, Transit, Promaster, and other van platforms with proper mounting support

• BED SYSTEM: Designed to be lowered onto secondary supports before sleeping

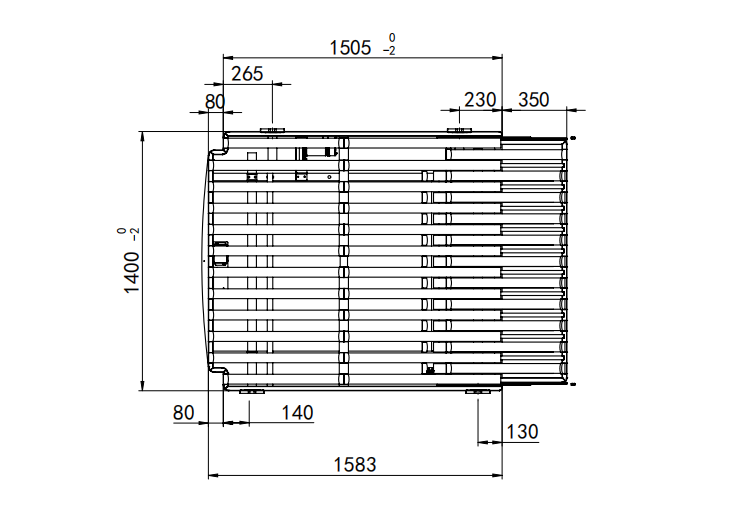

• RETRACTED SIZE: 63" x 55" (1600 mm x 1397 mm)

• EXPANDED SIZE: 77" x 55" (1956 mm x 1397 mm)

• FRAME THICKNESS: 3.1" (80 mm), without slats or mattress

• FRAME MATERIAL: 3" powder coated aluminum

• INCLUDED MATTRESS: 2" bi-fold mattress

• WEIGHT: 66 lb (30 kg)

• BED SYSTEM: This expandable elevator bed system is designed for camper van builds where interior space is limited. The platform retracts during the day to open up the living area, then expands into a 77" x 55" sleeping surface at night.

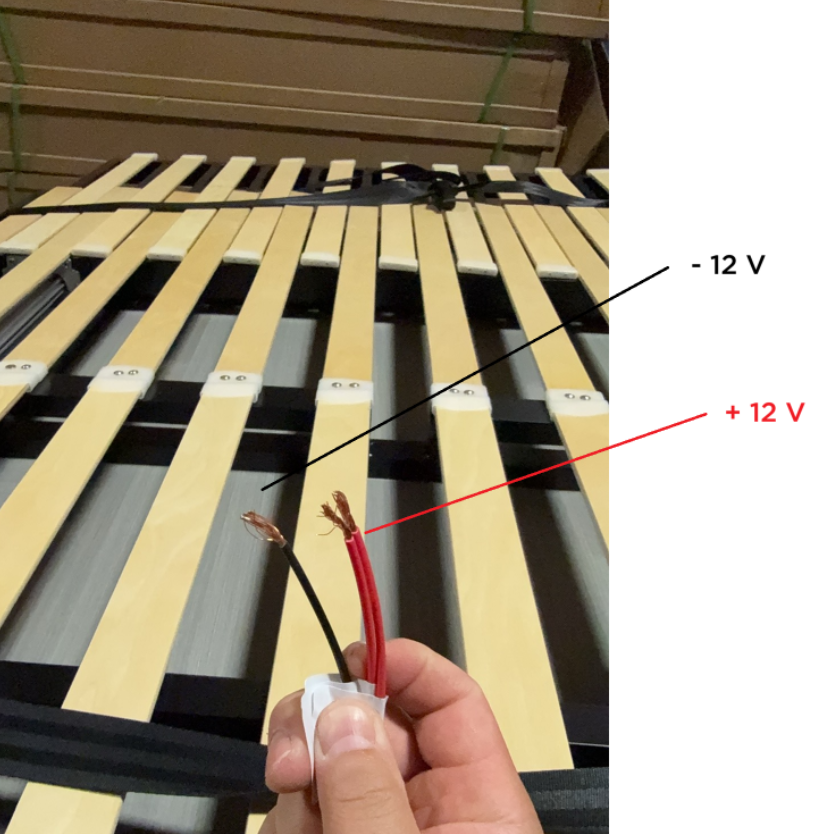

• MOTOR VOLTAGE: The lift system is powered by a 12 V electric motor and operated by switch for raising and lowering the bed. The extension section is manually adjusted, allowing the platform to slide between its retracted and expanded positions. A 2" bi-fold mattress is included and folds with the platform for easier daily use.

• FITMENT: The frame is built from powder coated aluminum with a low profile 3.1" (80 mm) structure, helping preserve headroom when the bed is raised or lowered. The system is compatible with Sprinter, Transit, Promaster, and other van platforms when installed with proper structural support.

• REMOTE CONTROL: This model does not come with a remote.

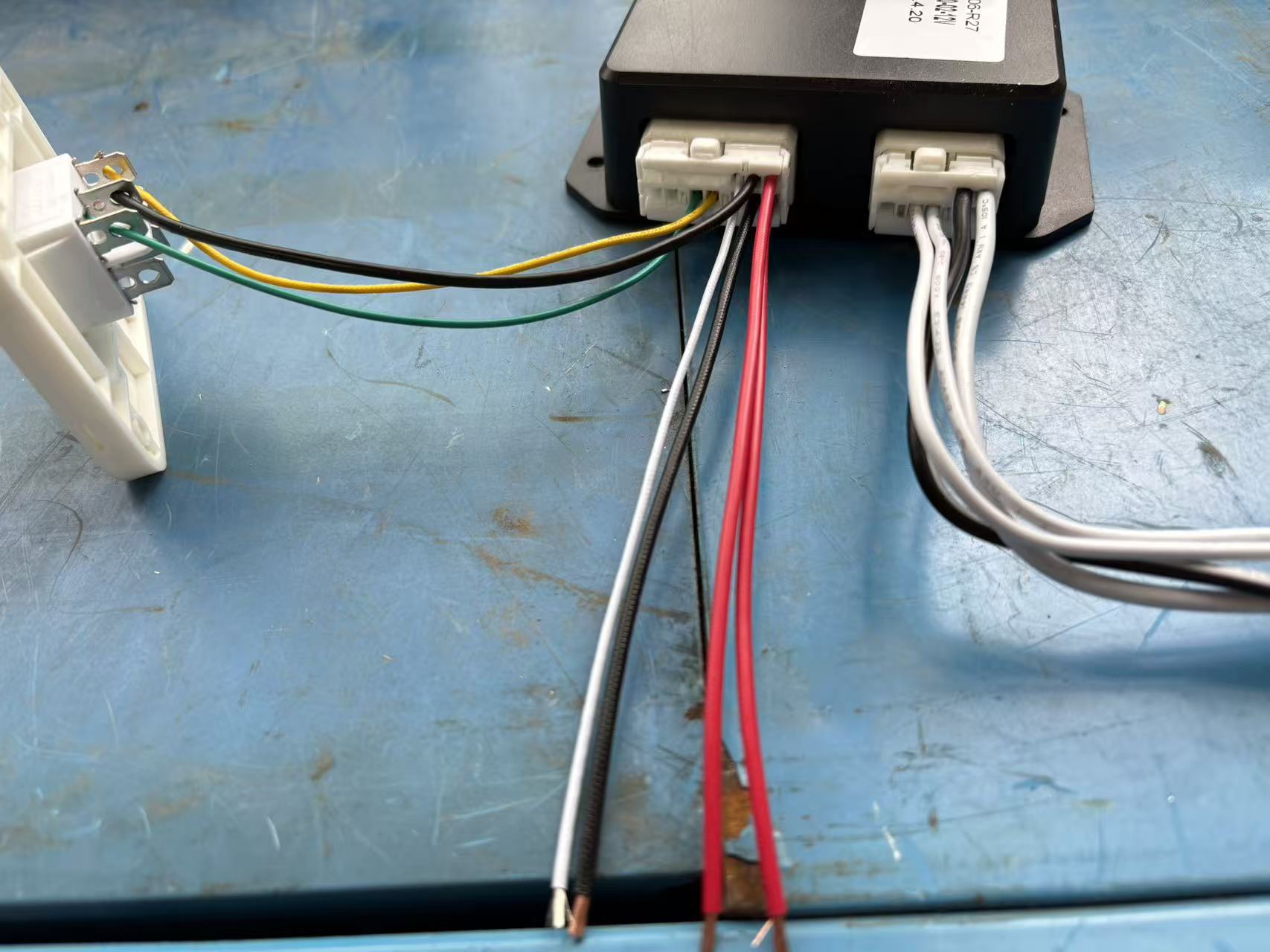

• INSTALLATION: The current build has the control switch mounted intergrated on the underside of the bed frame. Depending on your interior layout, this switch location may interfere with cabinets, support platforms, or other structures installed below the bed.

• INSTALLATION: The mounting brackets must be installed level from side to side.

• INSTALLATION: If one side is mounted higher than the other, the bed can tilt during travel and place excessive strain on the lifting system, frame, and mounting points.

• BED SYSTEM: The hanging belts are designed to support the bed frame only. They are not designed to support the weight of sleepers.

• BED SYSTEM: The bed must be lowered onto a secondary support platform, such as cabinets or structural supports, before being used for sleeping.

• BED SYSTEM: For safety reasons, we do not recommend having someone sleep below the elevator bed.

• MOTOR VOLTAGE: Rated Voltage |

• MOTOR VOLTAGE: 12 V |

• MOTOR CURRENT: Rated Current |

• MOTOR CURRENT: 14 A 10% |

• MOTOR CURRENT: No-load Current |

• MOTOR CURRENT: 2.5 A |

• MOTOR ROTATION: Rotation Direction |

• MOTOR ROTATION: Viewed from the output shaft end, the output shaft rotates clockwise |

• MOTOR DUTY TYPE: S2 |

• DEGREE OF PROTECTION: Degree of Protection |

• MOTOR PROTECTION RATING: IP64 |

• INSTALLATION: Minimum Installation Distance |

• STROKE MM: Stroke + 125 mm |

• MM: 85 mm |

• W: 55 W |

• APPROX A: Approx. 1.5 A |

• APPROX A: Approx. 4.6 A |

• NOISE PERFORMANCE: Operating Noise |

• NOISE PERFORMANCE: 50 dB |

• MOTOR PROTECTION RATING: IP65 |

FEATURES

• ELECTRIC LIFT: Raises and lowers the compact bed frame using the listed motorized system.

• MANUAL WIDTH EXTENSION: Expands from the 63 x 55-inch stored size to a 77 x 55-inch sleeping platform.

• EMERGENCY RELEASE: Provides the source-listed manual release function for loss-of-power situations.

COMMON PAIRINGS

• STRUCTURAL WALL SUPPORTS: Requires engineered mounting tied into suitable vehicle structure.

• SECONDARY BED SUPPORTS: Lower the platform onto properly installed supports before sleeping, as required by the source.

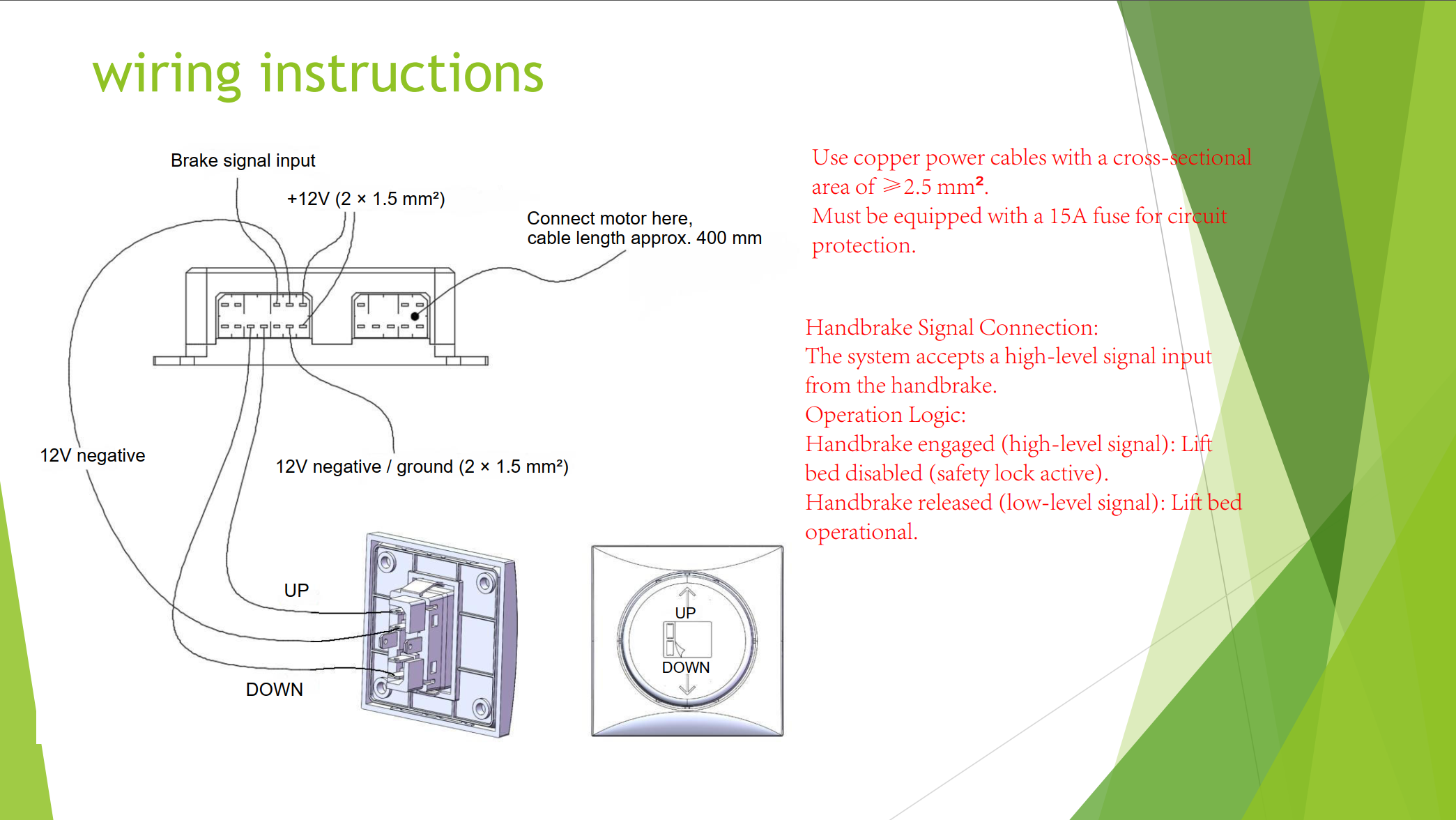

• PROTECTED 12V CIRCUIT: Plan correctly sized wiring, circuit protection, controls, and service access.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter, Ford Transit, Ram ProMaster, or another van with adequate reinforced mounting space.

• WHEELBASE: Not wheelbase-specific; the completed interior layout and structural mounting determine fit.

• ROOF HEIGHT: Confirm raised-bed clearance, finished ceiling height, mattress thickness, and usable headroom below.

• REQUIREMENTS: Requires engineered structural mounting, secondary supports before occupancy, protected electrical power, control wiring, and clear travel through the full lift range.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What size is the bed?

A: It measures 63 x 55 inches retracted and manually expands to 77 x 55 inches.

Q: Is a mattress included?

A: Yes, the source lists a 2-inch bi-fold mattress.

Q: Can someone sleep on it while it hangs from the lift?

A: No, lower the bed onto properly installed secondary supports before occupancy.

Q: What happens if power is lost?

A: The system includes the source-listed emergency release; West Coast Vans recommends testing it during installation.
