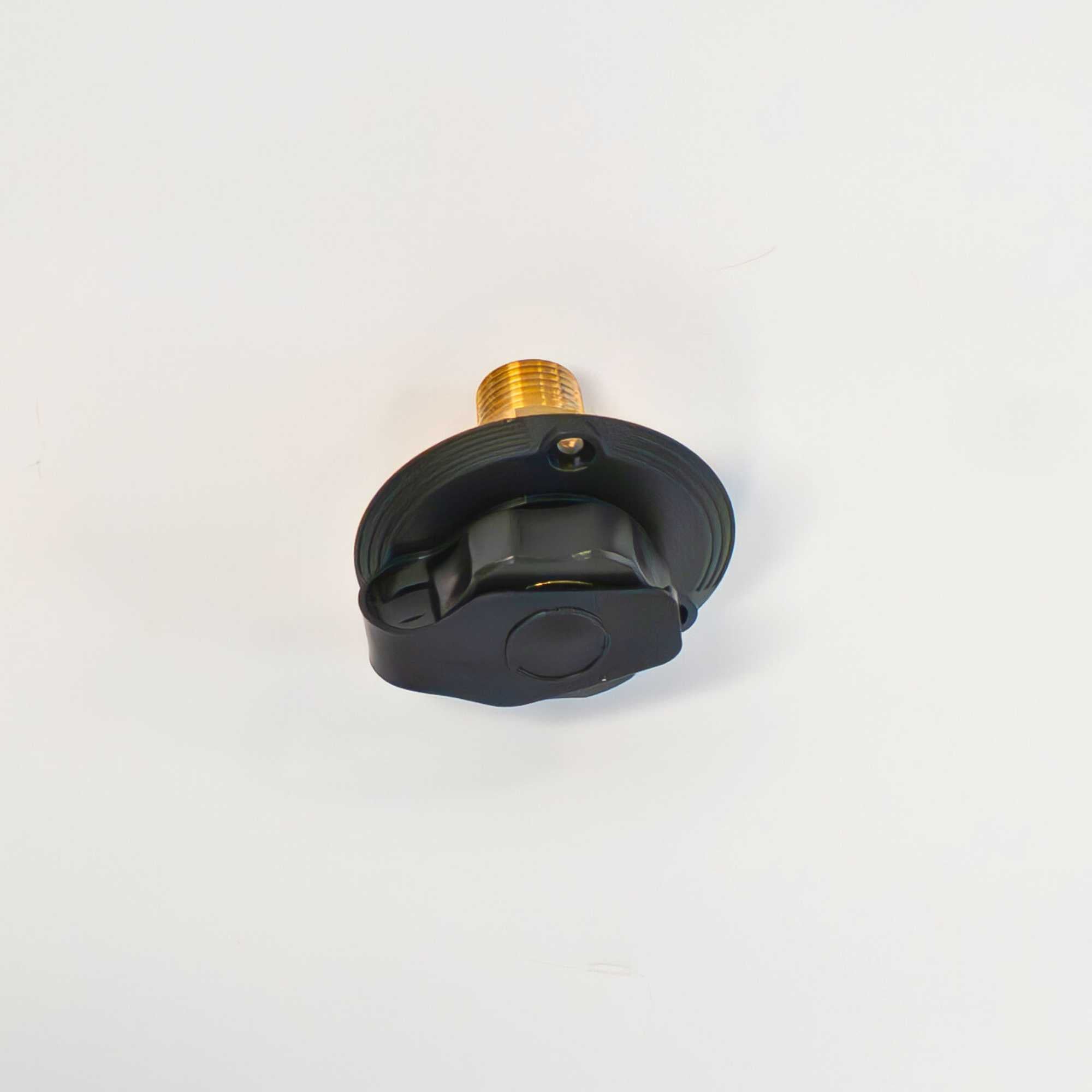

Valterra City Water Fill Inlet With Brass Check Valve

VALTERRA CITY WATER FILL INLET WITH BRASS CHECK VALVE

At WEST COAST VANS, we know that dialing in a reliable freshwater intake hub is one of the most foundational steps to a successful, leak-free plumbing configuration. Most builders get incredibly frustrated with generic, low-grade water fills that rely on cheap plastic internal fittings. Under continuous use and high campground water pressure, those plastic threads easily cross-thread, split, or warp—causing slow, hidden water leaks behind your interior wall panels that rot out your wood subfloor. Worse yet, standard inlets lack a reliable internal backflow block, letting your internal water pump accidentally pump clean water straight back out of the fill port when you disconnect from the spigot. We believe your utility shore hookups should be exceptionally durable, easy to grip, and completely bulletproof against backflow pressure. Enter the Valterra City Water Fill Inlet with Brass Check Valve—the ultimate worry-free pressurized freshwater input module. Engineered with a high-strength mechanical brass check valve core, this heavy-duty inlet connects natively to any standard garden hose to fill your internal water tank quickly and without any campground hookup frustration. Ask Us Product Questions Anytime if you want to coordinate your PEX plumbing lines or plan your exterior panel utility layout!

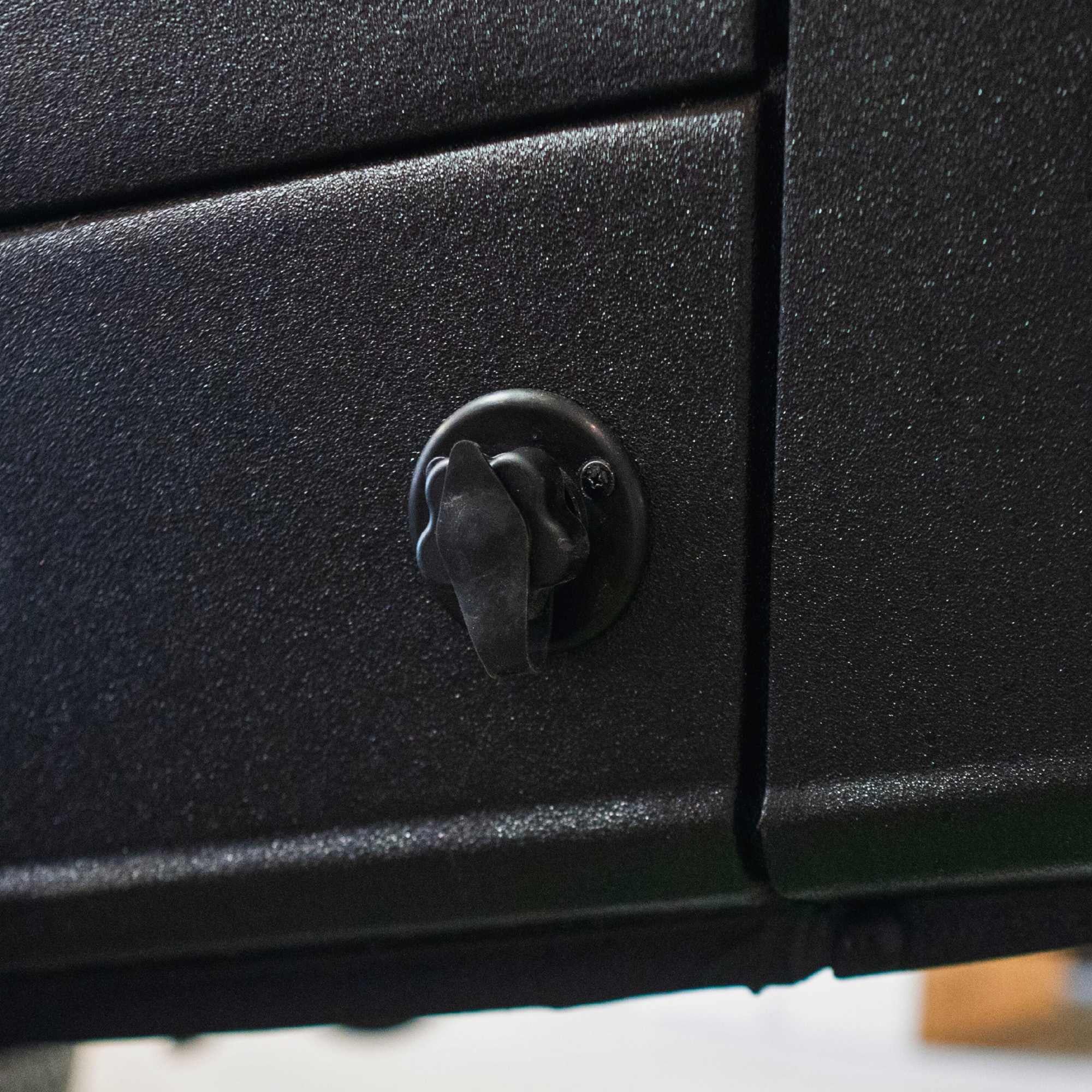

WCV EXPERT TIP Achieving a completely water-tight, professional exterior plumbing seal relies on using the right backing sealants before you fasten the flange to your van's skin. Pro Tip: Never rely on standard silicone alone when mounting utility ports to your exterior sheet metal walls. Instead, always apply a continuous ring of high-tack butyl tape behind the outer 3-inch mounting flange before pressing it against your clean, pre-drilled panel cutout. Once firmly seated, secure the flange with stainless steel sheet metal screws, trim away any oozing butyl squeeze-out, and run a neat bead of premium marine-grade sealant (like Sikaflex 221) around the top perimeter edge. This dual-layer boundary shield completely stops highway rain blasts and high-pressure car washes from ever creeping past the raw metal cutout edges and entering your interior wall insulation!

PRODUCT OVERVIEW The Valterra City Water Fill Inlet is a premium, commercial-grade plumbing hookup module built for custom van builders, remote overlanders, and long-haul travelers who demand top-tier durability. Upgrading standard industry designs, this rugged exterior port features a high-end integrated brass check valve that automatically Seals the line when disconnected, preventing annoying system backflow and maintaining steady internal plumbing pressure. Outfitted with an ergonomic, heavy-duty swivel fitting that features a deep-ridged outer grip layer, this inlet allows you to effortlessly tighten or disconnect a pressurized water hose with your bare hands, even when recessed inside tight utility bays or custom bumper enclosures.

BEST FOR

• OFF-GRID PRESSURIZED HOOKUPS: Perfect for builders who want a clean, dedicated exterior connection port to run their van's plumbing directly off city or campground water spigots.

• LEAK-PROOF FRESHWATER FILLING: Ideal for travelers who are tired of fighting brittle, cross-threaded plastic hookups and want a long-lasting brass thread interface.

• COMPACT BAY INTEGRATORS: Designed for clean layout configurations that need to maximize space inside a recessed exterior utility box or bumper panel area.

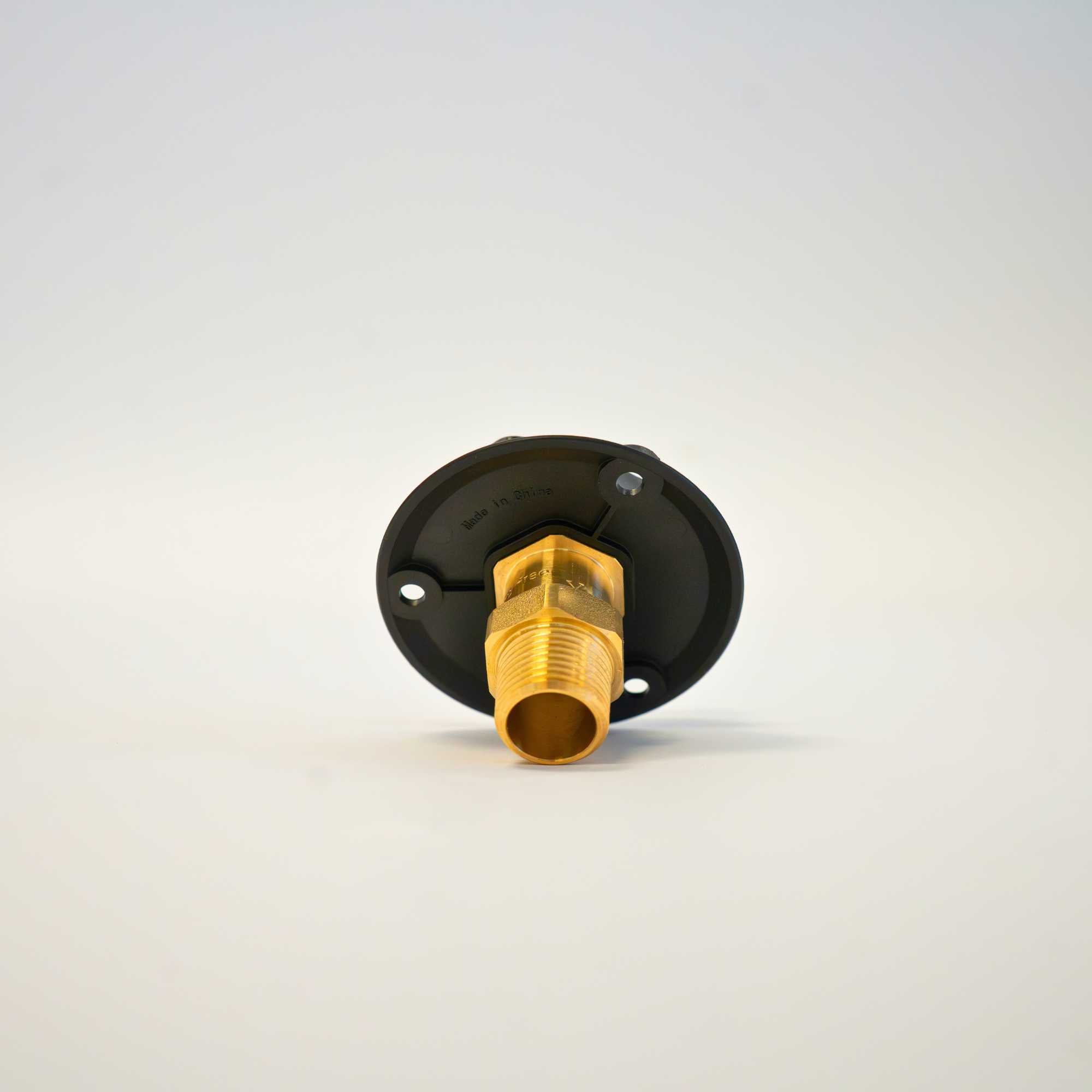

• REAR-FACING INTAKE MATRIX: (1) 1/2-inch MPT (Male Pipe Thread) rear connection point, designed to adapt smoothly to standard 1/2" FPT internal plumbing lines.

TECHNICAL SPECIFICATIONS

• PLUMBING INTEGRATION PROFILE: Heavy-duty exterior pressurized city water fill inlet hub with integrated check valve

• BACKFLOW PREVENTION ELEMENT: High-grade, corrosion-resistant internal mechanical brass check valve

• HOSE ATTACHMENT INTERFACE: Deep-ridged, high-traction swivel grip collar for effortless tool-free hose connections

• EXTERIOR COUPLING MEASUREMENT: Natively accepts standard garden hose threads, adapting to a 1/2" FPT inside connection

• SHEET METAL CUTOUT PARAMETER: Requires a clean 1.5-Inch diameter physical circular panel cutout

• FLANGE BOUNDARY DIMENSIONS: Ultra-clean outer face matching a 3-Inch total outer flange diameter

• INWARD PENETRATION CLEARANCE: Total structural valve housing depth metric calibrated at 1-1/16 Inches deep

• STRUCTURAL CASING MATERIAL: UV-stabilized, impact-resistant high-density exterior polymer housing

• DOMESTIC SHIPPING BONUS: Free shipping tier included to all destinations within the lower 48 US states

• OPERATIONAL SYSTEM CAPACITY: Engineered safely to manage standard regulated city and campground water pressures

VEHICLE FITMENT DIRECTORY

Thanks to its compact structural footprint and minimal backing depth, this universal water inlet features an exceptionally adaptable layout designed to install cleanly through the body panels or bumper steps of major commercial van platforms:

• SPRINTER CHASSIS COUPLING: Mounts beautifully into lower rear quarter panels, driver-side utility boxes, or custom rear door gear platforms (2007 to current models).

• TRANSIT CHASSIS COUPLING: Installs flawlessly alongside shore power plugs behind the driver's side rear wheel well, blending cleanly into the factory lower body lines (2015 to current models).

• PROMASTER CHASSIS COUPLING: Tucks cleanly into lower plastic body cladding paths or lower rear corner sheets, preserving internal cargo layout clearances (2014 to current models).

(Note: Always check behind your chosen exterior sheet metal panels for hidden internal unibody ribs, framing braces, or factory wiring looms before drilling out your 1.5-inch diameter hole.)

FEATURES

• INTEGRATED SOLID BRASS VALVE: Swaps cheap plastic internal flaps for a heavy-duty brass check valve structure that won't crack, stick open, or warp, keeping your pressurized house water system flowing smoothly and securely.

• DEEP RIDGED COUPLING SWIVEL: Outfitted with an easy-turn, high-grip outer spin ring that lets you quickly thread on a heavy campground hose with absolute ease, even if your hands are wet or space is tight.

• COMPACT BACKING WALL PROFILE: Built with a highly efficient 1-1/16 inch valve depth that sits incredibly flat inside your interior paneling voids, making it incredibly easy to hide behind standard upholstered plywood wall panels.

• UV-STABLE WEATHERPROOF FLANGE: Designed with an ultra-tough, fade-resistant outer polymer ring shroud that won't turn brittle, yellow, or crack under years of continuous exposure to harsh desert sun and highway road salt.

• TURNKEY PLUMBING COUPLING: Engineered with a clean 1/2" MPT rear port that effortlessly syncs up with standard John Guest, SharkBite, or braided vinyl plumbing adapters to streamline your water distribution matrix.

COMPATIBILITY & FITMENT

• INTERNAL LINE SYNCHRONIZATION: Natively connects to standard 1/2" female pipe thread plumbing lines, making it easy to tie directly into your van's existing PEX water matrix.

• WATER PRESSURE REGULATORS: Fully compatible with all standard RV inline water pressure regulators. (WCV always recommends running an external regulator to keep campground spikes below 50 PSI).

• MAINTENANCE CLEANING PROFILE: The clean white polymer housing resists staining. Simply spray off with fresh water lines during regular vehicle washing to maintain a clean appearance.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Do I need to buy a separate check valve to keep my water from spraying back out when the pump is on? A: No, absolutely not. Valterra engineered this city water fill with a built-in, commercial-grade solid brass check valve core. The moment you disconnect your garden hose at camp, the internal spring valve snaps shut instantly under system pressure. This prevents your interior water pump from accidentally pumping your clean water supply back out of the fill port.

Q: What size hole do I need to drill into the side of my van to install this inlet? A: To mount this water inlet hub flat against your vehicle's skin, you will need to drill out a clean 1.5-inch diameter circular hole through the exterior sheet metal or plastic bumper cladding. The outer surface flange measures 3 inches in total diameter, providing a clean overlap boundary to seal your fasteners out of sight.

Q: Can I use this port to gravity-fill my water tank from a standard water jug? A: No. This inlet is a threaded, pressurized "city water connection" system equipped with a check valve that requires water pressure to push open. It is designed to hook up directly to a pressurized campground water spigot or garden hose to feed your lines. If you need a port to dump unpressurized water from a jug, you will want a standard wide-mouth gravity fill port instead.

Q: Why is a brass check valve better than the standard plastic ones? A: Cheap aftermarket water inlets use molded plastic check valve tabs. Over time, heat variations and high water pressure lines make those plastic components crack, warp, or stick open—leading to massive backflow leaks. A precision-machined brass check valve core is immune to thermal warping, can handle high pressure spikes, and will hold its seals for years of heavy off-grid travel.

WHY TRUST WEST COAST VANS? Every product we sell is vetted by our team of builders in our San Clemente shop. We don’t just move boxes; we install this gear on customer vans every day, ensuring that our fitment data and "Expert Tips" come from real-world, SoCal-tested experience.
