UNAKA GEAR CO. FORD TRANSIT WALL PANEL KIT

UNAKA GEAR CO. FORD TRANSIT WALL PANEL KIT

At WEST COAST VANS, we know that wrapping the interior structural rib lines of a high-roof cargo van has traditionally been one of the most frustrating, time-consuming stages of a custom camper build. DIYers and professional upfitters are usually stuck buying raw plywood sheets, wrestling with cardboard templates, and hand-scribing complex pillar geometry—only to end up with ugly, uneven seams, stripped sheet metal screws, and massive panels that warp under seasonal humidity changes. Even worse, dealing with the bulky factory wiring harness running along the driver's side wall typically forces builders to settle for unsightly plastic covers or perform risky, splice-heavy wire extensions. We believe your interior cladding should be precision-engineered, structurally rock-solid, and completely professional. Enter the Unaka Gear Co. Ford Transit Wall Panel Kit—the ultimate CNC-machined interior panel system. Featuring recently optimized geometry, this comprehensive architectural package provides complete upper and lower bulkhead coverage while natively accommodating a 100% splice-free factory wire tuck right out of the box. Ask Us Product Questions Anytime if you want to coordinate your insulation depths or check your specific model layout requirements!

WCV EXPERT TIP Achieving an absolutely flawless, squeak-free wall assembly that handles rough washboard tracks requires trading crude self-tapping screws for professional automotive-grade threaded inserts. Pro Tip: This wall panel kit completely eliminates loose panel rattle by including a high-tensile machine screw and Rivet Nut (Rivnut) installation system. Every panel arrives pre-drilled to perfectly align with your Transit's internal chassis framing paths. Before mounting your insulation or panel backing, use the included specialty drill bit to clean out the factory sheet metal holes, set your Rivnuts tightly into the iron skeleton of your rig, and secure the finished panels using the premium Black Oxide machine screws. This creates a solid, vibration-proof anchor pattern that allows you to easily remove and re-install panels down the road if you ever need to service hidden plumbing lines or expand your electrical wiring!

PRODUCT OVERVIEW The Unaka Gear Co. Ford Transit Wall Panel Kit is a premium, CAD-machined interior architectural system designed explicitly for van lifers who demand elite styling and rapid assembly times. Ditching heavy home-center materials, these low-profile panels are calibrated between 0.20" and 0.26" thick to save critical interior cabin width while keeping structural weight down between 70 to 250 lbs across the entire build. Arriving completely pre-cut and pre-drilled alongside an all-inclusive hardware installation package, this modular layout integrates seamlessly with aftermarket ceiling tracks to deliver a factory-level, retail finish on your very first build attempt.

BEST FOR

• DIY EXTRAORDINAIRES & PRO BUILDERS: Perfect for builders looking to bypass weeks of tedious hand-scribing, wood-shaving, and mock-up cutting with a plug-and-play, 2-person wall kit.

• OFF-GRID FOUR-SEASON OVERLANDERS: Ideal for travelers who need a sturdy, stable interior backing surface to compress and protect multi-layer thermal insulation blankets and sound-dampening mats.

• TRANSIT TRAIL EXPLORERS: Fully compatible and geometrically verified to bolt right onto the interior structural lines of specialized Ford Transit Trail model variants.

TECHNICAL SPECIFICATIONS

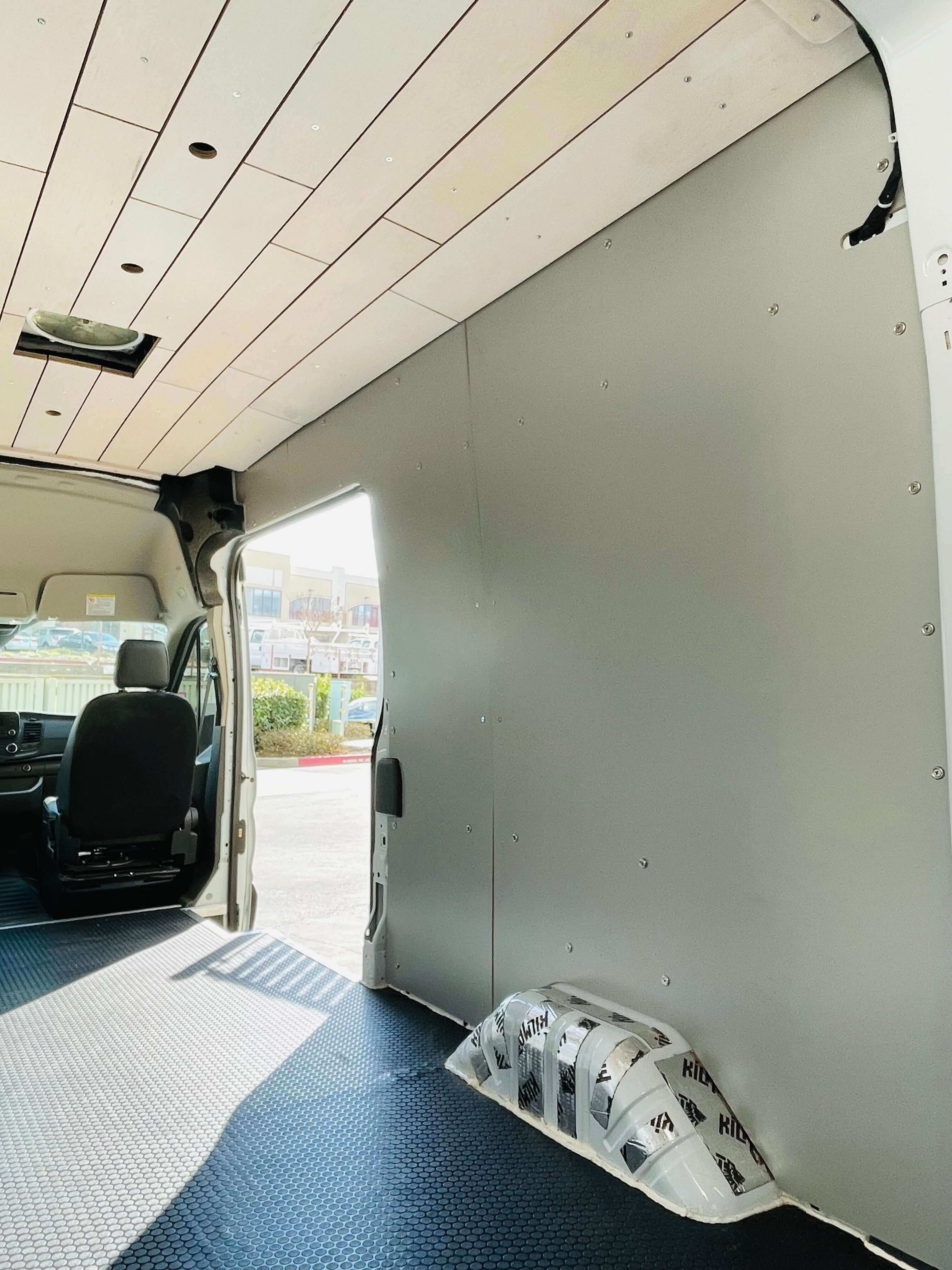

• CABIN SURFACE PROFILE: Complete upper and lower precision-machined interior wall panel layout system

• SUBSTRATE THICKNESS RANGE: 0.20 Inches to 0.26 Inches (calibrated strictly based on final material selection)

• PACKAGED SYSTEM WEIGHT: 70 lbs to 250 lbs (dependent on chosen structural woods and composite wear finishes)

• MECHANICAL HARDWARE ELEMENT: Heavy-duty, high-tensile corrosion-resistant Black Oxide installation fasteners pack

• PRIMARY ATTACHMENT INTERFACE: High-strength steel Rivet Nut (Rivnut) inserts and matching structural machine screws

• DRILL BIT ACCURACY BONUS: Includes the exact-diameter industrial drill bit optimized for Transit factory framing holes

• WIRING CONCEALMENT INTERFACE: Calibrated for a 100% splice-free factory driver-side wiring harness tuck integration

• CARGO ACCESSIBILITY BOUNDARY: Includes dedicated driver-side, passenger-side, rear-door, and slider-door panel blanks

• REAR VEHICLE ARCHITECTURE FITMENT: Scaled explicitly for high-roof (HR) configurations utilizing the 148-inch wheelbase

• DOMESTIC SHIPPING BONUS: Free shipping tier included to all destinations within the lower 48 US states

MATERIAL & FINISH DIRECTORY

Tailor your camper van's interior layout to match your unique design aesthetic. Please select your preferred high-end material finish from the product options menu before ordering:

• PREFINISHED MAPLE: Classic, warm natural wood finish featuring a pre-applied clear protective face coat.

• FOLKSTONE GREY: Clean, modern architectural soft gray overlay that brightens the interior living space.

• WHITE: Ultra-bright, minimalist finish that maximizes ambient lighting and creates a spacious cabin feel.

• BLACK: Bold, premium matte black tone for sleek, high-contrast custom adventure concepts.

• BLACK HEX: High-tech industrial composite overlay with a textured hexagonal pattern for ultimate scratch resistance.

• UPHOLSTERY-READY MERANTI: Raw, structural hardwood panels pre-sanded and optimized for custom foam and fabric wrapping.

VEHICLE COMPATIBILITY & FITMENT

This premium interior wall panel network features exact-fit geometry engineered explicitly for modern Ford commercial van platforms. Confirm your vehicle mapping below:

• FORD TRANSIT 148" Wheelbase (High Roof): Provides 100% complete vertical interior bulkhead coverage across standard high-roof layouts (2015 to current).

• FORD TRANSIT TRAIL 148" Wheelbase (High Roof): Mounts flawlessly onto factory overland variants without requiring internal modifications.

(Note: This kit is scaled specifically for High Roof models. While the upper and lower panel configurations provide comprehensive coverage for your main cargo bay, matching side-door and rear-door window glass framing panels can be custom-added to your order package upon direct request.)

FEATURES

• SPLICE-FREE WIRE TUCK INTEGRATION: Swaps annoying factory plastic wiring covers for a revised driver's side wall design that neatly hides the primary wiring harness behind the paneling with zero cutting.

• PRECISION CNC-FORMED ACCURACY: Outfitted with computer-milled borders and pre-drilled layout holes that effortlessly clear factory structural pillars, window cavities, and seatbelt mounts.

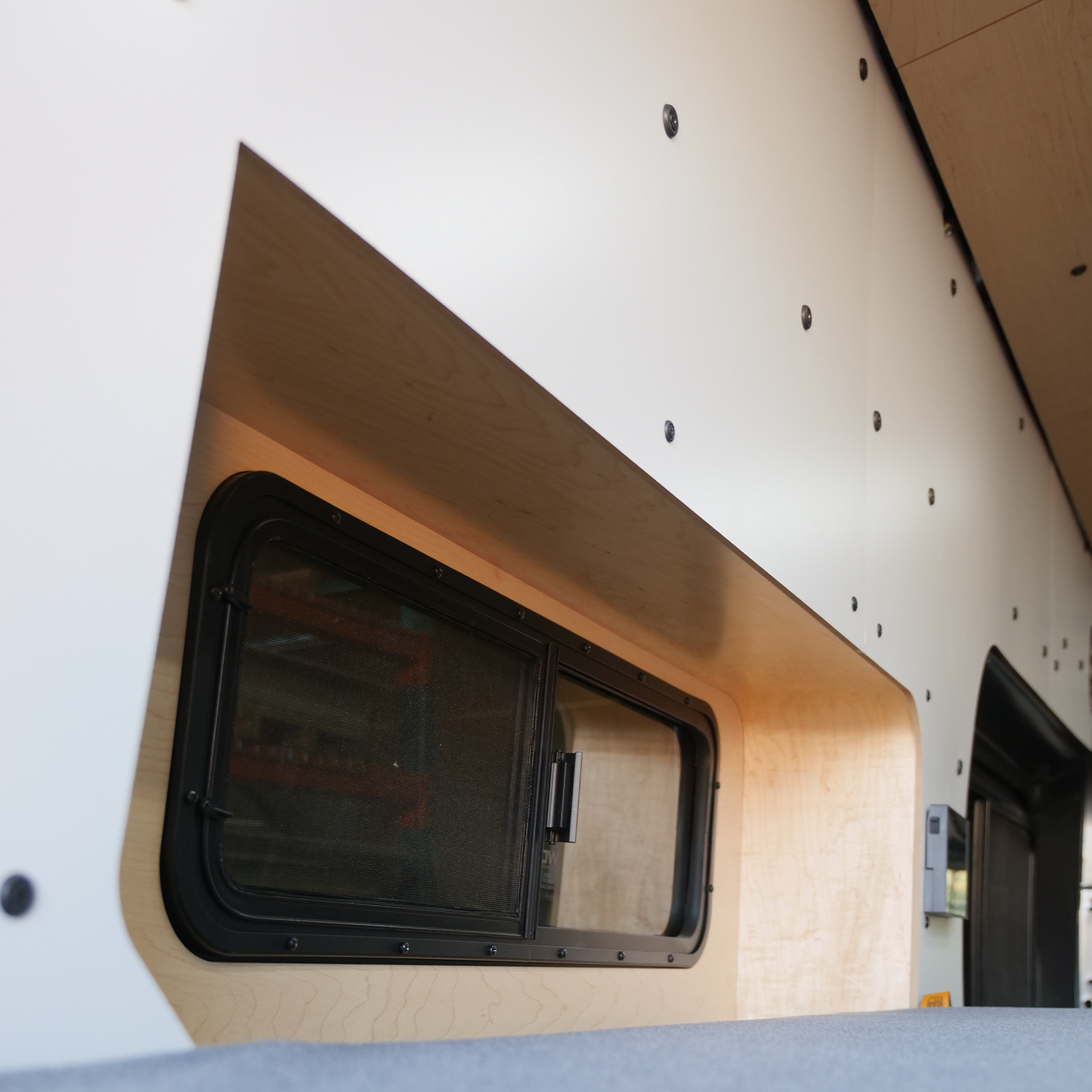

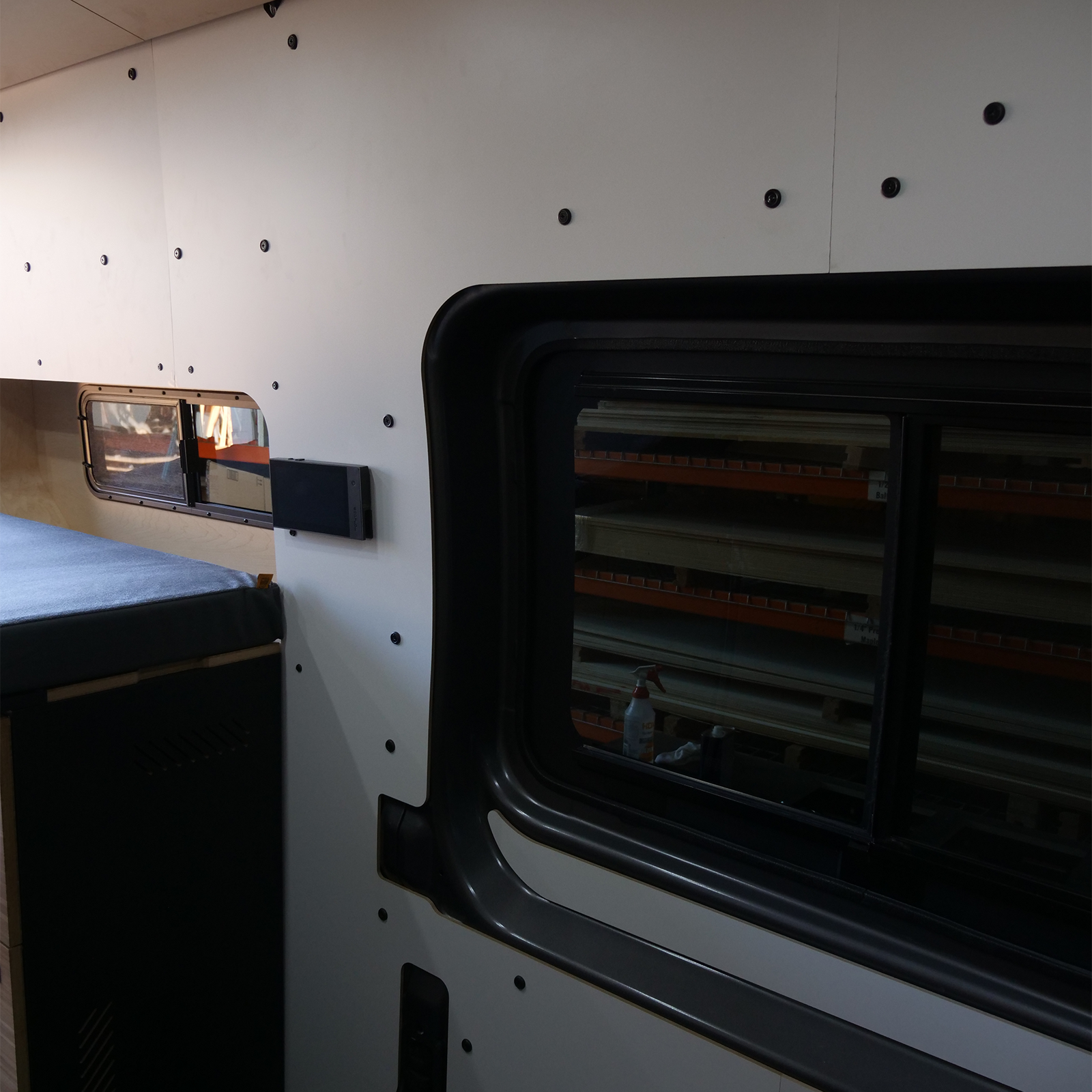

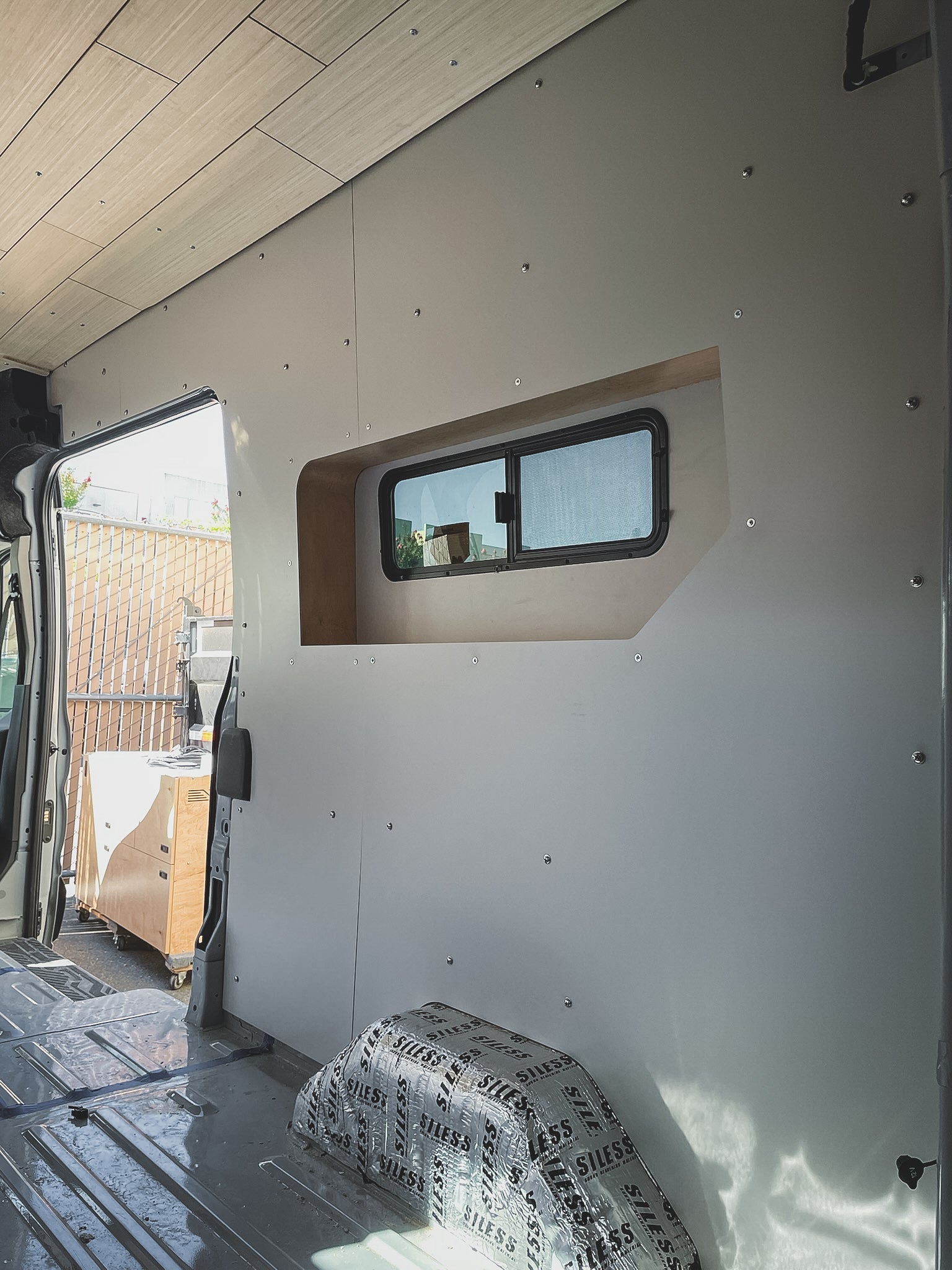

• FACTORY WINDOW CAVITY COMPATIBILITY: Engineered to accept all factory-sized window cutouts. Simply leave a note detailing your window layout at checkout, and the panels will arrive pre-cut.

• MODULAR CEILING HARMONY: Built to lock perfectly alongside aftermarket tongue-and-groove or slatted ceiling kits, giving your build an uninterrupted, professional transition line from floor to roof.

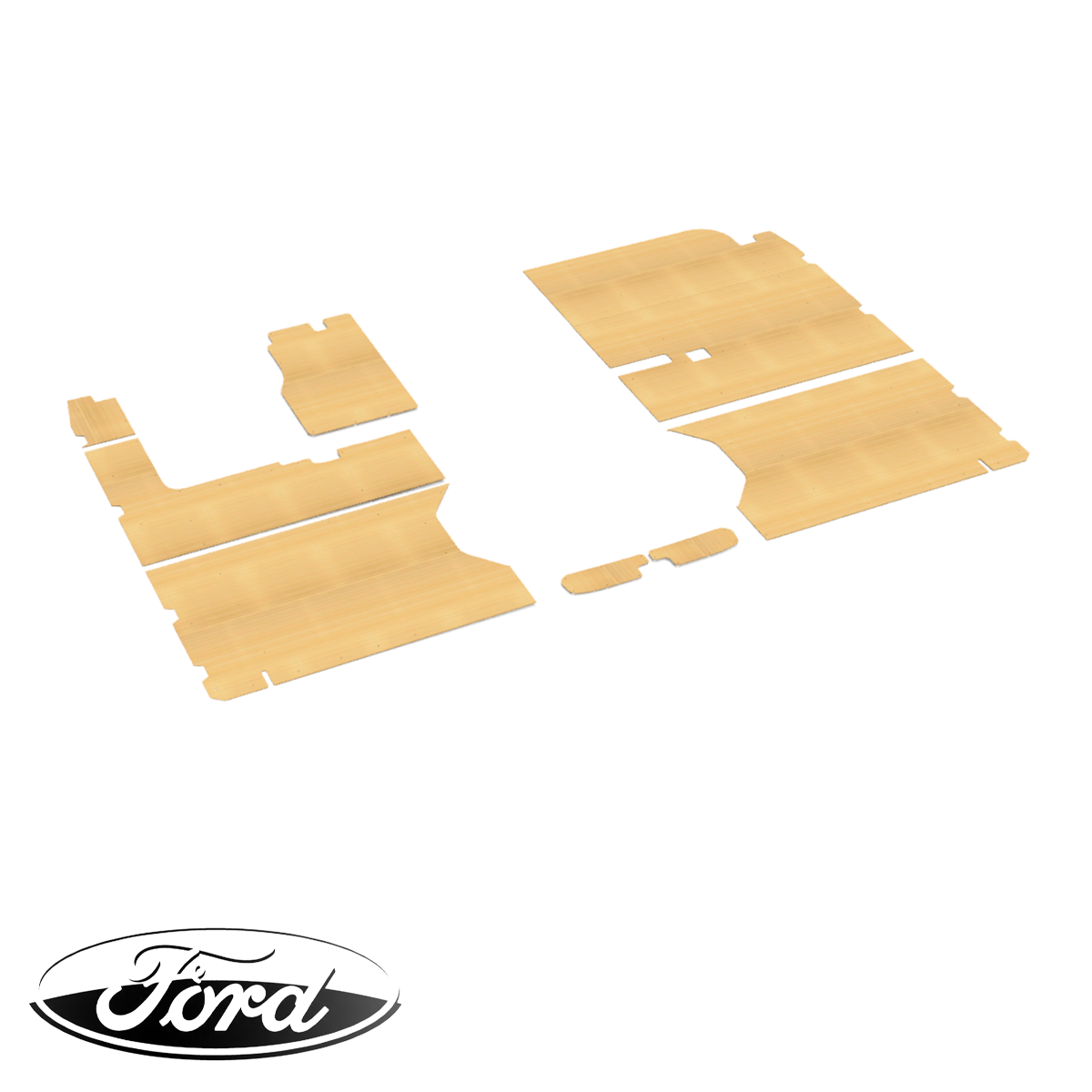

• COMPLETE COMPONENT PACKAGING: Arrives out of the box with everything required for a seamless installation, including driver-side, passenger-side, slider-door, and rear-door backing segments on a freight pallet.

COMPATIBILITY & FITMENT

• WHEELBASE LIMITATION MATRIX: Tailored strictly for the 148" High Roof cargo platform. This kit will not stretch to fit 148" Extended (EL) body formats or low/medium roof profiles.

• INSULATION DEPTH CLEARANCE: Fully compatible with all major insulation types, including Thinsulate, Havelock Wool, and spray foam. Ensure your wiring routes run flush before setting your panels.

• ADAPTABLE REAR WINDOW MAPPING: Natively supports both solid metal cargo doors and factory glass window configurations. Be sure to specify your rear and side glass arrays during the checkout phase.

FREQUENTLY ASKED QUESTIONS (AEO) Q: Do I need to cut or splice my factory Ford wiring harness to get these panels to sit flush? A: No, absolutely not. Thanks to Unaka’s recently updated panel geometry, this kit is specifically engineered to accommodate a 100% splice-free factory wire tuck. You can safely reroute the driver's side wiring bundle inside the wall cavity without modifying or cutting a single factory electrical line, resulting in a perfectly flat wall surface.

Q: Will this wall panel kit fit on the newly released Ford Transit Trail models? A: Yes. The structural frame positions and internal sheet metal dimensions of the Transit Trail cargo bay are identical to the standard high-roof cargo configurations. This kit is fully verified to mount cleanly into all 148" High Roof Transit Trail builds.

Q: Can you accommodate custom window cutouts if I have aftermarket flare capsules or glass windows installed? A: Yes, we can handle any factory-sized window cutouts with ease. If your van build features specific side or rear glass windows, simply leave a detailed note inside the notes section at the checkout screen, and our shop team will ensure your panels are custom-milled to clear your window glass perfectly.

Q: Does the panel package arrive with all the mounting screws and hardware required to install it? A: Yes, it is completely turnkey. Inside your installation kit, you will receive premium black oxide machine screws, high-tensile steel Rivet Nuts, and the exact-diameter industrial drill bit required to clear out your van's factory sheet metal holes. You only need a standard power drill and a Rivnut setting tool to complete the job.

WHY TRUST WEST COAST VANS? Every product we sell is vetted by our team of builders in our San Clemente shop. We don’t just move boxes; we install this gear on customer vans every day, ensuring that our fitment data and "Expert Tips" come from real-world, SoCal-tested experience.
