At West Coast Vans, a power system should simplify the build, not turn the electrical cabinet into a science fair. The EcoFlow 5 kVA Power Kit - Integrated 48V Power combines the source-listed hub, battery, distribution, controls, and cable options; Ask Us Product Questions Anytime before choosing capacity and panel configuration.

WCV EXPERT TIP

Create a load schedule first, then confirm battery capacity, distribution-panel version, 48V appliance needs, and every included cable before installation.

PRODUCT OVERVIEW

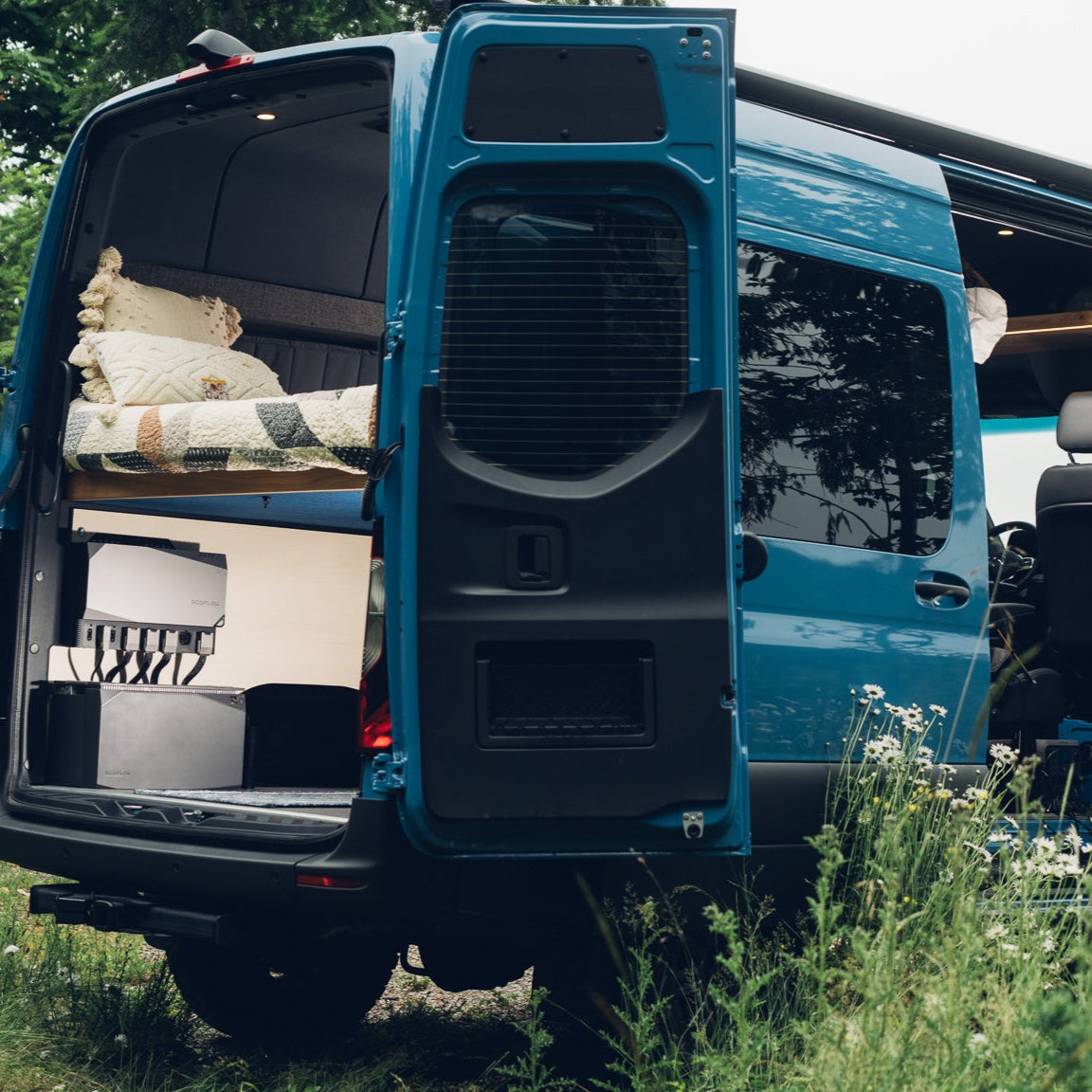

EcoFlow 5 kVA Power Kit - Integrated 48V Power is an integrated 48V off-grid electrical package for camper vans, motor homes, trailers, and RVs.

The source variants combine specific Power Hub, LFP battery, cable, distribution, console, mounting, and optional 48V air-conditioner components; review every variant before ordering.

BEST FOR

• COMPLETE CAMPER-VAN ELECTRICAL SYSTEMS: For builders who want an integrated hub, storage, distribution, and control package.

• 48V APPLIANCE BUILDS: Useful when planning rooftop air conditioning or other compatible 48V loads.

• OFF-GRID HIGH-DEMAND LAYOUTS: Available in the source-listed capacity and panel configurations for larger energy needs.

TECHNICAL SPECIFICATIONS

• VENDOR: Campervan HQ

• PRODUCT: EcoFlow 5 kVA Power Kit (Collective Supplier)

• SOURCE SKUS: ECO-30ARVKIT | ECO-5BATTPACK, ECO-50ARVKIT-PKC | ECO-5BATTPACK

• VARIANT OPTIONS: 5kVA Kit Version: 30A RV Kit with Power Kit Console, 50A RV Kit with Power Kit Console

• DIMENSIONS: Ecoflow 50A AC/DC Panels are back in stock!

• POWER KIT NOTE: Orders fulfilling 2nd week of December.

• DIMENSIONS: 5 kVA Power Kit with 30A AC/DC Panels are in stock and typically ship in 5-7 business days after processing.

• ELECTRICAL SPECIFICATION: Typical campervan and RV installations will not require 50A panels and the 30A panel will provide the end user with ideal experience and common uses.

• ELECTRICAL SPECIFICATION: The hassle-free, high-powered EcoFlow 5 kVA Power Kit - Gen 2 is the newest version of EcoFlow's integrated, plug-and-play 48V off-grid power solution designed for camper vans, motor homes, trailers and RVs of any kind.

• POWER KIT NOTE: CHOOSE YOUR KIT

• ECOFLOW SYSTEM NOTE: You can choose between these variants of the EcoFlow 5 kVA Power Kit - Gen 2

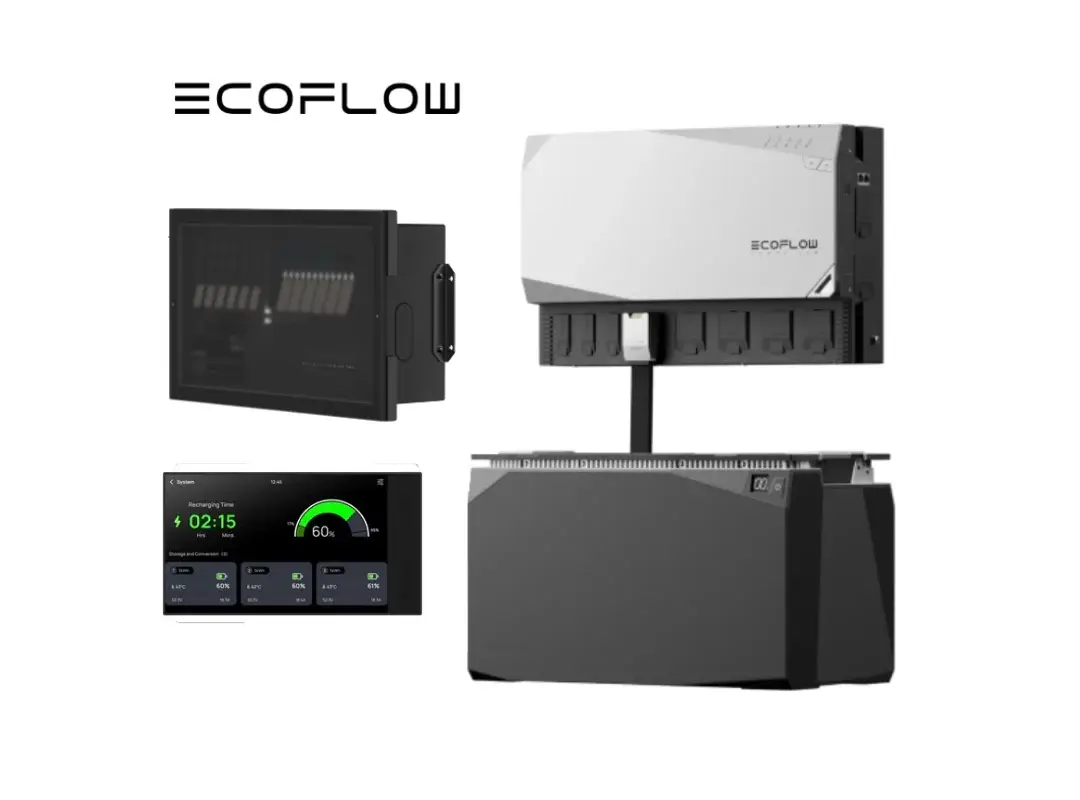

• INCLUDED COMPONENTS: 30A RV Kit with Console includes - 1x 5 kVA Power Hub (Gen 2), 1x Cable Pack, 1x 5 kWh LFP Battery, 1x 30A AC/DC Smart Distribution Panel (Gen 1), 1x Power Kit Console (Gen 1), 1x Battery Mounting Hardware/Straps

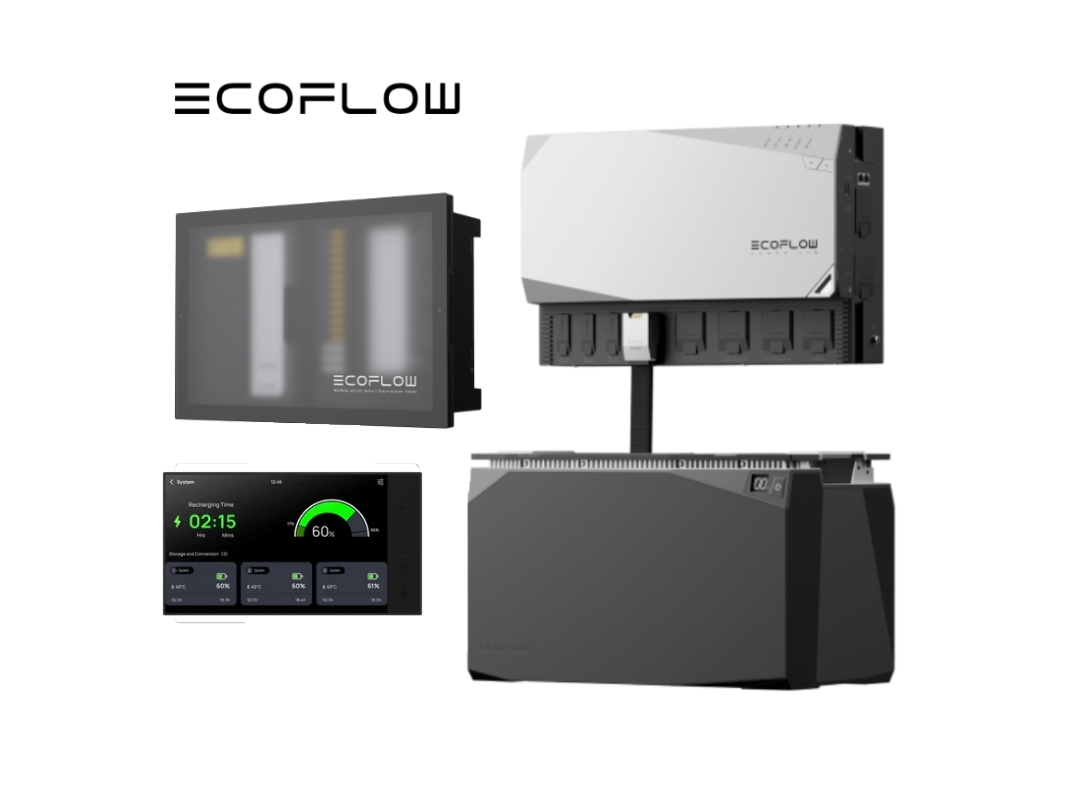

• INCLUDED COMPONENTS: 50A RV Kit with Console includes - 1x 5 kVA Power Hub (Gen 2), 1x Cable Pack, 1x 5 kWh LFP Battery, 1x 30A/50A AC/DC Smart Distribution Panel (Gen 2), 1x Power Kit Console (Gen 1), 1x Battery Mounting Hardware/Straps

• INCLUDED COMPONENTS: Your Kit Version selected includes a 5 kWh LFP Battery.

• ELECTRICAL SPECIFICATION: 48V A/C CABLE

• ELECTRICAL SPECIFICATION: The new 5 kVA Power Hub features a dedicated 48V output port.

• ELECTRICAL SPECIFICATION: This is recommended for rooftop air conditioners or other 48V appliances.

• SHIPPING: FREE SHIPPING on all EcoFlow items anywhere in the lower 48 US states.

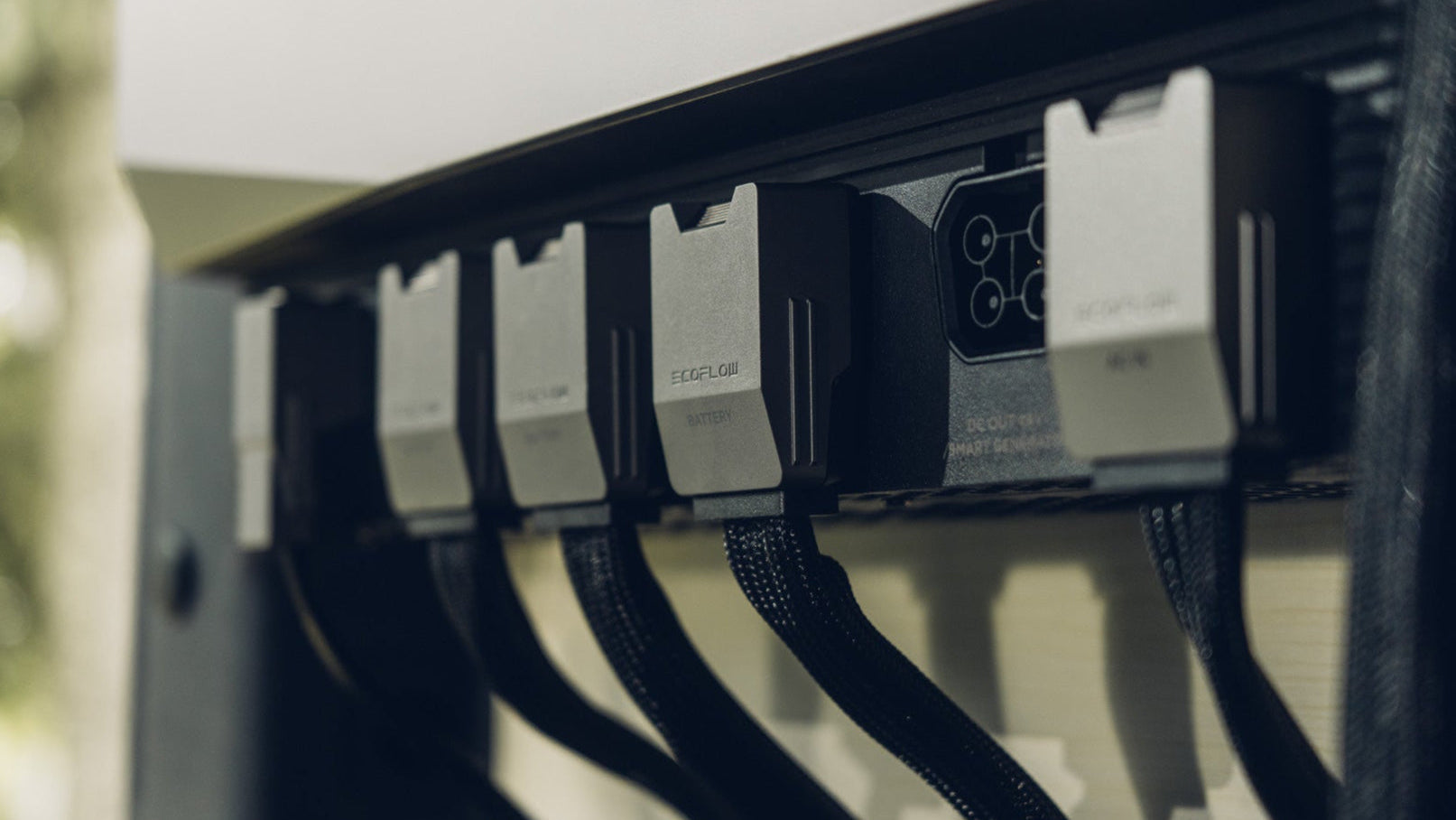

• ECOFLOW SYSTEM NOTE: The 5kVA Power Hub comes with AC and DC Main Out cables designed to connect to the new EcoFlow 50A Distribution Panel.

• REQUIREMENT: The 50A Distribution Panel does not come with circuit breakers or extra DC fuses.

• POWER KIT NOTE: 3x DC Main fuses are included.

• POWER KIT NOTE: SPECIFICATIONS

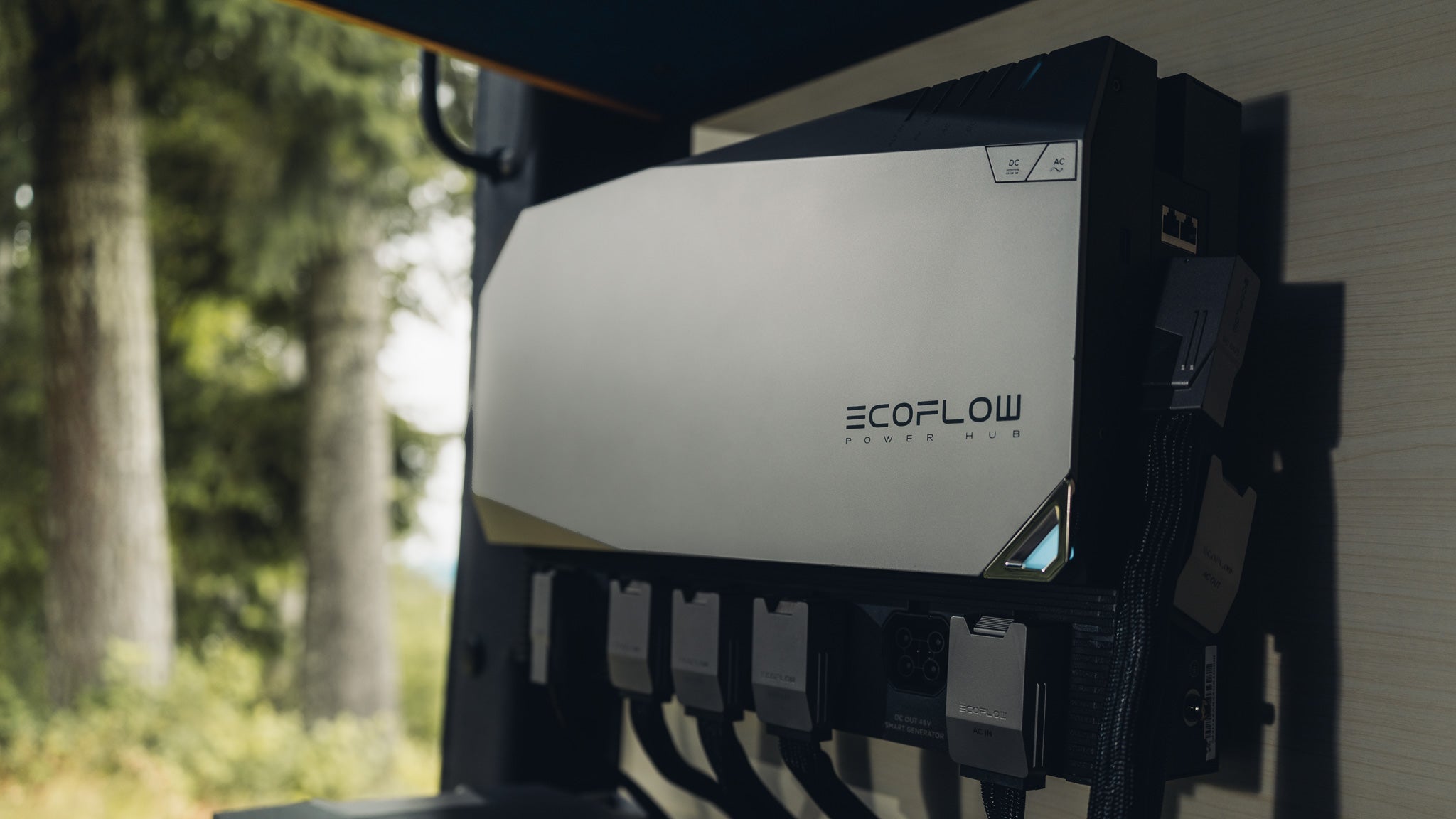

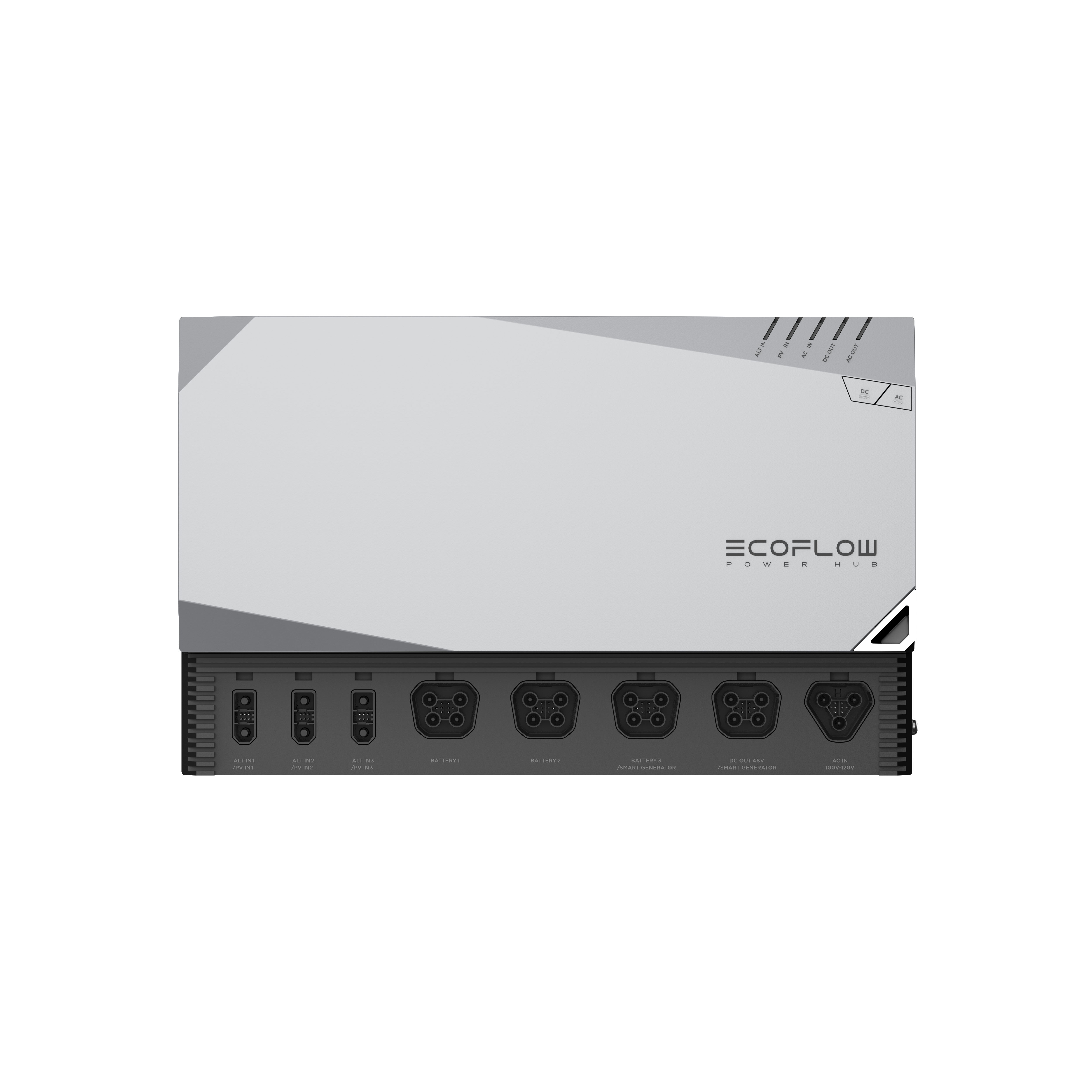

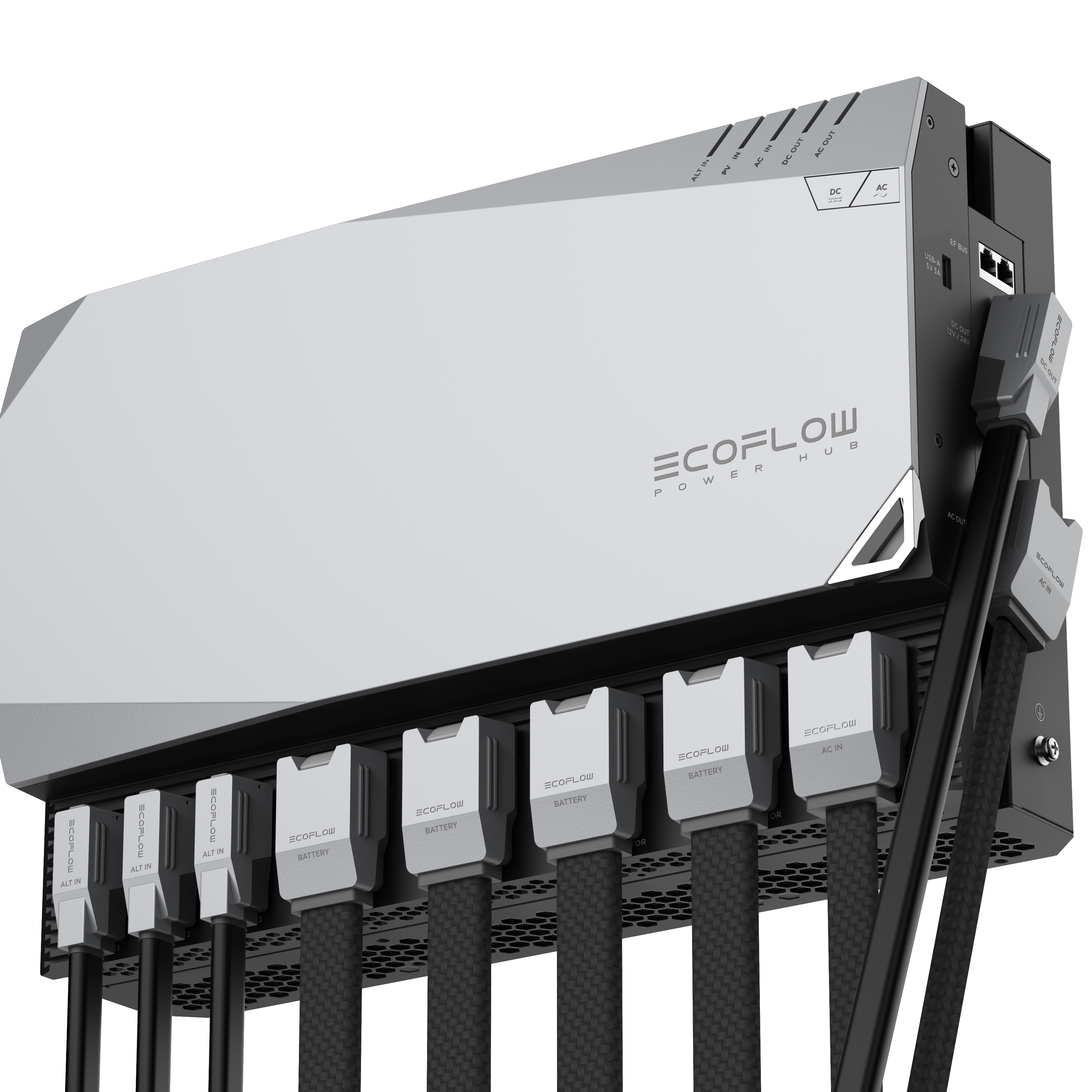

• POWER KIT NOTE: Power Hub 5 kVA - Gen 2

• DIMENSIONS: Dimensions (in)

• DIMENSIONS: 480x140x300mm(18.9x5.5x11.8in)

• CERTIFICATION: Testing & Certifications

• CERTIFICATION: CE, UL, FCC

• POWER KIT NOTE: 2.4G, 5G Supported

• POWER KIT NOTE: Bluetooth

• POWER KIT NOTE: 5.0 Supported

• ELECTRICAL SPECIFICATION: AC Output (Discharge only)

• POWER KIT NOTE: 120V - 4000W, 5000VA, 60Hz

• POWER KIT NOTE: (Surge 10 kVA, 100ms)

• ELECTRICAL SPECIFICATION: AC Output (Bypass Mode)

• LOW VOLTAGE: 100-120V ~ 50A Max, 50/60Hz

• HIGH VOLTAGE: 220-240V ~ 50A Max, 50/60Hz

• POWER KIT NOTE: DC Main Output

• POWER KIT NOTE: 13.6V - 100A, 1300W Max

• POWER KIT NOTE: 26.4V - 60A, 1600W Max

• POWER KIT NOTE: X-Fusion(Power Assist)

• POWER KIT NOTE: 50A, 5000VA Max

• ELECTRICAL SPECIFICATION: AC Main Input Voltage/frequency

• POWER KIT NOTE: 100-120V, 50Hz/60Hz

• ELECTRICAL SPECIFICATION: Solar Charging Input

• PORT 1: 13-60V 100A, 4000W max

• PORT 2/3: 13-60V 30A, 1600W max

• ELECTRICAL SPECIFICATION: Alternator Charging Input

• POWER KIT NOTE: 13V-60V, 60A/30A/30A, up to 4800W total

• OPERATING RANGE: TEMPERATURE

• OPERATING RANGE: Best Operating Temperature

• POWER KIT NOTE: 68F-86F(20C - 30C)

• OPERATING RANGE: Discharge Temperature

• POWER KIT NOTE: 13F-140F(-25C to 60C)

• OPERATING RANGE: Charge Temperature

• OPERATING RANGE: Storage Temperature

• WEIGHT OR SIZE: Net Weight

• WEIGHT OR SIZE: 34 lbs(15.5kg)

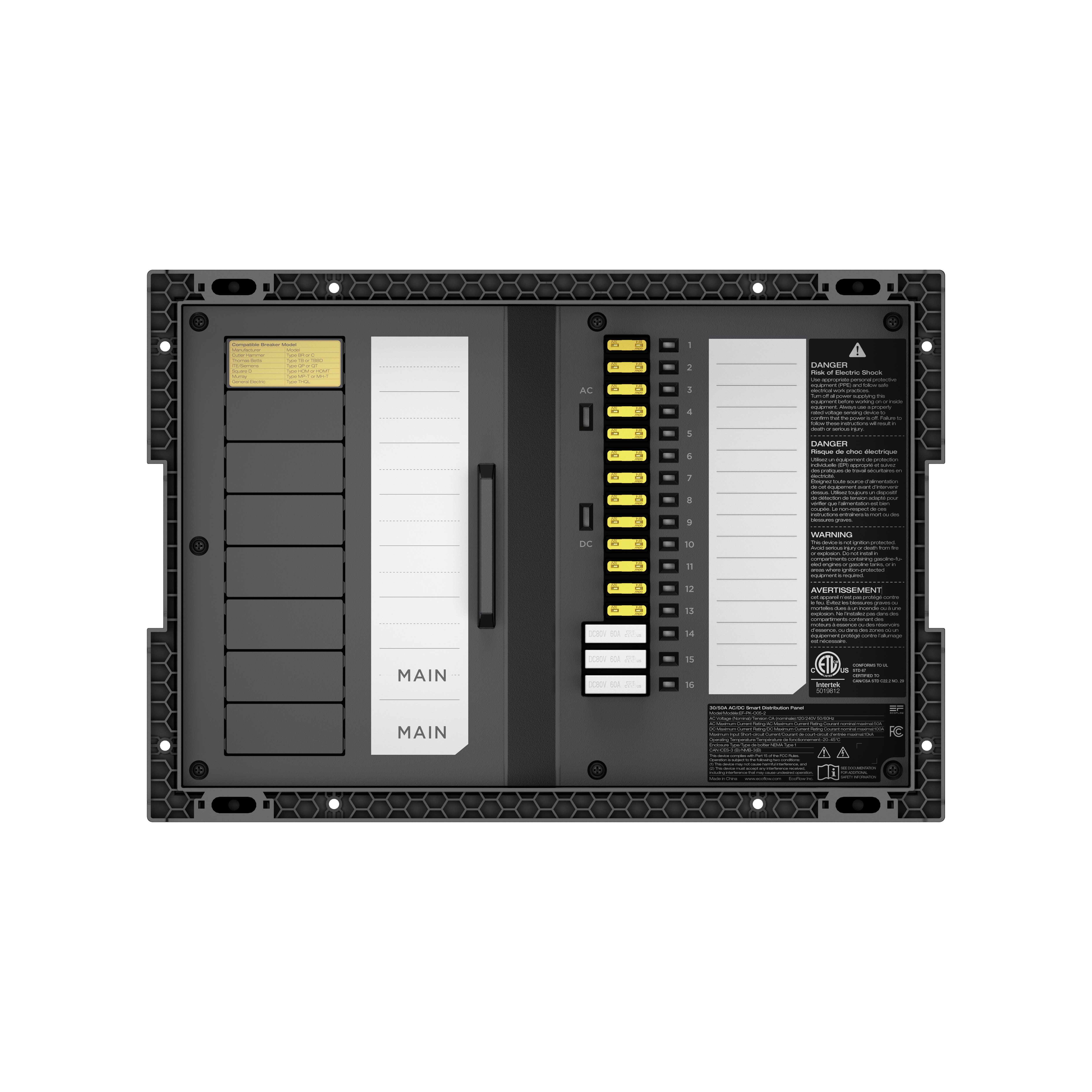

• ELECTRICAL SPECIFICATION: 30/50Amp AC/DC Smart Distribution Panel - Gen 2

• DIMENSIONS: Feed-In type

• POWER KIT NOTE: Split phase (L1, L2, N)

• ELECTRICAL SPECIFICATION: AC Input

• POWER KIT NOTE: 50A Max.

• POWER KIT NOTE: 120V/240V, 60Hz

• ELECTRICAL SPECIFICATION: AC Output

• POWER KIT NOTE: Max 30A for each branch circuit

• POWER KIT NOTE: AC Circuits

• POWER KIT NOTE: Max 12 branch circuits

• ELECTRICAL SPECIFICATION: Maximum Input Short-Circuit Current

• ELECTRICAL SPECIFICATION: DC Input

• POWER KIT NOTE: Max 100A, 13/26V

• ELECTRICAL SPECIFICATION: DC Output

• POWER KIT NOTE: Max 30A for F1-F13 Circuits

• POWER KIT NOTE: Max 50A for F14-F16

• POWER KIT NOTE: Number of Circuits

• POWER KIT NOTE: 16 controllable circuits(F1-F16)

• OPERATING RANGE: Operating Temperature (C)

• POWER KIT NOTE: 25C to 45C (-13F to 113F)

• OPERATING RANGE: Operating Temperature (F)

• POWER KIT NOTE: 25C to 70C (-13F to 158F)

• DIMENSIONS: Dimensions

• DIMENSIONS: 390x135x270 mm (15.3x5.3x10.6 in.)

• WEIGHT OR SIZE: Net Weight (lbs)

• WEIGHT OR SIZE: 4 kg (8.8 lb)

• OPERATING RANGE: Altitude

• DIMENSIONS: 9842 ft (3,000 m)

• POWER KIT NOTE: Enclosure Type

• POWER KIT NOTE: NEMA Type 1

• BATTERY SPECIFICATION: 5kWh LFP Battery

• BATTERY SPECIFICATION: Capacity

• BATTERY SPECIFICATION: 5120Wh (51.2V, 100Ah)

• POWER KIT NOTE: Cell Chemistry

• POWER KIT NOTE: Lithium Iron Phosphate

• BATTERY SPECIFICATION: Cycle Life

• BATTERY SPECIFICATION: ~3500 Cycles up to 80% Capacity

• POWER KIT NOTE: Protection Level

• CERTIFICATION: Test and Certifications

• CERTIFICATION: UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE

• OPERATING RANGE: Storage Temperature (F)

• OPERATING RANGE: Storage Temperature (C)

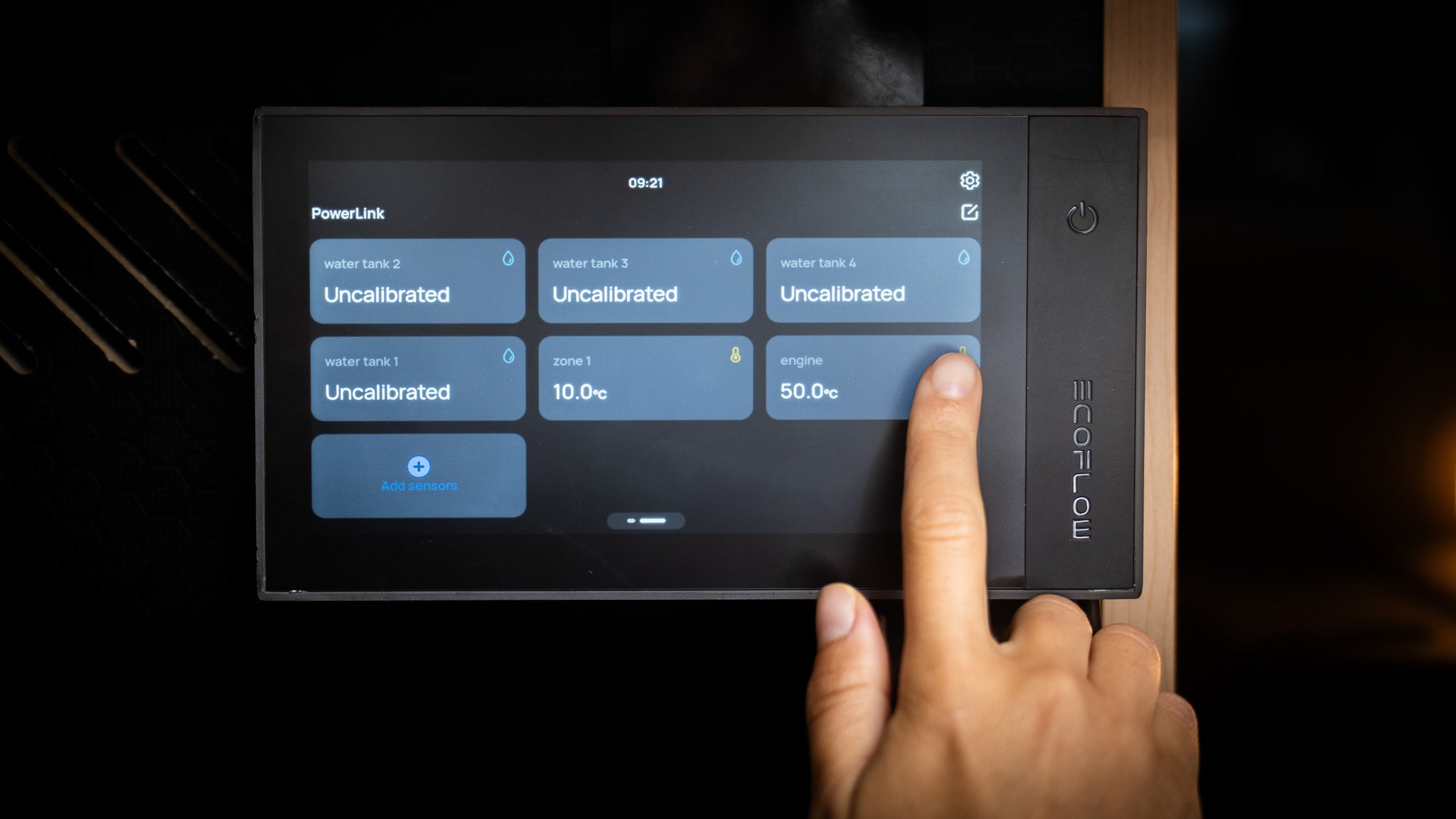

• DIMENSIONS: Power Kit Console (7-in.) - Gen 1

• POWER KIT NOTE: Touch Screen (Diagonal Measurement)

• DIMENSIONS: 7 Inch (6x3.4in) (Width x Height)

• ELECTRICAL SPECIFICATION: Power Supply Voltage

• CERTIFICATION: Tests and Certifications

• CERTIFICATION: UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC

FEATURES

• INTEGRATED 48V ARCHITECTURE: Combines energy storage, conversion, charging, distribution, and monitoring in one ecosystem.

• VARIANT-SPECIFIC COMPONENTS: Preserves the exact battery count, panel version, console, cable, and mounting hardware by selection.

• PLUG-AND-PLAY CONNECTIONS: EcoFlow connectors simplify assembly while still requiring a complete load and protection design.

COMMON PAIRINGS

• SOLAR AND ALTERNATOR INPUTS: Plan source voltage, current, wire size, disconnects, and overcurrent protection.

• 48V AIR CONDITIONER: Choose the cable option and battery capacity appropriate to the source-listed A/C load.

• ELECTRICAL CABINET STRUCTURE: Provide secure battery restraint, ventilation, service access, and protected cable routes.

COMPATIBILITY & FITMENT

• CHASSIS: Universal camper van, motor-home, trailer, or RV application; cabinet notes may exclude specific chassis as stated above.

• WHEELBASE: Not wheelbase-specific; battery count, hub, panel, and cable routing determine fit.

• ROOF HEIGHT: Not roof-height-specific; rooftop solar and 48V air-conditioning choices affect the system design.

• REQUIREMENTS: Select the exact kit variant, distribution-panel version, battery capacity, optional A/C cable, mounting hardware, circuit protection, wire sizes, charging inputs, and service clearances.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Is this a complete camper-van power system?

A: It includes the variant-specific hub, battery, distribution, control, cable, and mounting components listed above; installation protection and vehicle wiring still require a complete design.

Q: Can it run a 48V air conditioner?

A: Yes, when the selected kit, battery capacity, dedicated output, and required 48V A/C cable support that load.

Q: Which kit variant should I choose?

A: Choose by battery capacity, distribution-panel version, console, and optional A/C-cable requirements shown above.

Q: What should be calculated first?

A: West Coast Vans recommends a full AC and DC load schedule, expected runtime, solar and alternator input, shore power, and future expansion plan.
