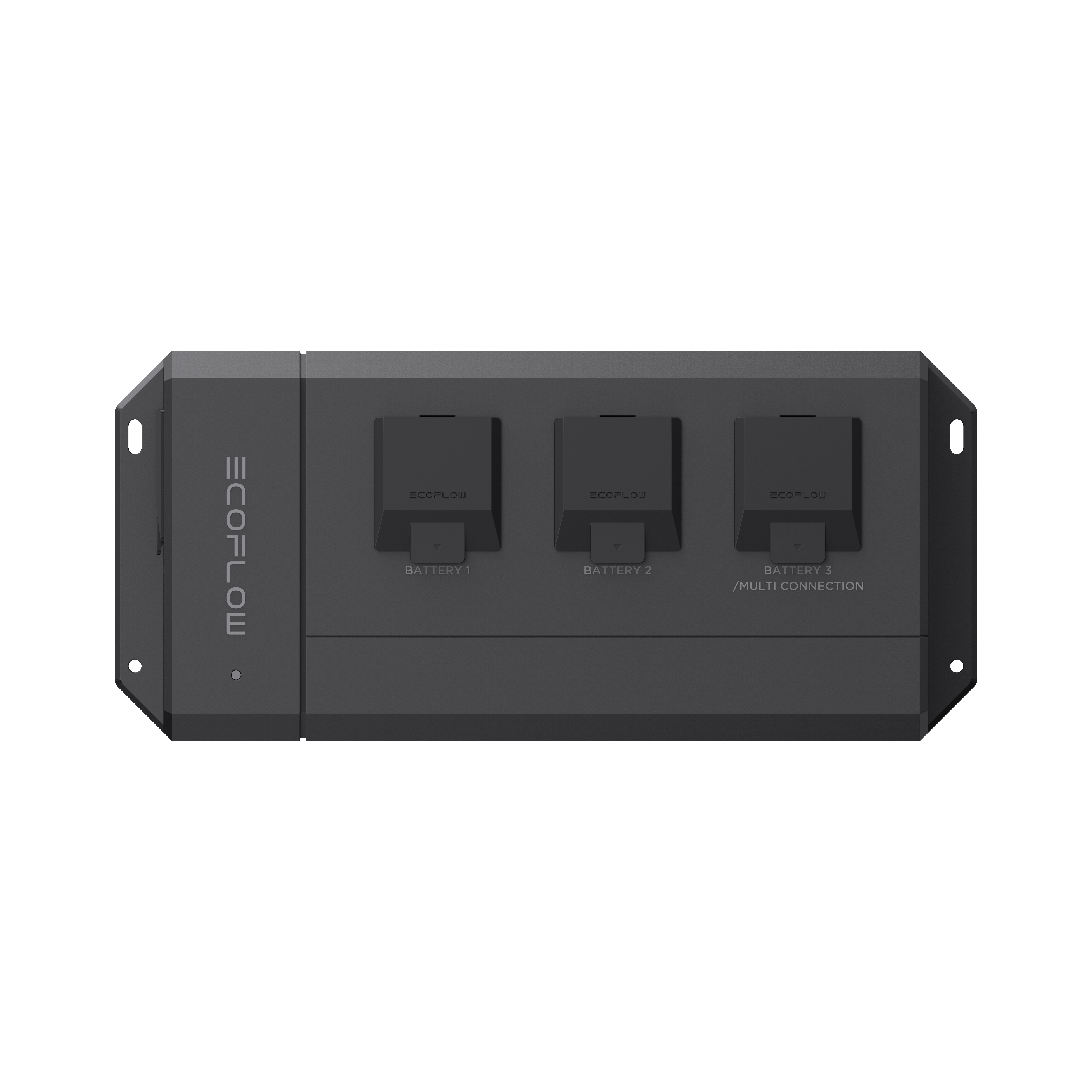

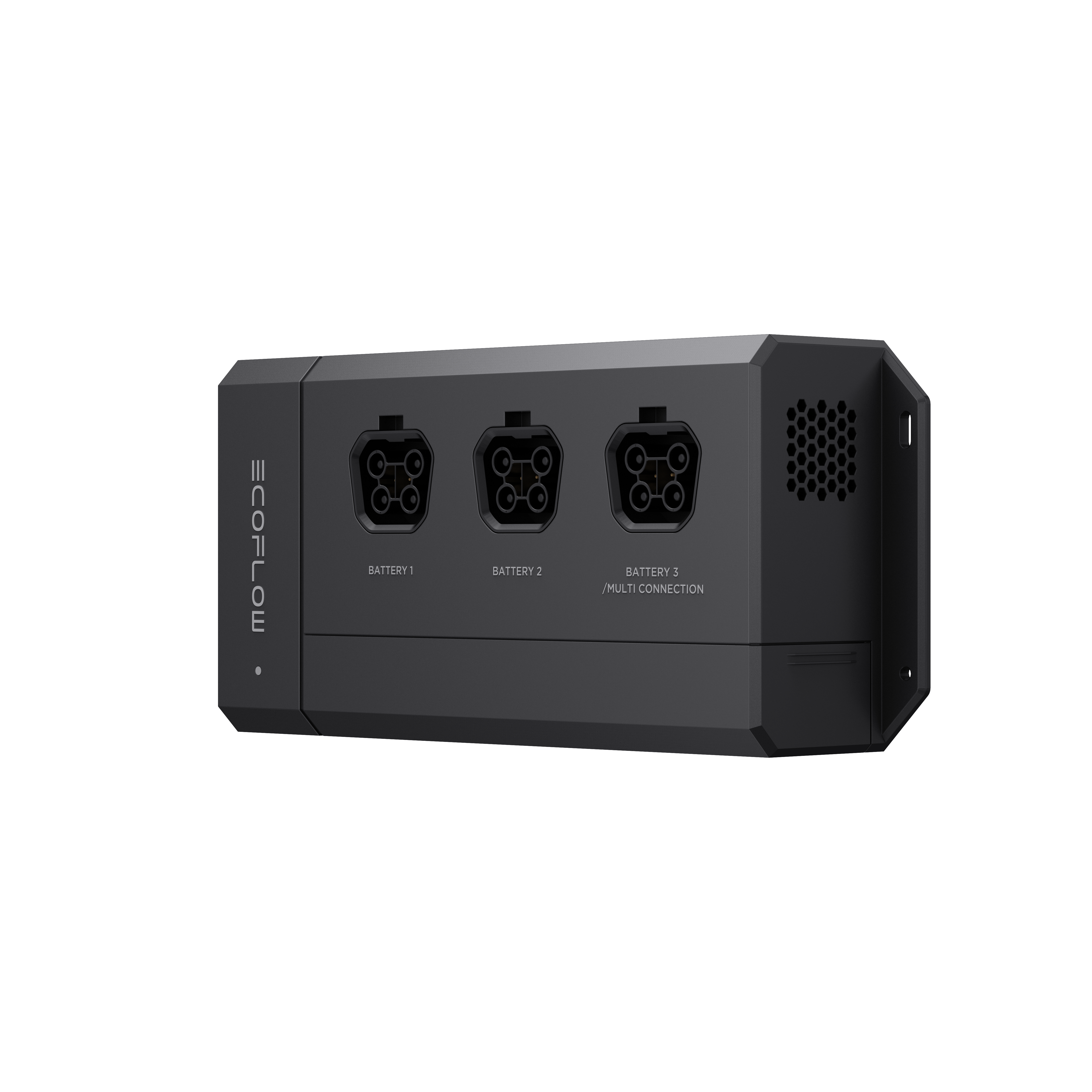

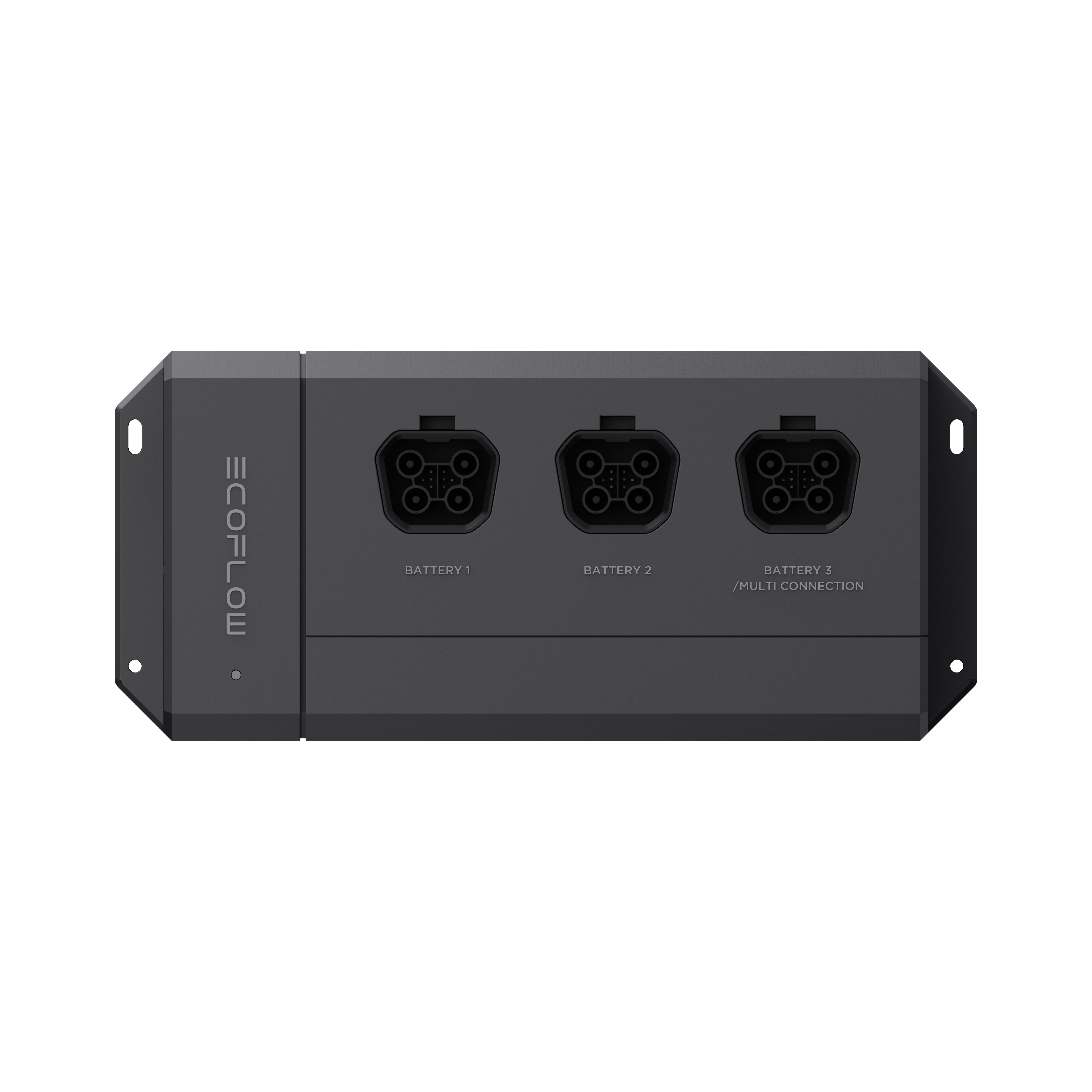

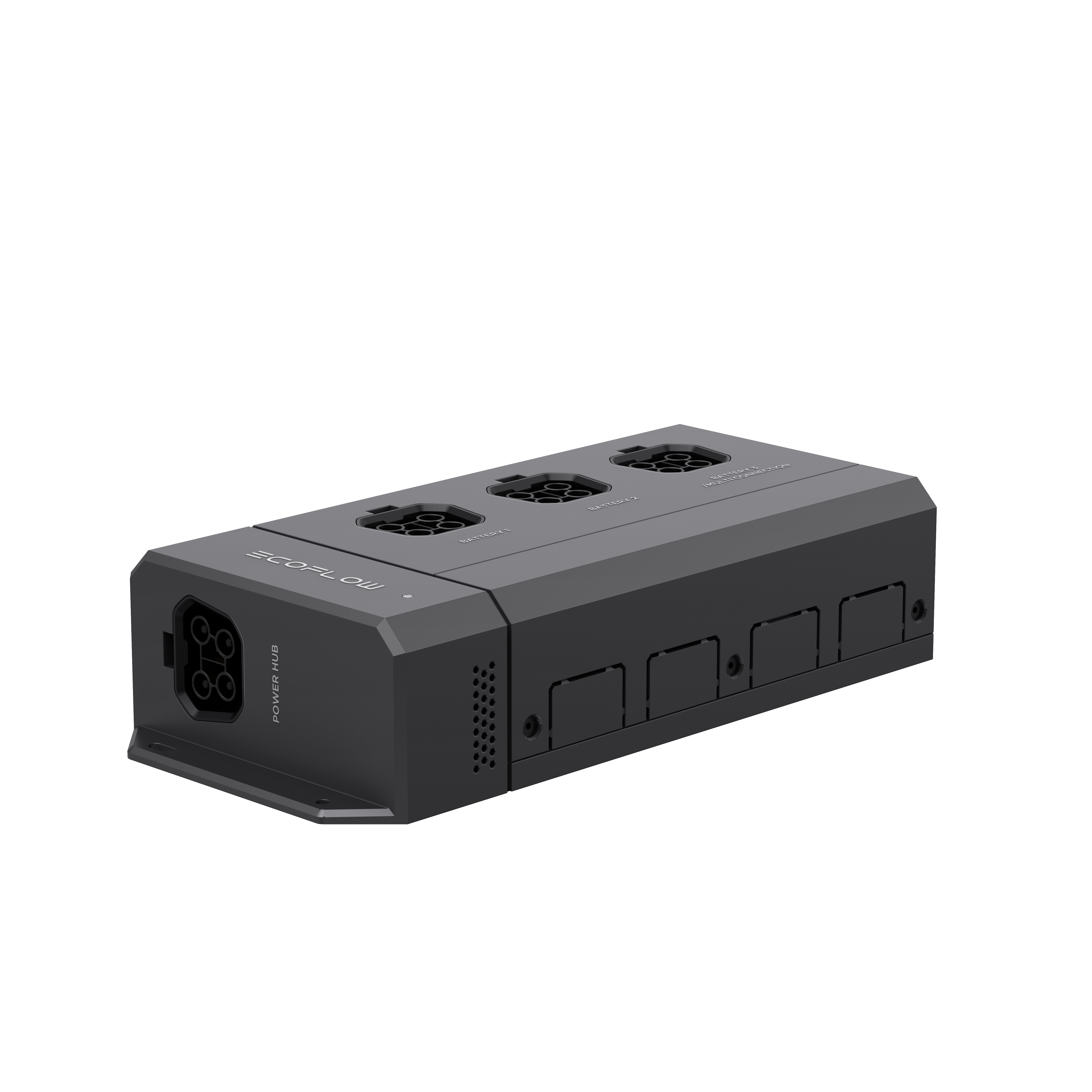

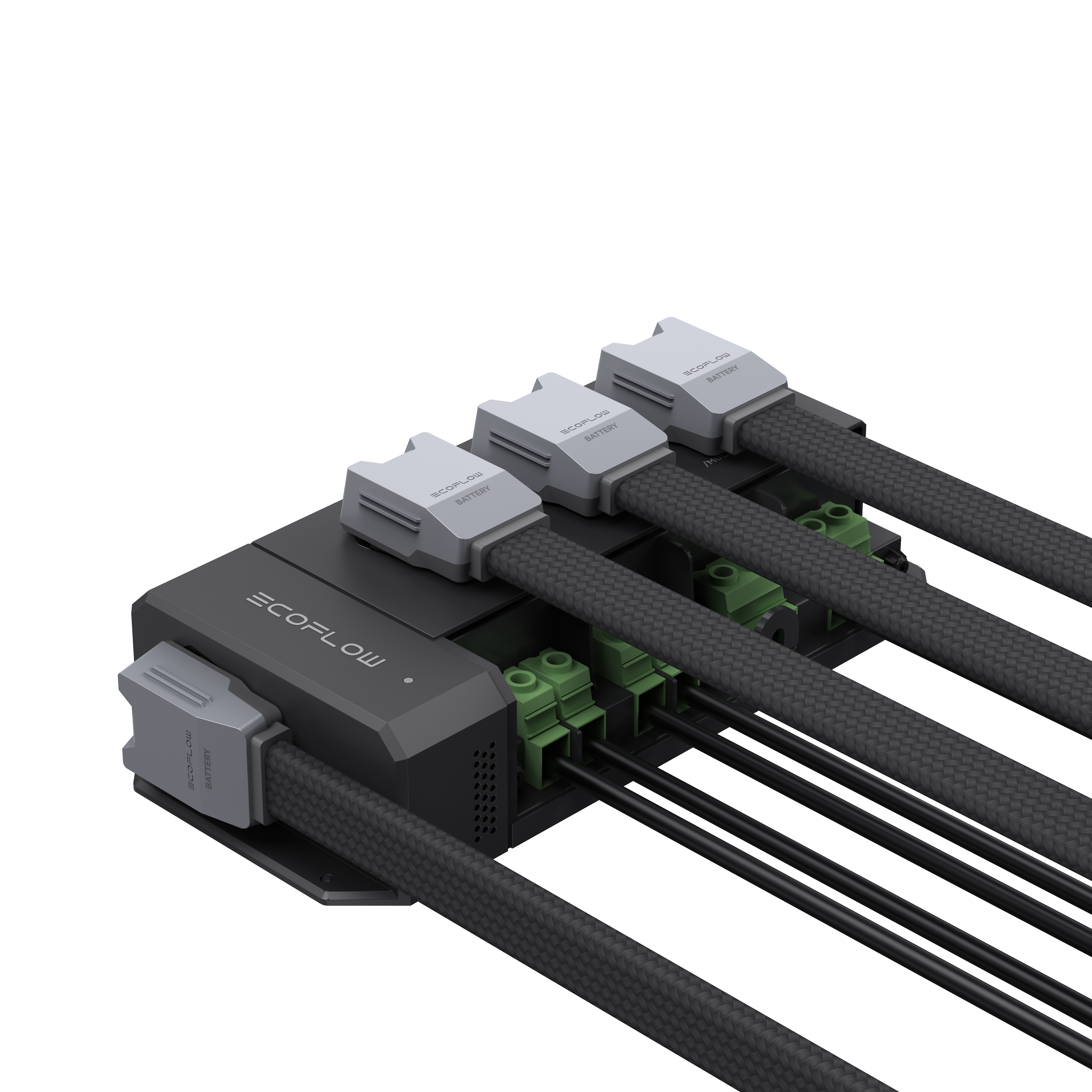

EcoFlow Power Dock - Expandable Battery Hub

EcoFlow Power Dock - Expandable Battery Hub

At West Coast Vans, expandable power is great - provided the cabinet, cable paths, and battery count are planned before the first connector clicks. The EcoFlow Power Dock - Expandable Battery Hub opens larger EcoFlow battery banks and 48V appliance connections; Ask Us Product Questions Anytime before laying out the system.

WCV EXPERT TIP

Plan battery cable lengths and service access before mounting the dock because high-current connectors need room to seat and disconnect safely.

PRODUCT OVERVIEW

EcoFlow Power Dock - Expandable Battery Hub expands compatible EcoFlow Power Kit battery connections and adds source-listed 48V appliance outputs.

The dock can support larger battery banks when installed with the correct hub-generation cable, current limits, external switch requirements, mounting space, and service clearance.

BEST FOR

• ECOFLOW POWER KIT BUILDS: For compatible EcoFlow hubs, batteries, distribution, monitoring, and 48V appliances.

• SERVICEABLE ELECTRICAL CABINETS: Supports cleaner data, power, or expansion routing when planned before installation.

• OFF-GRID CAMPER SYSTEMS: Useful for builders coordinating mobile electrical loads and controls.

TECHNICAL SPECIFICATIONS

• VENDOR: Campervan HQ

• PRODUCT: EcoFlow Power Dock

• SOURCE SKUS: ECO-PKDOCK

• BATTERY SPECIFICATION: The EcoFlow Power Dock enables adding up to 9x EcoFlow LFP batteries to the Power Kits system with one EcoFlow Power Hub.

• ELECTRICAL SPECIFICATION: It can also connect with two 48V DC appliances.

• DIMENSIONS: The original and new EcoFlow Power Hubs features 3x LFP Battery connection ports, which allow up to 15kWh battery capacity in cases where minimal square footage cabinet space is present.

• BATTERY SPECIFICATION: The EcoFlow Power Dock is designed to expand battery capacities when cabinet or flooring space is not an issue and opens the possibility of expanding up to 45kWh of battery capacity.

• BATTERY SPECIFICATION: The EcoFlow Power Dock is a state of the art adapter that not only increases battery capacity, but also allows 48V DC power to appliances to be connected easily and faster than ever before.

• ECOFLOW SYSTEM NOTE: The EcoFlow special connectors are the same plug and play design, making the EcoFlow Power Kit install enjoyable and time saving.

• BATTERY SPECIFICATION: The EcoFlow Power Dock supports EcoFlow 2kWh/5kWh LFP batteries, Smart Extra Battery of EcoFlow DELTA 2, EcoFlow DELTA 2 Max and EcoFlow DELTA Pro

• EXPANSION SYSTEM NOTE: Key Features

• ECOFLOW SYSTEM NOTE: EcoFlow Power Dock

• ECOFLOW SYSTEM NOTE: Compatible with EcoFlow 5kVA (Gen 2) and 3.6kVA (Gen 1) Power Hubs

• BATTERY SPECIFICATION: Simple connection with EcoFlow LFP Batteries to Power Hub

• COLOR NOTE: Monitor via EcoFlow PowerInsight, Console, or App

• ELECTRICAL SPECIFICATION: 48V appliance compatibility

• BATTERY SPECIFICATION: Enables Power Kit battery expansion up to 45kWh capacities

• DIMENSIONS: Made in China

• INCLUDED COMPONENTS: What's in the Box?

• DIMENSIONS: Screws ST4.2x19 mm (x4)

• REQUIREMENT: The cable to connect the Power Dock to your EcoFlow Power Hub or other compatible EcoFlow deviceis recommended and sold separately.

• EXPANSION SYSTEM NOTE: Select the option you need based on your Power Hub version

• BATTERY SPECIFICATION: EcoFlow Power Kits 5kVA LFP Battery Power Cable (1.5m)

• BATTERY SPECIFICATION: EcoFlow LFP Battery Power Cable (1.5m)(Standard)

• EXPANSION SYSTEM NOTE: SPECIFICATIONS

• WEIGHT OR SIZE: 1.8 kg (4 lb)

• DIMENSIONS: Dimensions (WDH)

• DIMENSIONS: 316x70x143 mm (12.4x2.8x5.6 in.)

• EXPANSION SYSTEM NOTE: Environment

• OPERATING RANGE: Operating Humidity

• EXPANSION SYSTEM NOTE: 0% to 95% RH (non-condensing)

• OPERATING RANGE: Operating Temperature

• EXPANSION SYSTEM NOTE: 25C to 45C (-13F to 113F)

• OPERATING RANGE: Storage Temperature

• EXPANSION SYSTEM NOTE: 25 to 70 (-13 to 158)

• OPERATING RANGE: Altitude

• DIMENSIONS: 3,000 m (9,842 ft)

• ELECTRICAL SPECIFICATION: DC Input/Output

• ELECTRICAL SPECIFICATION: POWER HUB Port Input/Output

• EXPANSION SYSTEM NOTE: 40-60V 100A Max

• BATTERY SPECIFICATION: BATTERY 1/2 Port Input/Output

• BATTERY SPECIFICATION: BATTERY 3 / MULTI CONNECTION Port Input/Output

• ELECTRICAL SPECIFICATION: 48V DC Output 1/2

• EXPANSION SYSTEM NOTE: 40-60V 55A Max

• EXPANSION SYSTEM NOTE: External Switch

• ELECTRICAL SPECIFICATION: Rated current >140A

• BATTERY SPECIFICATION: Breaking capacity >140A

• EXPANSION SYSTEM NOTE: IP Rating

FEATURES

• ECOFLOW ECOSYSTEM INTEGRATION: Designed for the compatible Power Hub, controls, batteries, sensors, or appliances named below.

• SOURCE-LISTED CAPACITY: Maintains the electrical, environmental, and connection limits from the original listing.

• BUILDER-FOCUSED EXPANSION: Supports cleaner system planning when mounting, cabling, and service access are mapped first.

COMMON PAIRINGS

• COMPATIBLE ECOFLOW POWER HUB: Confirm hub generation and connector requirements.

• POWER KIT CONSOLE OR POWERINSIGHT: Use the supported monitor or app interface where specified.

• SYSTEM CABLES AND PROTECTION: Plan high-current cables, disconnects, fuses, and service clearances as a complete system.

COMPATIBILITY & FITMENT

• CHASSIS: Universal camper van, RV, trailer, marine, or mobile application using the compatible EcoFlow Power Kit ecosystem.

• WHEELBASE: Not wheelbase-specific; electrical-cabinet and cable layout determine fit.

• ROOF HEIGHT: Not roof-height-specific unless connected to rooftop solar or air conditioning.

• REQUIREMENTS: Confirm EcoFlow hub generation, compatible batteries or controls, connector type, current and voltage limits, cable requirements, mounting space, circuit protection, and service access.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Which EcoFlow systems are compatible?

A: Use the hub-generation, battery, control, sensor, and connector compatibility listed above.

Q: Are all cables included?

A: Only the cables explicitly listed in the technical specifications are included; some system cables are recommended and sold separately.

Q: Can this be used in a camper van?

A: Yes, when the electrical limits, mounting space, protection, and compatible EcoFlow ecosystem requirements are met.

Q: What should I confirm before installation?

A: West Coast Vans recommends confirming voltage, current, connectors, hub generation, cable lengths, protection, and service access.
