EcoFlow Power Link - Central System Monitoring

EcoFlow Power Link - Central System Monitoring

At West Coast Vans, monitoring gets useful when tanks, sensors, relays, and the power system speak the same language. The EcoFlow Power Link - Central System Monitoring centralizes that data for compatible EcoFlow controls; Ask Us Product Questions Anytime before mapping sensor inputs and relay loads.

WCV EXPERT TIP

Label every sensor and relay at both ends before connecting the Power Link; future troubleshooting gets dramatically easier.

PRODUCT OVERVIEW

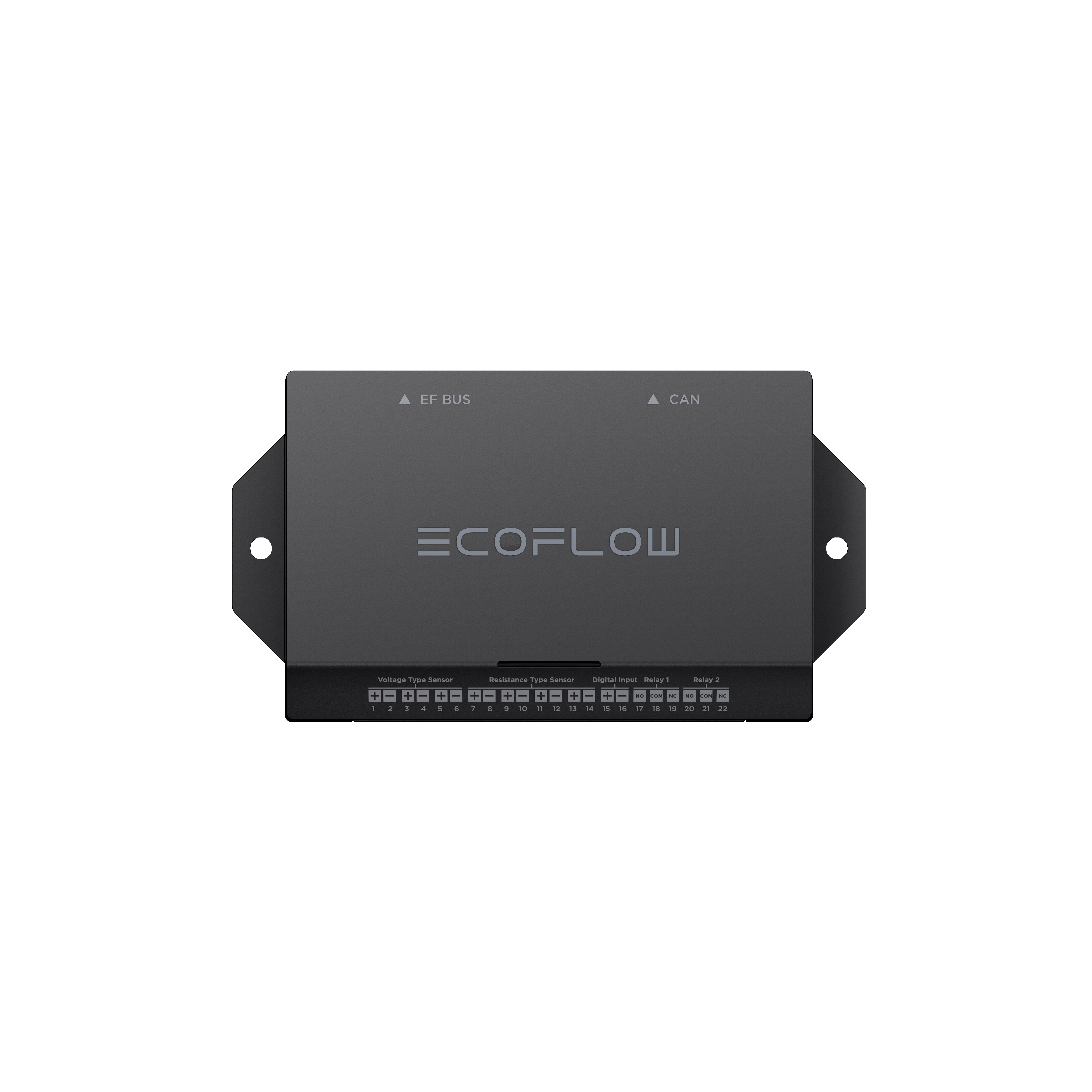

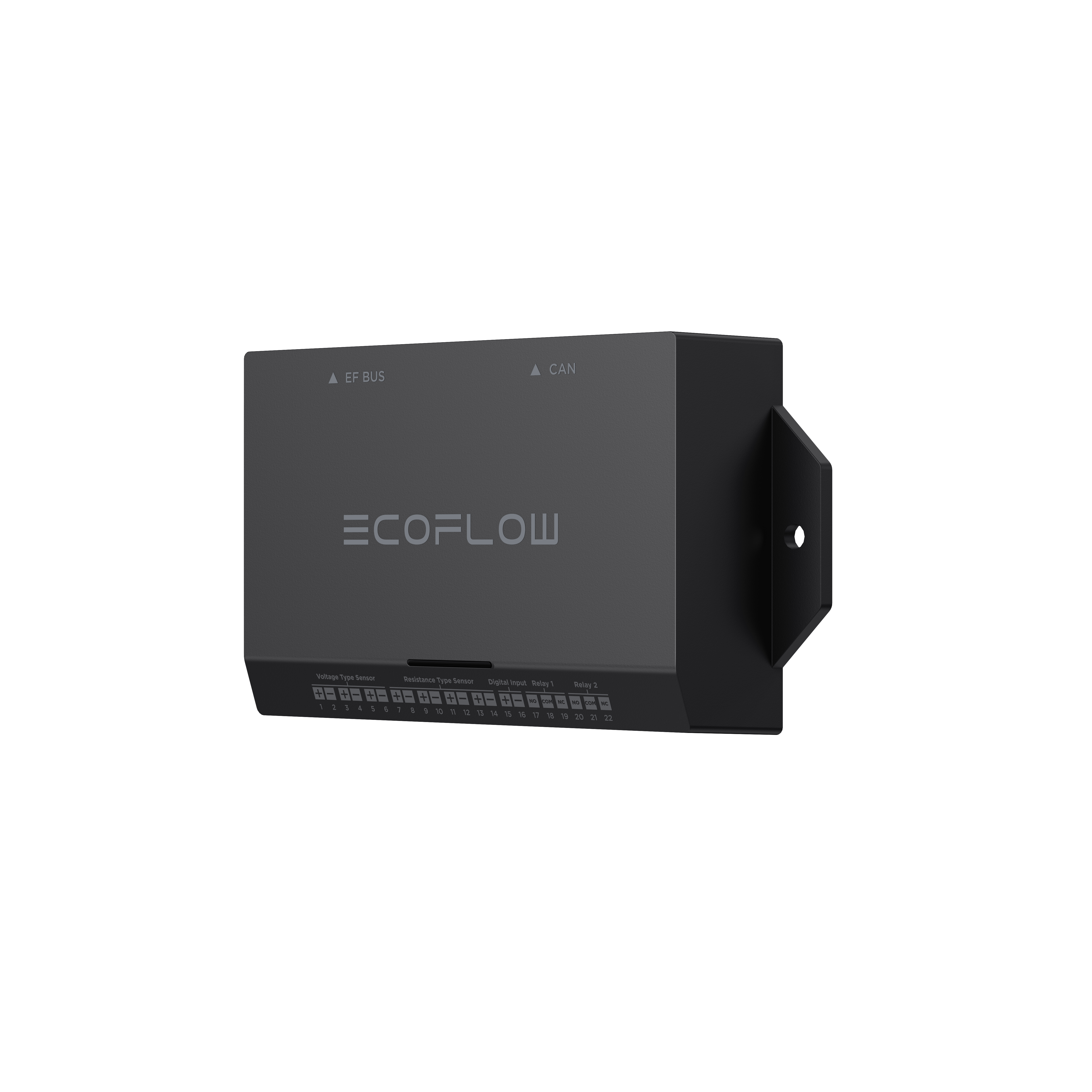

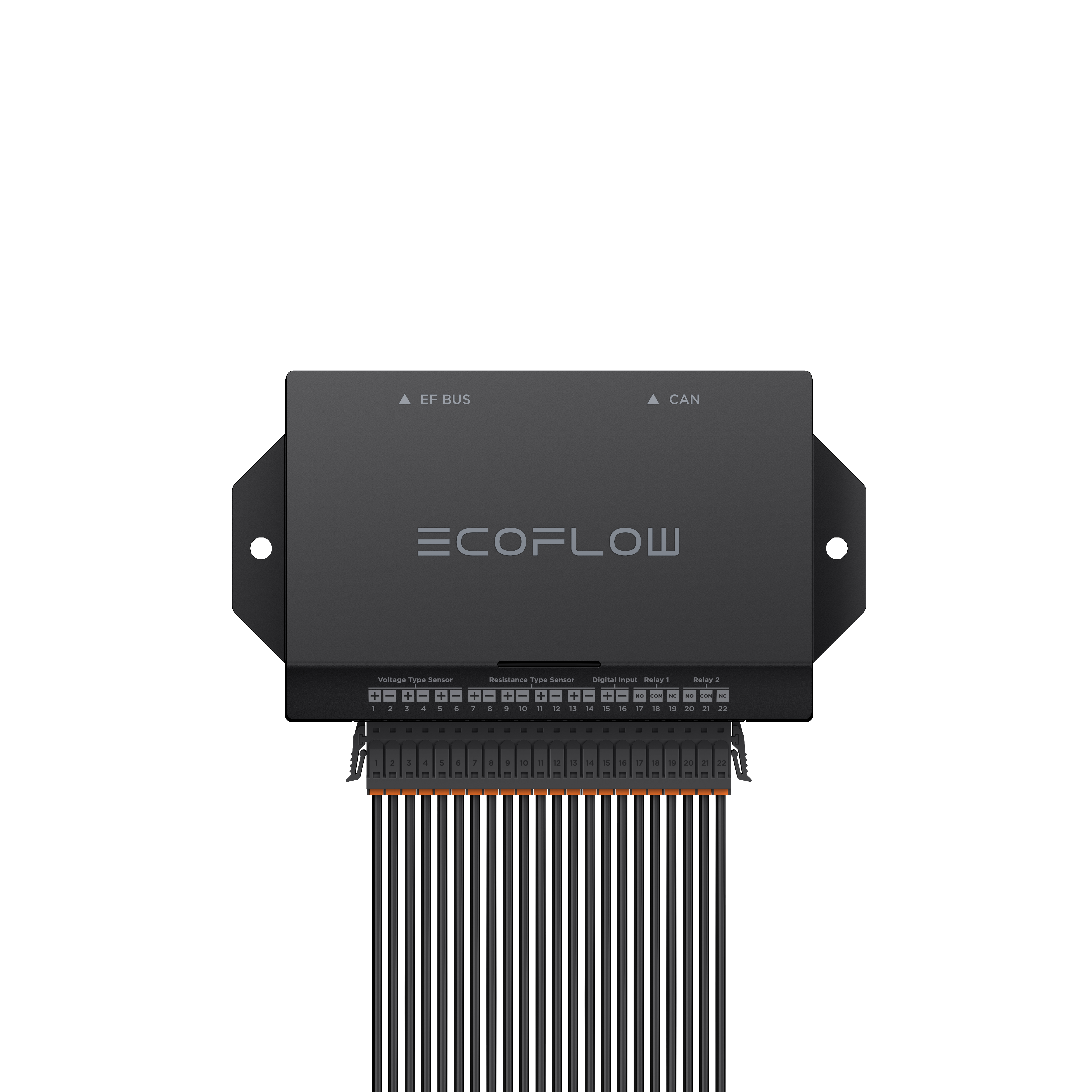

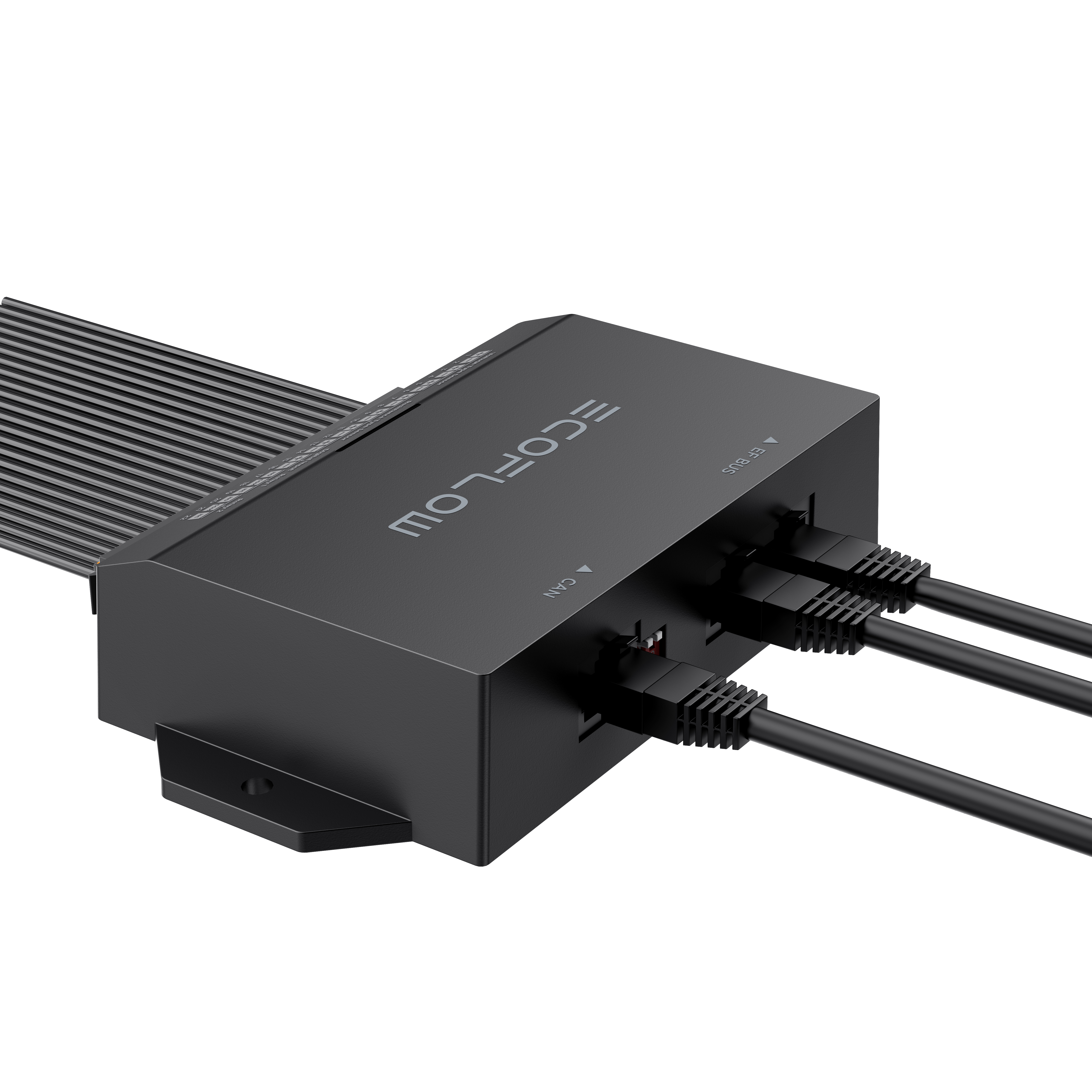

EcoFlow Power Link - Central System Monitoring connects compatible EcoFlow hubs, distribution panels, sensors, relays, controls, and the EcoFlow app into a centralized monitoring system.

It supports the source-listed voltage, resistance, RTD, digital, and relay inputs within its electrical and environmental limits.

BEST FOR

• ECOFLOW POWER KIT BUILDS: For compatible EcoFlow hubs, batteries, distribution, monitoring, and 48V appliances.

• SERVICEABLE ELECTRICAL CABINETS: Supports cleaner data, power, or expansion routing when planned before installation.

• OFF-GRID CAMPER SYSTEMS: Useful for builders coordinating mobile electrical loads and controls.

TECHNICAL SPECIFICATIONS

• VENDOR: Campervan HQ

• PRODUCT: EcoFlow Power Link

• SOURCE SKUS: ECO-PKLINK

• DIMENSIONS: The EcoFlow Power Link integrates data from the EcoFlow Power Hub, EcoFlow Smart Distribution Panels, sensors, and customized relays in your campervan or RV/marine system to a central control monitor, such as the EcoFlow PowerInsight or EcoFlow Power Kit Console , or the EcoFlow app.

• REQUIREMENT: Where other systems require complicated components and tools for the calibration and communication process alone, the EcoFlow Power Link simply connects with the EcoFlow PowerInsight or Console and EcoFlow Smart Distribution Panels.

• ELECTRICAL SPECIFICATION: Once connected, the softwares allow you to monitor voltage-type, resistance-type, and 4-wire RTD level sensors all throughout your campervan, RV, or boat.

• MONITORING SYSTEM NOTE: Key Features

• ECOFLOW SYSTEM NOTE: EcoFlow Power Link

• ECOFLOW SYSTEM NOTE: Compatible with 5kVA and 3.6KVA EcoFlow Power Hubs

• COLOR NOTE: Monitor with EcoFlow PowerInsight, Power Kit Console, and App

• MONITORING SYSTEM NOTE: Calibration process simplified for time saving set up

• MONITORING SYSTEM NOTE: Hideaway terminal block with simple connection process

• MONITORING SYSTEM NOTE: Connect 2x Power Links to a single Power Hub

• DIMENSIONS: Made in China

• MONITORING SYSTEM NOTE: SPECIFICATIONS

• MONITORING SYSTEM NOTE: 120 g (0.26 lb)

• DIMENSIONS: Dimensions (WDH)

• DIMENSIONS: 137x31x74 mm (5.4x1.2x2.9 in.)

• ELECTRICAL SPECIFICATION: EF BUS Input

• ELECTRICAL SPECIFICATION: 12V 1.5A Max

• MONITORING SYSTEM NOTE: EF BUS Output

• ELECTRICAL SPECIFICATION: 12V 1.33A Max

• MONITORING SYSTEM NOTE: Environment

• OPERATING RANGE: Operating Humidity

• MONITORING SYSTEM NOTE: 0% to 95% RH (non-condensing)

• OPERATING RANGE: Operating Temperature

• MONITORING SYSTEM NOTE: 25 to 50 (-13 to 122)

• OPERATING RANGE: Storage Temperature

• MONITORING SYSTEM NOTE: 25 to 70 (-13 to 158)

• OPERATING RANGE: Altitude

• DIMENSIONS: 3,000 m (9,842 ft)

• MONITORING SYSTEM NOTE: IP Rating

• ELECTRICAL SPECIFICATION: Voltage Type Sensor

• ELECTRICAL SPECIFICATION: Number of Inputs

• CERTIFICATION: Resistance Type Sensor

• MONITORING SYSTEM NOTE: 10 -100 k

• ELECTRICAL SPECIFICATION: Digital Input

FEATURES

• ECOFLOW ECOSYSTEM INTEGRATION: Designed for the compatible Power Hub, controls, batteries, sensors, or appliances named below.

• SOURCE-LISTED CAPACITY: Maintains the electrical, environmental, and connection limits from the original listing.

• BUILDER-FOCUSED EXPANSION: Supports cleaner system planning when mounting, cabling, and service access are mapped first.

COMMON PAIRINGS

• COMPATIBLE ECOFLOW POWER HUB: Confirm hub generation and connector requirements.

• POWER KIT CONSOLE OR POWERINSIGHT: Use the supported monitor or app interface where specified.

• SYSTEM CABLES AND PROTECTION: Plan high-current cables, disconnects, fuses, and service clearances as a complete system.

COMPATIBILITY & FITMENT

• CHASSIS: Universal camper van, RV, trailer, marine, or mobile application using the compatible EcoFlow Power Kit ecosystem.

• WHEELBASE: Not wheelbase-specific; electrical-cabinet and cable layout determine fit.

• ROOF HEIGHT: Not roof-height-specific unless connected to rooftop solar or air conditioning.

• REQUIREMENTS: Confirm EcoFlow hub generation, compatible batteries or controls, connector type, current and voltage limits, cable requirements, mounting space, circuit protection, and service access.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Which EcoFlow systems are compatible?

A: Use the hub-generation, battery, control, sensor, and connector compatibility listed above.

Q: Are all cables included?

A: Only the cables explicitly listed in the technical specifications are included; some system cables are recommended and sold separately.

Q: Can this be used in a camper van?

A: Yes, when the electrical limits, mounting space, protection, and compatible EcoFlow ecosystem requirements are met.

Q: What should I confirm before installation?

A: West Coast Vans recommends confirming voltage, current, connectors, hub generation, cable lengths, protection, and service access.
