At West Coast Vans, cold mornings are easier when the heater, fuel pickup, exhaust, altitude plan, and house battery all agree. The Espar AS3 B2L 12V Heater Full Kit (Gasoline) - High-Altitude Cabin Heat packages genuine Espar heat with the source-listed install hardware; Ask Us Product Questions Anytime before choosing the vehicle fuel connection.

WCV EXPERT TIP

Bench-test the heater and controller before final mounting, and keep combustion intake, exhaust, fuel lines, and cabin-air ducts completely separated.

PRODUCT OVERVIEW

Espar AS3 B2L 12V Heater Full Kit (Gasoline) - High-Altitude Cabin Heat is a 12V air-heater package for camper-van cabin heating using the source-listed vehicle fuel type.

The kit includes the heater, controller, installation hardware, exhaust components, and fuel-pickup parts described below, with chassis-specific fuel-system work still required.

BEST FOR

• FOUR-SEASON VAN BUILDS: Provides fuel-fired cabin heat with source-listed high-altitude capability.

• SPRINTER, TRANSIT, AND PROMASTER INSTALLS: Supports the chassis-specific fuel connection methods and cautions listed below.

• LOW-DRAW OFF-GRID HEATING: Designed to preserve house-battery capacity while delivering the listed heat output.

TECHNICAL SPECIFICATIONS

• VENDOR: Campervan HQ

• PRODUCT: Espar AS3 B2L 12V Heater- Full Kit (Gasoline)

• SOURCE SKUS: ESPR-AS3B2LFULLKIT

• ELECTRICAL SPECIFICATION: The Espar AS3 B2L 12V Heater- Full Kit (Gasoline) is the classic way to heat the interior of your van using fuel from your main diesel tank.

• INCLUDED COMPONENTS: This kit includes everything you need to install the Espar in your Sprinter van and will operate effectively up to ~ 13,120 ft. in elevation with the included altitude sensor.

• HEATER SYSTEM NOTE: Not all Espar kits are built the same.

• HEATER SYSTEM NOTE: These units are genuine Eberspacher heaters with high-quality wiring harnesses from Eberspacher.

• HEATER INSTALL NOTE: Key Features

• ELECTRICAL SPECIFICATION: Espar AS3 B2L 12V Heater- Full Kit (Gasoline)

• CERTIFICATION: Fits universally where space allows

• FITMENT OR USE: Espar Full Kits are designed for 2007+ Mercedes Sprinters, 2014+ Ram ProMaster, and 2015+

• FITMENT OR USE: Ford Transit vans

• HEATER INSTALL NOTE: ( read more below )

• REQUIREMENT: Efficient cabin heating on gasoline builds - no diesel tank required

• HEATER INSTALL NOTE: Low electrical draw (6-26 W) protects your house batteries off-grid

• DIMENSIONS: Automatic altitude capability up to 13,120 ft (4,000 m) for mountain trips

• DIMENSIONS: Compact body for flexible placement in van conversions and campers

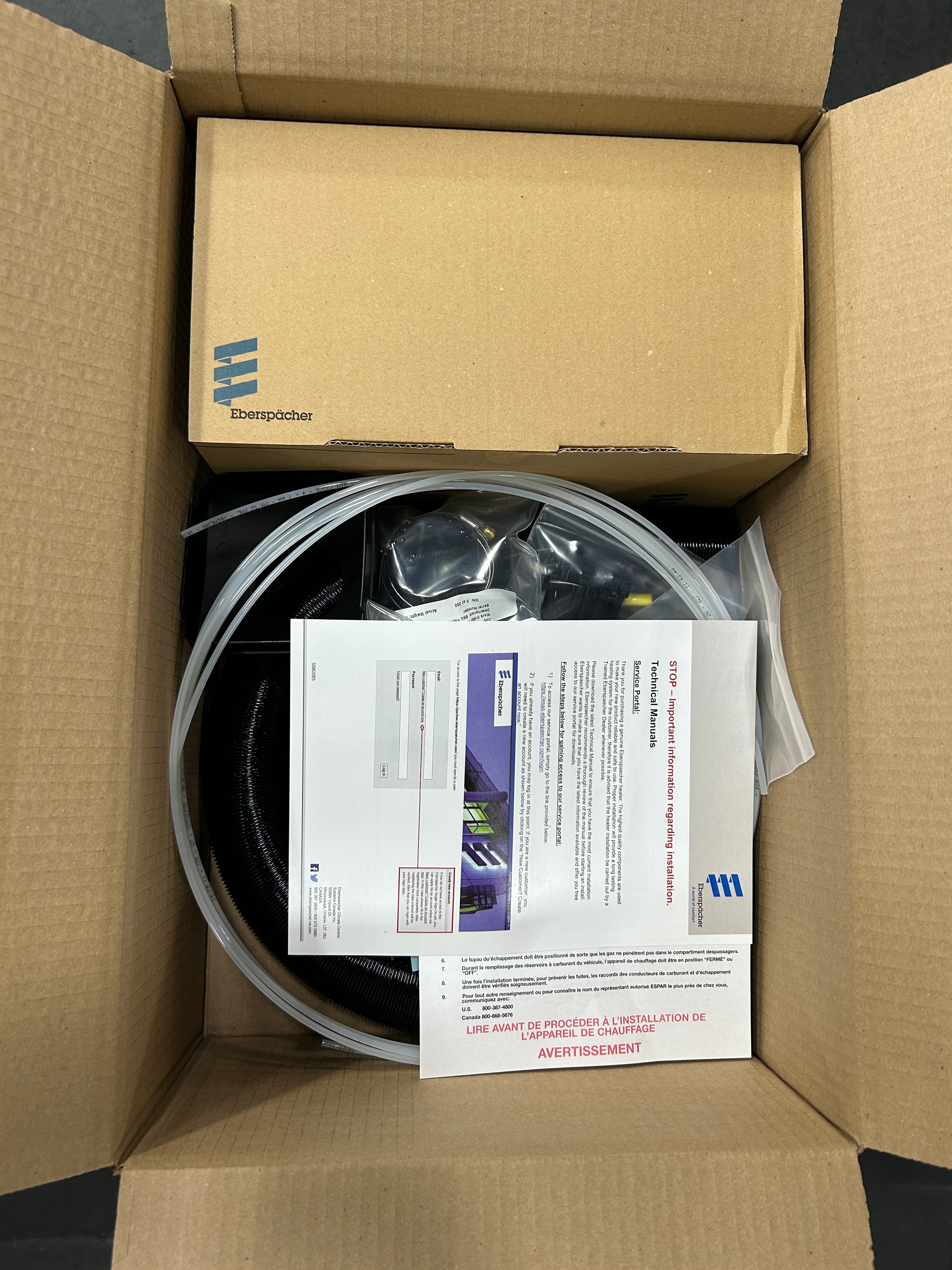

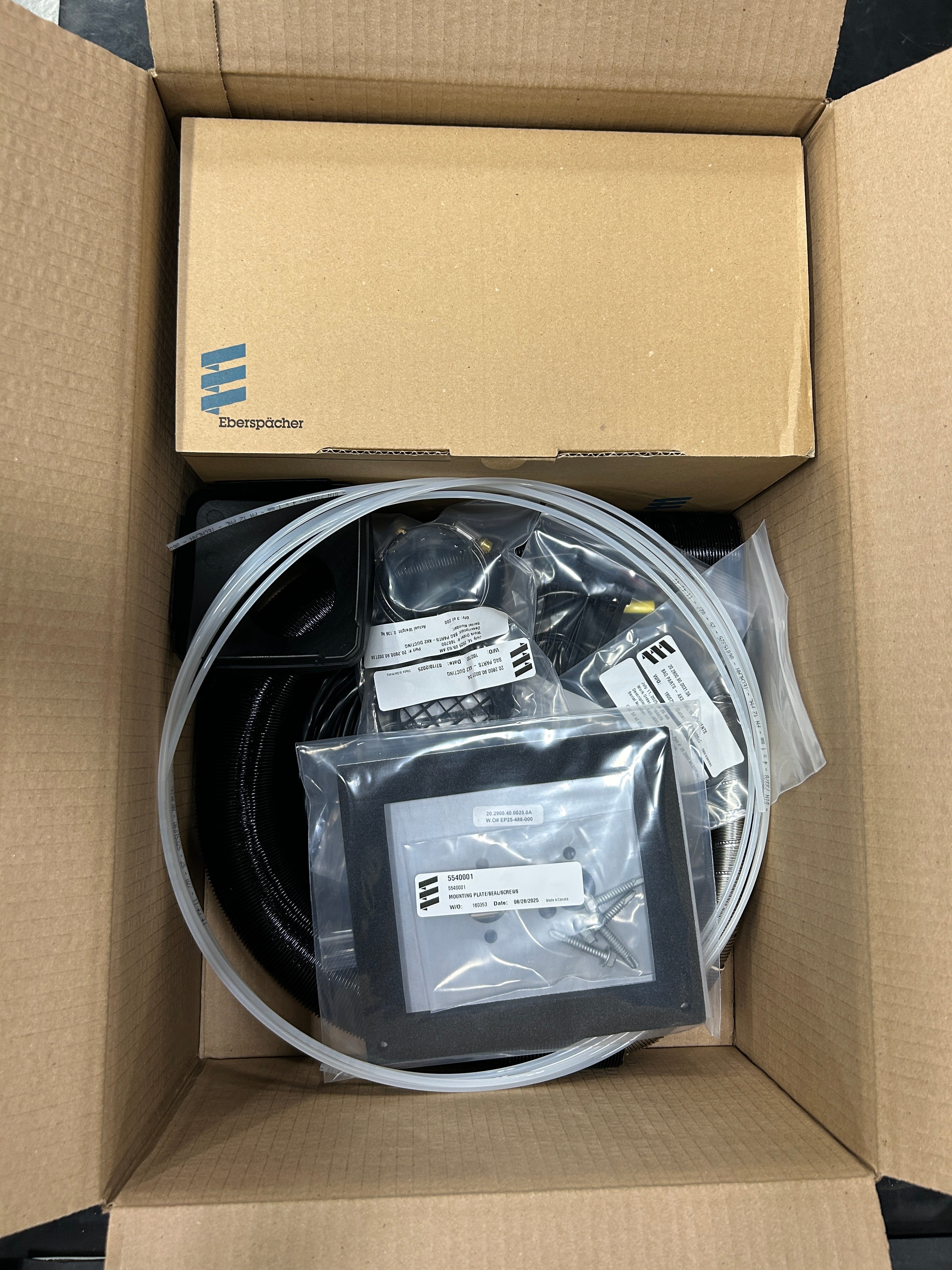

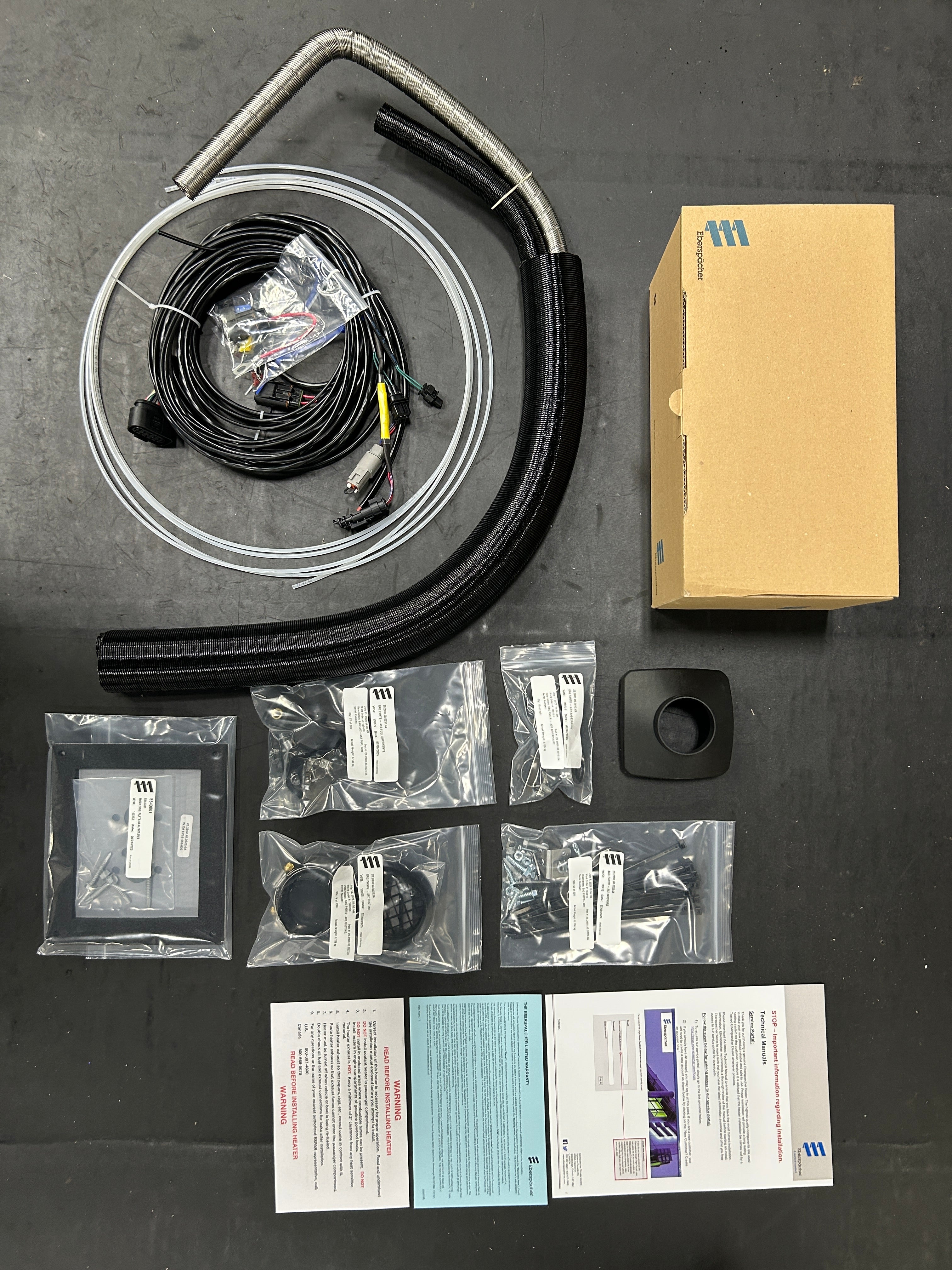

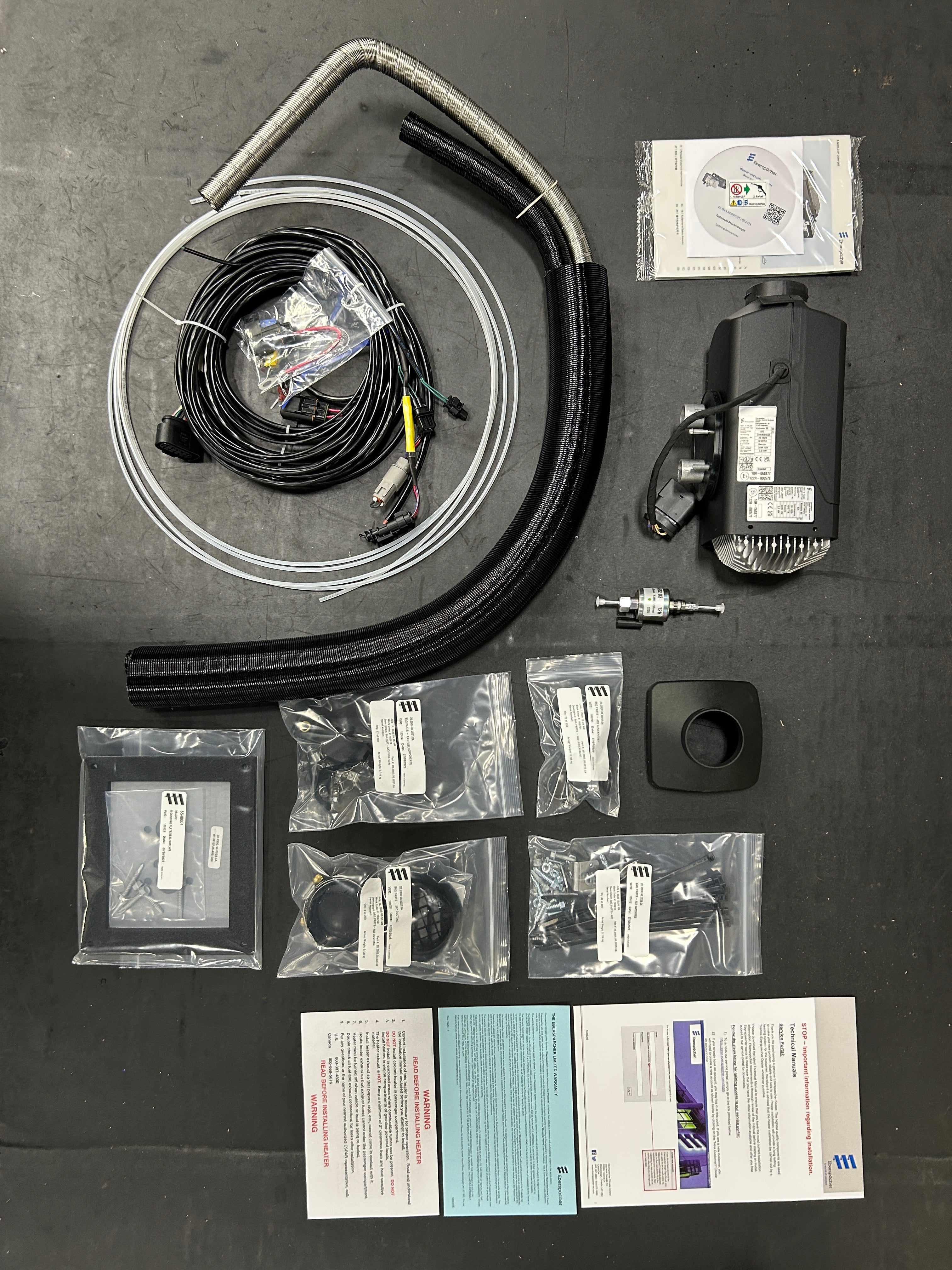

• INCLUDED COMPONENTS: Package contents

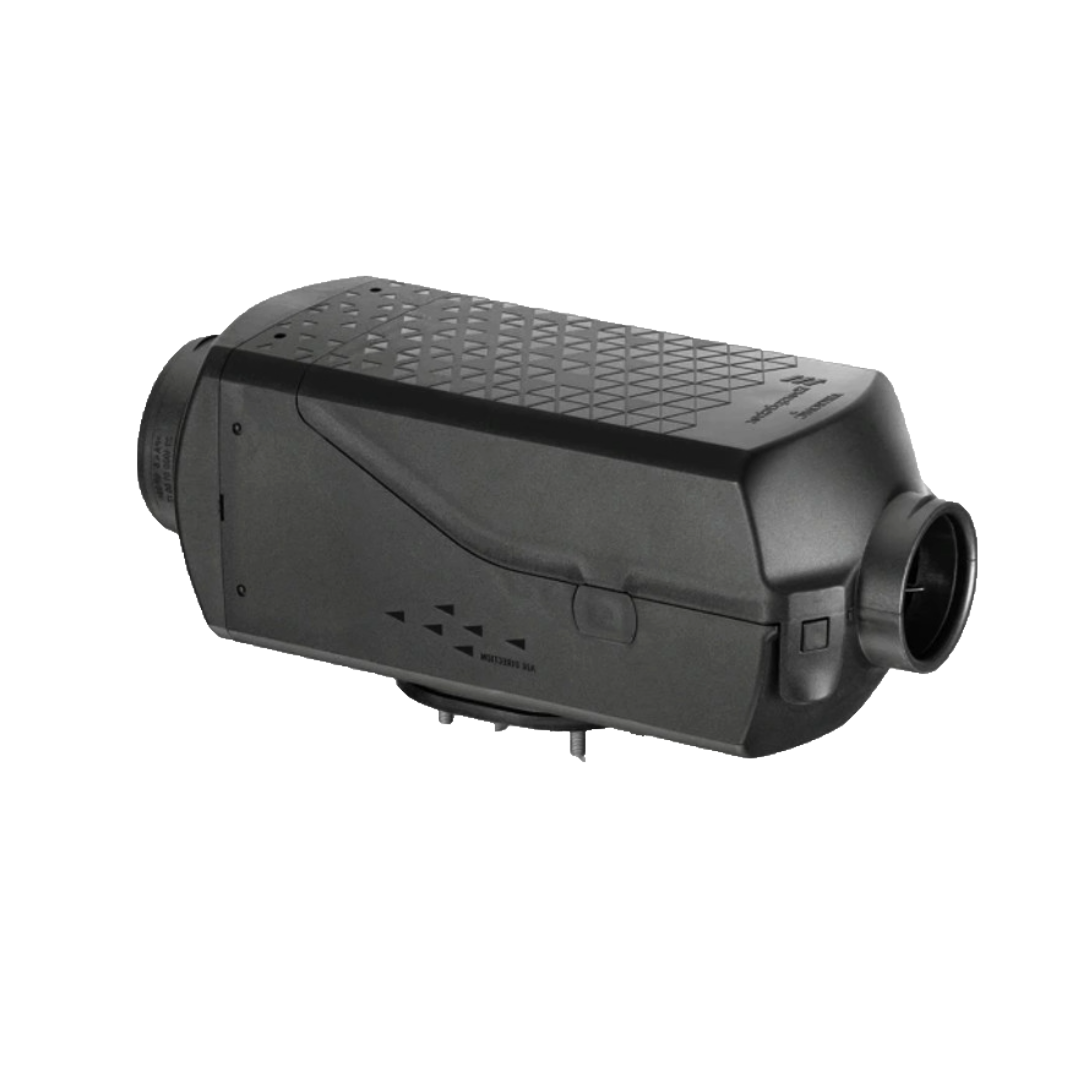

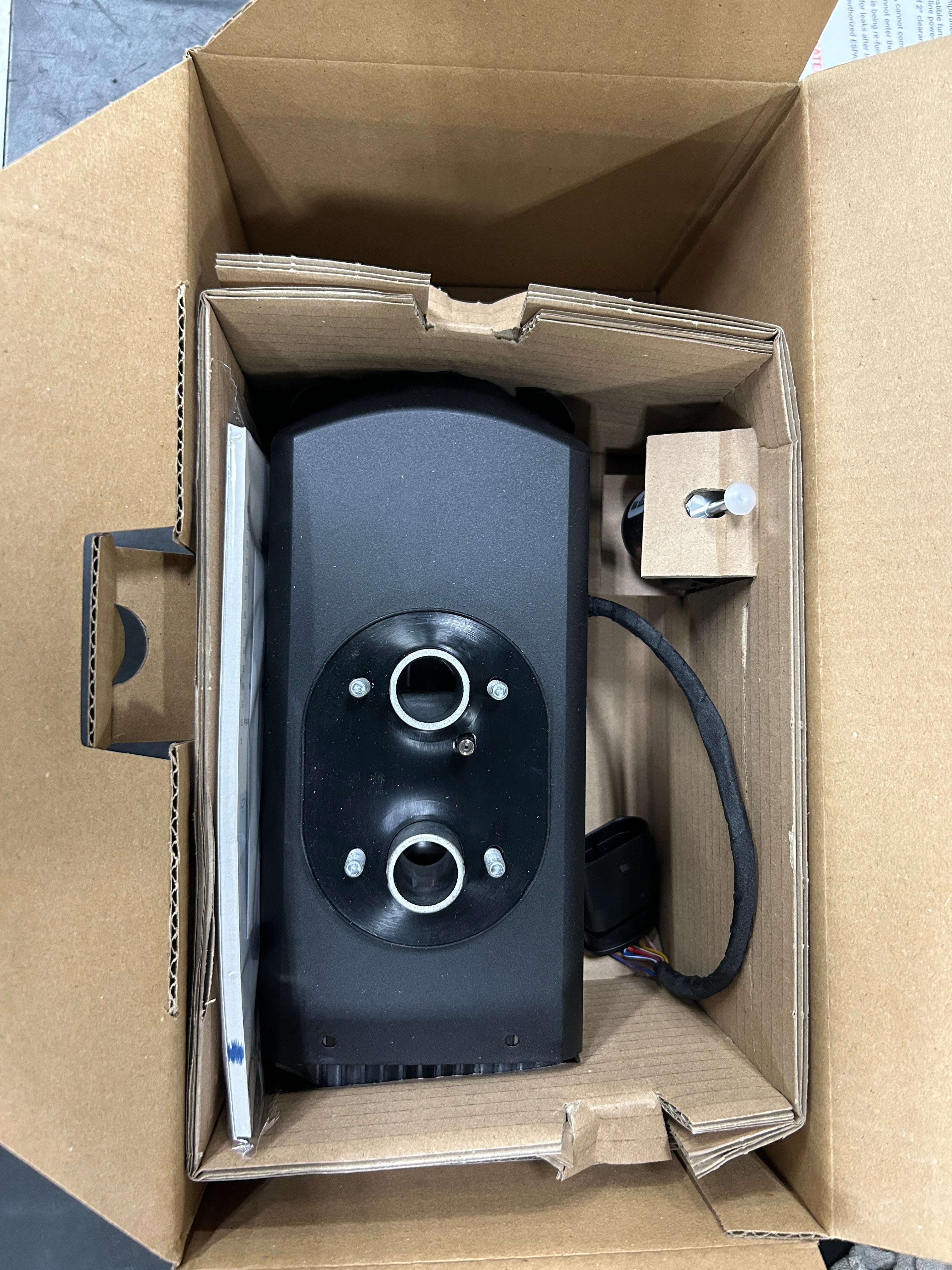

• ELECTRICAL SPECIFICATION: Espar AS3 B2L 12V Heater (Gasoline)

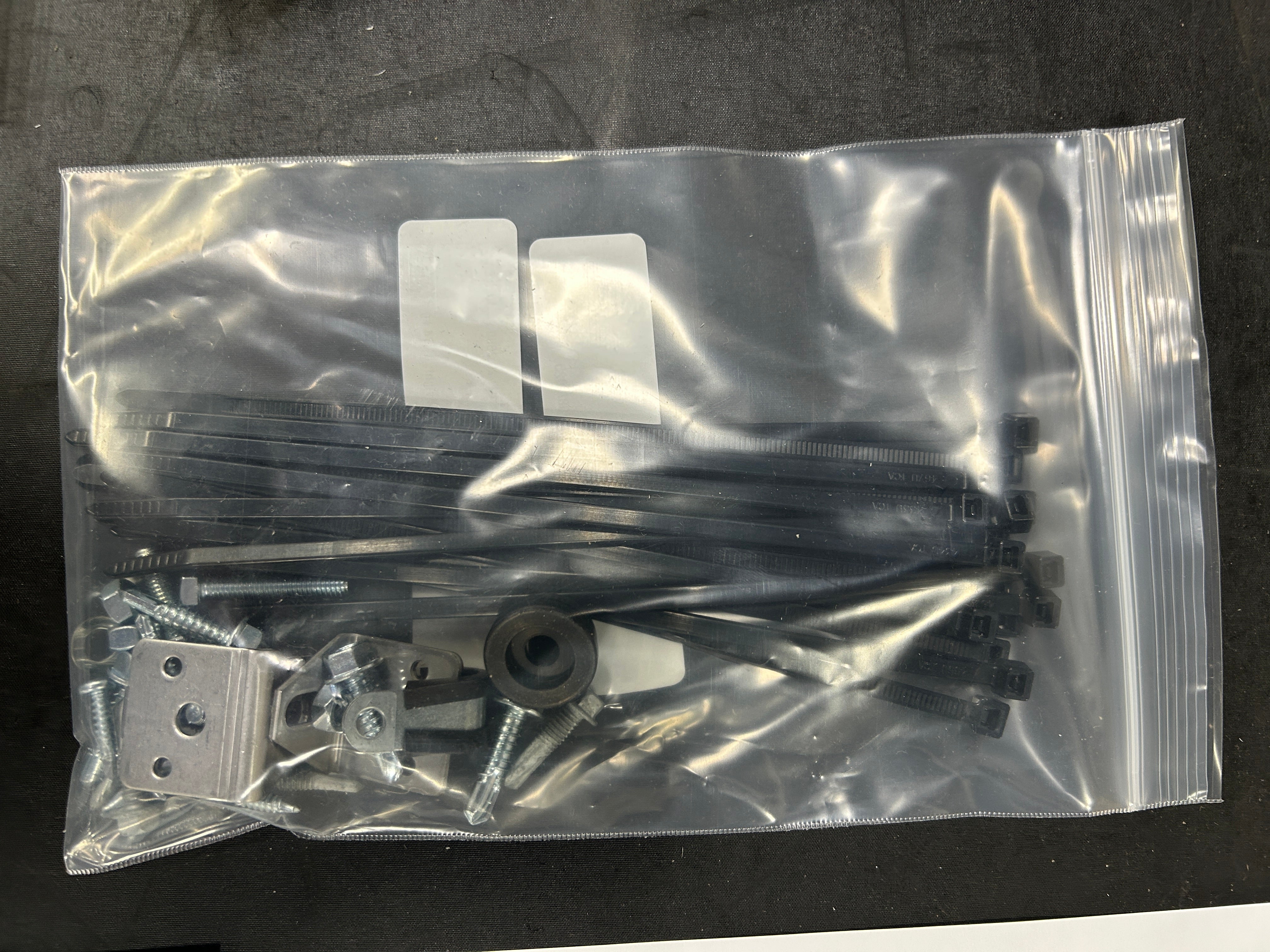

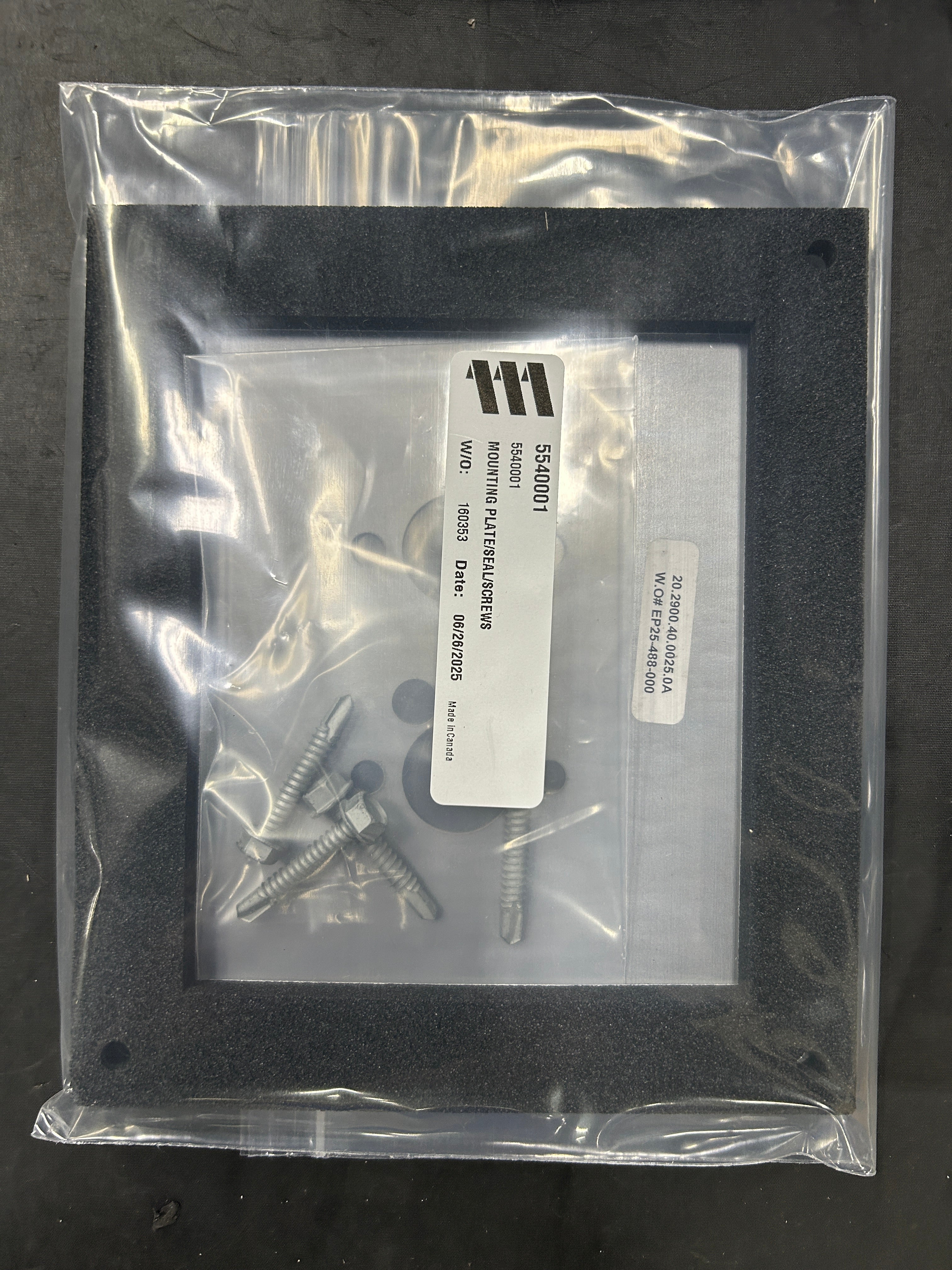

• ELECTRICAL SPECIFICATION: INSTALL KIT - AIRTRONIC S3 B2L 12V

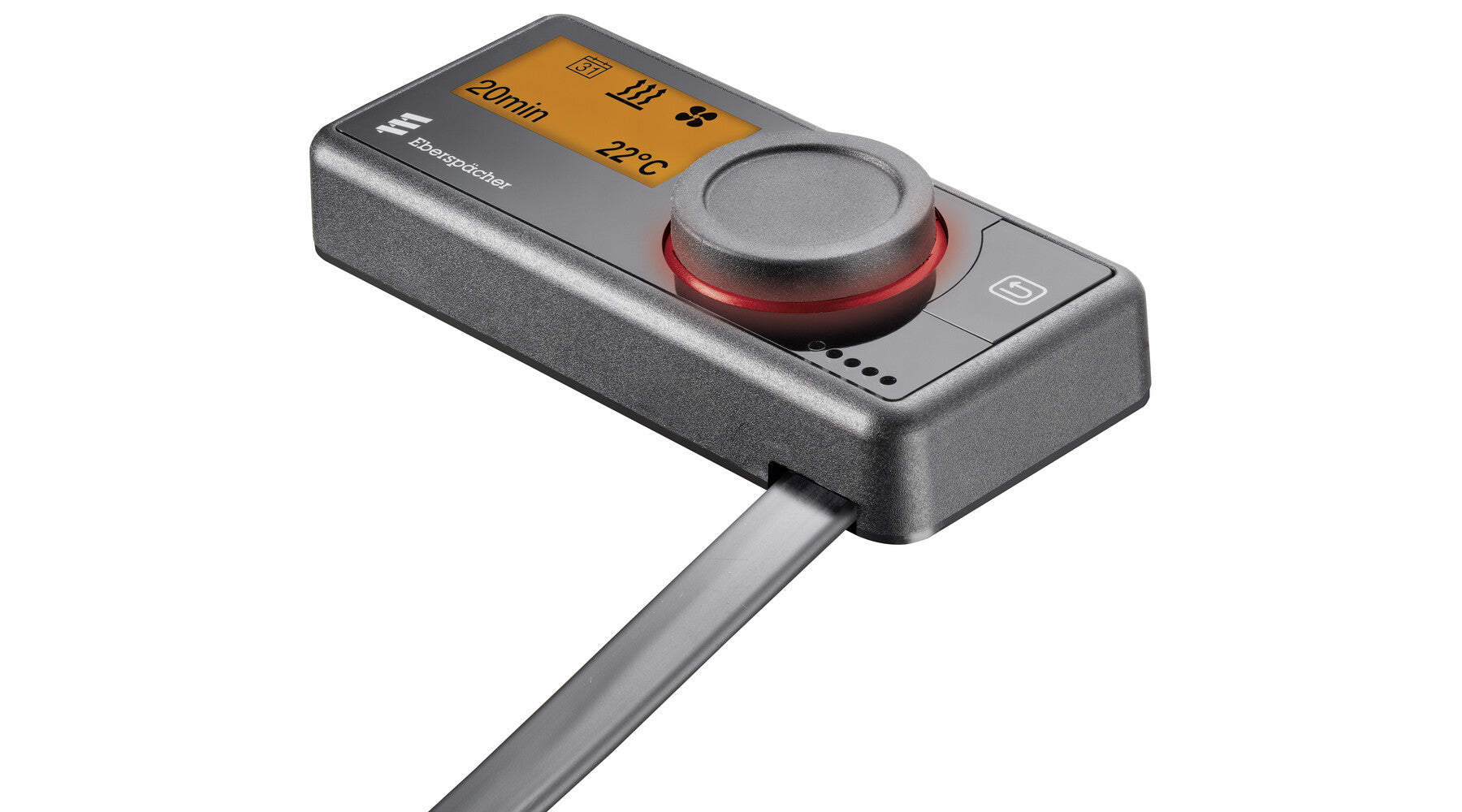

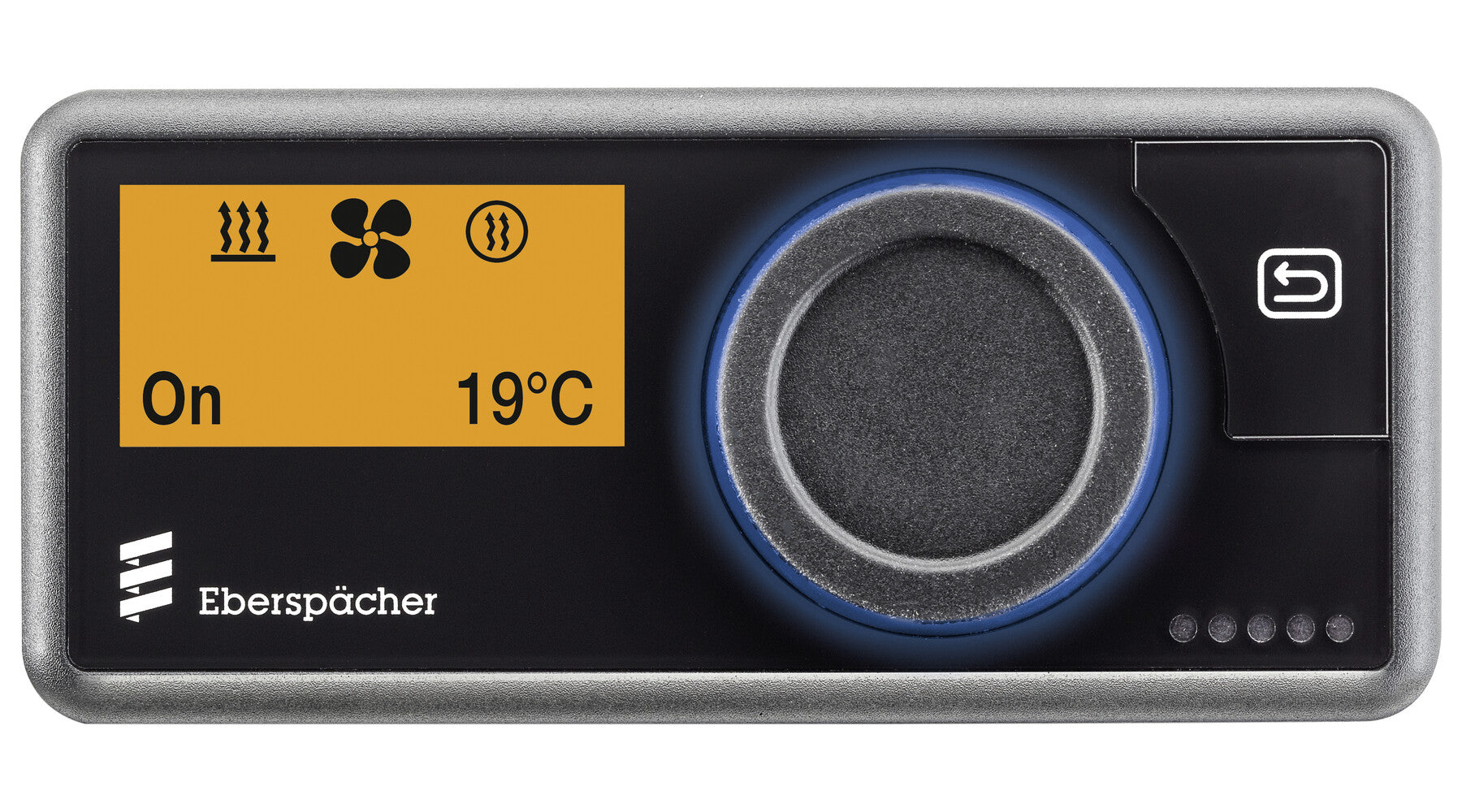

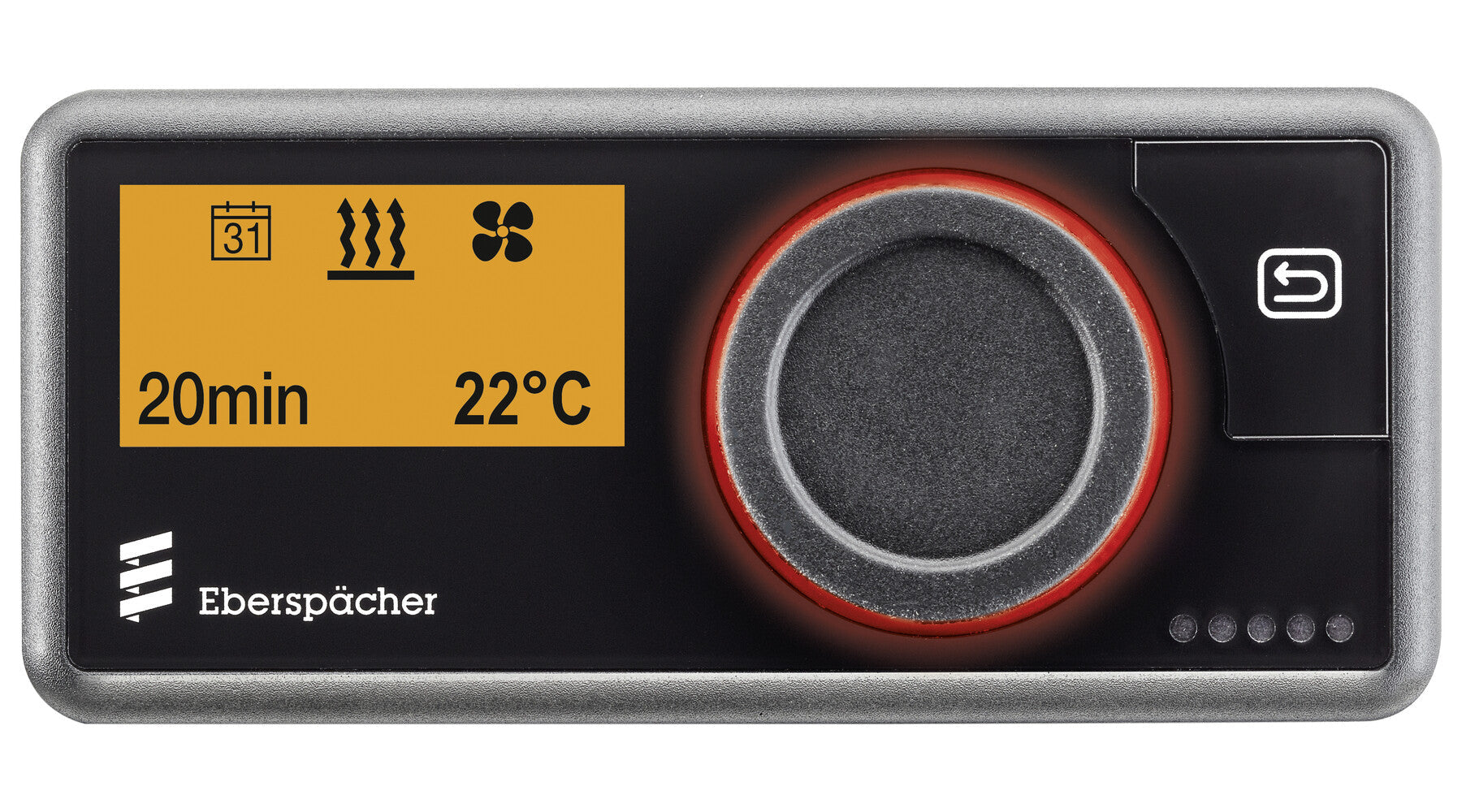

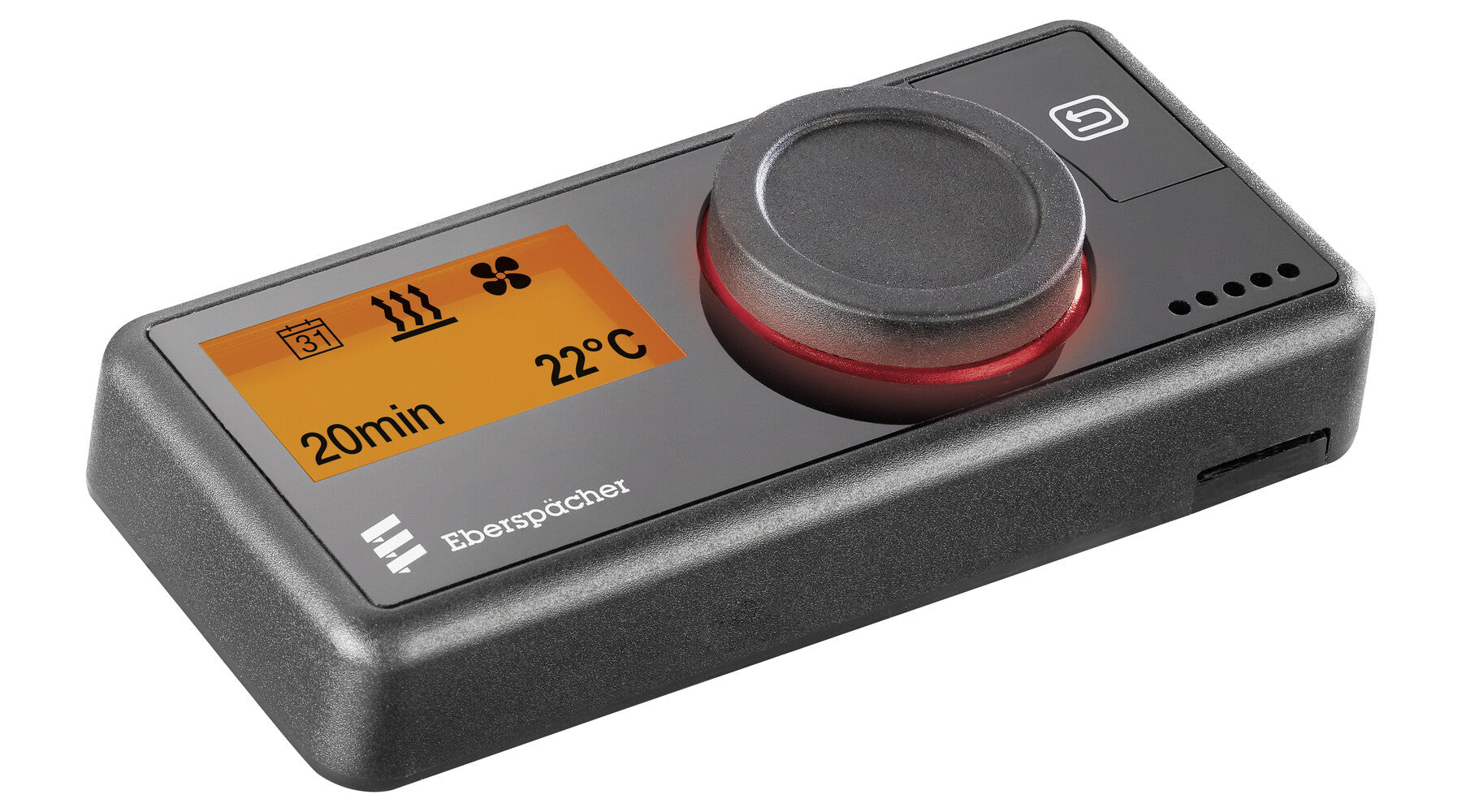

• HEATER INSTALL NOTE: CONTROL KIT - EASY START PRO CONTROLLER WITH ADAPTOR

• DIMENSIONS: EXHAUST MUFFLER 24MM

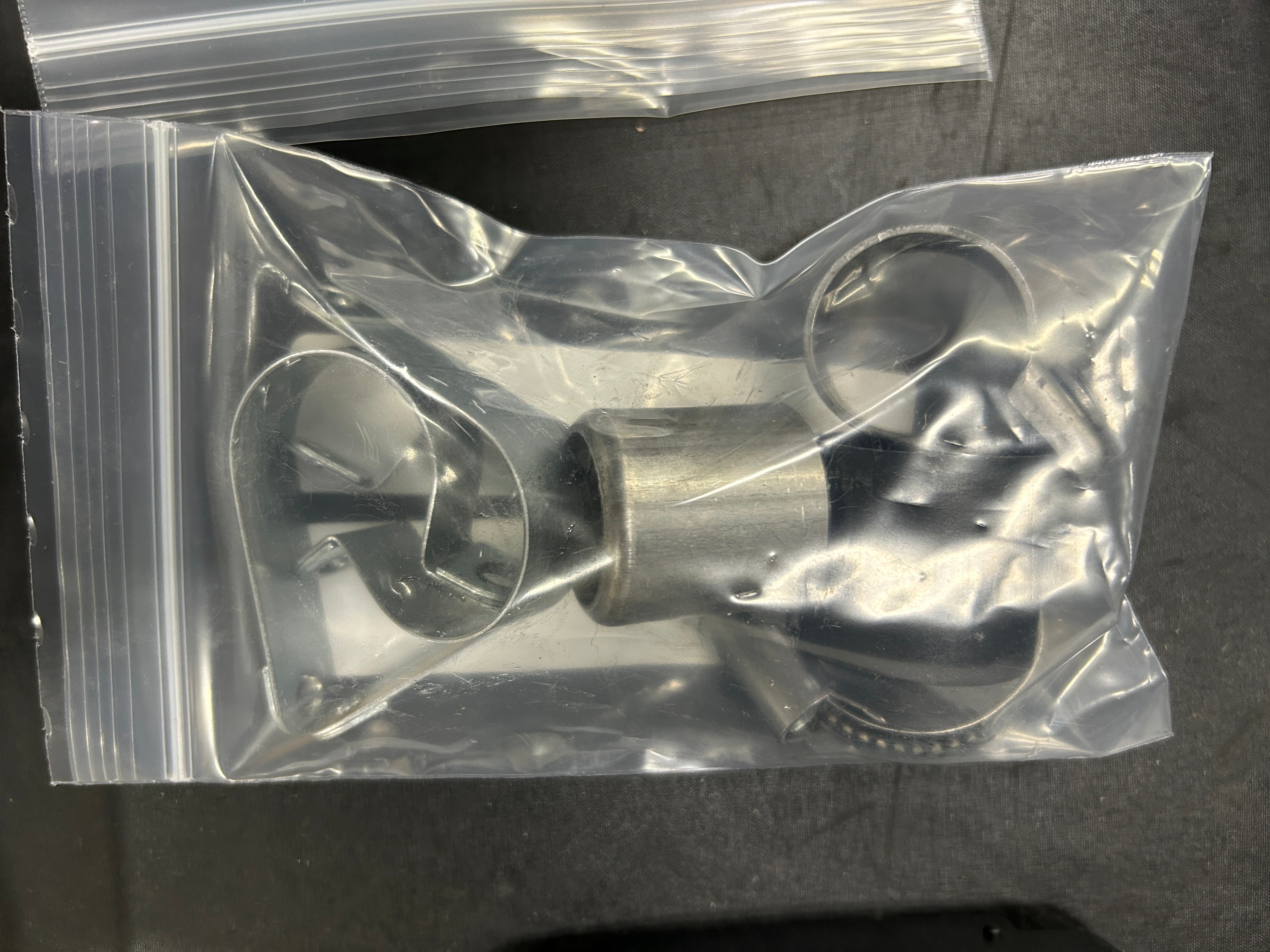

• DIMENSIONS: 26-28mm MUFFLER CLAMP (2x)

• DIMENSIONS: FUEL LINE ADAPTER 7.5MM - 3.5MM

• SHIPPING: GAS FUEL PICKUP(standpipe)

• FITMENT OR USE: Mercedes Sprinter vans

• SHIPPING: This kit comes with a fuel stand pipe(fuel pickup), not the T-Piece kit that is commonly known to be used.

• DIMENSIONS: The hoses included in this kit are designed to attach to the factory auxiliary port(with clamps) or you can source the Dorman Auxiliary Fuel connector adapter(Part# 800-188) separately if convenient to your install.

• FITMENT OR USE: Ram ProMaster vans

• HEATER INSTALL NOTE: have an Auxiliary Fuel Port under the cab floor entry.

• DIMENSIONS: The hoses included in this kit are designed to attach to the factory port(with clamps) or you can source the Auxiliary Fuel connector adapter separately if convenient to your install.

• SHIPPING: will require dropping the fuel tank on the vehicle, adding an additional fuel pickup pipe and components.

• FITMENT OR USE: Transit Kit variant coming soon!

• MUFFLER INSTALLATION: The included muffler does not display which direction air flows.

• HEATER INSTALL NOTE: Recommended to add insulation wrap to exterior fuel lines/connections to prevent cracking.

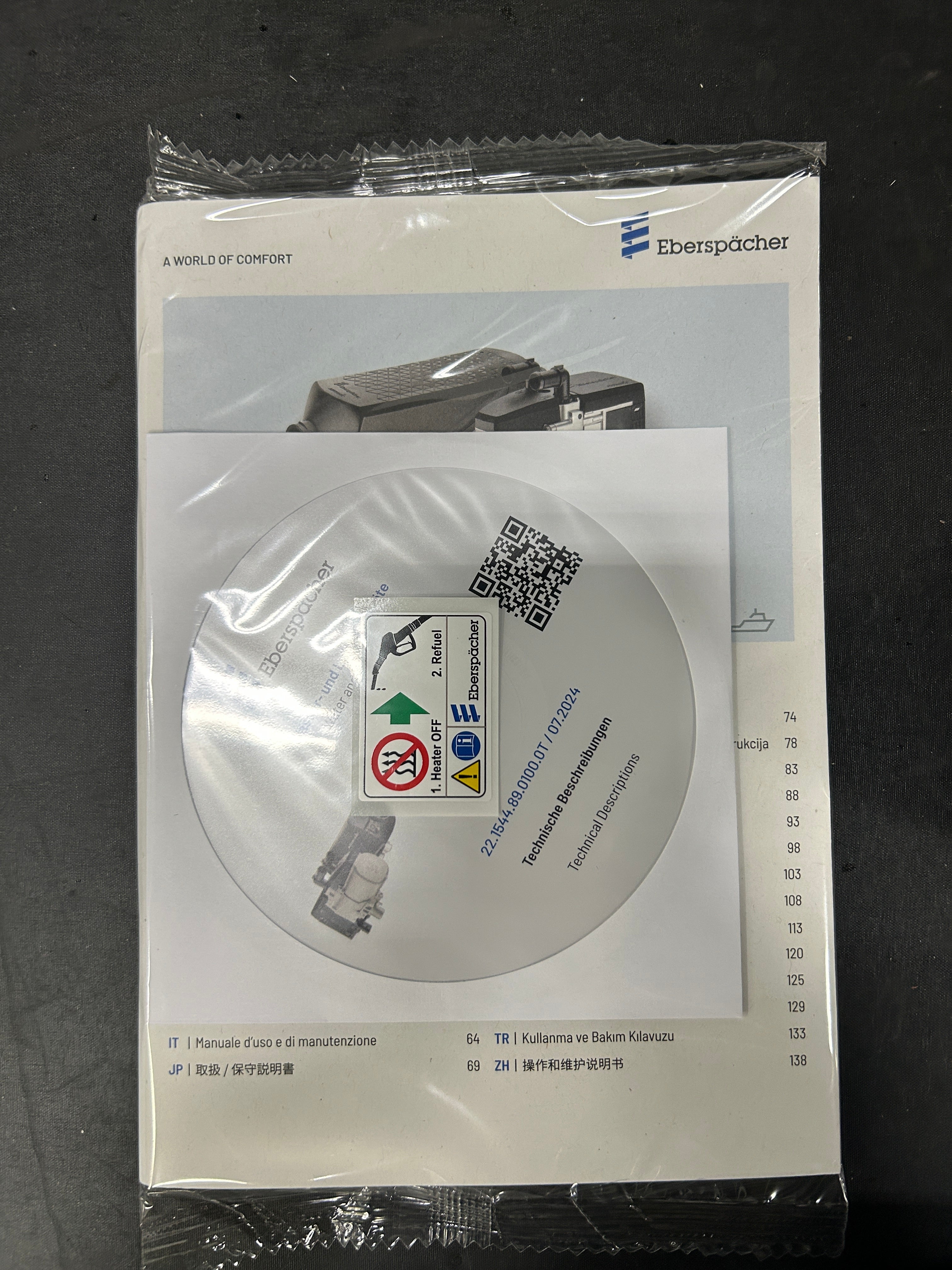

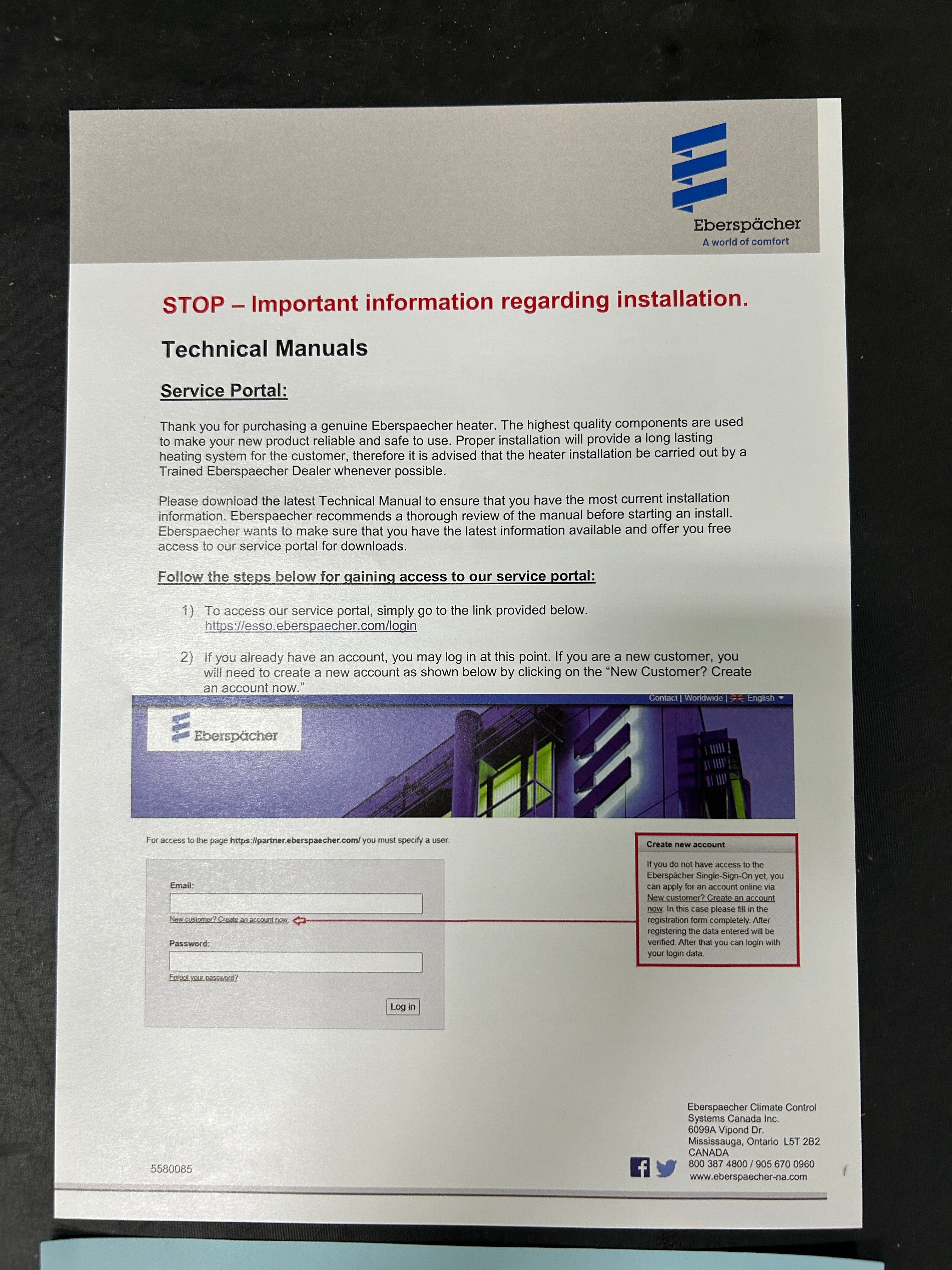

• HEATER SYSTEM NOTE: Espar AS3 B2L/D2L Install Instructions

• HEATER SYSTEM NOTE: Espar AS3 B2L/D2L Operating Instructions (English, pg 30)

• HEATER SYSTEM NOTE: Espar AS3 B2L/D2L Technical Sheet

• HEATER SYSTEM NOTE: Espar Easy Start Pro Controller Guide

• HEATER SYSTEM NOTE: Espar Easy Start Pro Controller Guide Additional Info

• HEATER SYSTEM NOTE: Espar Easy Start Pro - Additional Product Info

• HEATER INSTALL NOTE: SPECIFICATIONS

• DIMENSIONS: Heater Dimensions (HxWxD)

• DIMENSIONS: 121.92mm (4.8 in.)H x 309.88mm (12.2".)L x 114.808mm (4.52 in.)W

• WEIGHT OR SIZE: 5.5 lbs (2.5 kg)

• HEATER INSTALL NOTE: Heat Output

• HEATER INSTALL NOTE: 6824 BTU (2.0 kW)

• ELECTRICAL SPECIFICATION: Operating Voltage

• HEATER INSTALL NOTE: Rated Power Consumption

• HEATER INSTALL NOTE: Fuel Consumption

• HEATER INSTALL NOTE: 0.04 - 0.07 gal/h (0.14 - 0.26 l/h)

• HEATER INSTALL NOTE: Fuel Type

• HEATER INSTALL NOTE: Gasoline

• OPERATING RANGE: Altitude Compensation

• HEATER INSTALL NOTE: 13,120ft (4000m)

• REQUIREMENT: Start Up Requirement

• REQUIREMENT: Glow plugs require ~30A at startup for the first minute or two.

FEATURES

• FUEL-FIRED CABIN HEAT: Uses gasoline or diesel from the compatible vehicle fuel system specified by the product.

• HIGH-ALTITUDE OPERATION: Includes the source-listed automatic altitude capability for mountain travel.

• COMPLETE CONTROL PACKAGE: Includes the listed EasyStart Pro controller and heater-specific installation components.

COMMON PAIRINGS

• VEHICLE FUEL CONNECTION: Use the chassis-specific auxiliary port, standpipe, or pickup components described below.

• COMBUSTION AIR AND EXHAUST: Route intake, muffler, exhaust, and heat protection according to heater instructions.

• 12V HOUSE ELECTRICAL: Provide the startup current, operating power, fuse, and wire size required by the heater.

COMPATIBILITY & FITMENT

• CHASSIS: Source fitment covers 2007+ Mercedes-Benz Sprinter, 2014+ Ram ProMaster, and 2015+ Ford Transit where the listed fuel-install requirements are completed.

• WHEELBASE: Not wheelbase-specific; underbody space, floor layout, duct routing, and fuel access determine placement.

• ROOF HEIGHT: All roof heights with adequate heater, duct, intake, exhaust, and service clearance.

• REQUIREMENTS: Select the correct gasoline or diesel kit and follow the chassis-specific fuel-pickup requirements, licensed-installer cautions, startup-current needs, combustion-air separation, exhaust mounting, and fuel-line protection listed above.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Which fuel does this heater use?

A: The Espar AS3 B2L 12V Heater- Full Kit (Gasoline) uses the fuel type stated in its product name and technical specifications.

Q: Will it work at high altitude?

A: Yes, the source lists automatic altitude capability to approximately 13,120 feet / 4,000 meters.

Q: Does it fit Sprinter, Transit, and ProMaster vans?

A: Yes, where space allows and the chassis-specific fuel-pickup work described above is completed.

Q: What electrical power is required?

A: It uses 12V power with the listed operating draw and approximately 30A startup requirement for the first minute or two.
