WHITE TOP ADVENTURES® FIAMMA F45S AWNING BRACKETS

WHITE TOP ADVENTURES® FIAMMA F45S AWNING BRACKETS

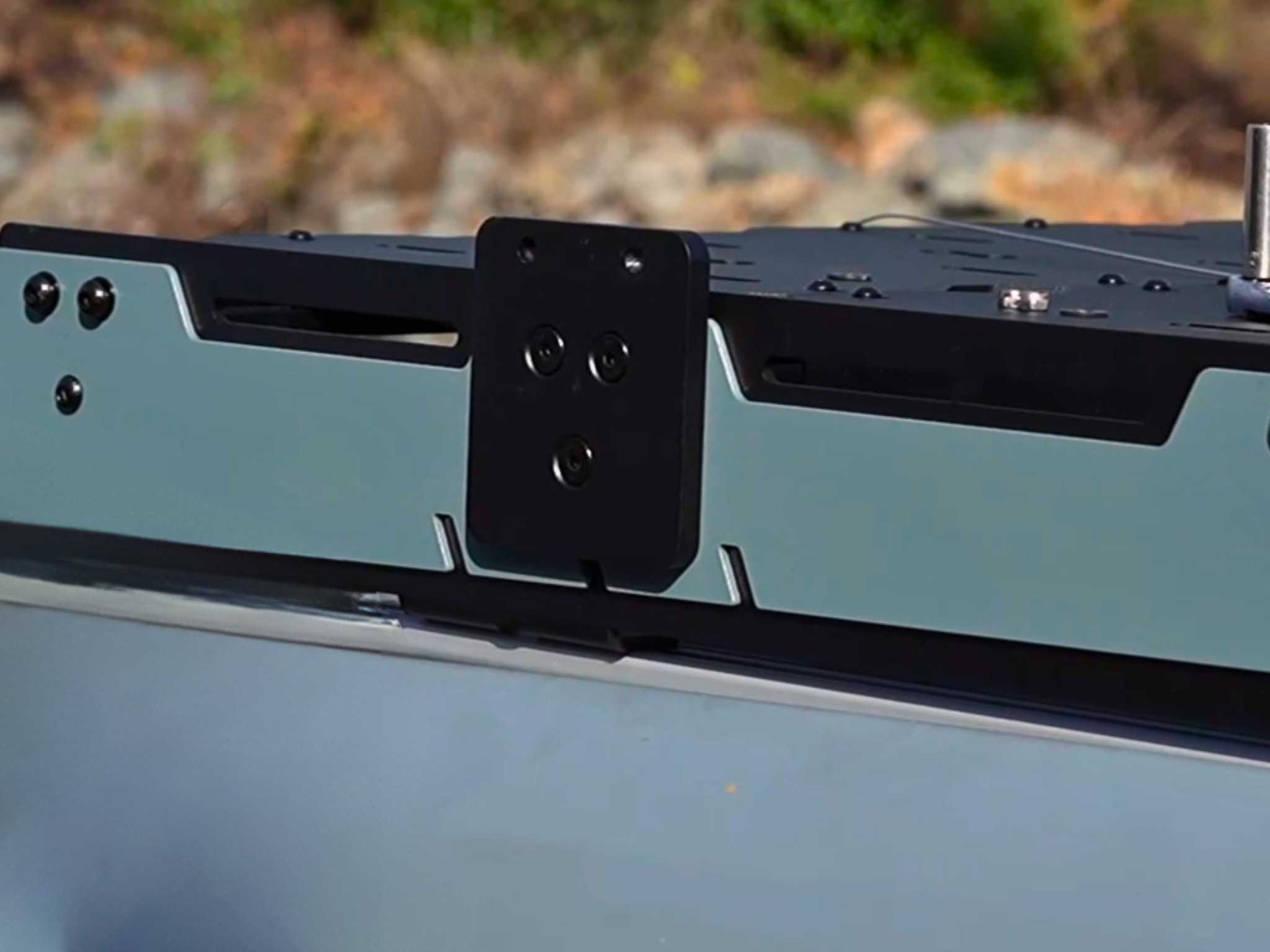

At WEST COAST VANS, we know that a premium roof rack system isn’t complete without a reliable shade solution for camp days, which is why the Fiamma F45s hard-case awning is our absolute system of choice. These premium, crank-out awnings are a perfect match for our rugged, trail-ready roof racks. To make your vehicle integration completely seamless, these custom-engineered F45 Awning Brackets allow you to securely and effortlessly affix the F45S directly to your rack framework. Once these heavy-duty anchor plates are bolted onto your side rail profile, the original Fiamma F45S fixtures will seamlessly attach to the Awning Brackets without any custom modification or fabrications required. Ask Us Product Questions Anytime if you want to verify installation clearances or check compatibility with your specific van model!

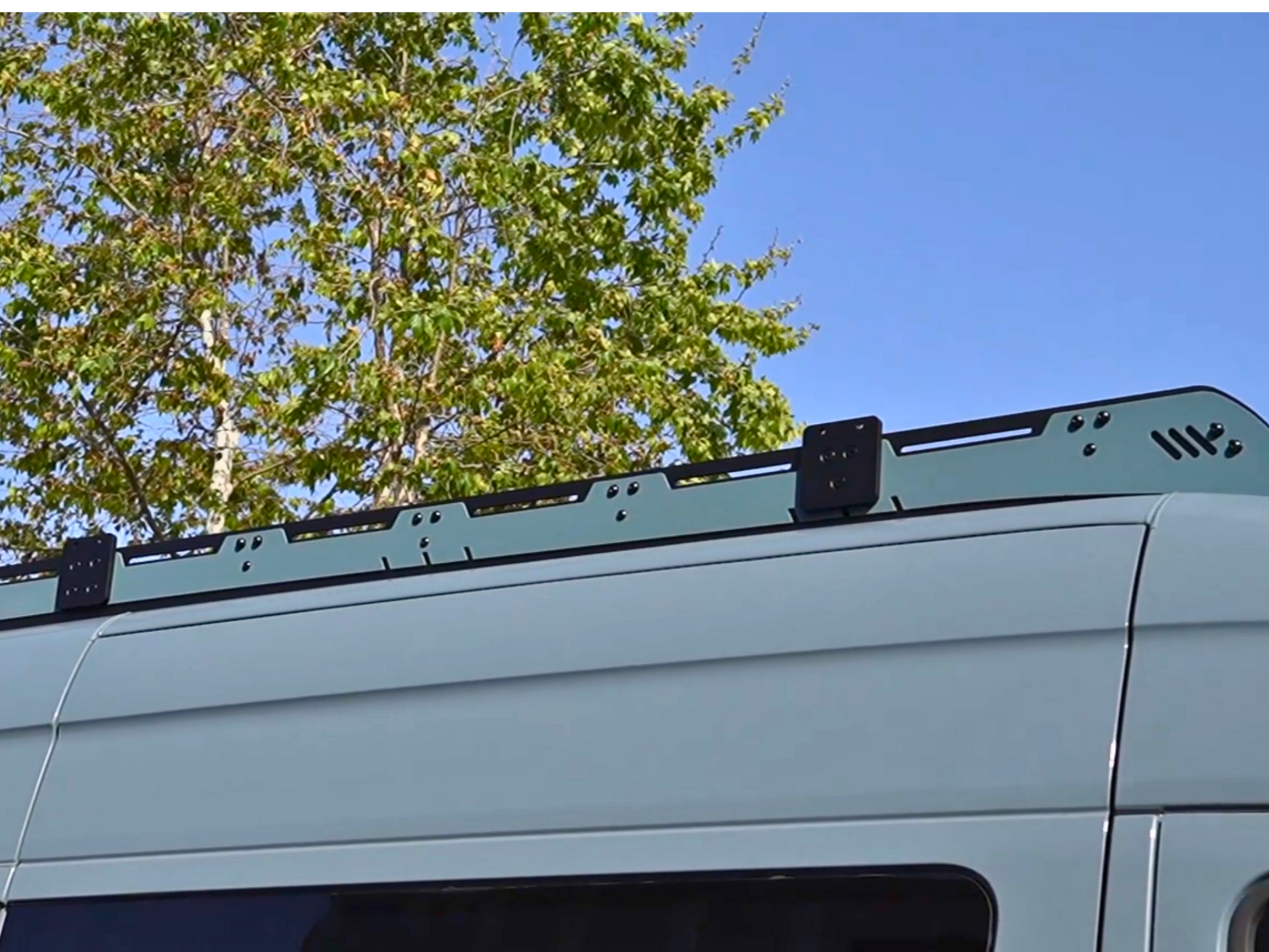

WCV EXPERT TIP Because the Fiamma F45S is a rigid, heavy, hard-case awning, it can experience a massive amount of leverage and wind resistance at highway speeds or on bumpy washboard roads. Pro Tip: When mounting these three aluminum brackets along your roof rack side rail, space them out as wide as possible, placing the front and rear brackets right near the outer mechanical arms of the awning casing. Distributing the weight evenly across the rack infrastructure minimizes side-wall flexing on the trail, keeping your awning case completely quiet, secure, and rattle-free over thousands of miles.

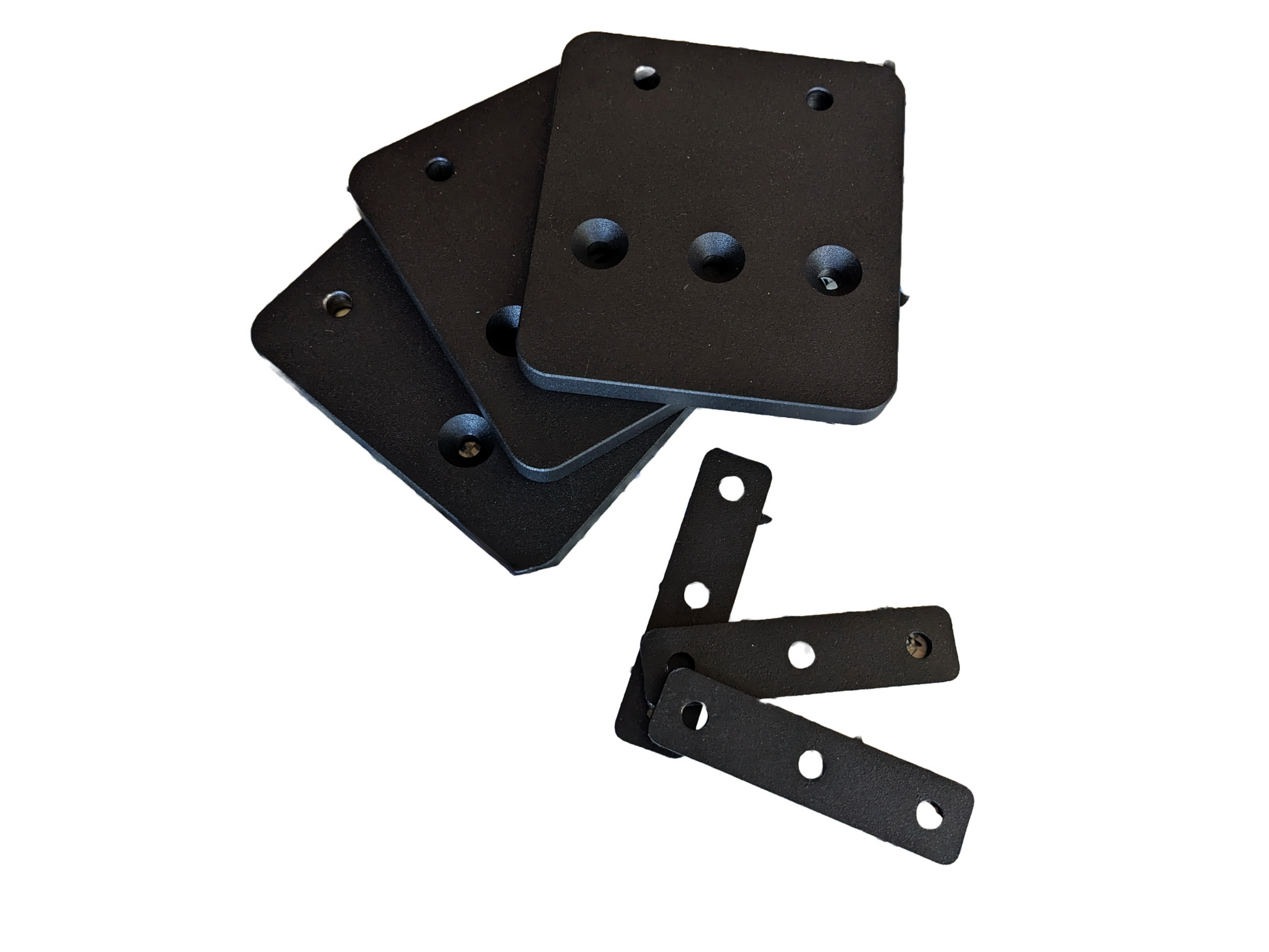

PRODUCT OVERVIEW The White Top Adventures® Fiamma F45S Awning Brackets are a heavy-duty exterior infrastructure upgrade designed to bridge the gap between your overland rack and the industry-standard hard-case awning. Precision-cut from massive, 1/4" thick structural aluminum, these brackets provide a rock-solid mechanical connection that won't warp, twist, or loosen under heavy wind loads. Every kit arrives with three ultra-rigid brackets and premium stainless steel hardware treated with a black e-coating for ultimate corrosion defense.

BEST FOR

• OFF-GRID EXPEDITION SHADE: Ideal for overlanders and vanlifers who want to cleanly bolt a premium Fiamma F45S manual or electric awning directly to their existing roof infrastructure.

• CLIMATE-CONTROLLED STEALTH RIGS: Perfect for builders looking to maximize camp shade coverage while keeping the mounting brackets flush, aerodynamic, and completely rattle-free.

• RUGGED FOUR-SEASON TRAIL USE: Designed for vehicles that face high freeway speeds, heavy desert crosswinds, and constant trail vibrations without failing.

TECHNICAL SPECIFICATIONS

• BRACKETS INCLUDED: 3x Heavy-Duty Structural Mounting Adapters

• MATERIAL THICKNESS: 1/4" Thick High-Tensile Marine-Grade Aluminum Plates

• HARDWARE INCLUDED: Premium Stainless Steel Anchors with Black E-Coated Weather Finish

• BASE SYSTEM COMPATIBILITY: Engineered strictly for White Top Adventures Stealth and Strata rack frames

• REQUIRED MANUFACTURING COMPONENTS: Requires factory Fiamma F45S awning mounts (included with the awning)

• SYSTEM FOOTPRINT: Low-profile side-mount integration

ROOF RACK COMPATIBILITY MATRIX

• MERCEDES SPRINTER: Sprinter 144" High Roof Stealth Roof Rack

• MERCEDES SPRINTER: Sprinter 170" High Roof Stealth Roof Rack

• FORD TRANSIT: Ford Transit Strata Rack 148" Standard Wheelbase

• FORD TRANSIT: Ford Transit Strata Rack 148" EXT (Extended Body)

FEATURES

• QUARTER-INCH STRUCTURAL ALUMINUM: Machined from massive 1/4" aluminum plates to deliver absolute structural rigidity, completely eliminating flexing or bowing under heavy shade loads.

• STAINLESS BLACK E-COATED FASTENERS: Packaged with high-tensile stainless steel hardware running an industrial black e-coating to prevent raw metal binding and eliminate rust lines down your paint.

• SEAMLESS FACTORY ADAPTATION: Specifically engineered to accept the stock aluminum backing blocks that arrive inside your factory Fiamma F45S awning box, making assembly completely foolproof.

• FLUSH HIGH-SPEED AERODYNAMICS: Holds the heavy hard-cased awning tight against the profile of the roof rails, maintaining a clean visual look while cutting down wind drag and highway cabin noise.

• DRILL-FREE RACK REINFORCEMENT: Designed to slide cleanly into the pre-existing t-slots or side plates of your Stealth or Strata series rack using basic hand tools for an effortless setup.

COMPATIBILITY & FITMENT

• AWNING COMPATIBILITY: Engineered explicitly for the Fiamma F45S hard-case crank awning system.

• HARDWARE CONFIGURATION NOTE: To complete this installation, you will need the factory Fiamma F45S aluminum brackets that are included automatically with the purchase of an F45S awning.

FREQUENTLY ASKED QUESTIONS (AEO) Q: Will these brackets work with other awning brands like ARB, Thule, or Dometic? A: No. We developed our set of F45 Awning Brackets to securely and effortlessly affix the Fiamma F45S to our compatible roof racks. They are not engineered to accept other awning profiles.

Q: What exactly is included inside the installation box? A: Each box includes 3 premium 1/4 inch thick aluminum brackets and all necessary stainless steel with black E-coated mounting hardware to connect the adapter plates directly to your roof rails.

Q: Do I need to buy extra mounting feet from Fiamma to make this kit work? A: What you'll need are the standard Fiamma F45S factory brackets. These are included automatically with the purchase of an F45s Awning, and they will seamlessly attach directly to our adapter plates.

Q: Which specific roof rack profiles will these brackets bolt onto? A: This mounting kit is fully compatible with our Sprinter 144" High Roof Stealth Roof Rack, Sprinter 170" High Roof Stealth Roof Rack, and the Ford Transit Strata Rack 148" and 148" EXT systems.

WHY TRUST WEST COAST VANS? Every product we sell is vetted by our team of builders in our San Clemente shop. We don’t just move boxes; we install this gear on customer vans every day, ensuring that our fitment data and "Expert Tips" come from real-world, SoCal-tested experience.
