A functional roof rack layout is the foundation of a successful off-grid build, determining how efficiently your van carries solar panels, gear boxes, and recovery tools. Adding a premium retractable awning to your setup provides essential campsite shade, but mounting it securely without awkward gaps or loose components can be a challenge. At WEST COAST VANS, we stock the Unaka Gear Co. Fiamma F45S Awning Brackets because they provide an immediate, heavy-duty solution to anchor your shade canopy. These precision-engineered bracket kits bridge the gap between your rack's side profile and your awning, creating a rock-solid mechanical connection. It ensures your awning stays firmly locked to your rig at highway speeds and stands unyielding against sudden campsite crosswinds. Ask Us Product Questions Anytime before you buy—our San Clemente shop team is always here to help you configure your top-deck accessory layout!

WCV EXPERT TIP: Selecting the correct bracket option is critical to achieving a seamless, flush-fitting installation on your roofline. Unaka builds this mounting ecosystem in two distinct tier variations: Standard and Premium. Pro Tip: Choose the Standard bracket kit if you are running any Unaka Standard roof rack, a Unaka ProMaster roof rack, or a custom DIY, 8020, or Unistrut grid frame (please note that Unistrut installations require separate spring nuts, which are not included). Opt for the Premium bracket kit if your rig is outfitted with a Unaka Premium Ford Transit or Unaka Premium Mercedes Sprinter rack. Taking the time to match your exact rack profiles ensures the brackets drop straight into the mounting channels for a clean, rattle-free mechanical anchor!

PRODUCT OVERVIEW

The Unaka Gear Co. F45S Awning Brackets are premium, high-strength structural attachment modules engineered to facilitate the effortless installation of Fiamma F45S awnings onto modern van roof racks. Precision CNC-laser cut and brake-formed from heavy-duty structural aluminum, these brackets are completed in a resilient, weather-resistant finish to withstand continuous outdoor exposure. Available in specialized Standard and Premium geometries, the low-profile bracket sets include high-tensile mounting hardware designed to slide directly into the T-slots or side channels of your rack frame, completely eliminating the need for custom fabrication or guesswork.

BEST FOR

• SEAMLESS CAMPSITE AWNING STAGING: The ultimate structural adapter kit for overlanders who need a robust, rattle-free mounting system to securely anchor a Fiamma F45S awning to their roof rack side rails.

• CUSTOM RIGID STORAGE INTEGRATION: Ideal for van lifers running modular T-slot extruded aluminum or custom DIY rack builds who require precise, flush-fitting adapter plates to distribute awning weight evenly.

TECHNICAL SPECIFICATIONS

• AWNING ACCESSORY PROFILE: Structural roof rack mounting brackets and adapter hardware for Fiamma F45S awnings

• STRUCTURAL MATERIAL MATRIX: High-strength, lightweight CNC laser-cut structural aluminum plating

• SURFACE PROTECTION COATING: Industrial-grade, UV-stabilized corrosion-resistant finish

• STANDARD GEOMETRY COUPLING: Fits Unaka Standard racks, Unaka ProMaster racks, and universal DIY / 8020 / Unistrut tracks

• PREMIUM GEOMETRY COUPLING: Fits Unaka Premium Ford Transit racks and Unaka Premium Mercedes Sprinter racks

• INSTALLATION ASSEMBLY METHOD: Direct bolt-on utilizing pre-existing rack frame channels and T-slots

• VEHICLE CHASSIS INTEGRATION: Universally compatible across Sprinter, Transit, and ProMaster platforms via corresponding rack hardware

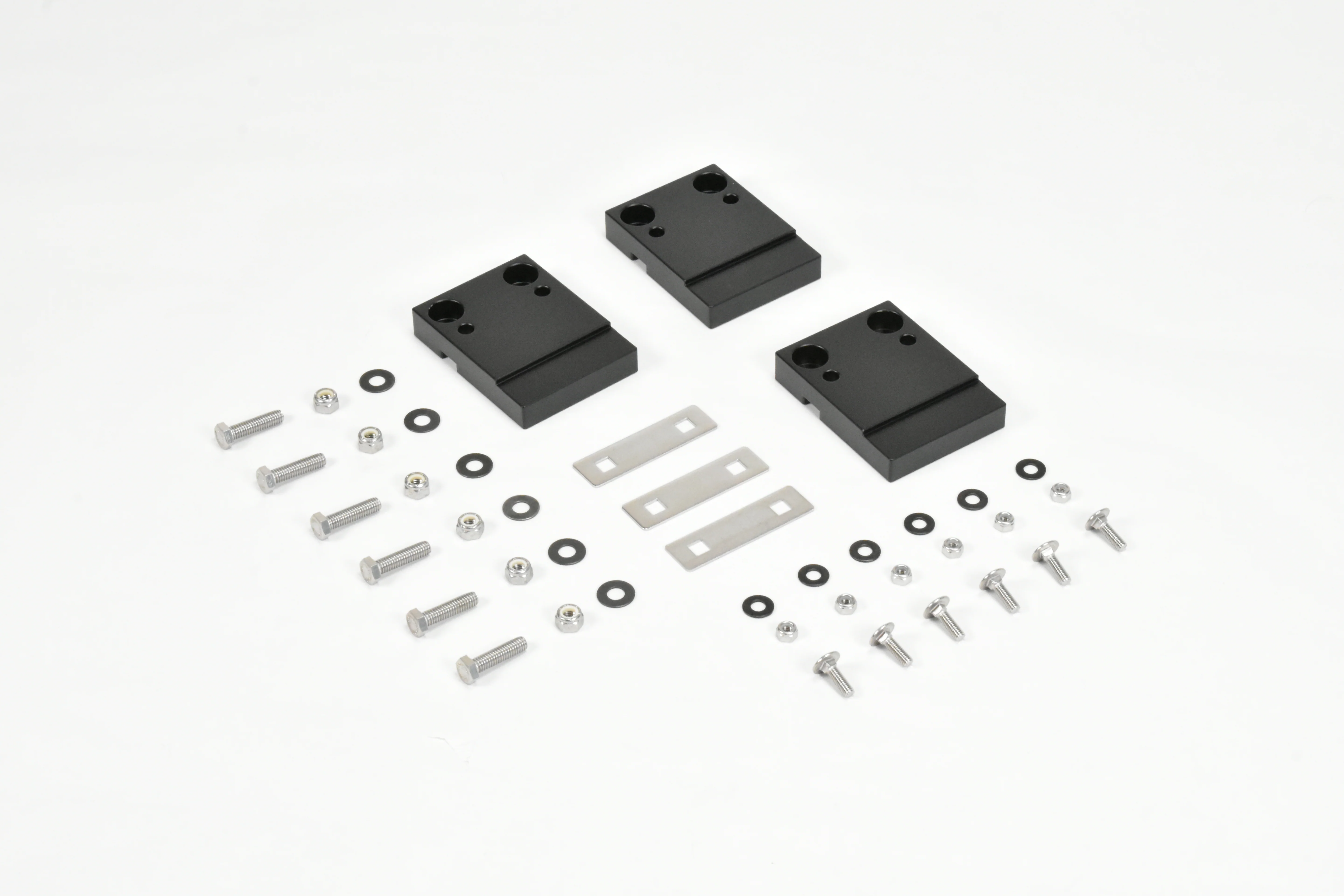

• PACKAGE COMPONENTS INCLUDED: Target Unaka F45S awning mounting brackets and a complete high-tensile assembly fastener hardware kit (canopy awning and Unistrut spring nuts sold separately)

FEATURES

• TAILOR-MADE LOW-PROFILE PROFILE: CAD-profiled to match the exact casing lines of the Fiamma F45S, preserving a clean, integrated appearance that minimizes aerodynamic drag and wind whistle.

• RUST-FREE ALUMINUM GEOMETRY: Formed out of thick, premium structural aluminum to deliver immense load-bearing stiffness while remaining naturally immune to harsh winter road salt and humid coastal air.

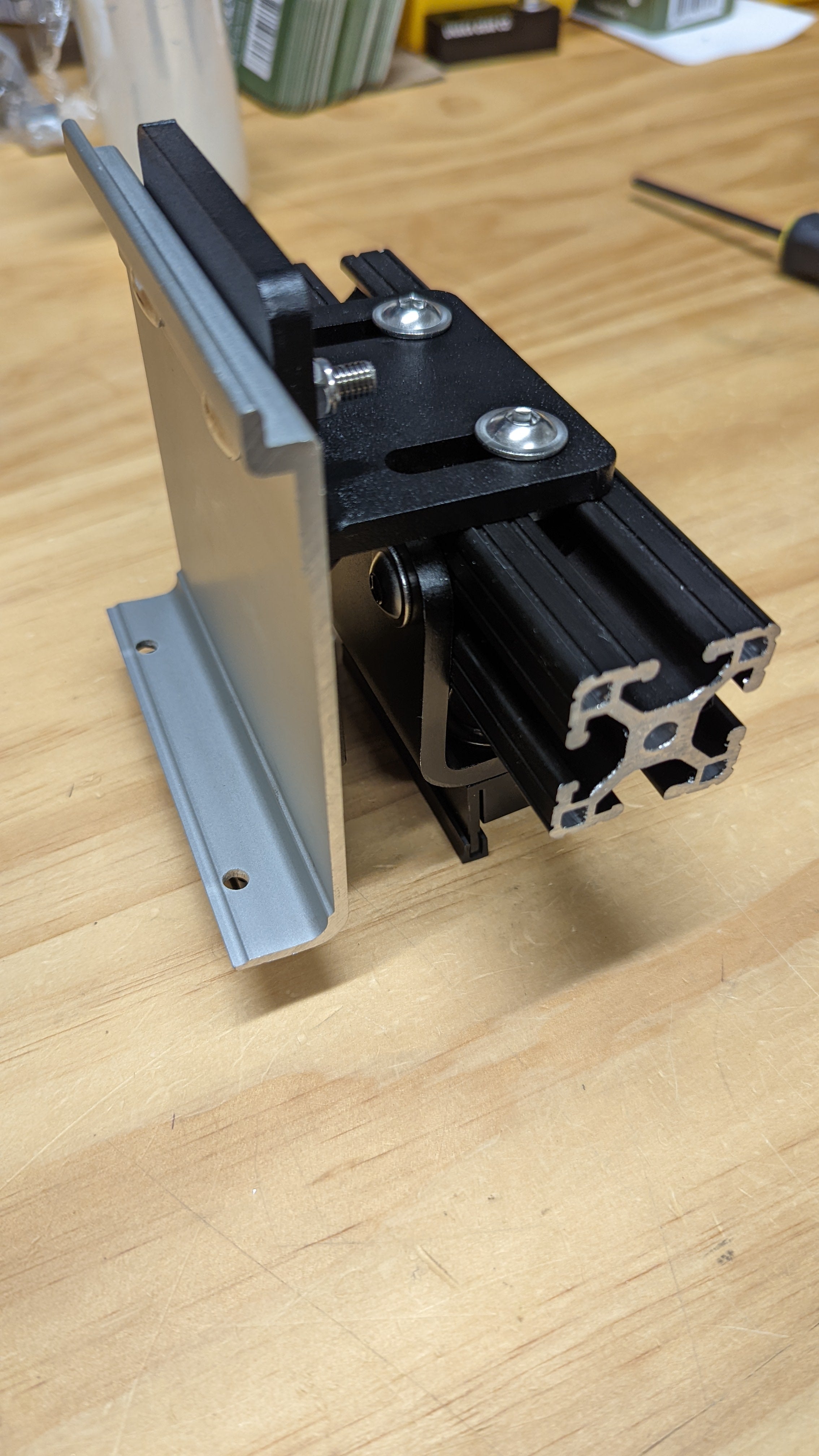

• UNIVERSAL T-SLOT ADAPTABILITY: The Standard bracket option interfaces beautifully with 8020 extrusions and custom DIY framing, giving builders total flexibility when configuring their off-grid roof layout.

• DIRECT DRILL-FREE ASSEMBLY: Engineered with a simplified, direct-clamping mounting path that slides straight into your rack's integrated tracking channels for a quick, straightforward DIY setup.

• ROCK-SOLID WIND RESISTANCE: Builds an unyielding, multi-point mechanical bridge that firmly secures your heavy awning assembly, eliminating trail vibrations and preventing flex during breezy campsite afternoons.

COMMON PAIRINGS

• WHITE TOP ADVENTURES STEALTH 2.0 ROOF RACK: Provides an expansive, low-profile top deck to secure your off-grid solar panels right alongside your newly mounted awning assembly.

• SANDY VANS HIGH ROOF SIDE LADDER: Offers a safe, high-traction climbing path along the side panel to easily access, clear, or adjust your awning brackets and roof cargo.

• 3M THINSULATE VAN INSULATION KIT: Keeps your cabin exceptionally quiet by dampening roof panel vibrations and highway wind noise directly beneath your exterior rack accessories.

COMPATIBILITY & FITMENT

• ROOF RACK SPECIFIC MATCHING: The Standard bracket variant is fully optimized for all Unaka Standard racks, Unaka ProMaster racks, and universal 8020 or Unistrut grid systems. The Premium bracket variant is precision-contoured exclusively for Unaka Premium Transit and Unaka Premium Sprinter rack frameworks.

• AWNING HOUSING COUPLING: Custom-engineered specifically to receive and support the backing plate extrusion of the Fiamma F45S retractable awning housing.

• UNISTRUT TRACKING REQUIREMENT: When installing the Standard brackets onto universal steel or aluminum Unistrut channels, builders must source independent spring nuts separately to complete the structural connection.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Do I need to buy the Standard or the Premium bracket kit if I am building a custom roof rack out of 8020 aluminum extrusions?

A: You should buy the Standard bracket kit. Unaka engineered the Standard brackets with universal mounting slots that align perfectly with 8020 aluminum rails, DIY crossbars, and Unaka Standard/ProMaster rack profiles.

Q: Does this mounting kit arrive out of the box with the Fiamma F45S awning included?

A: No, it does not. This listing is exclusively for the structural aluminum Unaka mounting brackets and the high-tensile fastener hardware required to anchor it to your rack. The Fiamma F45S retractable awning must be purchased separately.

Q: Do I need to drill any new holes into my aftermarket roof rack frame to secure these brackets?

A: No, you do not. These brackets are engineered for a completely drill-free, bolt-on installation. They feature targeted alignment holes designed to slide directly into the pre-existing channels, T-slots, or crossbar tracks of your compatible rack system.

Q: Can I use these specific brackets to mount a different model or brand of awning, like a Fiamma F65 or an ARB awning?

A: No, we do not recommend it. These brackets are precision CAD-patterned and engineered to match the specific structural mounting channels and housing geometry unique to the Fiamma F45S casing. Alternative awning lines will not align correctly.
