SERG SUPPLY RAM PROMASTER VAN FLOORING KIT (159" WHEELBASE)

SERG SUPPLY RAM PROMASTER VAN FLOORING KIT (159" WHEELBASE)

When you're launching a custom cargo van conversion, our crew at WEST COAST VANS knows that laying down a bulletproof, high-performance foundation layout is the single most critical structural milestone of the entire build. The factory corrugated steel floor pan of a Ram ProMaster is inherently noisy, uninsulated, and completely uneven—making it nearly impossible to anchor high-end cabinetry, galley blocks, or heavy gear sliders square. Standard DIY approaches involving loose structural furring strips and hand-cut plywood sheets lead to annoying squeaks over washboard trails, uneven floor seams that warp under weight, and hidden moisture traps that rot your subfloor from the inside out. We believe your base layer should offer an immaculate, CNC-matched fit, act as a heavy-duty acoustic barrier, and build out with factory precision. Enter the Serg Supply Ram ProMaster Van Flooring Kit—the ultimate engineered dual-layer foundation system. Precision-machined to drop natively into the 159" wheelbase platform, this premium interlocking birch matrix combines a pocketed insulation grid with a structural subfloor to give you a perfectly flat, quiet, and rock-solid staging footprint for your mobile home. Ask Us Product Questions Anytime if you want to coordinate your L-track configurations or plan out your plumbing line routes beneath the panels!

WCV EXPERT TIP Achieving an entirely silent, creak-free floor deployment relies on using a premium floating adhesive strategy rather than piercing your chassis skin with hundreds of rust-prone metal screws. Pro Tip: Our shop installation team completely avoids mechanical floor fasteners on ProMaster builds to eliminate the risk of hitting under-chassis fuel lines, brake lines, or wiring looms. Instead, we lay down a continuous bead of high-tack, flexible marine-grade adhesive (like Sikaflex 221) directly along the raised factory sheet metal floor ribs, then lower the interlocking birch insulation frame panels straight onto the adhesive beds. Weigh down the panels evenly with heavy storage batteries or sandbags and allow a full 3-day curing timeframe before walking on the deck. This adhesive-only technique establishes an unbreakable, rubberized dampening boundary that absorbs chassis flex and permanently stops annoying metal-on-wood squeaks while driving!

PRODUCT OVERVIEW The Serg Supply ProMaster Van Flooring Kit is a flagship, commercial-grade subfloor framework engineered explicitly for full-time overlanders, DIY builders, and professional upfit conversion facilities. Moving far past weak, single-layer plywood alternatives, this comprehensive layout utilizes a dual-component architecture consisting of a 3/4-inch pocketed structural insulation frame paired with a 1/2-inch load-bearing birch top subfloor. Machined with precision alternating dovetail joints that interlock seamlessly without high spots, the modular panels arrive ready to receive your favorite final aesthetic layer—instantly expanding your van's structural integrity while locking out harsh, high-frequency highway road noise.

FLOORING ARCHITECTURE SELECTION OPTIONS

Tailor your cargo management capabilities by selecting the structural tracking layout from our store menu that matches your off-grid gear staging style:

• STANDARD FLOOR CONFIGURATION: Includes the full 3/4" pocketed insulation framing matrix, the matching 1/2" interlocking birch plywood subfloor panels, and complete installation fastening hardware. (Note: Aesthetic top wear layer laminates such as Lonseal, 2Tec2, or vinyl are not included).

• ADVENTURE FLOOR CONFIGURATION: Features the complete standard dual-layer birch wood matrix plus (2) integrated rows of premium flush-mount airline L-Track inset into the garage utility area. The L-tracks measure 48 inches long, are spaced exactly 6.5 inches apart from center-to-center, and anchor securely into pre-installed threaded inserts on the underside of the insulation frame. (Note: This integrated tracking is rated strictly for gear, mountain bikes, and cargo containment only—not certified for safety passenger seating loops).

BEST FOR

• HEAVY-DUTY GARAGE BUILD OUTS: Perfect for moto riders and mountain bikers who need an unyielding, flat subfloor capable of supporting heavy rolling weight, toy-haulers, and high-tension cargo tie-downs.

• MAXIMUM THERMAL RECLAMATION: Ideal for four-season winter campers who demand a grid-insulated base layer to completely eliminate the freezing cold thermal bridging radiating off the van's steel chassis.

• SEAMLESS DIY CABIN STAGING: Designed for self-builders who want to skip the headache of manual wood template layout adjustments and require a drop-in ready, interlocking floor that aligns with factory wheel wells.

TECHNICAL SPECIFICATIONS

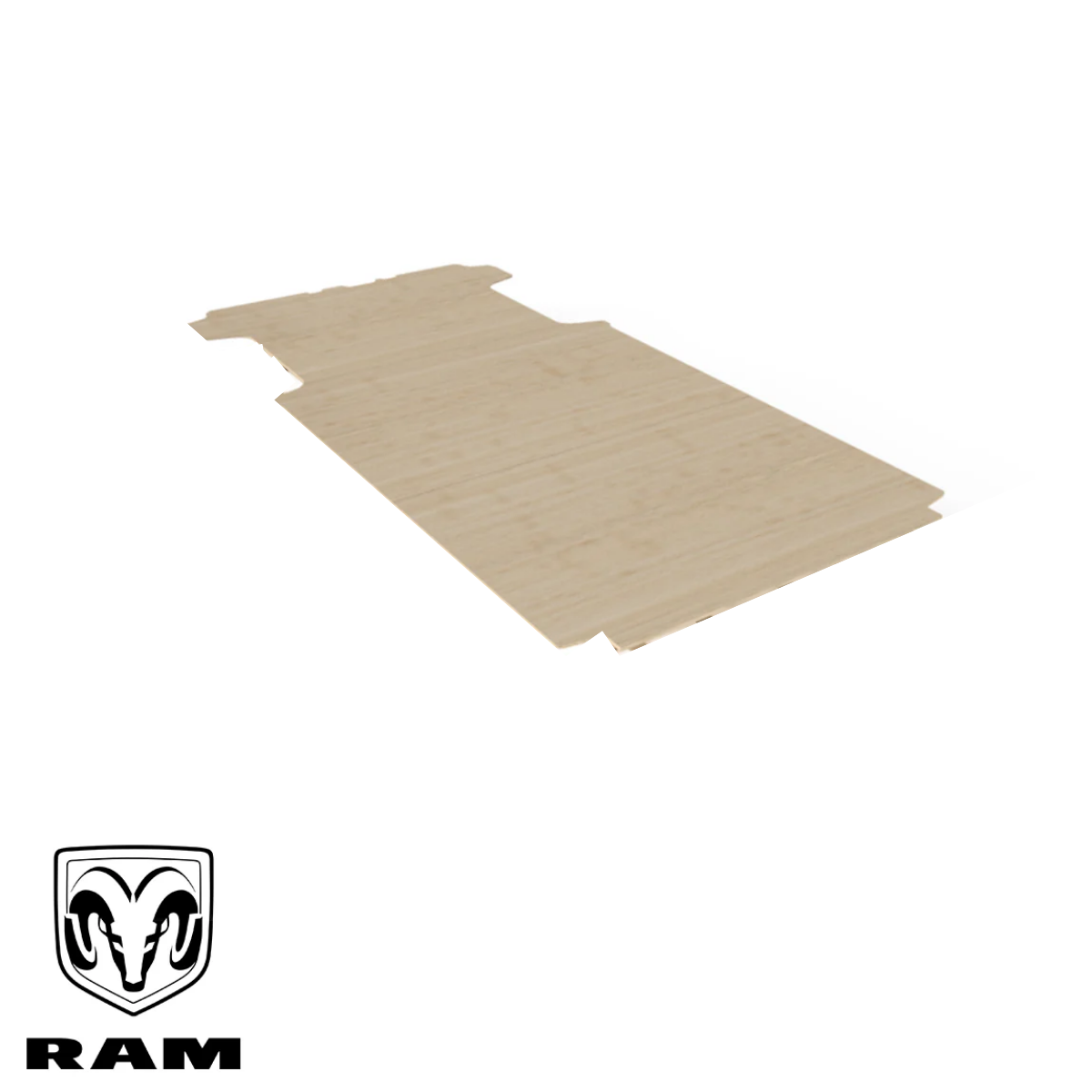

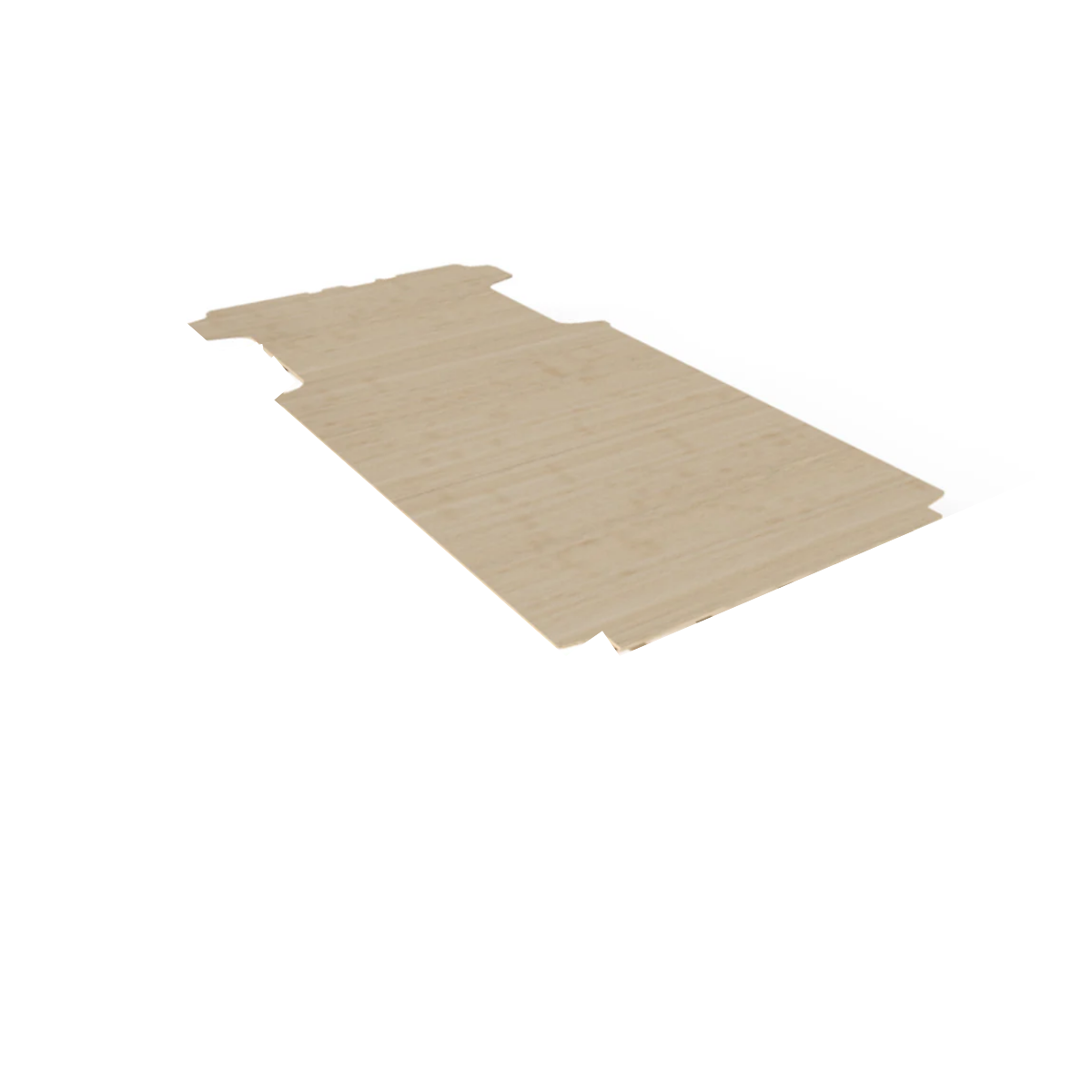

• GROUND BASECAMP PROFILE: CNC precision-cut interlocking dual-layer modular vehicle insulation frame and subfloor kit

• VEHICLE CHASSIS COMPATIBILITY: Engineered exclusively to fit the Ram ProMaster 159" Wheelbase Cargo Van platform

• INSULATION UNDER-FRAME MATRIX: 3/4-Inch heavy-duty load-bearing birch plywood featuring pre-cut insulation pockets

• COUPLING DECK MATERIAL: 1/2-Inch premium structural-grade multi-layer birch plywood top subfloor panels

• OVERALL HARDWARE THICKNESS: Delivers an ultra-low profile 1-Inch total vertical stack height clearance

• PANEL HANDLING DIMENSIONS: Shipped in 3 to 4 easy-to-stage 48" x 76" split panel modules (model-dependent layout)

• PHYSICAL COUPLING WEIGHT: Total wood mass scaling between 120 lbs to 250 lbs based on final track extras

• SEAM STRENGTH COUPLING: Precision CNC-machined alternating dovetail locking perimeter seams

• ANCHOR ATTACHMENT VERSATILITY: Flexible installation formatting supports full polyurethane adhesive bonding or direct screw anchoring

• UNDER-SIDE GEOMETRIC CLEANSING: Integrated underside relief cuts designed to wrap flush over higher elevation factory wheel wells

• PRODUCTION ORIGIN MATRIX: Proudly precision-engineered and manufactured in the United States of America

• LOGISTICAL SHIPPING BONUS: Free shipping tier included to all destinations within the lower 48 US states via premium freight lines (Note: Delivery terms exclude standard PO Box drop points)

DIY INSTALLATION METRIC

• ASSEMBLY DIFFICULTY RATING: Medium Complexity | Requires 2 people for safe layout alignment and heavy panel lift management

• ESTIMATED SETUP TIME: 2 to 3 Hours physical assembly deployment runtime | Requires a mandatory 3-Day curing timeframe if utilizing adhesive setups

• RECOMMENDED FACTORY TOOLBOX: High-Torque Power Drill, matching bits, tape measure, and caulking guns for adhesive lines

master COORDINATED LIVING KITS

Achieve a cohesive, master-built aesthetic throughout your entire mobile living envelope by pairing your flooring kit with our matching precision cabinetry matrices:

• PROMASTER WALL PANEL KITS: Complete your perimeter shell by tracking on our CNC-contoured, rattle-free matching side-wall panel linings.

• PROMASTER CEILING KITS: Cap off your interior insulation layer with our interlocking, ultra-lightweight roof planking layouts for a sleek look.

FEATURES

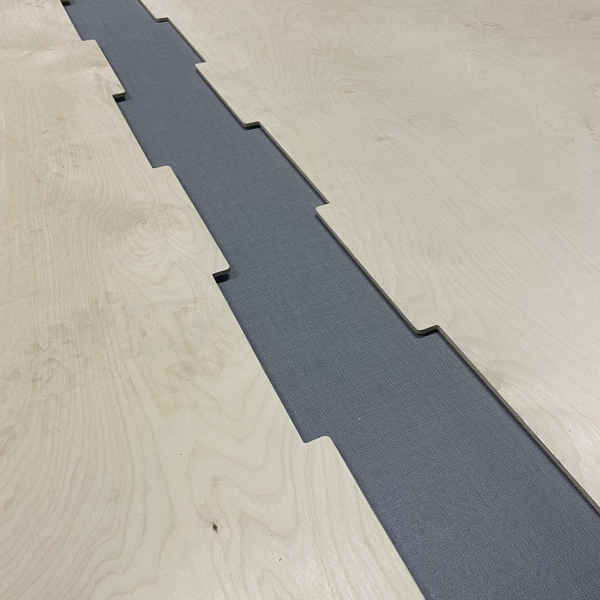

• DOVETAIL INTERLOCKING SEAMS: Swaps floating, flexing wood edges for an ingenious CNC-machined interlocking dovetail pattern that pulls the panels completely flush, preventing joint shifting, edge lip-page, and subfloor bounce.

• POCKETED INSULATION FRAME BEAMS: Outfitted with a custom 3/4-inch structural wood skeleton that mimics the exact placement of your factory floor ribs, providing deep open pockets to stuff your thermal insulation into without crushing the fibers.

• FLUSH RECESSED L-TRACK OPTIONS: Designed into our Adventure line using high-strength aluminum cargo rails anchored via heavy-duty hidden threaded inserts, giving you an ultra-clean, flush gear-tying zone that won't trip up your feet.

• RECESSED WHEEL WELL COMPATIBILITY: Built with specialized CNC relief cuts milled directly onto the underside wood margins, allowing the subfloor to glide cleanly over complex factory floor transitions for an exact-fit wall-to-wall lock.

• STRUCTURAL RIGIDITY CORE: Forged from dense multi-layered birch plywood matrices to uniformly distribute the load of heavy interior water tanks, massive battery banks, and wood cabinetry without bowing, splitting, or sagging over time.

COMPATIBILITY & FITMENT

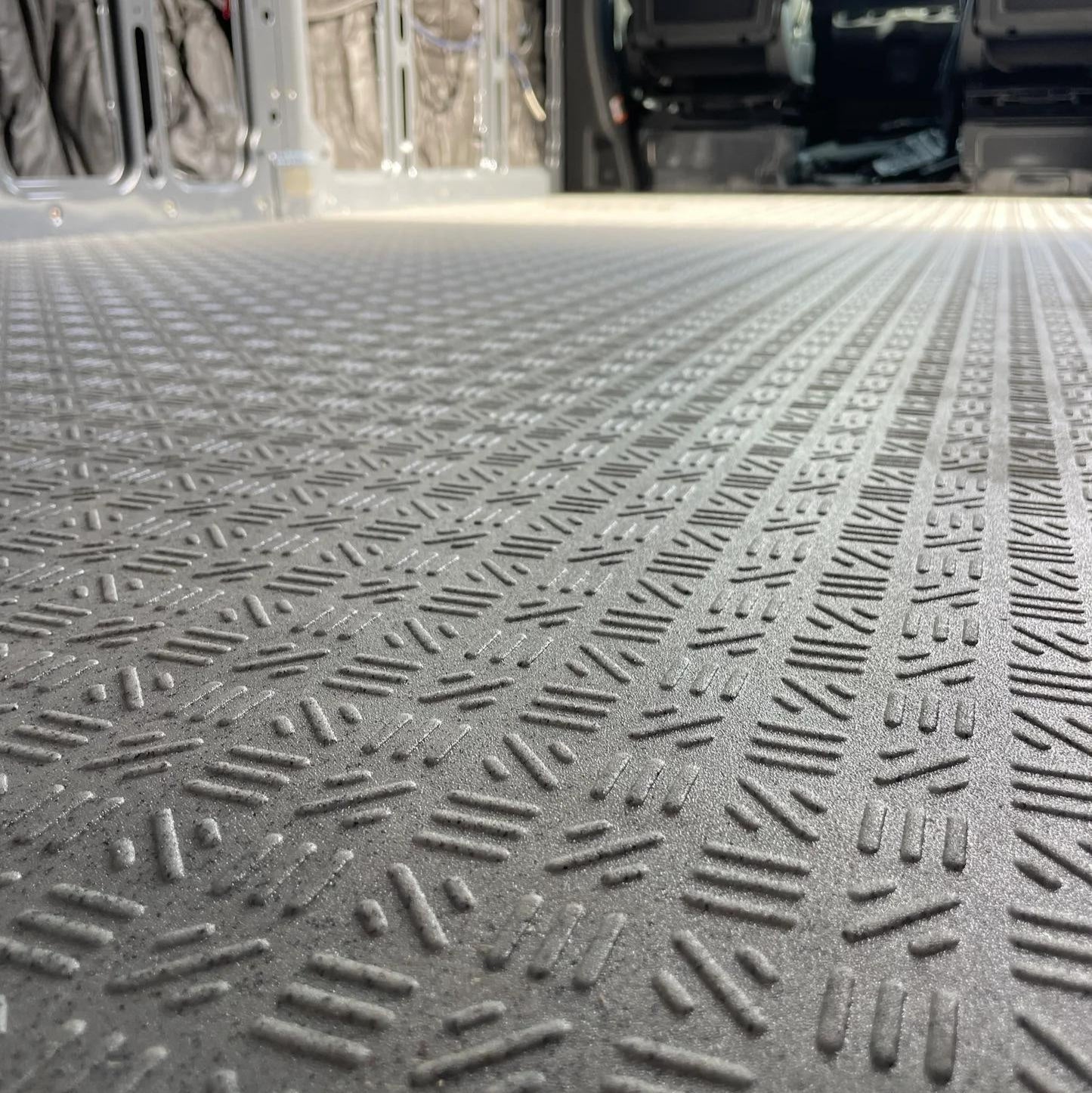

• TOP WEAR LAYER RECEPTION: The raw birch top subfloor is completely calibrated to receive all leading industrial van floorings—including marine-grade Lonseal sheets, 2Tec2 woven tiles, coin-matte vinyl, or premium wood laminates.

• AFTERMARKET SEAT LEG CLEARANCES: Engineered to stay clear of common internal structural frame rails, making it easy to slice custom access ports if you plan to install secondary passenger seat brackets down the road.

• SIMPLE SOLVENT CLEANING: The raw wood faces clean up quickly during the build process. Simply sweep away sawdust and wipe away any fresh adhesive over-runs with a dash of isopropyl alcohol on a clean microfiber towel.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Does this flooring kit arrive pre-faced with the final vinyl or Lonseal coin flooring layer? A: No, it does not. This kit includes the precision CNC-machined 3/4" birch insulation frame, the 1/2" structural birch top subfloor panels, and the mandatory installation hardware. It does not include the final decorative wear layer (such as Lonseal, 2Tec2, or vinyl). This un-faced design gives you total freedom to glue down whatever style, pattern, or color of top laminate fits your van's interior motif best.

Q: Can I use this L-track system to install factory or aftermarket rear passenger seats for my kids? A: No, absolutely not. The integrated tracking included in the Adventure Floor option is custom-engineered and anchored strictly to manage cargo, mountain bikes, storage boxes, and trail tools. It is not pull-tested, structurally reinforced through the vehicle's chassis frame, or certified to secure passenger safety seats. For passenger seating installations, you must use approved factory brackets bolted directly through the steel floor pan.

Q: Do I really have to wait three full days after installing the floor before I can build on it? A: If you choose to anchor your flooring kit using a high-performance polyurethane adhesive (like our recommended Sikaflex 221 technique), yes, you must respect the 3-day curing timeframe. While the panels lock together tightly right away, the adhesive underneath requires adequate time to fully cure into a solid, rubberized dampening pad. Building heavy cabinetry on top of an uncured floor can squeeze the adhesive out of square, ruining your sound-deadening seal.

Q: How much insulation material do I need to buy to fill the pockets in the subfloor frame? A: The 3/4-inch insulation framing matrix features continuous open pocket channels specifically dimensioned to hold thin-profile insulation materials. Builders commonly utilize standard 3/4" rigid foam boards (like Polyiso) cut to fit the pockets, or loose technical wool fibers (like Havelock Wool). If you opt to fill the grid channels using high-density marine pour-foam epoxy setups, a single standard one-gallon kit is more than enough to fully pack a ProMaster 159" floor space.

WHY TRUST WEST COAST VANS? Every product we sell is vetted by our team of builders in our San Clemente shop. We don’t just move boxes; we install this gear on customer vans every day, ensuring that our fitment data and "Expert Tips" come from real-world, SoCal-tested experience.
