DIRTBOX FREE-STANDING 270-DEGREE AWNING

DIRTBOX FREE-STANDING 270-DEGREE AWNING

At WEST COAST VANS, we know that dialing in a fast-deploying exterior shelter footprint is one of the single greatest structural upgrades you can make for life on the trail. Standard pull-out awnings are notorious for forcing you through a tedious wrestling match with tangled guy-lines, twist-lock poles, and stakes every single time you pull over for a quick lunch break. Worse yet, lightweight thin-walled setups instantly buckle or snap at the hinges the moment an unexpected gust of wind catches the fabric skin. We believe your basecamp canopy should deploy completely single-handedly, require zero vertical support poles in standard conditions, and shrug off brutal wind forces with ease. Enter the Dirtbox Free-Standing 270-Degree Awning—the ultimate rapid-shelter solution for dedicated overlanders, off-grid explorers, and custom build rigs. Precision-engineered and field-tested in the demanding backcountry of Colorado, this heavy-duty wing awning wraps around the side and rear of your vehicle to deliver a massive shade footprint in less than 30 seconds. Ask Us Product Questions Anytime if you want to verify your roof rack mounting heights or check bracket clearance parameters!

WCV EXPERT TIP Achieving an immaculate, trail-proof installation relies entirely on matching your rack infrastructure to the awning's heavy-duty torque load. Pro Tip: Because a true free-standing 270 awning relies completely on its internal hinges to hold up its extended arms without vertical ground poles, it applies tremendous rotational leverage to your roof rack. Always mount the heavy-duty structural steel brackets as wide apart as possible along your platform rack or canopy extrusion to distribute the weight evenly. While this structural beast stands rock-solid on its own for fast trail breaks, always take ten extra seconds to drop the integrated, swing-down aluminum support legs and tie them down if a severe weather front or heavy ridge wind rolls into camp—this simple precaution safeguards your rig's unibody and rack mount channels from unexpected thermal drafts!

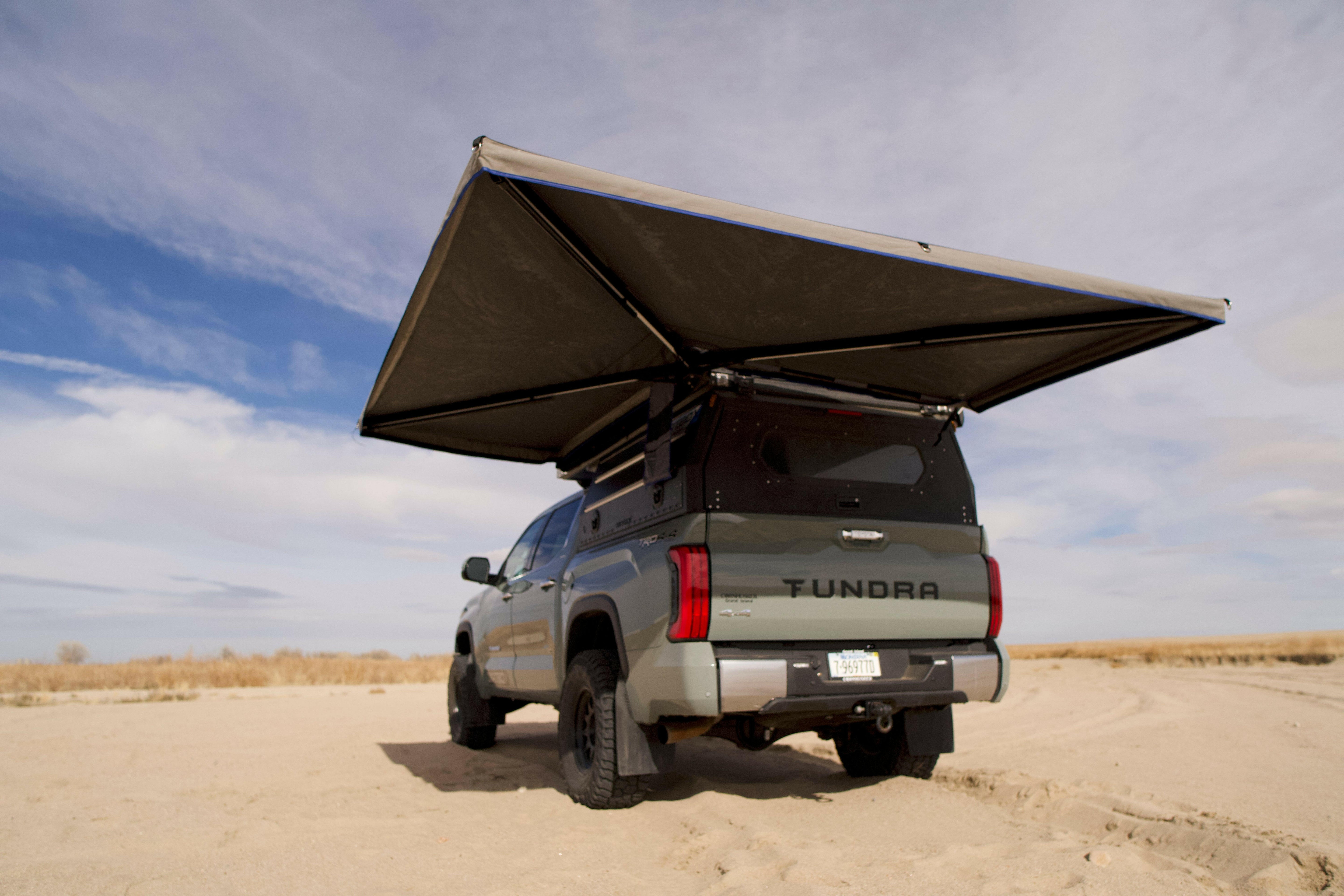

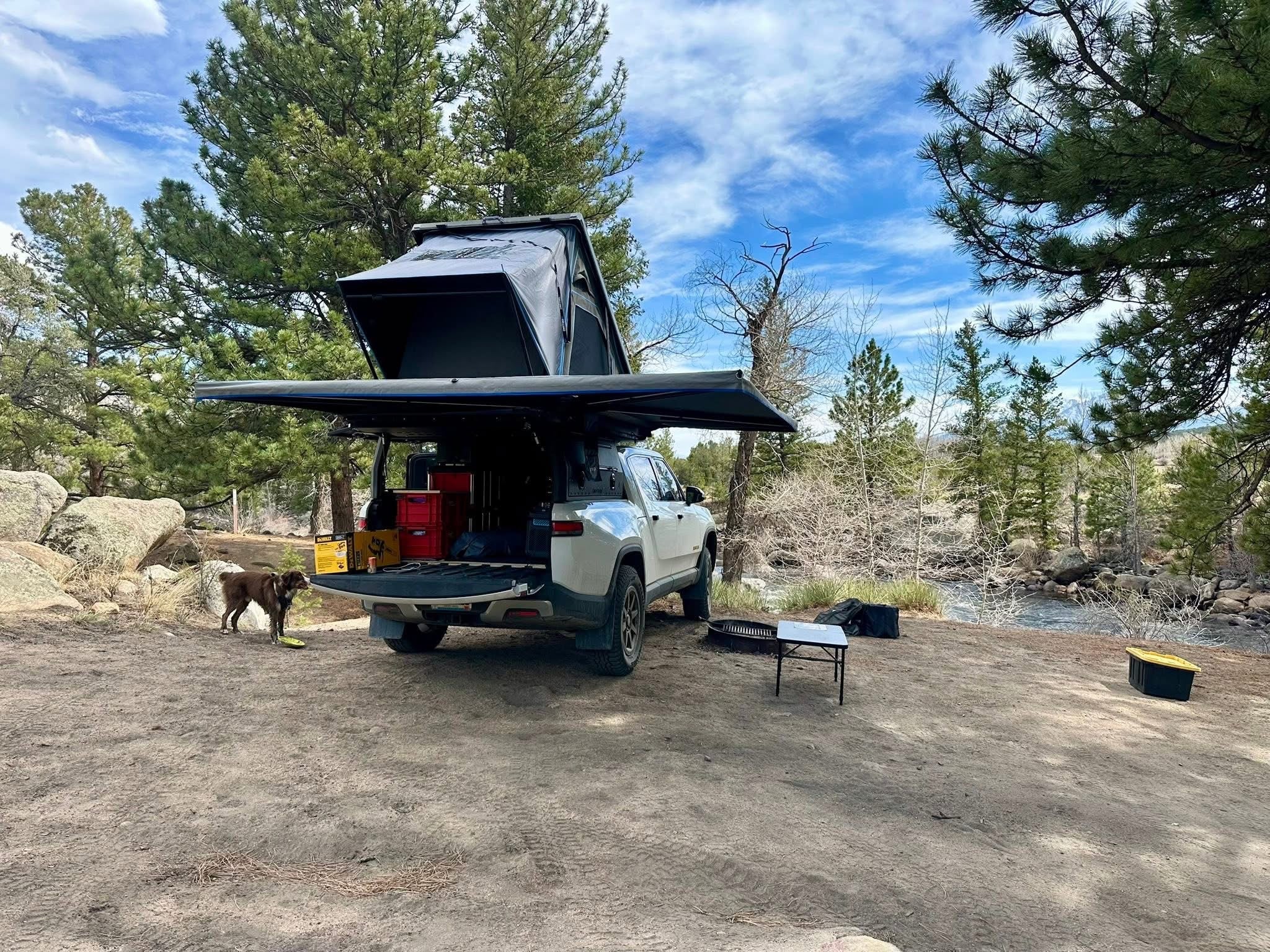

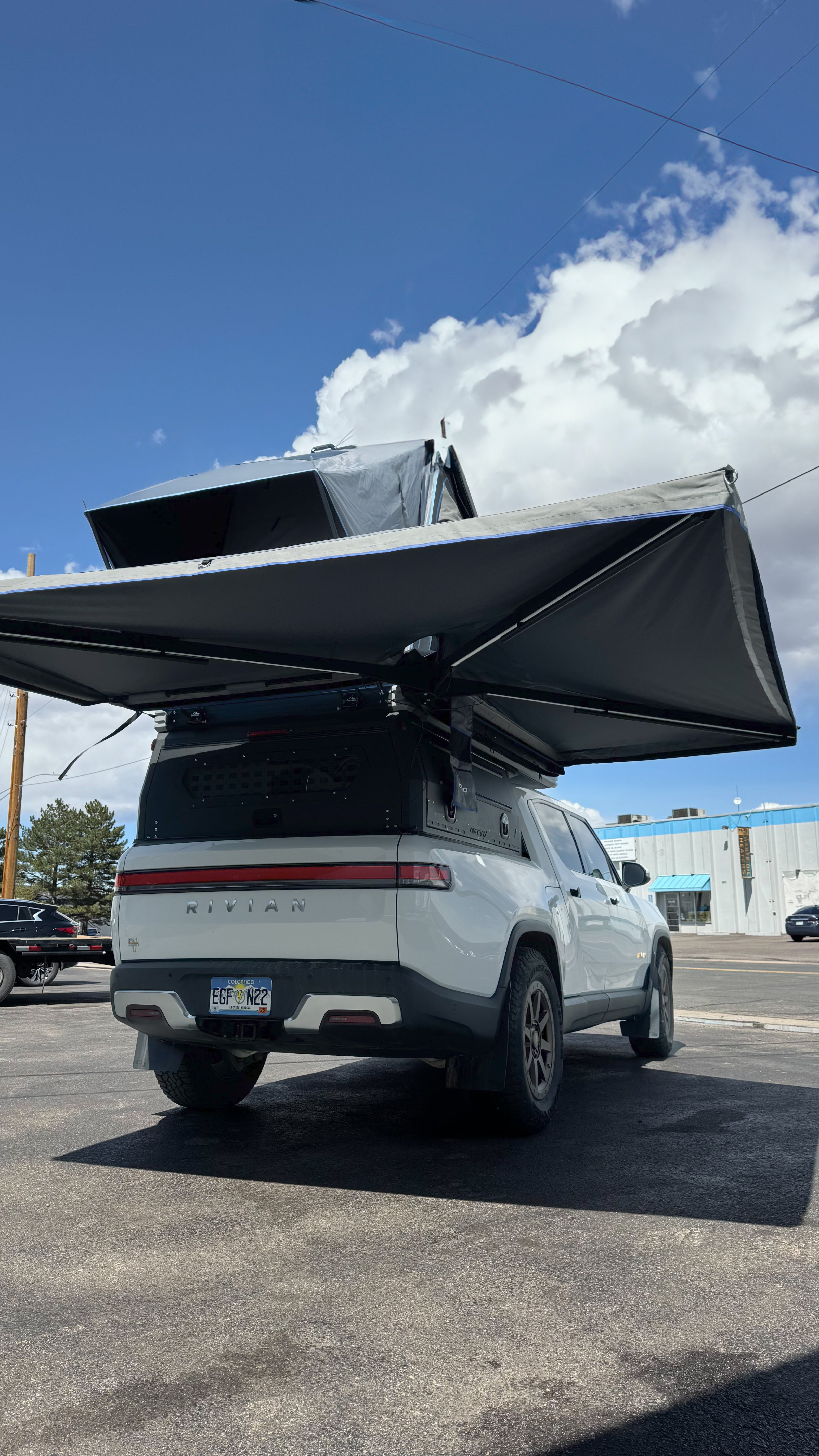

PRODUCT OVERVIEW The Dirtbox Free-Standing 270 Awning is a premium, expedition-grade vehicle-mounted canopy system built for modern van lifers, remote overlanders, and truck camper configurations that demand elite performance. Shunning fragile, heavy steel frameworks, this advanced system features an ultra-engineered flexible aluminum structure that is specifically calibrated to bend and deflect stress under pressure rather than fracture. Covered in premium, heavy-duty 320 GSM waterproof ripstop fabric, this comprehensive system delivers an impressive 90 square feet of wraparound protection while tipping the scales at an incredibly agile 44 pounds—making it one of the absolute lightest and strongest structural awnings in its elite class.

BEST FOR

• OFF-GRID EXPEDITION BASECAMPS: Perfect for explorers who need an instantaneous, large-scale wraparound shelter for cooking, dining, or relaxing without wrestling with separate poles.

• ULTRA-FAST TRAIL BREAKS: Ideal for cross-country overlanders who make frequent roadside stops and want to deploy premium shade or rain protection in under 30 seconds.

• TACTICAL CAMPSITE LIGHTING: Designed for late-night camp arrivals and outdoor chefs who require fully integrated, hassle-free illumination over their kitchen and tailgating zones.

TECHNICAL SPECIFICATIONS

• OVERLAND SHIELD PROFILE: Heavy-duty vehicle-mounted free-standing 270-degree wraparound awning system

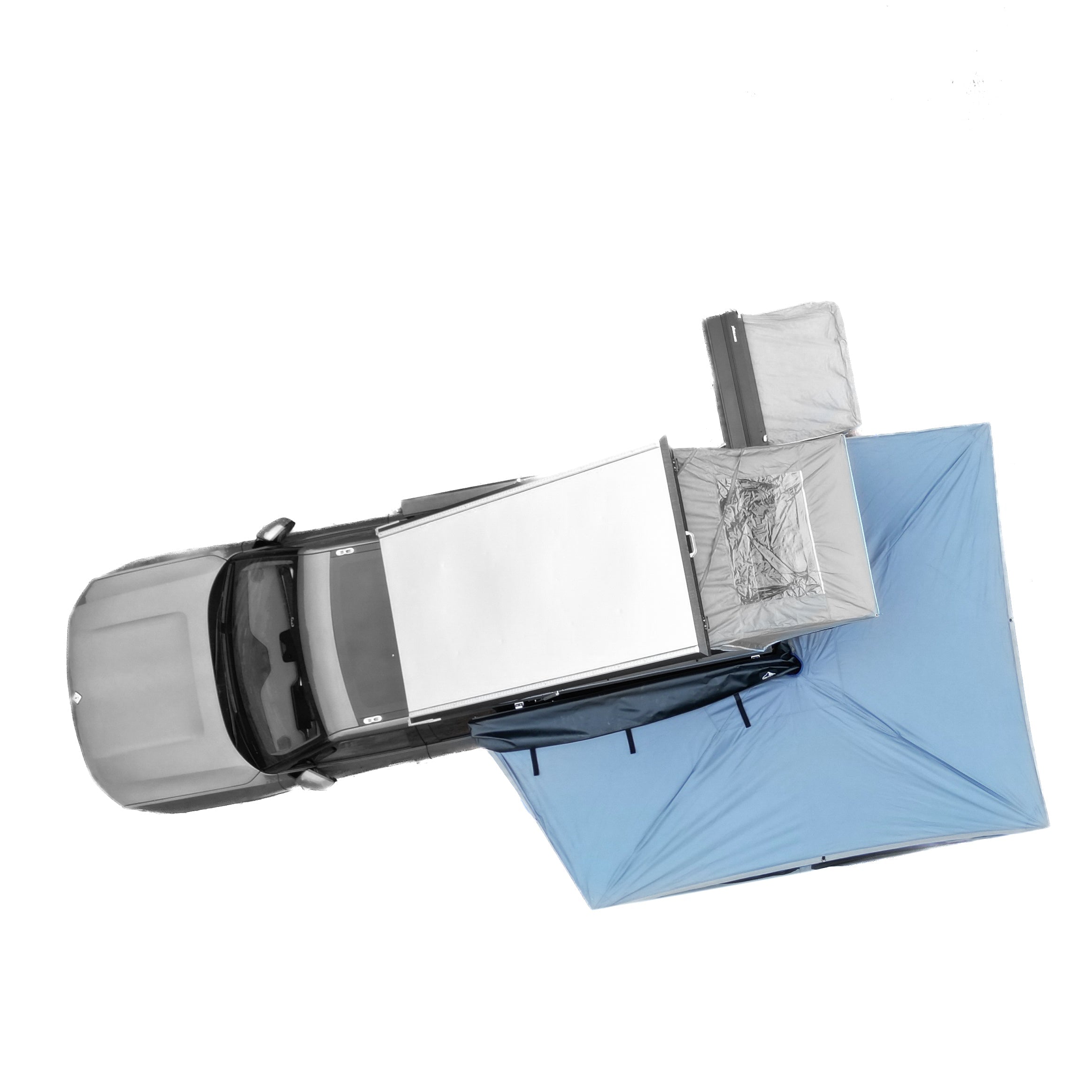

• EXPEDITION COVERAGE METRIC: Provides 90 Square Feet of continuous all-weather shade protection

• FABRIC SHELL MATRIX: Premium, ultra-thick 320 GSM waterproof and UV-resistant ripstop woven nylon

• TOTAL HARDWARE SYSTEM WEIGHT: 44 lbs (highly optimized low-mass structural configuration)

• CHASSIS HINGE ARCHITECTURE: Flexible, stress-absorbing structural aluminum frame assembly

• SUPPORT LEG PROFILE: Concealed, integrated flip-down aluminum stabilizer legs for high-wind safety

• NIGHT OPERATION MODULE: Built-in dimmable dual-strip LED campground illumination network

• PROTECTION TRAVEL SHEATH: Rugged, heavy-duty industrial vinyl storage cover with sub-zero thermal flexibility

• CAMP ORGANIZATION EXTRA: Integrated drop-down gear storage grid for quick access to tools, electronics, and keys

• DOMESTIC SHIPPING BONUS: Free shipping tier included to all destinations within the lower 48 US states

UNIVERSAL VEHICLE FITMENT DIRECTORY

This high-performance free-standing awning features a highly adaptable dual-channel rear backing plate designed to bolt natively onto a vast spectrum of rugged outdoor platforms. Confirm your mounting layout:

• HIGH-ROOF VAN RACKS: Mounts beautifully onto mid-ship side rails of standard platform roof racks (applicable to all Sprinter, Transit, and ProMaster builds).

• OVERLAND TRUCK CONFIGURATIONS: Integrates flawlessly with heavy-duty truck bed racks, modular canopy campers, hard-shell rooftop tents, and slide-in truck toppers.

• ADVENTURE SUV LAYOUTS: Attaches securely to rugged full-cab tray systems and high-load crossbars rated for dynamic over-the-road weight capacities.

(Note: This awning system is available in dedicated left-hand passenger-side or right-hand driver-side swing configurations to perfectly complement your vehicle’s specific rear door exit and galley layouts. Please confirm your side choice prior to freight dispatch.)

FEATURES

• TRUE FREE-STANDING WING DESIGN: Swaps loose, frustrating tent poles for self-supporting structural aluminum arms that effortlessly lock out to provide rock-solid shelter without touching the ground.

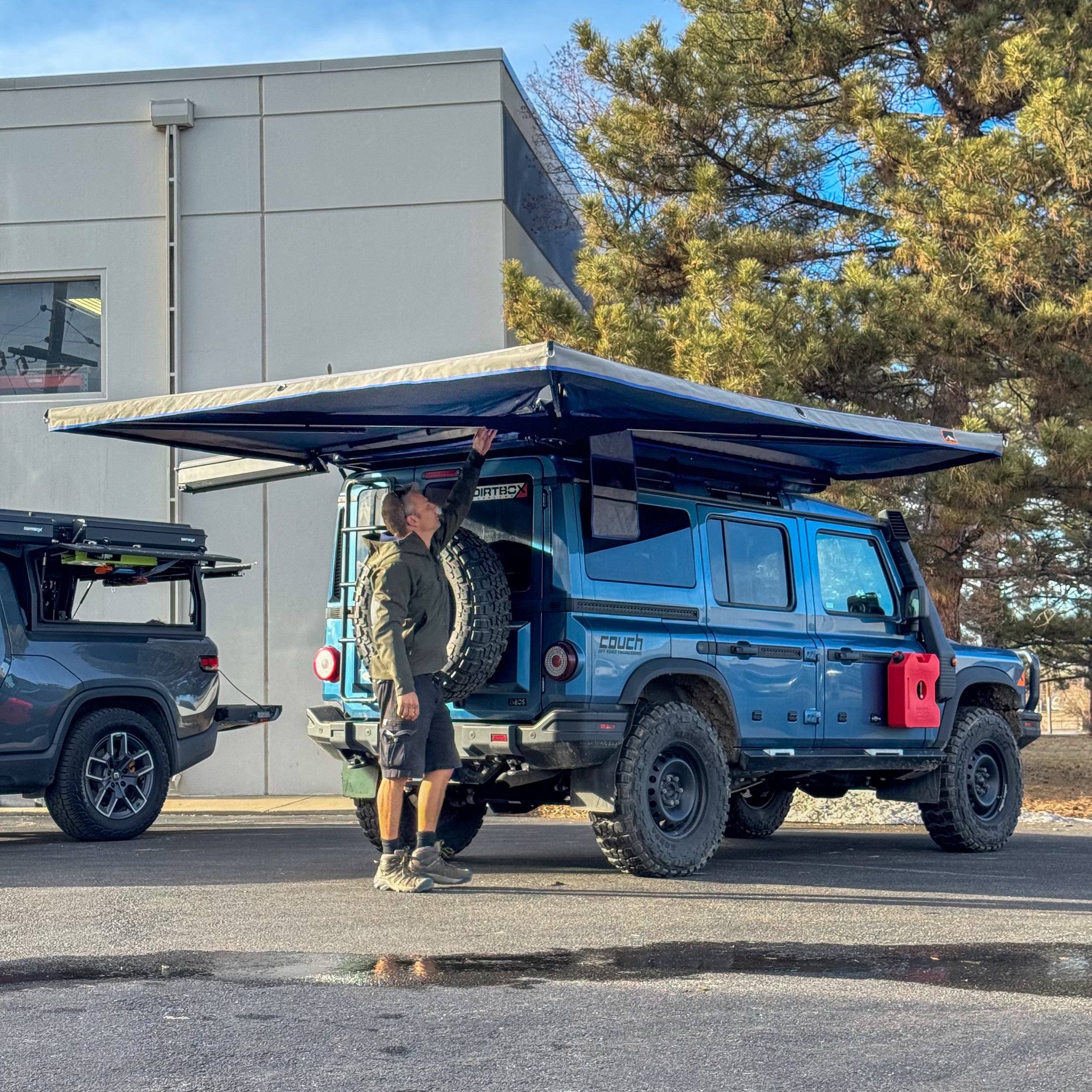

• 30-SECOND RAPID DEPLOYMENT MATRIX: Engineered with a seamless swing-and-peg layout, allowing a single traveler to unzip the travel cover, walk the fabric around the chassis, and hook the anchor strap in half a minute.

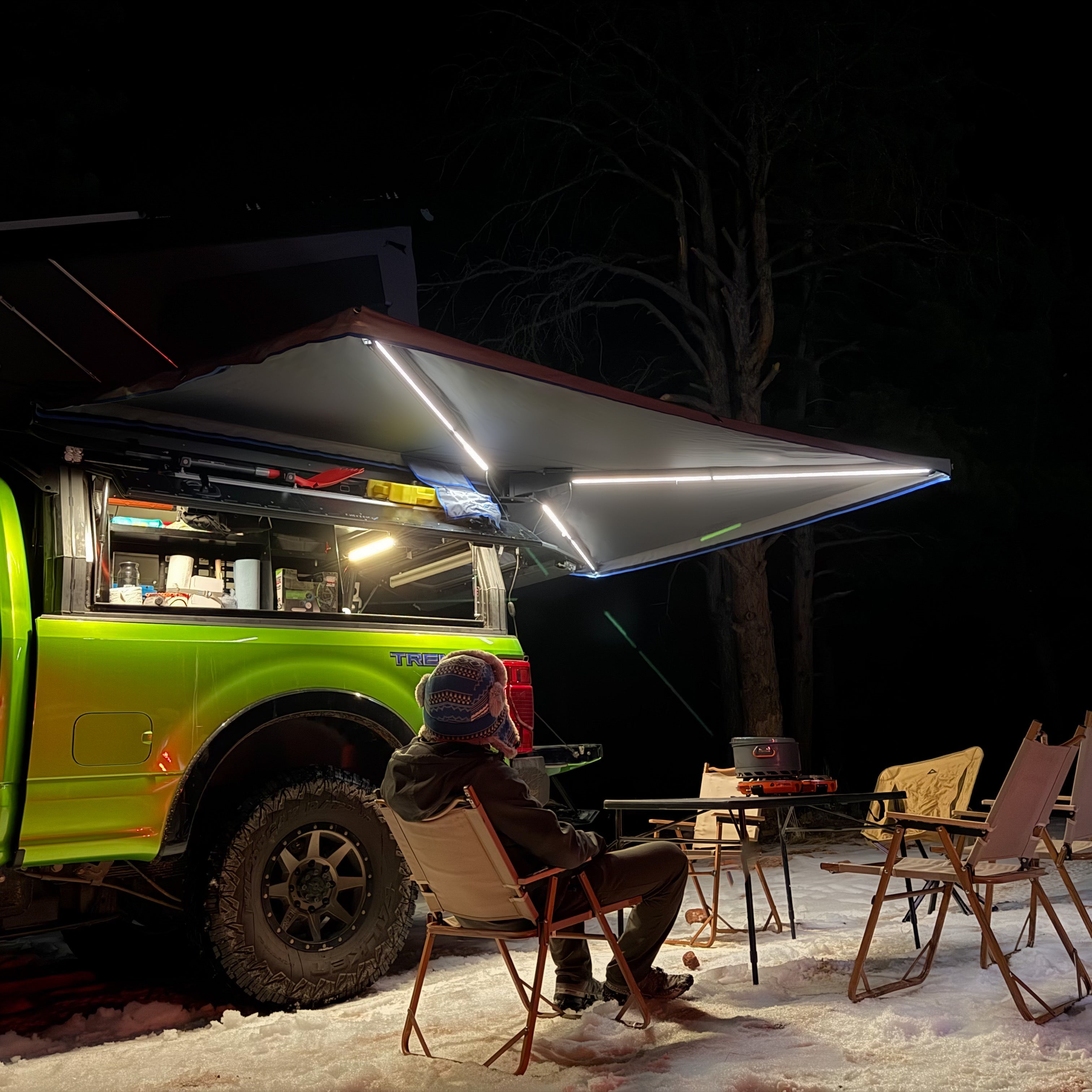

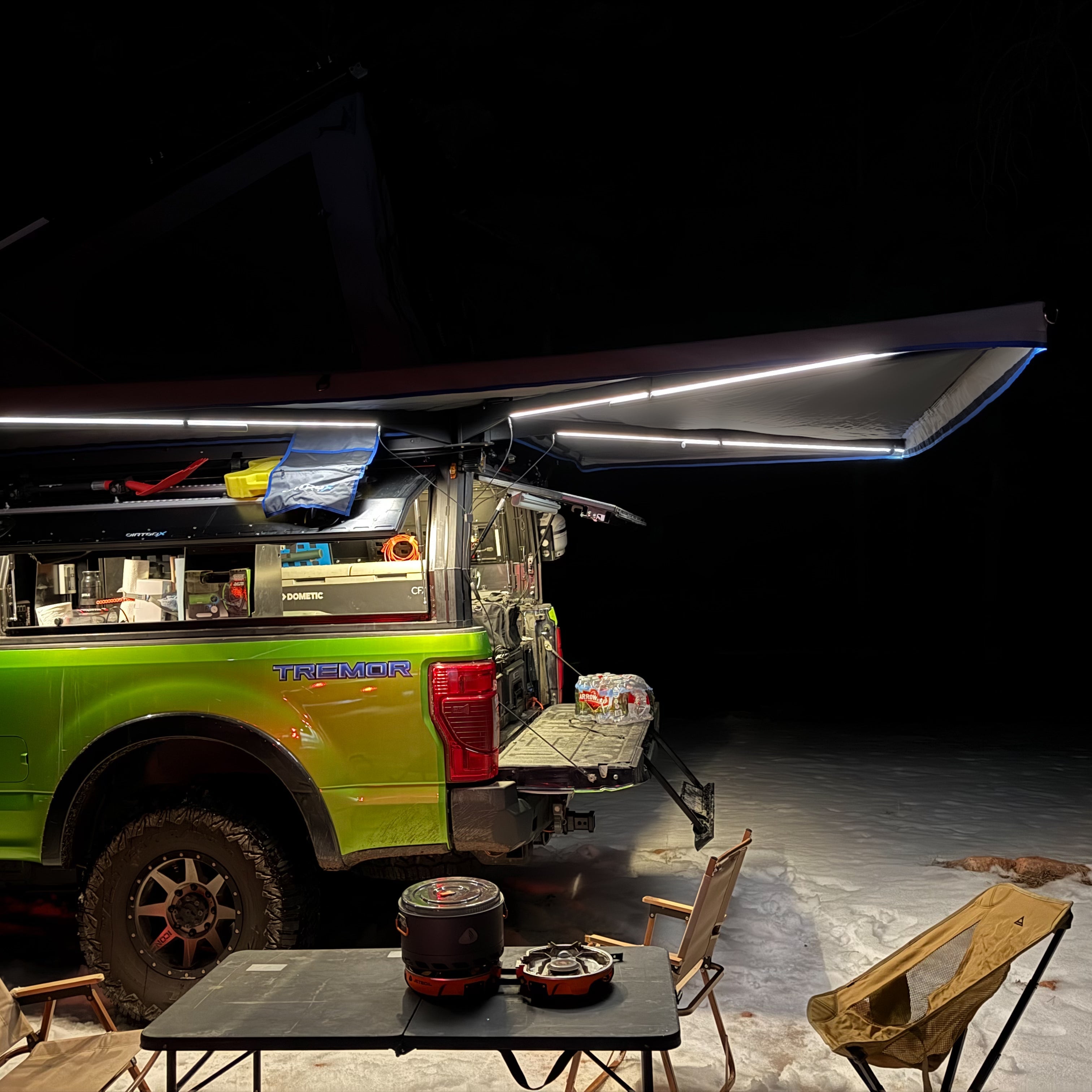

• INTEGRATED DIMMABLE LED LIGHTBARS: Outfitted with built-in low-draw campsite strip lights embedded right into the awning arms, completely eliminating the need to drape messy string lights or carry extra battery lanterns.

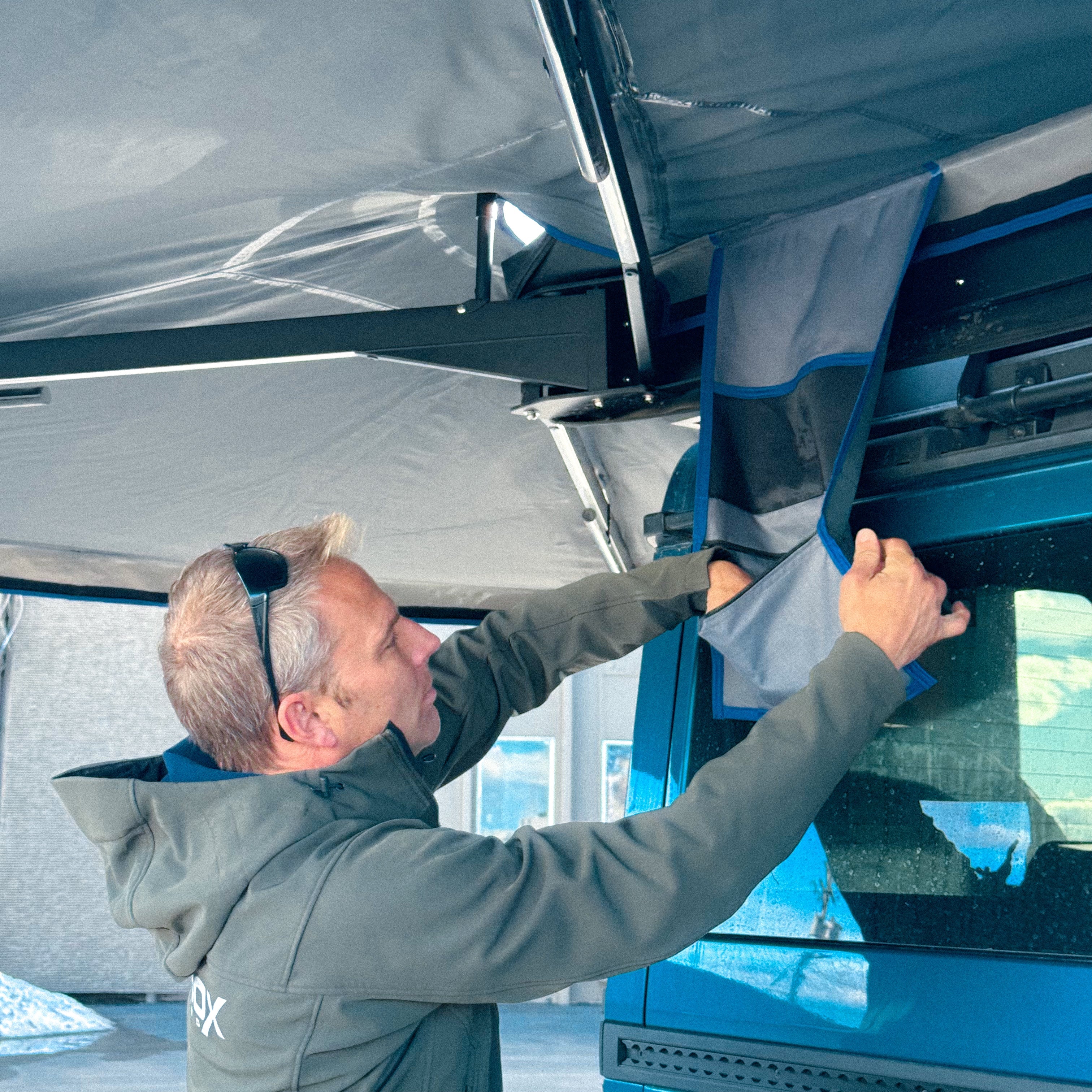

• DROP-DOWN CAMP STORAGE GRID: Designed with a smart, integrated webbed utility grid that automatically unfolds with the fabric, giving you an out-of-the-dirt staging zone to hang keys, radios, power stations, and trail tools.

• FLEXIBLE STRESS-ABSORBING FRAME: Built to handle harsh trail abuse using a specialized aluminum alloy frame that moves dynamically under heavy wind loads to dissipate stress, preventing catastrophic structural failures.

COMPATIBILITY & FITMENT

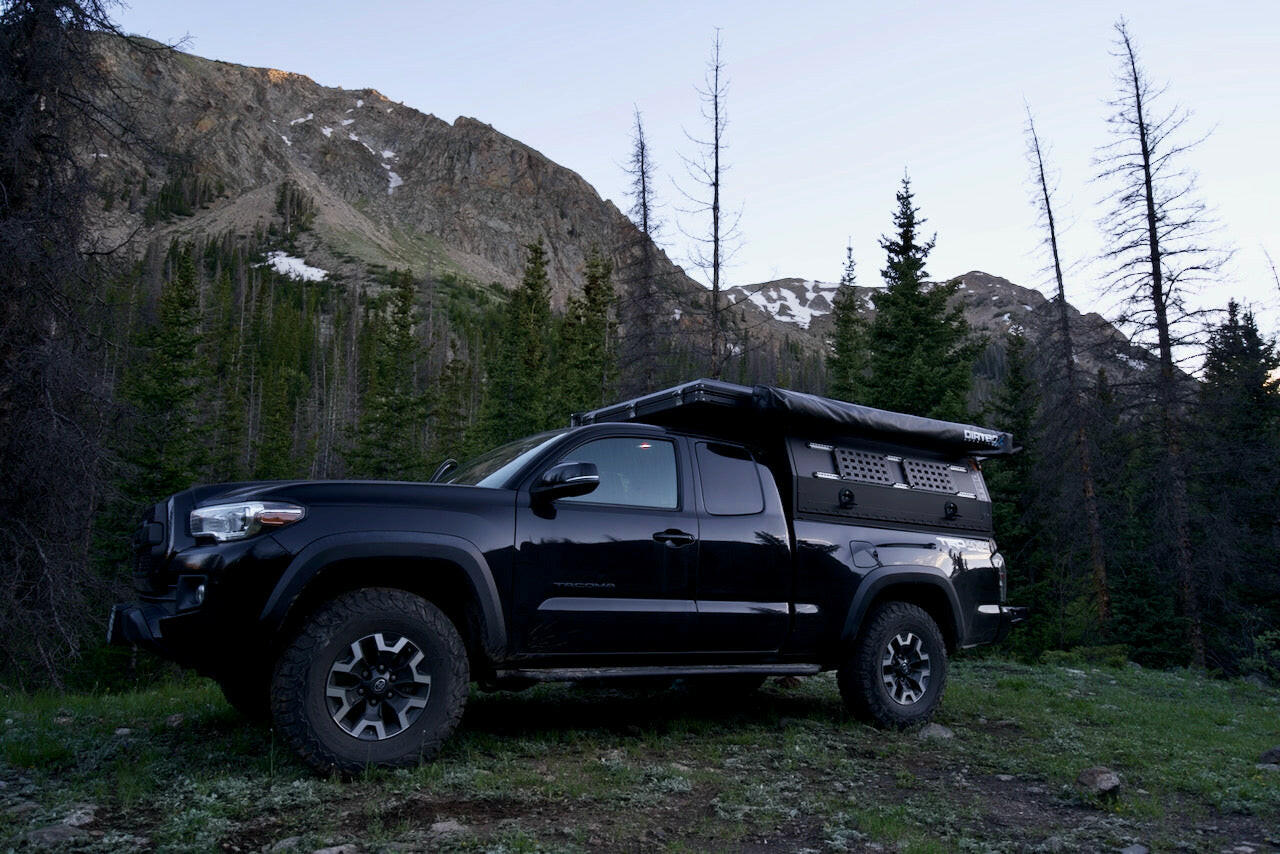

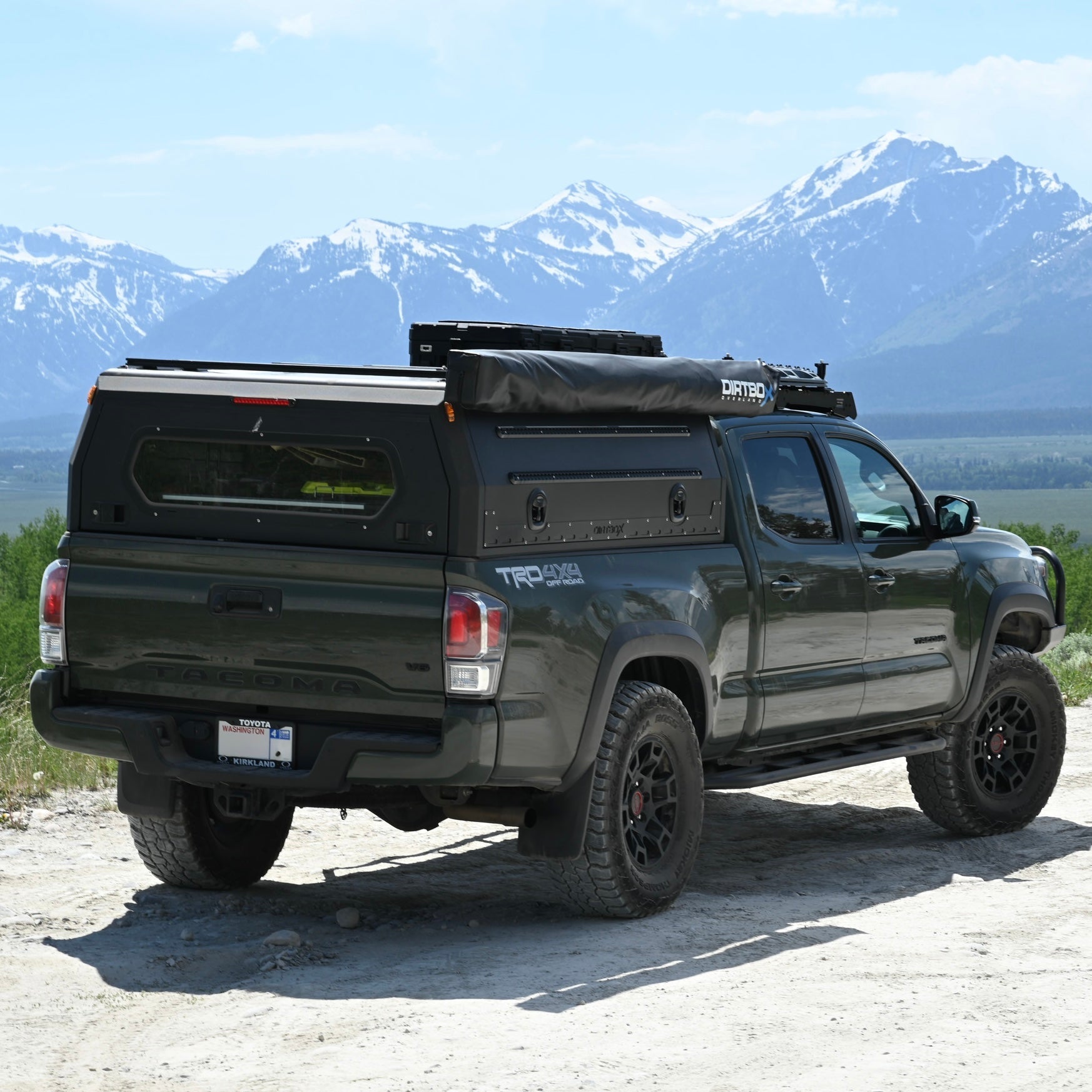

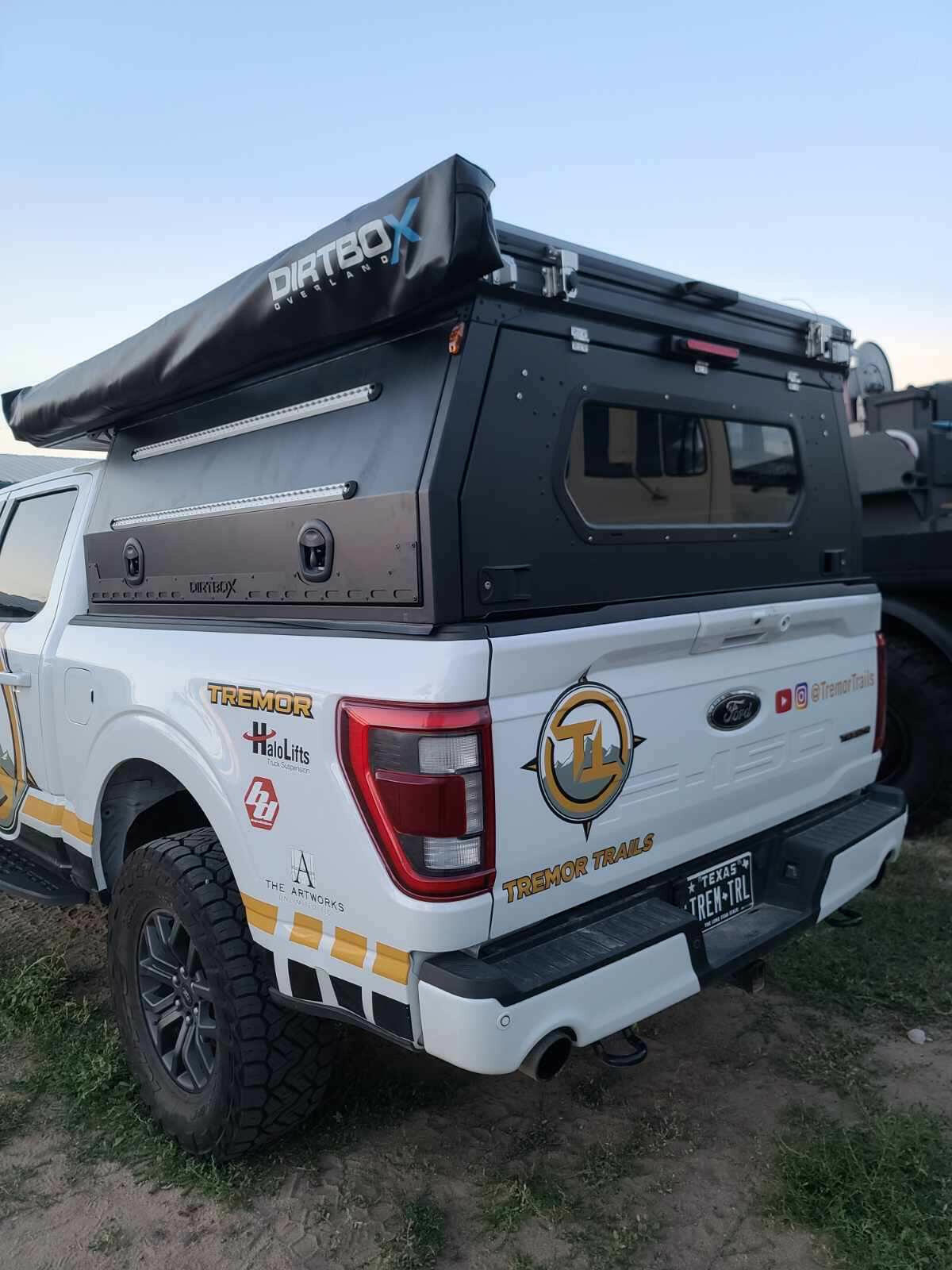

• WEATHER-PROOF VINYL TRAVEL BAG: Shipped inside an ultra-thick, marine-grade protective zipper boot that repels UV rays, seals out trail dust, and stays soft and easy to operate in freezing winter conditions.

• MODULAR BASECAMP ROOM EXTENSION: Fully compatible with the custom Dirtbox 270 Awning Room enclosure system, allowing you to quickly zip on full fabric walls and bug mesh panels for total 4-season protection.

• UNIVERSAL MULTI-POINT BRACKETS: Arrives complete with heavy-duty universal L-brackets and high-tensile mounting hardware designed to slide into standard T-slot channels on most aluminum overland racks.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Does this awning truly stand on its own, or do I always have to drop the vertical legs? A: This awning features a true, elite free-standing structural design. Thanks to the heavy-duty aluminum hinges and stress-absorbing arm matrix, you can open it up completely unsupported without any vertical legs or guy-lines in standard weather conditions. The integrated support legs are neatly stowed inside the arms and only need to be dropped down during high-wind situations for extra chassis stability.

Q: How does the built-in LED lighting system get power at camp? A: The awning features an integrated wiring harness routed cleanly inside the aluminum structural arms. To light up your campsite, simply plug the built-in lead line into any standard 12V power station or your vehicle’s auxiliary house battery ports. The system includes a built-in dimmer switch so you can dial in the perfect brightness for cooking or relaxing.

Q: Is the fabric durable enough to handle continuous rain and heavy snow loads? A: Yes, absolutely. Dirtbox explicitly engineered this canopy using ultra-dense 320 GSM ripstop woven fabric that features a high-performance waterproof coating and UV-blocking stabilizers. It is designed to handle scorching desert heat, driving rainstorms, and unexpected high-altitude snow dumps without leaking, stretching, or pooling water.

Q: Can I mount this 270-degree awning onto standard factory roof crossbars? A: Due to the high torsional leverage that a free-standing 270 awning exerts on its mounts when open, we do not recommend installing it on thin, factory-installed aerodynamic crossbars. For maximum trail safety, this awning should be secured to a heavy-duty, structural aluminum platform rack, a rugged steel truck bed cage, or a reinforced camper shell track utilizing the included high-tensile mounting brackets.

WHY TRUST WEST COAST VANS? Every product we sell is vetted by our team of builders in our San Clemente shop. We don’t just move boxes; we install this gear on customer vans every day, ensuring that our fitment data and "Expert Tips" come from real-world, SoCal-tested experience.
