Alpine Van Works Sprinter 144 Low Roof Panel Kit - Insulated Finish

Alpine Van Works Sprinter 144 Low Roof Panel Kit - Insulated Finish

At West Coast Vans, panel kits earn their keep by eliminating weeks of templates, trimming, and do-overs - while still leaving room for a real electrical and furniture plan. The Alpine Van Works Sprinter 144 Low Roof Panel Kit - Insulated Finish brings CNC-cut upholstered panels, insulation layers, trim, and mounting details together; Ask Us Product Questions Anytime before choosing openings and finishes.

WCV EXPERT TIP

Finalize fan, air-conditioner, window, wiring, L-track, bed, and cabinet locations before installing upholstered panels.

PRODUCT OVERVIEW

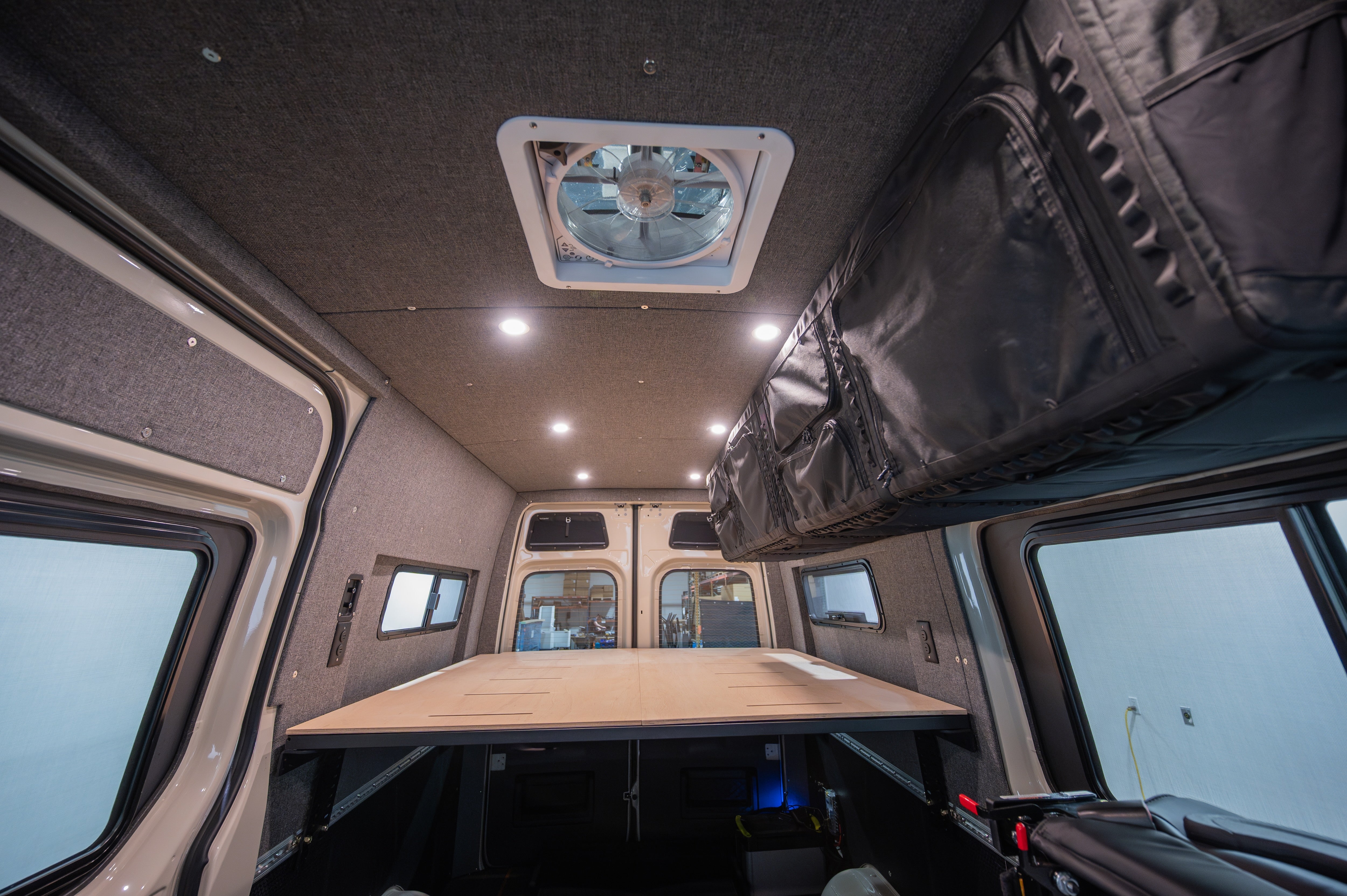

Alpine Van Works Sprinter 144 Low Roof Panel Kit - Insulated Finish is a CNC-cut, professionally upholstered wall-and-ceiling package for the exact chassis, wheelbase, and roof configuration shown below.

The system includes source-listed trim and door panels plus foam and reflective backing, while insulation, wiring, fans, and other separately sold build components remain installer selections.

BEST FOR

• PRECISION-CUT VAN INTERIORS: For builders who want upholstered walls and ceilings without full-scale templating.

• INSULATED FINISH SYSTEMS: Adds foam, radiant backing, trim, and door panels in one coordinated package.

• CABINET AND BED BUILDS: Supports planned L-track, rivnut, furniture, and bed-platform integration.

TECHNICAL SPECIFICATIONS

• VENDOR: Alpine Van Works, LLC

• PRODUCT: Mercedes Sprinter 144" Low Roof Interior Panel Kit

• SOURCE SKUS: AVW-S-PNLKIT

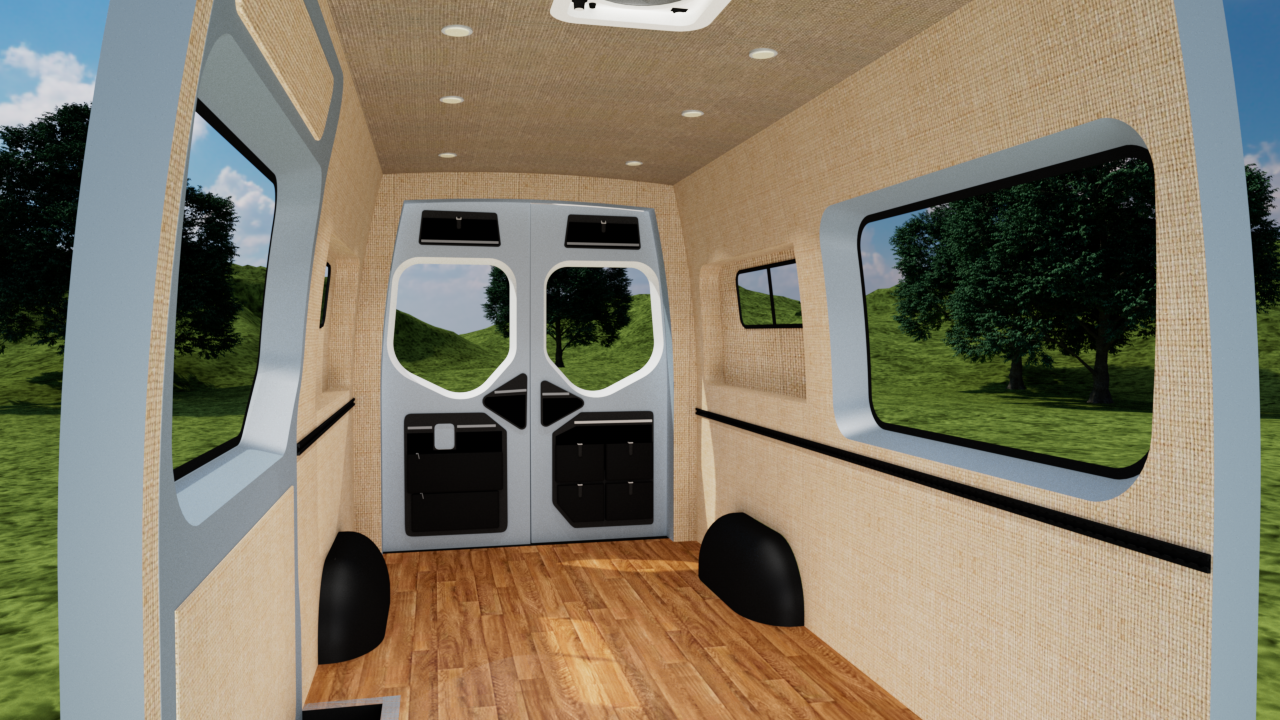

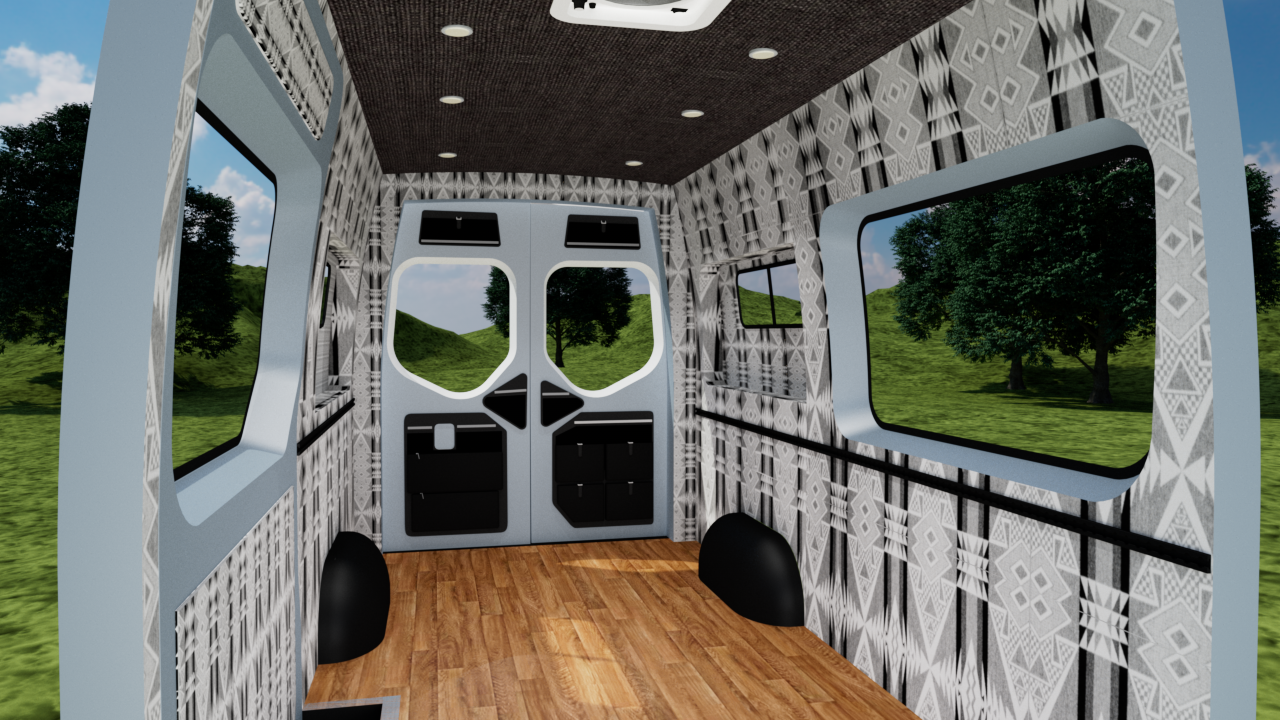

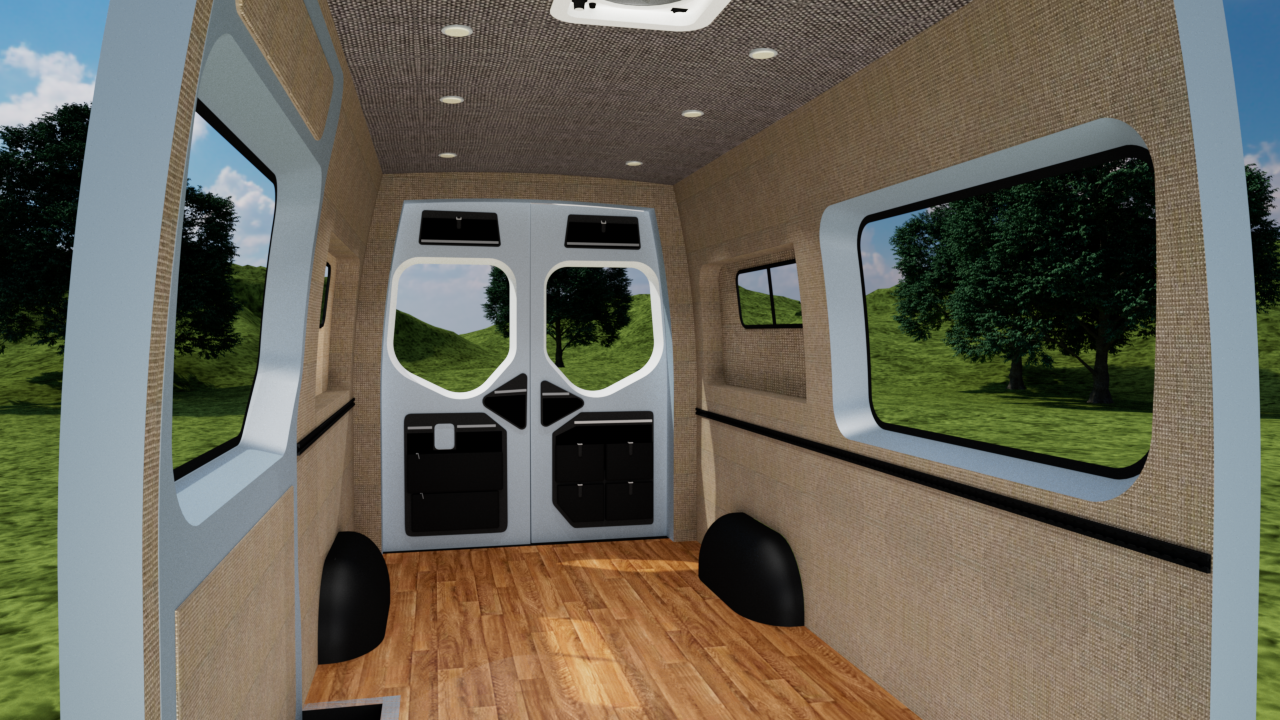

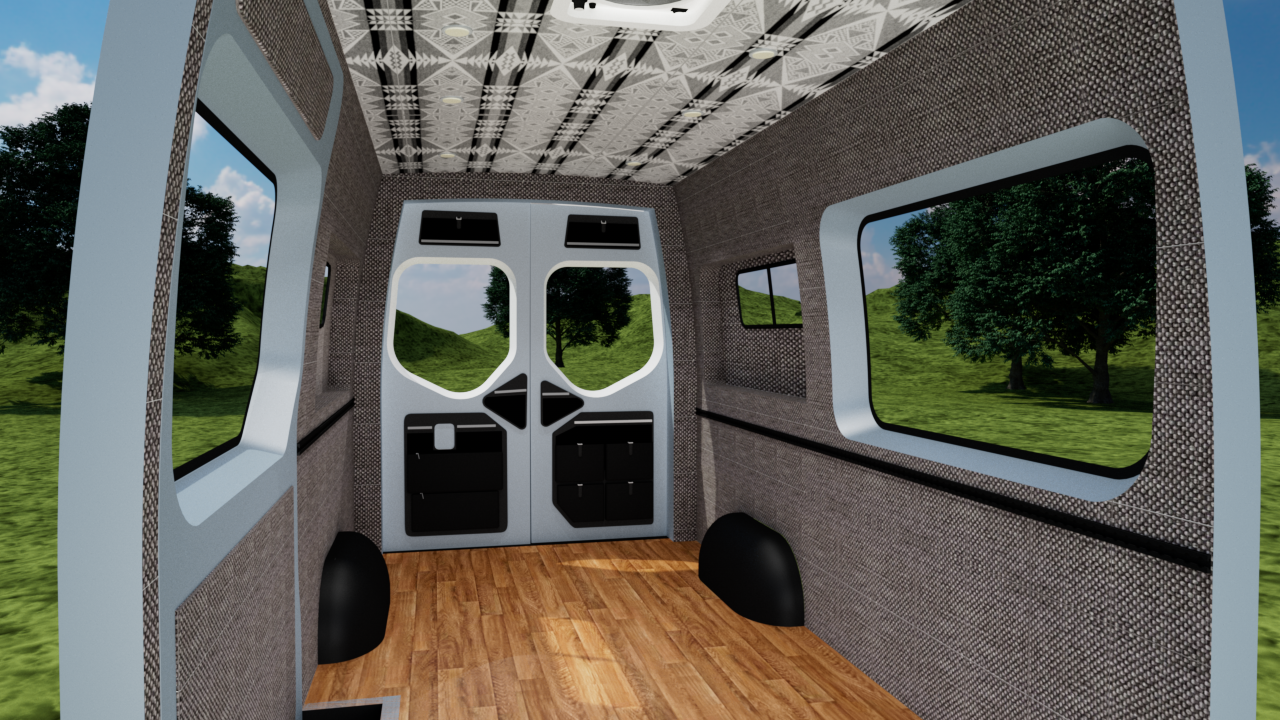

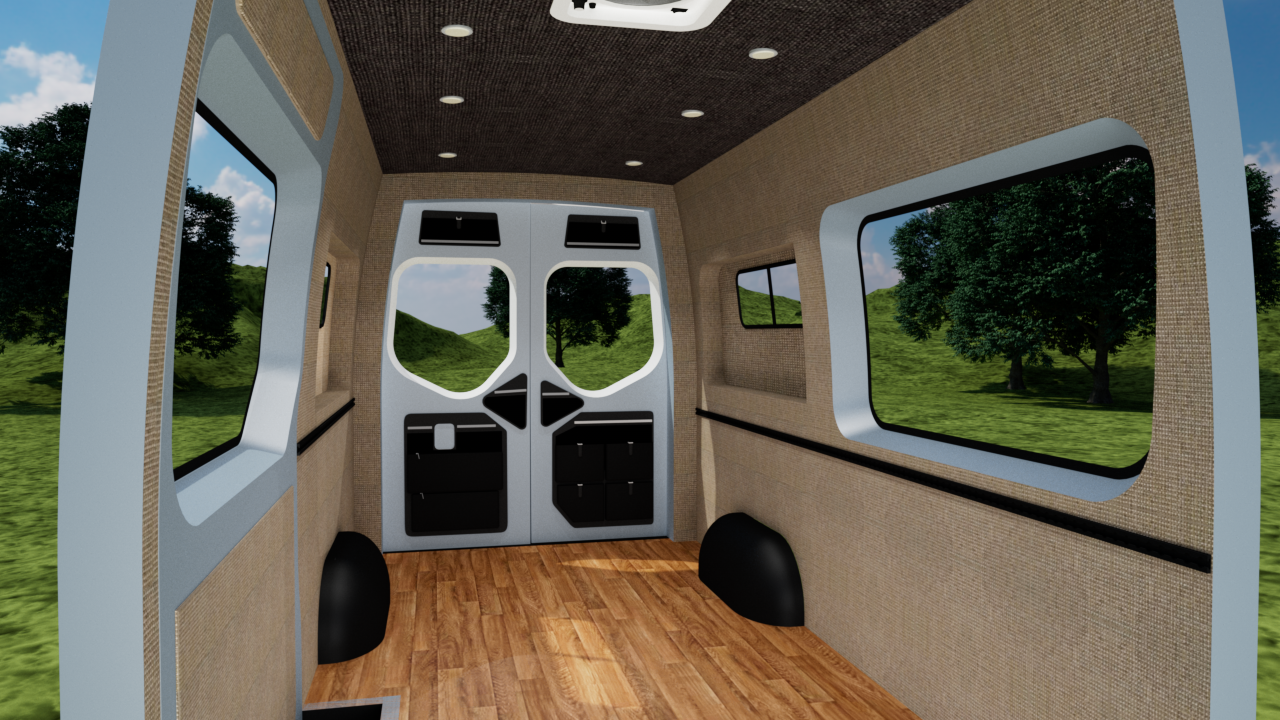

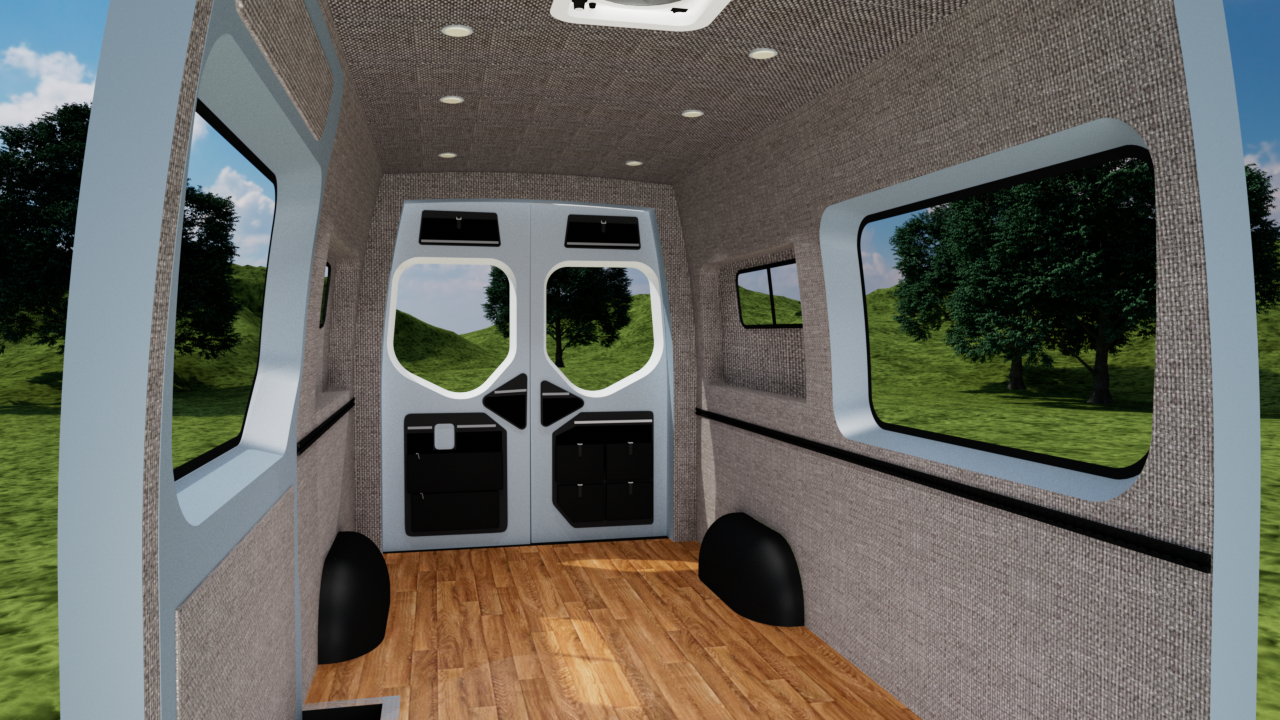

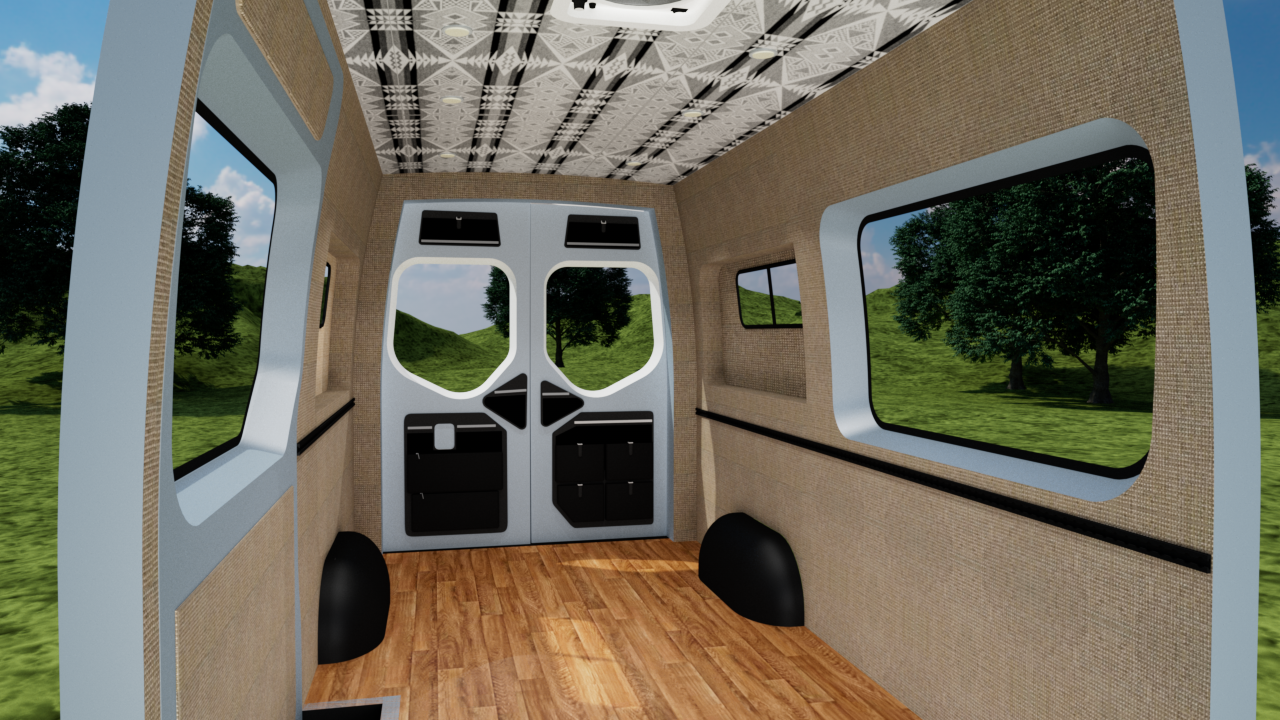

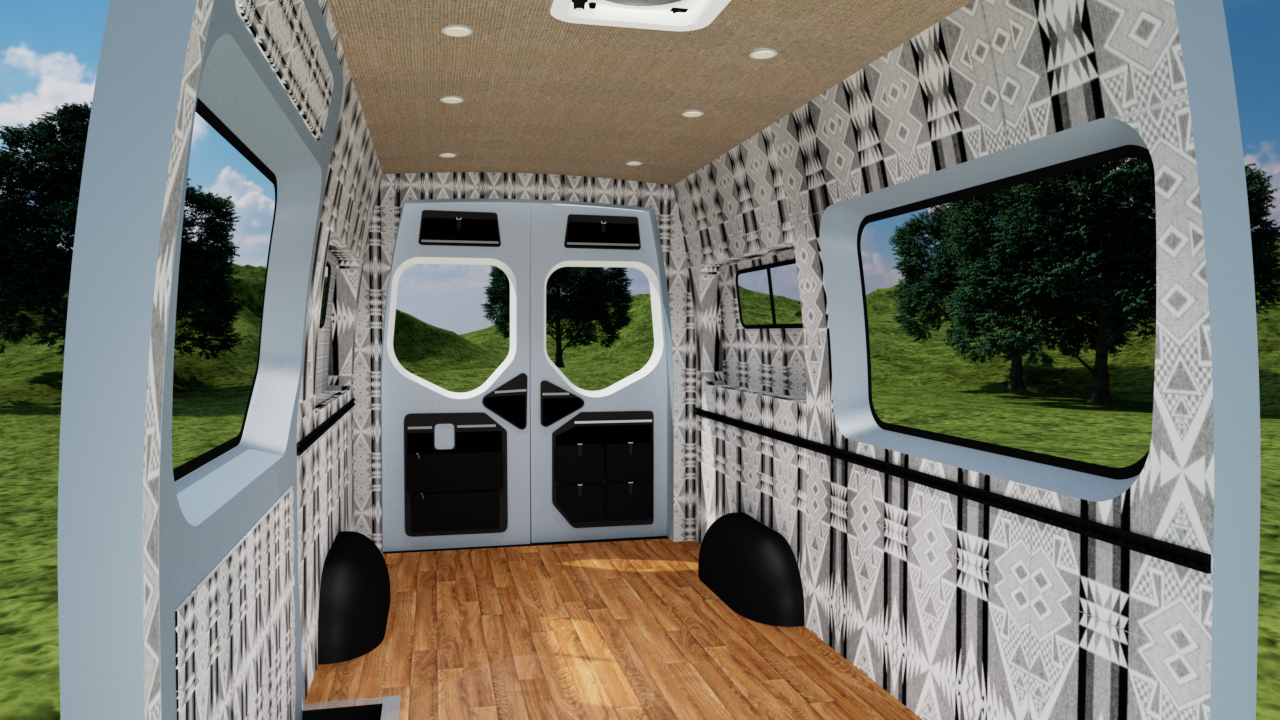

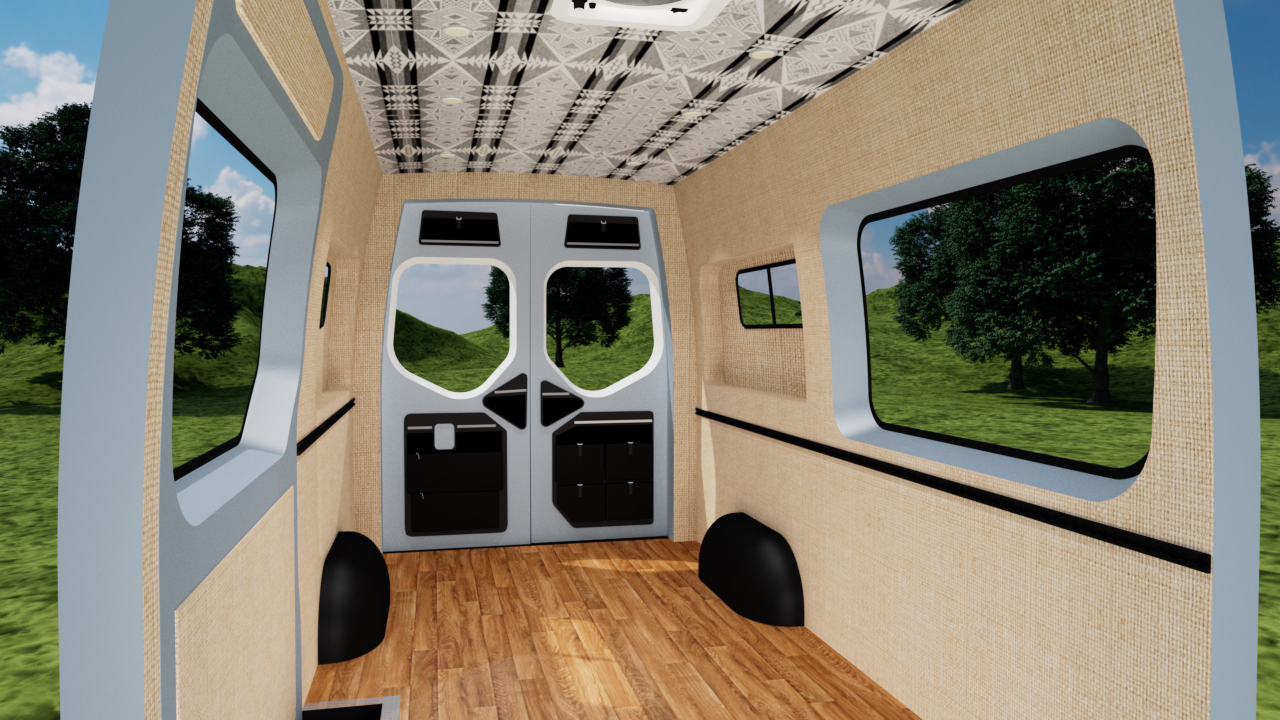

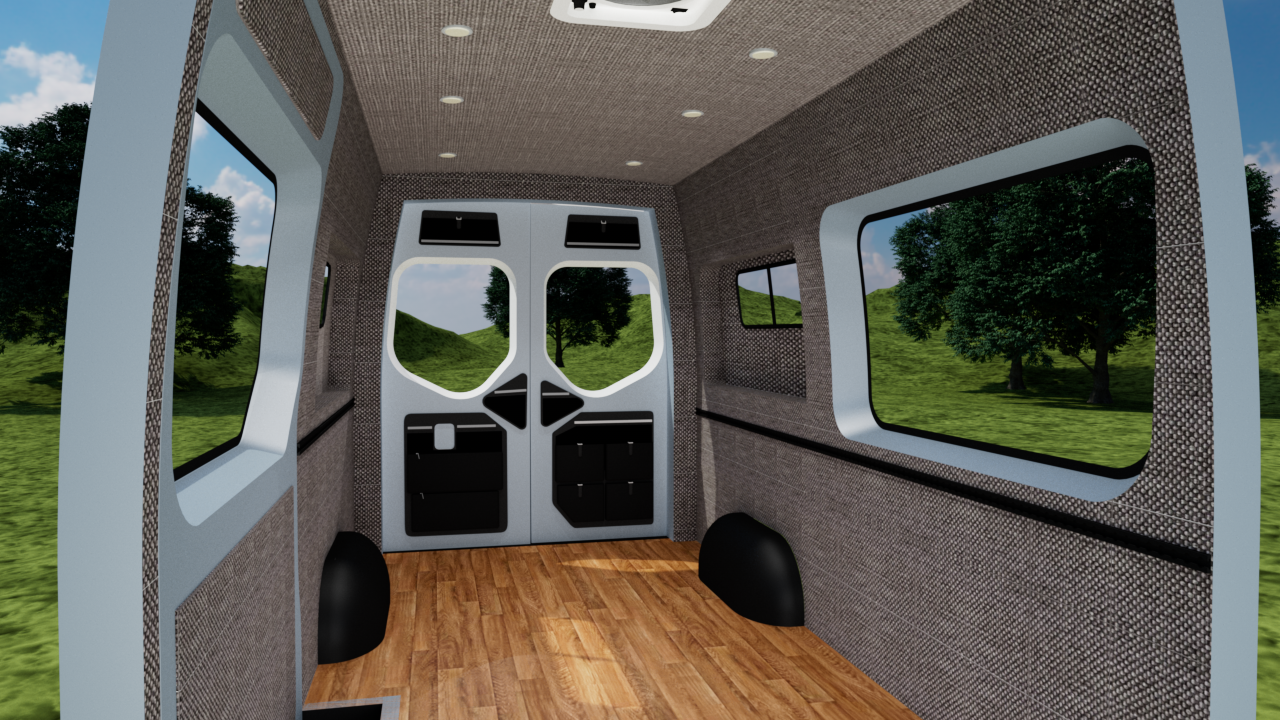

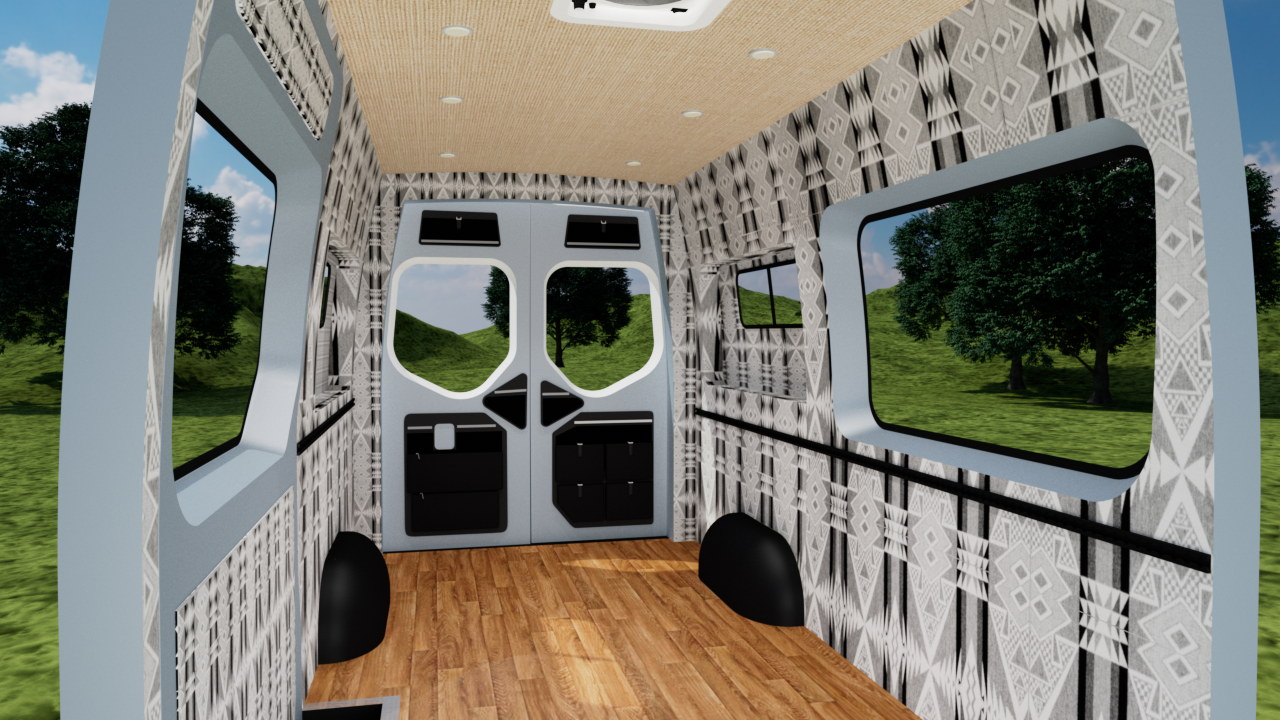

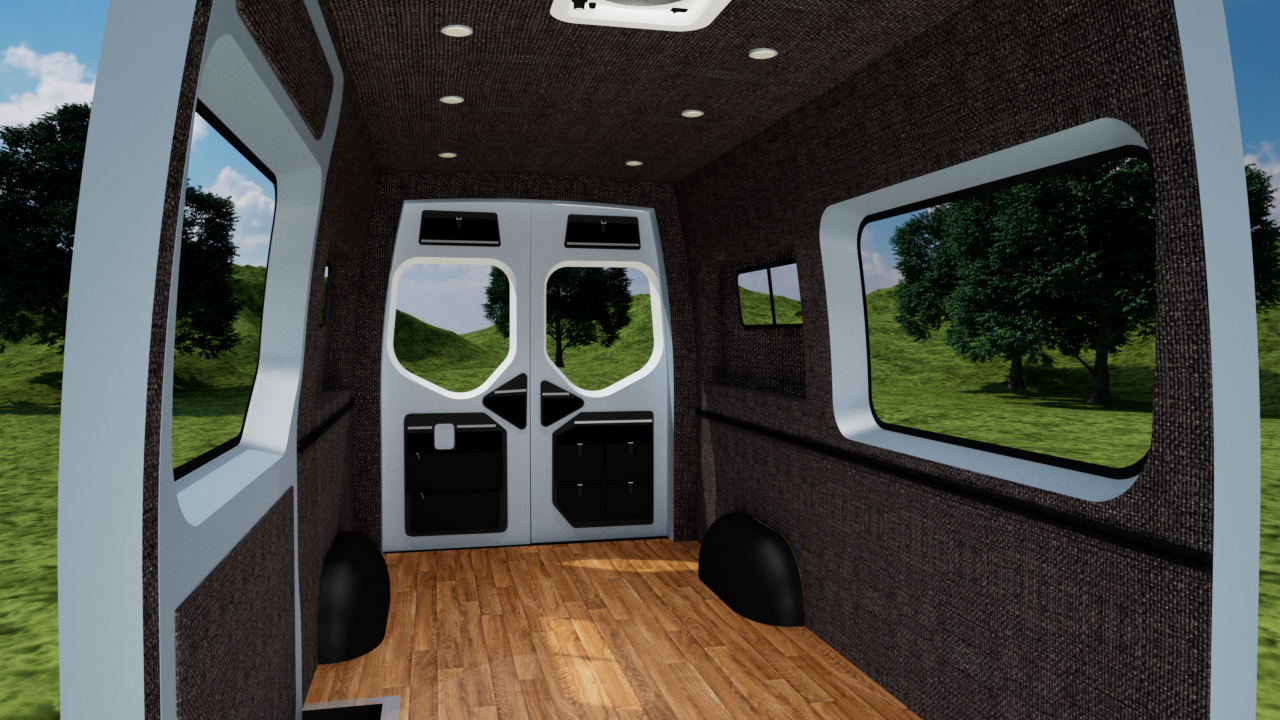

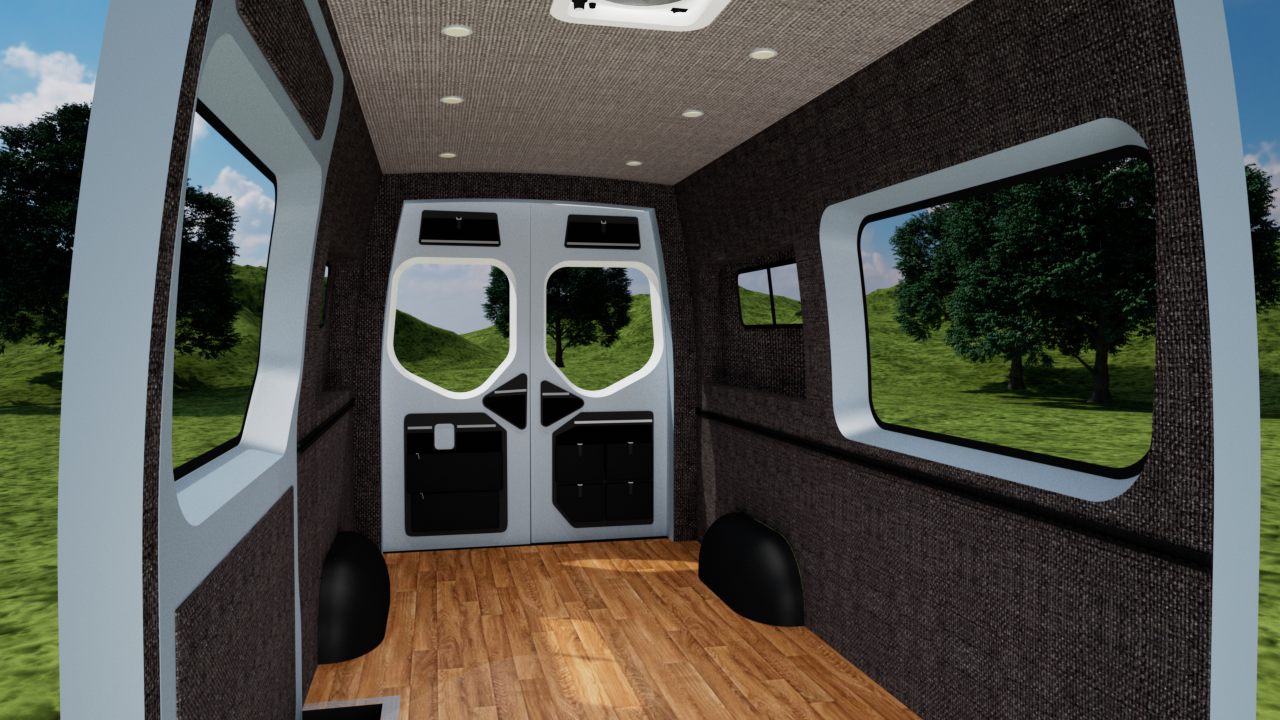

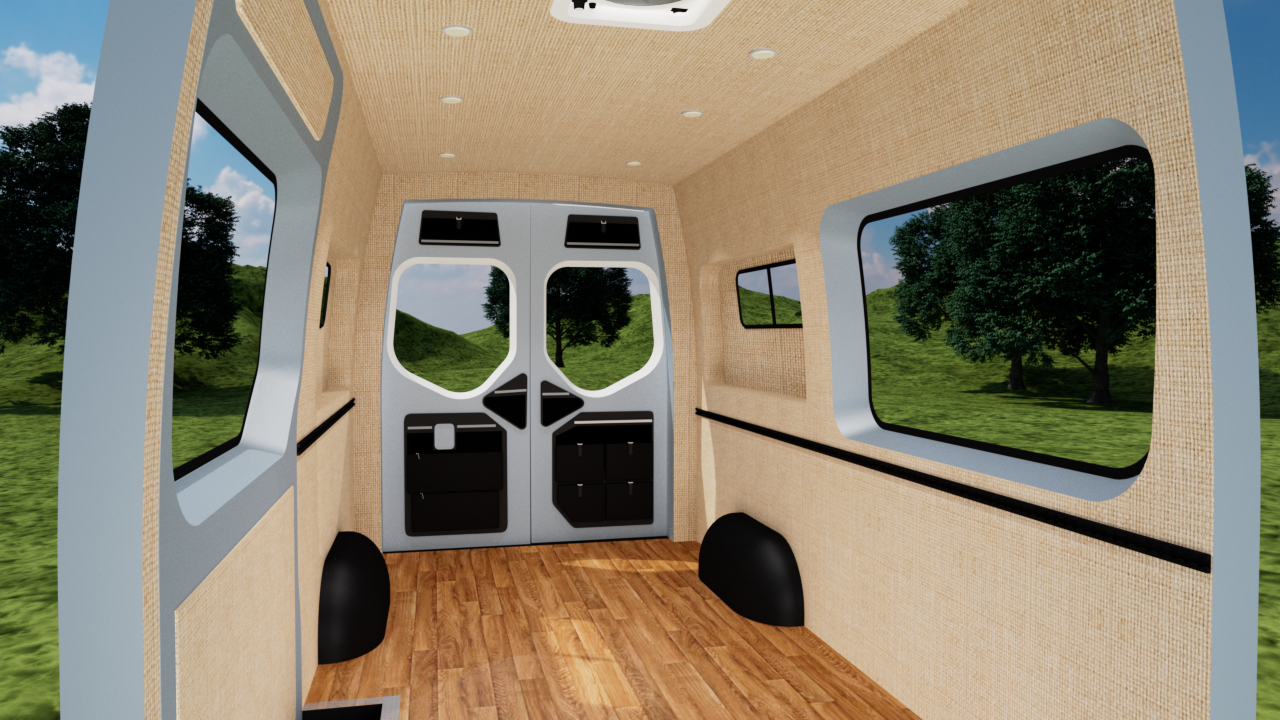

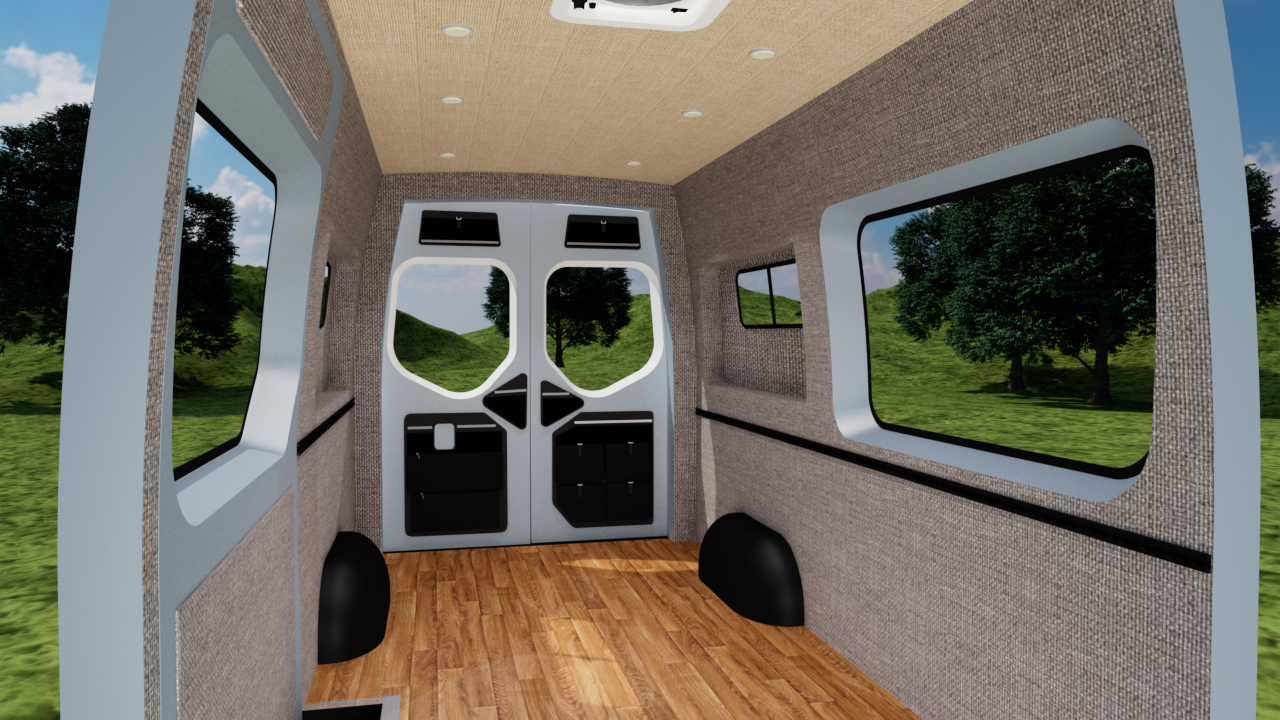

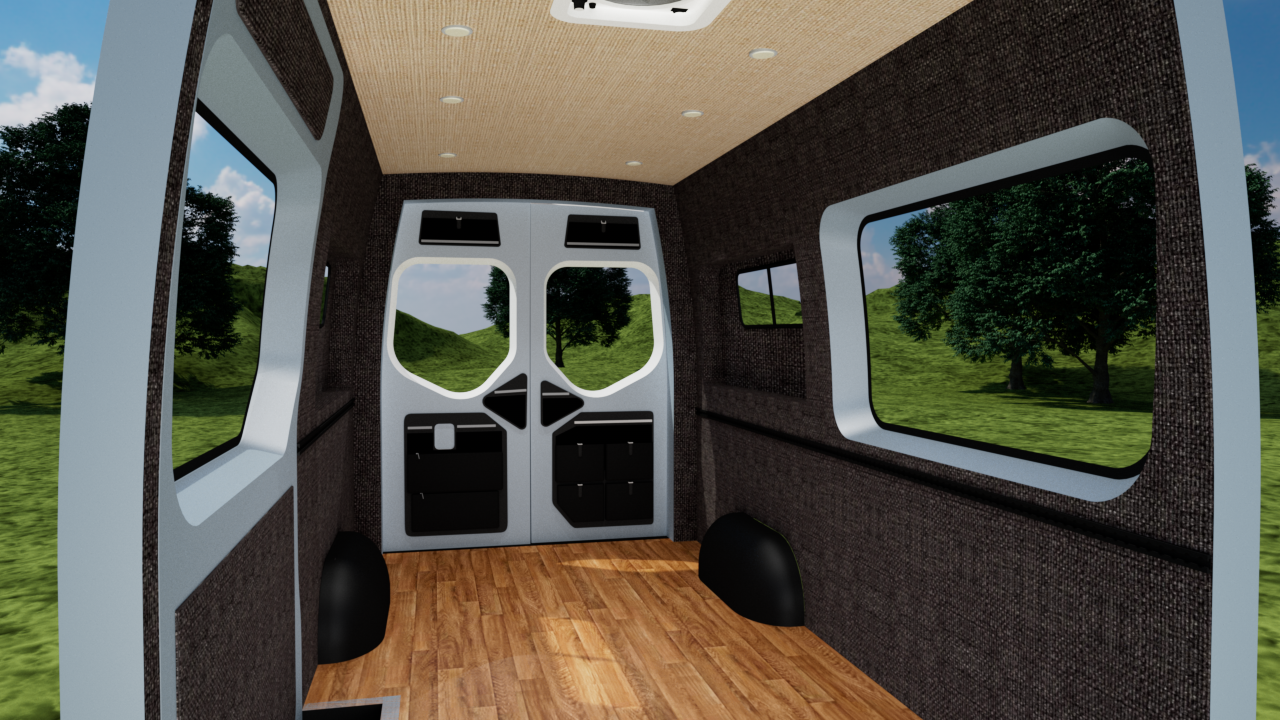

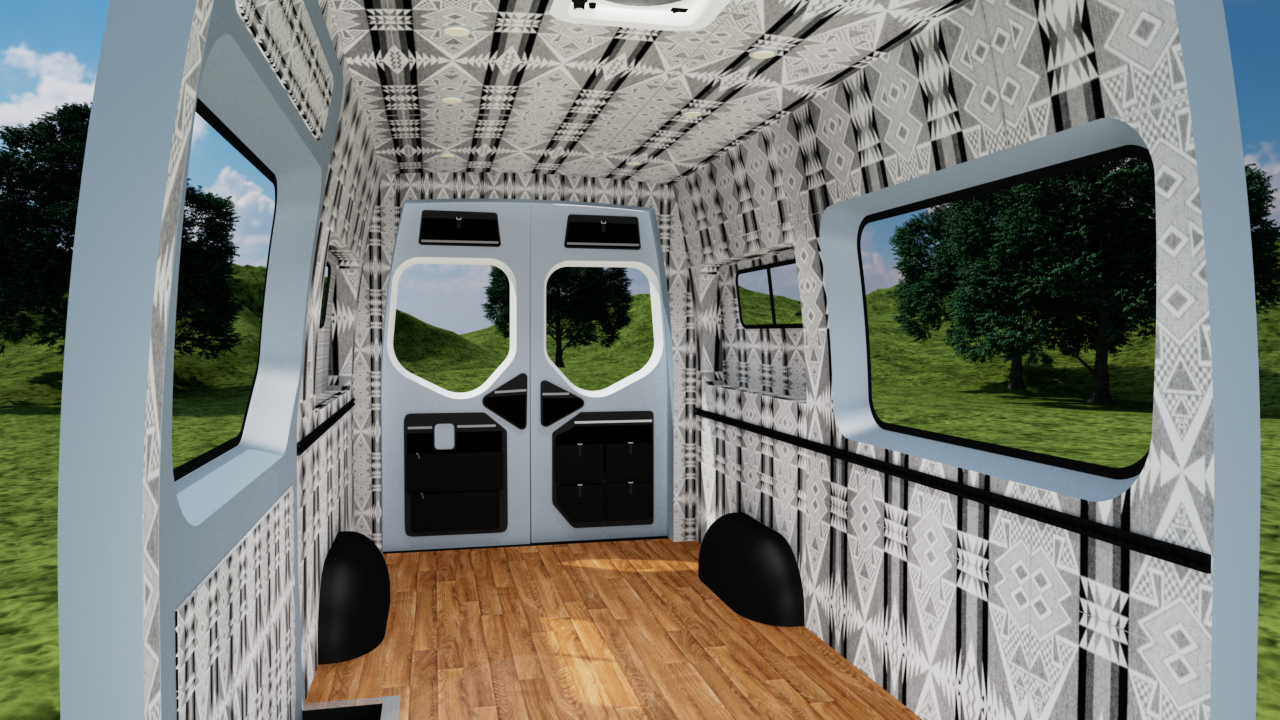

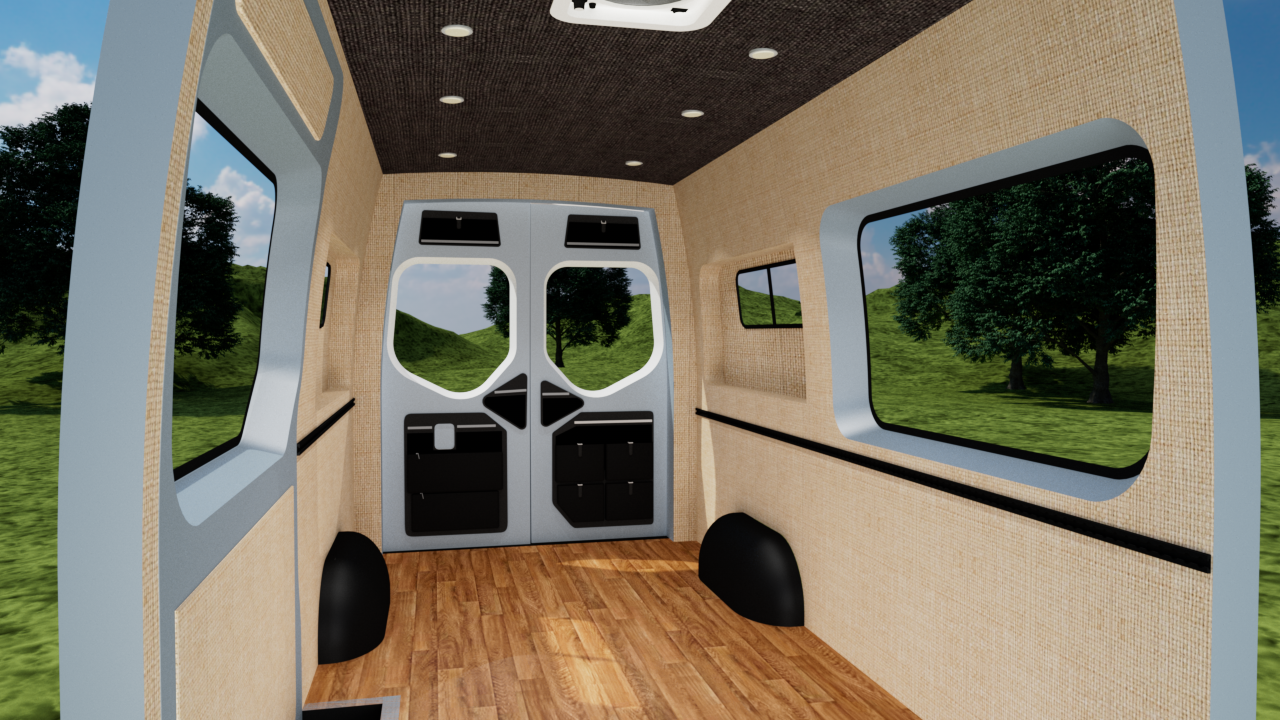

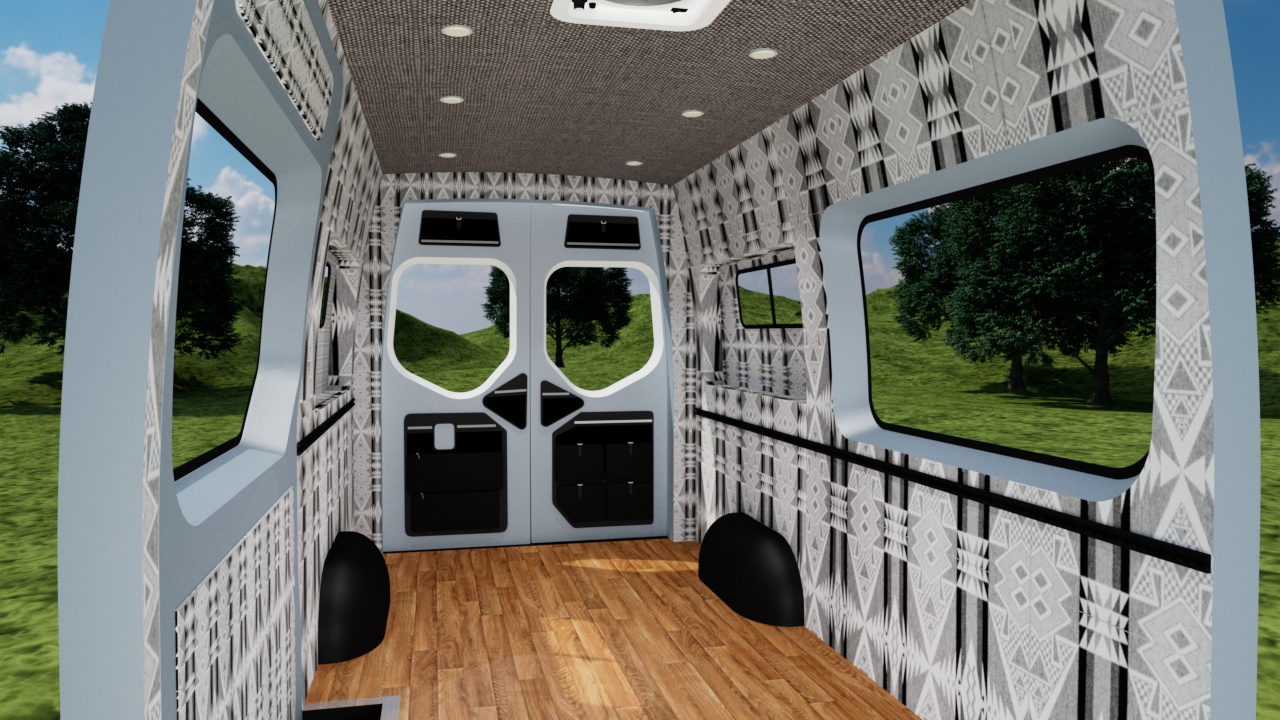

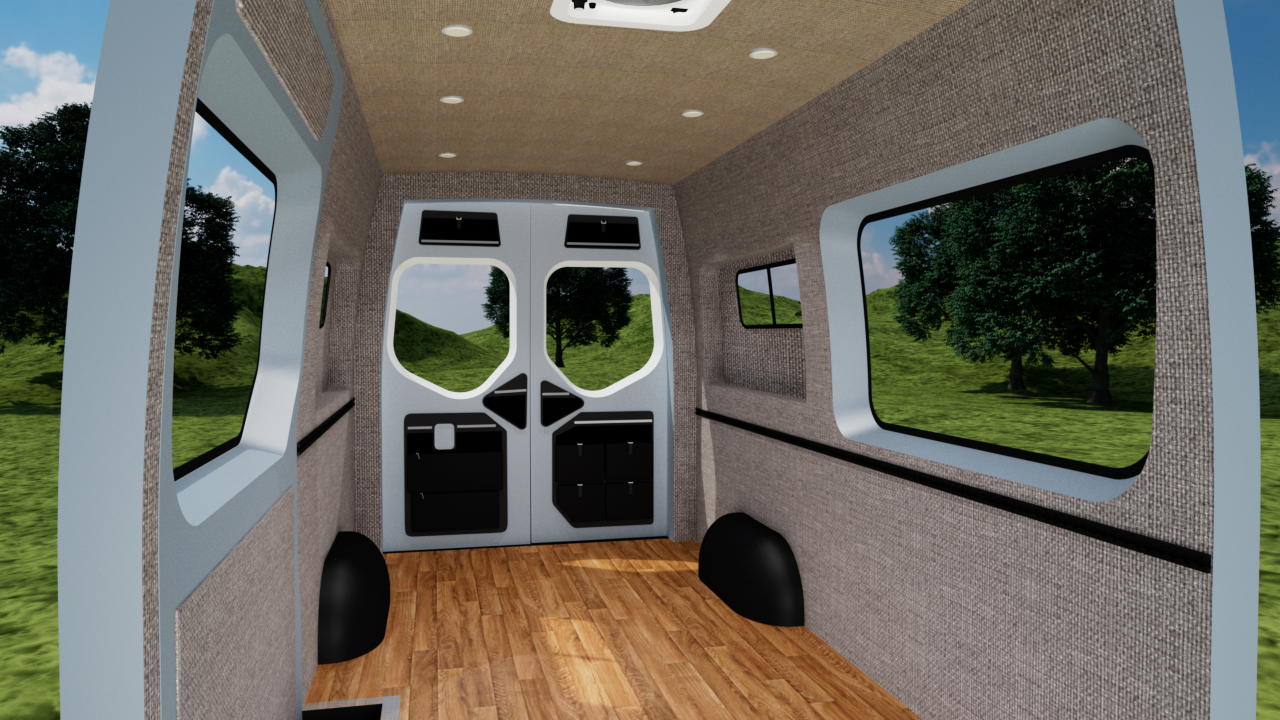

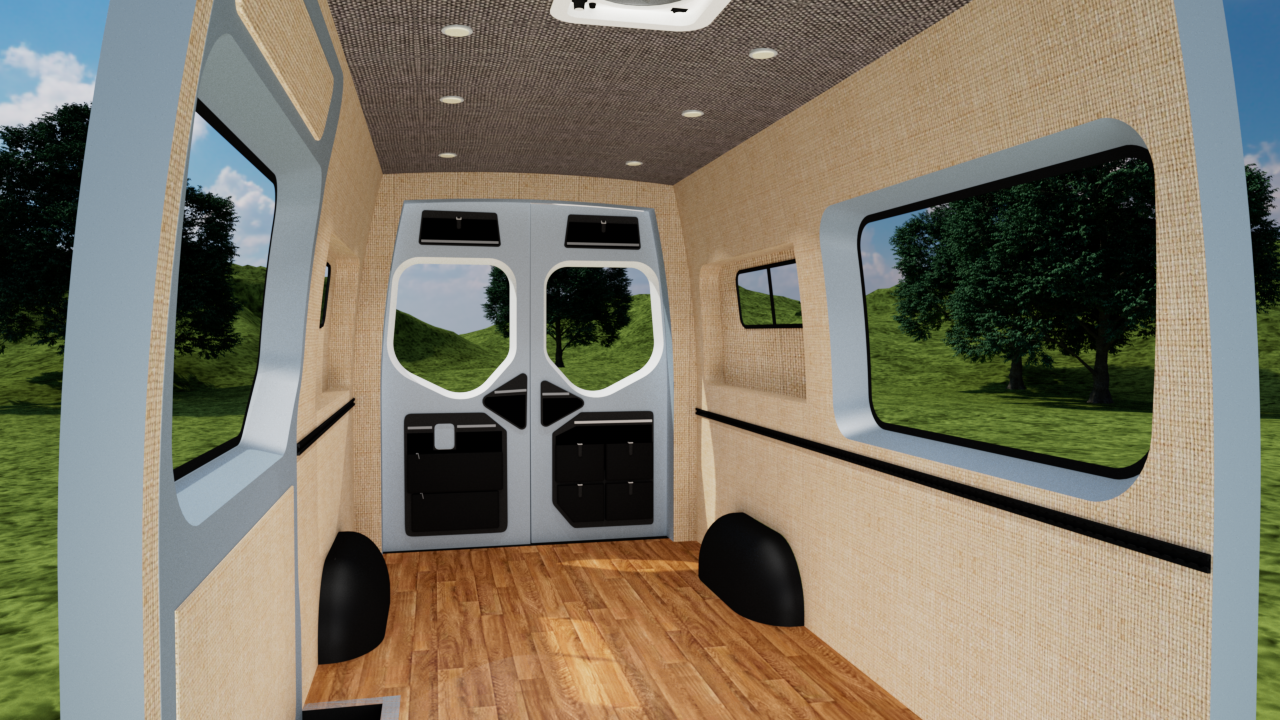

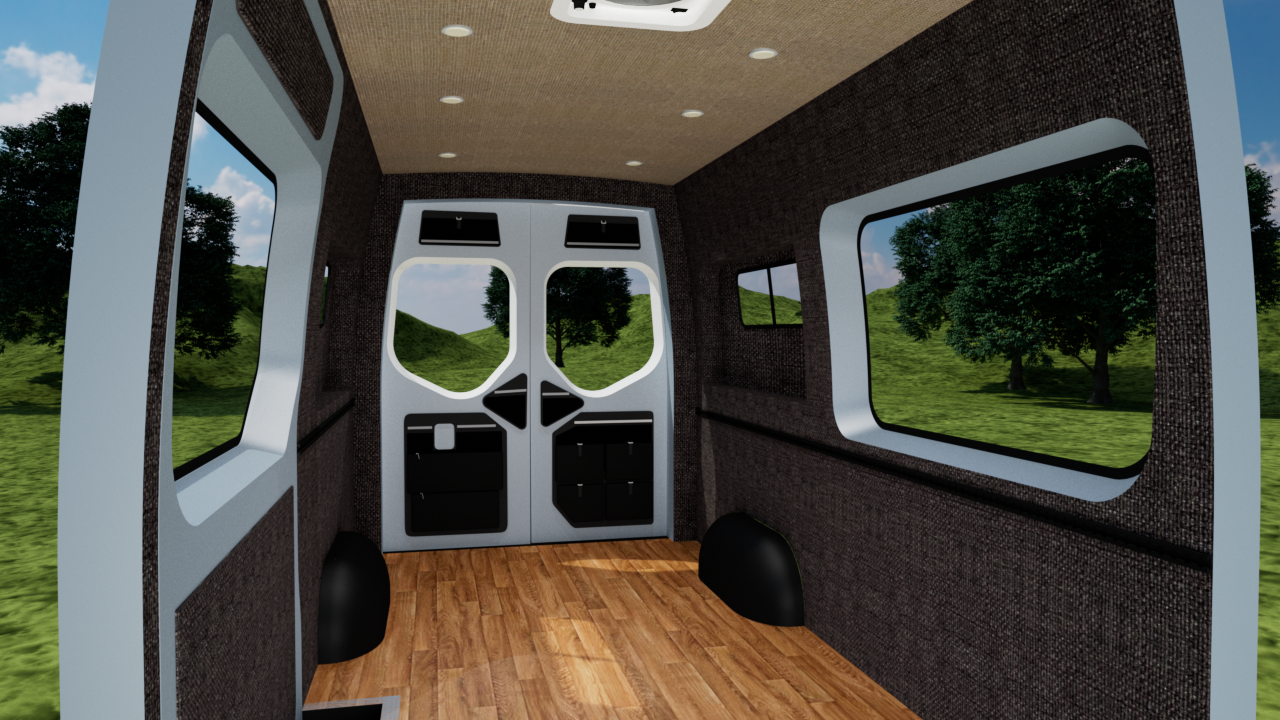

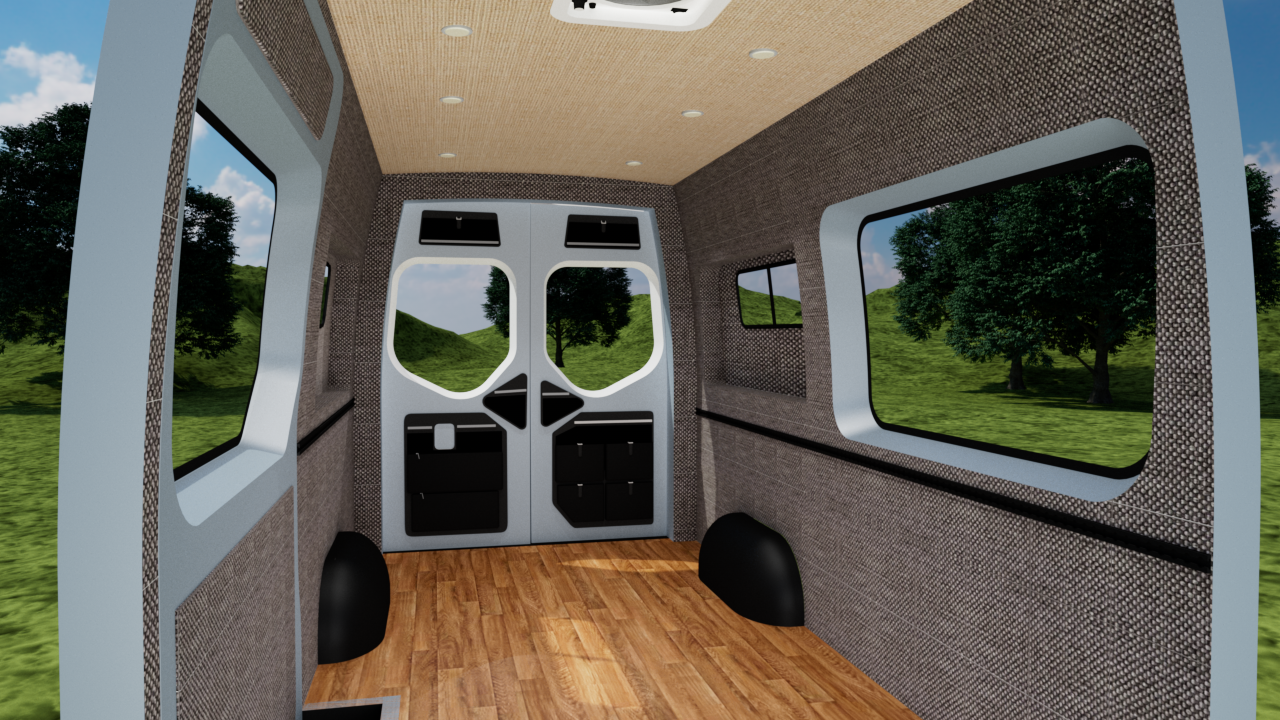

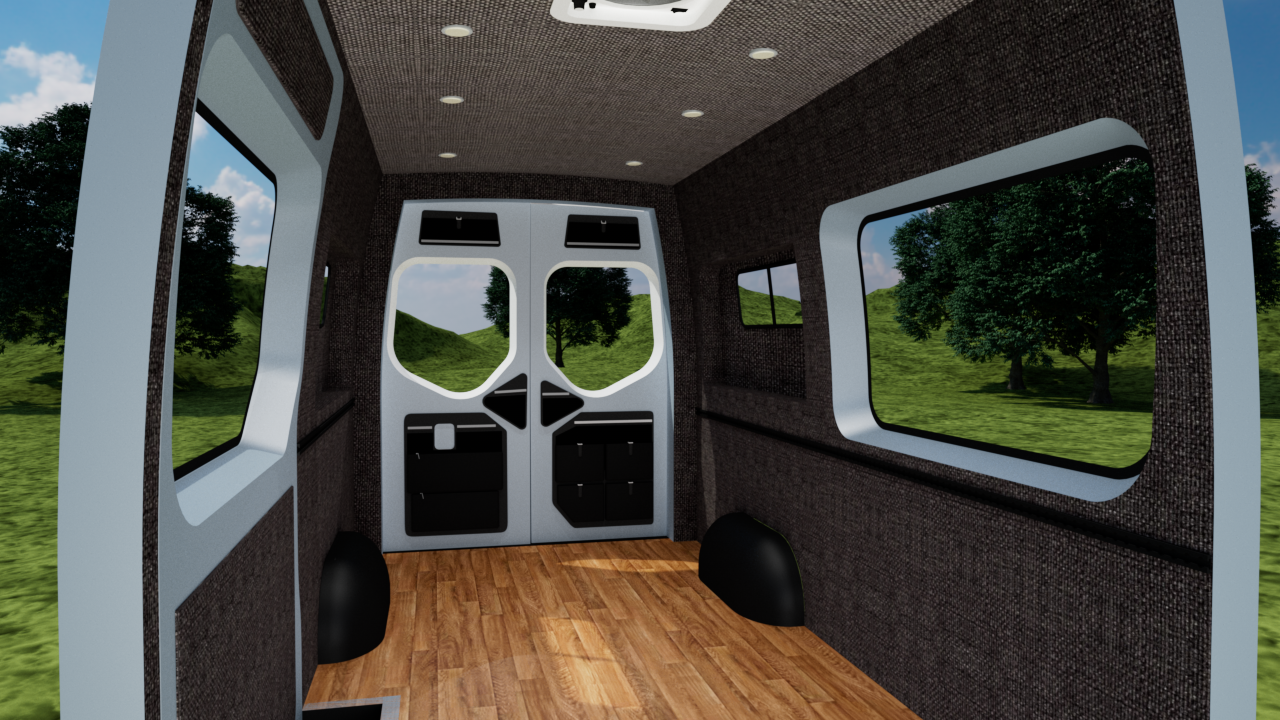

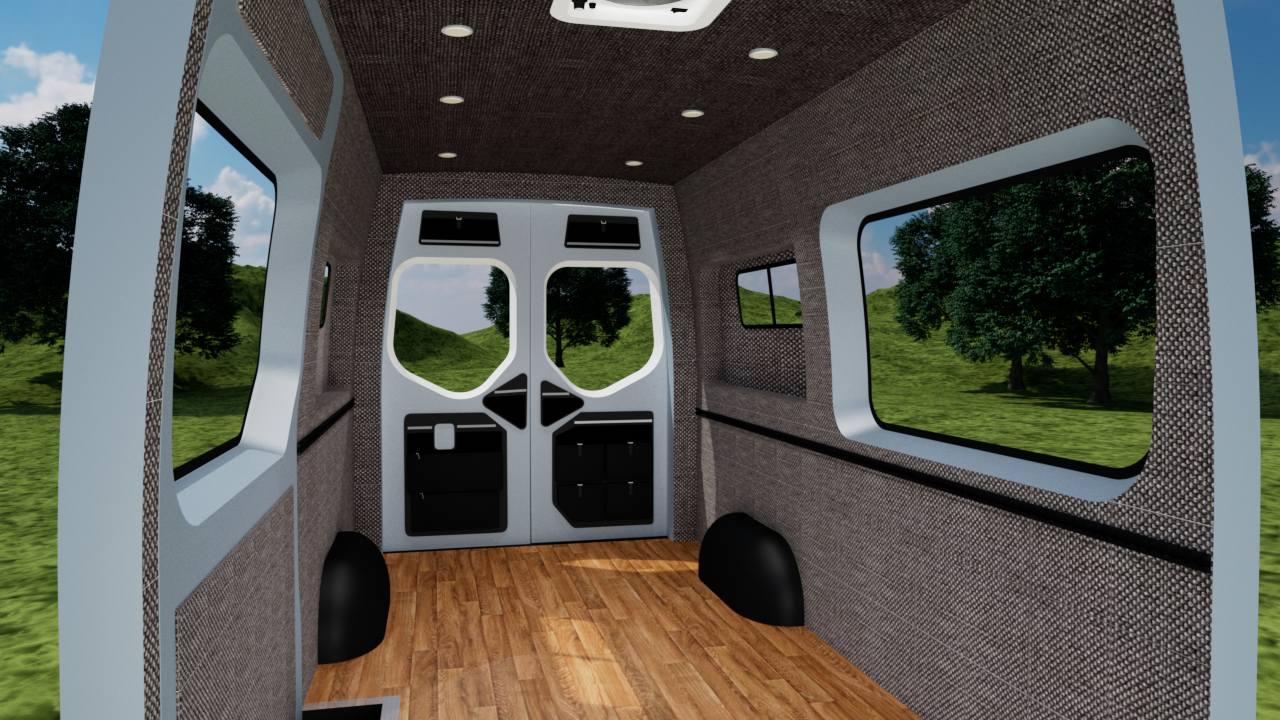

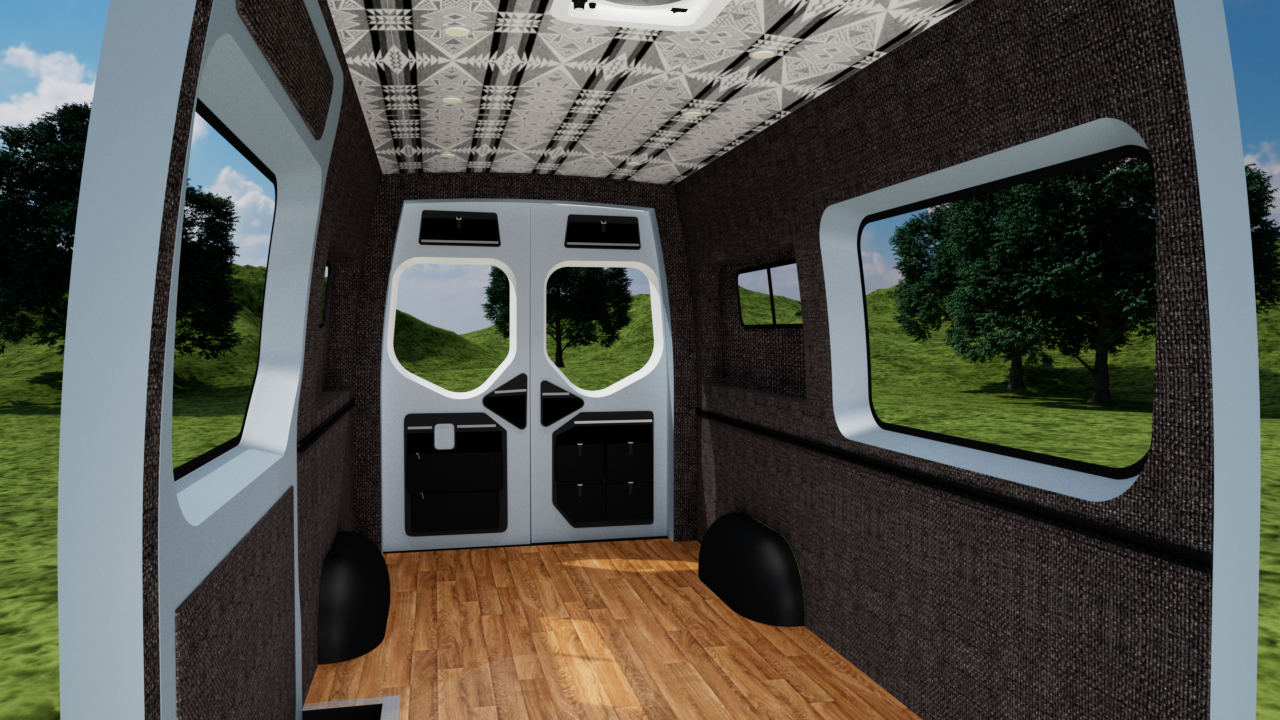

• VARIANT OPTIONS: Wall Panel Color: Marathon-1026 Toast, Marathon-1019 Oat, Marathon-1010 Grey Heather, Marathon-1011 Grey Mix, Marathon-1020 Pewter, Custom

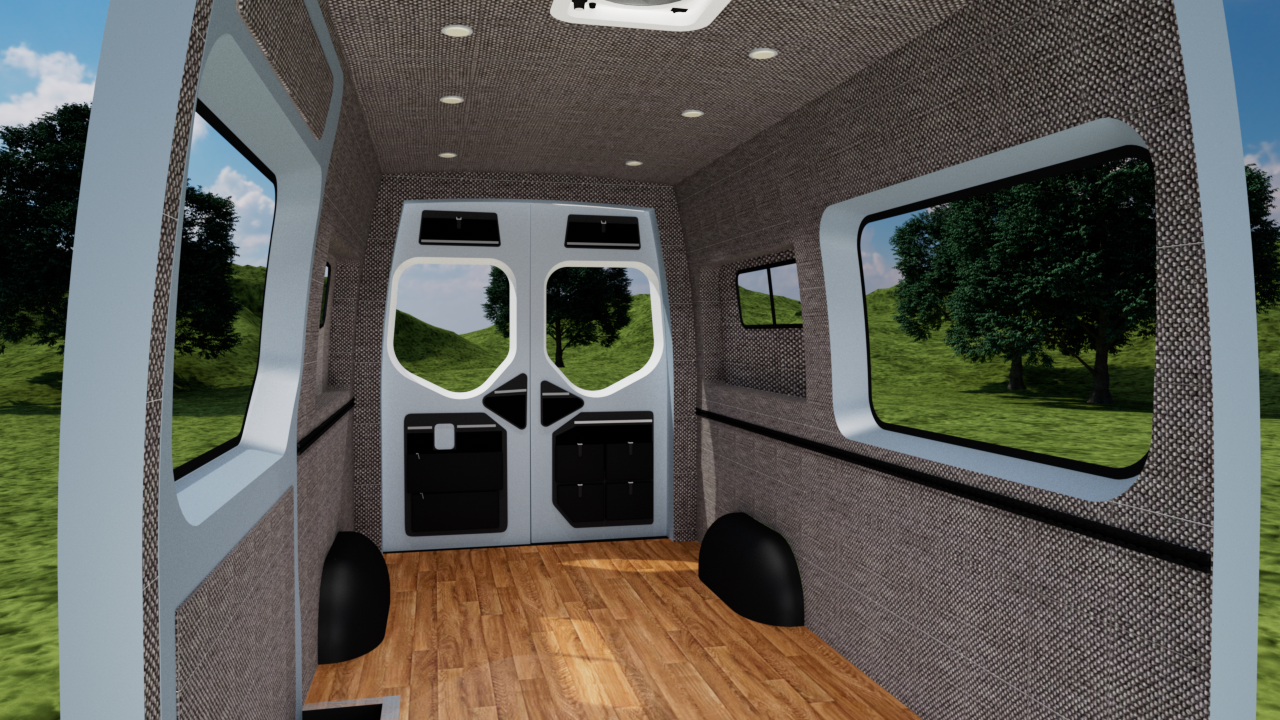

• VARIANT OPTIONS: Ceiling Panel Color: Marathon-1026 Toast, Marathon-1019 Oat, Marathon-1010 Grey Heather, Marathon-1011 Grey Mix, Marathon-1020 Pewter, Custom

• PANEL SYSTEM NOTE: A refined, lightweight, versatile, interior paneling kit that has everything you need and nothing that you don't.

• PANEL SYSTEM NOTE: The kit goes together in less than a day, so you can spend less time building and more time adventuring!

• PANEL SYSTEM NOTE: Our wall & ceiling panels are CNC cut and professionally upholstered.

• INSTALLATION: This interior panel kit is designed for a perfect fit and is bolted into the frame of your van using nearly all stock holes.

• DIMENSIONS: Our kit features 1/8" upholstery foam behind the fabric to give a plush feel and reduce noise in your van.

• DIMENSIONS: It also has a 1/4" reflective foam insulation backing, creating a radiant barrier, as well as, a thermal break from the hot/cold metal of the van.

• THERMAL OR ACOUSTIC: No other kit has this much intrinsic insulation!

• THERMAL OR ACOUSTIC: Pair our kit with one of our pre-cut insulation kits and you will have one of the most insulated vans in town!

• INCLUDED COMPONENTS: Our Interior Panel Kit includes wall panels, ceiling panels, over-the-slider-door trim, corbels (the corner where the wall meets the headliner) , rear door panels, slider door panel, and rear D-pillar trim.

• REQUIREMENT OR EXCLUSION: It does not include the middle window panels for the back doors or the slider door.

• OPENING OR DOOR NOTE: If you have rear door plastic pieces you need to select that on the "My Van Has" section so that we can provide you with the "Dog Piece" that covers up the rear wiper hole.

• OPENING OR DOOR NOTE: This is typically on vans that have the rear windows from the factory.

• REQUIREMENT OR EXCLUSION: We know every DIY project is different, which is why we do not include insulation, wiring harness, fan or other accessories and we sell everything a-la-carte.

• PANEL SYSTEM NOTE: That way you aren't paying for things you don't need!

• PANEL SYSTEM NOTE: Let us help you make the perfect selections

• PANEL SYSTEM NOTE: Want something easier to clean?

• MATERIAL OR CONSTRUCTION: Select the Sunbrella Horizon fabric option for an easy to wipe down surface!

• PANEL SYSTEM NOTE: Need something even more durable down low for dogs or cargo?

• MATERIAL OR CONSTRUCTION: Select the Black Hexaply lower panels for a pvc coated-textured back finish below the L-track.

• OPENING OR DOOR NOTE: Have a roof vent?

• OPENING OR DOOR NOTE: We offer the front stock location for roof vents however, if you choose that opening you need to make sure your fan is centered on the round embossment on the roof.

• OPENING OR DOOR NOTE: If there is any question about this it is easiest to not select any roof vent openings to ensure it fits.

• OPENING OR DOOR NOTE: It is quite easy to cut in openings for fans and AC units, because the trim ring covers up your cut lines.

• PANEL SYSTEM NOTE: Speaking of cutting openings, we only offer the opening that are the same every time.

• OPENING OR DOOR NOTE: If you want to add 10x33 bunk windows you will want to order our Bunk Window Trim so you can cut the openings wherever your window lands.

• INSTALLATION: Use the provided Riv-nuts and L-track to mount all your cabinets and accessories, as well as, other AVW components !

• INSTALLATION: Mounting a bed?

• PANEL SYSTEM NOTE: Our kit is compatible with Flatline Van Co.

• INSTALLATION: Bed Platforms to mount to the L-track and is often used with Van Wife Components bed platforms although you will need to add more rivnuts to mount the J-channel as it does not work with L-track.

FEATURES

• CNC-CUT PANELS: Provides the source-listed vehicle fit and professionally upholstered finish.

• LAYERED COMFORT: Uses upholstery foam and reflective backing for feel, noise reduction, radiant control, and a thermal break.

• COORDINATED TRIM: Includes the source-listed wall, ceiling, door, corbel, slider, and D-pillar components.

COMMON PAIRINGS

• PRE-CUT INSULATION: Plan separately sold cavity insulation before closing the walls.

• L-TRACK AND RIVNUT HARDWARE: Coordinate cabinets, beds, and accessories with the supplied mounting system.

• WINDOW, FAN, AND A/C TRIM: Confirm every opening before installing upholstered panels.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter configuration stated in the source.

• WHEELBASE: Sprinter 144 low roof only.

• ROOF HEIGHT: Low roof only.

• REQUIREMENTS: Confirm chassis, wheelbase, roof height, rear-door plastic, colors, lower-panel option, openings, L-track, rivnuts, wiring, insulation, fans, A/C, windows, bed, and cabinet plan. Several accessories are explicitly not included.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What is included in the panel kit?

A: The source-listed wall, ceiling, door, corbel, slider, and D-pillar panels are included; review the technical specifications for exclusions.

Q: Are insulation and wiring included?

A: No, cavity insulation, wiring harnesses, fans, and other accessories are sold separately unless explicitly listed.

Q: Can I add windows, a fan, or air conditioning?

A: Yes, but openings and trim must be planned before installation; some cuts are intentionally left to the builder.

Q: How long does installation take?

A: The source states the panel kit can be assembled in less than a day when the van and supporting systems are prepared.
