MobiFrame SAF42/43 Seat Bed - Certified Seating and Sleep

MobiFrame SAF42/43 Seat Bed - Certified Seating and Sleep

At West Coast Vans, a seat bed earns its space by carrying passengers safely during the day and converting into a real sleeping platform at night. Need help choosing the width or mounting plate? Ask Us Product Questions Anytime.

WCV EXPERT TIP

Confirm the selected 97, 118, or 120 cm width at bed height, not just seat height, and leave room for the tab-and-lever conversion and headrest movement.

PRODUCT OVERVIEW

The MobiFrame SAF42/43 Seat Bed combines certified forward-facing travel seating with a convertible bed for modular camper van interiors. Depending on width, it provides seating for two or three passengers with integrated three-point belts, ISOFIX and top-tether connections, adjustable headrests, and multiple recline positions from upright to horizontal.

The seat bed mounts with a compatible SafeTrack bracket and installation plate or to MobiFrame SafeTrack flooring. The optional plate is required when the van does not have a compatible MobiFrame 2007+ Sprinter floor and includes adhesive, primer, and mounting hardware.

BEST FOR

• FAMILY SPRINTER CONVERSIONS: Ideal for builders who need certified rear travel seating that converts into a bed at camp.

• MULTI-PURPOSE DAY-TO-NIGHT LAYOUTS: Great for compact builds where one component must provide passenger seating, lounging, and sleeping space.

• SAFETRACK FLOOR SYSTEMS: Designed for layouts that benefit from a removable seat bed or full fore-and-aft movement on compatible tracked flooring.

TECHNICAL SPECIFICATIONS

• VENDOR: MobiFrame

• PRODUCT: SAF42/43 Seat Bed

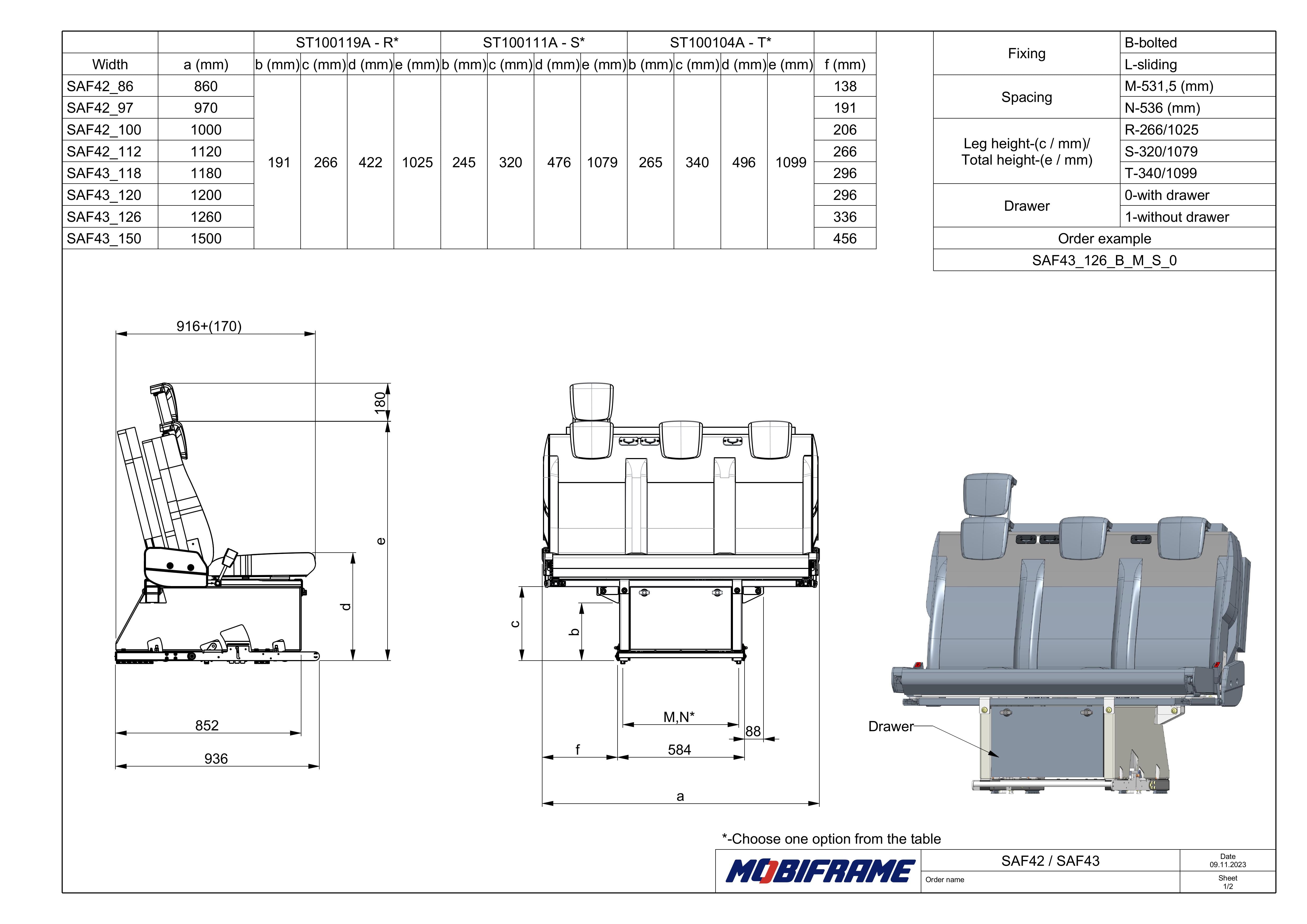

• SEATING CAPACITY: 97 cm configuration seats two passengers; 118 cm and 120 cm configurations seat three passengers

• AVAILABLE WIDTHS: 97 cm, 118 cm, and 120 cm

• BED LENGTH: Approximately 75.6 inches / 192 cm

• SAFETY TESTING: Tested to FMVSS/CMVSS 207 and 210 requirements

• SEAT BELTS: Integrated three-point seat belts

• CHILD-SEAT CONNECTIONS: ISOFIX and top tether

• HEADRESTS: Adjustable headrests

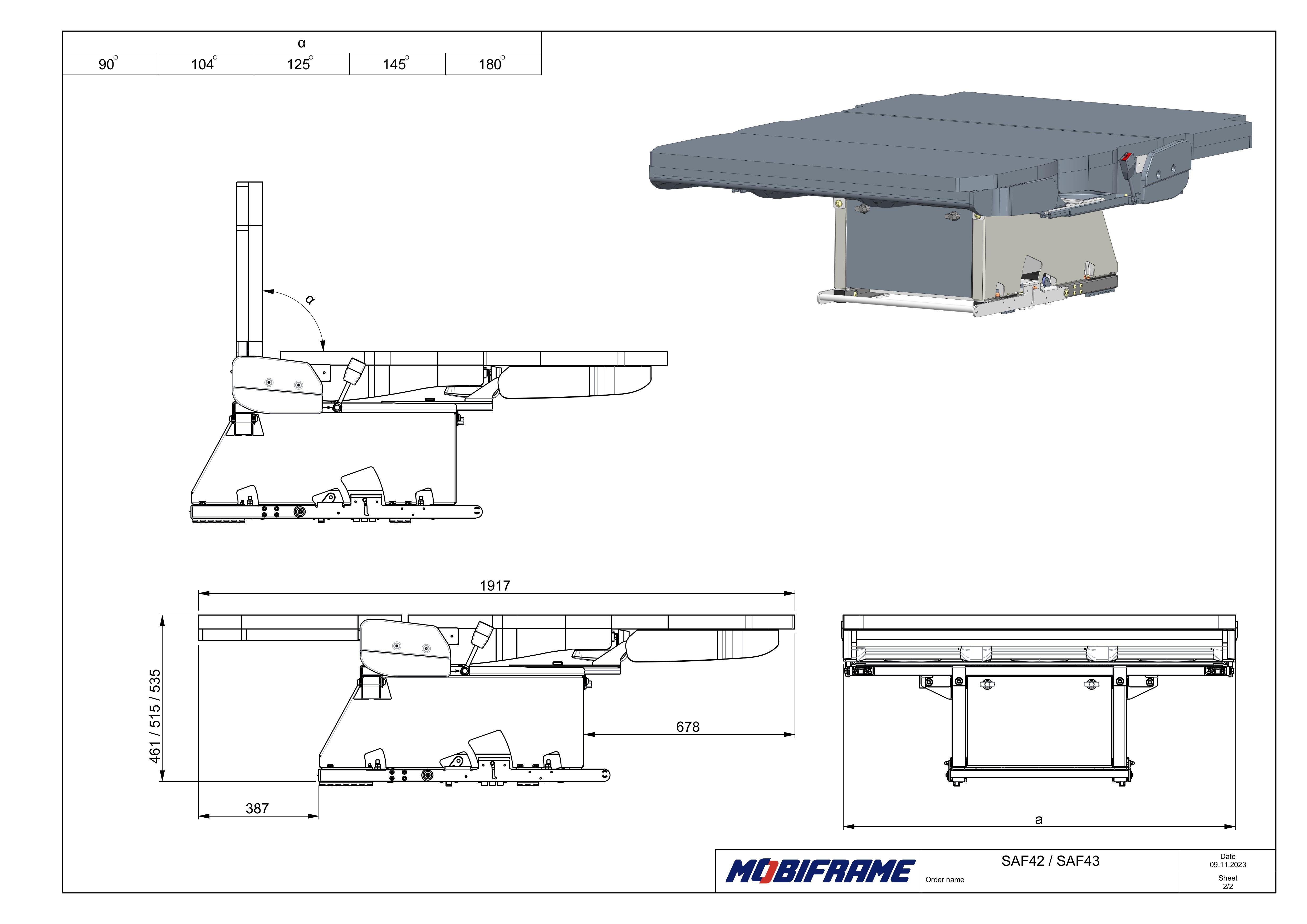

• RECLINE: Multiple positions from upright to horizontal

• BED CONVERSION: Tab-and-lever conversion with additional bed padding

• FLOOR INTERFACE: SafeTrack bracket and compatible installation plate, or compatible MobiFrame SafeTrack flooring

• TRACK MOVEMENT: Spring-loaded gliding and locking mechanism

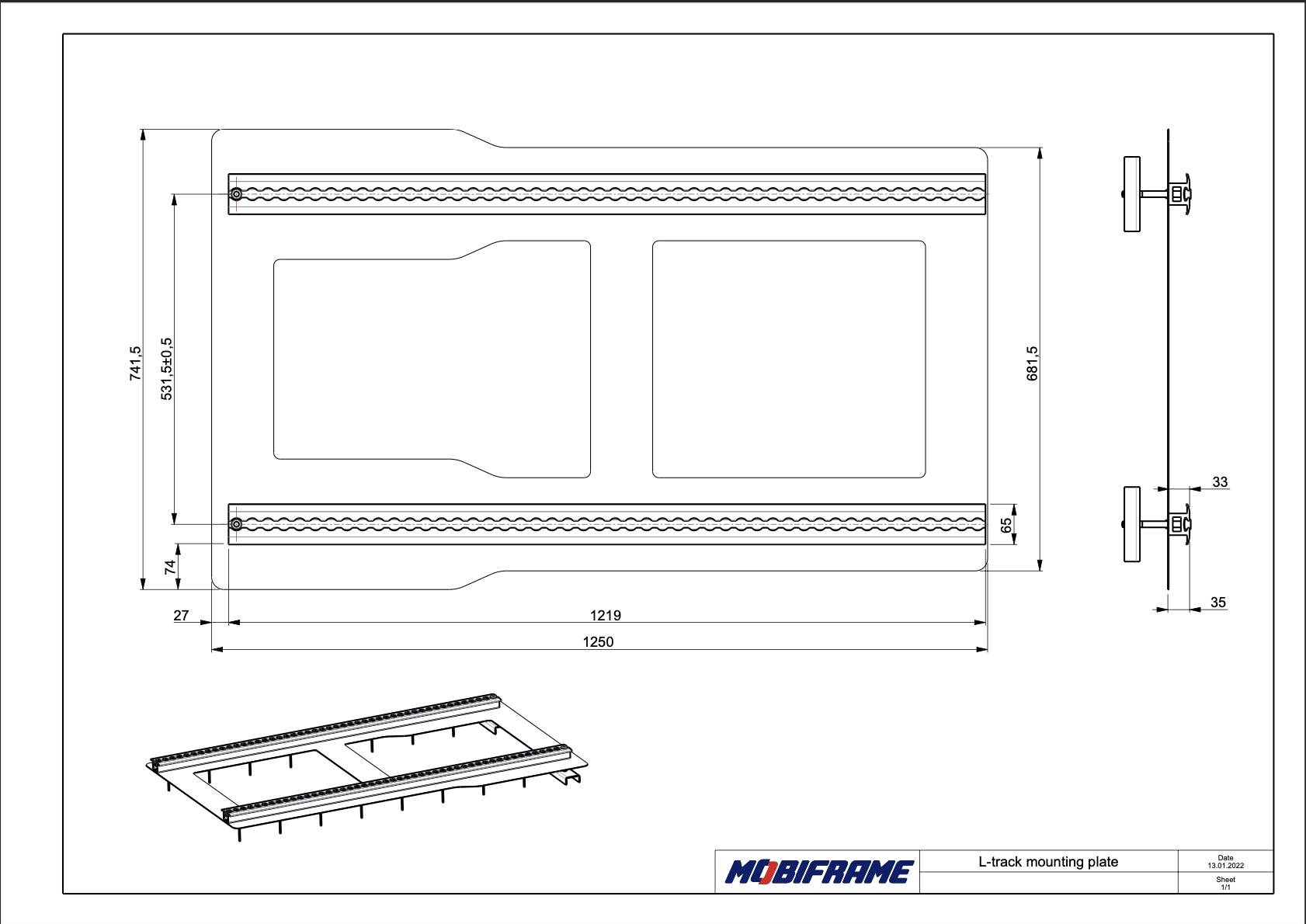

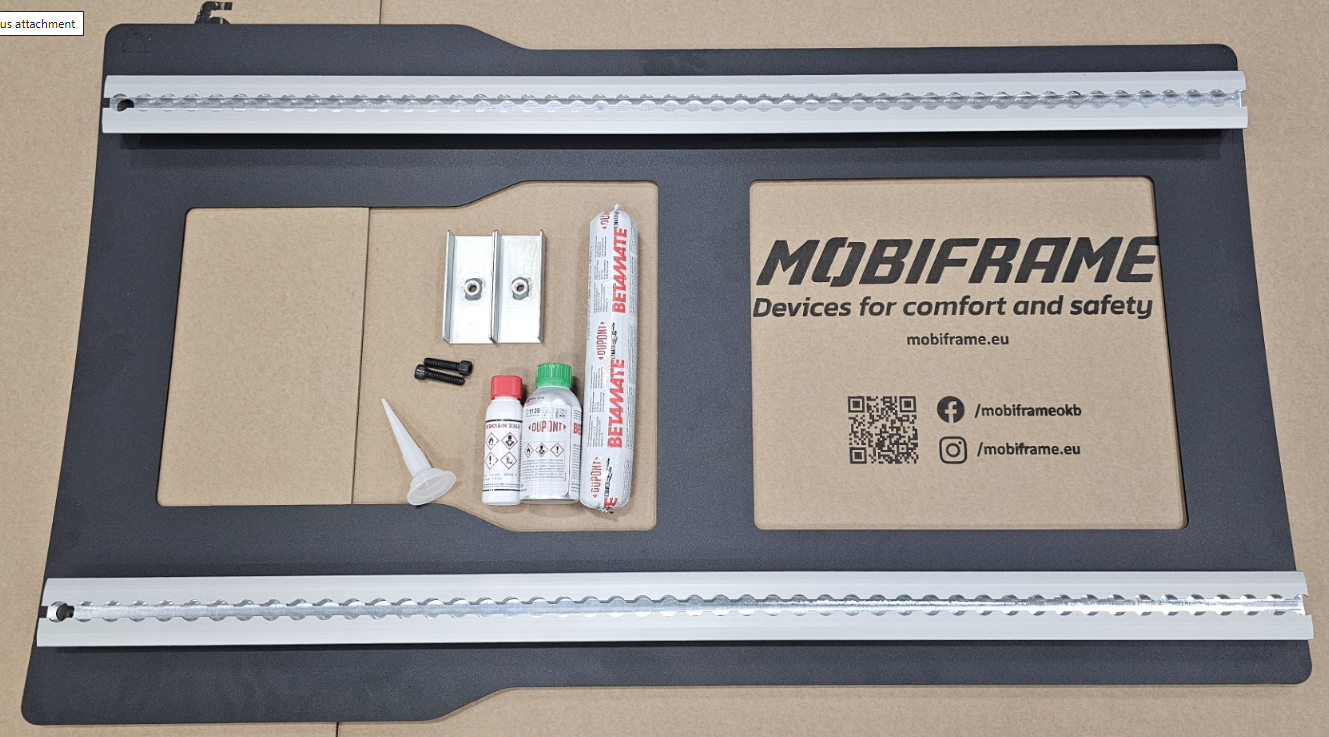

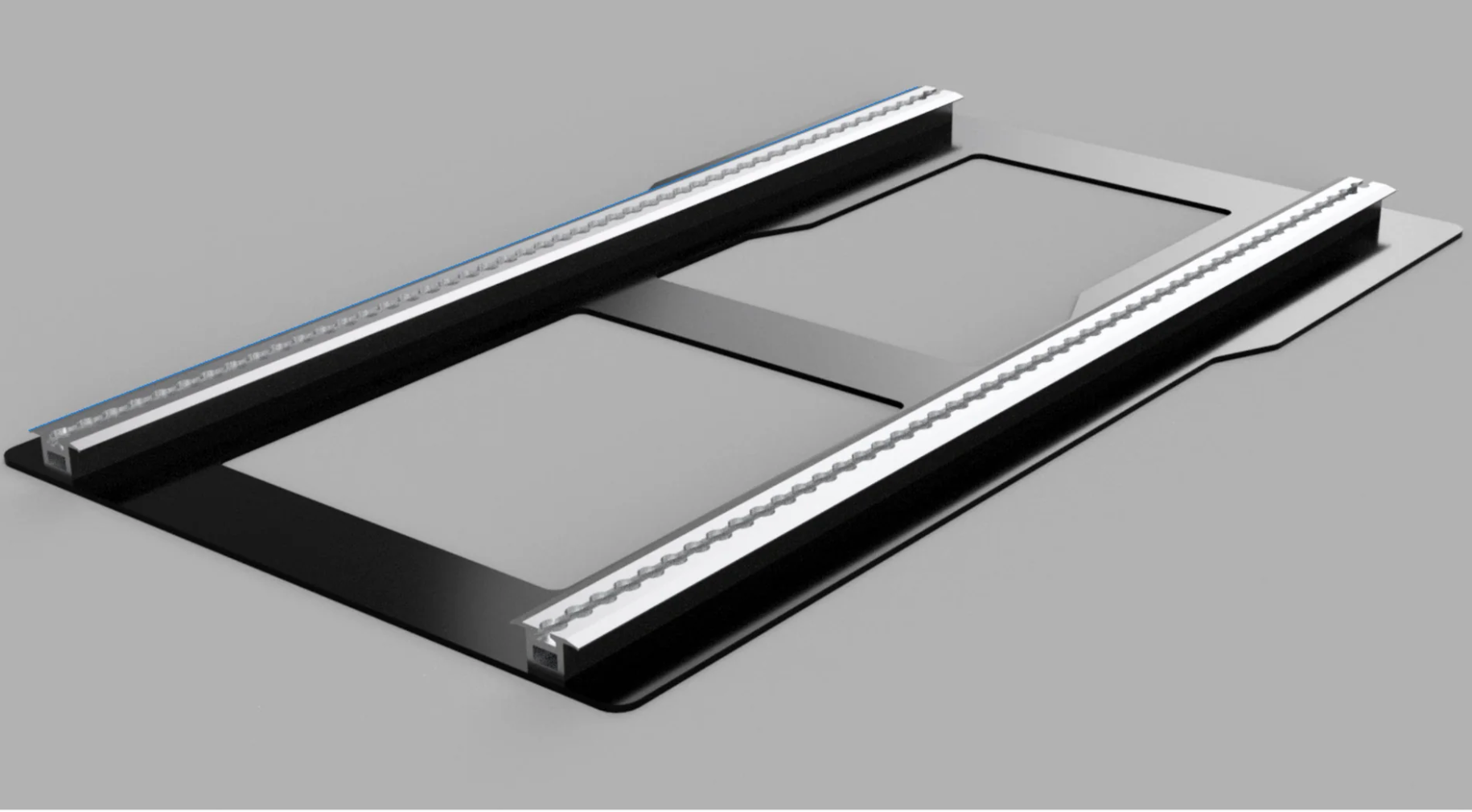

• INSTALLATION PLATE: Optional 48-inch rail plate includes adhesive, primer, and mounting hardware

• SEAT-BASE WIDTH: Approximately 33.5 inches

• PLATE MOVEMENT: The 48-inch installation plate provides limited sliding and a secure removable connection

• FULL FLOOR MOVEMENT: A compatible full SafeTrack floor is required for extensive front-to-back seat movement

• INSTALLATION WITHOUT MOBIFRAME SPRINTER FLOOR: The installation plate is required when the van does not have a compatible MobiFrame floor for 2007+ Mercedes-Benz Sprinter

• REMOVAL NOTE: The seat bed is very heavy and professional assistance is recommended for removal

• STORAGE: Space below the seat may be used for a drawer or storage bags depending on the installation

• UPHOLSTERY: Black upholstery

• LEAD TIME: Typically ships in 7-10 business days

• SHIPPING: Free shipping within the lower 48 United States

FEATURES

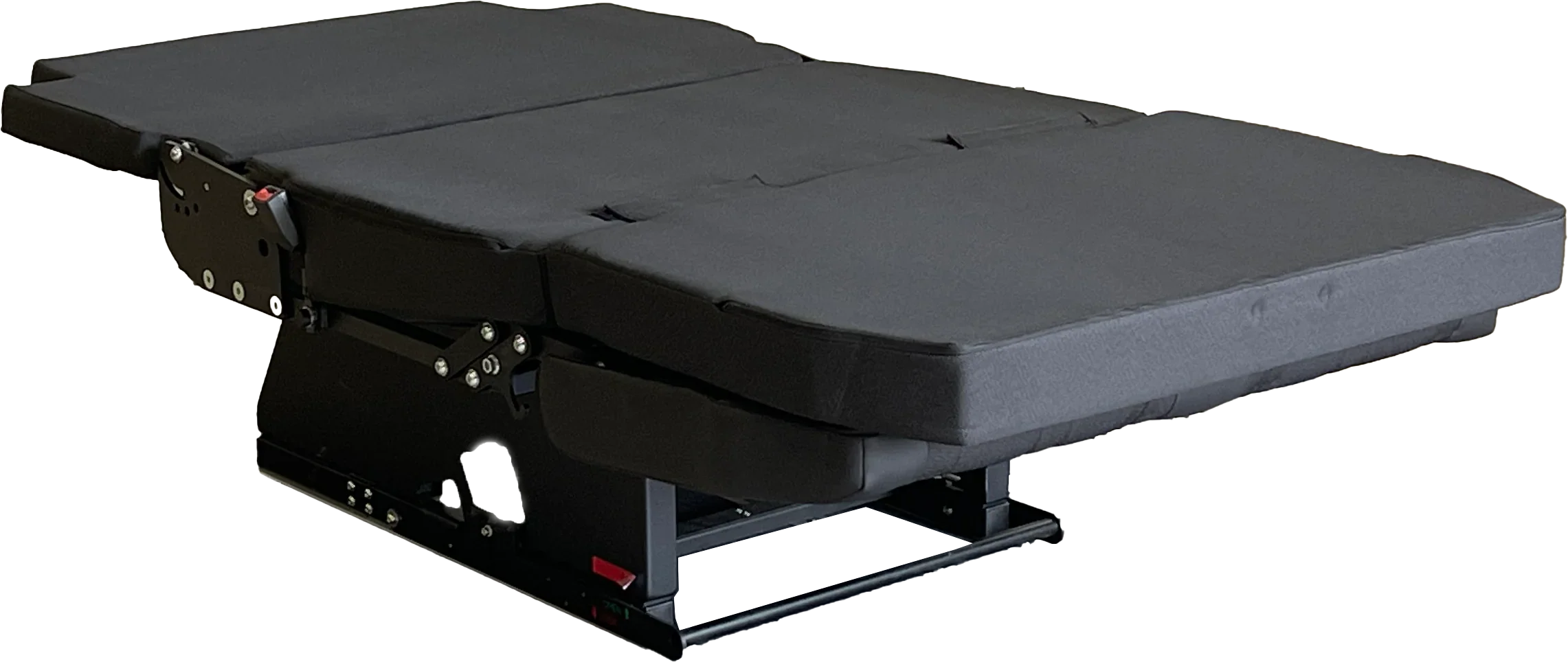

• SEAT-TO-BED CONVERSION: Changes from upright passenger seating to a horizontal sleeping surface with a tab-and-lever mechanism.

• CERTIFIED PASSENGER SEATING: Integrates three-point belts, ISOFIX, top tether, and adjustable headrests.

• MULTIPLE WIDTHS: Choose 97 cm for two passengers or 118 cm and 120 cm for three passengers.

• SAFETRACK FLEXIBILITY: Uses a spring-loaded mechanism to glide and lock on compatible tracked flooring.

• UNDER-SEAT STORAGE POTENTIAL: Allows room for a drawer or storage bags when the surrounding layout permits.

COMMON PAIRINGS

• MOBIFRAME SAFETRACK FLOORING: Provides extensive front-to-back movement and flexible positioning; sold separately.

• MOBIFRAME INSTALLATION PLATE: Required without a compatible MobiFrame 2007+ Sprinter floor and includes adhesive, primer, and hardware.

• UNDER-SEAT STORAGE: Can be planned with a compatible drawer or storage bags below the seat base.

COMPATIBILITY & FITMENT

• CHASSIS: Designed for compatible vehicle installations with adequate mounting surface and clearance; the installation plate is specifically described for vans without a compatible MobiFrame 2007+ Mercedes-Benz Sprinter floor.

• WHEELBASE: Not limited to a stated wheelbase; confirm the full 75.6-inch bed length, selected width, aisle, and door clearance.

• ROOF HEIGHT: Not roof-height-specific; confirm seated headroom and bed-conversion clearance.

• REQUIREMENTS: Use a compatible SafeTrack bracket and installation plate or MobiFrame SafeTrack floor. Select the correct 97, 118, or 120 cm variant and add the installation plate when no compatible MobiFrame 2007+ Sprinter floor is installed.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: How many passengers does the SAF42/43 seat?

A: The 97 cm version seats two passengers, while the 118 cm and 120 cm versions seat three passengers.

Q: How long is the bed?

A: The converted sleeping surface is approximately 75.6 inches / 192 cm long.

Q: Do I need the installation plate?

A: Yes, the plate is required when the van does not have a compatible MobiFrame 2007+ Sprinter floor.

Q: Can the seat bed slide through the van?

A: A full compatible SafeTrack floor provides extensive front-to-back movement; West Coast Vans recommends the plate when only limited sliding and a removable connection are needed.
