At West Coast Vans, an exterior rack becomes much more useful once odd-shaped gear has a flat place to bolt down. This top panel adds a slotted aluminum mounting surface in 600 or 750 mm widths; Ask Us Product Questions Anytime before matching it to your no-drill gear rack.

WCV EXPERT TIP

Mock up the loaded center of gravity and cycle both rear doors before drilling; exterior cargo changes hinge load and body clearance quickly.

PRODUCT OVERVIEW

Tec Vanlife Sprinter Gear Rack Top Panel - Modular Mounting adds rear-door cargo capacity using the aluminum construction, mounting pattern, weather sealing, door-side choice, and dimensions listed below.

Confirm the rear-door hinge generation, supporting rack or bracket system, door load, latch access, and complete opening clearance before installation.

BEST FOR

• REAR-DOOR GEAR STORAGE: Moves bulky equipment outside the living area for easier access.

• MODULAR EXTERIOR SYSTEMS: Uses MOLLE, slots, carriage bolts, shelves, or accessory mounting patterns described below.

• ADVENTURE EQUIPMENT BUILDS: Useful for recovery gear, outdoor equipment, and other properly secured cargo.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

• PRODUCT: Sprinter Gear Rack Top Panel - Modular Mounting

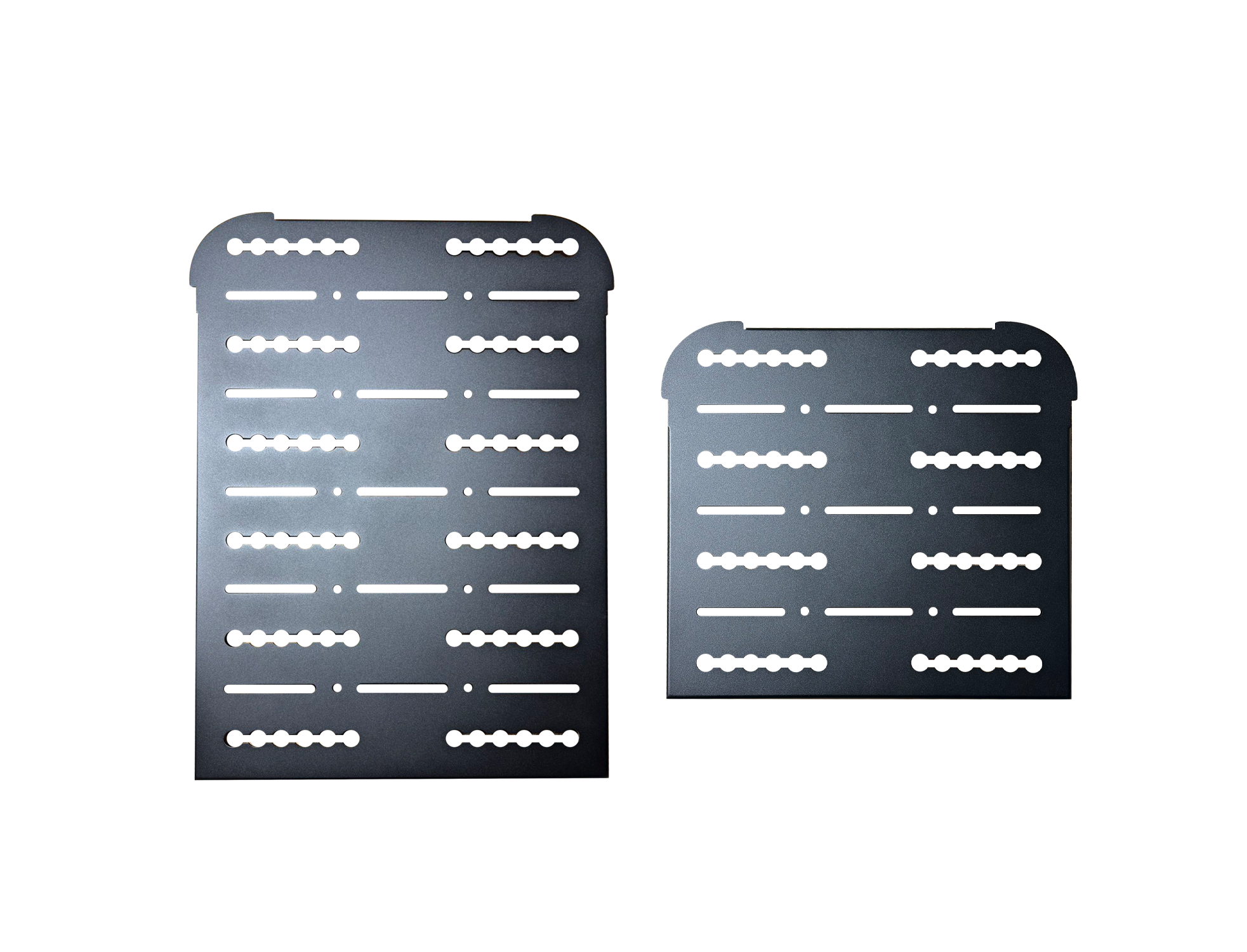

• SIZE: 600mm, 750mm

• INSTALLATION: Create a modular mounting surface on your No Drill Gear Rack with this heavy duty aluminum back panel.

• INSTALLATION: Designed to complement the Tec Vanlife No Drill Gear Rack, this panel creates a flat, rigid surface for mounting storage boxes, recovery gear, tools, and other exterior accessories while keeping your setup organized and easy to access.

• NOTE: This listing is for the top panel only. The two size options are both top panel sizes, not separate top and bottom panels.

• INSTALLATION: Constructed from high strength aluminum for a lightweight but rigid mounting surface

• FINISHED WITH A BLACK POWDER COAT: Finished with a black powder coat for durability and corrosion resistance

• INSTALLATION: Designed to mount to the no drill gear rack as a universal accessory back panel

• INSTALLATION: Slotted cutout pattern provides multiple mounting points for boxes, brackets, straps, and other accessories

• INSTALLATION: Creates a clean, flat mounting surface for organizing recovery gear, fuel packs, tools, or utility pouches

• WEIGHT: Open slot design helps reduce unnecessary weight while maintaining strength and allowing flexible accessory placement

• AVAILABLE OPTIONS: Available in multiple sizes to match different rack layouts and storage needs

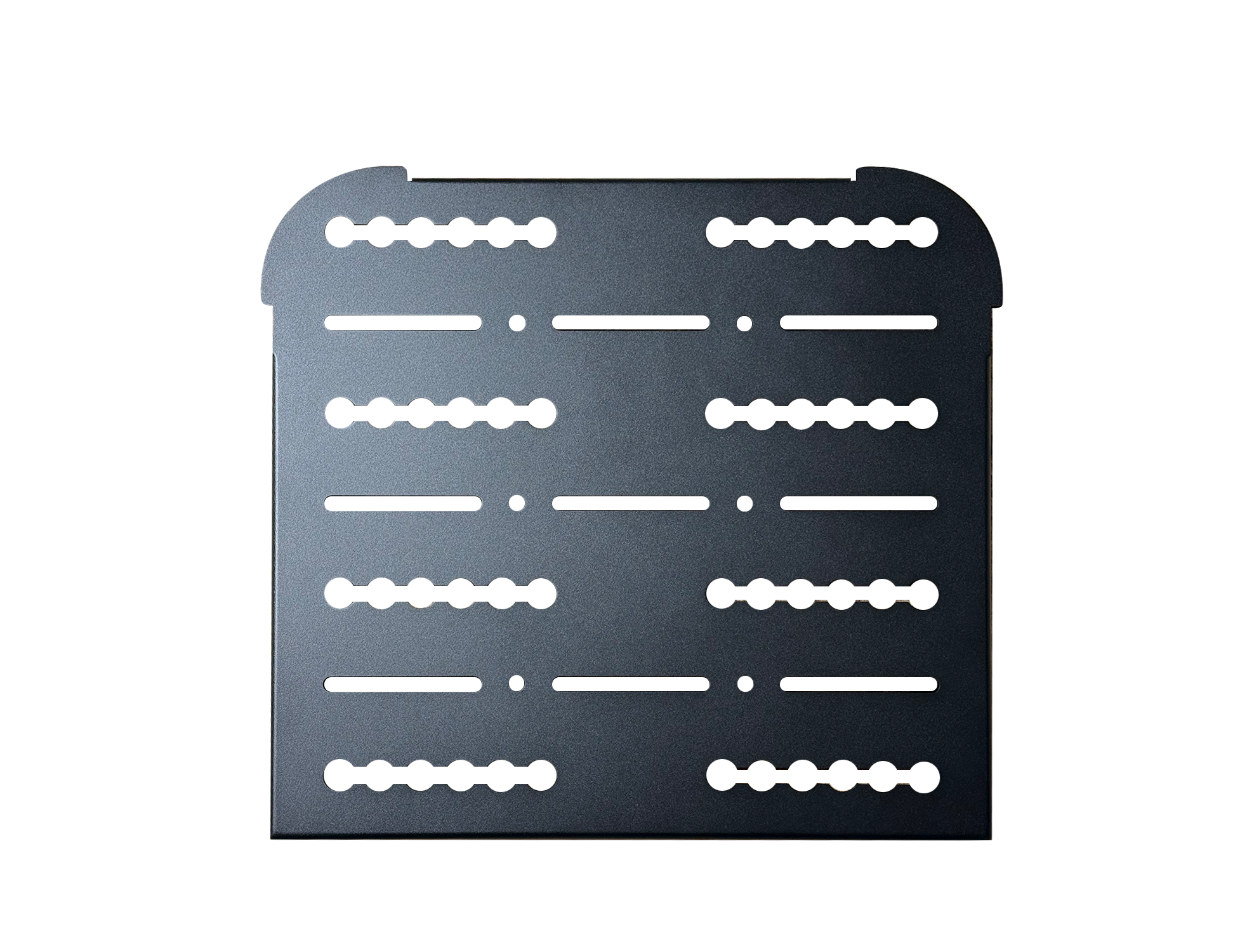

• BED SYSTEM: 600 mm x 457 mm Panel

• DIMENSIONS: 23.62" x 17.99" (600 mm x 457 mm)

• WEIGHT: 3.62 lbs (1.64 kg)

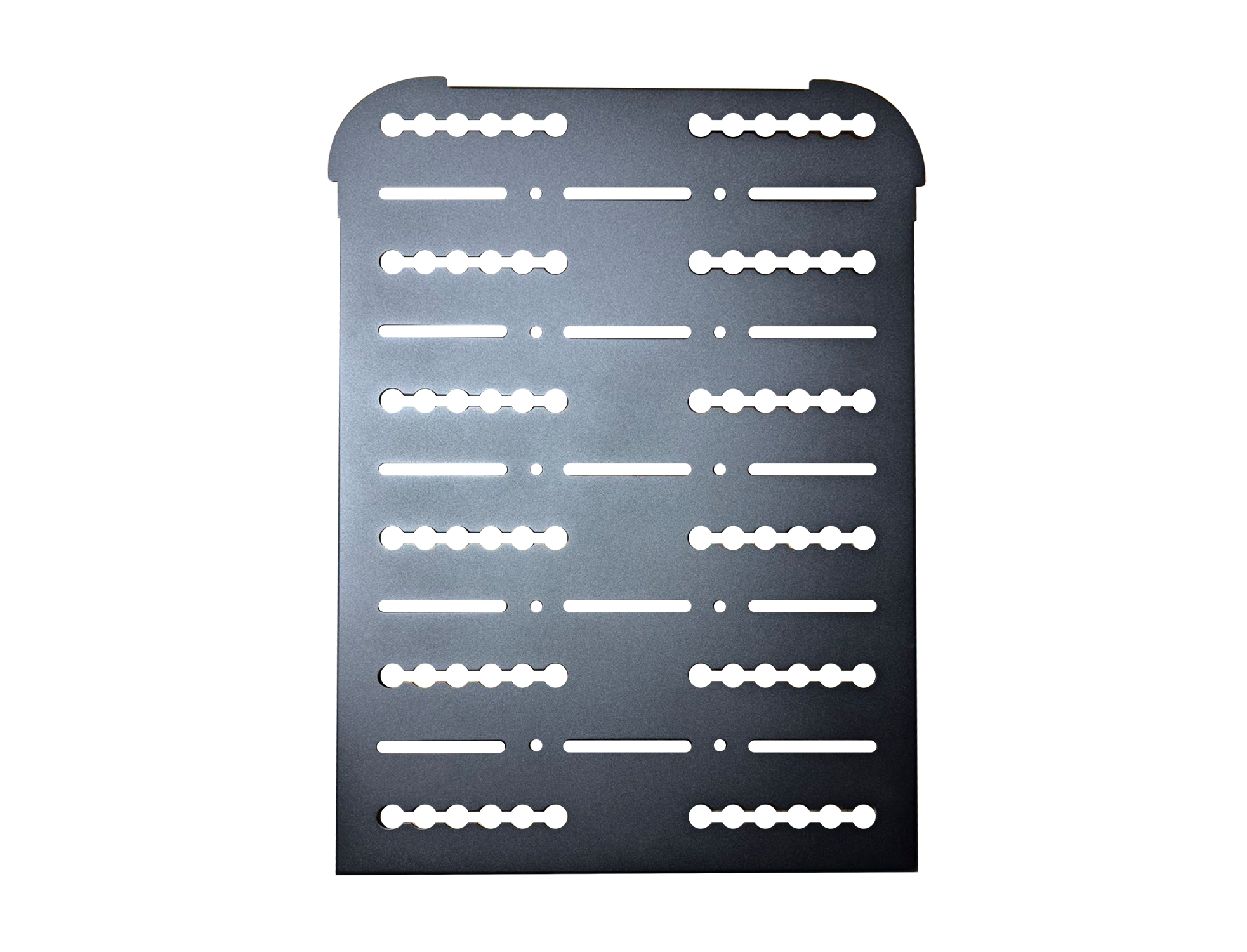

• BED SYSTEM: 750 mm x 457 mm Panel

• DIMENSIONS: 29.53" x 17.99" (750 mm x 457 mm)

• WEIGHT: 5.56 lbs (2.52 kg)

• INSTALLATION: This rear gear rack back panel adds a functional mounting surface to your van's exterior storage system. Installed on the no drill gear rack, it provides a stable platform for attaching storage boxes, recovery equipment, fuel or water containers, utility pouches, and other travel essentials. The flat panel layout helps keep gear secure, organized, and easy to reach without

• TAKING UP VALUABLE INTERIOR SPACE: taking up valuable interior space.

• INSTALLATION: Built from lightweight aluminum, the panel adds utility without unnecessary bulk on the rear door. The laser cut slot pattern supports flexible mounting options for a wide range of accessories while also reducing weight and maintaining a clean appearance. Finished in a durable black powder coat, this panel is built to handle exposure to the elements and the demands of daily

• USE: use.

FEATURES

• ALUMINUM CONSTRUCTION: Uses the welded or formed aluminum and powder-coated finish stated below.

• MODULAR MOUNTING: Provides the source-listed hole, slot, MOLLE, shelf, or accessory interface.

• DOOR-SPECIFIC CONFIGURATION: Preserves driver/passenger side, hinge-generation, latch, seal, and limit-cable details.

COMMON PAIRINGS

• COMPATIBLE REAR-DOOR RACK: Use the required supporting rack or approved mounting structure for the selected box.

• OPTIONAL STORAGE SHELVES: Choose shelves sized for the exact horizontal, vertical, or box-width configuration.

• CARGO RESTRAINTS: Secure every stored item and respect the complete door and mounting-system load capacity.

COMPATIBILITY & FITMENT

• CHASSIS: Vehicle rear-door installation with a compatible RB rack or approved supporting structure; confirm chassis before ordering.

• WHEELBASE: Not wheelbase-specific; rear-door geometry and supporting hardware determine fit.

• ROOF HEIGHT: Confirm vertical clearance for the selected horizontal or vertical box and full door opening.

• REQUIREMENTS: Verify door side, hinge generation, supporting rack, fasteners, door load, latch access, weather seal, shelves, and body clearance.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Does the gear rack fit pre-2019 Sprinter hinges?

A: No, the source states that the rear-door gear rack works only with 2019+ rear-door hinges.

Q: Can the boxes use shelves?

A: Yes, compatible adjustable shelf options are listed separately.

Q: Can the box hinge left or right?

A: Where stated, the storage box can be mounted with either left- or right-hand hinging.

Q: What should be checked before loading?

A: West Coast Vans recommends checking the supporting rack, door load, hinges, latch access, and full opening clearance.
