At West Coast Vans, we like a roof rack that leaves room for the gear you have now and the fan, solar, or awning you remember later. This lightweight Sprinter platform uses adjustable crossbars for 144 and 170 high-roof layouts; Ask Us Product Questions Anytime before mapping your factory rails and rooftop clearances.

WCV EXPERT TIP

Draw the roof to scale and mark every lid-opening arc, solar cable route, awning bracket, and usable walking area before setting crossbar positions.

PRODUCT OVERVIEW

Tec Vanlife Sprinter Modular Roof Rack - Lightweight Platform expands rooftop carrying or access capability using the aluminum construction, crossbar or panel dimensions, rail requirements, and load information listed below.

Plan the complete roof as one system so fans, solar, air conditioning, awnings, deck panels, cargo, and safe walking paths do not compete for the same space.

BEST FOR

• MODULAR SPRINTER ROOFS: Ideal for high-roof Sprinter builds that need adjustable cargo, solar, and accessory mounting.

• ROOFTOP ACCESS AND DECKING: Supports the listed walkable panels and gear tie-down configurations.

• FUTURE-READY BUILDS: Lets builders position or add compatible rooftop components as the layout evolves.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

• PRODUCT: Sprinter Modular Roof Rack - Lightweight Platform

• TYPE: For Sprinter 144" High Roof, For Sprinter 170" High Roof

• INSTALLATION: Lightweight, versatile roof platform for 2007+ Sprinter 144" & 170" High Roof vans, ideal for van conversions, overland travel, and builds that need hassle free mounting of solar panels, decking, and awnings.

• SHIPPING: FREE shipping to the lower 48 states.

• FITMENT: Compatible with all 2007+ Sprinter 144" & 170" High Roof models

• DESIGN NOTE: Modular design for flexible setup

• VENTILATION: Adjustable crossbar system to work around solar panels, cargo, roof fans, A/C units, and other equipment

• FITMENT: Compatible with decking, Fiamma awnings, and L-Track or bolt on accessories

• STRUCTURAL COMPONENTS: Molded components for high structural strength

• WEIGHT: High strength to weight ratio

• CONSTRUCTION: Coated aluminum construction

• ROOF SYSTEM: Ultra lightweight extruded sidewalls and crossbars

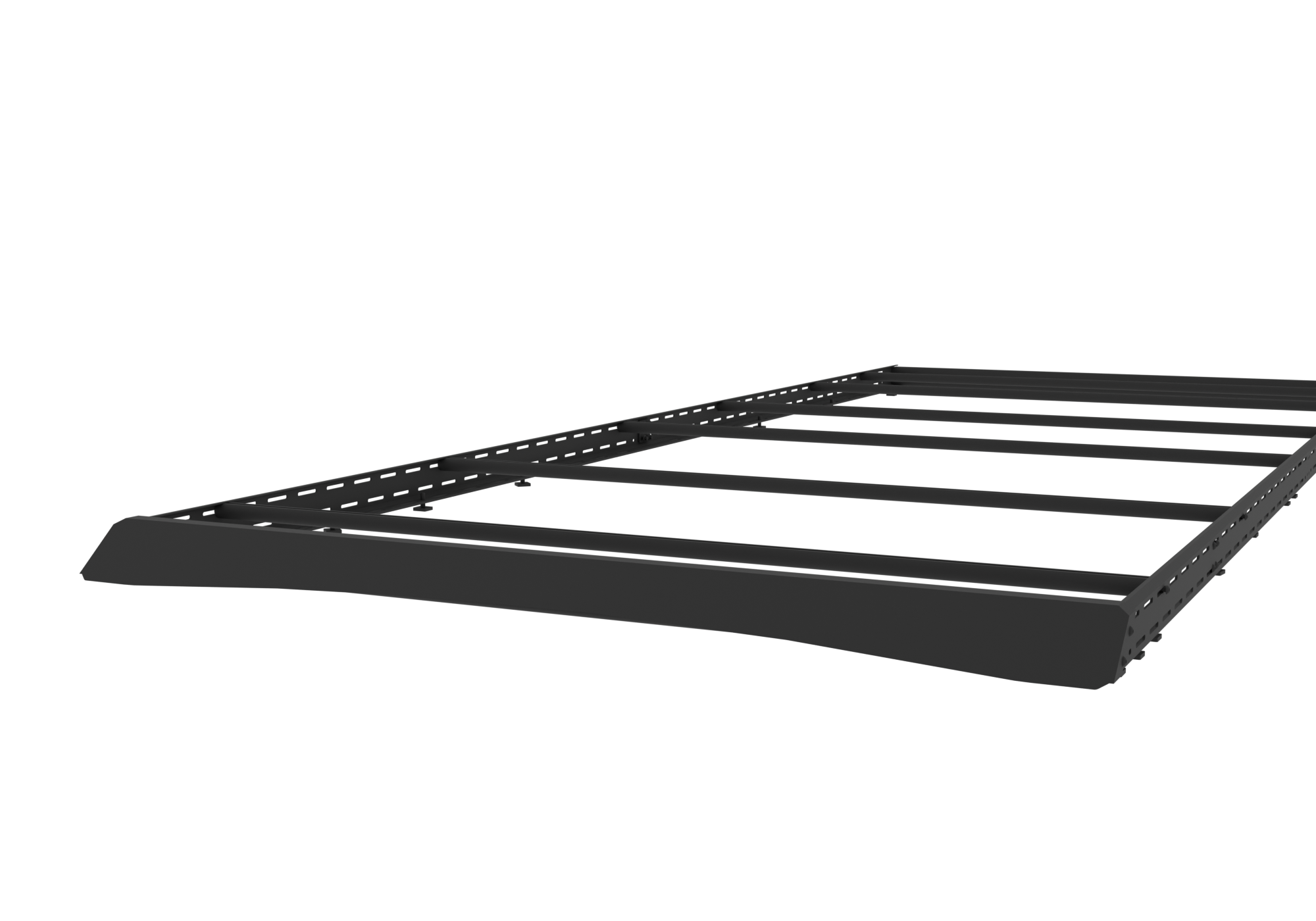

• AERODYNAMIC FAIRING: Aerodynamic front fairing

• VENTILATION: Laser cut side panels for reduced weight and improved airflow

• INSTALLATION: Straightforward installation

• REQUIREMENT: Requires factory or aftermarket roof rails (not included)

• AVAILABLE OPTIONS: Accessory options available

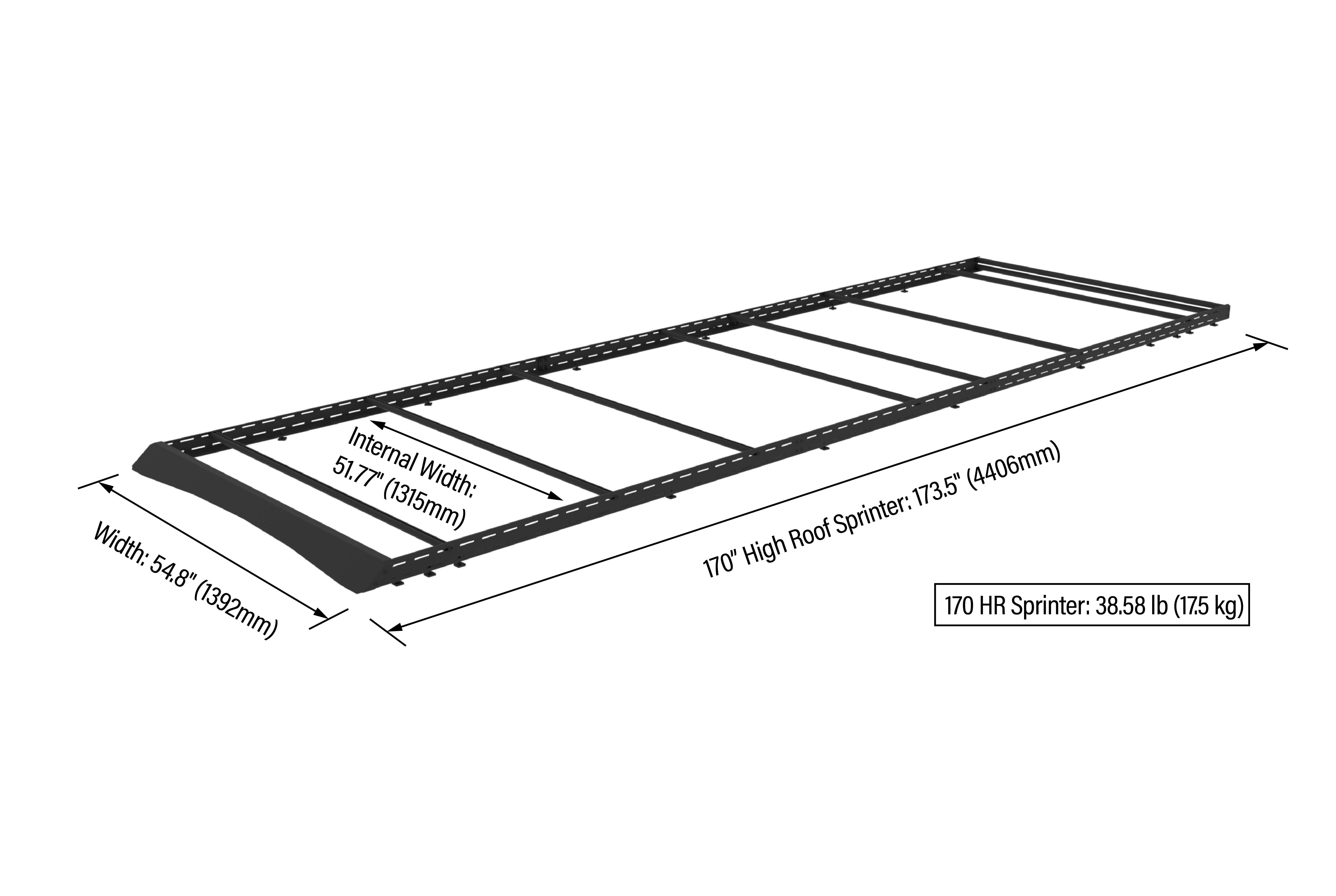

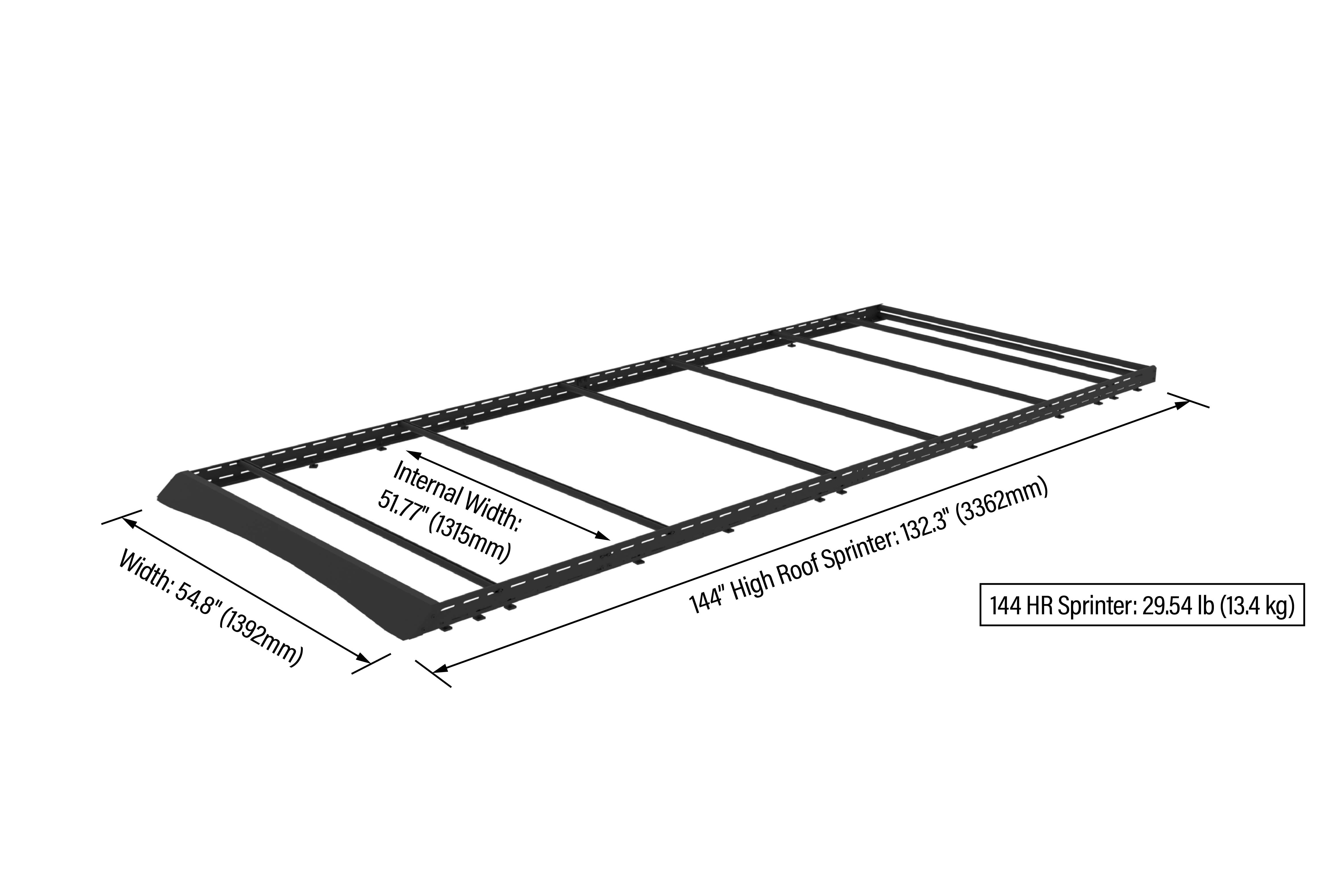

• WIDTH: 54.8" (1392mm)

• CROSSBAR LENGTH: 52.44" (1332mm)

• INTERNAL WIDTH: 51.77" (1315mm)

• FITMENT: Vehicle Fitment & Compatibility:

• 144 HR SPRINTER: 132.3" (3362mm)

• 170 HR SPRINTER: 173.5" (4406mm)

• 144 HR SPRINTER: 29.54 lb (13.4 kg)

• 170 HR SPRINTER: 38.58 lb (17.5 kg)

• LOAD RATING: Roof bar load rating:

• SOURCE LOAD OR WEIGHT VALUE: 100 lb (45 kg)

• CONSTRUCTION: Constructed from coated extruded aluminum, this all purpose roof rack is offered in two model specific variants: Sprinter 144 High Roof, and 170 High Roof. The rack uses molded structural components and a high strength to weight design to provide a rigid, lightweight platform suitable for a wide range of roof mounted equipment.

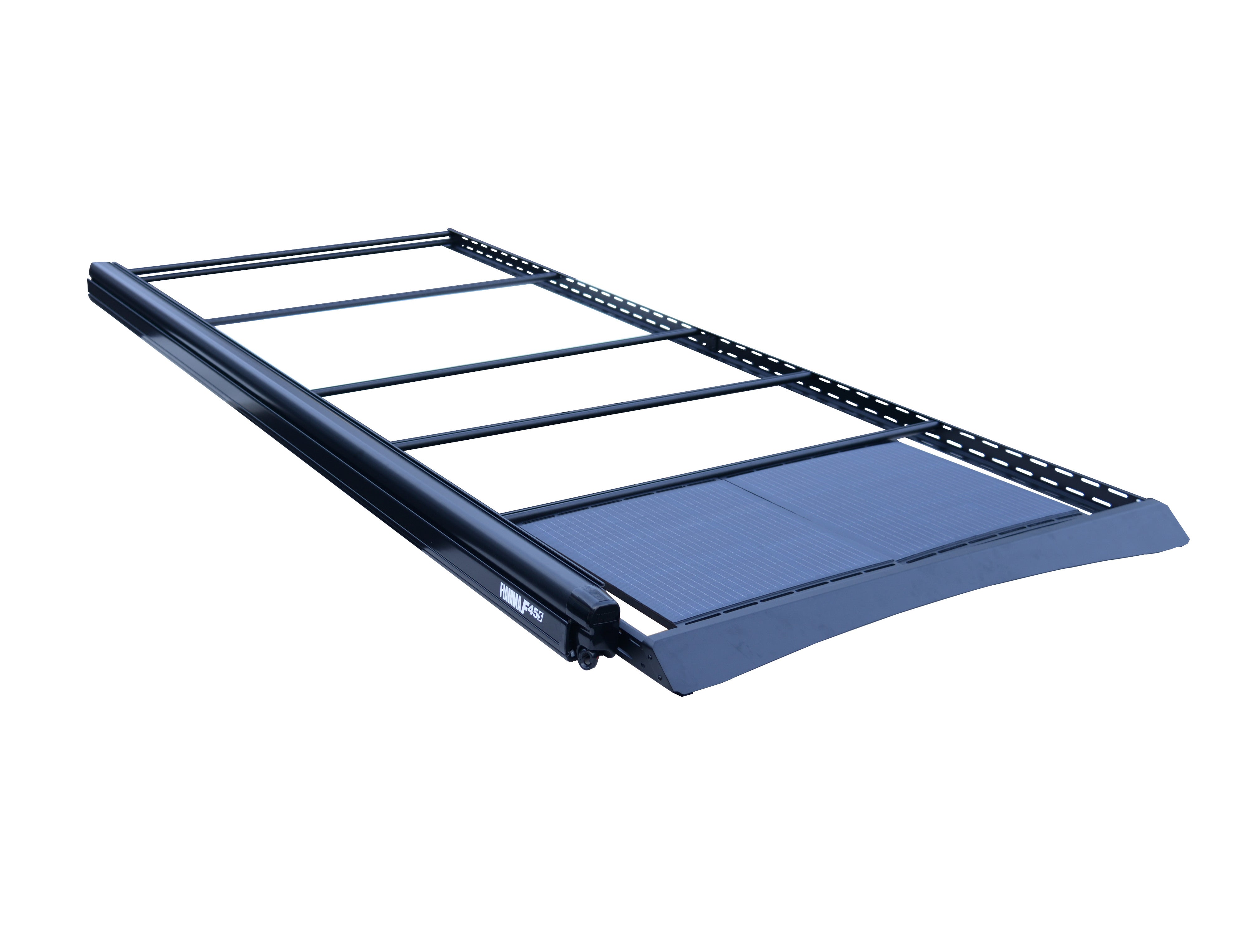

• INSTALLATION: The modular layout allows crossbars to be repositioned as needed, enabling installations such as solar panels, rooftop decking , awnings, Starlink mounts , and more. Laser cut openings along the side panels help reduce overall weight and improve airflow beneath mounted components. An aerodynamic front fairing is included to reduce wind resistance at speed.

• FITMENT: All required mounting hardware to attach the rack to roof rails is supplied, and installation can be completed using standard tools. Compatible roof rails (including Mercedes OEM or aftermarket equivalents) are required for installation and are not included. Accessory items such as roof decks and Starlink brackets are available as addons.

• ROOF SYSTEM: 1. Which Sprinter models and years does this roof rack fit?

• FITMENT: The roof rack fits 2007+ Sprinter 144" and 170" high roof models.

• INSTALLATION: 2. Does this rack install onto the factory roof mounting points, and does installation require any drilling or modification?

• INSTALLATION: The rack mounts directly onto the Sprinter's factory roof rails. If your vehicle is not equipped with roof rails, a roof rail kit must be installed first. We recommend the Tec Vanlife roof rails sold separately in this store, which install without drilling or permanent modification.

• INSTALLATION: 3. Can this roof rack be installed by one person, what tools are required, and how long does installation typically take?

• INSTALLATION: Installation can be completed by a single person using basic hex wrenches and a 13 mm wrench. The typical installation time is approximately 2 hours.

• FITMENT: 4. Is this rack compatible with solar panels, roof decks, and Fiamma awnings out of the box?

• INSTALLATION: Yes. Solar panels, Fiamma awnings, and roof decks can be mounted. The Fiamma awning bracket is included in the product package. Other mounting accessories requires the appropriate brackets or hardware, which are available separately in this store.

• ROOF SYSTEM: 5. Will this roof rack interfere with the factory antenna, roof vents, or cabling channels?

• ROOF SYSTEM: No. The crossbars can be positioned freely and will not interfere with vents, AC units, or interior wiring.

• ROOF SYSTEM: 6. How does this roof rack affect fuel economy and wind noise at highway speeds?

• VENTILATION: Fuel consumption will increase slightly at highway speeds due to added wind resistance. Since the majority of airflow occurs at the front of the vehicle, the rack includes a front fairing designed to divert air above and below the rack structure. This prevents air from becoming trapped between the crossbars, eliminating the turbulence that typically causes whistling or shaking

• AT HIGHWAY SPEEDS: at highway speeds.

• INSTALLATION: Regular inspections and hardware checks are critical to keeping your rack safe and reliable over the long term. Always stay within the maximum roof load specified by the vehicle manufacturer and use all available attachment points on the van roof to distribute weight properly. After installation, recheck and retighten all hardware at approximately 100 miles, and then every 600

• MAINTENANCE: miles thereafter. At the same time, inspect the overall integrity of the rack every 600 miles or at least once a month, whichever comes first.

FEATURES

• ALUMINUM CONSTRUCTION: Uses the source-listed extrusion, formed aluminum, coating, and weight-saving design.

• ADJUSTABLE LAYOUT: Supports configurable crossbar, deck-panel, T-slot, L-track, or accessory positioning.

• ROOF-RAIL MOUNTING: Preserves the factory or aftermarket rail requirements and included hardware notes.

COMMON PAIRINGS

• SOLAR AND VENTILATION: Map panels, fans, air conditioners, and cable routes before assembly.

• AWNING SYSTEM: Confirm Fiamma or other awning compatibility and curb-side clearance where stated.

• ROOF DECK PANELS: Use compatible panels and hardware while respecting rack and vehicle load limits.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter fitment shown in the technical specifications; universal 8020 deck-panel use applies only where explicitly stated.

• WHEELBASE: Select the listed Sprinter 144 or 170 configuration where variants are offered.

• ROOF HEIGHT: High-roof fitment where stated; confirm rail spacing, fan and A/C clearance, and overall vehicle height.

• REQUIREMENTS: Requires compatible roof rails or 8020 crossbars, correct wheelbase selection, safe load planning, and clearance around every rooftop component.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Are roof rails included?

A: No, where the source states factory or aftermarket rails are required, they are not included.

Q: Can the layout work around fans and solar?

A: Yes, adjustable crossbars or modular panels allow placement around rooftop equipment within the listed system limits.

Q: Are the deck panels walkable?

A: The source describes them as stable access surfaces for foot traffic; use only with proper mounting and load planning.

Q: What should be mapped first?

A: West Coast Vans recommends mapping fans, solar, air conditioning, awnings, cable routes, and walking paths before assembly.
