At West Coast Vans, we would rather hear a skid plate meet the trail than an oil pan do it. This 3/16-inch aluminum shield protects the oil pan, steering rack, and subframe on 2019+ 4x4 or AWD Sprinters; Ask Us Product Questions Anytime before selecting your drivetrain.

WCV EXPERT TIP

Confirm 4x4 versus AWD fitment before lifting the van, then loosely start every fastener before final alignment and torque.

PRODUCT OVERVIEW

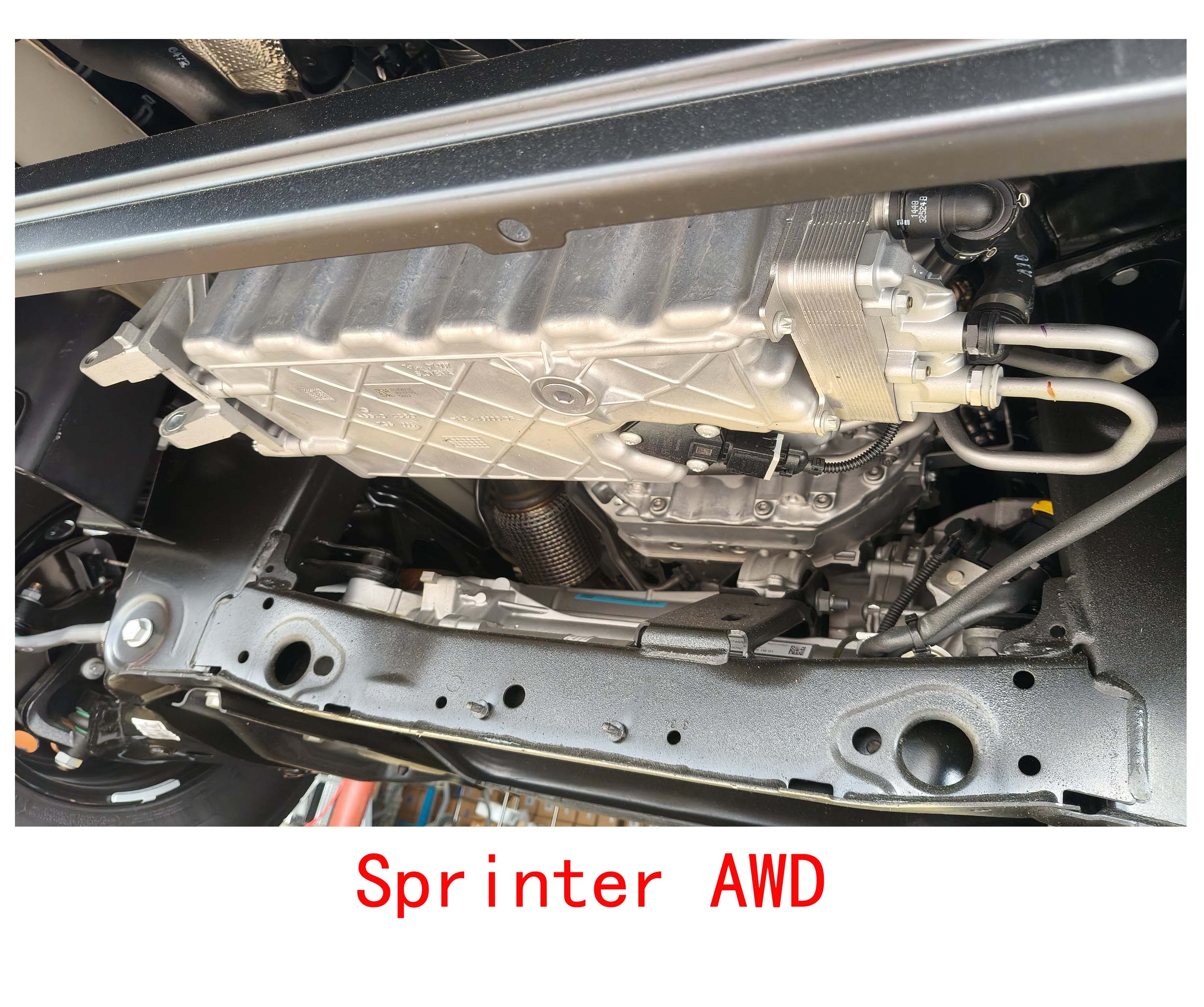

Tec Vanlife 2019+ Sprinter Skid Plate - Engine Protection protects the oil pan, power-steering rack, and subframe on the listed 2019+ Sprinter drivetrain.

The 3/16-inch aluminum plate balances coverage, corrosion resistance, and an 18.6-pound installed component weight.

BEST FOR

• ROUGH-ROAD SPRINTERS: Adds protection against rocks, roots, snow, ice, and road debris.

• 4X4 OR AWD BUILDS: Available in drivetrain-specific 2019+ Sprinter variants.

• LIGHTWEIGHT UNDERBODY PROTECTION: Uses aluminum to limit added weight while covering vulnerable components.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

• PRODUCT: 2019+ Sprinter Skid Plate - Engine Protection

• STYLE: Fits 4x4 Sprinter, Fits AWD Sprinter

• SHIPPING: FREE Shipping to Lower 48 states.

• HIGH-STRENGTH ALUMINUM: Made from 3/16" thick high-strength aluminum, this skid plate provides superior durability and protection while maintaining a lightweight profile.

• COMPREHENSIVE PROTECTION: Shields the oil pan, power steering rack, and subframe from rocks, logs, roots, snow, ice, and all types of debris, ensuring your vehicle remains in top condition.

• CORROSION RESISTANCE: The aluminum construction offers excellent corrosion resistance, prolonging the life of the skid plate and maintaining its protective qualities.

• COMPATIBILITY: Specifically designed to fit 2019+ Sprinter models, including both 4x4 and AWD variants, ensuring a precise fit and seamless integration with your vehicle.

• LIGHTWEIGHT DESIGN: The lightweight nature of aluminum ensures minimal impact on your vehicle's performance and fuel efficiency.

• EASY INSTALLATION: Engineered for straightforward installation, allowing you to enhance your vehicle's protection quickly and easily without professional assistance.

• DIMENSION: 41" x 23 1/4" x 4"

• THICKNESS: 3/16"

• WEIGHT PER UNIT: 18.6 lbs

• INSTALLATION: Installation Instructions:

• PREP THE VAN: 1. Prep the Van

• PARK ON A LEVEL SURFACE AND: Park on a level surface and engage the parking brake.

• RAISE THE FRONT OF THE VAN: Raise the front of the van with a jack and secure it with jack stands, or use a lift for easier access.

• INSTALLATION: 2. Front Mounting - Factory Bolt Points

• LIFT THE SKID PLATE INTO POSITION: Lift the skid plate into position under the engine bay.

• ALIGN THE FRONT HOLES OF THE: Align the front holes of the skid plate with the pre-threaded factory frame holes on the front crossmember.

• INSERT FACTORY BOLTS OR REUSE EXISTING: Insert factory bolts (or reuse existing bolts if removed).

• HAND TIGHTEN TO HOLD IN PLACE: Hand-tighten to hold in place.

• INSTALLATION: 3. Rear Mounting - Suspension Subframe

• ALIGN THE REAR HOLES OF THE: Align the rear holes of the skid plate to the factory holes near the lower control arm/suspension area:

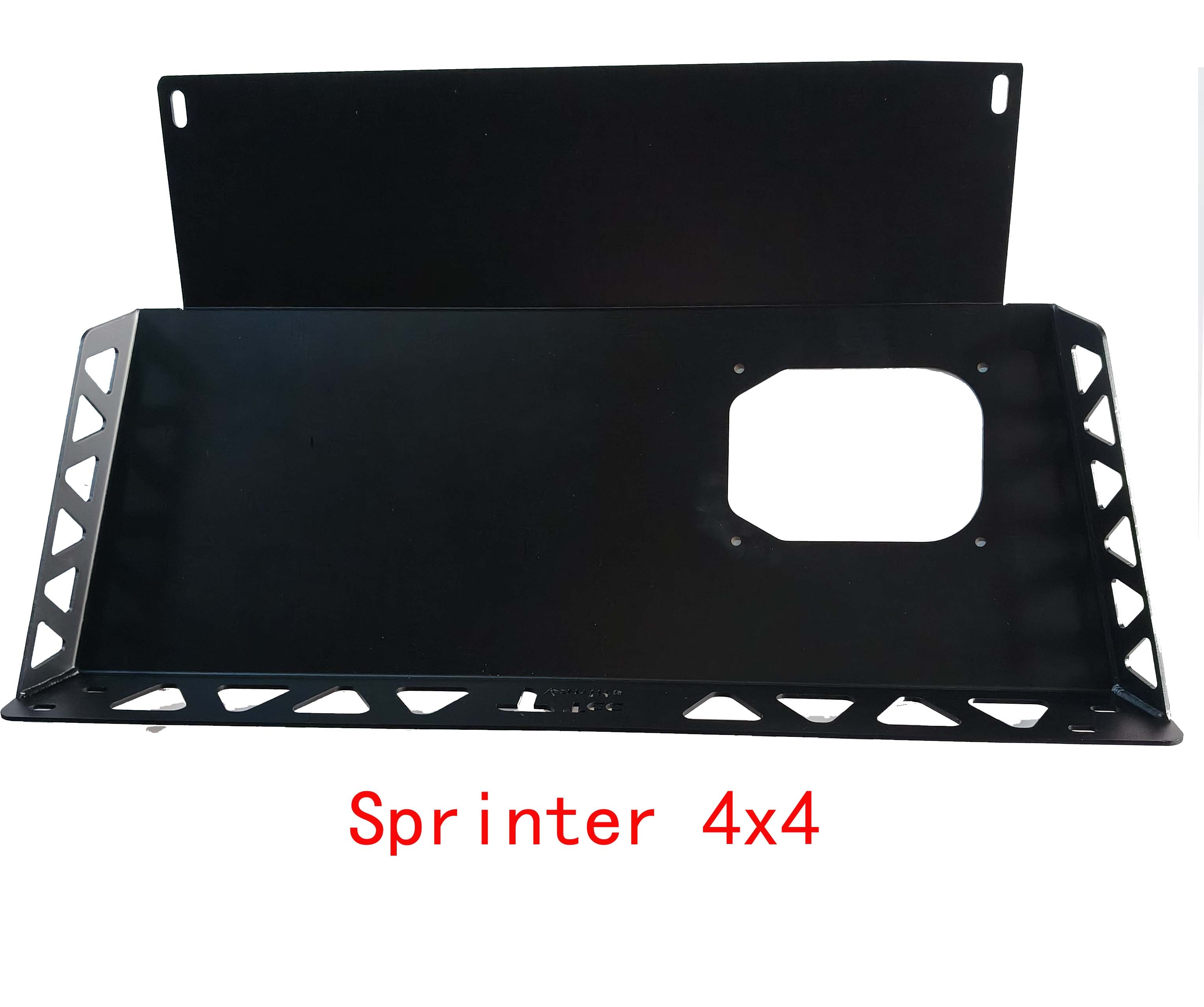

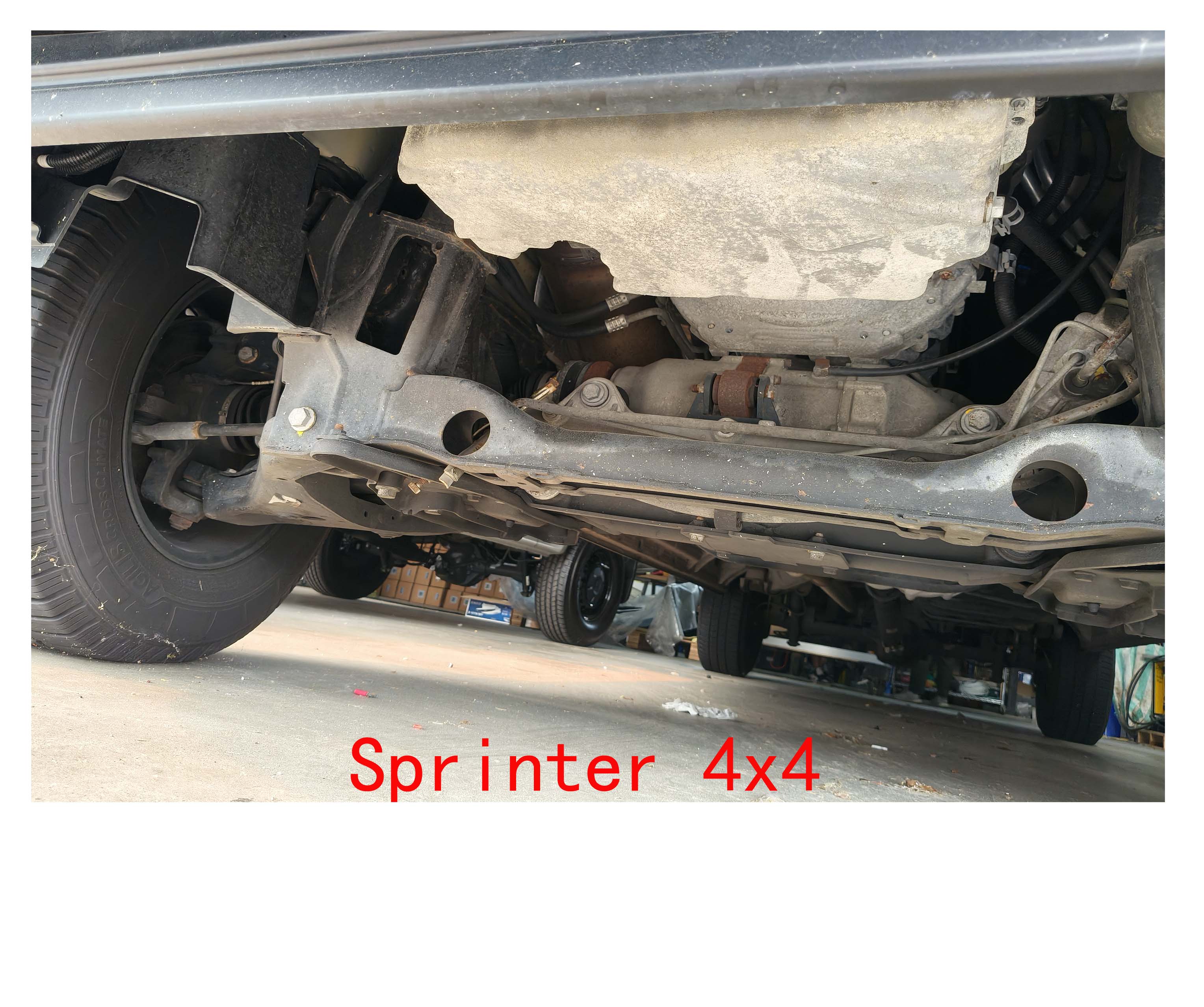

• 4X4 SPRINTER (2019-2022): Rear bolt holes sit wider apart.

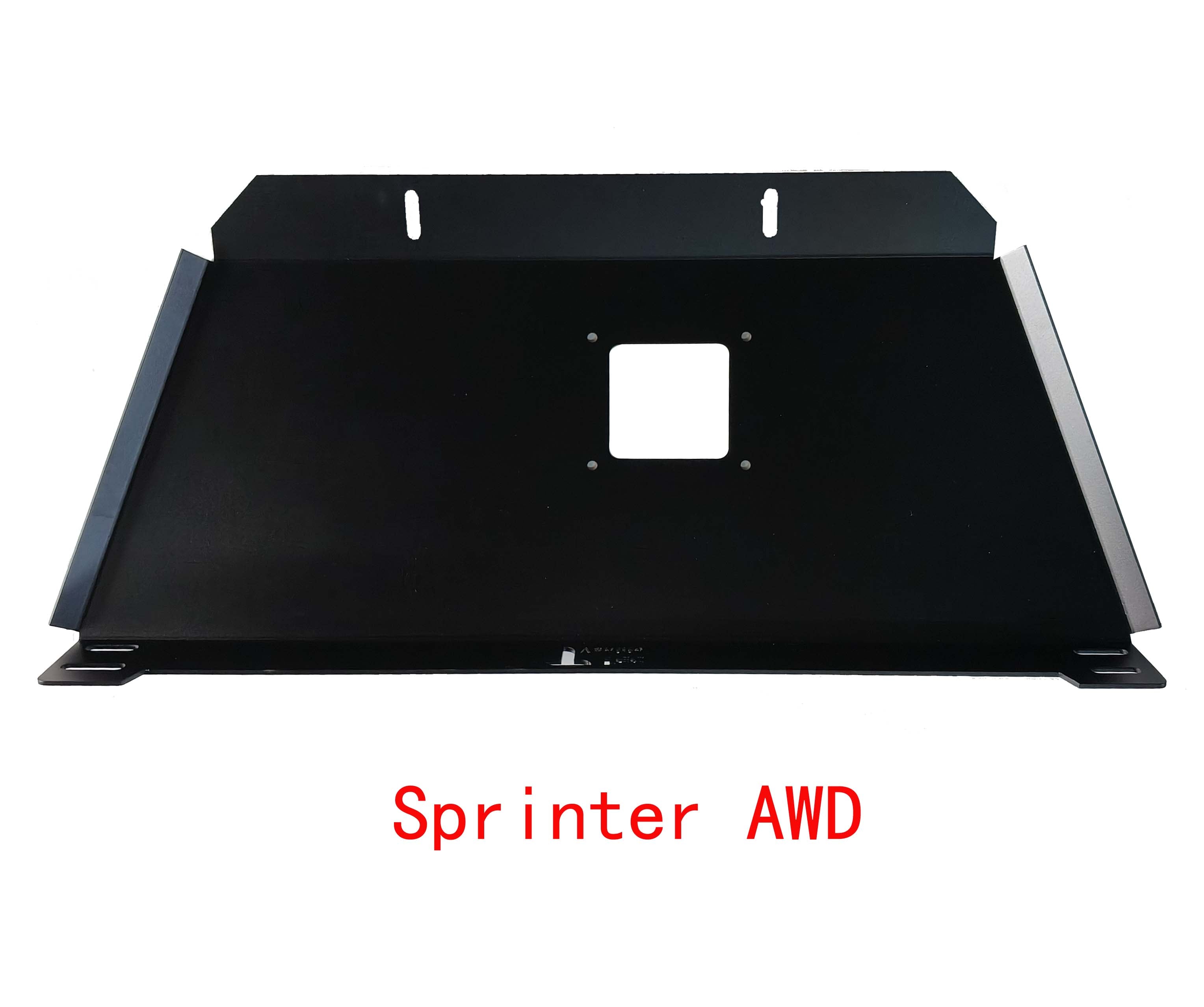

• AWD SPRINTER REAR BOLT HOLES ARE: AWD Sprinter (2023+): Rear bolt holes are closer together and slightly forward.

• INCLUDED COMPONENTS: Insert the two included bolts into these rear frame points.

• HAND TIGHTEN INITIALLY: Hand-tighten initially.

• FINAL TORQUE: 4. Final Torque

• VERIFY THE SKID PLATE IS CENTERED: Verify the skid plate is centered and flush against the frame.

• TORQUE ALL BOLTS FRONT AND REAR: Torque all bolts (front and rear) to 30-35 ft-lbs.

• RECHECK AFTER YOUR FIRST OFF ROAD: Recheck after your first off-road trip or 100-200 km.

• INSTALLATION: No drilling, trimming, or bracket installation required.

• FITMENT: Compatible with stock engine splash guards and aftermarket lift kits.

• DESIGN NOTE: Designed to protect oil pan, crossmember, and steering components.

• CONSTRUCTION: Upgrade your Sprinter's protection with the Sprinter Engine Skid Plate, meticulously crafted from 3/16" thick high-strength, lightweight aluminum. Designed to safeguard your vehicle's engine and essential components, this skid plate is the ultimate shield against tough terrain and road debris.

• CONSTRUCTION: Equip your 2019+ Sprinter with our Engine Skid Plate and drive with confidence, knowing your engine and critical components are protected by high-strength, lightweight aluminum. Whether tackling rugged trails or navigating daily roads, ensure your Sprinter is ready for any challenge.

FEATURES

• 3/16-INCH ALUMINUM: Uses the source-listed plate thickness and corrosion-resistant material.

• MULTI-COMPONENT COVERAGE: Shields the oil pan, steering rack, and subframe.

• DRIVETRAIN-SPECIFIC FIT: Separate variants are listed for 4x4 and AWD Sprinters.

COMMON PAIRINGS

• COMPATIBLE SPRINTER DRIVETRAIN: Select the exact 4x4 or AWD version.

• UNDERBODY INSPECTION: Check surrounding hoses, wiring, fasteners, and service points before installation.

• TORQUE AND SERVICE PLAN: Retorque after initial use and remove as required for vehicle service.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter, 2019 and newer.

• WHEELBASE: Not wheelbase-specific; drivetrain and underbody configuration determine fit.

• ROOF HEIGHT: All roof heights with the listed drivetrain.

• REQUIREMENTS: Select 4x4 or AWD fitment, support the vehicle safely, confirm service clearance, and follow the installation sequence.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What does the plate protect?

A: It covers the oil pan, power-steering rack, and subframe.

Q: Is it compatible with both 4x4 and AWD?

A: Yes, separate variants are offered for each drivetrain.

Q: How thick is the plate?

A: The source lists 3/16-inch aluminum.

Q: What should be checked after installation?

A: West Coast Vans recommends checking clearance and retorquing hardware after initial use.
