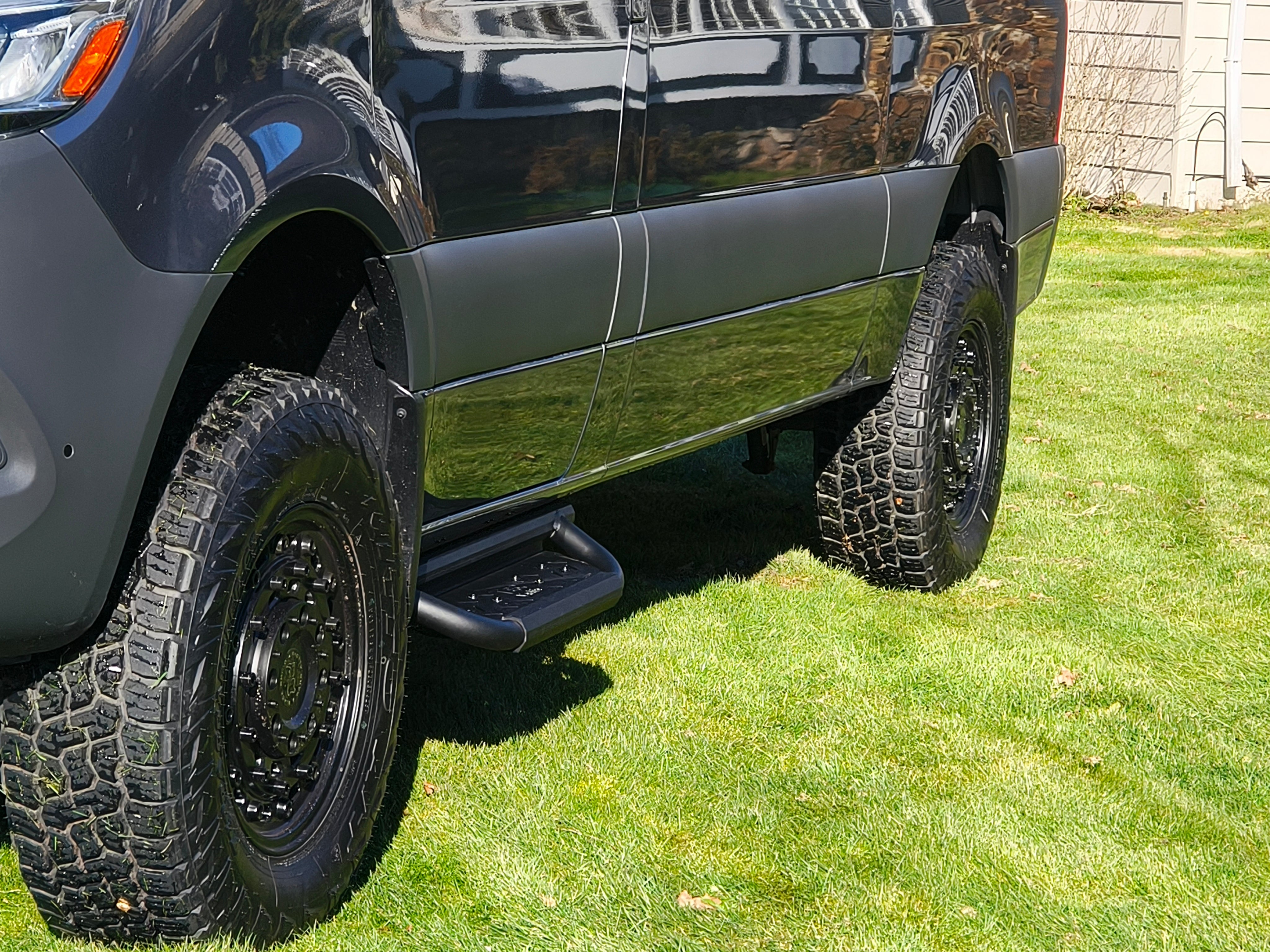

At West Coast Vans, we have learned that a muddy boot will find the smallest step on the van, usually when your hands are full. These 2007+ Sprinter Hexagon running boards use a 7.66-inch ribbed footbed and modular door-position options; Ask Us Product Questions Anytime before choosing the two-, three-, or four-piece layout.

WCV EXPERT TIP

Dry-fit every bracket before tightening and cycle doors, hitch accessories, parking sensors, and suspension clearance through their full range.

PRODUCT OVERVIEW

Tec Vanlife Sprinter Hexagon Running Boards - Modular Access improves exterior entry or rear access for the specific Sprinter or Ford Transit configuration listed below.

The source details preserve platform dimensions, hitch or bracket requirements, ground-clearance design, included hardware, sensor clearance, and any modification notes.

BEST FOR

• DAILY VAN ENTRY: Adds a more stable step surface for frequent entry and exit.

• ADVENTURE VAN ACCESS: Uses a non-slip, clearance-conscious design for outdoor and off-pavement builds.

• VEHICLE-SPECIFIC INSTALLS: Built around the listed Sprinter or Transit mounting points and hardware.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

• PRODUCT: Sprinter Hexagon Running Boards - Modular Access

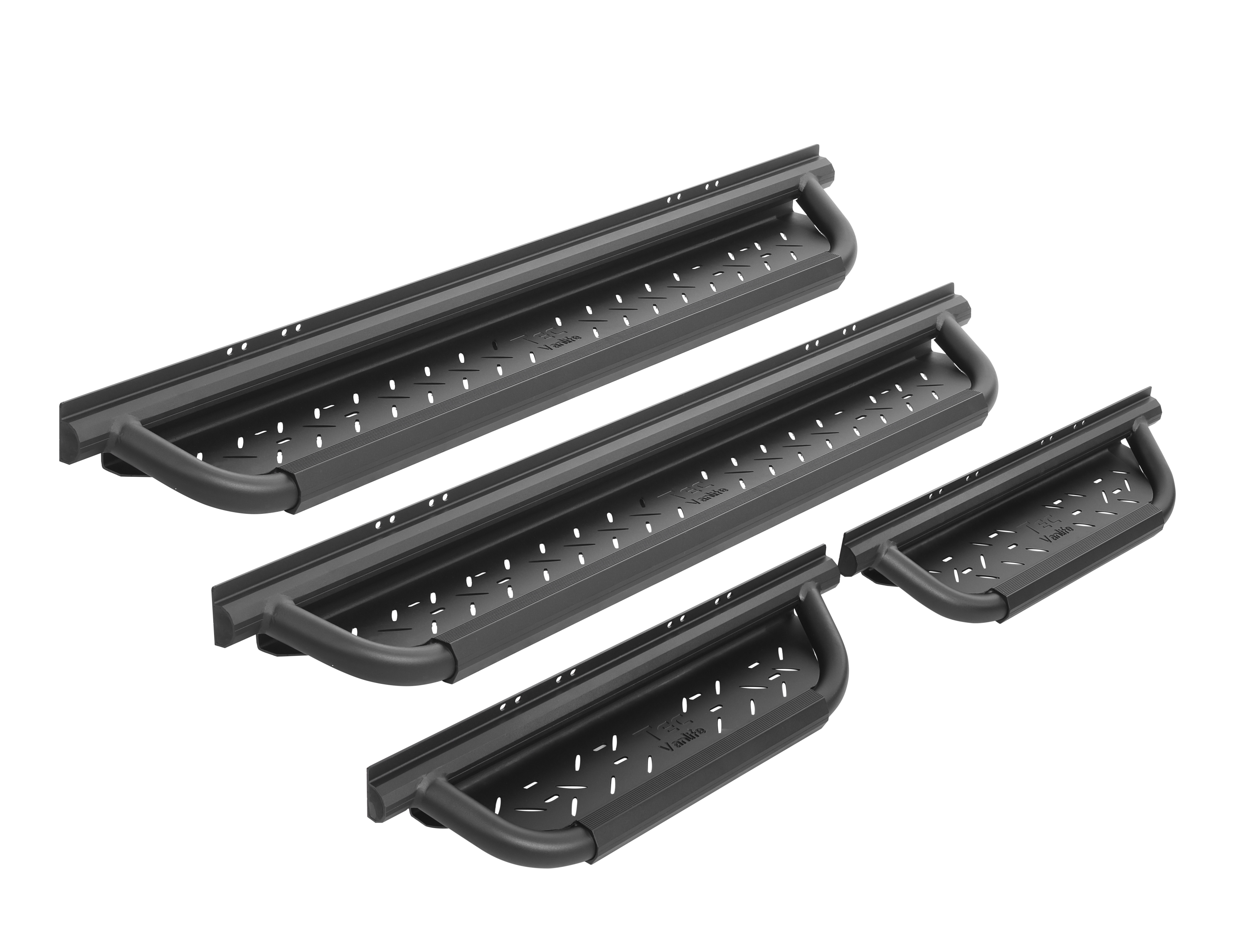

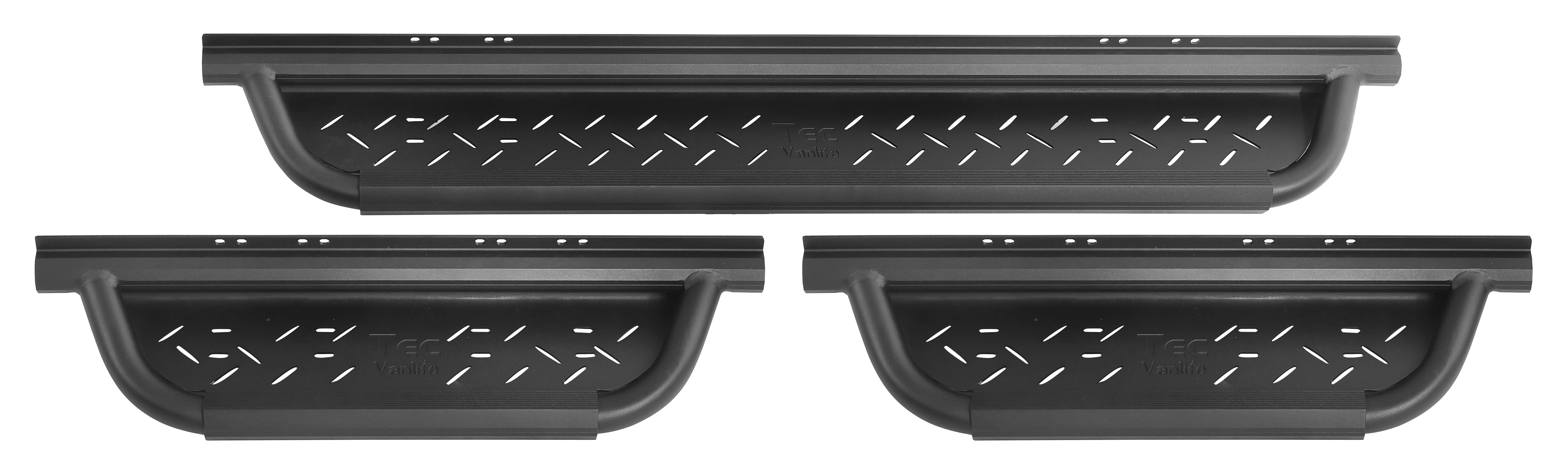

• STYLE: 3 Piece Set - Driver / Passenger / Sliding Door Steps, 2 Piece Set - Driver / Passenger, 4 Piece Set - Driver / Passenger / 2x Sliding Door Steps

• BED SYSTEM: High strength drop down running board for Sprinter vans 2007+ with a ribbed anti slip footbed.

• SHIPPING: FREE shipping to the lower 48 states.

• FITMENT: Compatible with all 2007+ Sprinter wheelbases

• CONSTRUCTION: Coated aluminum construction

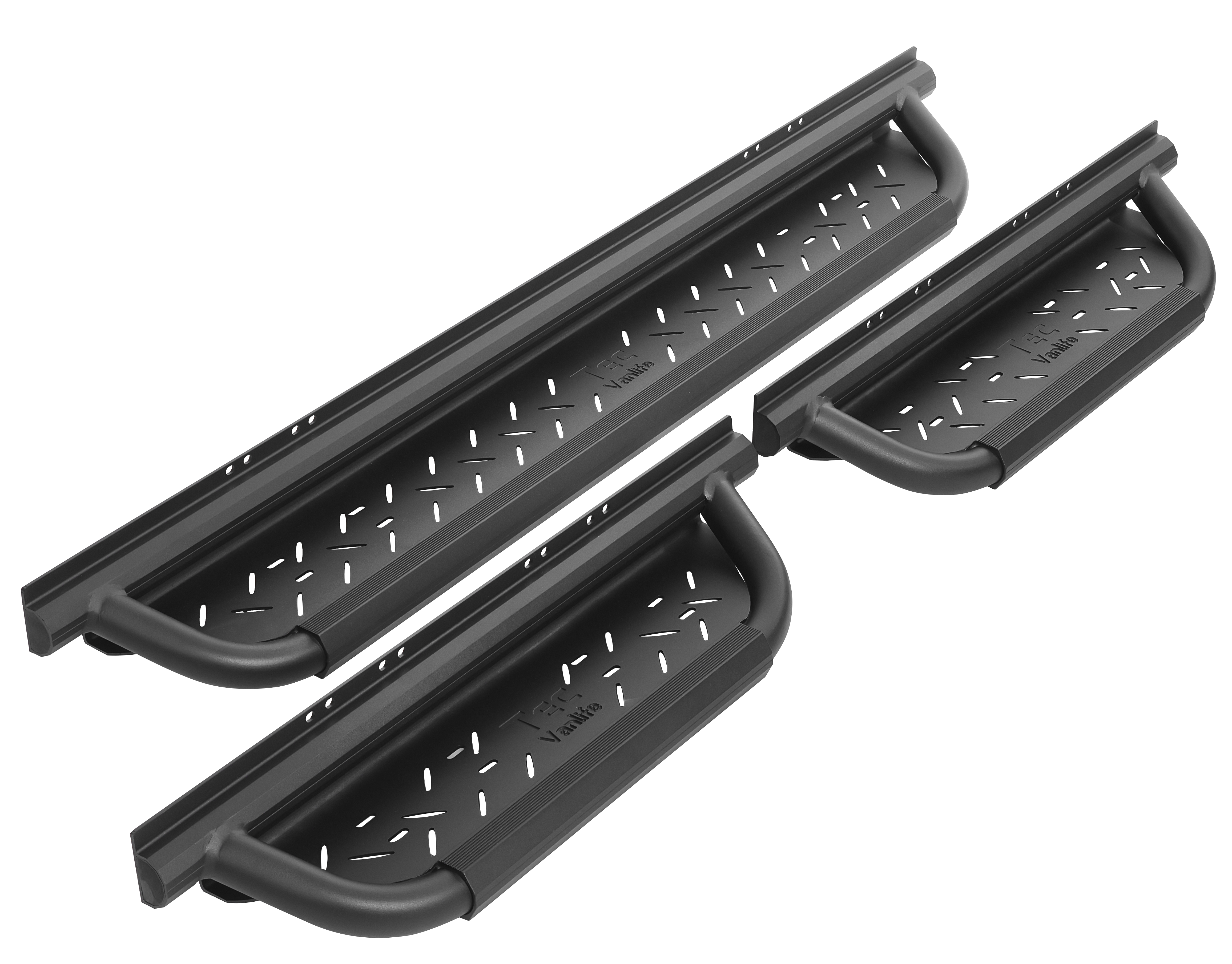

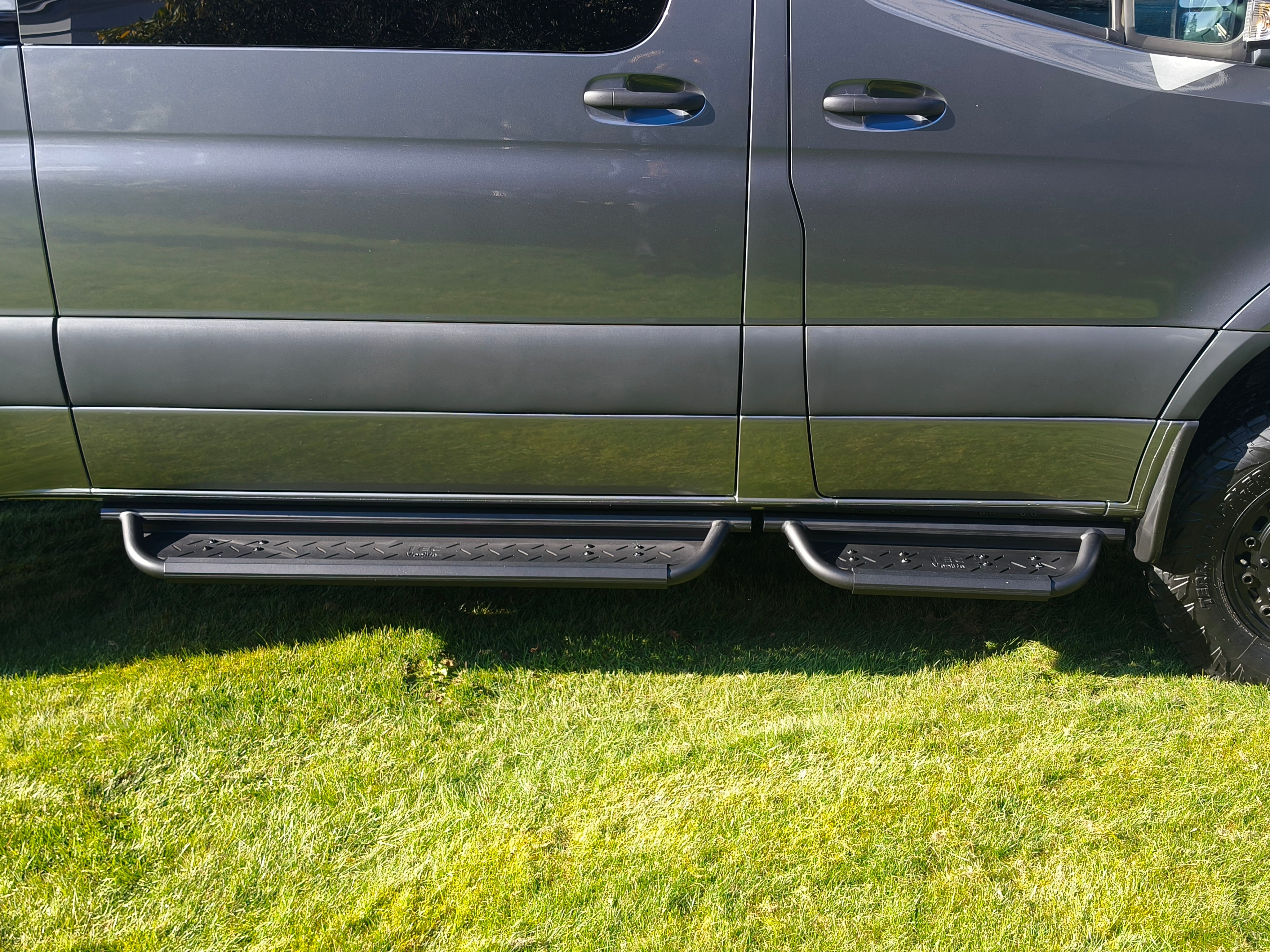

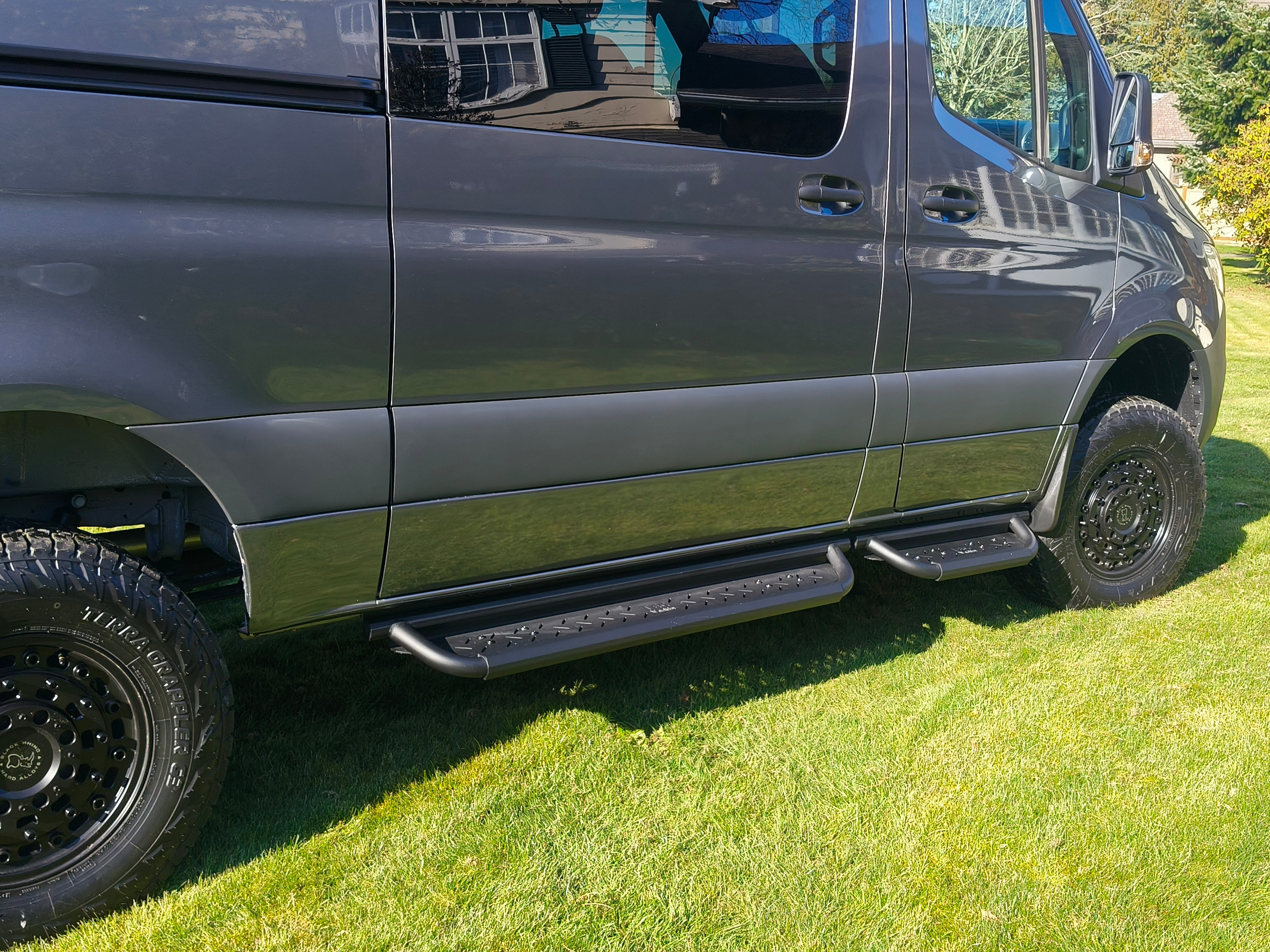

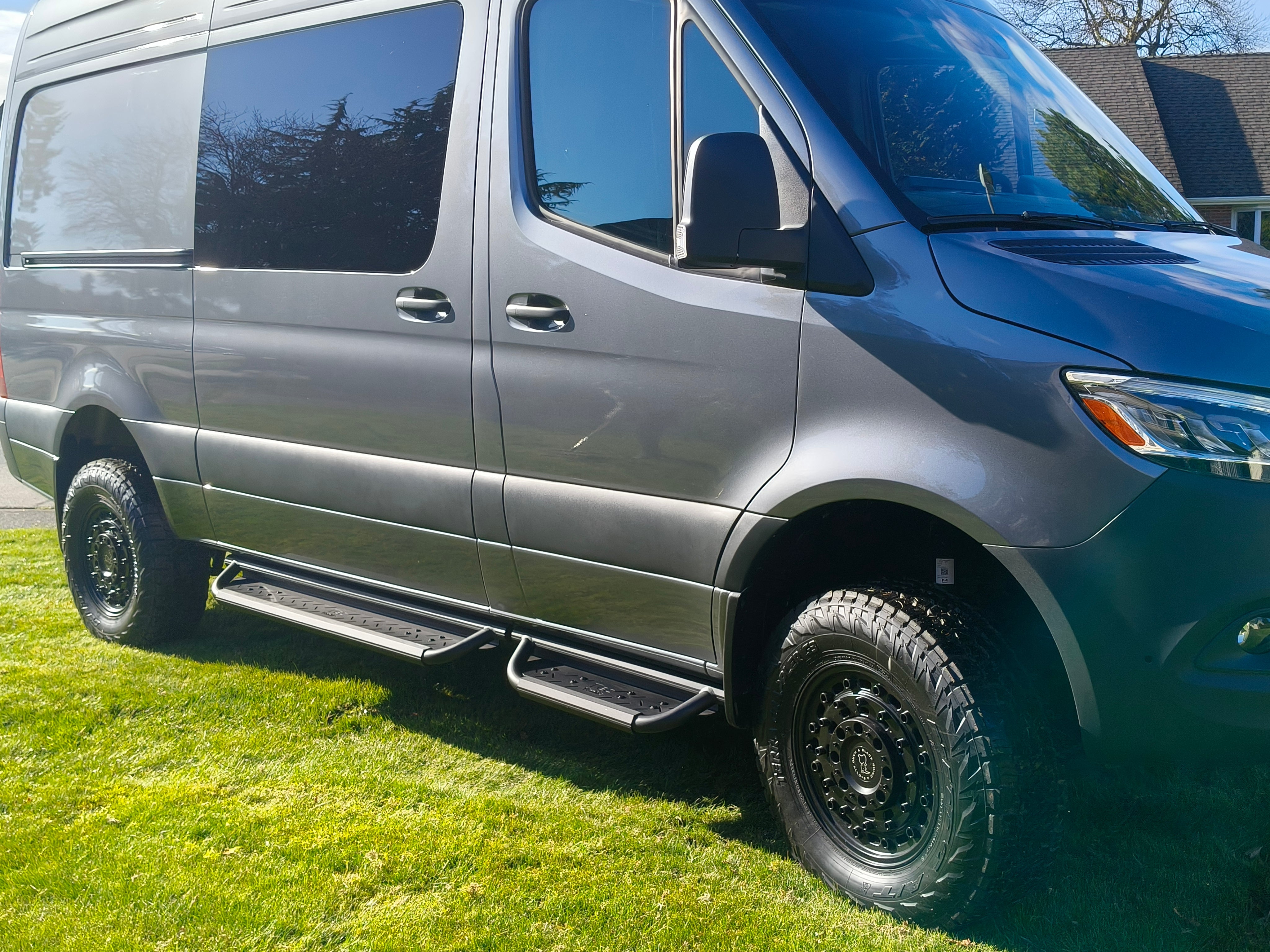

• CONFIGURATION NOTE: Modular 3 piece design for driver, passenger, and sliding door positions

• CONSTRUCTION: 1.75" aluminum tube for a solid, stable stepping platform

• BED SYSTEM: Wide 7.66" footbed for comfortable use with hiking boots

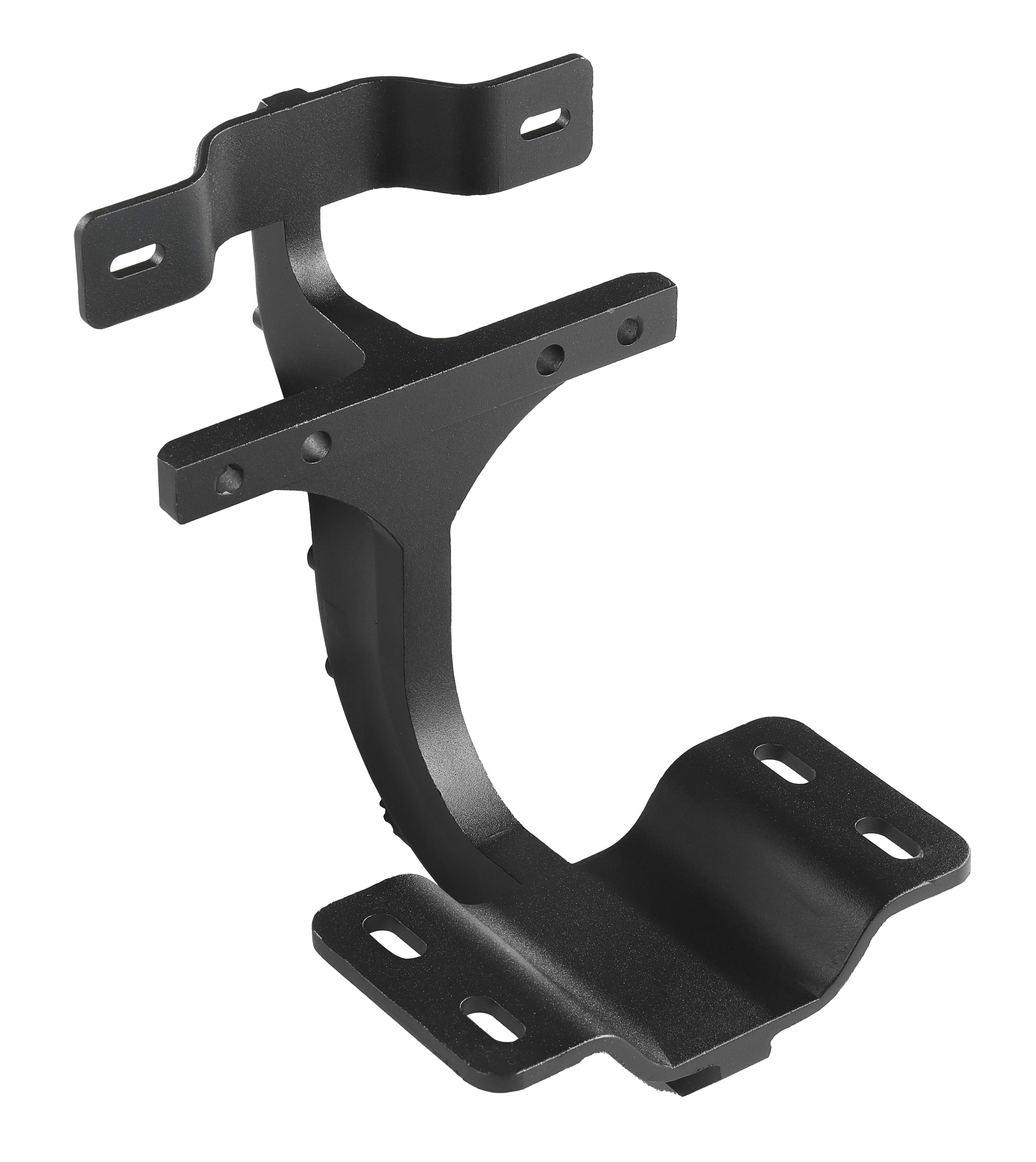

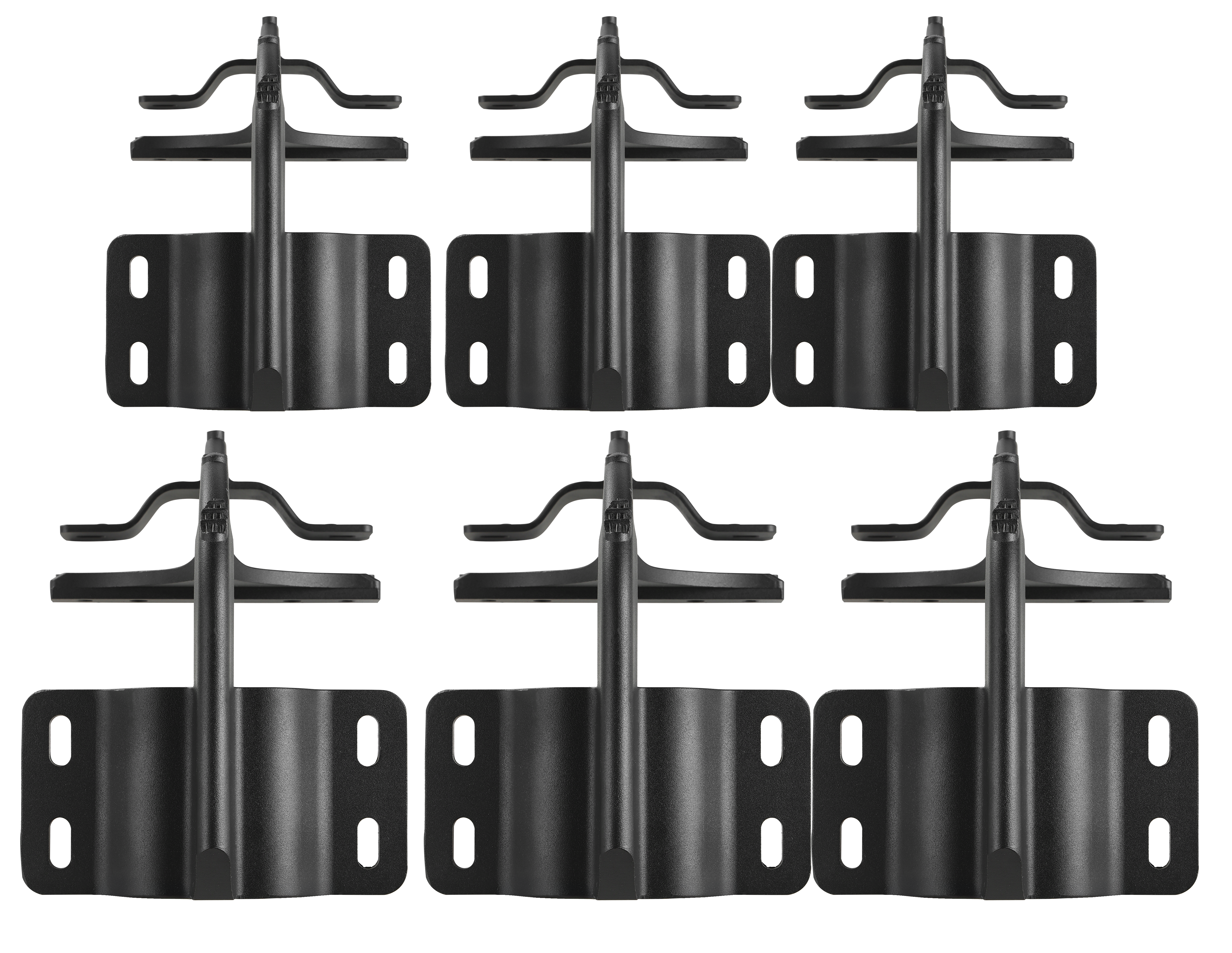

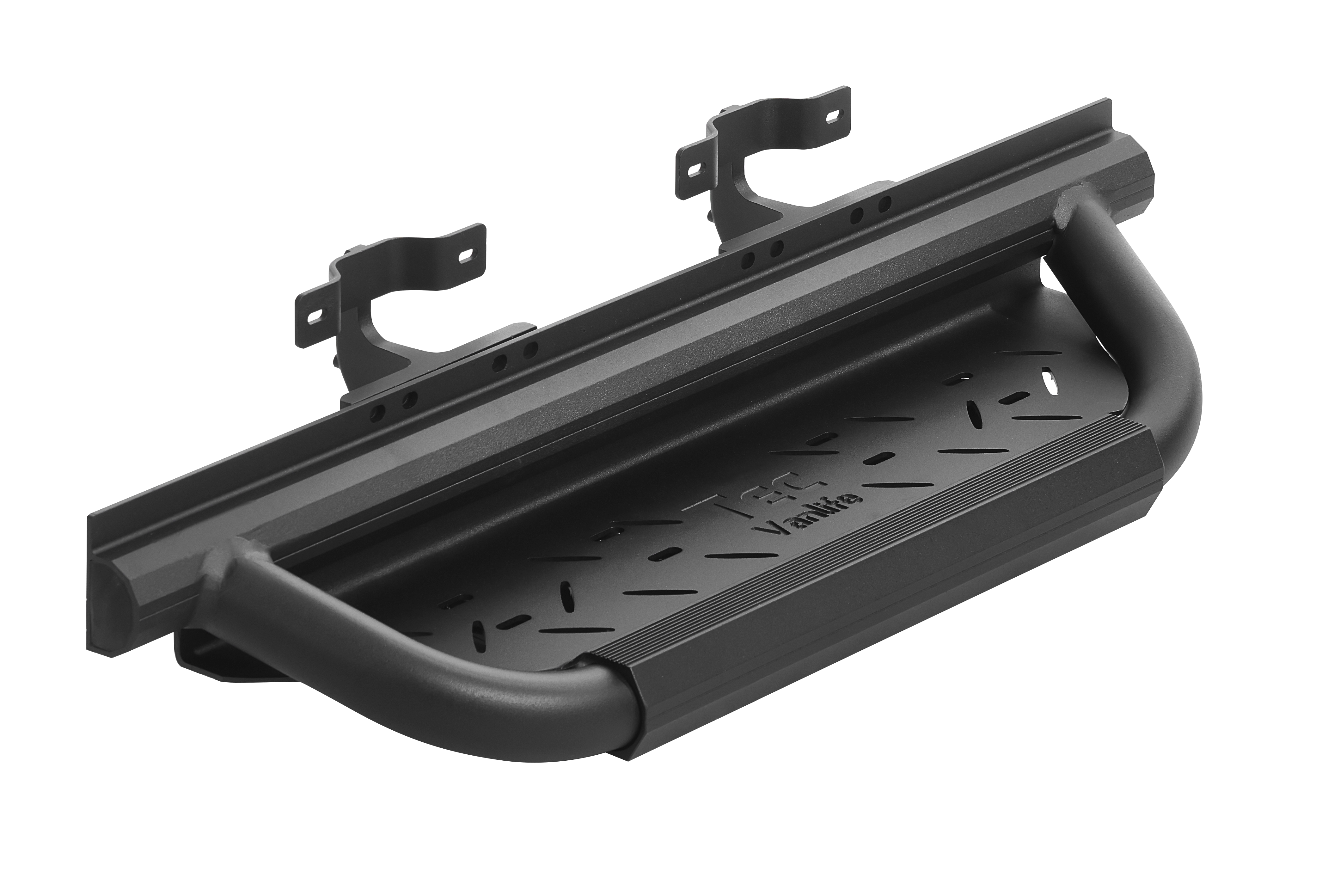

• MOLDED BRACKETS FOR MAXIMUM STRENGTH: Molded brackets for maximum strength

• BENDABLE BRACKET TABS FOR UNEVEN UNDERCOATING: Bendable bracket tabs for uneven undercoating adjustment

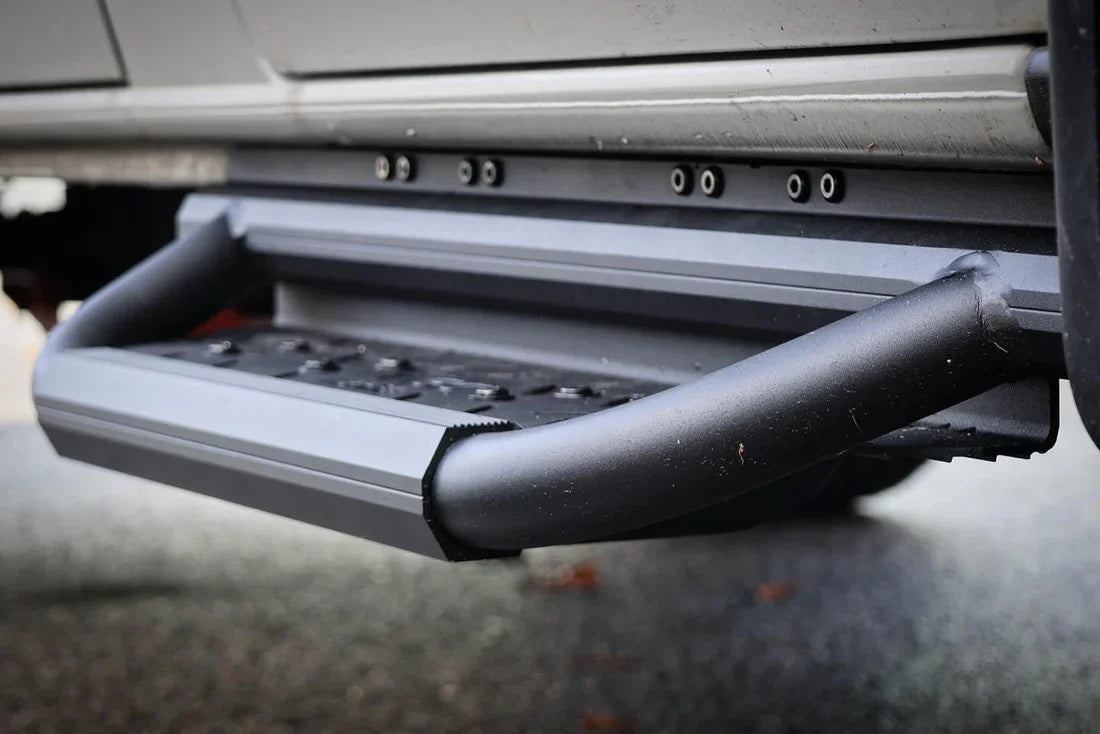

• BED SYSTEM: Ribbed surface design for anti slip traction

• INSTALLATION: Lightweight and easy to install

• INSTALLATION: Mounting hardware included

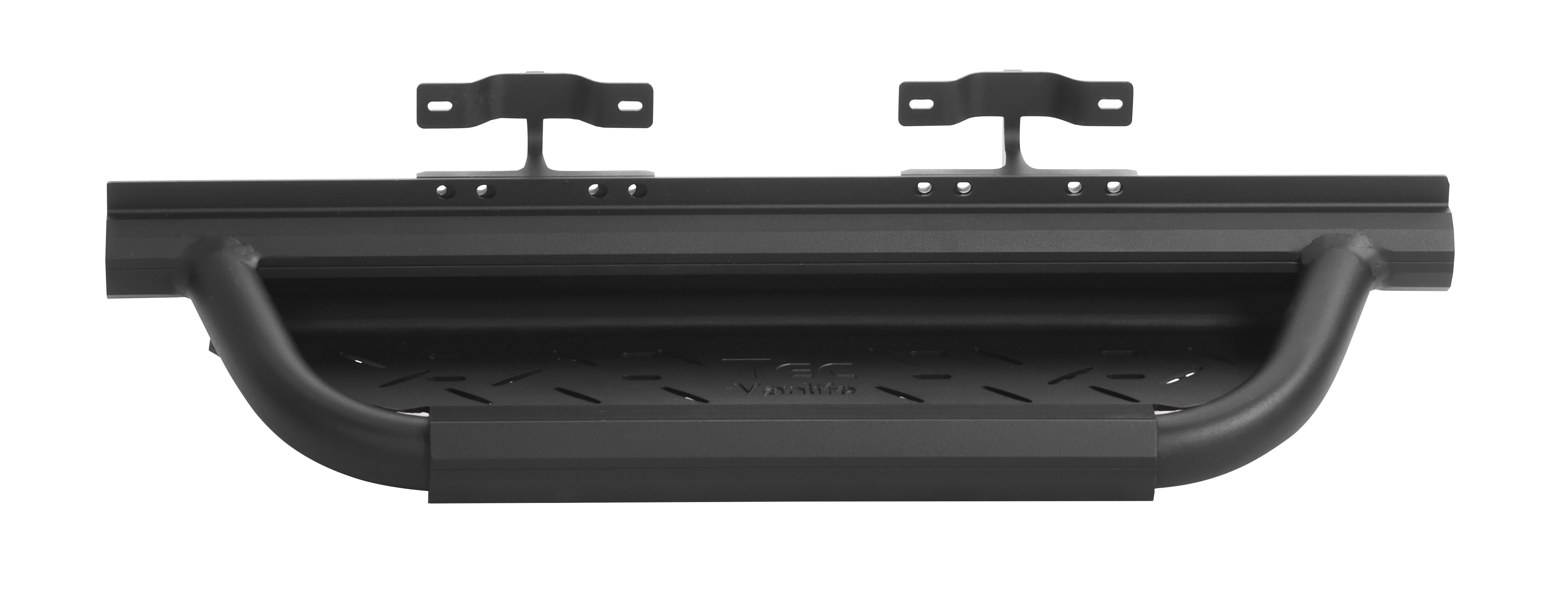

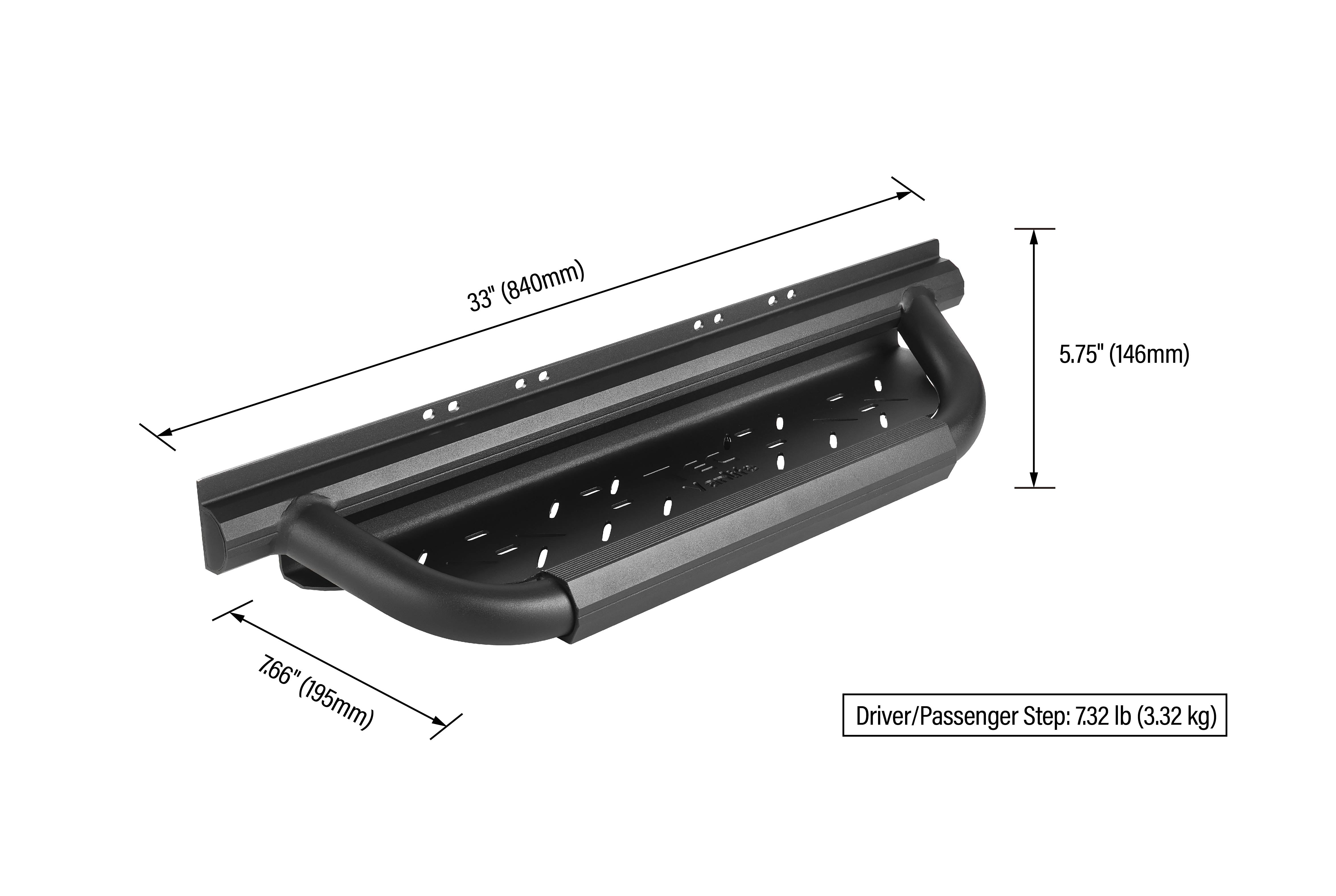

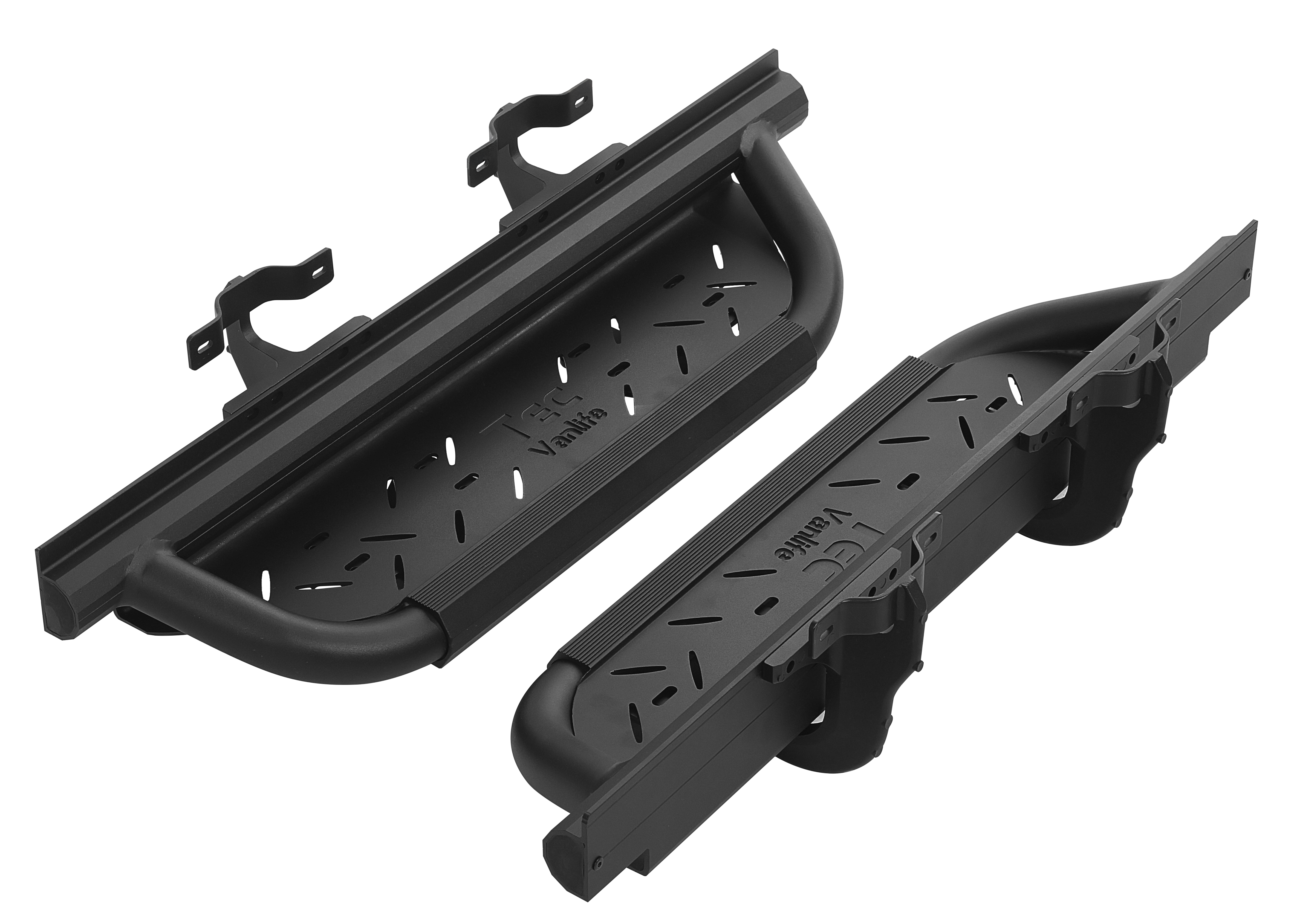

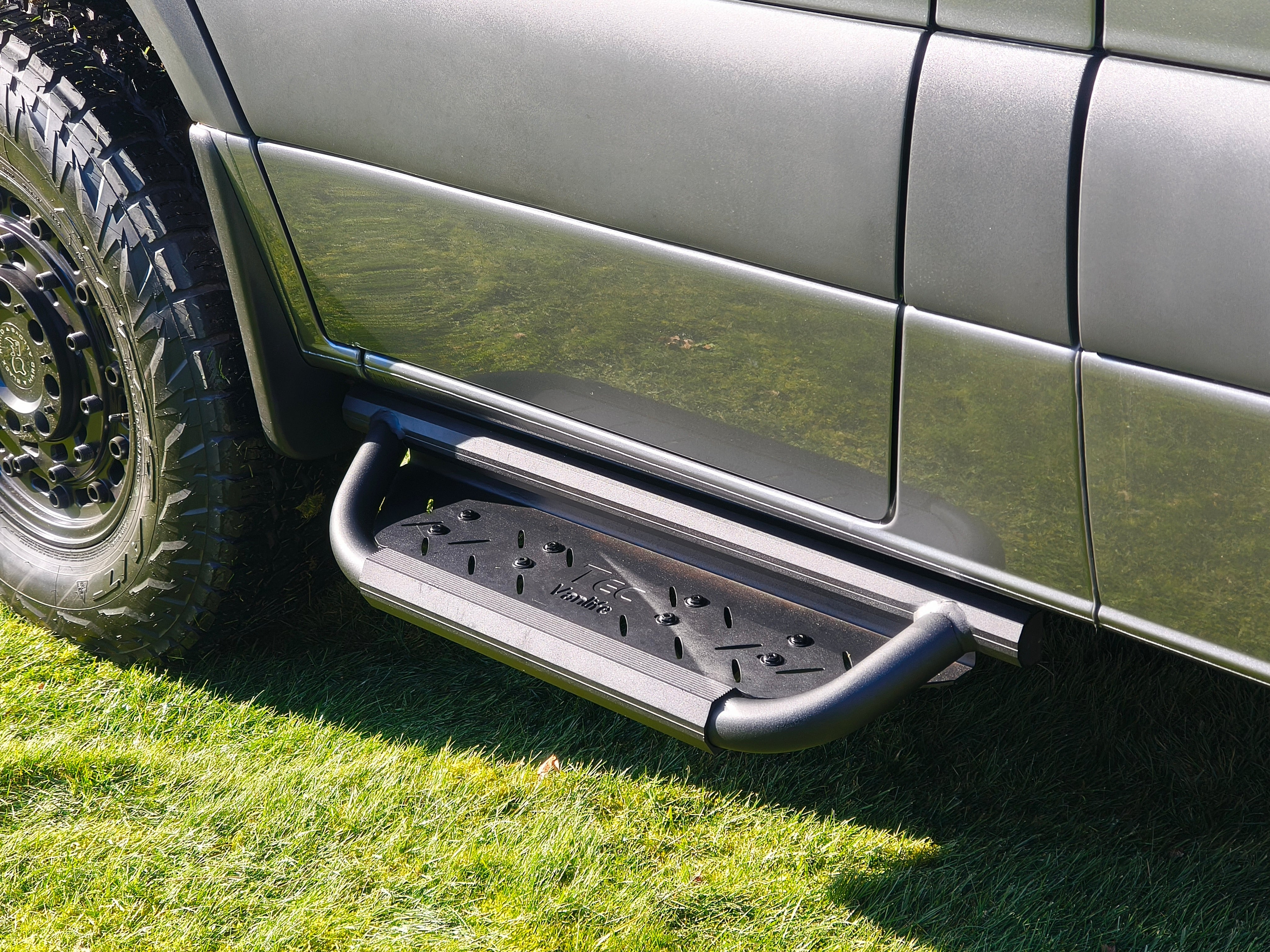

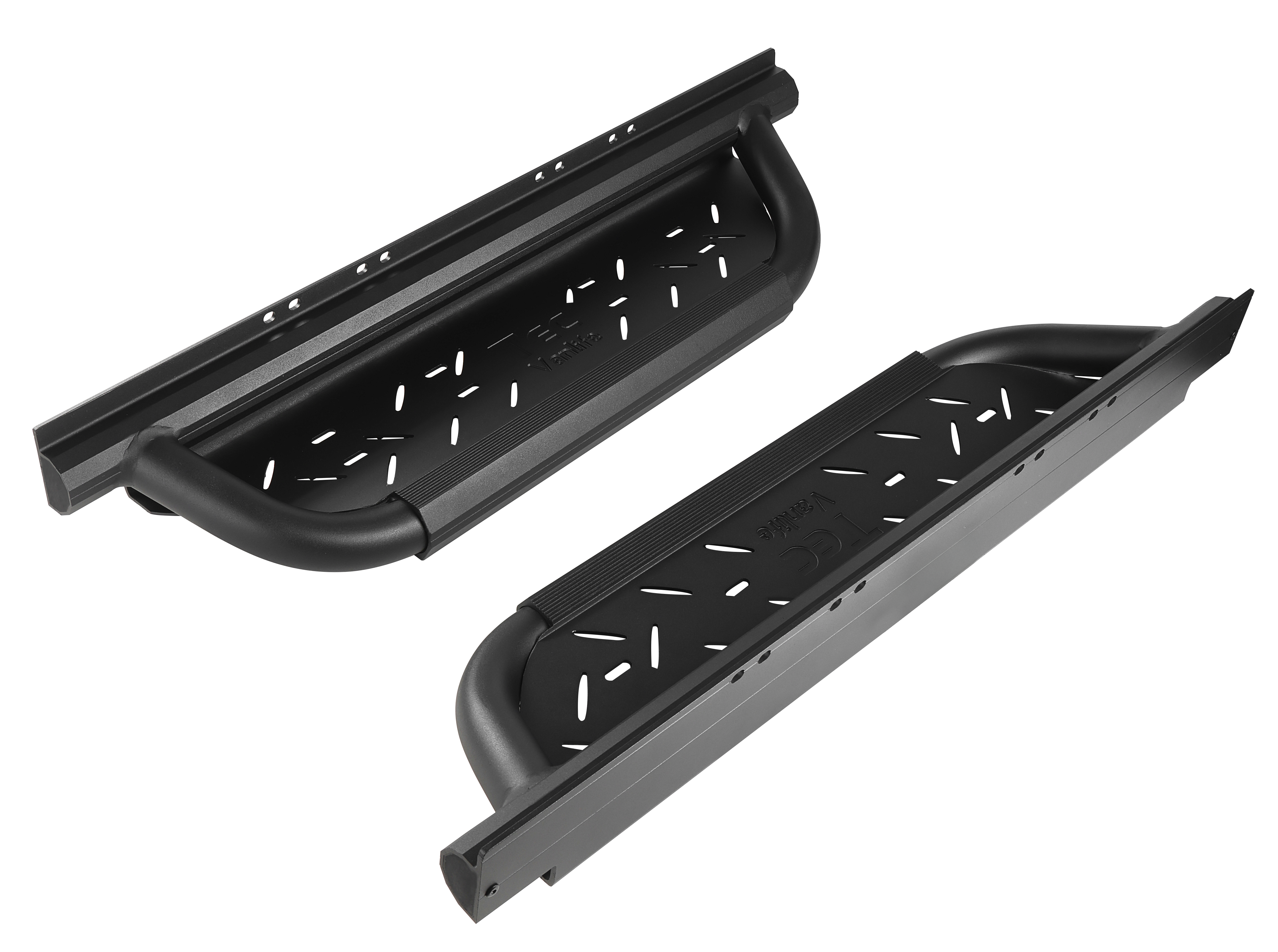

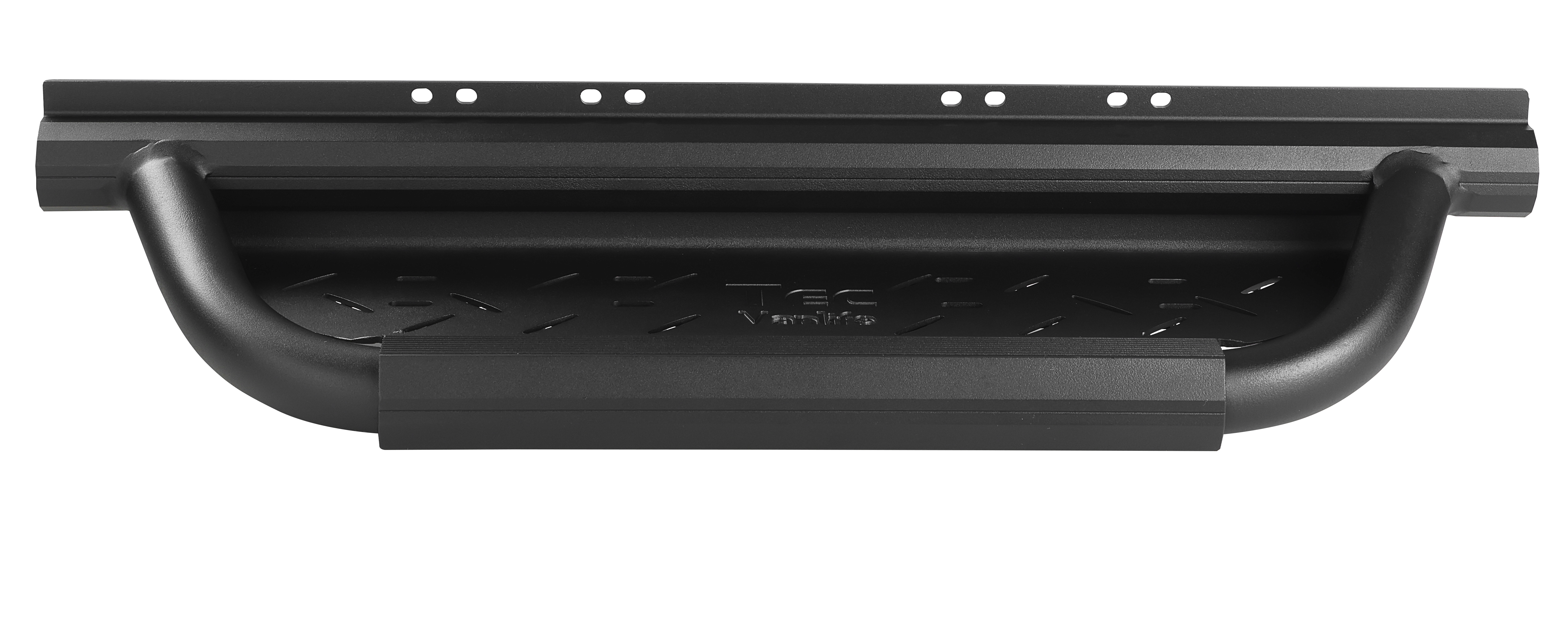

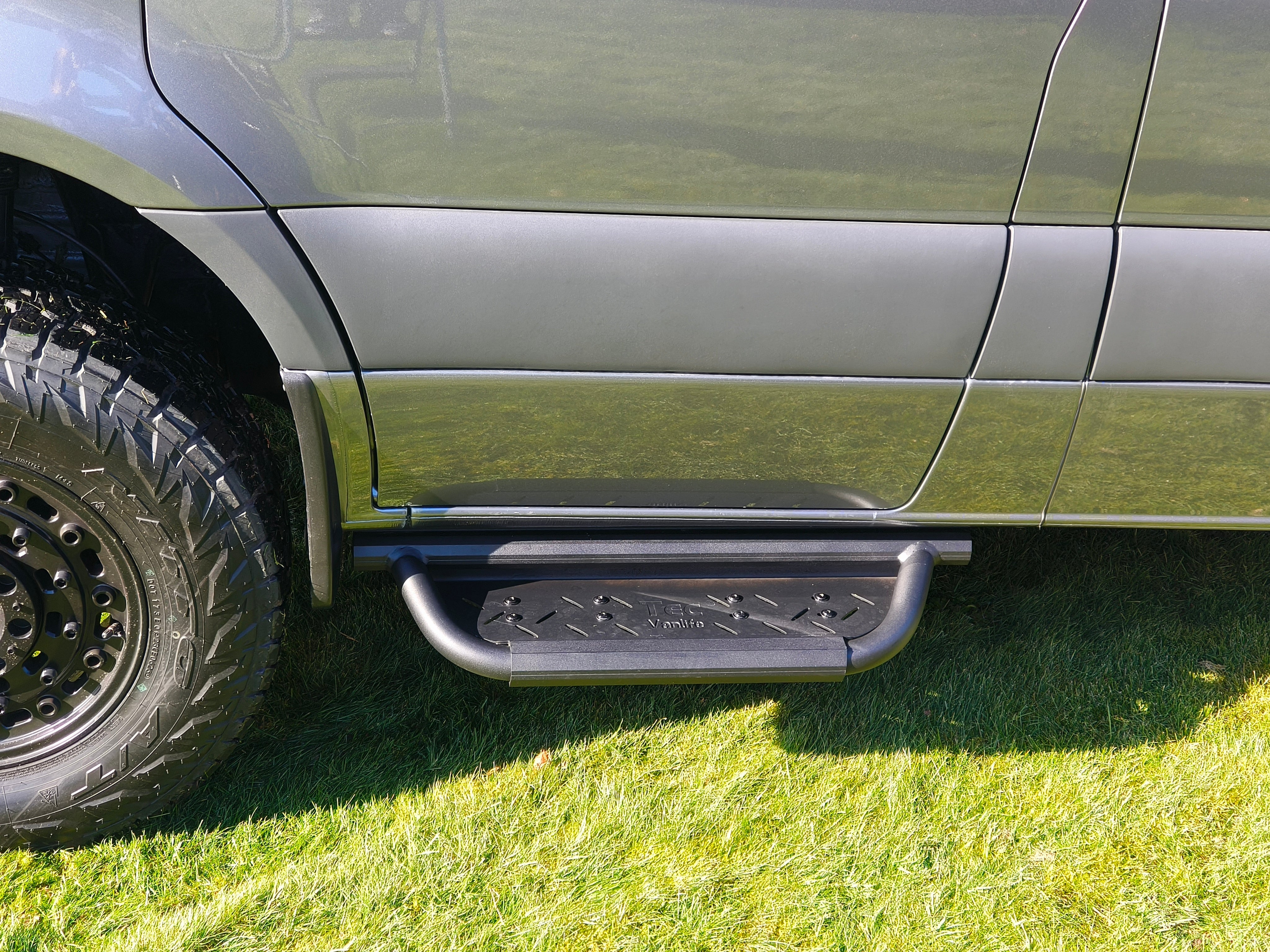

• DRIVER/PASSENGER STEP: 33" x 7.66" x 5.75" (840mm x 195mm x 146mm)

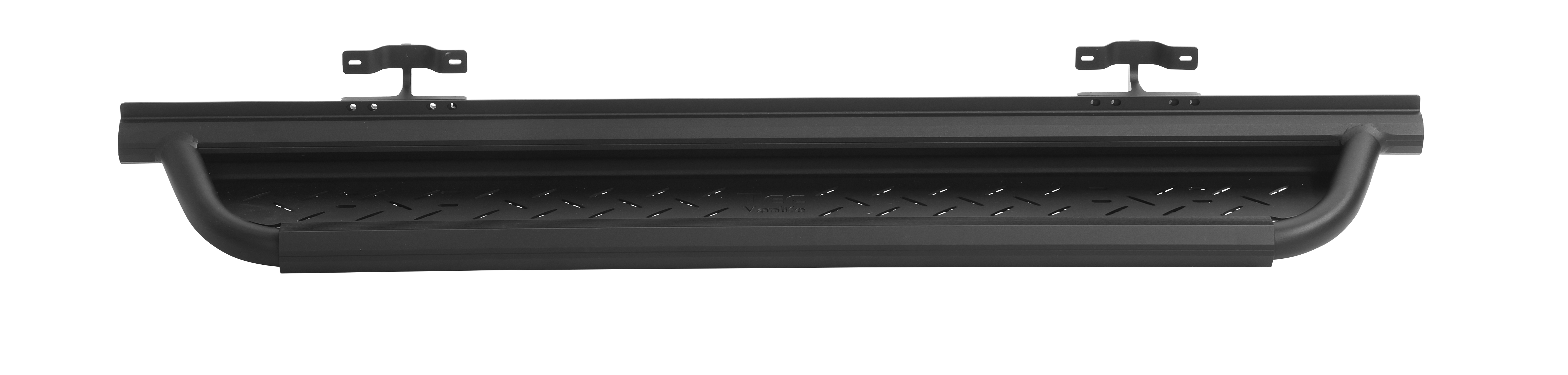

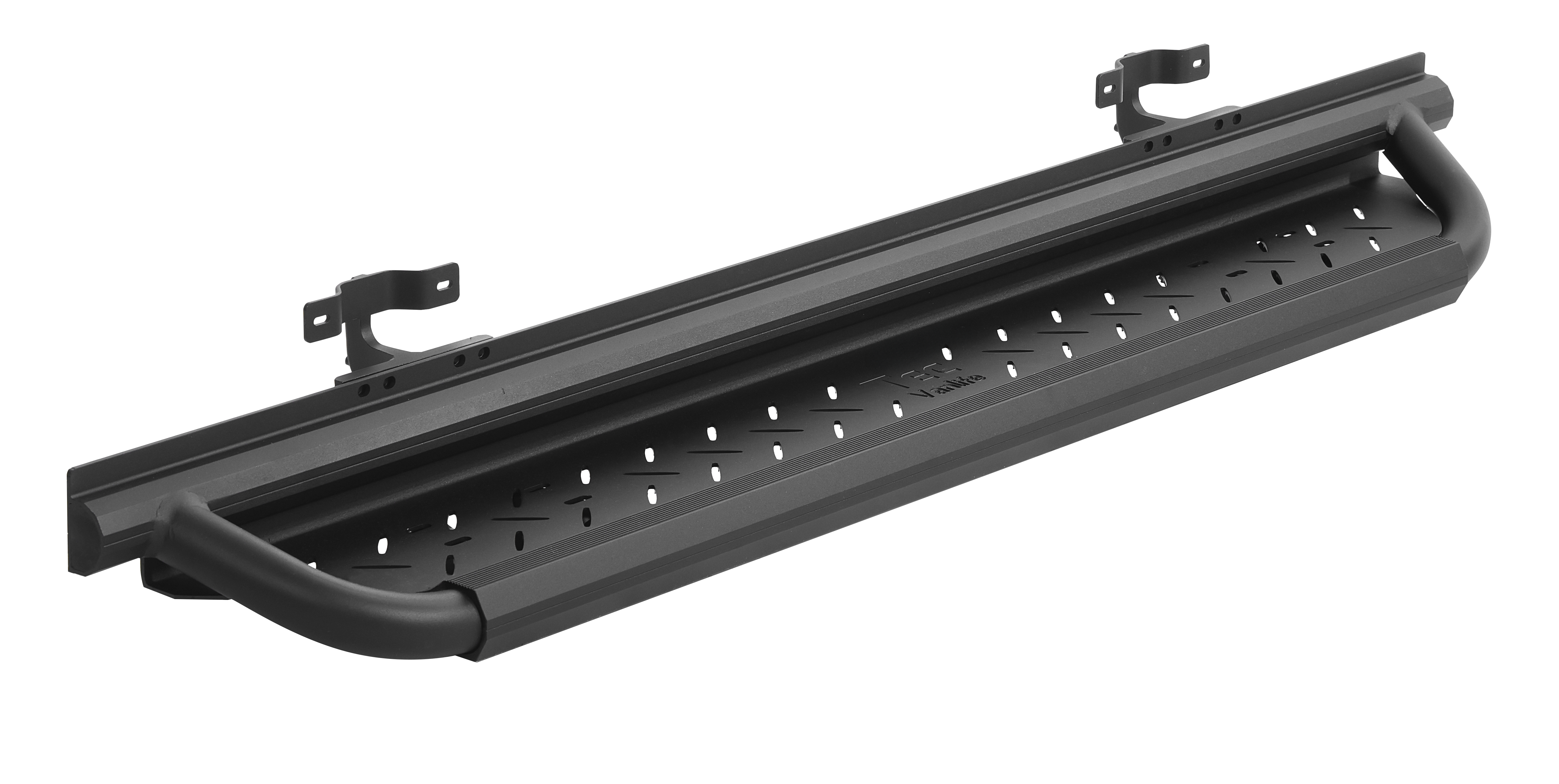

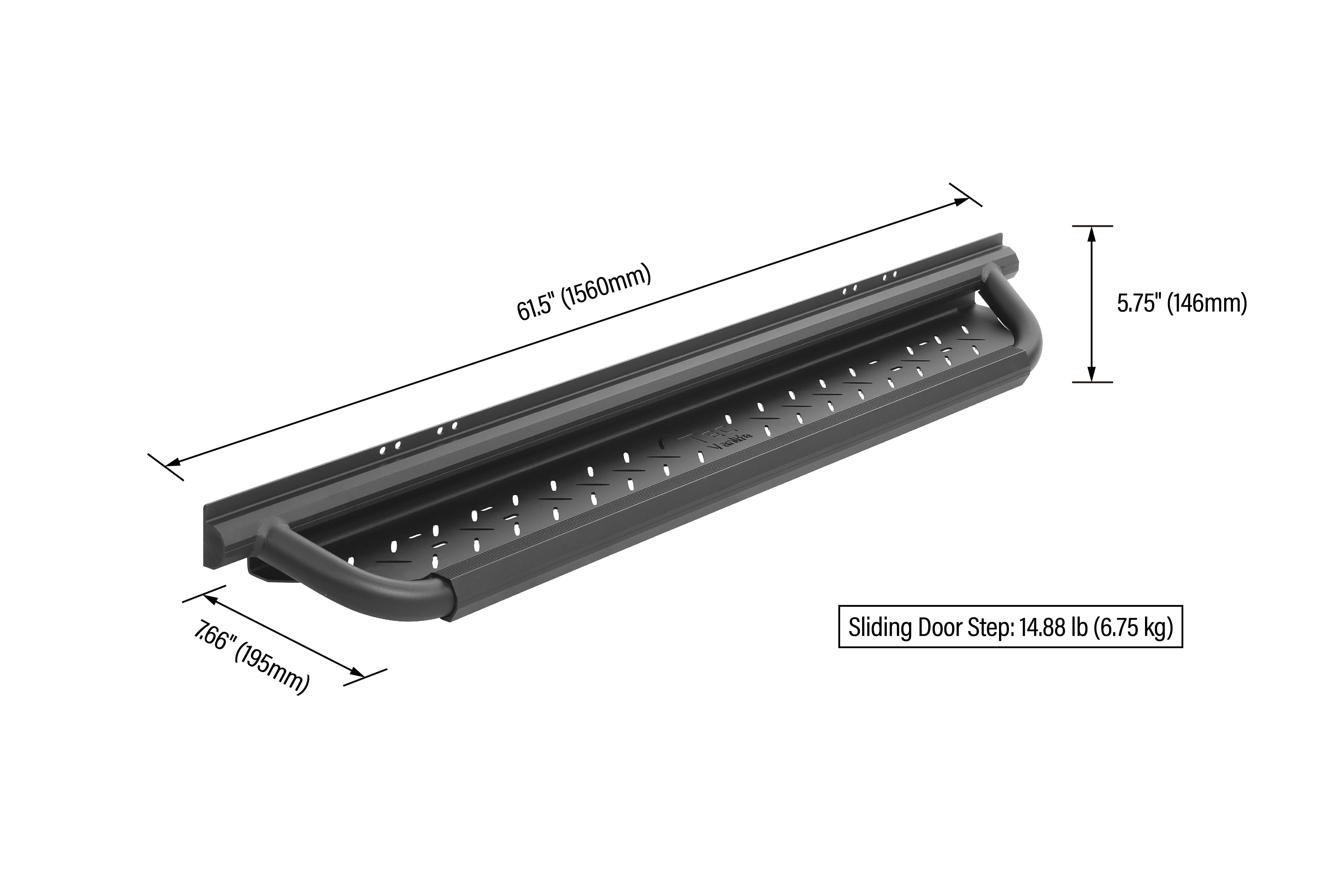

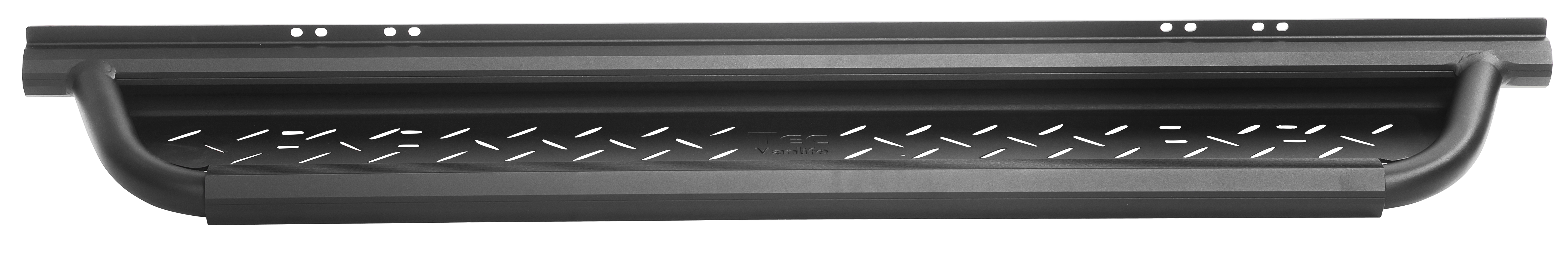

• SLIDING DOOR STEP: 61.5" x 7.66" x 5.75" (1560mm x 195mm x 146mm)

• DRIVER/PASSENGER STEP: 7.32 lb (3.32 kg)

• SLIDING DOOR STEP: 14.88 lb (6.75 kg)

• SUPPORT BRACKET: 1.48 lb (0.67 kg)

• CONSTRUCTION: This running board and side step system features coated aluminum construction for long term corrosion resistance and dependable strength. The modular three piece design includes dedicated driver, passenger, and sliding door steps, each built around a 1.75" aluminum tube and a wide footbed with a ribbed surface to provide a stable, slip resistant platform. Each bracket is

• INSTALLATION: equipped with bendable tabs that adapt to irregularities in the Sprinter's undercoating, allowing for a consistent, secure fit across all mounting locations.

• INSTALLATION: Installation is simple and does not require specialized tools. The lightweight coated aluminum construction makes the components easy to position and handle, enabling a hassle free setup for both DIY users and professionals.

• FITMENT: 1. Which Sprinter models, wheelbases, and years are these drop down running boards compatible with?

• FITMENT: They are compatible with all 2007+ 144" and 170" Sprinter models.

• INSTALLATION: 2. How do the running boards mount to the Sprinter chassis, and is any drilling or underbody preparation required?

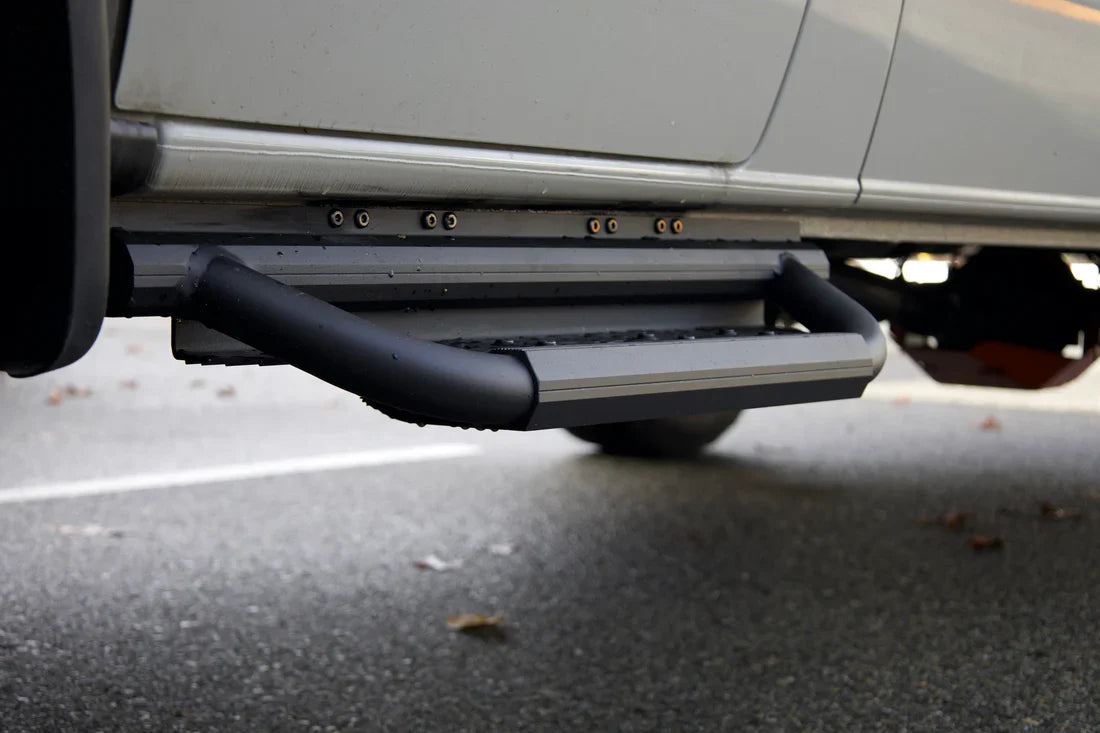

• INSTALLATION: The boards mount to brackets fixed to the lower side panel and inner side panel. Light drilling is required on the inner panel only. No underbody modification is needed.

• INSTALLATION: 3. Can one person install these running boards, what tools are needed, and how long does the installation typically take?

• INSTALLATION: Installation can be completed by a single person. A drill and basic hand tools are required, and the typical installation time is approximately 2 hours.

• INSTALLATION: 4. How much ground clearance does the running board reduce once installed?

• GROUND CLEARANCE IS REDUCED BY APPROXIMATELY: Ground clearance is reduced by approximately 6-8 inches (15-20 cm).

• CONFIGURATION NOTE: 5. Will the running boards interfere with the sliding door when fully opened or closed?

• CONFIGURATION NOTE: No. They do not interfere with sliding door operation.

• LOAD RATING: 6. What is the weight capacity of the running boards, and how do they hold up to daily use?

• LOAD RATING: The running boards have a weight capacity of approximately 400 lbs and are suitable for daily use.

• INSTALLATION: Regular inspections and hardware checks are critical to keeping your running boards safe and reliable over the long term. After installation, recheck and retighten all mounting hardware at approximately 100 miles of driving, and then every 600 miles thereafter. At the same time, inspect the running boards, brackets, and mounting points for any looseness, damage, or corrosion

• EVERY MILES OR AT LEAST ONCE: every 600 miles or at least once a month, whichever comes first.

FEATURES

• NON-SLIP ACCESS: Uses the raised or textured step surface described in the source.

• LIGHTWEIGHT CONSTRUCTION: Preserves the listed aluminum or steel construction and powder-coated finish.

• MOUNTING HARDWARE: Includes only the brackets and hardware specifically stated below.

COMMON PAIRINGS

• VEHICLE-SPECIFIC BRACKETS: Use the included brackets or the separately listed RB bracket kit when required.

• OEM OR AFTERMARKET HITCH: Rear-step fit changes with hitch configuration; observe all drilling and support notes.

• ENTRY LIGHTING: Plan optional lighting without interfering with brackets, sensors, or door travel.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter, 2007 and newer where stated.

• WHEELBASE: Confirm the exact driver-short/passenger-long step package or rear hitch geometry; do not assume universal wheelbase fit.

• ROOF HEIGHT: Not roof-height-specific unless the source states otherwise.

• REQUIREMENTS: Confirm chassis, bracket locations, OEM or aftermarket hitch, sensors, door clearance, included hardware, and any required drilling or optional support kit.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Is the mounting hardware included?

A: Yes, where stated below; confirm whether an additional RB step bracket kit is required for a hitch-free rear-step installation.

Q: Will the rear step clear factory sensors?

A: The source states that the Sprinter rear step does not interfere with OEM sensors.

Q: Does an aftermarket hitch require changes?

A: Yes, the source notes that an aftermarket hitch may require drilling four holes.

Q: What should I verify before installation?

A: West Coast Vans recommends checking chassis, hitch, brackets, sensors, ground clearance, and complete door operation.
