Tec Vanlife Sprinter Roof Rack Bundle - Modular Deck

Tec Vanlife Sprinter Roof Rack Bundle - Modular Deck

At West Coast Vans, the smartest roof layouts start with the fan, solar, and air conditioner drawn in before anyone claims the walking space. This Sprinter rack bundle combines adjustable crossbars with two or three 27 x 17-inch deck panels; Ask Us Product Questions Anytime before selecting 144 or 170 fitment.

WCV EXPERT TIP

Draw the roof to scale and mark every lid-opening arc, solar cable route, awning bracket, and usable walking area before setting crossbar positions.

PRODUCT OVERVIEW

Tec Vanlife Sprinter Roof Rack Bundle - Modular Deck expands rooftop carrying or access capability using the aluminum construction, crossbar or panel dimensions, rail requirements, and load information listed below.

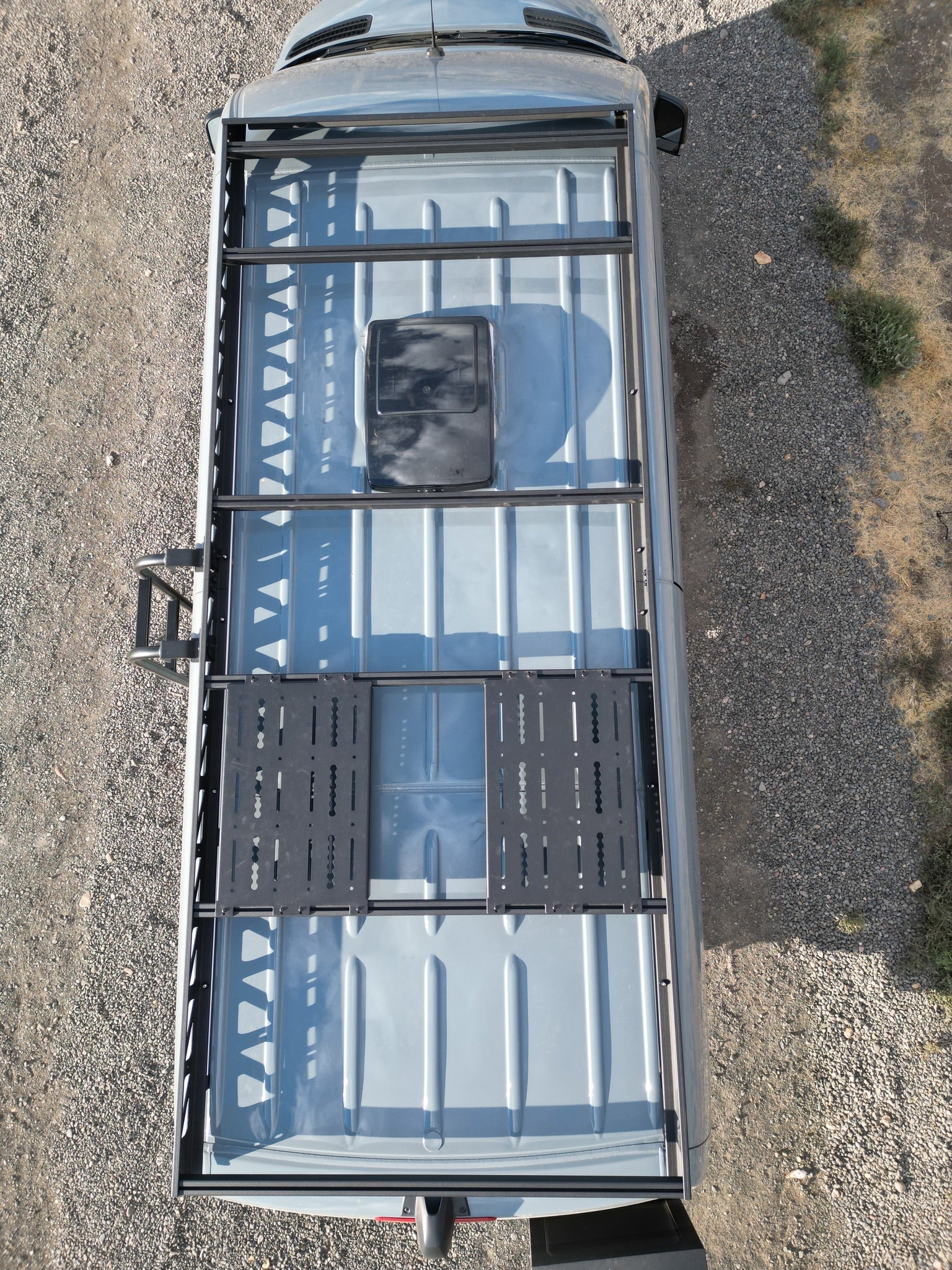

Plan the complete roof as one system so fans, solar, air conditioning, awnings, deck panels, cargo, and safe walking paths do not compete for the same space.

BEST FOR

• MODULAR SPRINTER ROOFS: Ideal for high-roof Sprinter builds that need adjustable cargo, solar, and accessory mounting.

• ROOFTOP ACCESS AND DECKING: Supports the listed walkable panels and gear tie-down configurations.

• FUTURE-READY BUILDS: Lets builders position or add compatible rooftop components as the layout evolves.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

• PRODUCT: Sprinter Roof Rack Bundle - Modular Deck

• SPRINTER MODEL LENGTH: Sprinter 144 Modular Roof Rack, Sprinter 170 Modular Roof Rack

• DECK PANELS: 2 Pack, 3 Pack

• BUNDLE AND SAVE AND BE MODULAR: Bundle and Save and Be Modular! SAVE 10% on the Bundle

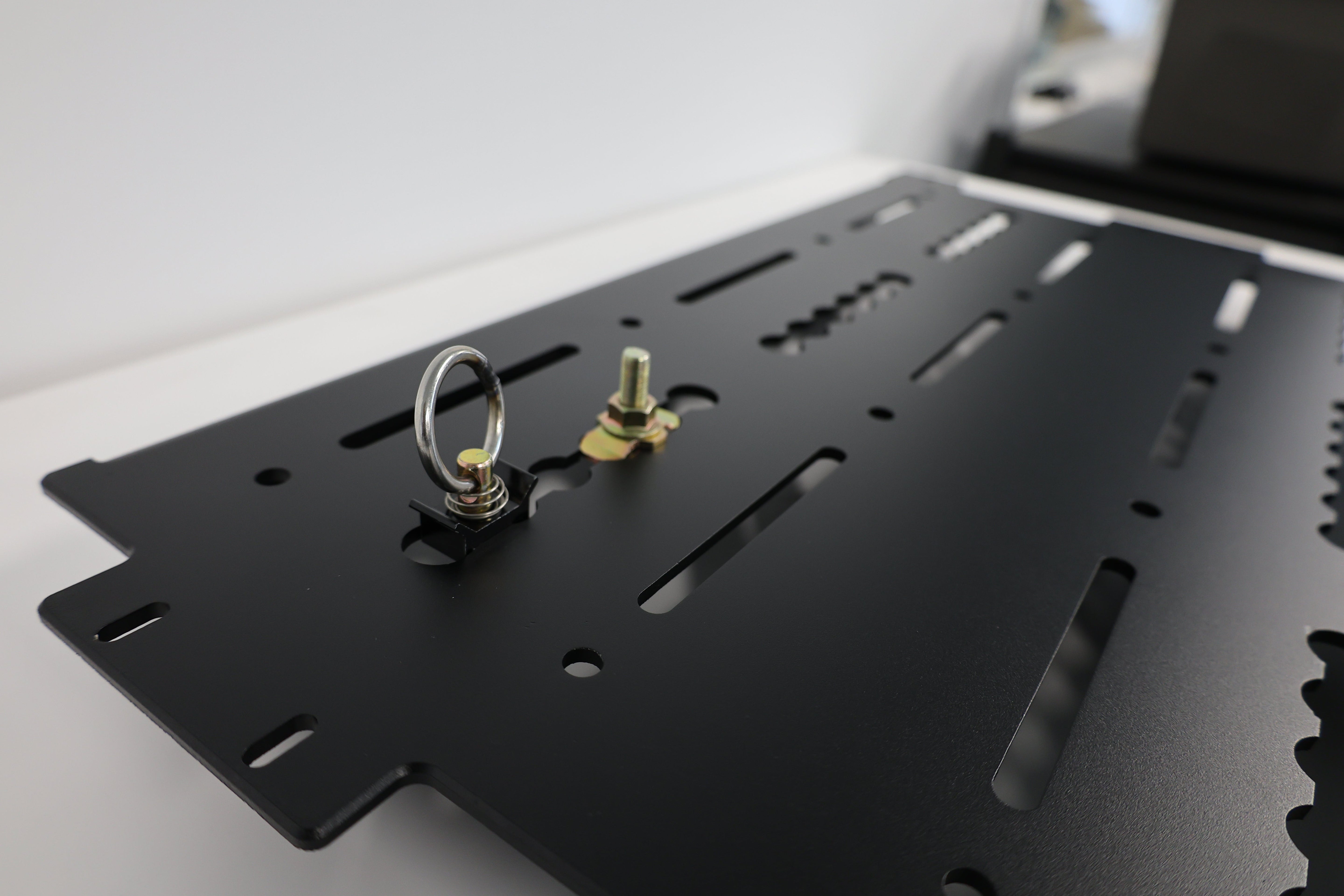

• VENTILATION: Our roof deck panels are the ideal partner to our modular roof rack. They allow you to configure a walk-on deck and gear tie-down system around your AC/Fans/Solar arrangement. Configured for L-Track fasteners to optimize tie-down options.

• BED SYSTEM: Available in 2 panel or 3 panel packs, this system provides the ultimate configurability and utility for a roof-top deck system.

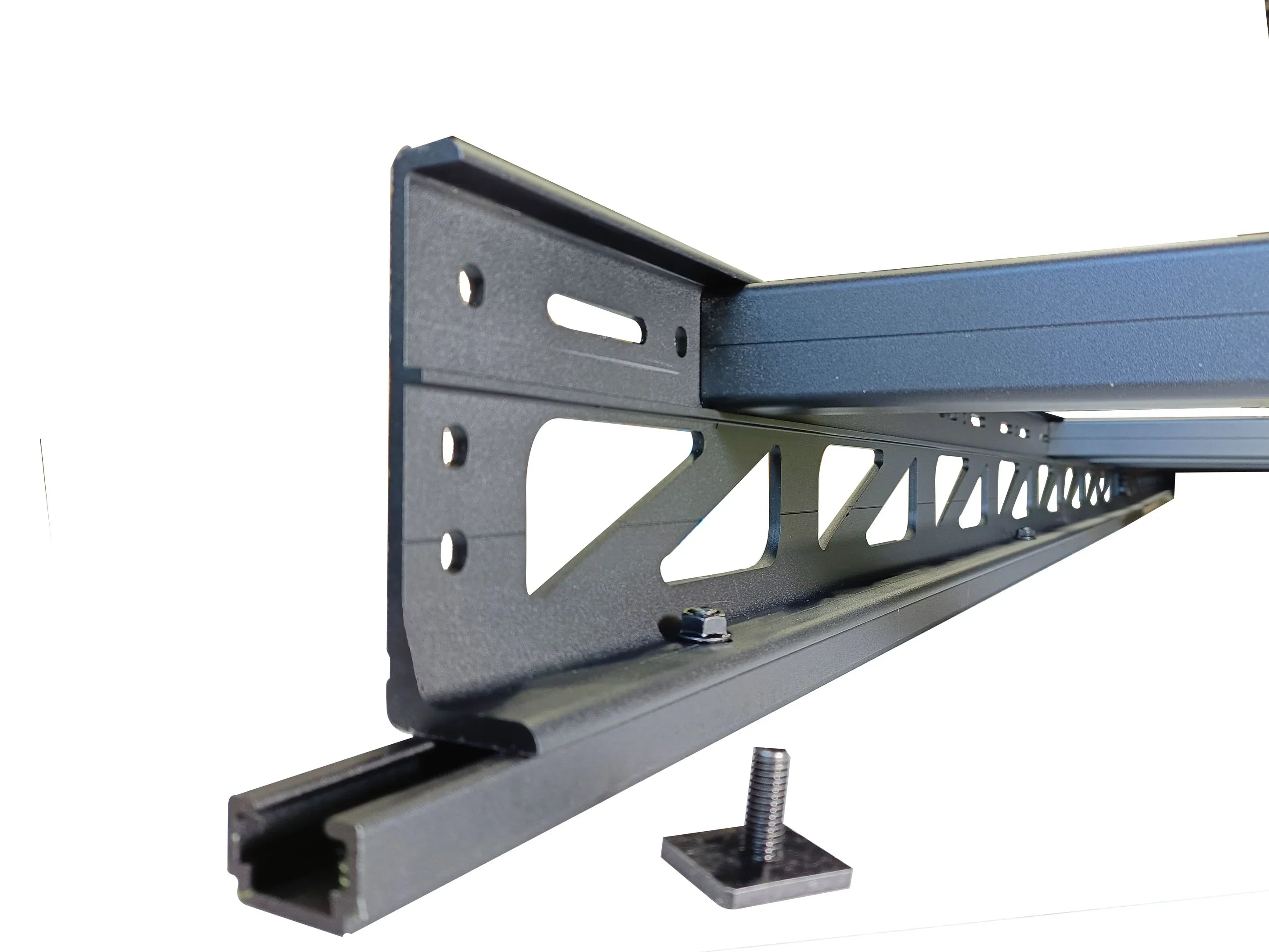

• FITMENT: Compatible with Sprinter Modular Roof Rack, and all other roof racks with 8020 aluminum extrusion crossbars. Mounting hardware included.

• DIMENSION: 27"x17"

• THICKNESS: 3/16"

• WEIGHT PER PANEL: 8.5lb

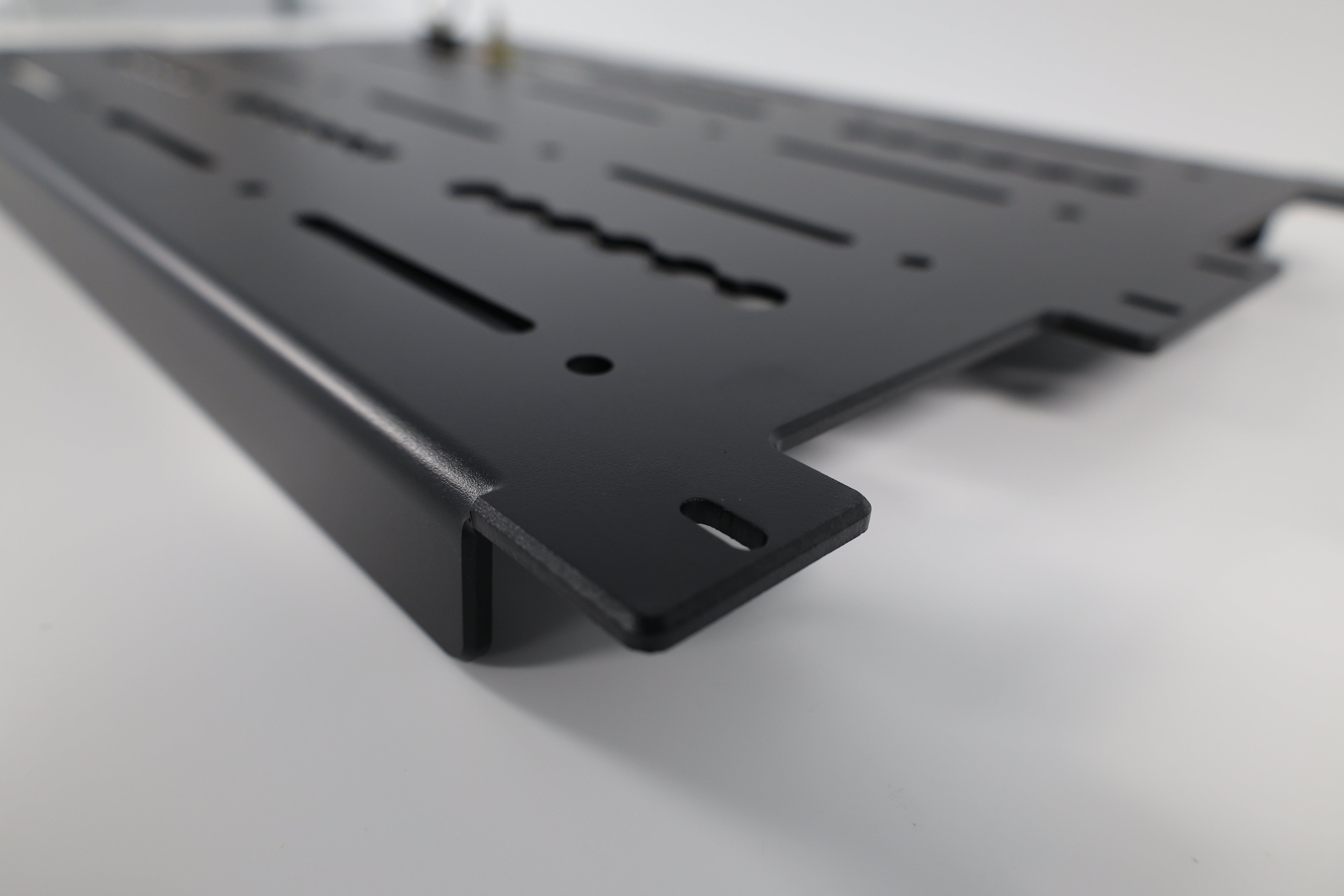

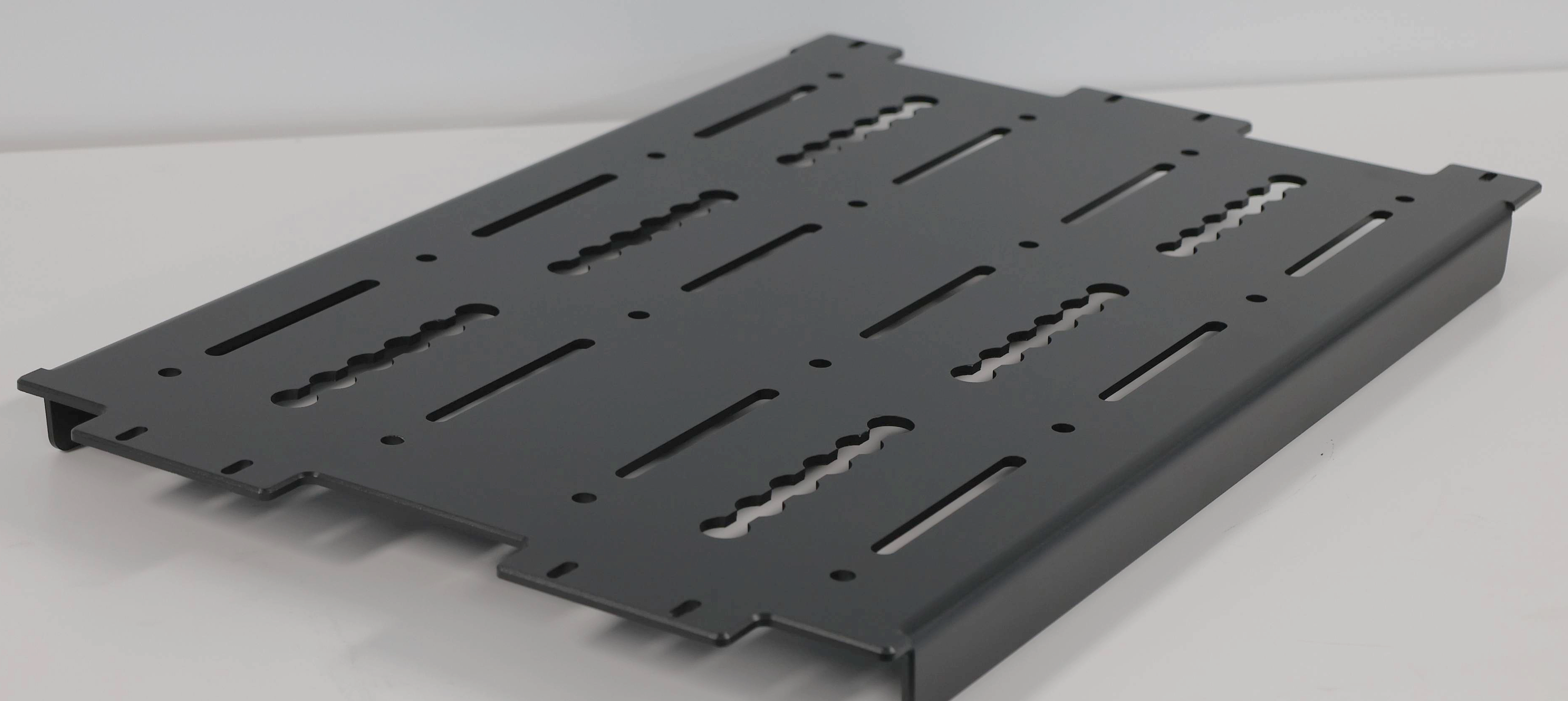

• CONSTRUCTION: Introducing the Decking System for Modular Roof Racks-your ultimate solution for expanding your van's versatility and functionality. Crafted with precision from 3/16" high-strength, low-weight aluminum, this decking system is engineered to seamlessly integrate with your TecVanLife Modular Roof Rack.

• HIGH-STRENGTH ALUMINUM: Made from 3/16" high-strength aluminum, this decking system offers robust durability without compromising on weight.

• DURABLE POWDER COATING: Finished with a high-quality powder coating, the decking system is designed to withstand harsh weather conditions and resist corrosion, ensuring long-lasting performance.

• PRECISION ENGINEERING: Meticulously crafted to complement your TecVanLife Modular Roof Rack, the decking system provides a perfect fit, enhancing the overall aesthetics and functionality of your van.

• VERSATILE STORAGE OPTIONS: Whether you need additional cargo storage, a platform for rooftop tents, or a sturdy base for outdoor gear, this decking system adds unparalleled versatility to your setup.

• COMPACT DIMENSIONS: With dimensions of 27" x 17", the decking system offers ample space for your needs while maintaining a compact and manageable size.

• EASY INSTALLATION: Designed for straightforward installation, allowing you to quickly and easily enhance your van's capabilities without hassle.

• FITMENT: Fits 2007+ Sprinter High Roof Vans

• INSTALLATION: Mercedes Sprinter Rack Installation Instructions

• MODULAR DESIGN: Crossbars can be relocated to accommodate solar panels, cargo boxes, roof fans, A/C units, or any other rooftop gear.

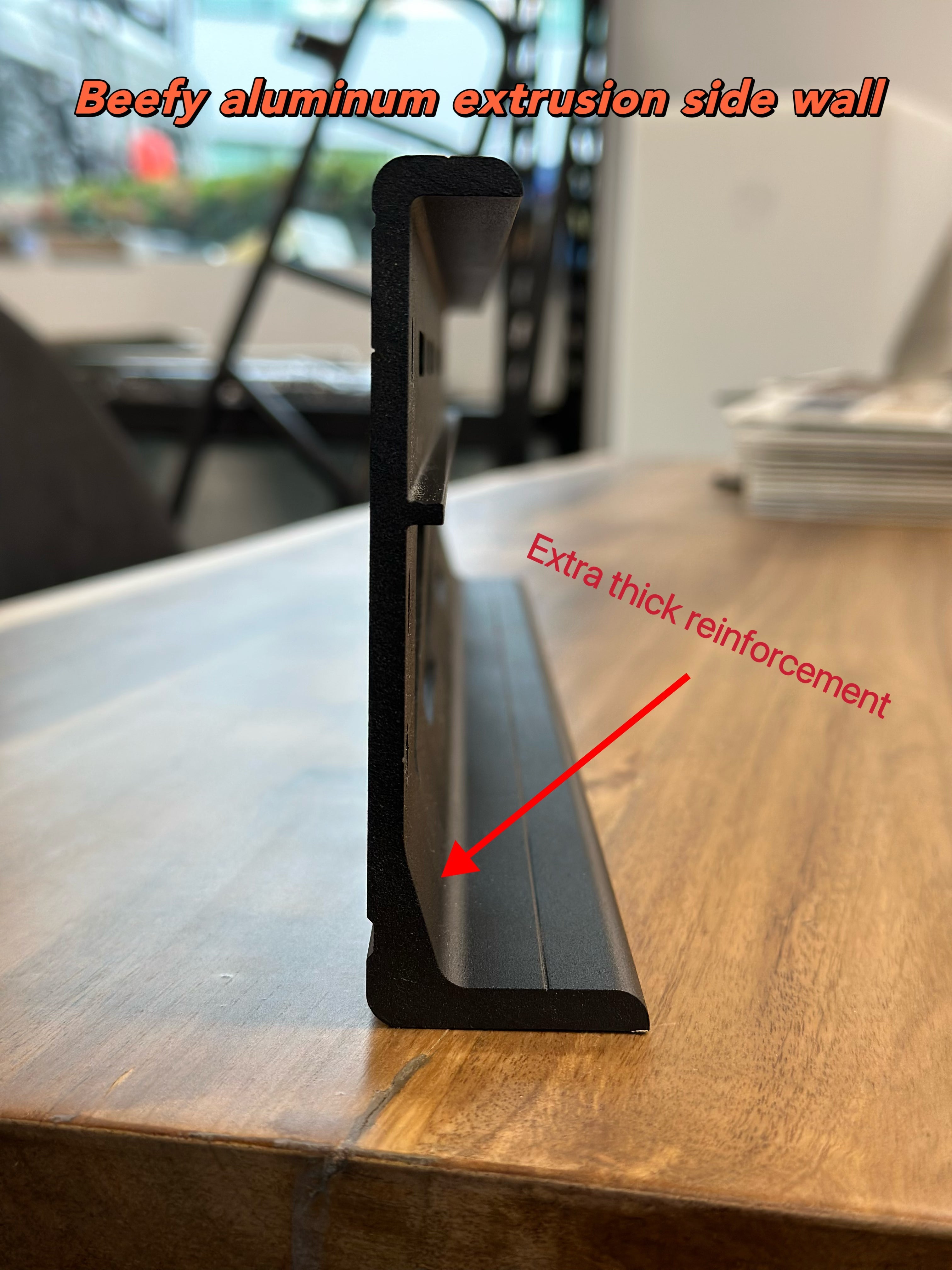

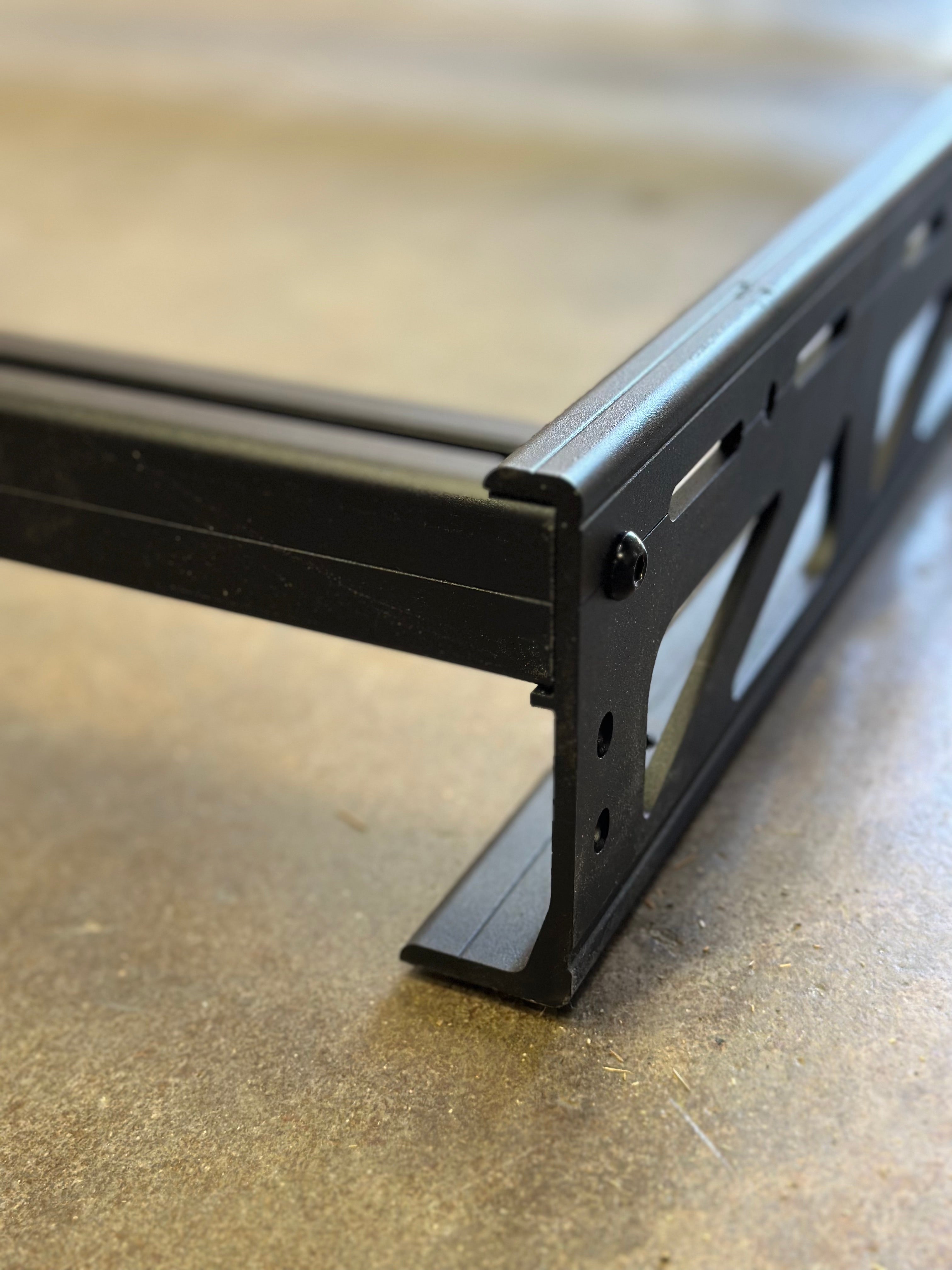

• REINFORCED ALUMINUM SIDE RAILS: Extruded aluminum with double-thick corners ensures maximum strength and rigidity for mounting awnings and supporting heavy loads.

• IMPROVED AIRFLOW: Purposefully designed gap between the fairing and van body reduces turbulence and enhances airflow under solar panels, improving cooling and aerodynamic efficiency.

• CUSTOM DECKING SYSTEM: Compatible with our modular decking system, allowing walk-on panels with L-Track or conventional bolt configurations.

• LENGTH: s Available:

• SPRINTER 144: 56 lbs (25.4kg)

• SPRINTER 170: 72 lbs (32.6kg)

• RAIL PROFILE HEIGHT: 5" (128mm)

• OUTSIDE WIDTH: 53.34" (1355mm)

• CROSSBAR LENGTH: 52.95" (1345mm)

• BED SYSTEM: Internal Width for Solar Panels:

• SPRINTER 144: 51.77" (1315mm)

• SPRINTER 170: 62.22" (1555mm)

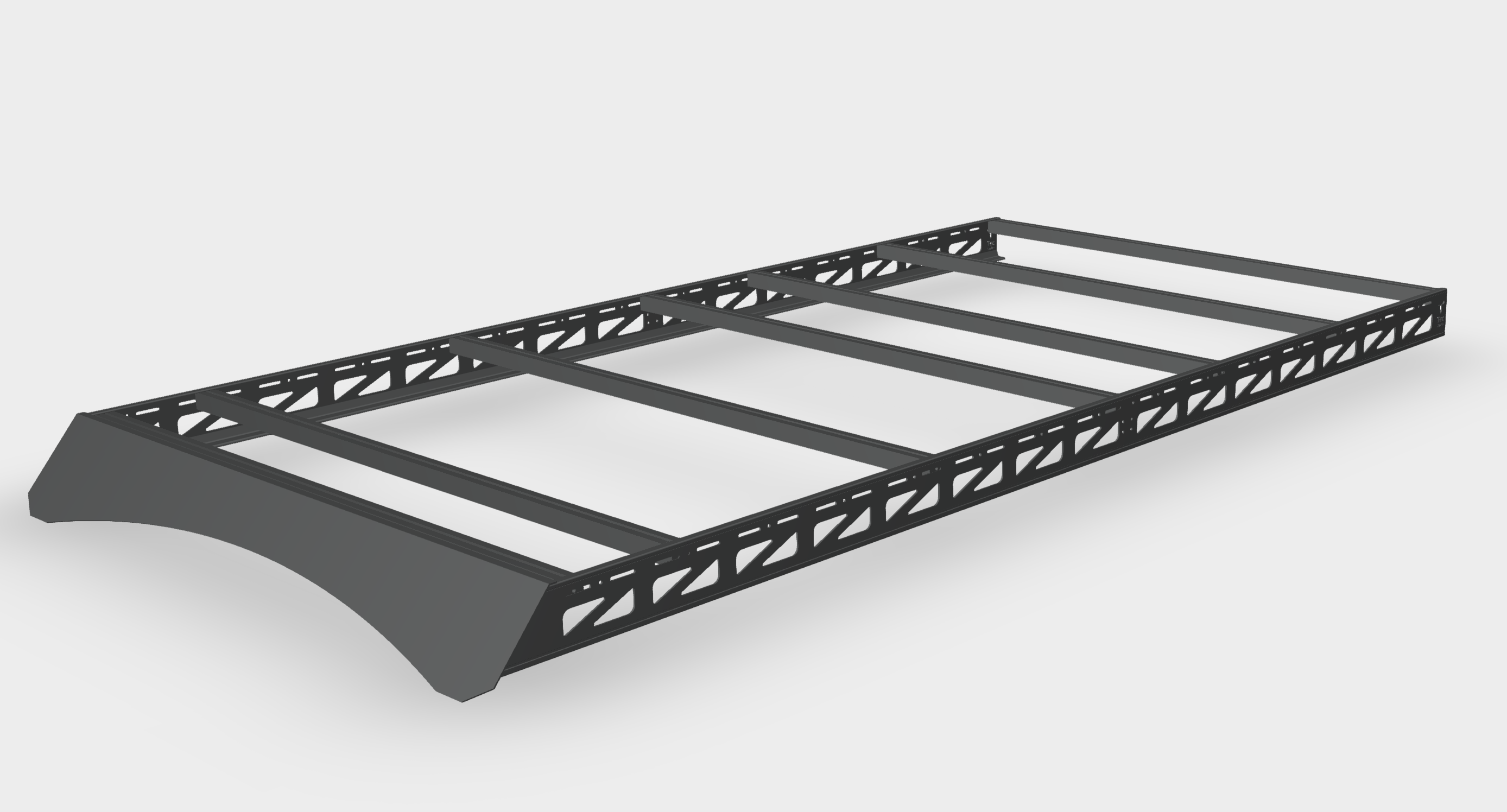

• ROOF SYSTEM: Our roof rack stands out for its superior strength, lightness, and versatility:

• UNMATCHED DURABILITY: Crafted from high-pressure molded aluminum extrusions, this rack system delivers exceptional load-bearing capacity and maintains structural integrity under challenging conditions. Unlike conventional bent aluminum racks, our single-piece aluminum profiles eliminate weak points, ensuring long-lasting performance.

• ENHANCED VERSATILITY: Crossbars can be repositioned to work around roof accessories, providing maximum customization for your van setup.

• AERODYNAMIC EFFICIENCY: The gap between the fairing and van body improves airflow, reducing drag and noise while driving, and enhances cooling under solar panels when parked.

• LIGHTWEIGHT DESIGN: Extruded aluminum sidewalls reduce weight while maintaining strength, optimizing fuel efficiency and handling.

• HOW IT S MADE: How It's Made

• CONSTRUCTION: Engineered for strength and functionality, our proprietary aluminum extrusion process creates a uniform, robust profile that traditional bent aluminum cannot match. Laser-cut openings in the sidewalls reduce weight and improve airflow, ensuring optimal performance for vanlife adventures.

• DESIGN NOTE: Additional Features:

• MOUNTING AWNINGS: Compatible with Fiamma awnings, though additional holes may need to be drilled for installation.

• ROOF RAILS REQUIRED: Factory roof rails are necessary for installation. If your van does not have them, you can purchase the rails with the roof rack at a combo price.

• CUSTOM DECKING SYSTEM: Pair with our decking system for walk-on panels and secure gear mounting.

• IMPORTANT NOTE: Important Note:

• MAINTENANCE: Regular inspections and hardware tightening are recommended to ensure long-term reliability.

• LOAD RATING: Always adhere to your vehicle manufacturer's maximum load limits.

• INSTALLATION: Roof rails are required to install this roof rack. If your van does not come with factory roof rails, you can purchase the roof rails together with the roof rack at a combo price.

• ELEVATE YOUR VANLIFE EXPERIENCE: Elevate Your Vanlife Experience

• INSTALLATION: Experience the perfect balance of strength, lightness, and versatility with the Tec Vanlife Modular Roof Rack . Whether you're mounting solar panels, carrying cargo, or optimizing your van's roof space, this rack is designed to excel.

• IGNORING THE FOLLOWING WARNINGS MAY RESULT: Ignoring the following warnings may result in the rack detaching from the vehicle, leading to serious injury or death.

• LOAD RATING: Ensure you do not exceed the maximum load limit specified by the vehicle manufacturer and use all available attachment points on the van roof.

• MAINTENANCE: Inspect and tighten all hardware after the first 100 miles and every 600 miles thereafter.

• CHECK THE OVERALL INTEGRITY OF THE: Check the overall integrity of the rack every 600 miles or monthly, whichever occurs first.

• INSTALLATION: If you are unsure, submit rack plans or photos to info@tecvan.co for evaluation before final installation or use.

• INSTALLATION: The van owner and/or installer assumes all risks associated with rooftop-mounted items and/or components.

FEATURES

• ALUMINUM CONSTRUCTION: Uses the source-listed extrusion, formed aluminum, coating, and weight-saving design.

• ADJUSTABLE LAYOUT: Supports configurable crossbar, deck-panel, T-slot, L-track, or accessory positioning.

• ROOF-RAIL MOUNTING: Preserves the factory or aftermarket rail requirements and included hardware notes.

COMMON PAIRINGS

• SOLAR AND VENTILATION: Map panels, fans, air conditioners, and cable routes before assembly.

• AWNING SYSTEM: Confirm Fiamma or other awning compatibility and curb-side clearance where stated.

• ROOF DECK PANELS: Use compatible panels and hardware while respecting rack and vehicle load limits.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter fitment shown in the technical specifications; universal 8020 deck-panel use applies only where explicitly stated.

• WHEELBASE: Select the listed Sprinter 144 or 170 configuration where variants are offered.

• ROOF HEIGHT: High-roof fitment where stated; confirm rail spacing, fan and A/C clearance, and overall vehicle height.

• REQUIREMENTS: Requires compatible roof rails or 8020 crossbars, correct wheelbase selection, safe load planning, and clearance around every rooftop component.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Are roof rails included?

A: No, where the source states factory or aftermarket rails are required, they are not included.

Q: Can the layout work around fans and solar?

A: Yes, adjustable crossbars or modular panels allow placement around rooftop equipment within the listed system limits.

Q: Are the deck panels walkable?

A: The source describes them as stable access surfaces for foot traffic; use only with proper mounting and load planning.

Q: What should be mapped first?

A: West Coast Vans recommends mapping fans, solar, air conditioning, awnings, cable routes, and walking paths before assembly.
