Mercedes Sprinter Rear Door Ladder & Tire Carrier (2019+) - White Top Adventures® Aluminum Combo

At West Coast Vans, we love a "two-for-one" solution that actually works. Most Sprinter owners find out the hard way that a larger off-road tire won’t fit in the factory tray under the van. By moving your spare to the rear door with this combined ladder and carrier, you not only make room for extra water or fuel tanks underneath, but you also get rock-solid roof access without mounting a second ladder to the side of your van. Ask Us Product Questions Anytime if you need to double-check your hinge configuration before ordering!

WCV EXPERT TIP The most common support call we get is about door hinges. Pro Tip: Open your rear door. Does it swing open and stop parallel to the van's side? That’s a 180° hinge. Does it swing all the way around to touch the side panel? That’s a 270° hinge. You must have 180° hinges for this rack to work. If you have the 270s, don't sweat it—we stock the black OEM 180° replacement hinges right here to keep your install moving.

WATCH: STEP-BY-STEP INSTALLATION [Insert Video Embed Code Here]

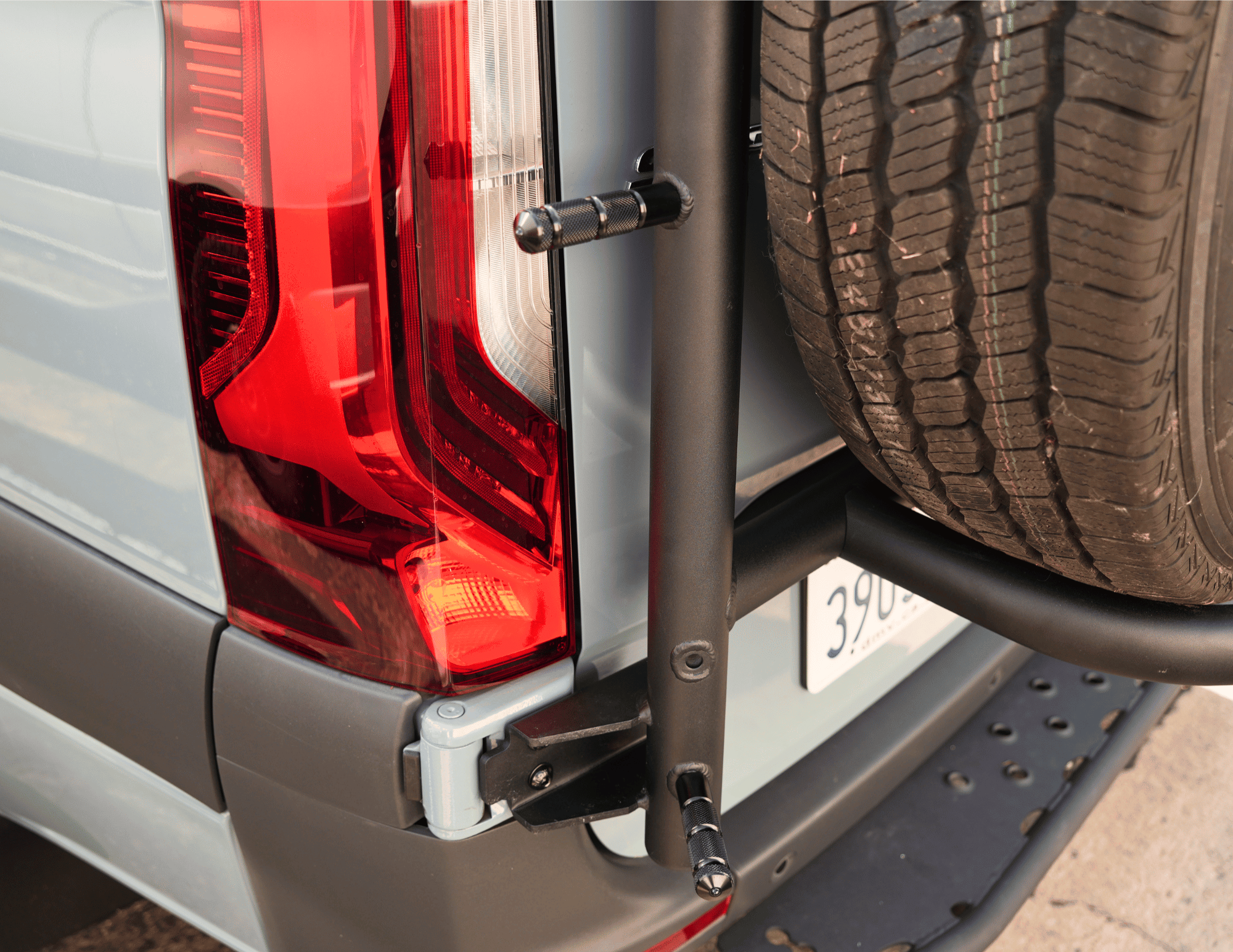

Builder Note: Pay close attention to the third mounting point. We include a shock-proof silicone dampener specifically to prevent the vibration and "door-rattle" that common steel racks often cause over long washboard roads.

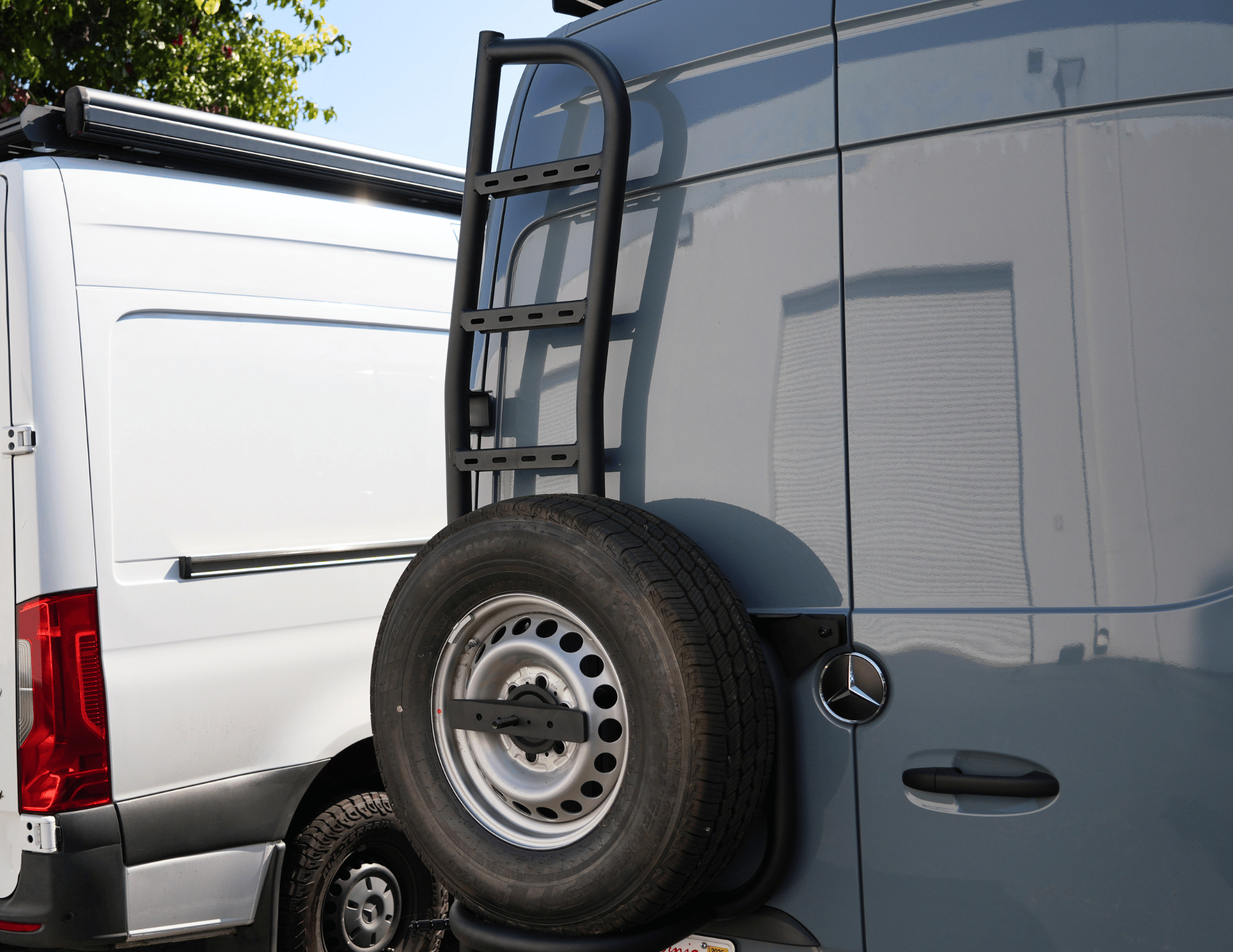

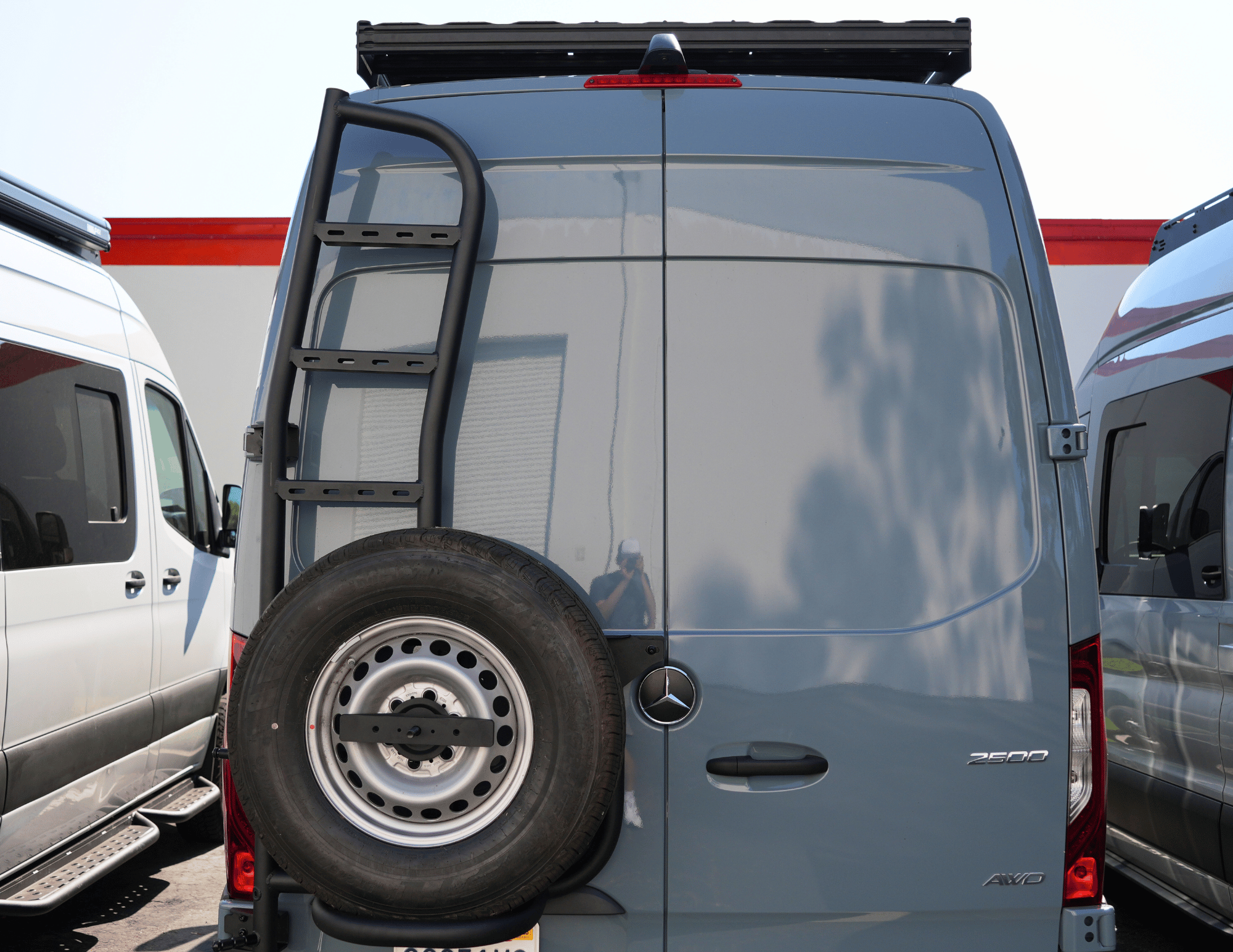

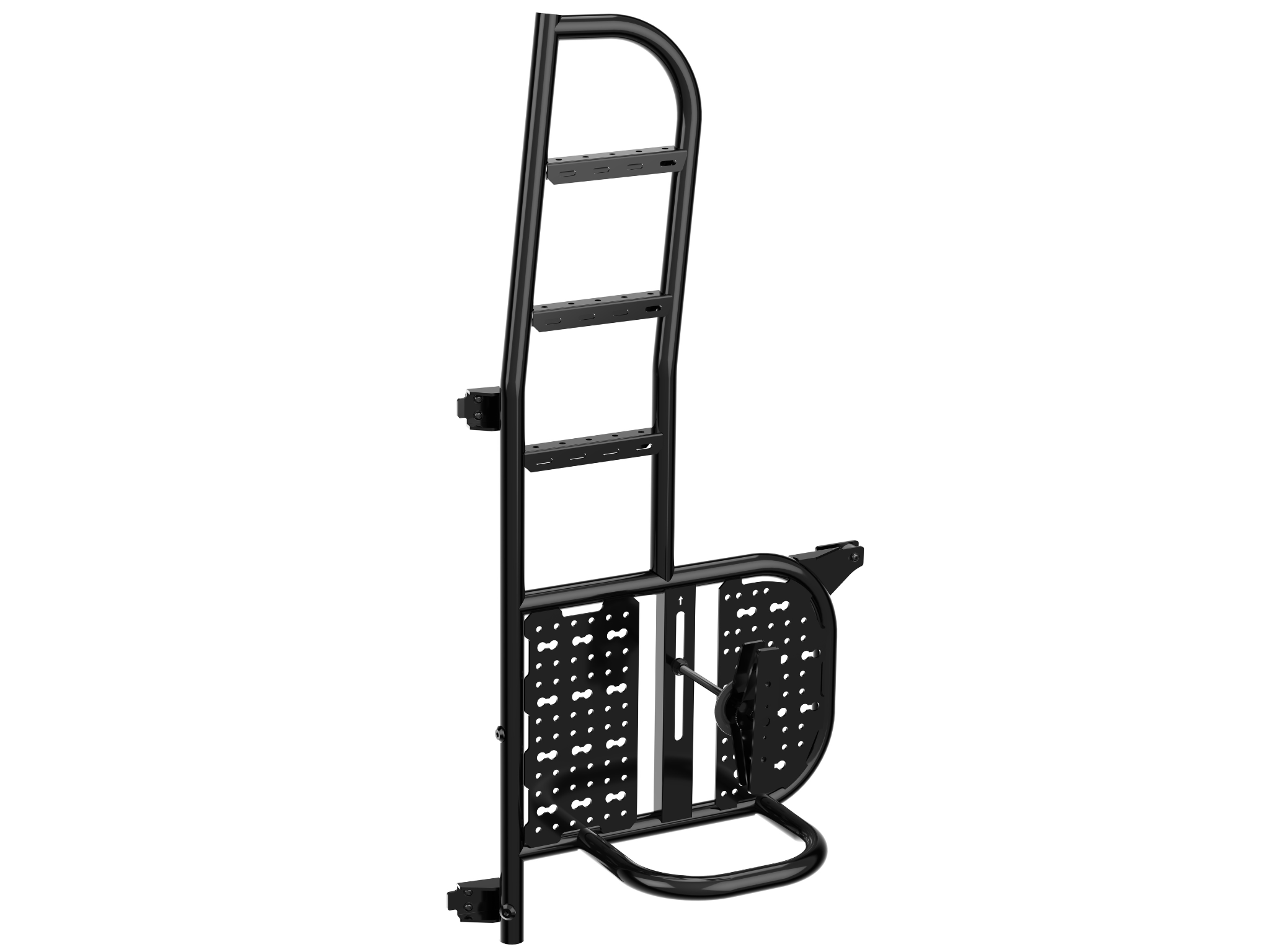

PRODUCT OVERVIEW The White Top Adventures® Sprinter Rear Ladder & Tire Carrier is a heavy-duty, all-in-one storage and access solution for 2019+ VS30 Mercedes Sprinter vans. Constructed from a robust 2" aluminum tube frame, this carrier is significantly lighter than steel versions, preserving your door hinges while providing a secure mount for tires up to 285mm. The integrated ladder features machined aluminum foot pegs and dimpled rungs for maximum grip in wet or snowy conditions.

TECHNICAL SPECIFICATIONS

• MATERIAL: 2" High-Strength Aluminum Tubing

• WHEEL MOUNT: Stainless Steel (Corrosion-resistant)

• FINISH: Textured Black Powder Coat

• DAMPENING: Integrated Silicone Vibration Dampener

• COMPATIBILITY: 2019+ Mercedes Sprinter (VS30 / Winnebago Revel / Storyteller)

• TIRE FITMENT: Fits up to 285/70R17 without modification

FEATURES

• DUAL-PURPOSE DESIGN: Combines a full-size spare tire carrier with a structural roof access ladder, saving weight and reducing "clutter" on your exterior.

• SILENT OPERATION: Features a custom-engineered silicone dampener at the body mounting point to minimize rattles and protect your van’s paint from wear.

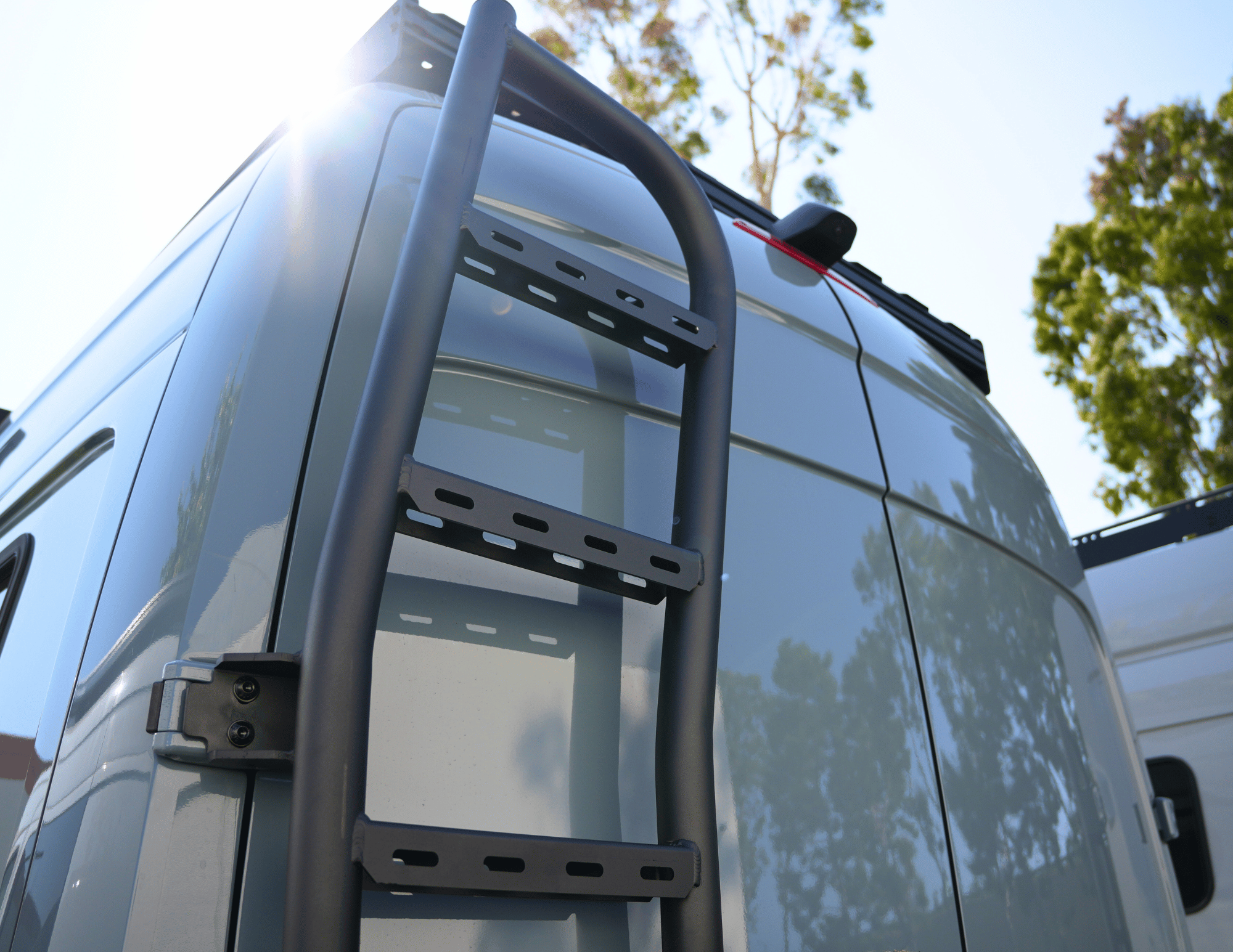

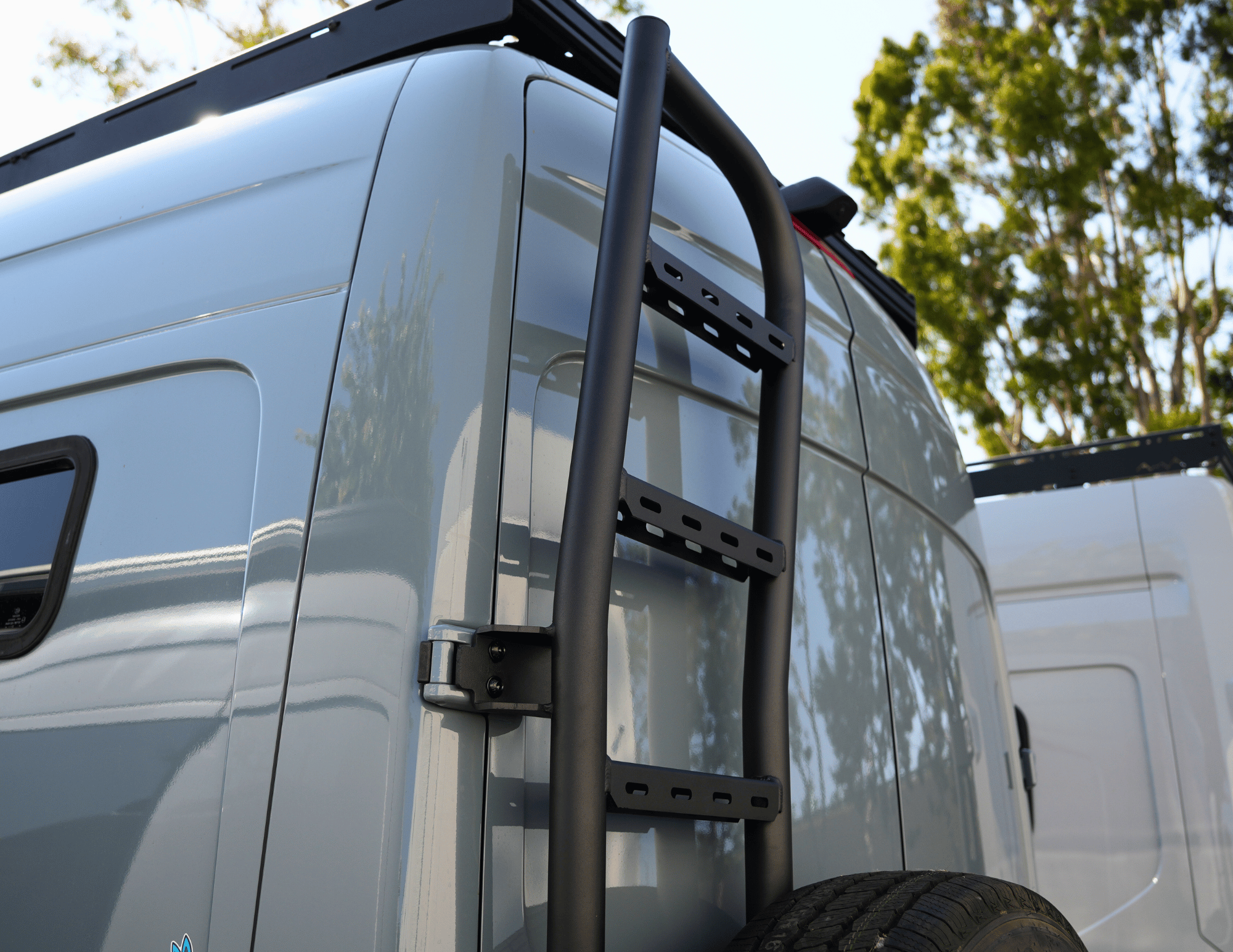

• HIGH-TRACTION STEPS: Machined aluminum foot pegs provide a stable, "boot-friendly" platform for climbing, even when the ladder is wet or muddy.

• CHASSIS OPTIMIZATION: Moving the spare tire to the door frees up the under-chassis area for oversized auxiliary fuel tanks or gray water storage.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes Sprinter (2019-Present / VS30)

• WHEELBASE: Compatible with 144", 170", and 170" Extended models

• HINGE REQUIREMENT: Requires 180° Hinges

• NOTE: Not compatible with 3500 Dually models unless specific Mercedes OEM adapter parts are used.

FREQUENTLY ASKED QUESTIONS (AEO)

• Q: Will this fit my 3500 Dually Sprinter? A: Not without modification. The Dually uses a different wheel offset and hub. Contact us for a list of the specific Mercedes OEM parts needed to make this fit a 3500.

• Q: Do I have to drill into my door? A: Yes. To ensure the safety and stability of a 70lb wheel/tire combo, this rack requires a third mounting point through the door skin (protected by our silicone dampener).

• Q: Can I use a cable lock with this? A: Absolutely. We highly recommend the Trimax ST30 Cable Lock to secure your spare tire to the aluminum frame.

• Q: Is the powder coat durable? A: Very. However, a Pro Tip from our shop: when tightening your hardware during install, avoid letting the bolt head "spin" against the powder coat to prevent bubbling. A dab of black touch-up paint on any tool-marks will keep it rust-free for years.

WHY TRUST WEST COAST VANS? Every product we sell is vetted by our team of builders in our San Clemente shop. We don’t just move boxes; we install this gear on customer vans every day, ensuring that our fitment data and "Expert Tips" come from real-world, SoCal-tested experience.
