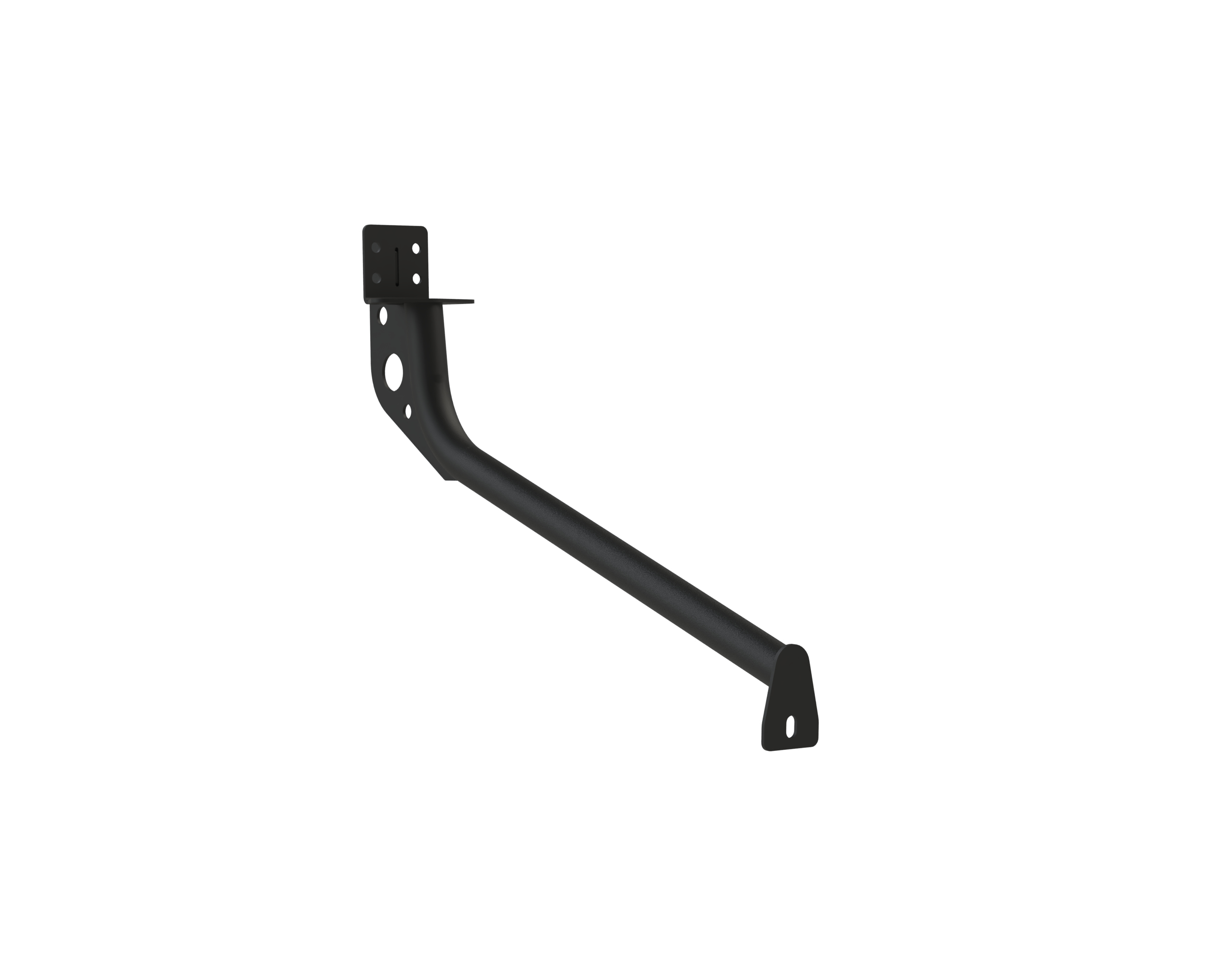

VANSPEED CURVED TUBE SUPPORT BRACKET FOR SIDE STEPS

VANSPEED CURVED TUBE SUPPORT BRACKET FOR SIDE STEPS

If you walked into our shop right now, you’d probably find the WEST COAST VANS team huddled over a set of prints, meticulously reviewing tenths of an inch or brainstorming how to bypass factory plumbing obstacles. Yeah, we're a little obsessed—but that's because we actually live and build these rigs ourselves, and we know how frustrating it is to have an install ground to a halt by hidden factory components. We stock this specialized Vanspeed curved support bracket because it solves a massive structural bottleneck for vans loaded with dual-climate creature comforts. It provides a clean, precision-cleared structural anchor point around complex factory floor configurations so your running boards mount flawlessly without hitting a dead end. Ask Us Product Questions Anytime if you aren't 100% sure about your under-chassis equipment layout before you buy!

WCV EXPERT TIP: Under-chassis space is premium real estate on highly optioned builds. When you are looking down at your passenger-side frame rail to install running boards, standard straight support brackets expect a completely clear, empty channel. However, if your van rolled off the assembly line with both rear climate control packages, that straight steel path is blocked. Pro Tip: Do not attempt to force, shim, or bend standard brackets to clear these vital auxiliary components. Dropping in this custom-curved support bracket allows the step hardware to arc cleanly over the lines, preserving your chassis systems while maintaining a rigid, rock-solid step connection.

PRODUCT OVERVIEW

The Vanspeed Curved Tube Support Bracket is a vehicle-specific hardware component engineered explicitly for the modern Sprinter platform. Developed to resolve severe mechanical mounting conflicts under highly optioned conversion rigs and luxury passenger vans, this high-strength bracket replaces standard straight frame braces. CNC-bent from heavy-duty steel and protected by an industrial textured black powder coat, its specific arched geometry allows builders to successfully mount side steps on vans equipped with both a factory rear AC system and an auxiliary diesel cabin heater.

BEST FOR

• FULLY OPTIONED LUXURY VAN BUILDS: A mandatory hardware addition for passenger and custom conversion vans outfitted with dual rear climate systems that block standard step mounting points.

• HASSLE-FREE RUNNING BOARD UPGRADES: Perfect for DIY builders and professional upfitters looking to secure side steps cleanly without modifying or risking damage to factory lines.

TECHNICAL SPECIFICATIONS

• HARDWARE CHASSIS PROFILE: Custom-clearance curved auxiliary frame support bracket

• STRUCTURAL MATERIAL MATRIX: Heavy-duty structural steel tubing construction

• SURFACE PROTECTION COATING: Industrial textured black powder coat (scratch and rust optimized)

• BRACKET ARCHITECTURE DESIGN: CNC mandrel-bent geometry engineered to clear factory climate lines

• CHASSIS EQUIPMENT COMPATIBILITY: Engineered for vans simultaneously running factory rear AC and an auxiliary cabin heater

• VEHICLE CHASSIS COMPATIBILITY: Fits Sprinter platforms equipped with Vanspeed side steps

FEATURES

• TARGETED CURVED FRAME GEOMETRY: Specially arced to bypass under-body climate line shrouds, keeping your structural step mounts completely isolated from fragile aluminum lines.

• HEAVY-DUTY FORGED RIGIDITY: Built to the exact structural standards of standard Vanspeed brackets, ensuring your side running boards suffer zero flex or sag when stepping into the cab.

• STEALTH OUTDOOR FINISH: Treated with a rugged black powder-coat shield that matches your existing side boards and resists harsh highway road spray, mud, and winter trail salt.

• DIRECT COMPONENT INTEGRATION: Slides directly into the Vanspeed side step framework, utilizing your step kit's existing hardware pathways for an efficient installation.

COMMON PAIRINGS

• VANSPEED SPRINTER SIDE STEPS & RUNNING BOARDS: The primary exterior boarding system that requires this curved support bracket for dual-climate van variants.

• VANSPEED SPRINTER TACTICAL DASHBOARD MOUNT: Keeps your cockpit organized and your navigation accessible while your exterior side steps handle the heavy foot traffic.

• SIKAFLEX 221 POLYURETHANE SEALANT: Great for sealing up any exposed under-chassis threads to guarantee long-term moisture and vibration protection.

COMPATIBILITY & FITMENT

• CHASSIS PLATFORMS: Sprinter Lines (Compatible across modern platform generations).

• EQUIPMENT DEPENDENCY REQUIREMENT: This individual curved support bracket is only required if your vehicle features BOTH a factory rear roof/wall AC unit and an auxiliary under-floor diesel heater. Vans with single or no rear climate options can utilize standard straight step brackets.

• ADDITIONAL RESOURCES: Review the factory reference layout pictures and detailed video walk-throughs to verify your specific chassis clearance zones prior to final assembly.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Do I need to buy this curved bracket if my van only has a standard front dashboard AC system?

A: No, you do not. This specialized curved support bracket is only required if your van is equipped with the heavy-duty factory rear cabin AC unit in addition to an auxiliary diesel passenger cabin heater. If your van does not have both of these rear climate packages, your under-chassis rails will clear standard straight brackets.

Q: Does this listing include a complete set of side steps for both sides of the van?

A: No, it does not. This listing is for one (1) individual extra Vanspeed Curved Support Bracket only. It is sold completely separately as an optional add-on part for builders who encounter rear climate clearance constraints while installing their main side steps.

Q: Will using this curved bracket decrease the overall weight rating or strength of my side steps?

A: Absolutely not. Vanspeed engineers and welds this curved bracket using high-strength structural steel tubing that perfectly mirrors the heavy load capacity of their standard brackets. It maintains full structural integrity while providing an arced path around your factory under-body lines.

Q: Do I need to drill entirely new holes through my frame to attach this extra support loop?

A: No, this bracket is engineered to integrate seamlessly into the existing Vanspeed installation footprint. It utilizes the dedicated frame mounting paths already provided on the chassis, allowing you to bypass your factory climate obstructions without executing messy custom alterations.
