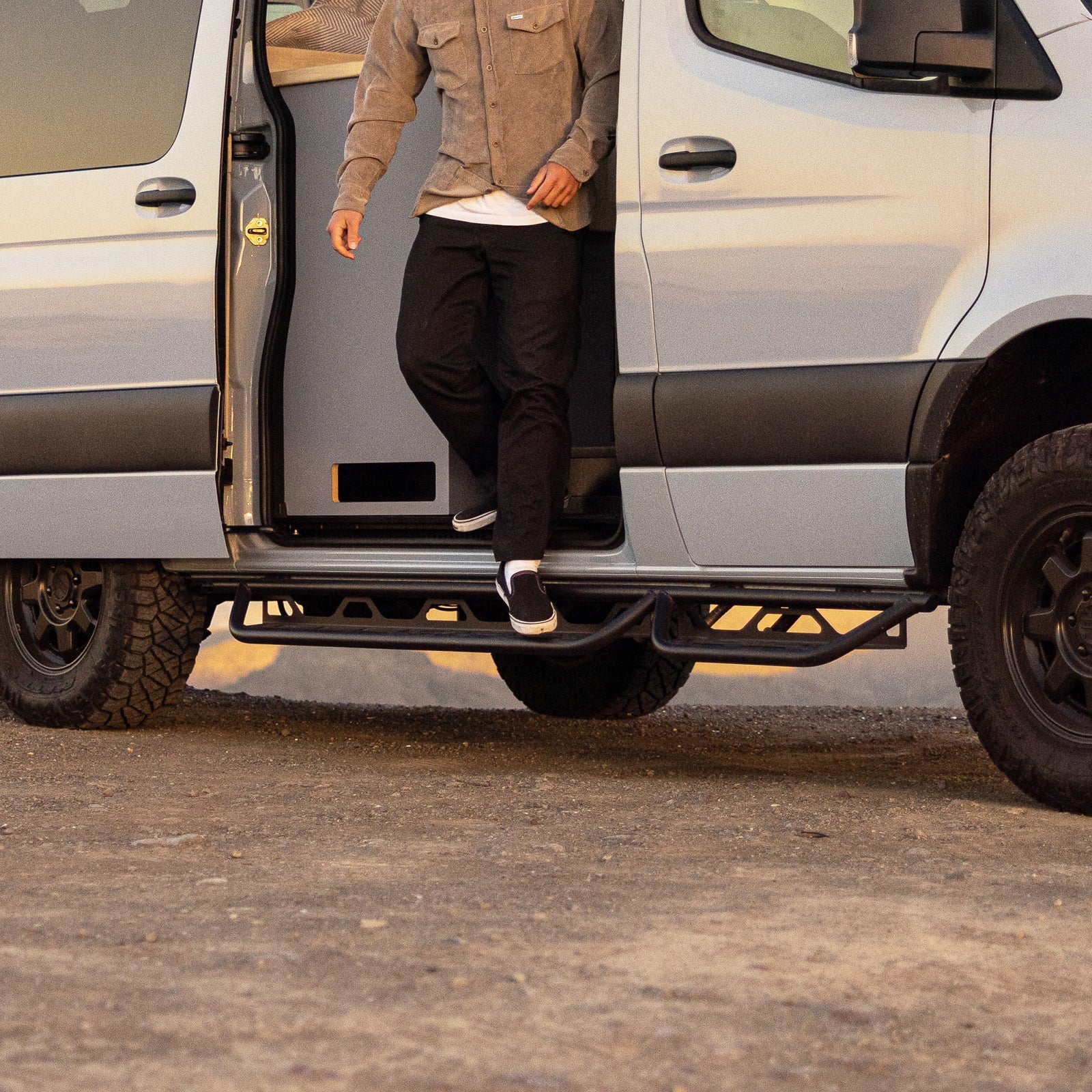

Hopping into a lifted adventure rig shouldn't feel like a strenuous mountain climb at the end of a long trail day. At WEST COAST VANS, we know that clean, reliable access points completely change how a van functions at camp. We stock these heavy-duty Vanspeed side steps because they bridge that tall ground-clearance gap perfectly without forcing you to compromise on your vehicle's structural off-road breakover angles. This premium kit drops a massive double-platform step down the passenger sliding door flank and a dedicated single platform on the driver side, ensuring your boots have an unyielding, rock-solid landing pad in mud, rain, or snow. Ask Us Product Questions Anytime before you buy—our San Clemente shop team is always down to talk shop and coordinate your under-chassis equipment mapping!

WCV EXPERT TIP: Under-body real estate is incredibly tight on highly optioned vans. Crucial Fitment Step: If your rig rolled off the assembly line with BOTH a factory rear roof/wall AC unit and an auxiliary under-floor diesel cabin heater, your passenger-side frame channel will feature unique mechanical obstructions. Take a moment to watch the factory installation blueprint video at the 9:50 mark to see how these climate lines track. If you have both systems, you will need to grab the specialized Vanspeed Curved Tube Support Bracket to cleanly arc over those lines and complete your installation without any modification headaches!

PRODUCT OVERVIEW

The Vanspeed Side Steps are a heavy-duty, frame-stabilized running board system engineered for high-utility van platforms. Masterfully fabricated in Huntington Beach, California, this rugged set features a uniform 96-inch structural tube length for both sides of the vehicle. CNC-cut, mandrel-bent, and welded from 1½” high-strength tubular steel, the entire kit receives an industrial-grade textured black powder coat to halt trail corrosion. The specialized framework drops exactly 6.5 inches from the vehicle's pinch seam, delivering expansive, slip-resistant footbeds that easily support up to 350 lbs per platform while remaining tucked high and tight against the rocker skins.

BEST FOR

• HIGH-CLEARANCE TRAIL TRAVEL: Perfect for overland rigs running oversized tires, suspension lifts, or 4x4/AWD conversions that require intermediate stepping heights without sacrificing breakover angles.

• HEAVY-DUTY PASSENGER UTILITY: Ideal for family campers, crew vans, and busy workspaces that need a massive, continuous 49-inch footing deck along the main side sliding door.

TECHNICAL SPECIFICATIONS

• CHASSIS ACCESS PROFILE: Heavy-duty modular frame-mounted exterior side running board step set

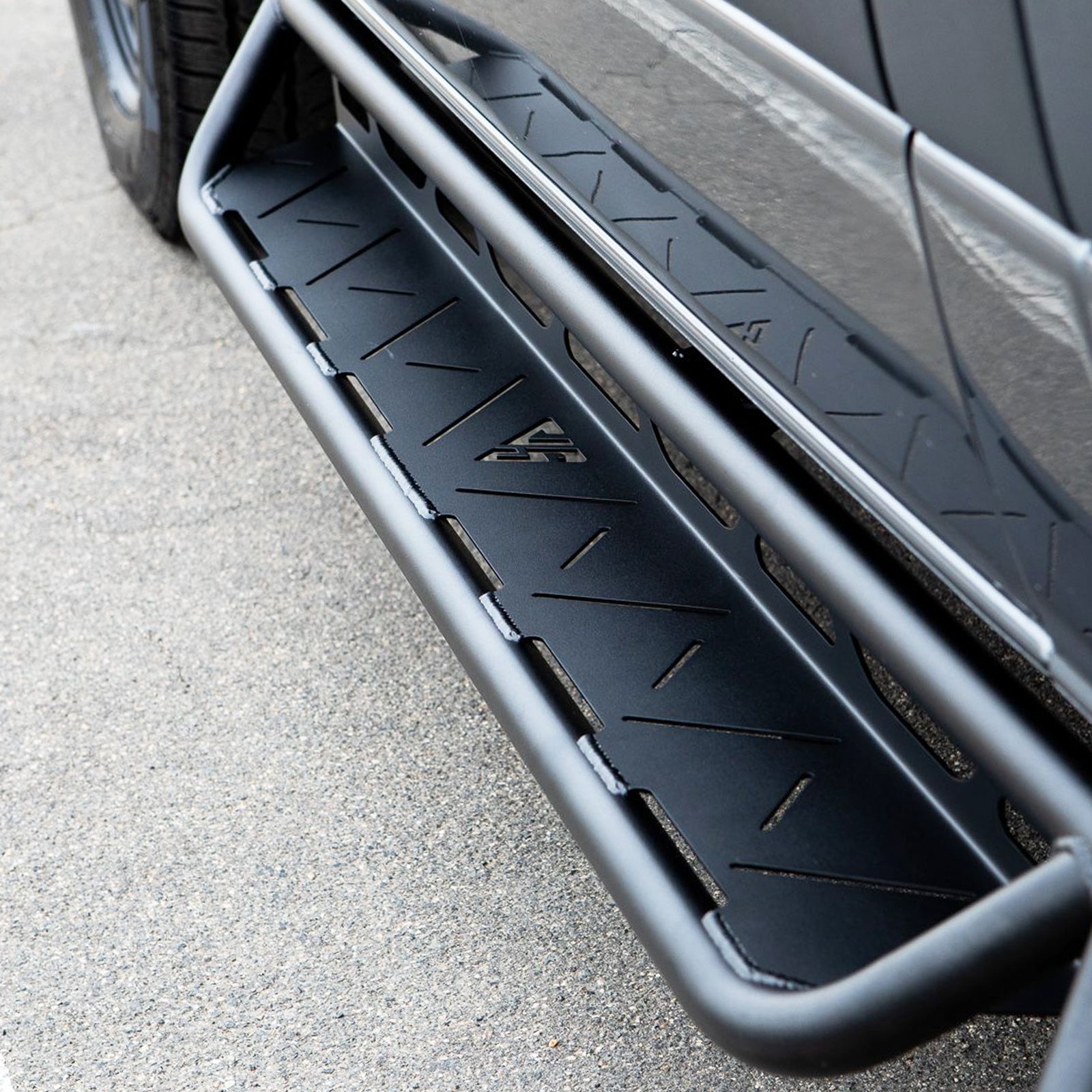

• STRUCTURAL MATERIAL MATRIX: High-tensile 1½” tubular steel rails paired with CNC-formed tread plates

• SURFACE PROTECTION COATING: Industrial-grade, UV-stabilized textured black powder coat

• RUNNING BOARD FIX DEPTH: Uniform set length measuring exactly 96 inches per side rail

• VERTICAL STEP DEPLOYMENT: Delivers an optimized 6.5-inch drop clearance from the vehicle pinch seam

• MAXIMUM LOAD CAPACITY: Structurally rated to safely support up to 350 lbs per individual platform area

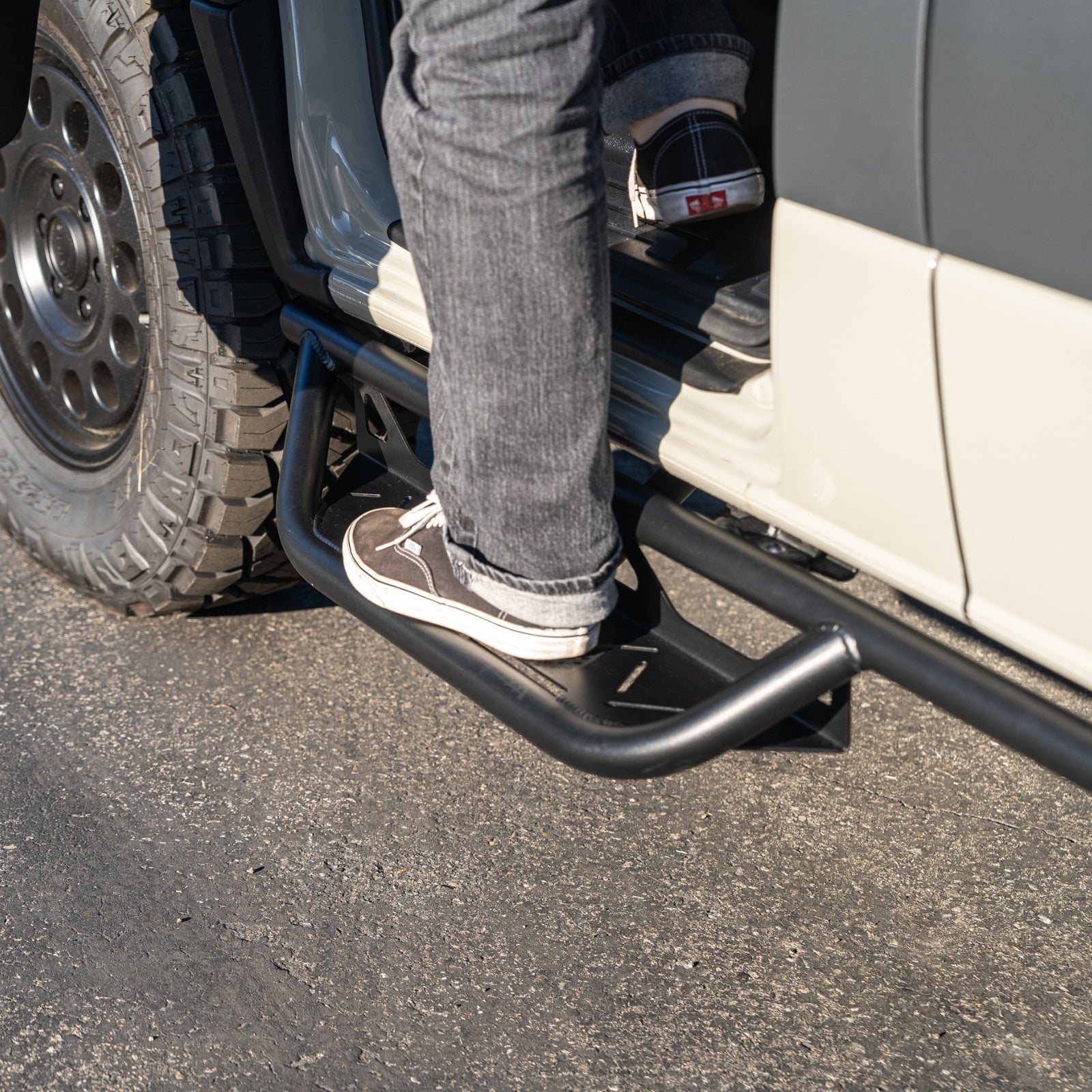

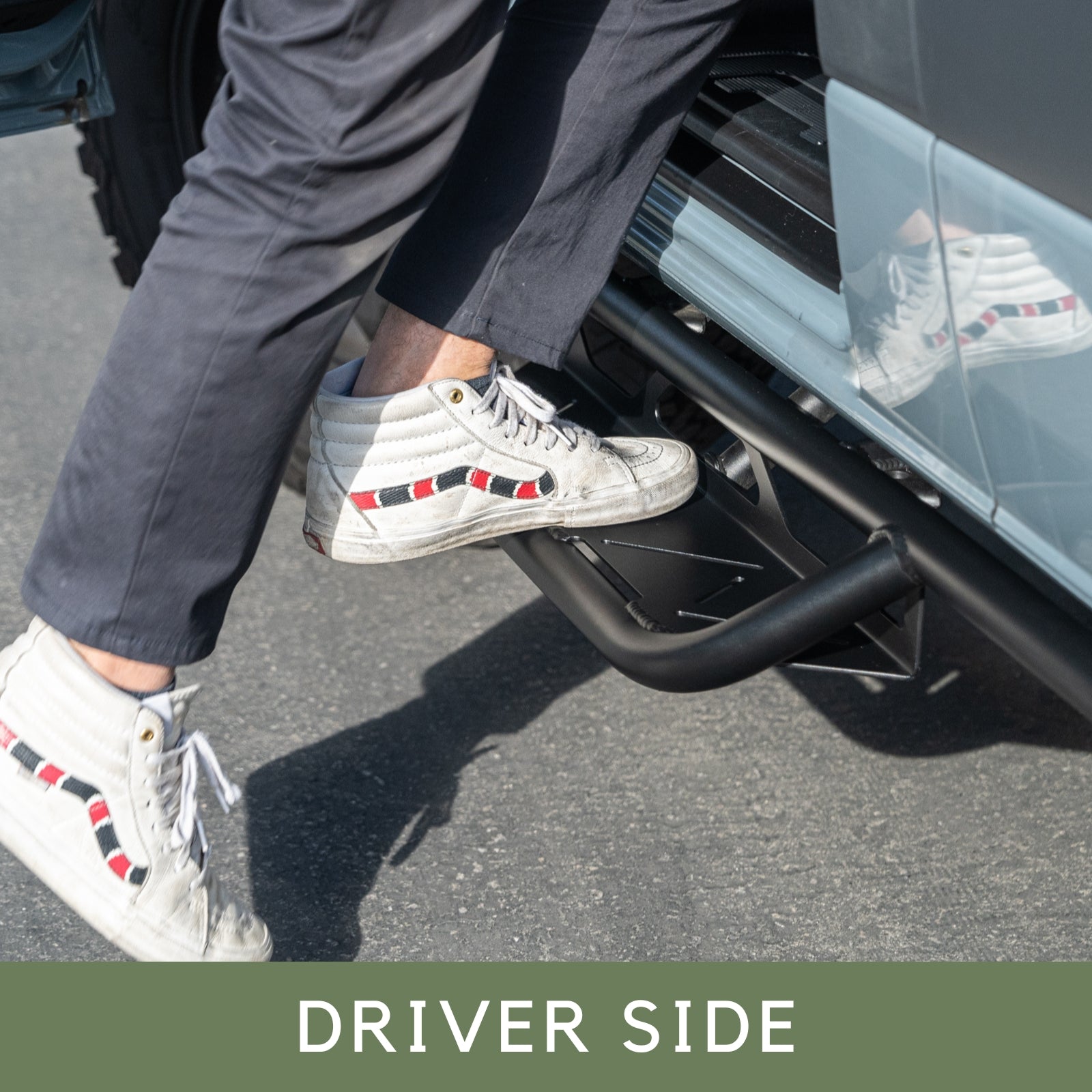

• DRIVER-SIDE ENTRY PLATFORM: Single-platform configuration featuring a 17" width and a 6" depth

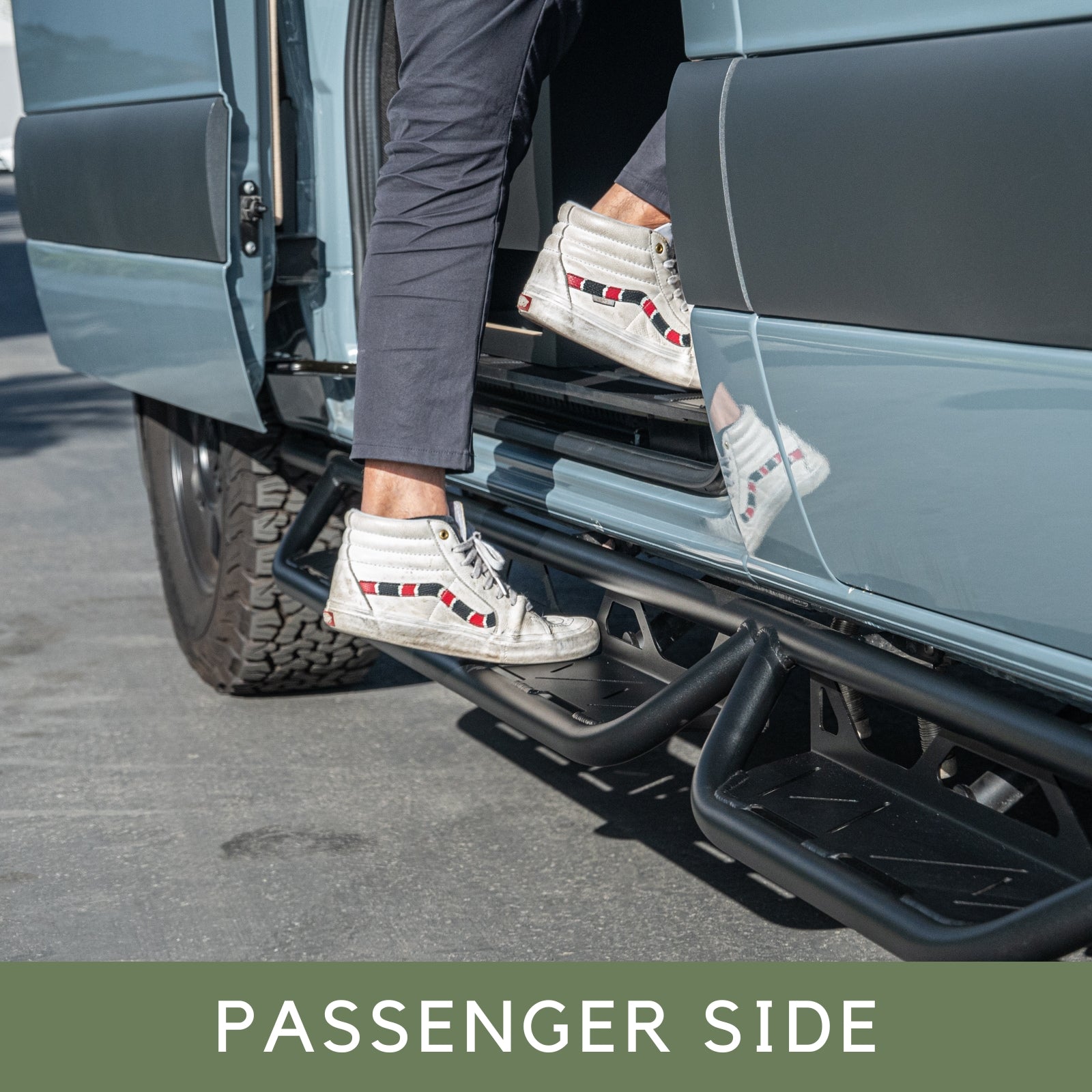

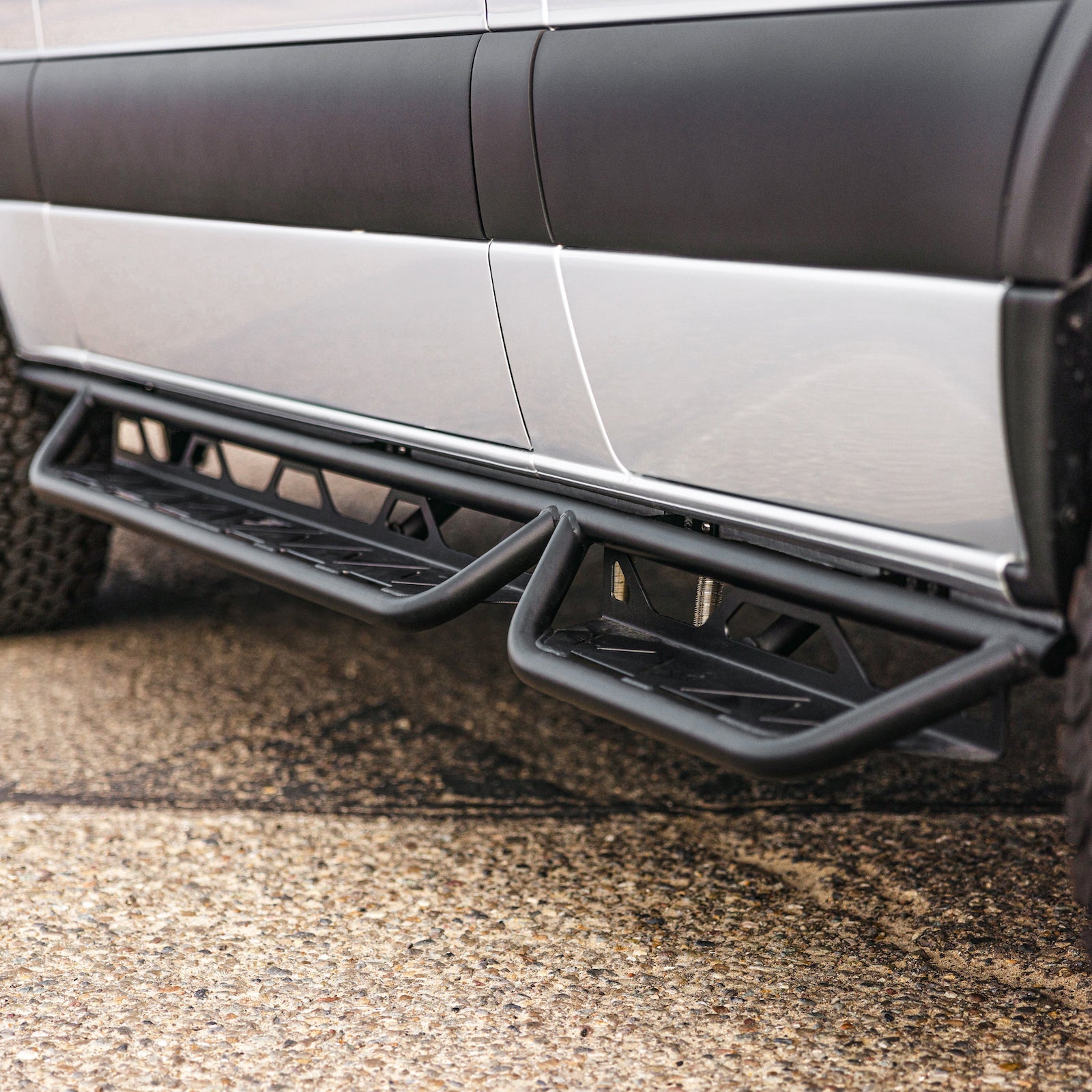

• PASSENGER-SIDE ENTRY MATRIX: Front entry deck (17" W x 6" D) paired with a massive sliding door step (49" W x 6" D)

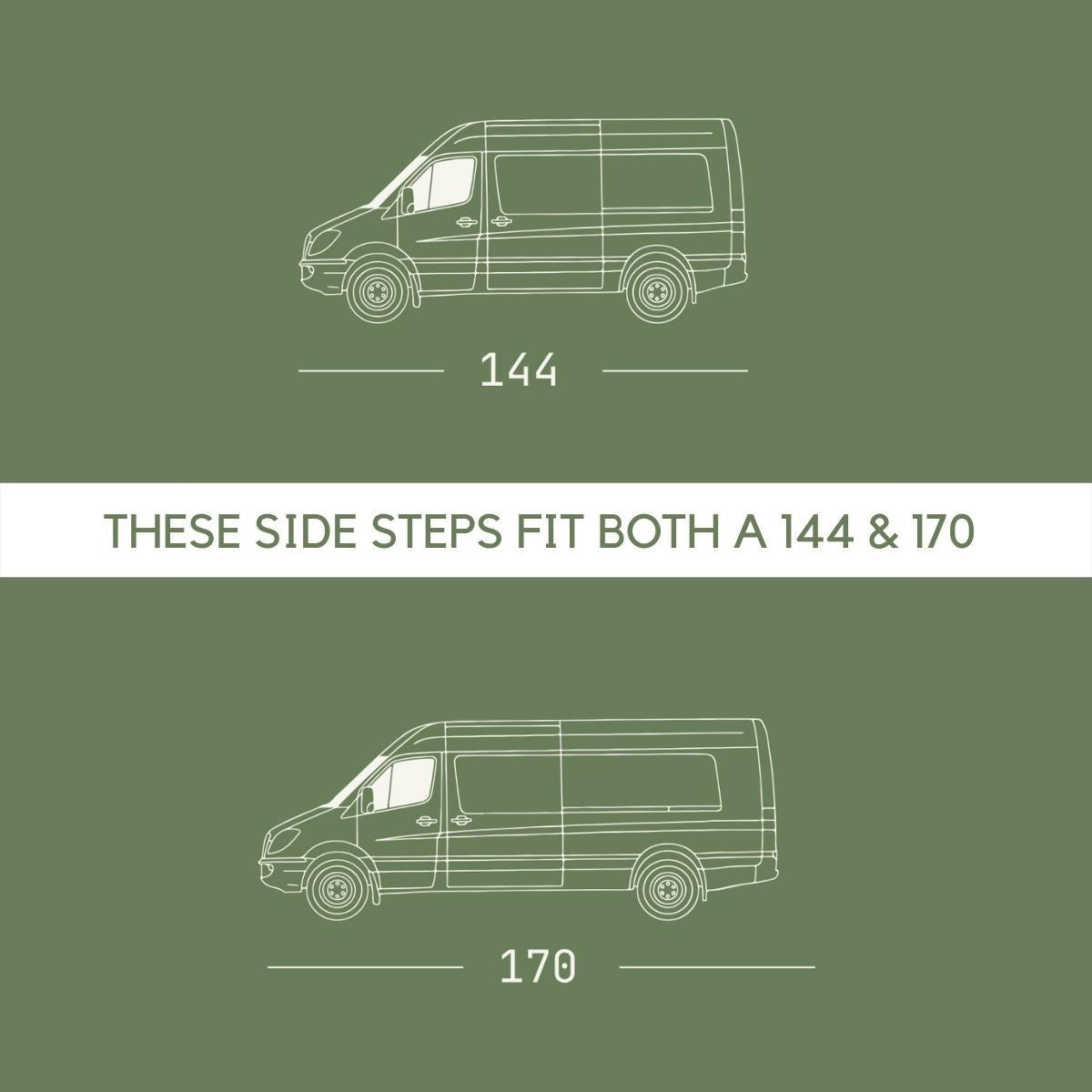

• VEHICLE CHASSIS COMPATIBILITY: Engineered for 144" and 170" wheelbases (2008-2025+) / 170" Extended EXT layouts (2014-2025+)

• MANUFACTURING & DESIGN ORIGIN: CNC cut, bent, and professionally welded in Huntington Beach, CA (USA)

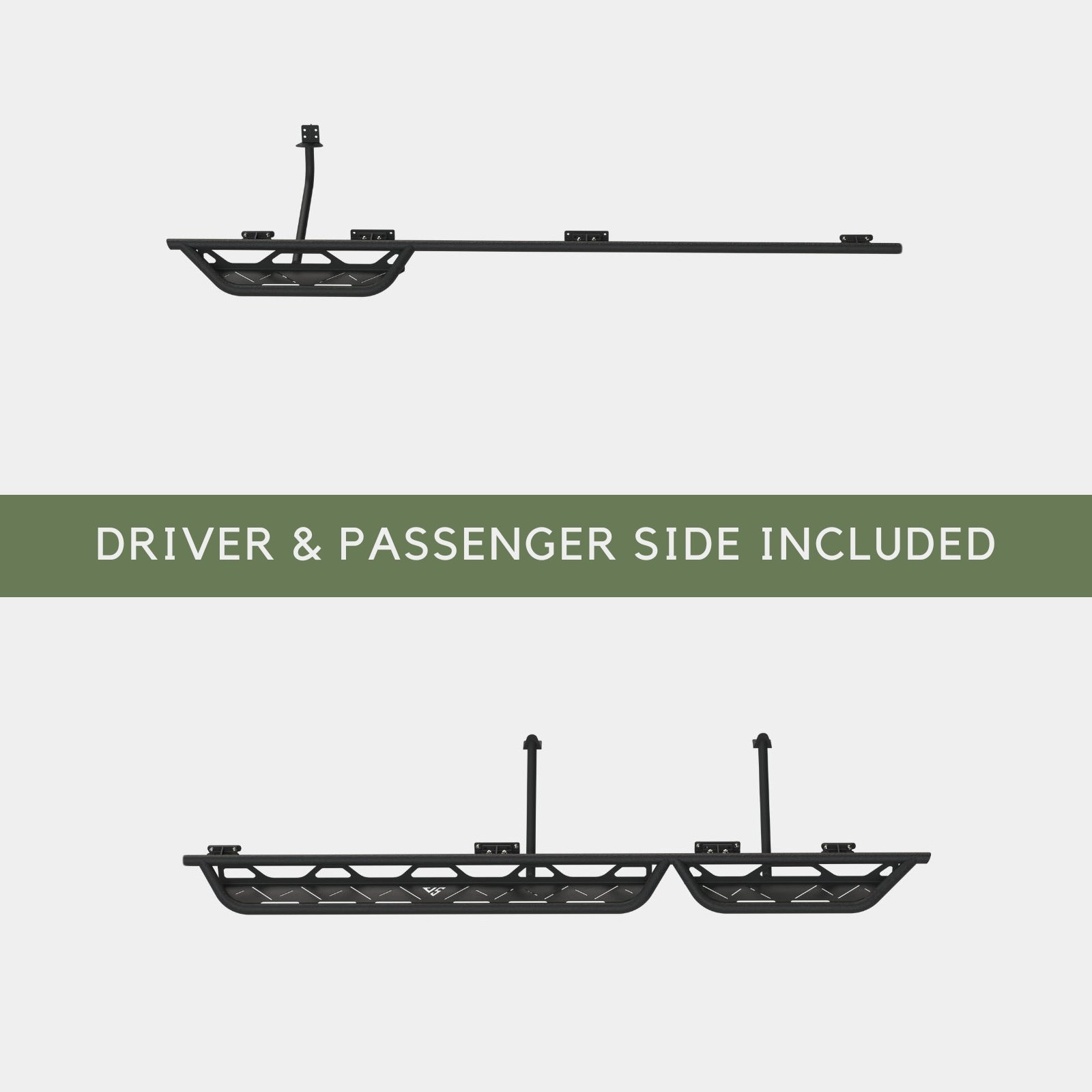

• PACKAGE COMPONENTS INCLUDED: 1 x double-platform passenger step, 1 x single-platform driver step, straight tube supports, frame brackets, and all necessary mounting fasteners

FEATURES

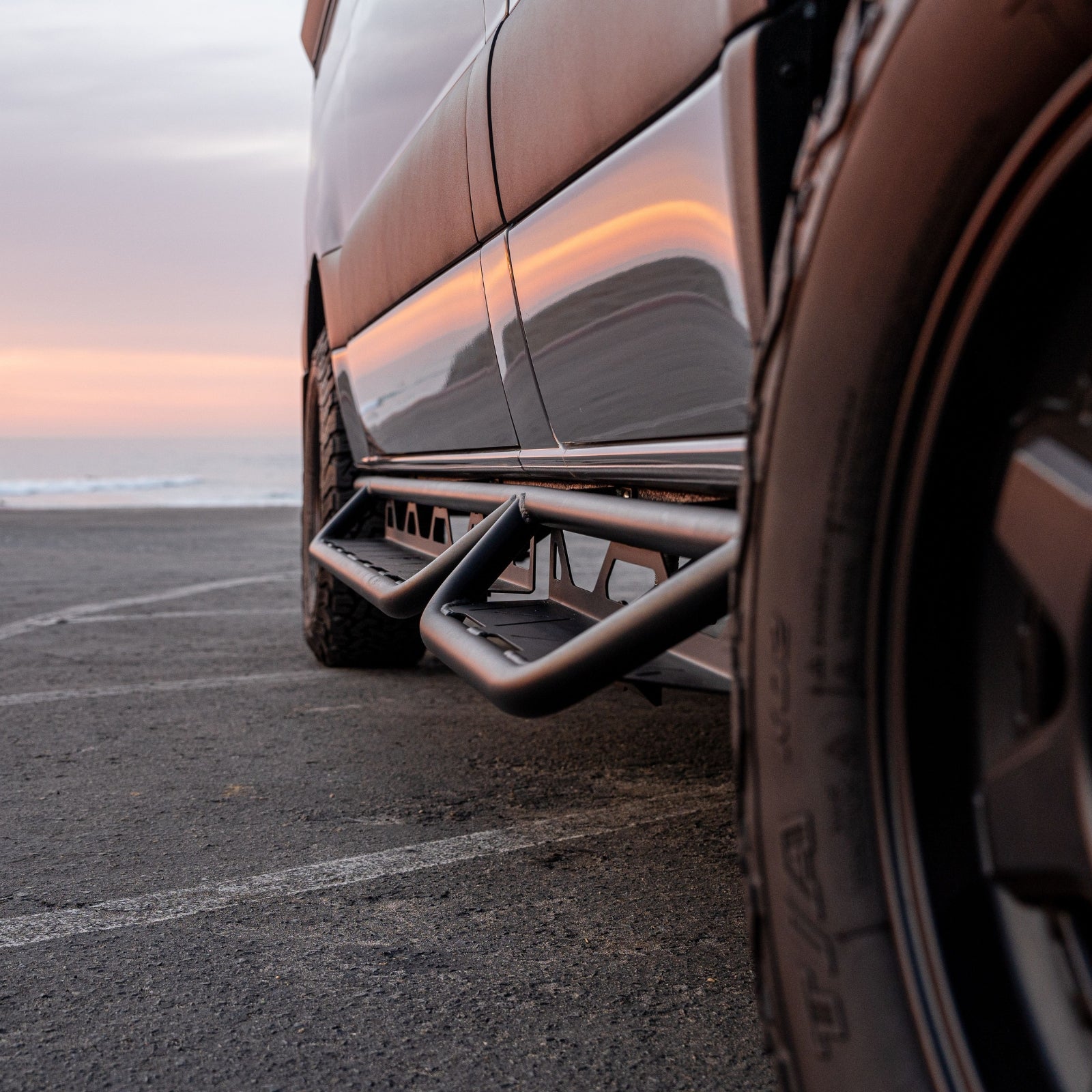

• HIGH-AND-TIGHT SLIDER PROFILE: Keeps the primary 1.5-inch steel tube lines flush against your lower rocker panels, acting as a defensive barrier against road debris while preserving maximum off-road clearance.

• DUAL-ZONE CHASSIS COUPLING: Direct-anchors into the vehicle’s integrated pinch seams and lower structural under-body paths, removing all leverage flex or trampoline spring when carrying a heavy load.

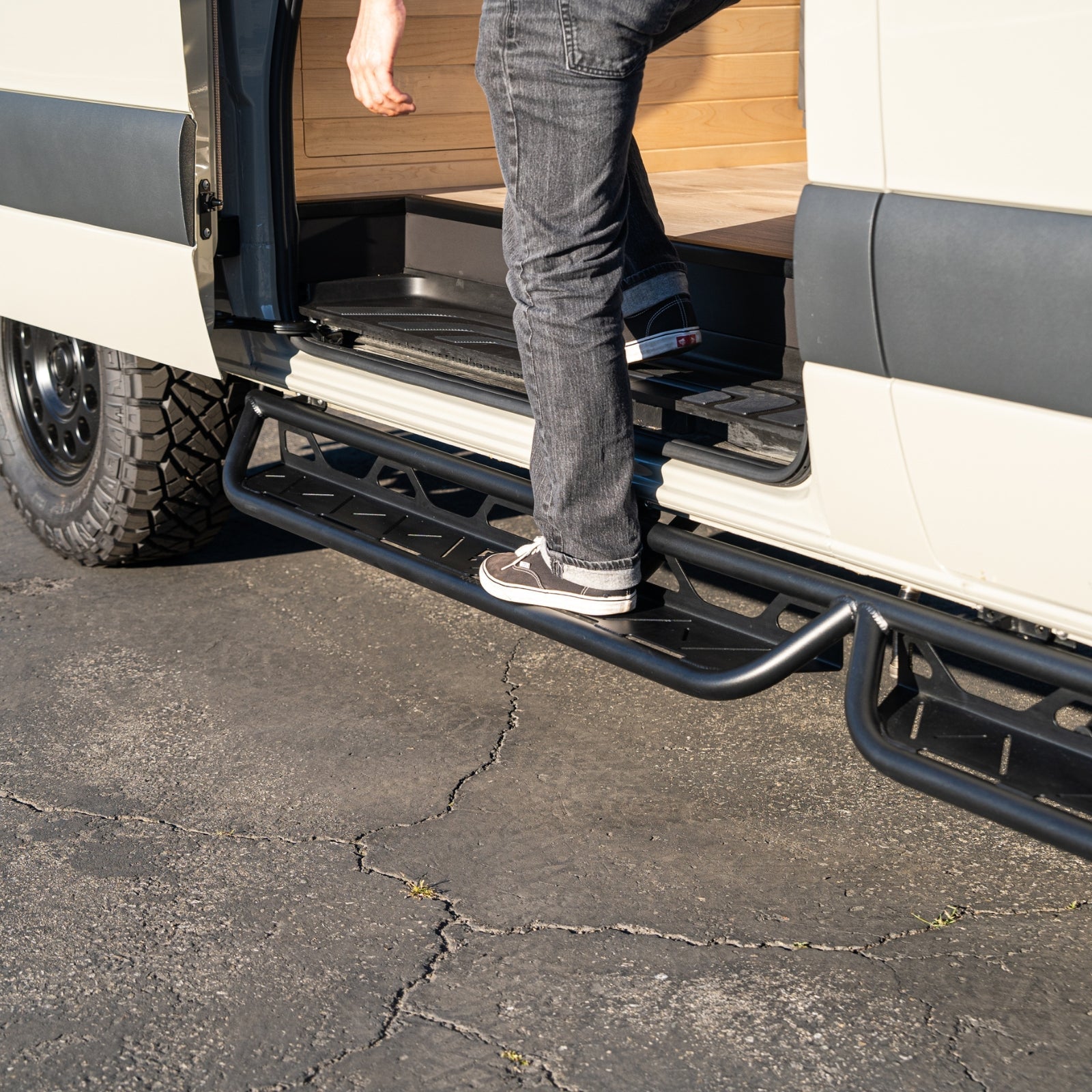

• MASSIVE PASSENGER FOOTPRINT: Provides a continuous 49-inch wide by 6-inch deep sliding door platform, allowing multiple passengers to load or unpack overhead gear safely simultaneously.

• CNC ROAD-ARMORED BARRIER: Coated in a thick, traction-mapped textured black shield that works with the heavy steel frame to withstand relentless highway stone chips, mud spray, and harsh winter road salt.

COMMON PAIRINGS

• VANSPEED CURVED TUBE SUPPORT BRACKET: The mandatory clearance mounting bracket needed if your van runs both factory rear AC and an auxiliary cabin heater.

• VANSPEED HIGH ROOF SIDE LADDER: Integrates seamlessly down the driver-side panel, clearing this step framework cleanly for fast roof rack transitions.

• VANSPEED DEFENDER MINI REAR HITCH STEP: Completes your exterior boarding access points by adding an unyielding, quick-access landing pad at the rear towing bumper.

COMPATIBILITY & FITMENT

• CHASSIS FITMENT CHANNELS: Fits standard 144" and 170" wheelbases (2008-2025+) along with 170" Extended (EXT) body configurations (2014-2025+).

• DEF TANK EXCLUSION CRITERIA: This step kit is NOT compatible with older 2008–2012 vehicle models that feature the factory Diesel Exhaust Fluid (DEF) tank located underneath the passenger-side rear cargo section. Please inspect your under-body layout prior to ordering.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Do I need to drill entirely new mounting holes through my van's main frame rails to install these steps? A: No, you do not. Vanspeed engineered this system to tie directly into your vehicle's integrated factory pinch seams and under-body structural frame tracks. The kit arrives with all the target brackets and high-tensile hardware required for a secure, drill-free installation.

Q: What happens if my van is equipped with both the factory rear wall AC and an under-floor heater? A: Vans with both auxiliary rear systems feature specialized climate lines that block standard step support braces. To complete your installation safely without modifying or crushing these vital components, you will need to add the optional Vanspeed Curved Tube Support Bracket to your order.

Q: Can I buy these running boards if I own an older model van built between 2008 and 2012? A: You must verify your vehicle's mechanical configuration first. If your 2008–2012 model features the factory DEF tank mounted beneath the passenger-side rear cargo floor area, these steps will not clear that tank profile and will not work. If your DEF tank is under the hood or located elsewhere, fitment is clear.

Q: Are the steps sold individually for just the passenger door, or do they ship out as a full set? A: This listing includes the complete exterior boarding package for both sides of your vehicle. Your purchase contains the continuous double-platform passenger-side rail, the single-platform driver-side rail, all matching frame supports, brackets, and a complete high-tensile hardware kit.
