At West Coast Vans, cabinets and beds are only as trustworthy as the structure hiding behind the finished wall. This 2019+ Sprinter kit combines sequenced mounting plates, integrated rivnuts, and 6061-T6 L-track for 144 or 170 builds; Ask Us Product Questions Anytime before your wall panels cover the work.

WCV EXPERT TIP

Lay out ceiling loads and brace spacing before insulation or ceiling panels, and confirm tool access at the front bracket.

PRODUCT OVERVIEW

Tec Vanlife 2019+ Sprinter Wall Plate L-Track Kit - Structural Mounting creates reinforced ceiling attachment points in a Mercedes-Benz Sprinter 170 Extended for L-track or other overhead anchors.

The source specifies 0.060-inch galvanized-steel braces, supplied rivets and self-tapping screws, front-to-back orientation, adjustable spacing, and a tight-access installation note.

BEST FOR

• SPRINTER 170 EXTENDED CEILINGS: Designed for the 170 Extended chassis.

• CEILING L-TRACK INSTALLS: Adds a solid mounting surface for track or tie-down anchors.

• PRE-PANEL STRUCTURAL BUILDS: Installs before the finished ceiling to create known attachment points.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

• PRODUCT: 2019+ Sprinter Wall Plate L-Track Kit - Structural Mounting

• TYPE: 144", 170"

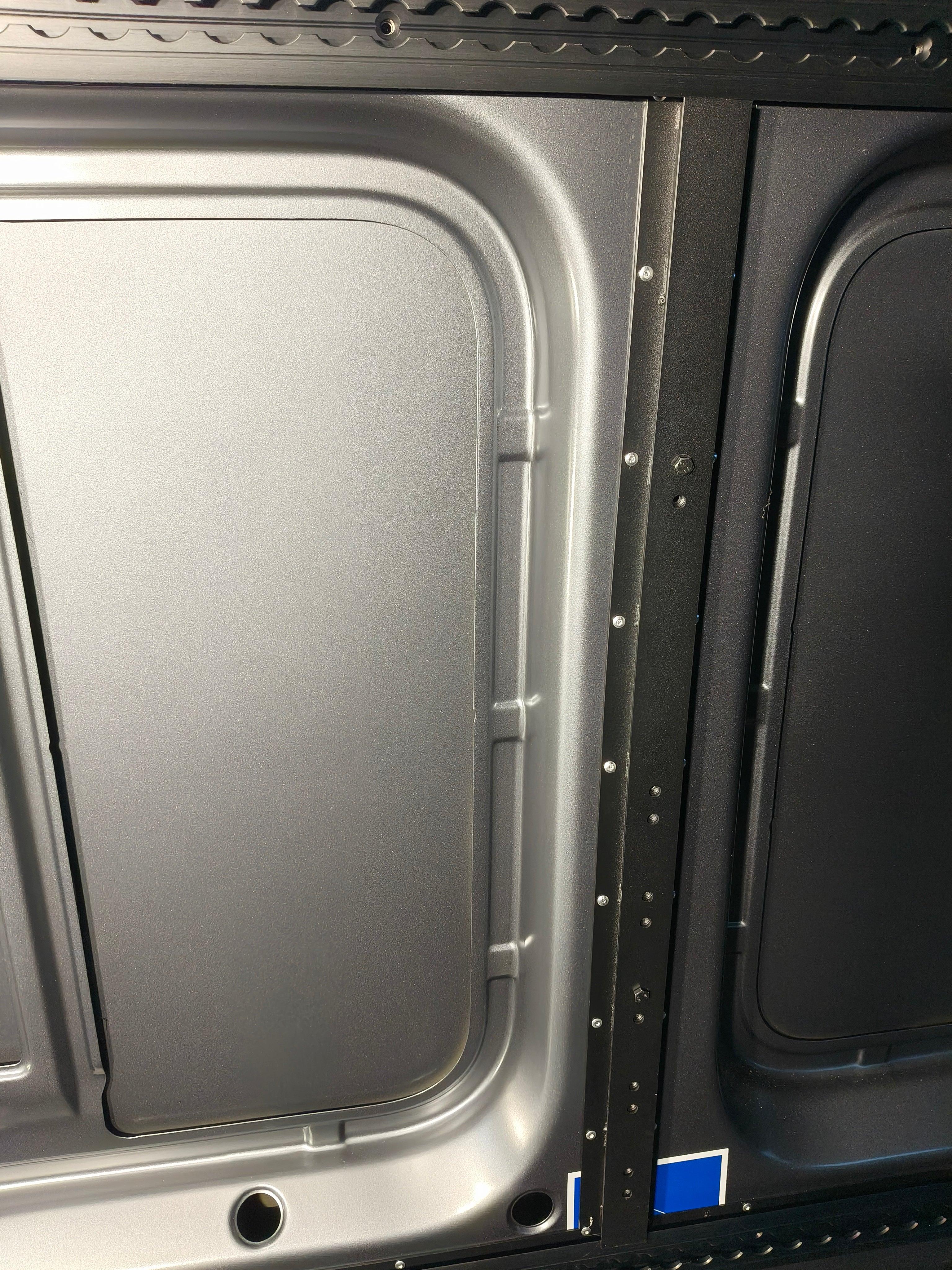

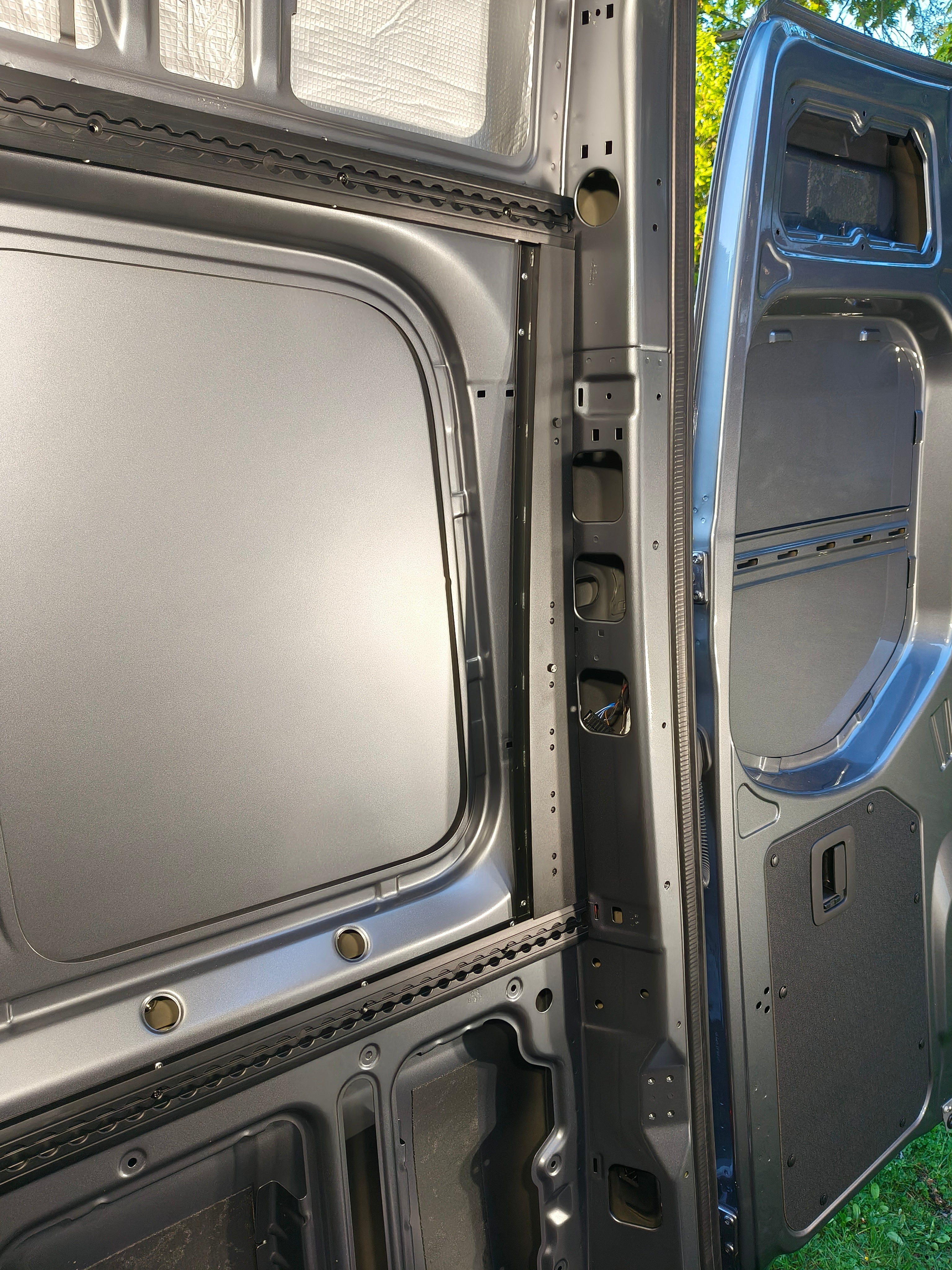

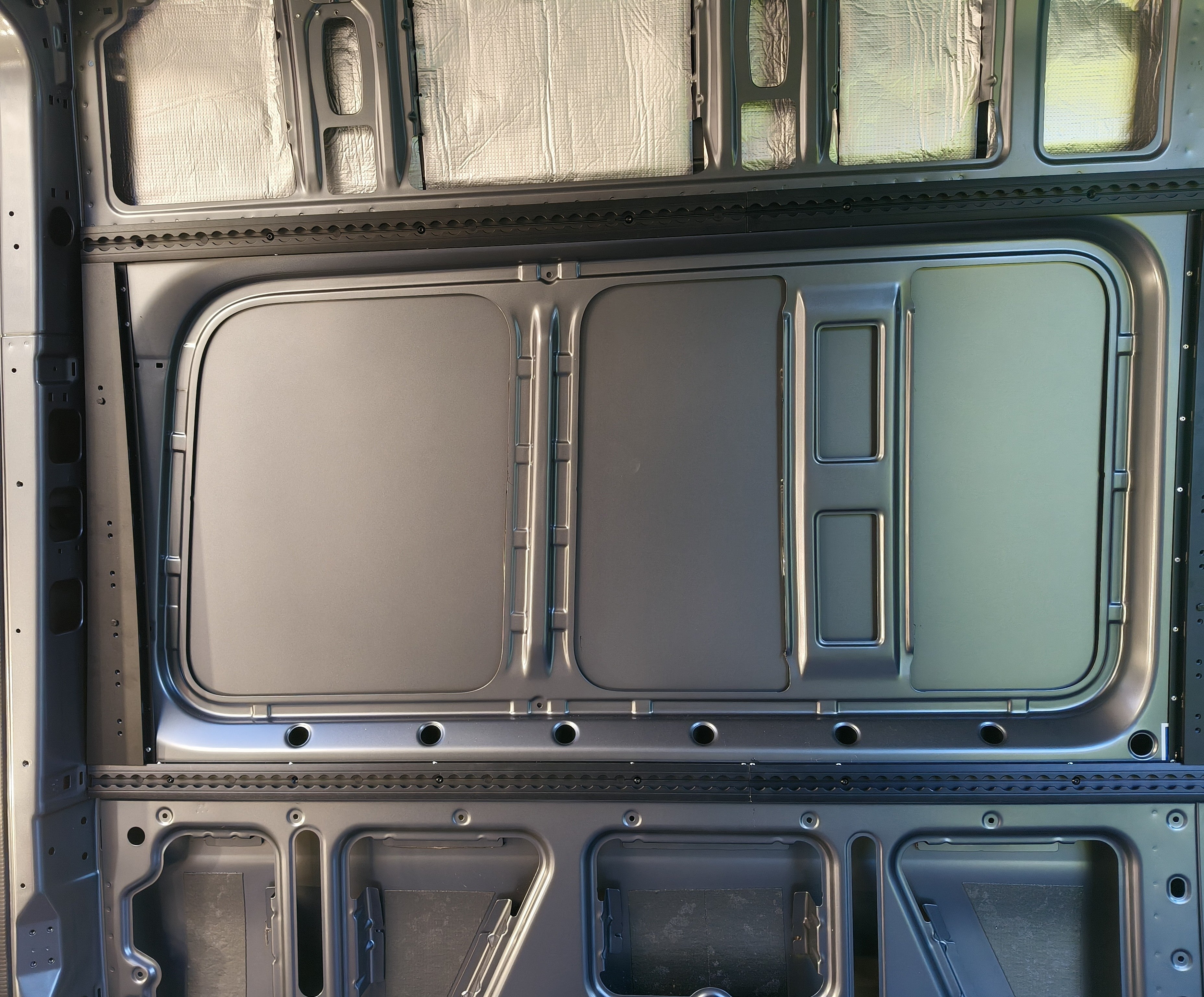

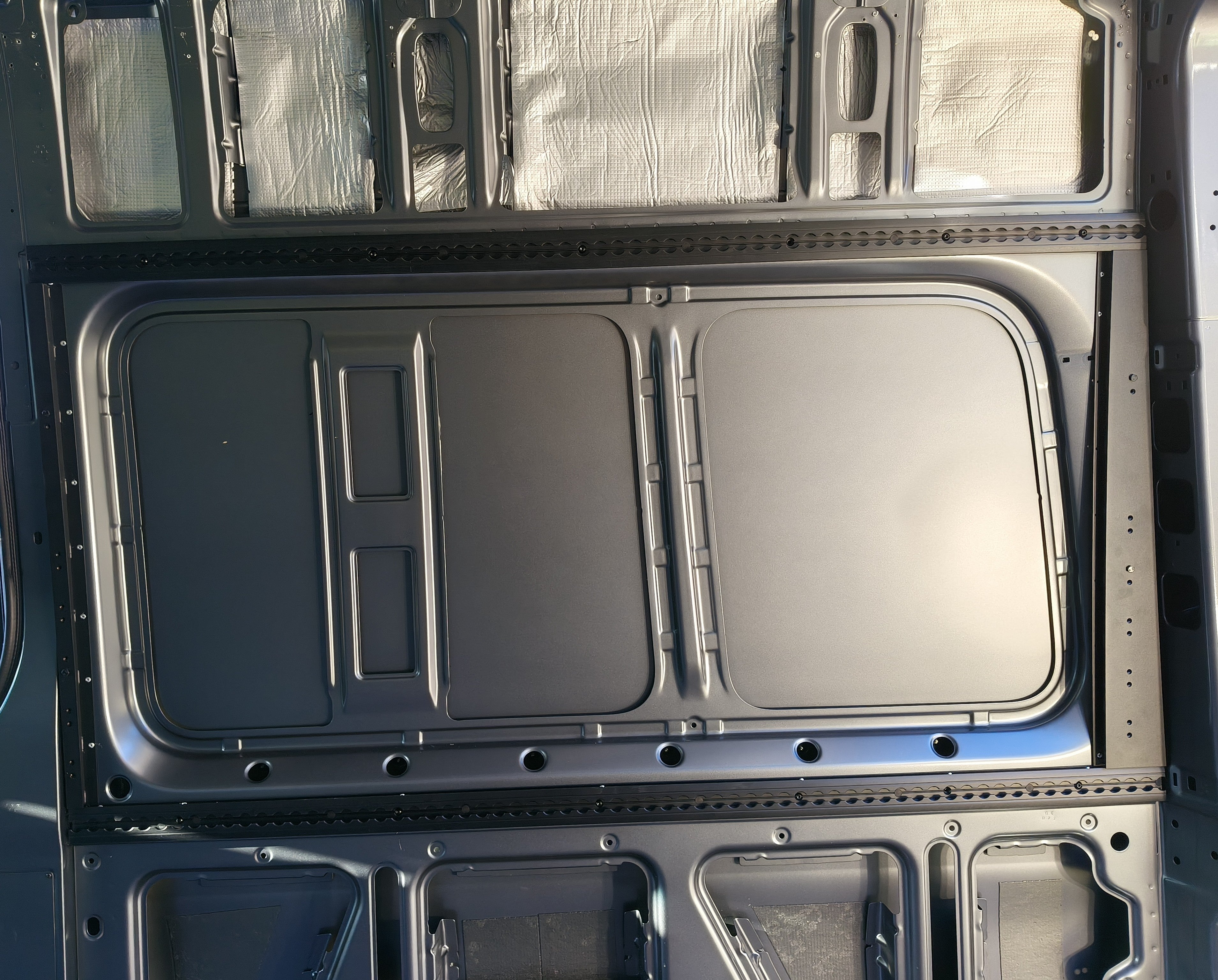

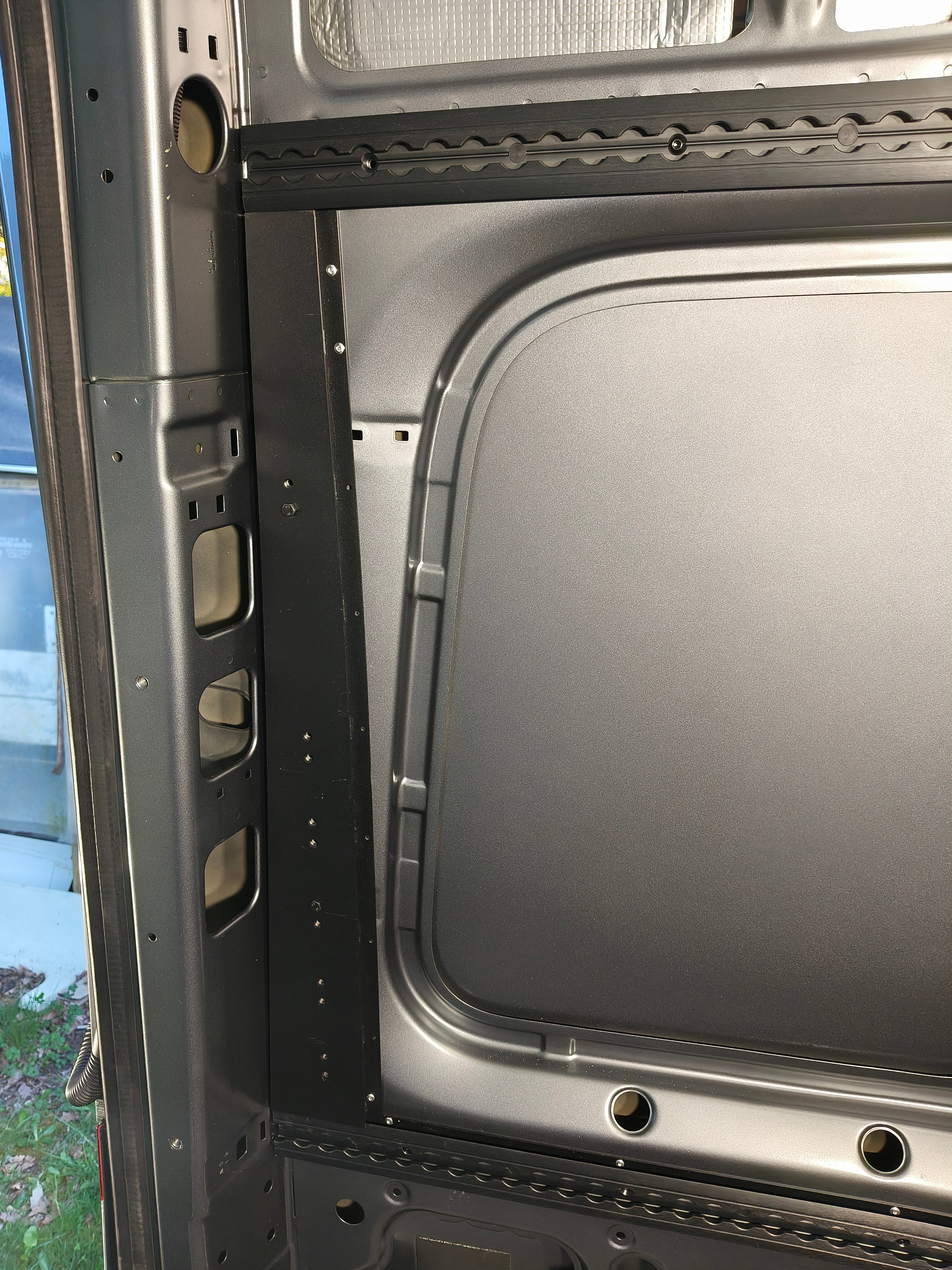

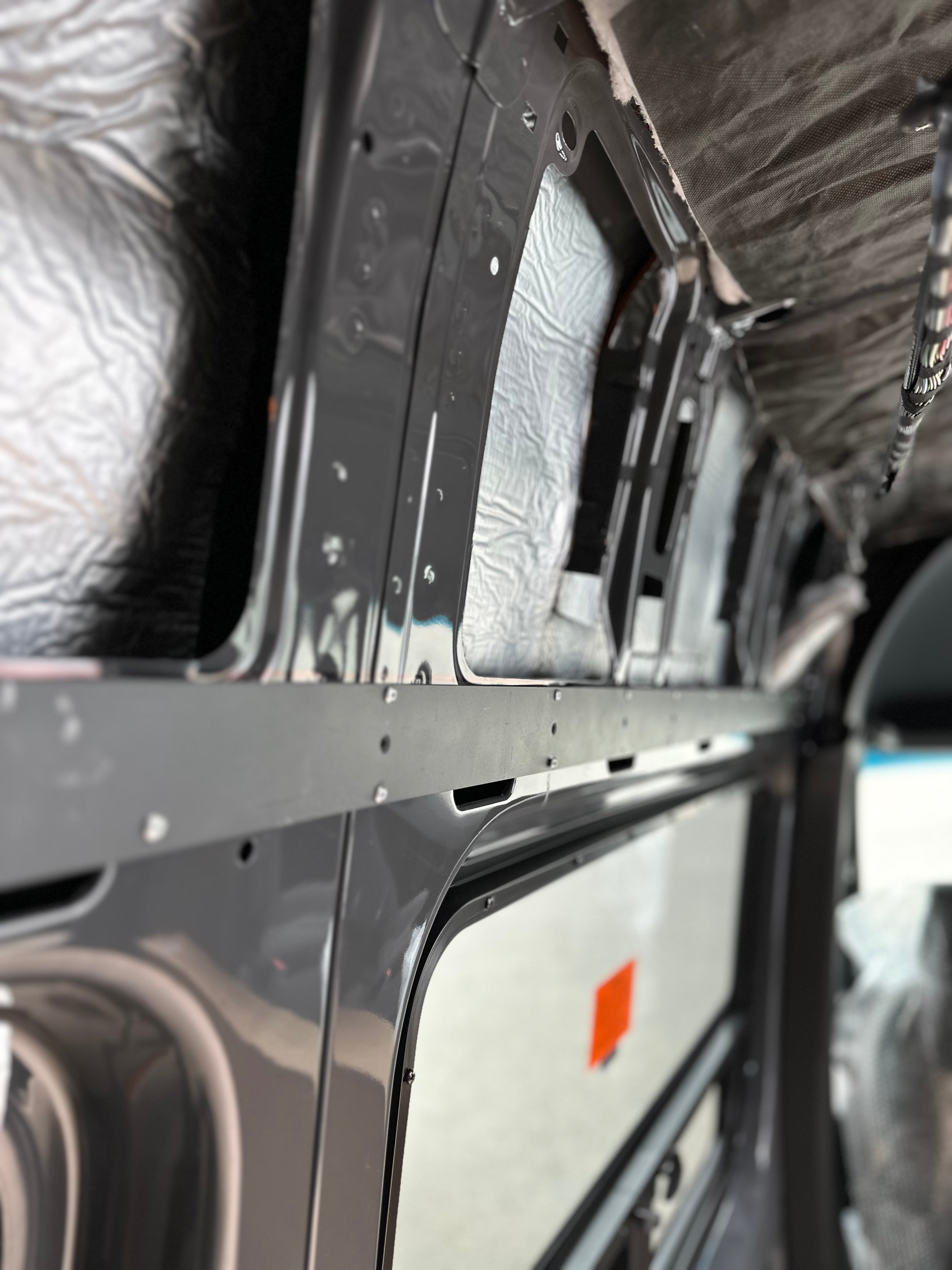

• INSTALLATION: Sprinter side wall mounting plate & L-Track kit that converts the wall panels into a structural foundation of load bearing anchor points for beds, overhead cabinetry, and wall mounted gear.

• STRUCTURAL FOUNDATION SYSTEM FOR MERCEDES SPRINTER: Structural foundation system for 2019+ Mercedes Sprinter interior builds

• LOAD RATING: Converts factory sheet metal into reinforced, load bearing anchor points

• BED SYSTEM: Built to support beds, overhead cabinets and other wall mounted components

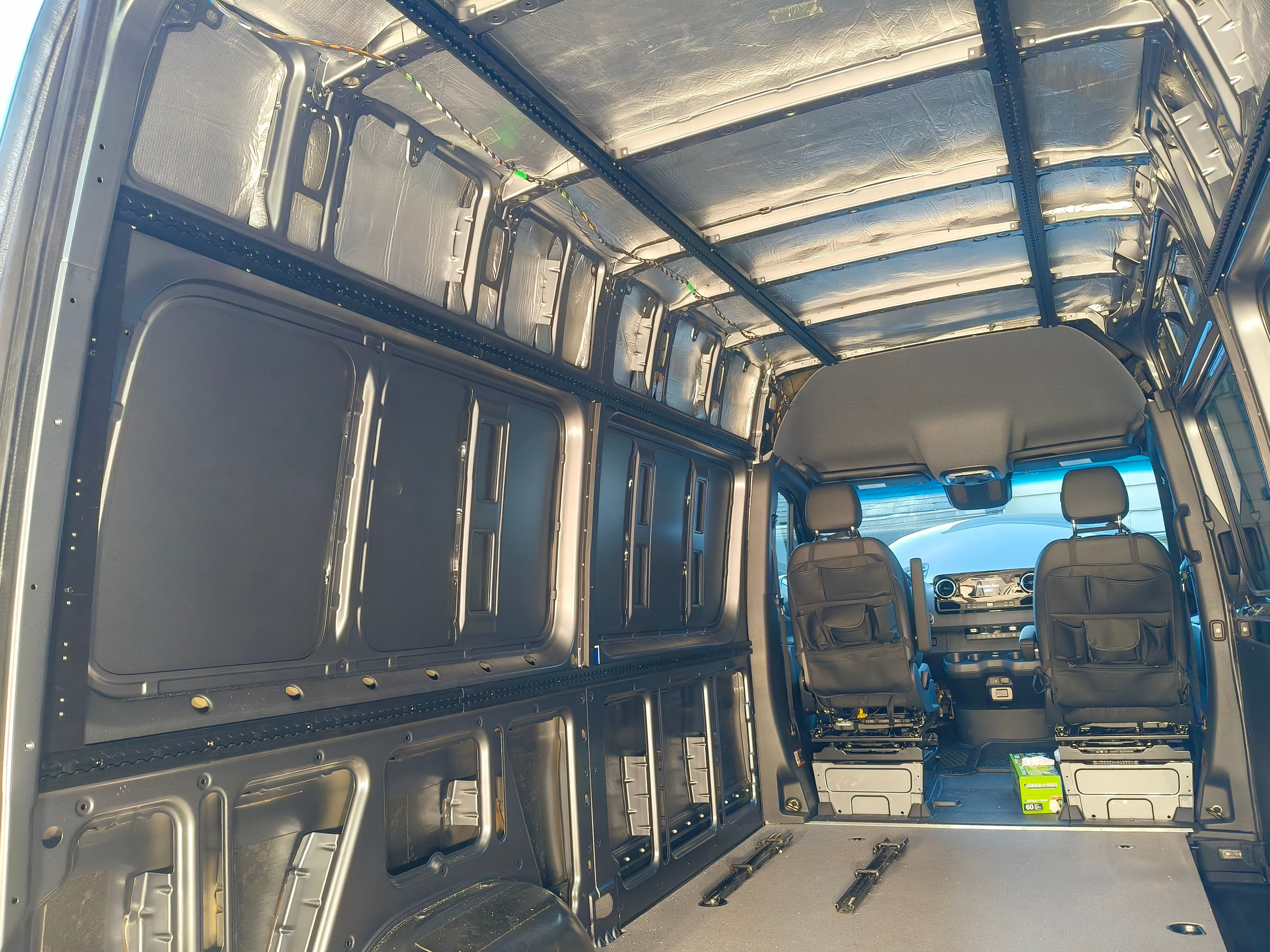

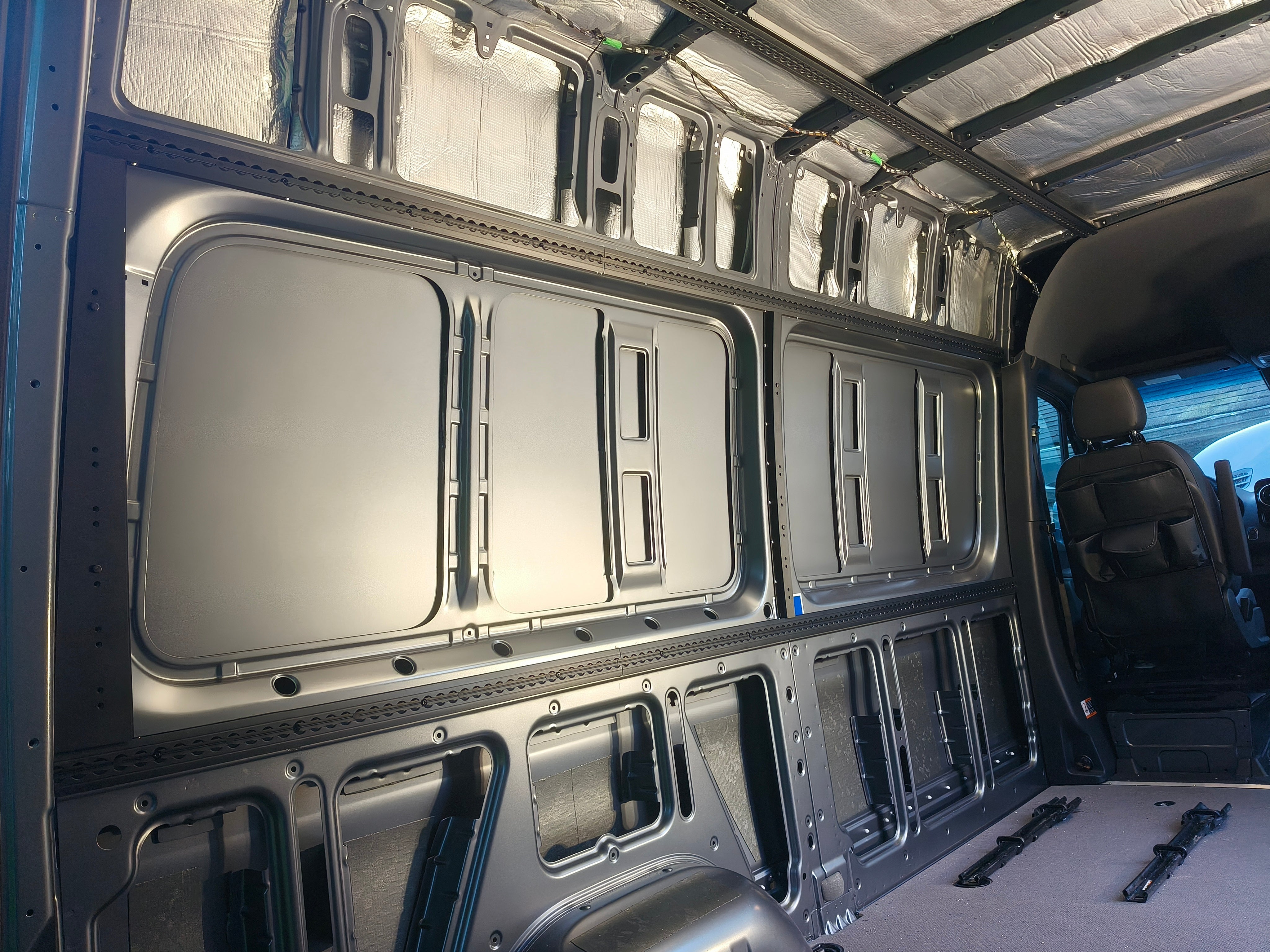

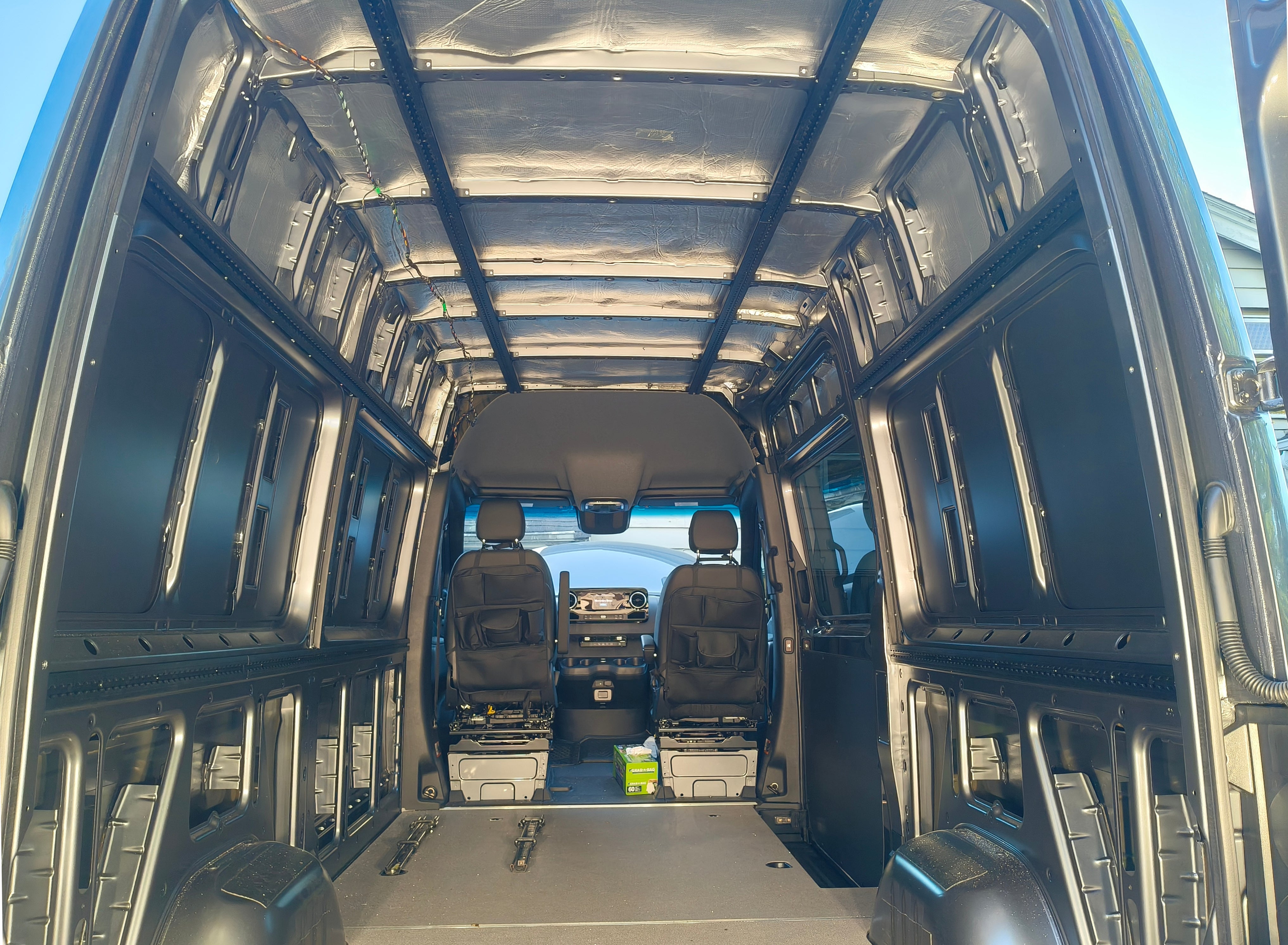

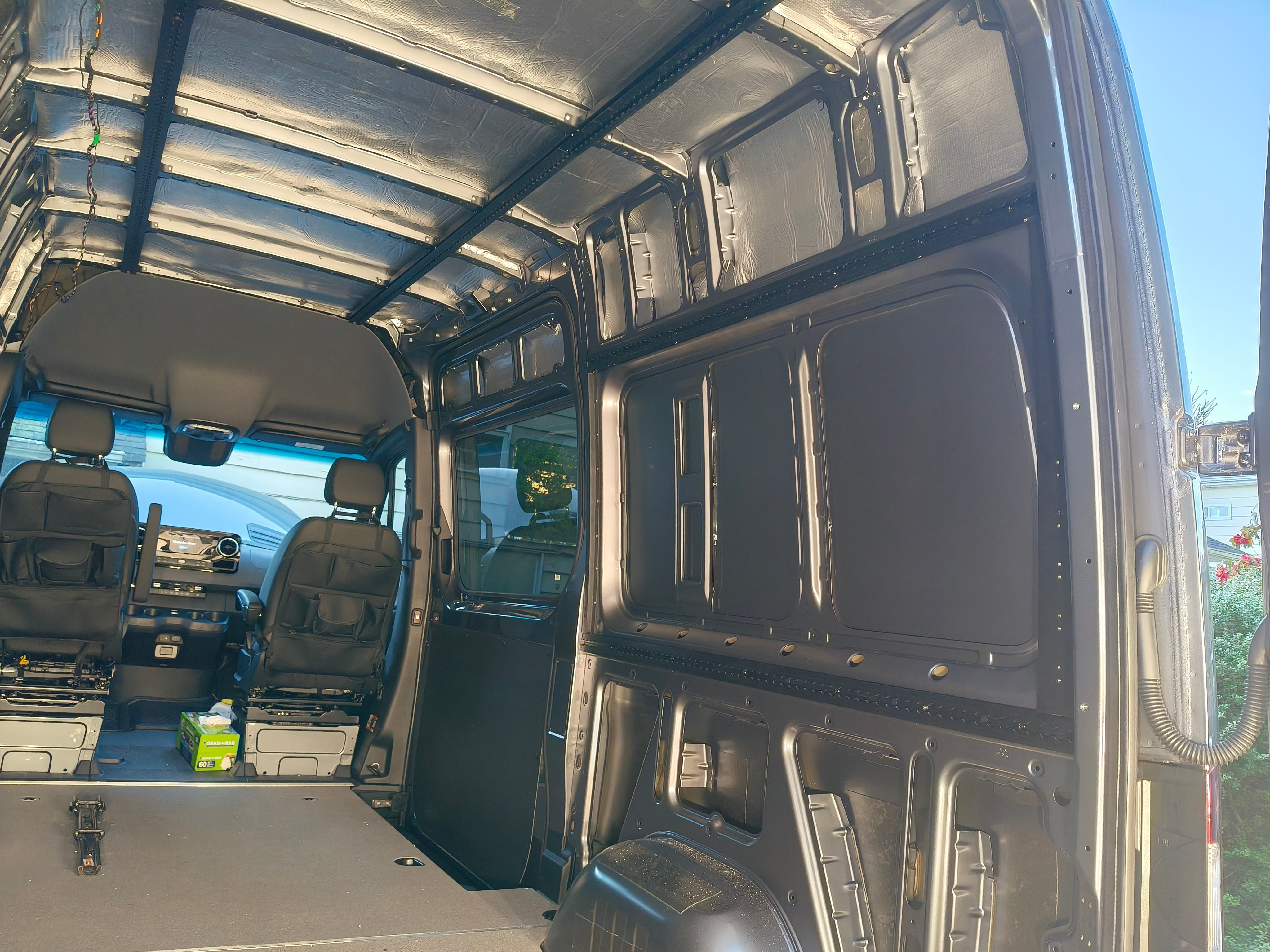

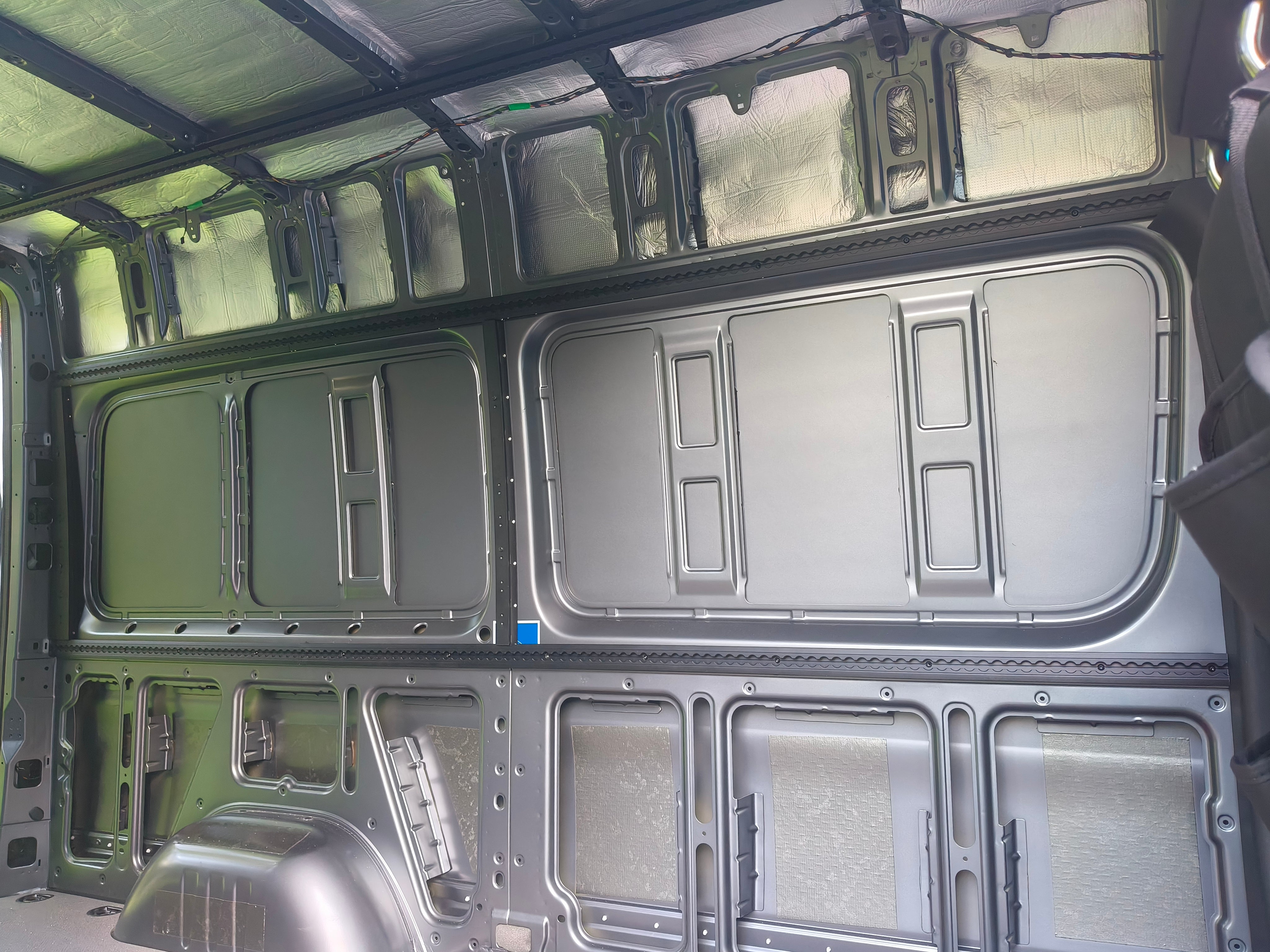

• INSTALLATION: Full length kit coverage for continuous mounting points across the van interior

• INSTALLATION: Standardized structural mounting zones for consistent, repeatable builds

• INSTALLATION: Streamlined design for easy solo installation

• INSTALLATION: Rated for up to 77 lb (35 kg) at a single mounting point and up to 441 lb (200 kg) distributed across the full plate

• INSTALLATION: Load spreading mounting plates reduce panel flex and pull through

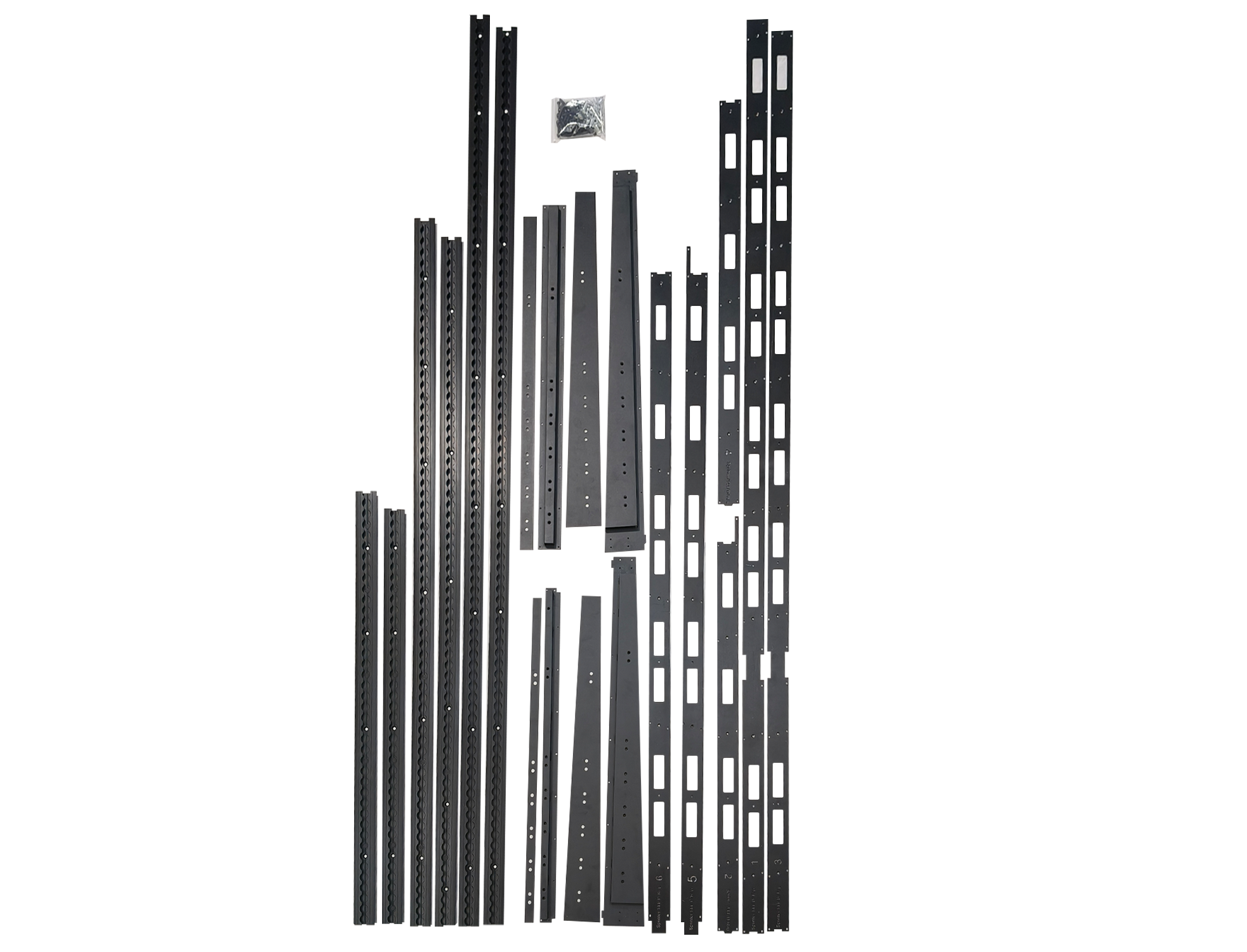

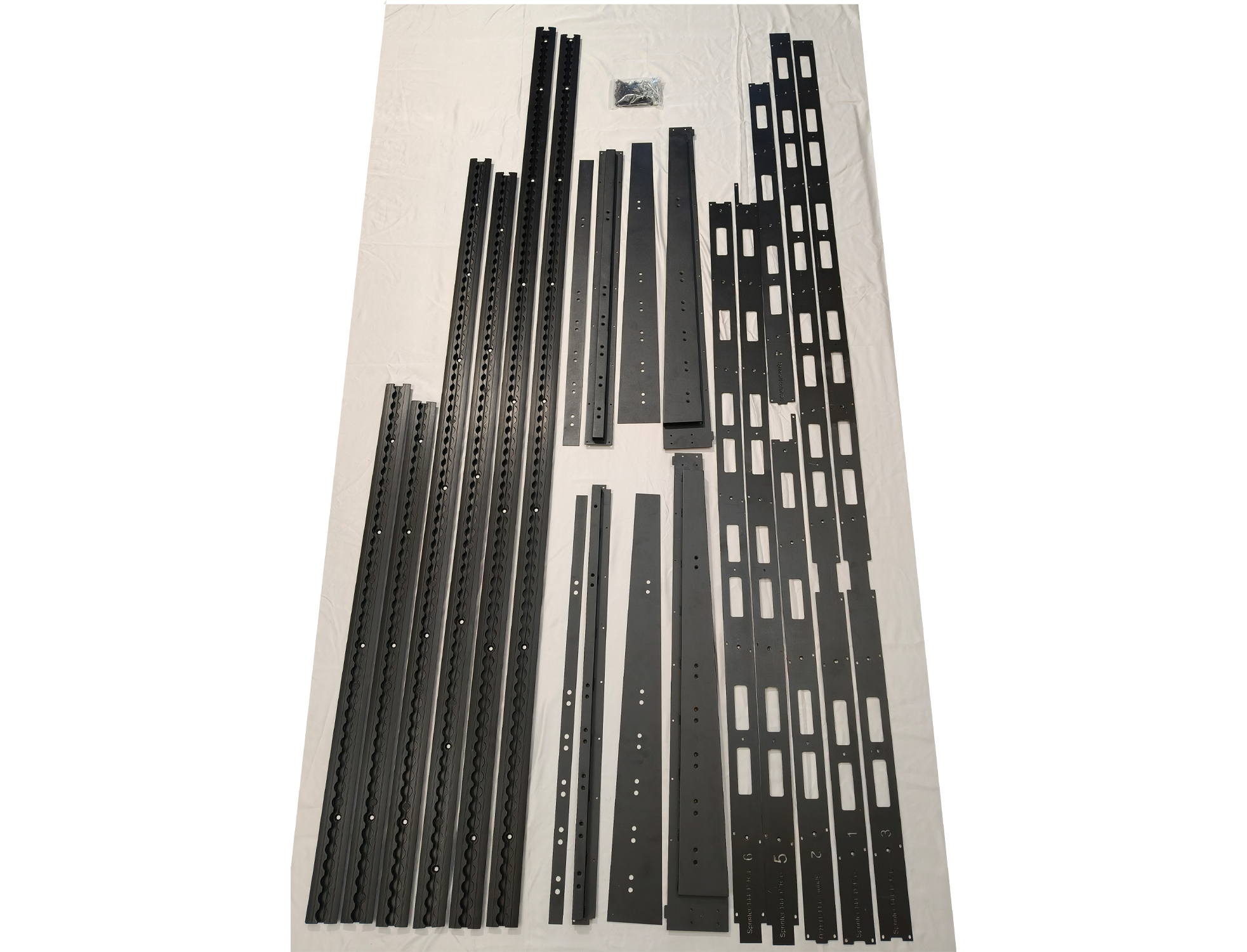

• INSTALLATION: Mounting plates labeled in install sequence for optimal workflow

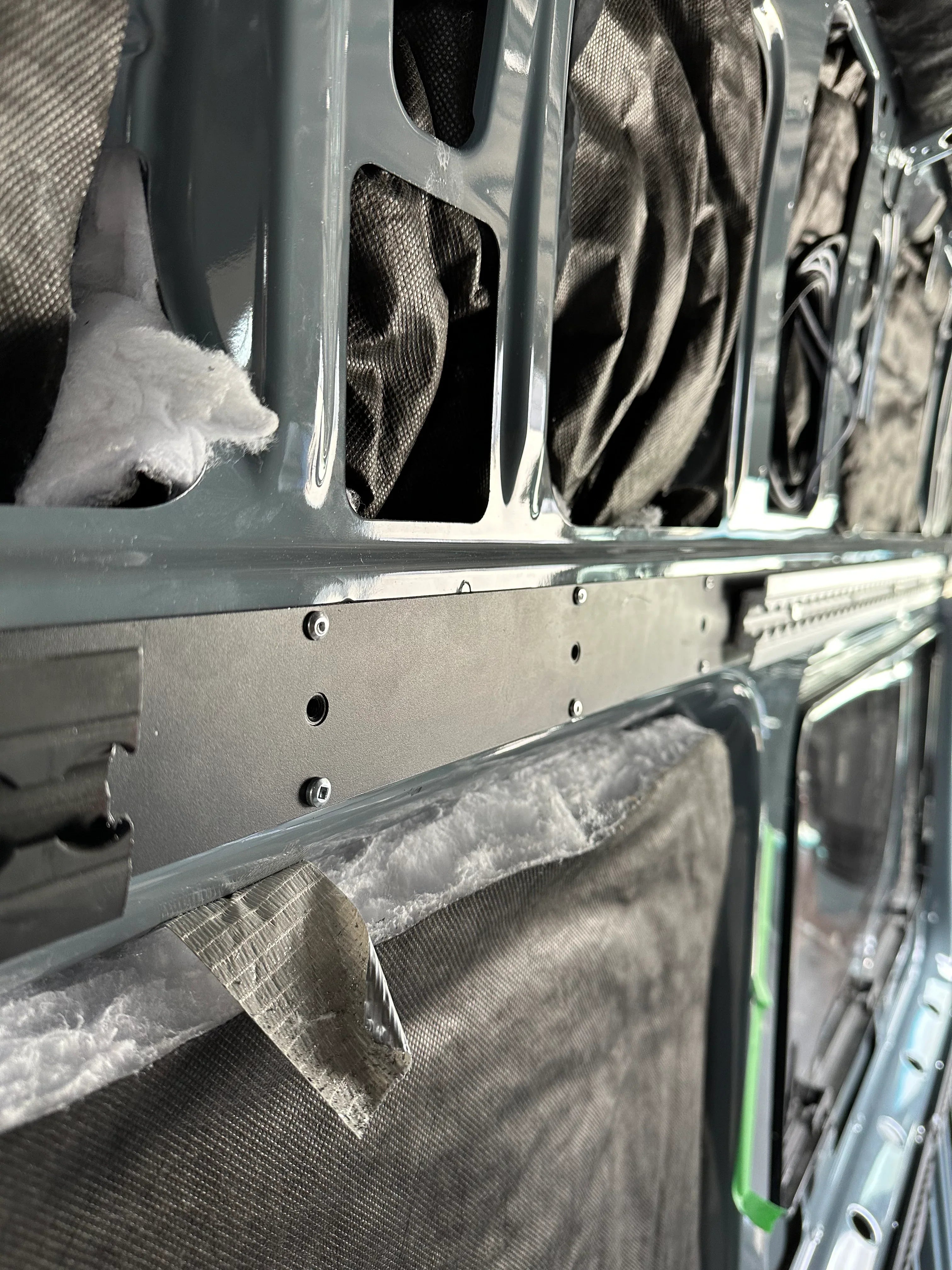

• INSTALLATION: Pre drilled mounting plates eliminate layout guesswork and misaligned installs

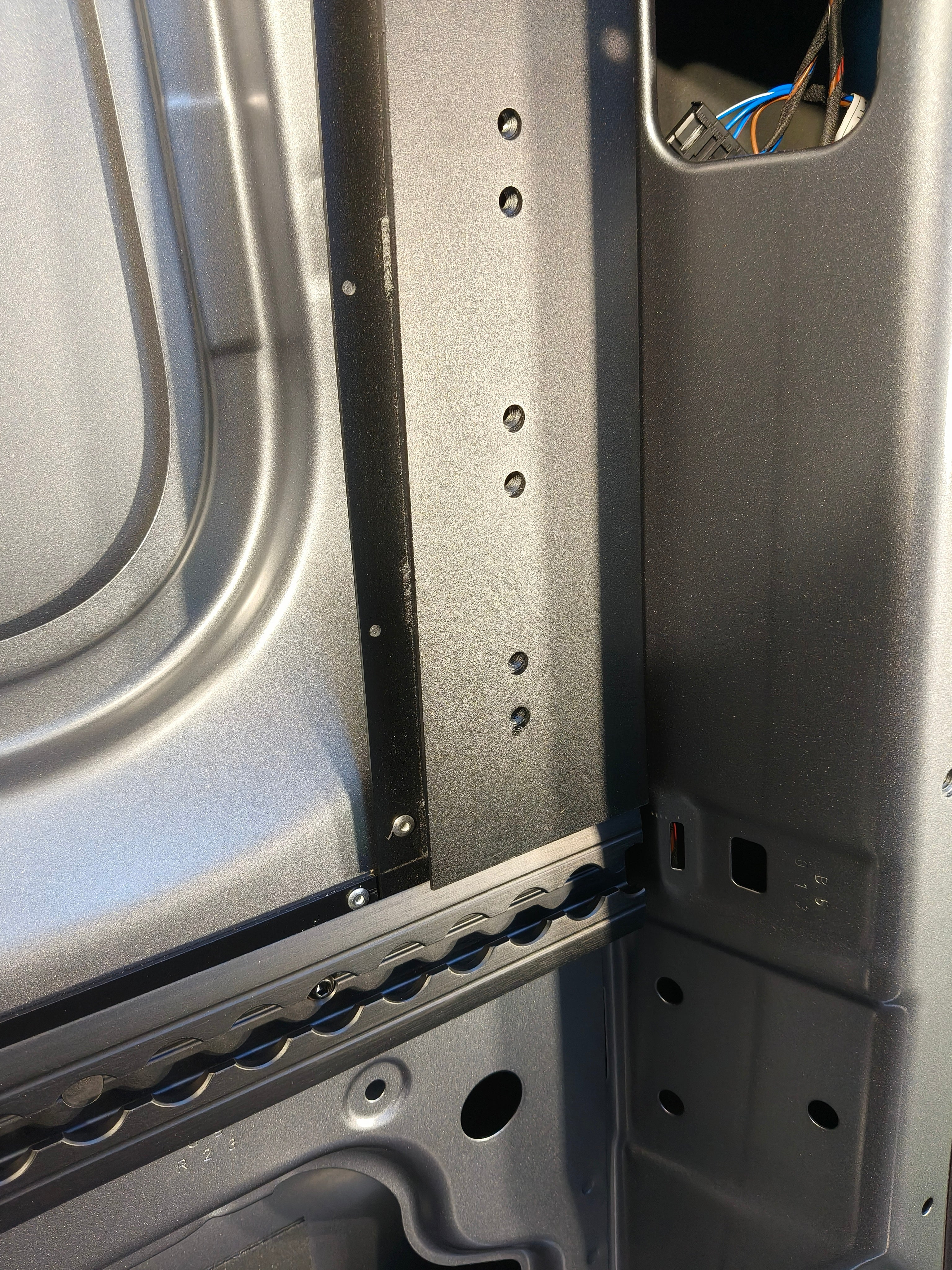

• INTEGRATED RIVNUTS PROVIDE FIXED THREADS AND: Integrated rivnuts provide fixed threads and prevent spin jam issues for faster assembly

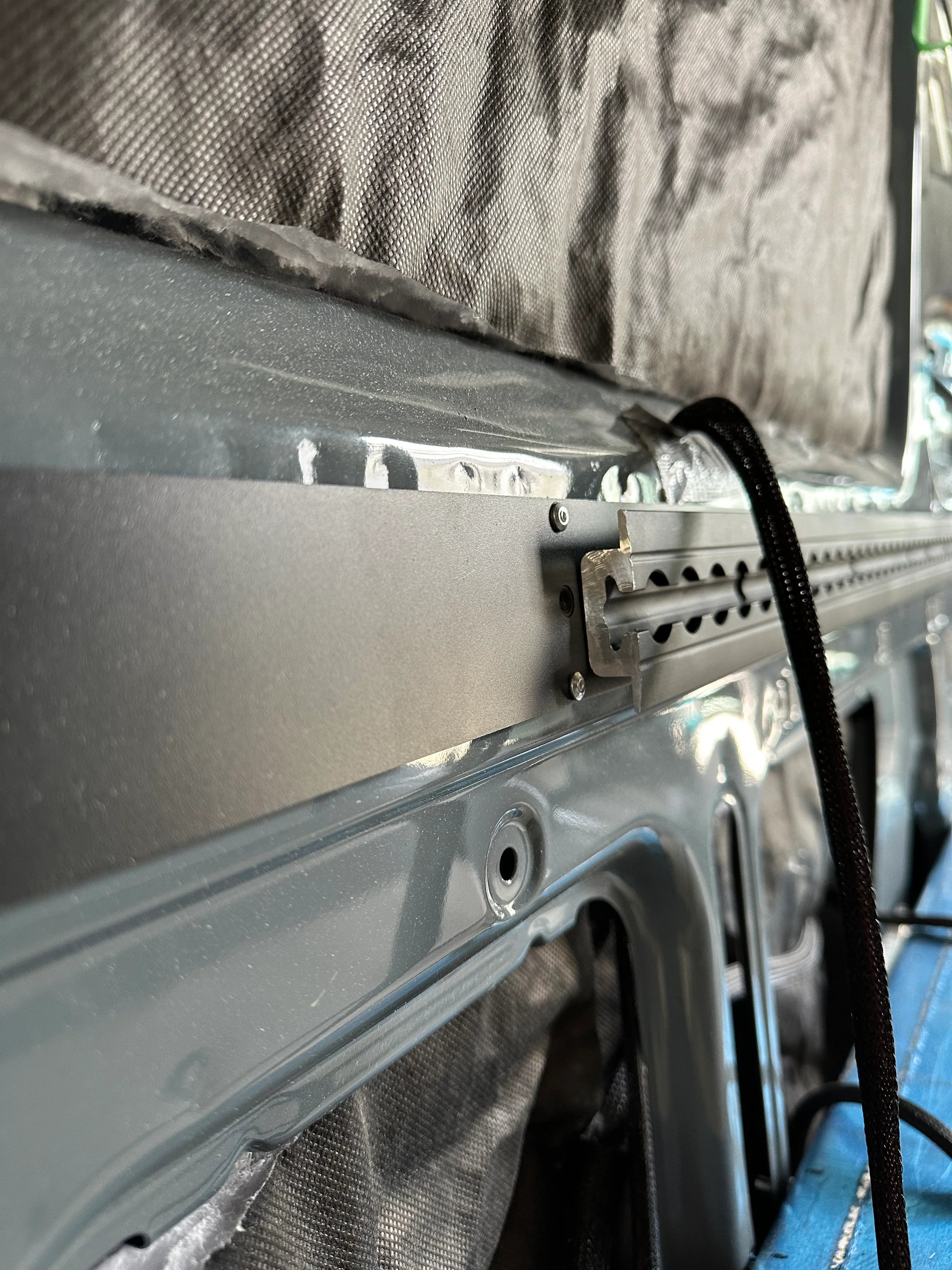

• INSTALLATION: 6061-T6 aluminum L-Track for heavy duty mounting applications

• PREMIUM ANODIZED SURFACE FINISH FOR SUPERIOR: Premium anodized surface finish for superior corrosion resistance

• FITMENT: Universal L-Track profile compatible with standard single double stud fittings and accessories

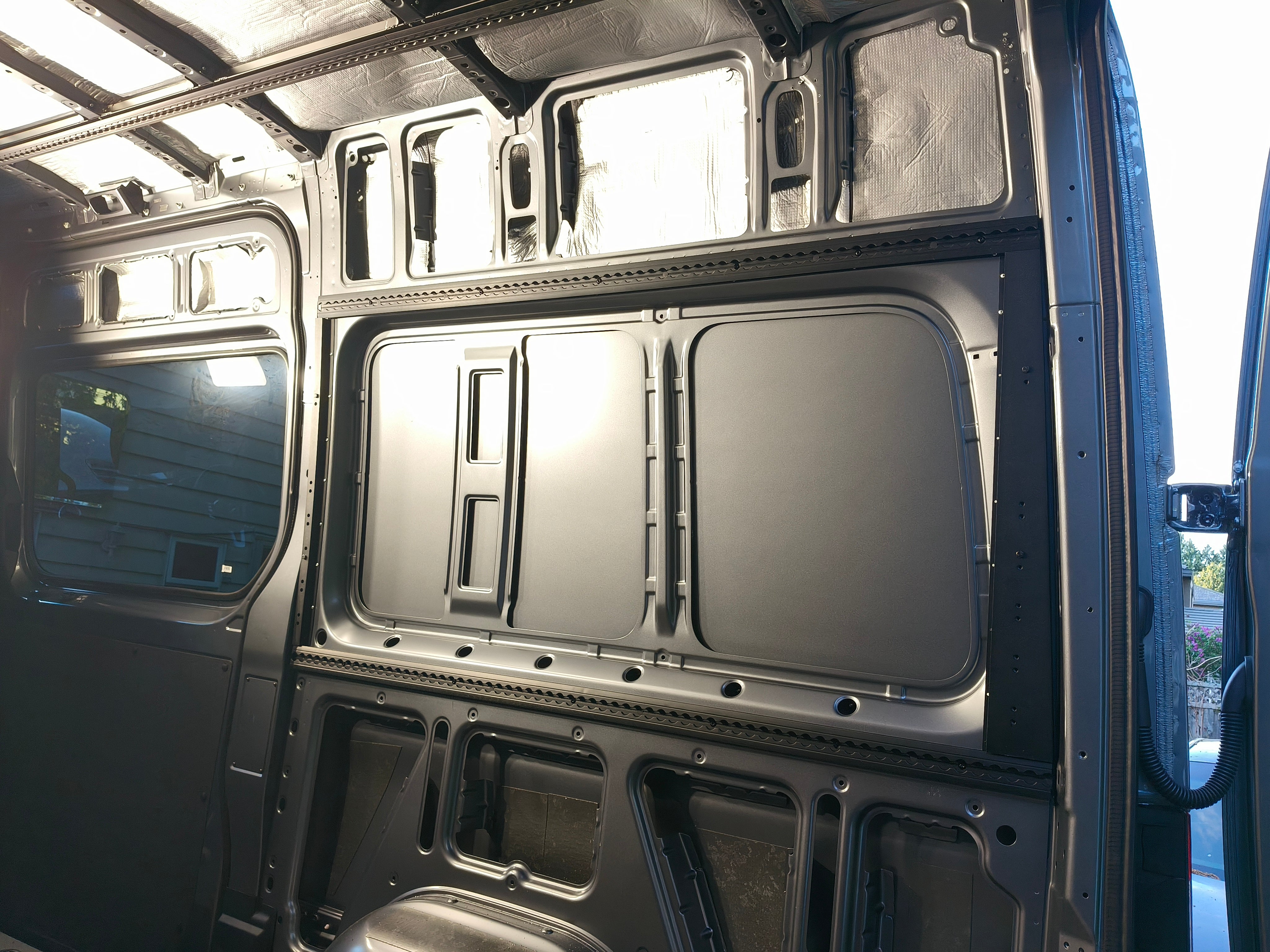

• INSTALLATION: This side wall mounting plate & L-Track kit is a structural foundation system built specifically for Sprinter interiors. It converts factory sheet metal into reinforced, load bearing anchor points for secure mounting of heavy components. The result is a rigid backbone for wall systems and overhead cabinetry, with full length coverage and continuous mounting points across the

• INSTALLATION: van interior. Standardized structural mounting zones support consistent, repeatable installs across multiple builds.

• INSTALLATION: Load spreading mounting plates reduce panel flex and pull through under real road loads. Each mounting plate is pre drilled to eliminate layout guesswork and misaligned installs, and labeled in install sequence to keep workflow fast and predictable. Integrated rivnuts provide fixed threads that prevent spin jam issues and speed up assembly.

• FITMENT: The system comes with 6061-T16 aluminum L-Tracks that provide great rigidity and tensile strength. Their universal L-Track profile is compatible with standard single and double stud fittings and accessories, providing a modular mounting platform for a wide range of conversion hardware.

FEATURES

• GALVANIZED STEEL: Uses 0.060-inch galvanized-steel braces.

• ADJUSTABLE WIDTH PLACEMENT: Runs front to back and can be spaced across the ceiling for the planned system.

• INSTALLATION HARDWARE: Includes 3/16-inch aluminum rivets and self-tapping screws.

COMMON PAIRINGS

• CEILING L-TRACK: Mount compatible track only after brace alignment and load planning.

• CEILING PANELS: Record brace locations before covering them with insulation and finish panels.

• TIE-DOWN ANCHORS: Use rated anchors and consider the full roof and fastener load path.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter 170 Extended.

• WHEELBASE: 170 Extended only.

• ROOF HEIGHT: Confirm roof-rib geometry and final ceiling depth in the specific van.

• REQUIREMENTS: Requires riveting into position; the front bracket may require a 90-degree screw-gun head because rivet-gun access is limited.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What are the braces made from?

A: They are made from 0.060-inch galvanized steel.

Q: Is mounting hardware included?

A: Yes, 3/16-inch aluminum rivets and self-tapping screws are included.

Q: What can mount to the braces?

A: They provide a solid surface for ceiling L-track or other properly engineered anchors.

Q: When should they be installed?

A: West Coast Vans recommends installing and documenting them before insulation and ceiling panels.
