RB Components Sprinter CNC Floor Kit - 144, 170 or Extended

RB Components Sprinter CNC Floor Kit - 144, 170 or Extended

At West Coast Vans, we choose RB Components gear for builders who want purpose-built van hardware with clear dimensions and real installation requirements. Need help confirming fitment or planning the surrounding build? Ask Us Product Questions Anytime.

WCV EXPERT TIP

Confirm wheelbase, SRW or DRW wheel-well shape, and slider-extension option against the van before unpacking and assembling every panel.

PRODUCT OVERVIEW

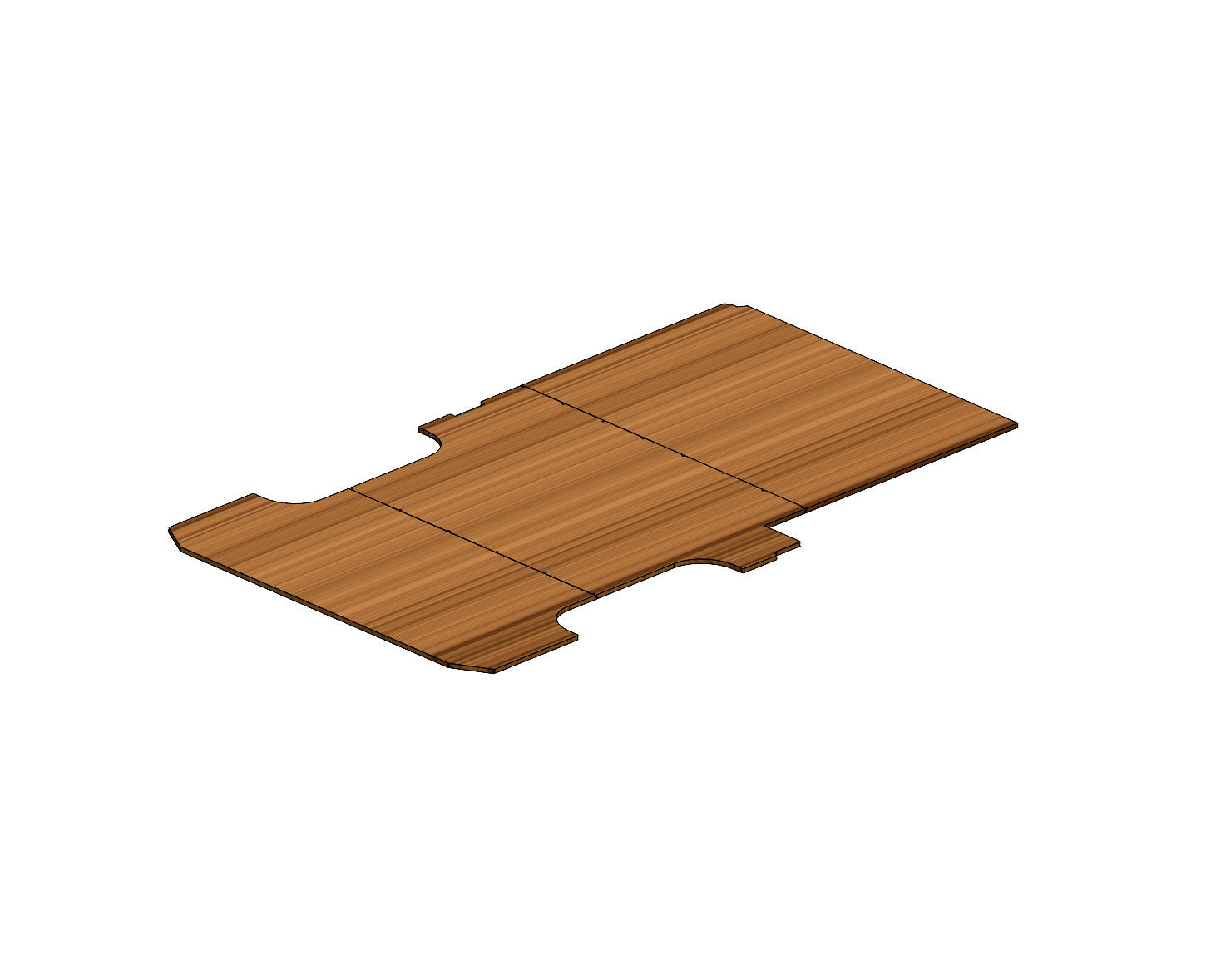

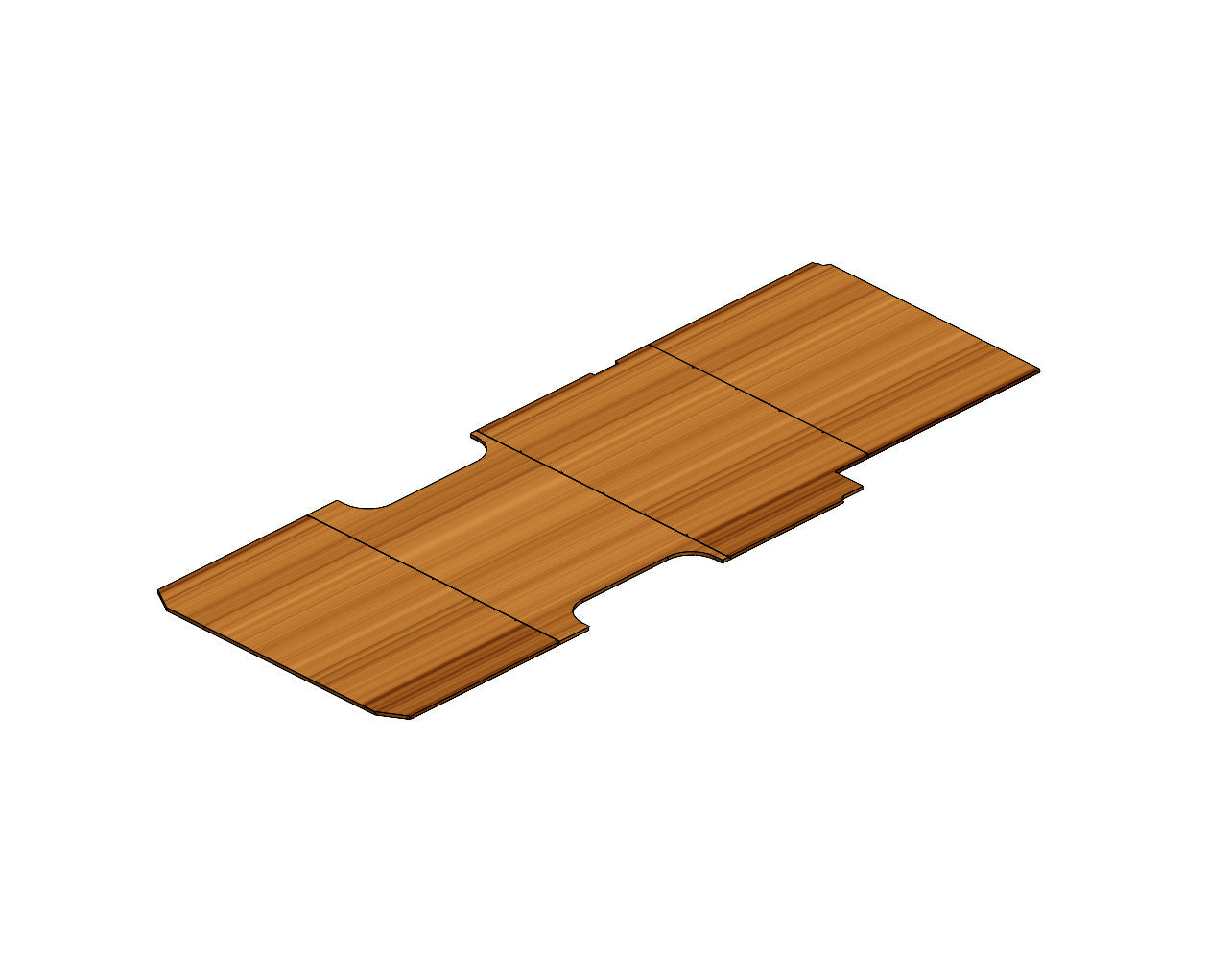

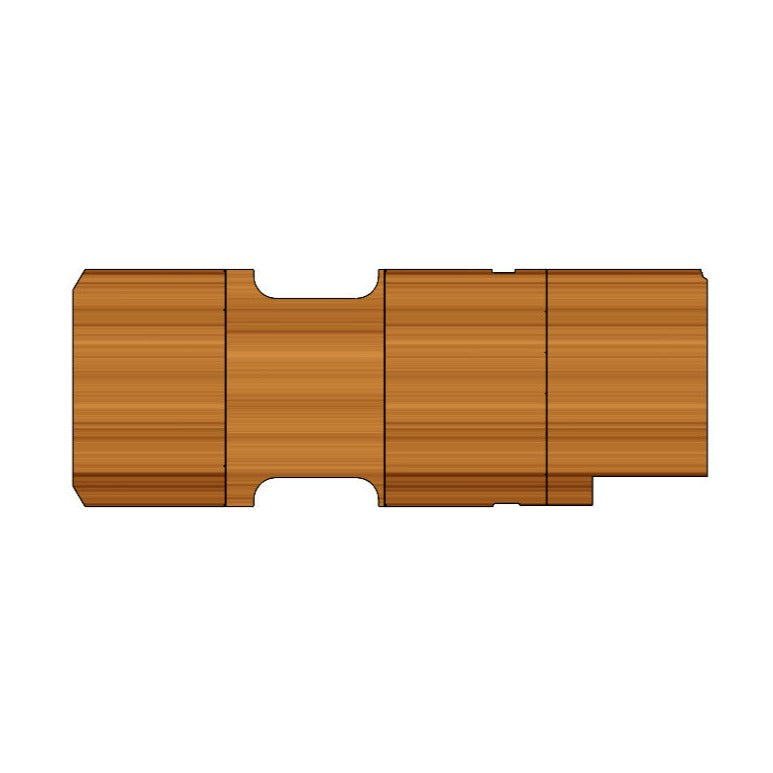

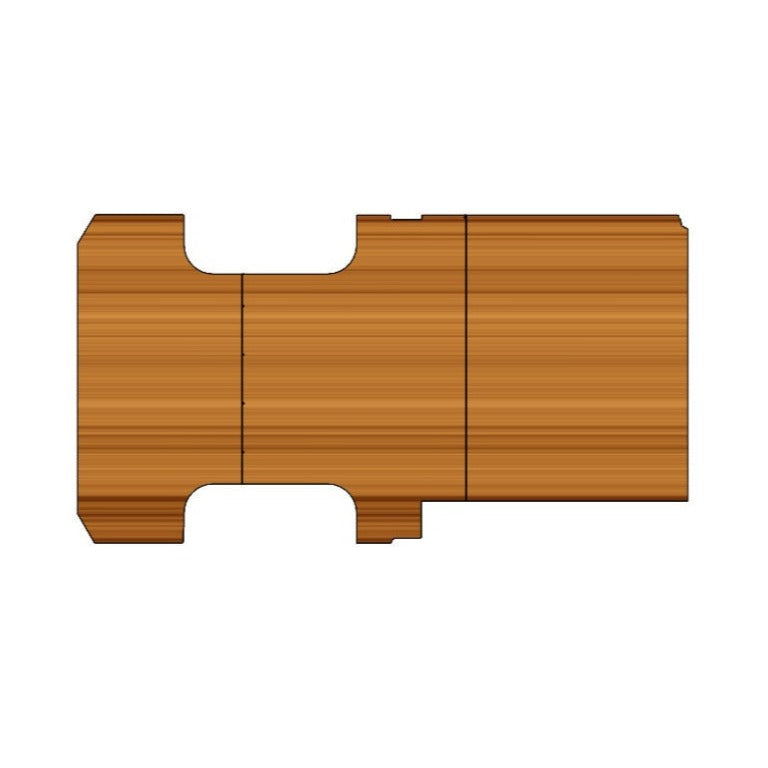

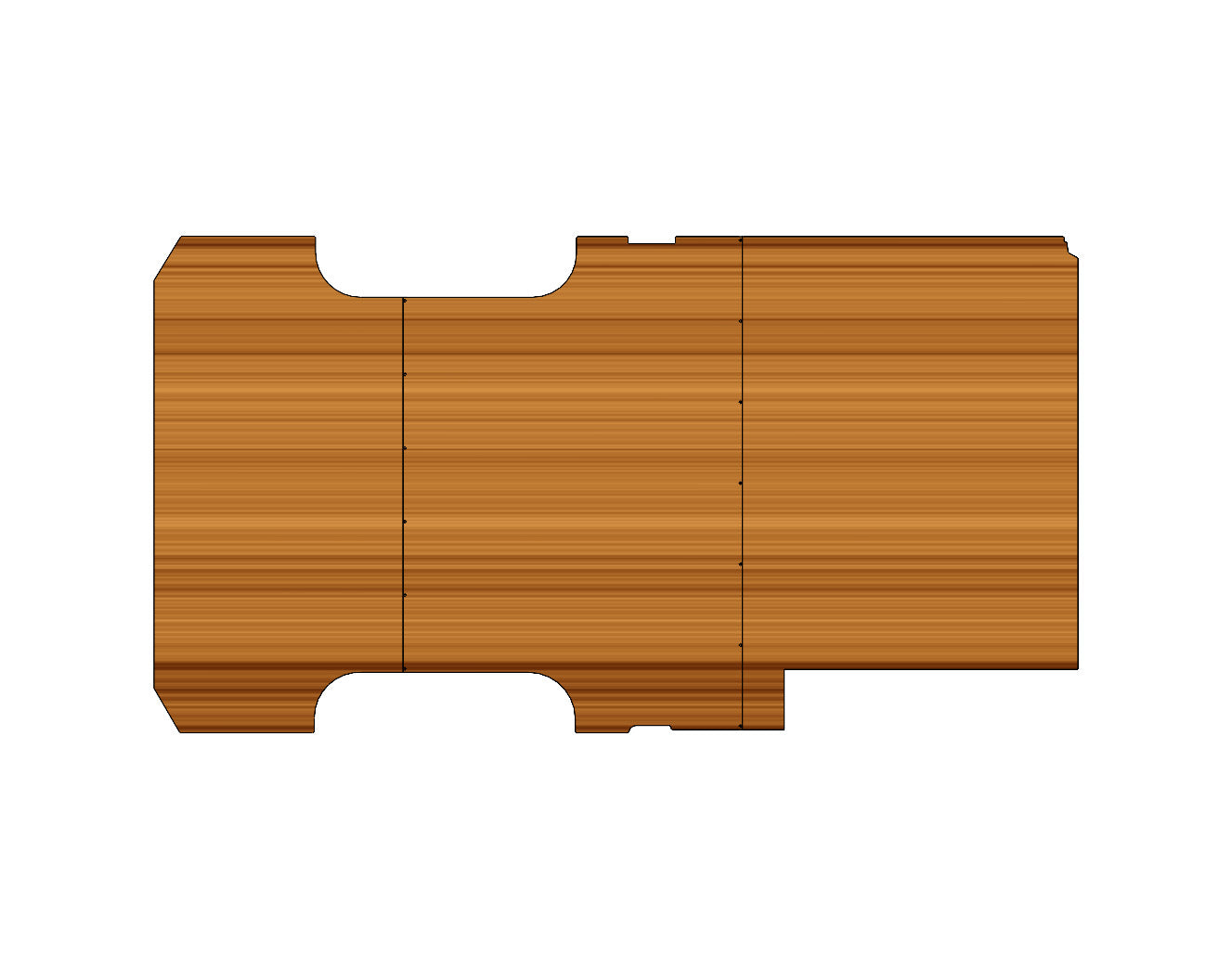

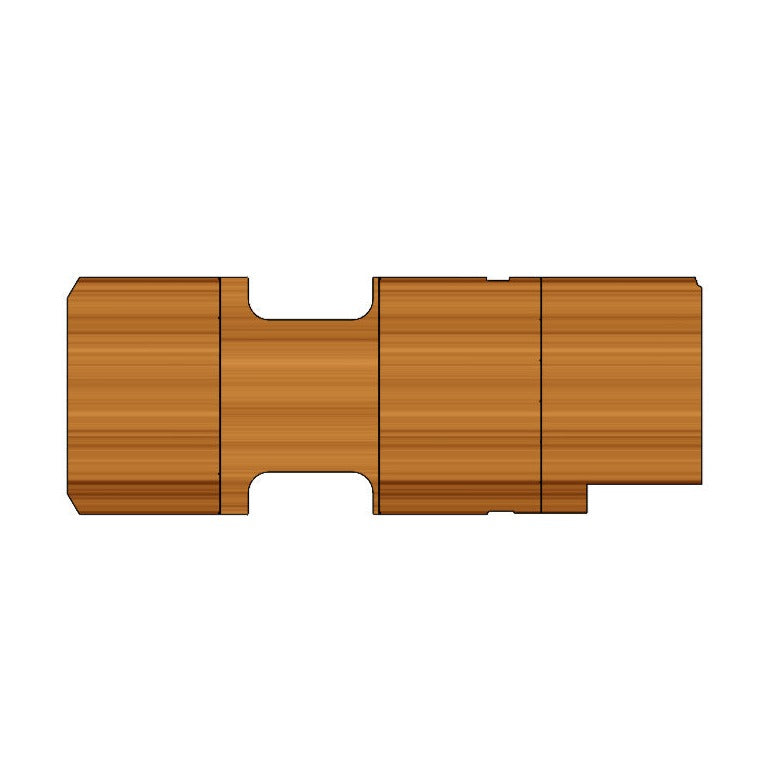

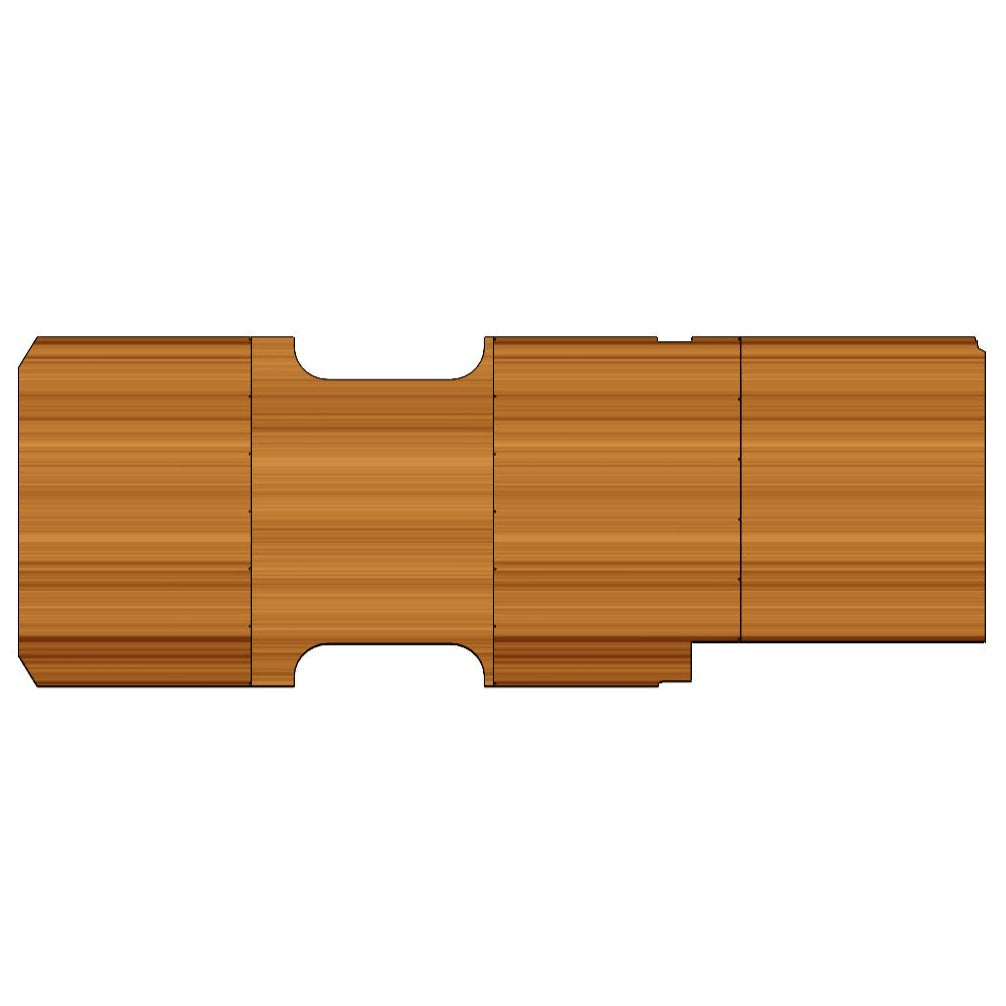

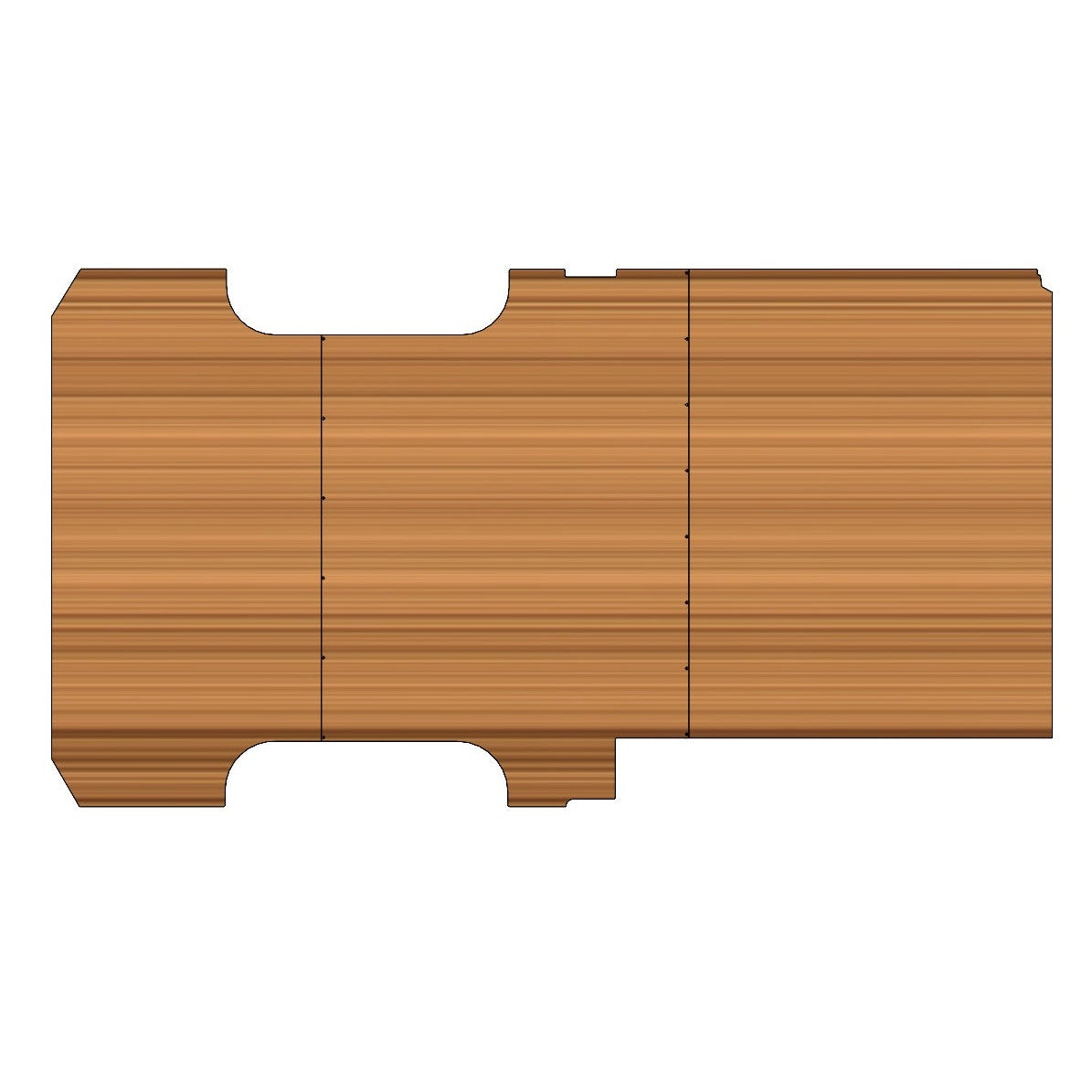

RB Components Sprinter CNC Floor Kit - 144, 170 or Extended is a CNC-cut plywood subfloor foundation for the listed Mercedes-Benz Sprinter wheelbase, wheel-well, and slider configuration.

The kit uses 7-ply 18 mm / 0.701-inch lightweight C2 white birch VC plywood with overlap joints and predrilled assembly holes.

BEST FOR

• PRECISION-CUT VAN FLOORS: Eliminates full-floor templating for the listed chassis and size options.

• CABINET AND BED FOUNDATIONS: Creates a sturdy plywood base for later interior systems.

• DIY BUILD TIME SAVINGS: Uses CNC-cut panels, overlap joints, and predrilled holes for faster assembly.

TECHNICAL SPECIFICATIONS

• VENDOR: RB Components

• PRODUCT: Sprinter CNC Floor Kit - 144, 170 or Extended

• SIZE VAN: 144, 170, 170ex

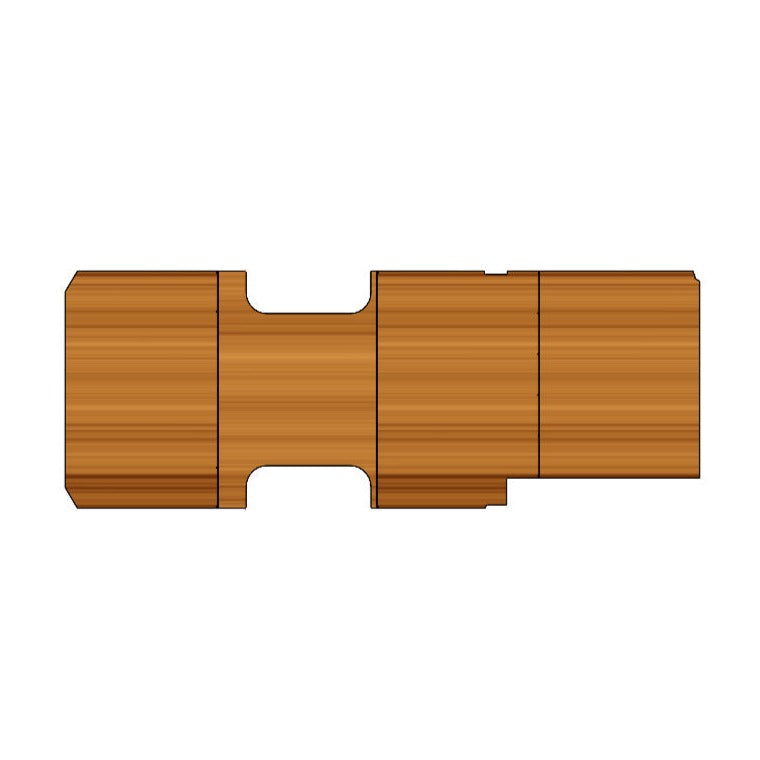

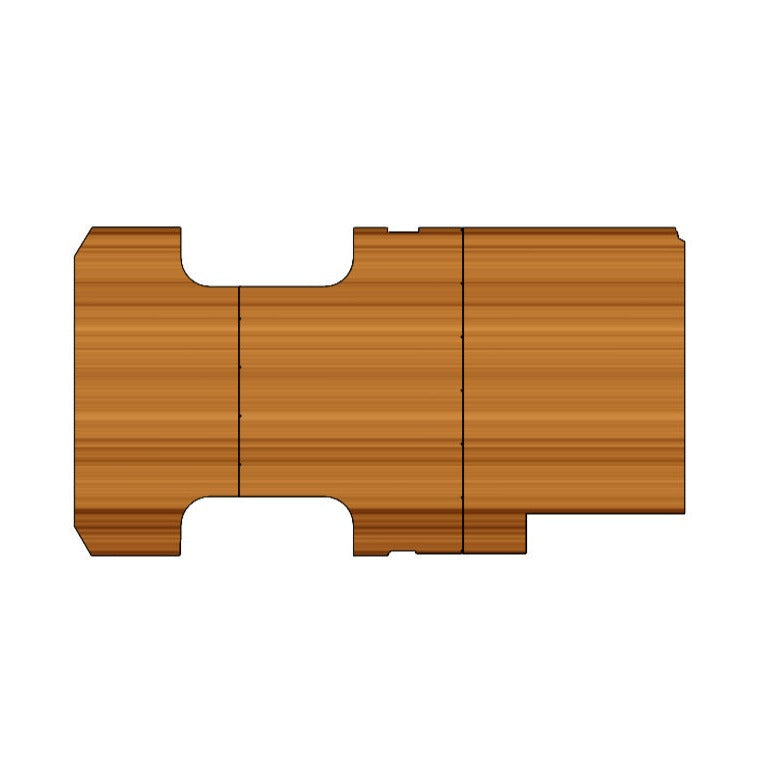

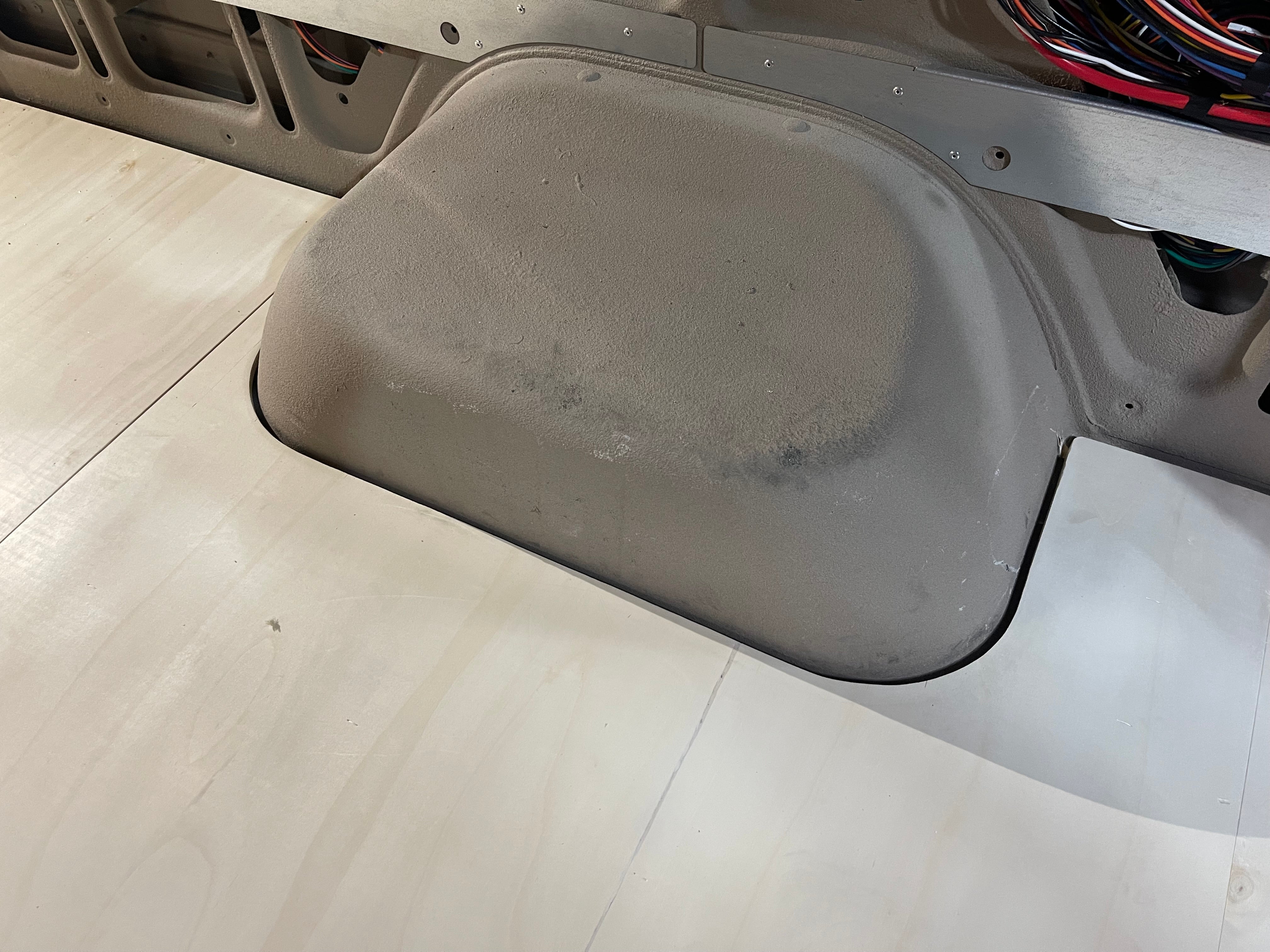

• WHEEL WELL: 2500 SRW, 3500 DRW

• SLIDING DOOR OPTION: Standard, Floor Extension

• PRODUCT DETAIL 1: RB Components precision-engineered interior floor panels designed exclusively for Sprinter Vans, providing a seamless and professional finish for your Van Life experience. Customized to fit 2012-2023 Sprinter Van 144, 170, and 170 EXT models, these panels eliminate the need for time-consuming template creation or trial-and-error fitting.

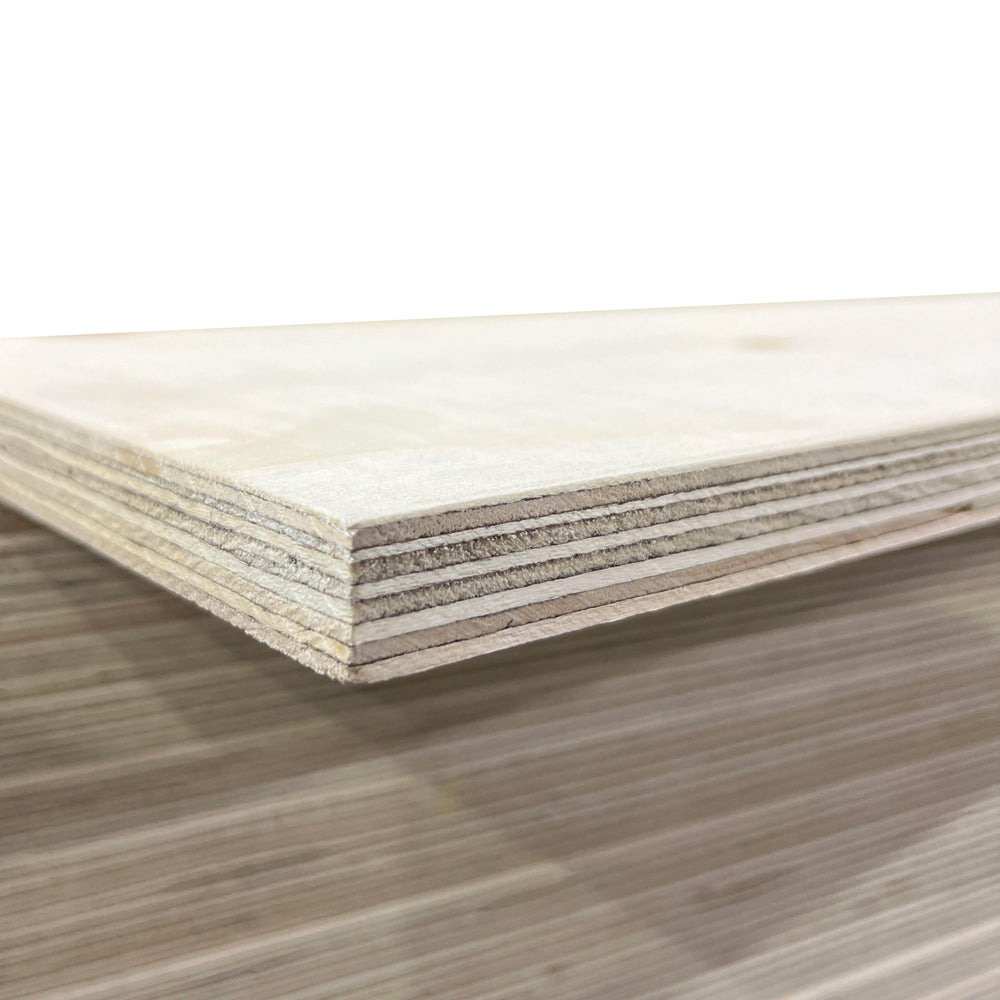

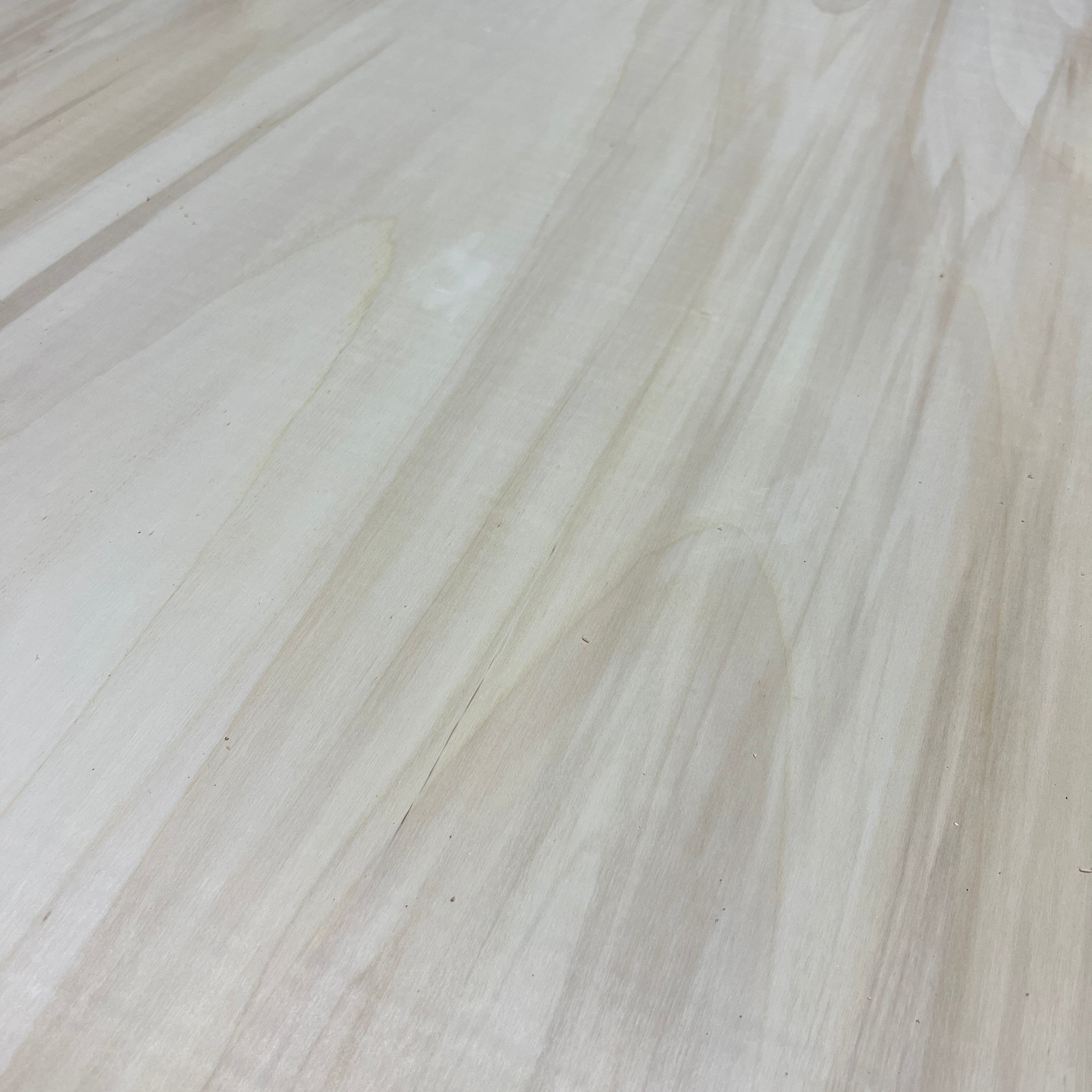

• PRODUCT DETAIL 2: Crafted from high-quality 7 Ply 18 mm/.701 in Lightweight C2 White Birch VC plywood.

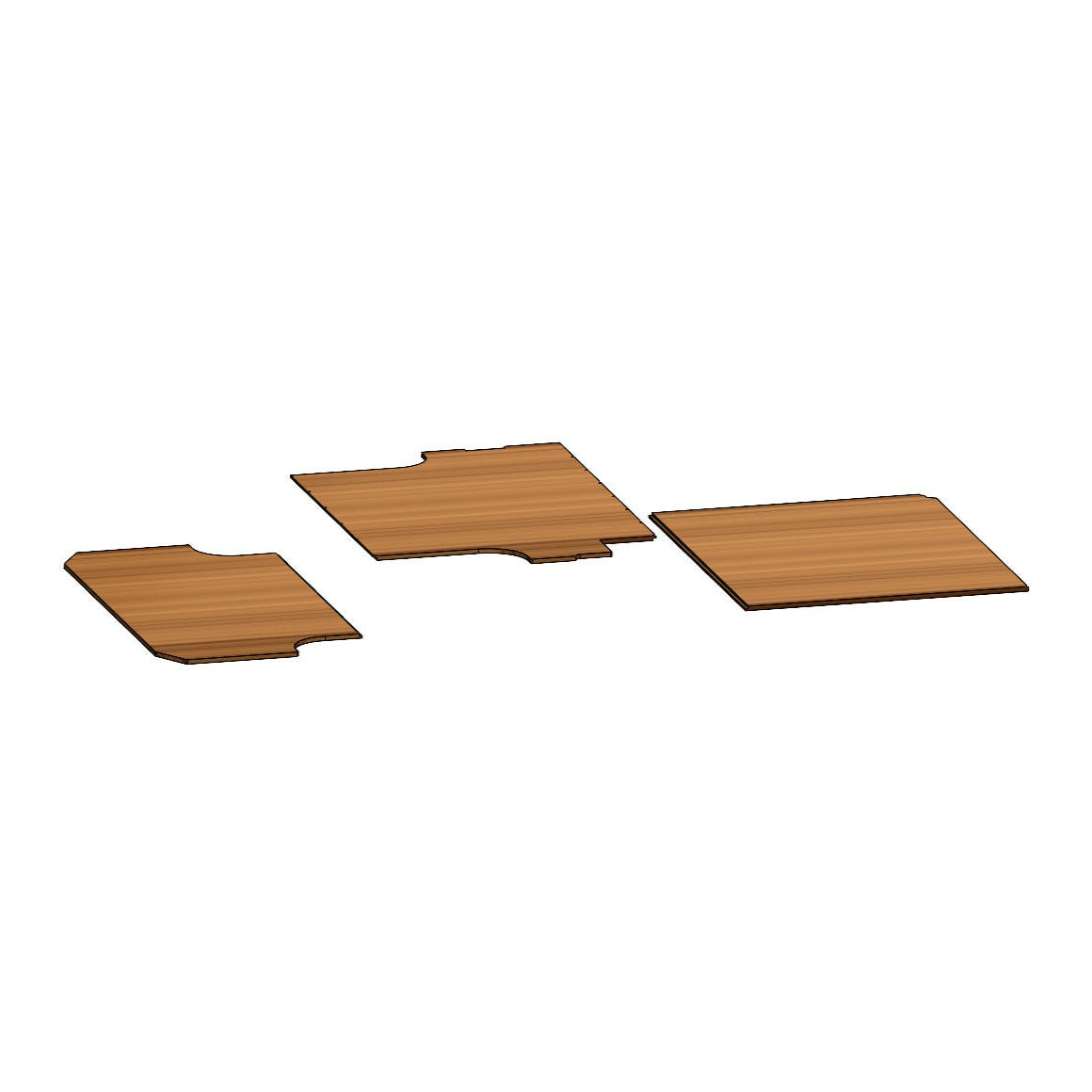

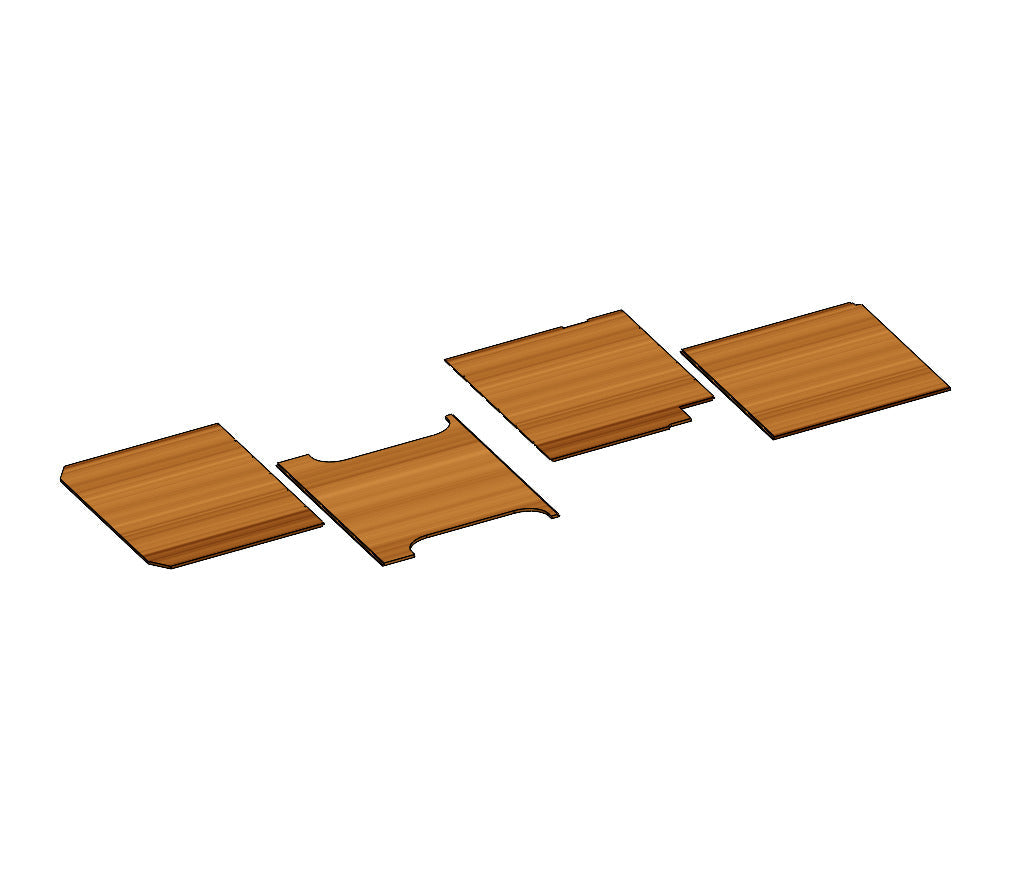

• PRODUCT DETAIL 3: CNC-cut panels for a perfect fit and easy assembly, saving you time and effort in the installation process.

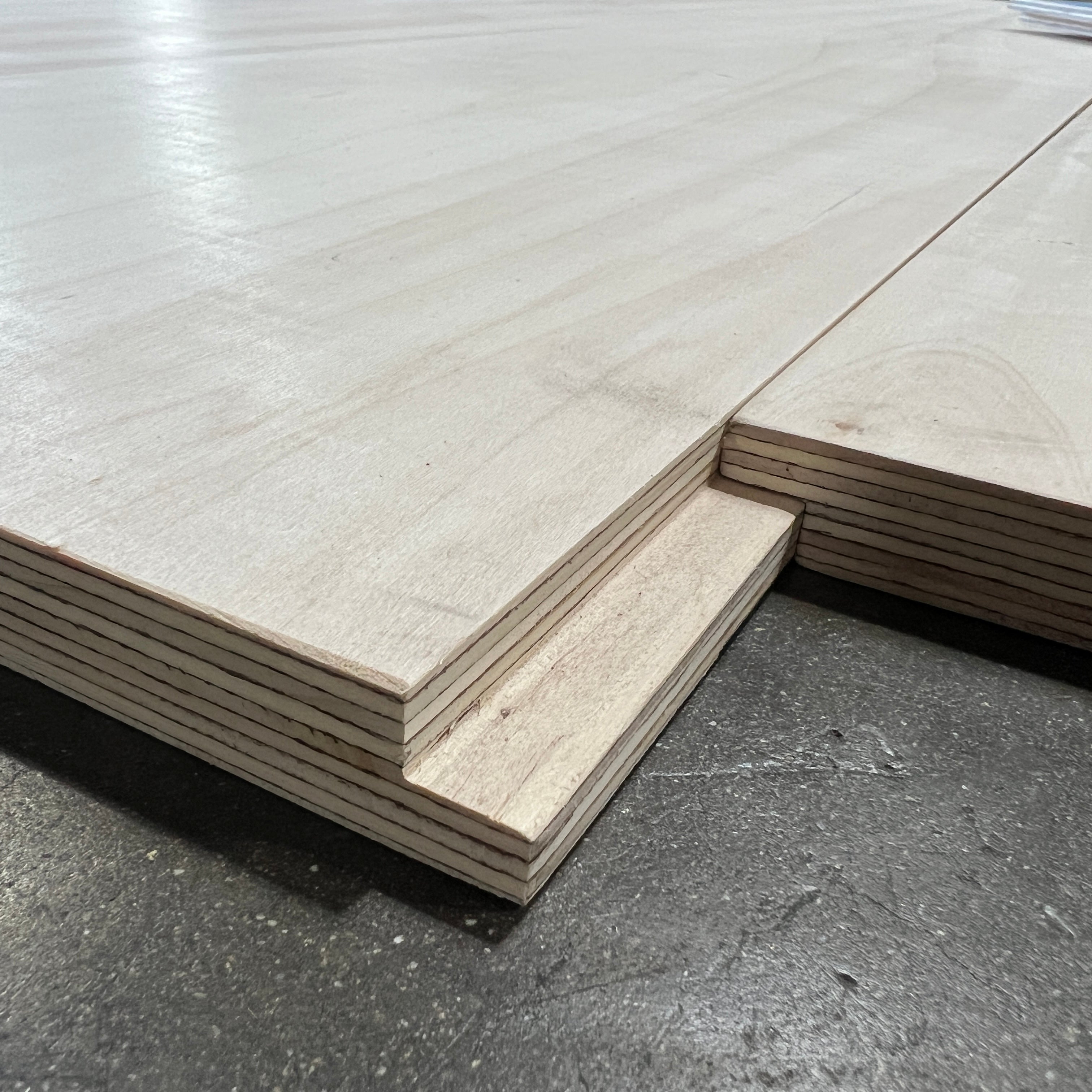

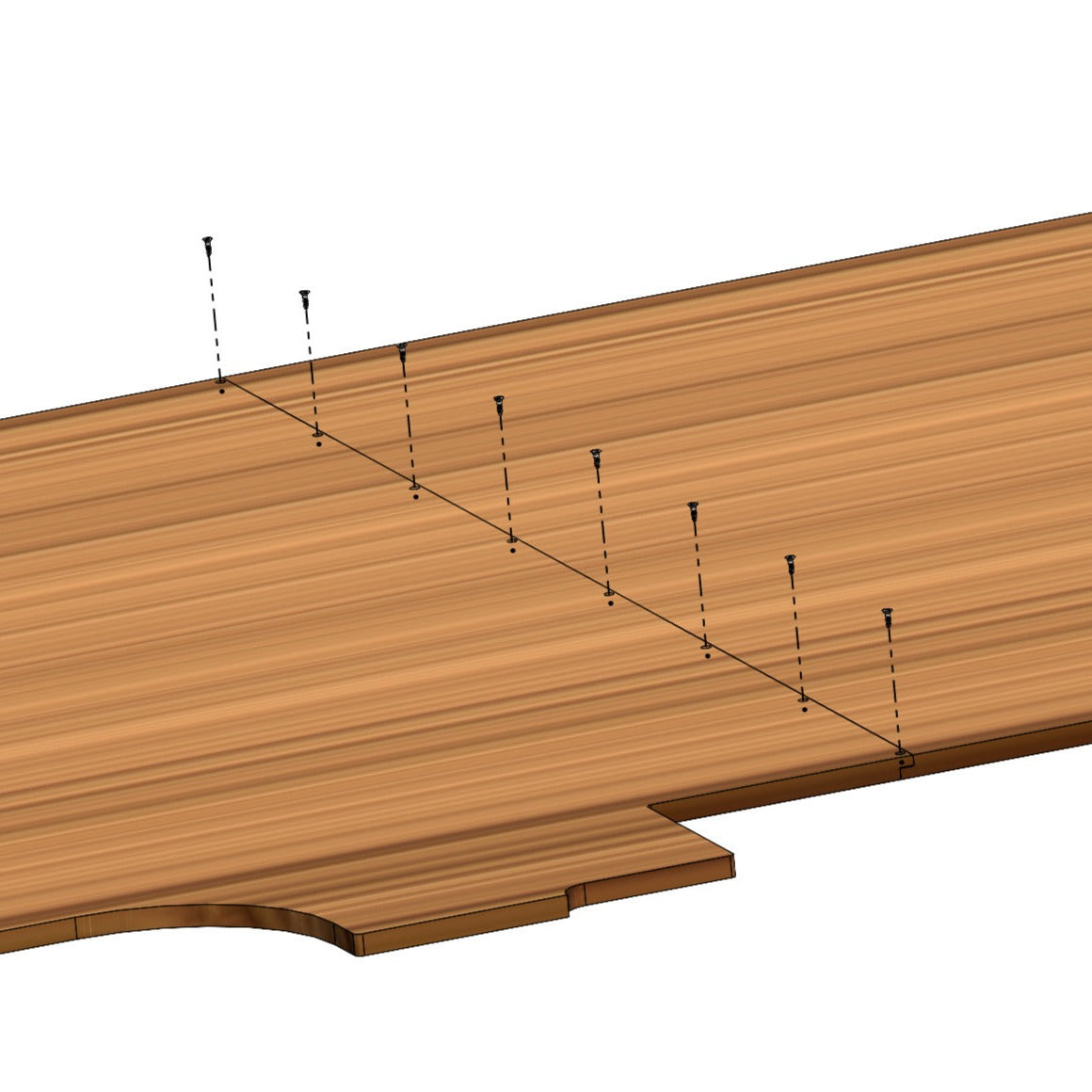

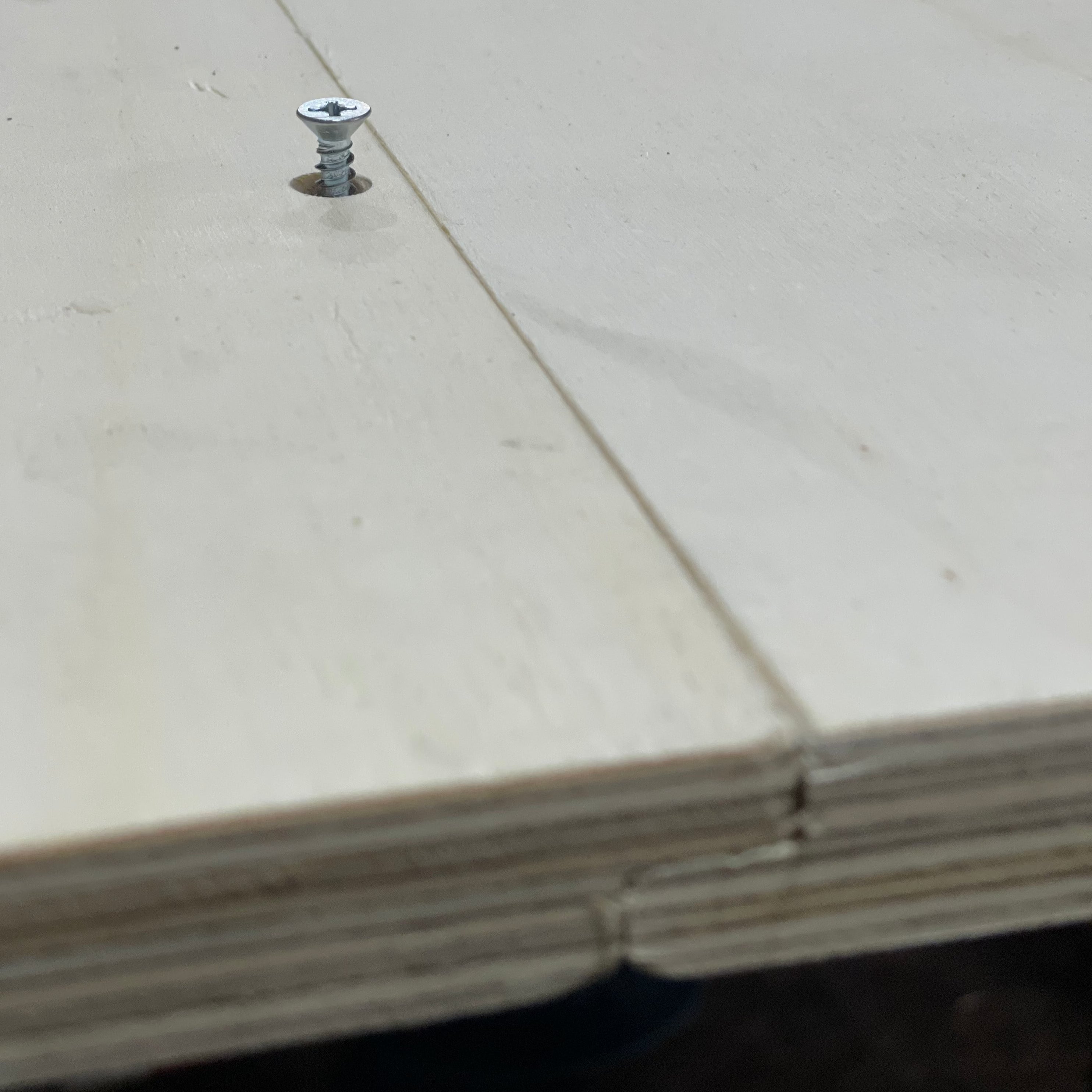

• PRODUCT DETAIL 4: Overlap joint with predrilled holes for a hassle-free installation process.

• PRODUCT DETAIL 5: Lightweight yet sturdy plywood provides an excellent foundation for your van interior.

• PRODUCT DETAIL 6: Ready for customization through painting, staining, or finishing according to your preferences.

• PRODUCT DETAIL 7: Floors are cut to order. Based on size and packaging, shipment readiness times can take up to 5-7 business days.

FEATURES

• 18 MM BIRCH PLYWOOD: Uses lightweight 7-ply C2 white birch VC plywood.

• CNC-CUT FIT: Configured for the selected wheelbase, wheel-well, and door option.

• FINISH-READY SURFACE: Can be painted, stained, or finished to the builder preference.

COMMON PAIRINGS

• FLOOR INSULATION: Plan insulation thickness and attachment before final floor fastening.

• FINISH FLOORING: Add compatible TPO, vinyl, laminate, or other finish material after dry fit.

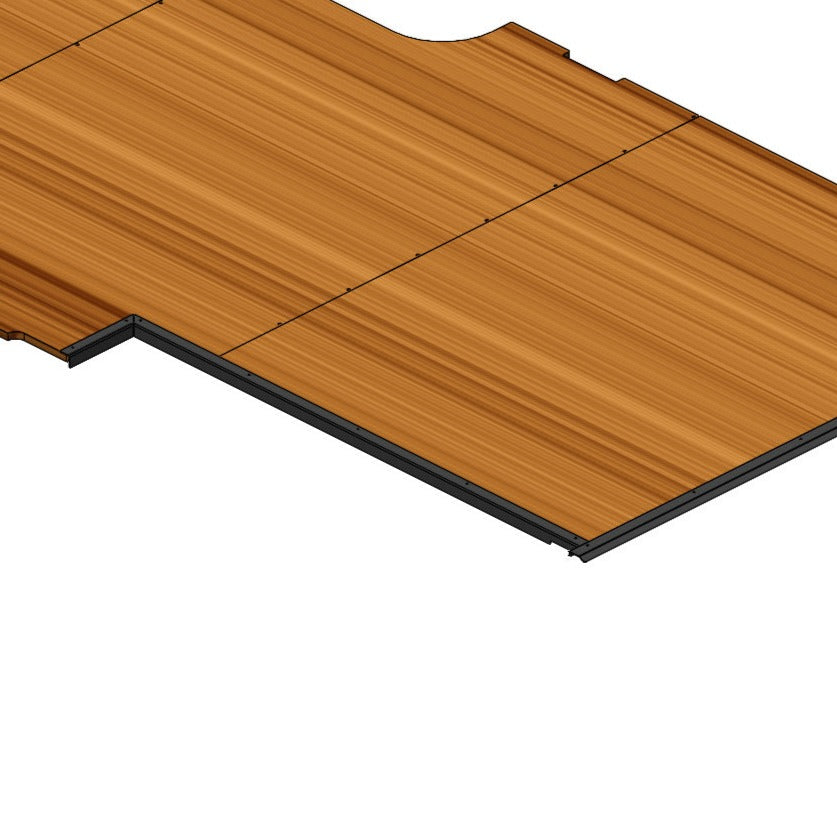

• ENTRY TRIM: Match slider extensions and thresholds to the selected floor option.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter, source-listed 2012-2023 model years.

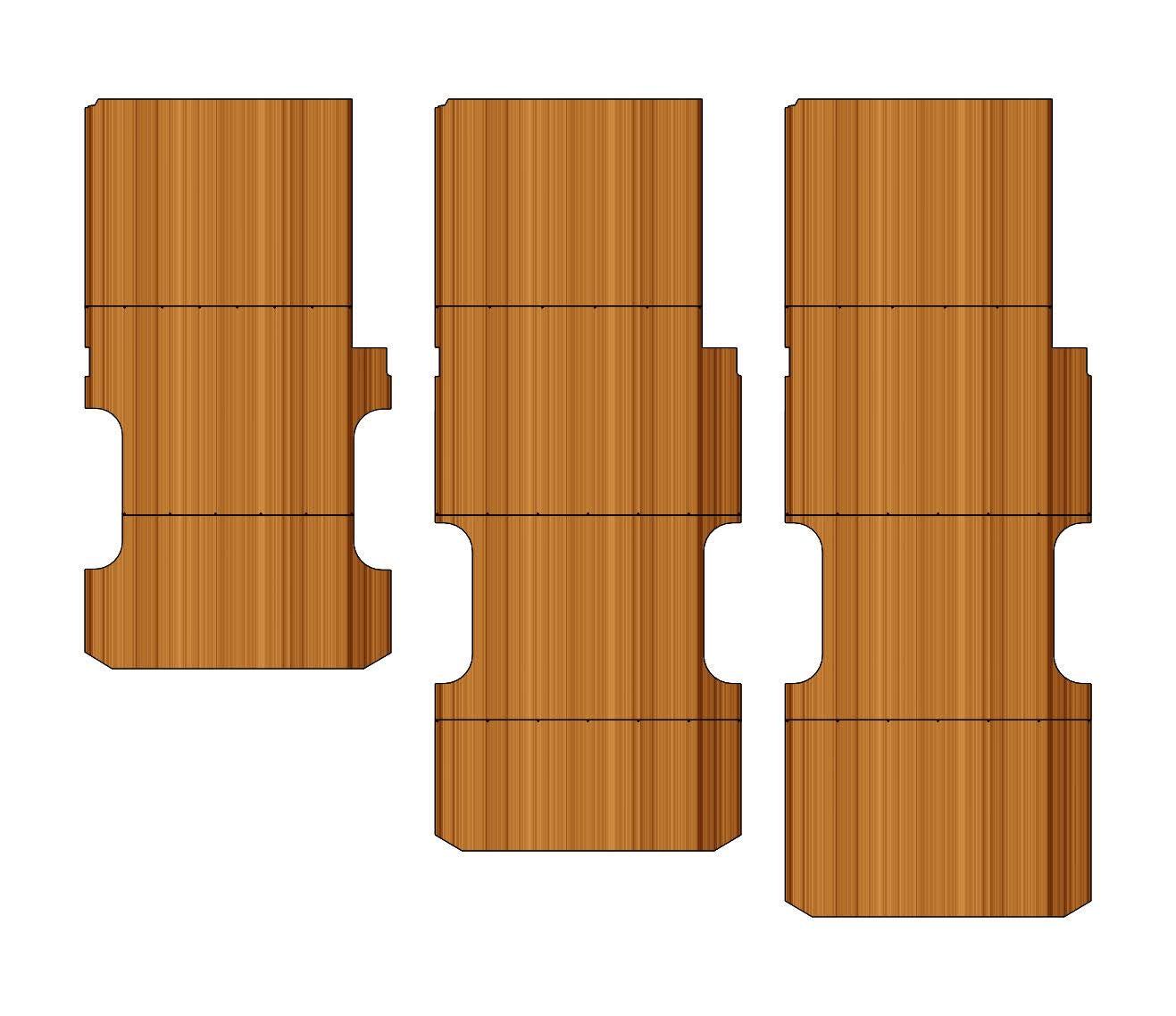

• WHEELBASE: 144, 170, and 170 Extended options.

• ROOF HEIGHT: Not roof-height-specific; wheelbase, wheel wells, and slider configuration determine fit.

• REQUIREMENTS: Select the exact wheelbase, 2500 SRW or 3500 DRW wheel-well option, and standard or floor-extension slider option where offered.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What material is the floor kit?

A: It is made from 7-ply 18 mm / 0.701-inch lightweight C2 white birch VC plywood.

Q: Are the panels predrilled?

A: Yes, the overlap joints include predrilled assembly holes.

Q: Which configuration must I choose?

A: Select the exact chassis, wheelbase, SRW or DRW wheel well, and slider option shown in the variants.

Q: Does it arrive finished?

A: No, it is ready for the builder to paint, stain, or cover; West Coast Vans recommends a full dry fit first.
