At West Coast Vans, open storage is often faster and more useful than another complicated cabinet door. The Rigwell Made Stash Cab 24 Open Tall - Accessible Storage uses a bungee-retained aluminum bay for easy overhead access; Ask Us Product Questions Anytime before matching the cabinet to your van and mounting system.

WCV EXPERT TIP

Load the bungee opening with the gear you actually carry and confirm retention before placing the cabinet over a bed or occupied seat.

PRODUCT OVERVIEW

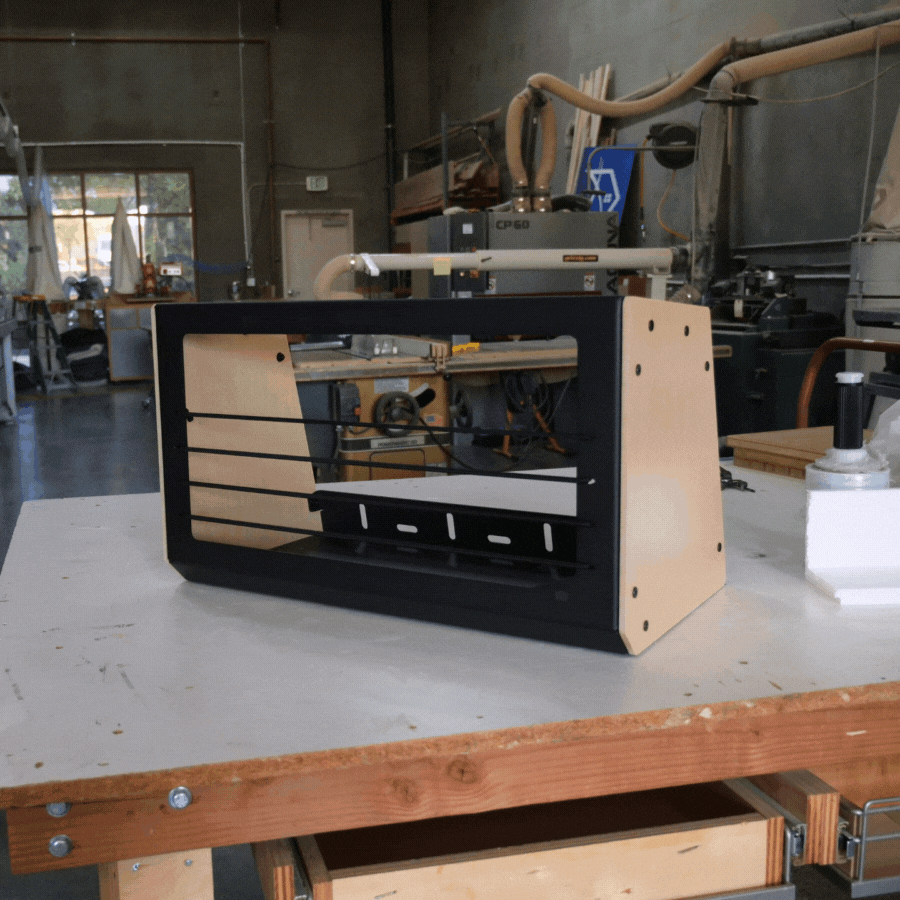

Rigwell Made Stash Cab 24 Open Tall - Accessible Storage is a door-free 5052 aluminum overhead cabinet with bamboo side panels and bungee retention for frequently used gear.

The technical specifications below retain the source-listed materials, dimensions, included components, options, exclusions, and lead-time information.

BEST FOR

• MODULAR OVERHEAD STORAGE: Builds an organized cabinet run using compatible Stash components.

• WEIGHT-CONSCIOUS BUILDS: Uses thin-wall 5052 aluminum to preserve interior capacity.

• DIY VAN INTERIORS: Provides pre-cut, formed components and flexible mounting points.

TECHNICAL SPECIFICATIONS

• VENDOR: Rigwell Made

• PRODUCT: Stash Cab 24 Open Tall

• AVAILABLE OPTION: Color: Bamboo

• AVAILABLE OPTION: Vehicle: Sprinter, Transit, Promaster

• THE STASH CAB 24" OPEN IS BUILT AROUND A STRAIGHTFORWARD IDEA: overhead storage that's easy to reach, easy to build, and built to hold up.

• INSTALLATION: No doors, no complicated hardware, no wasted space.

• MATERIAL OR CONSTRUCTION: The frame is laser-cut 5052 aluminum, CNC formed and powder coated.

• MATERIAL OR CONSTRUCTION: Aluminum walls run thinner than traditional cabinet construction, which means more usable depth inside without a heavier or bulkier footprint.

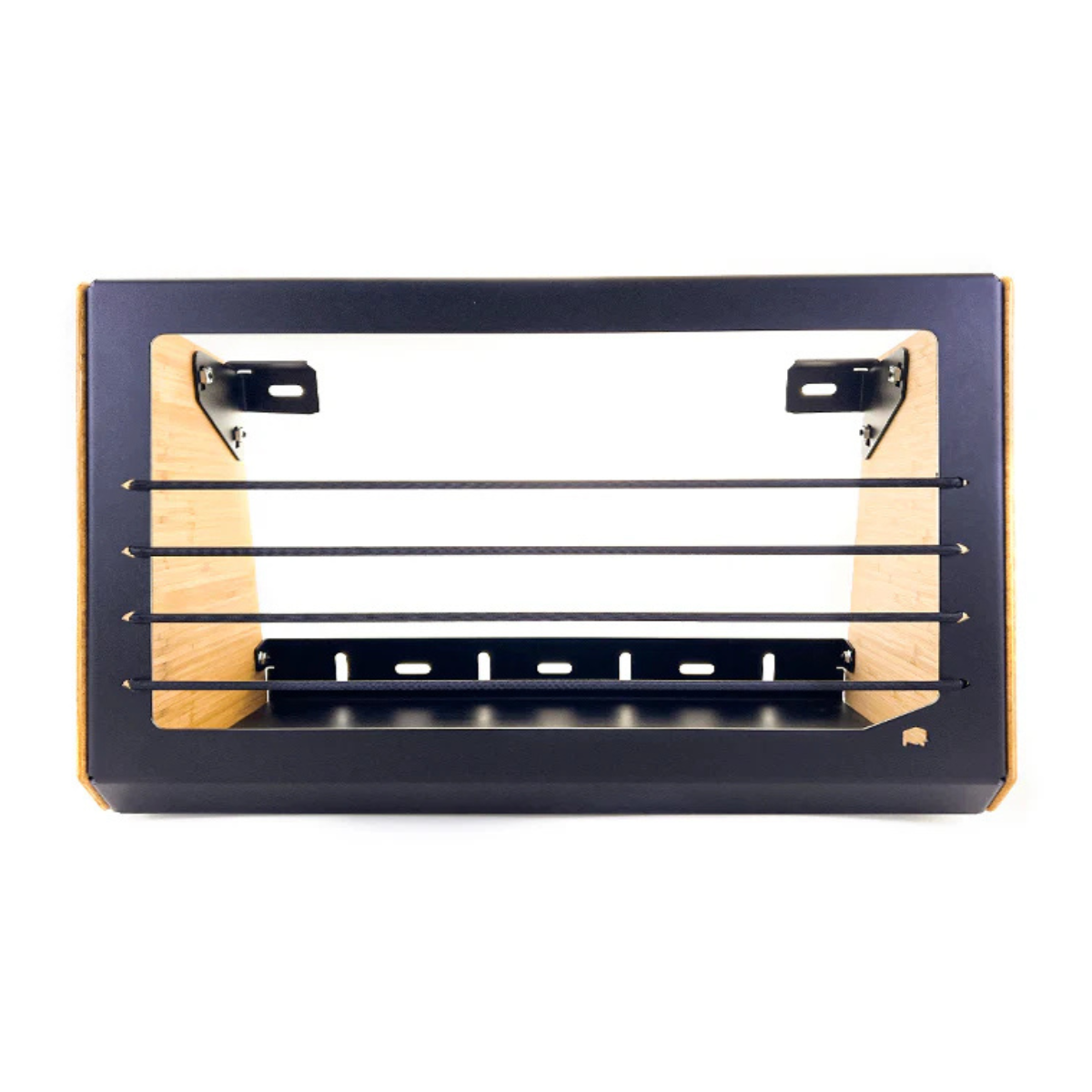

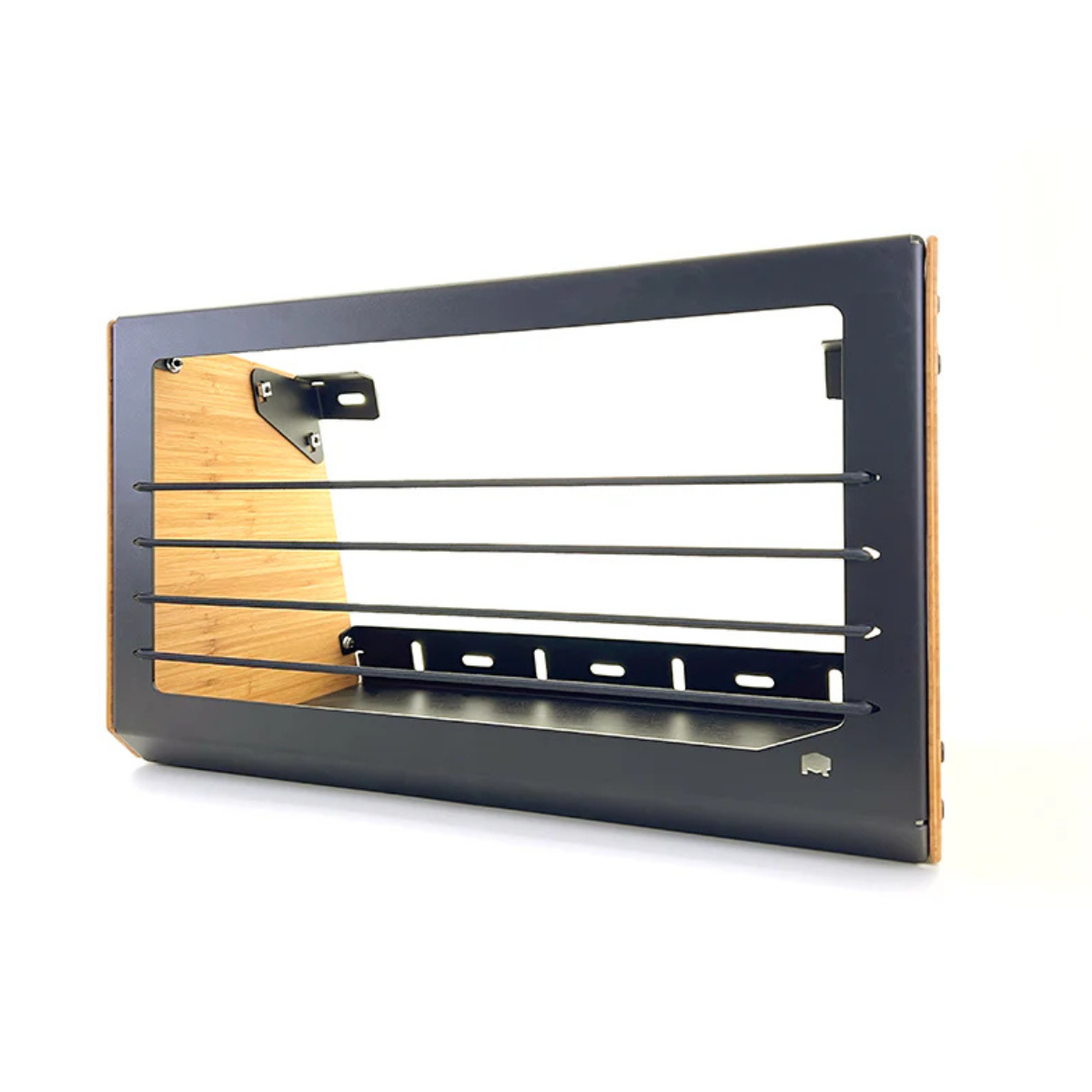

• THE OPEN FRONT USES BUNGEE CORD STRUNG SIDE TO SIDE: a simple retention system that keeps gear in place and stays out of your way when you need something.

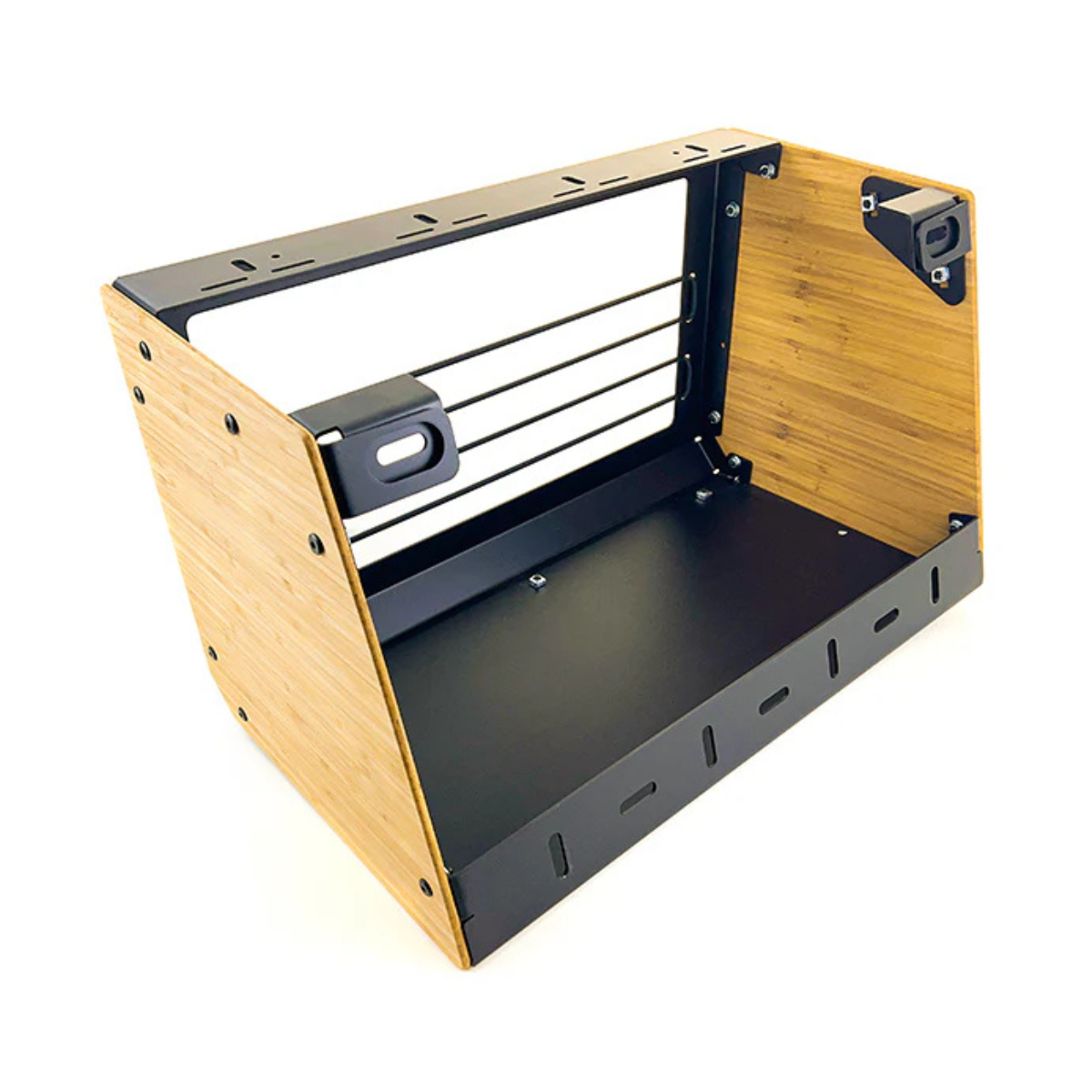

• MATERIAL OR CONSTRUCTION: Bamboo side panels attach to both sides of the cabinet.

• INSTALLATION: Modular mounting with multiple hole configurations gives you flexibility in placement.

• ADDITIONAL INFORMATION: Adventure Wagon

• ADDITIONAL INFORMATION: Compatible With

• INSTALLATION: optional brackets.

• ADDITIONAL INFORMATION: DIY-friendly assembly - no experience required.

• ADDITIONAL INFORMATION: The Stash Cab system is designed to grow with your build.

• DIMENSIONS OR CAPACITY: Pairing with a 24" Open Slim or a 48" Slider and a Stash Shelf gives you a complete, organized overhead unit that covers open access, concealed storage, and surface space in one run.

• ADDITIONAL INFORMATION: Specs

• MATERIAL OR CONSTRUCTION: Laser-cut 5052 aluminum frame, CNC formed and powder coated

• ADDITIONAL INFORMATION: Bungee cord open-front retention

• MATERIAL OR CONSTRUCTION: Bamboo side panels

• ADDITIONAL INFORMATION: Modular - connect multiple Stash Cabs for a custom layout

• INSTALLATION: Multiple mounting hole configurations

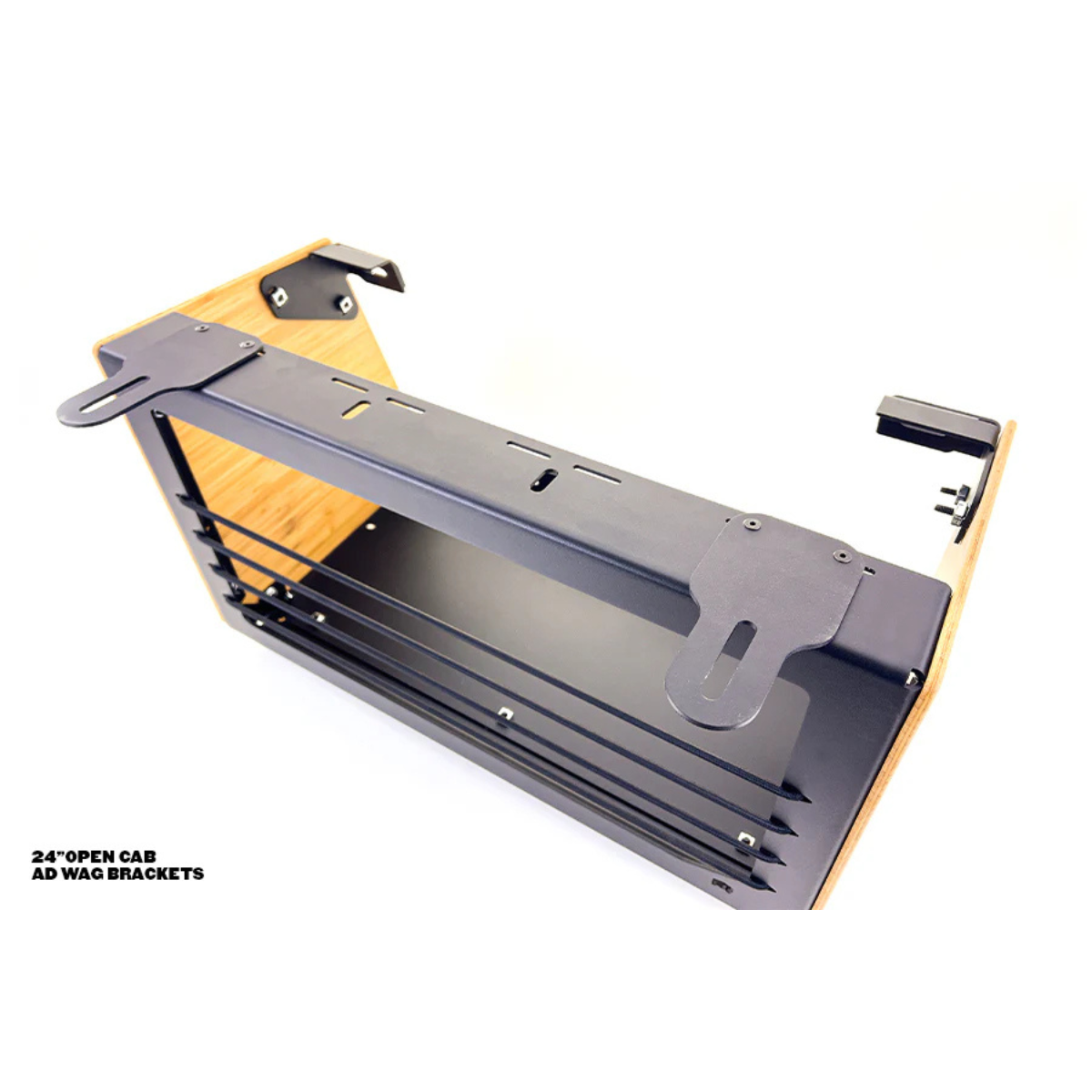

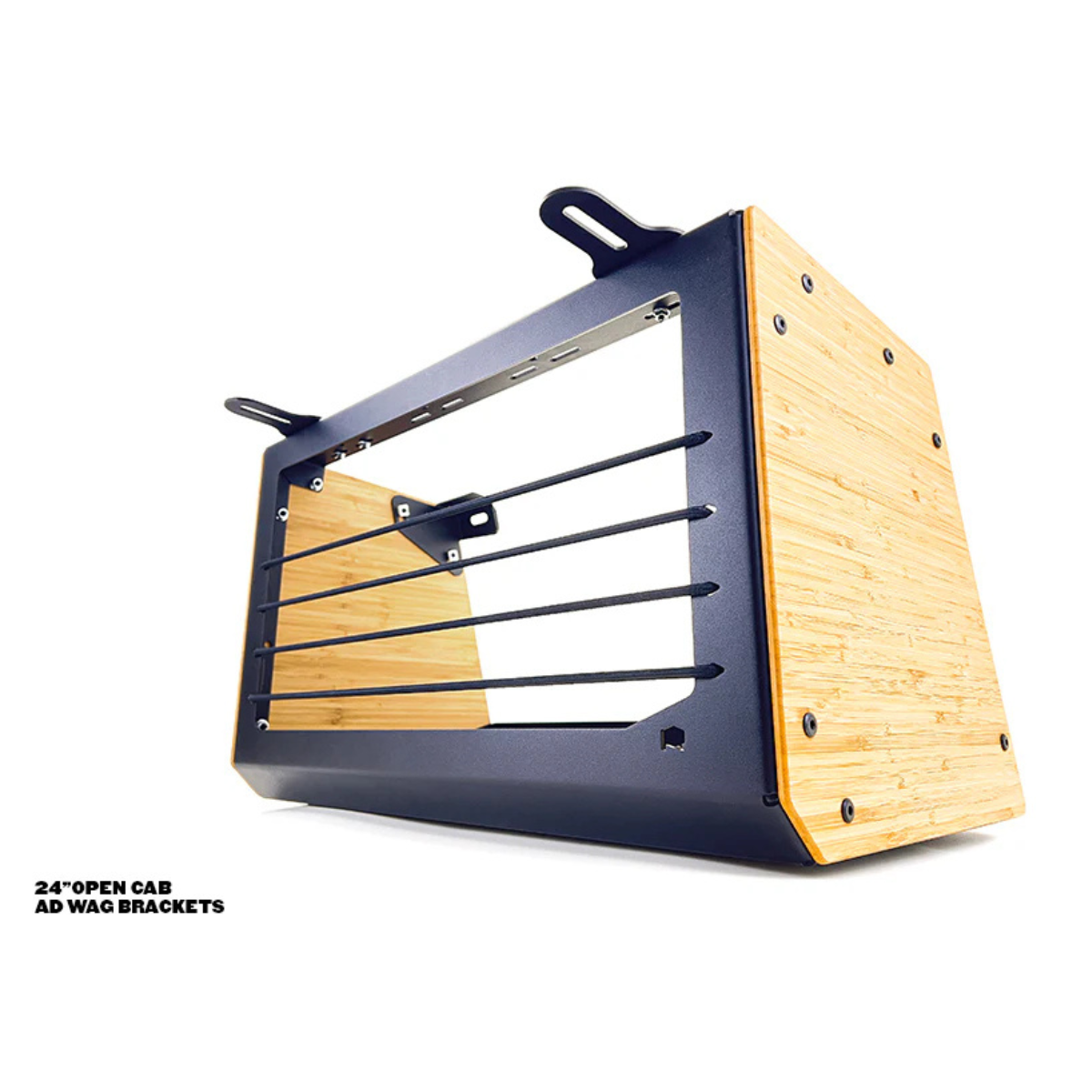

• REQUIREMENT OR EXCLUSION: Adventure Wagon compatible ( brackets sold separately )

• ADDITIONAL INFORMATION: DIY-friendly assembly

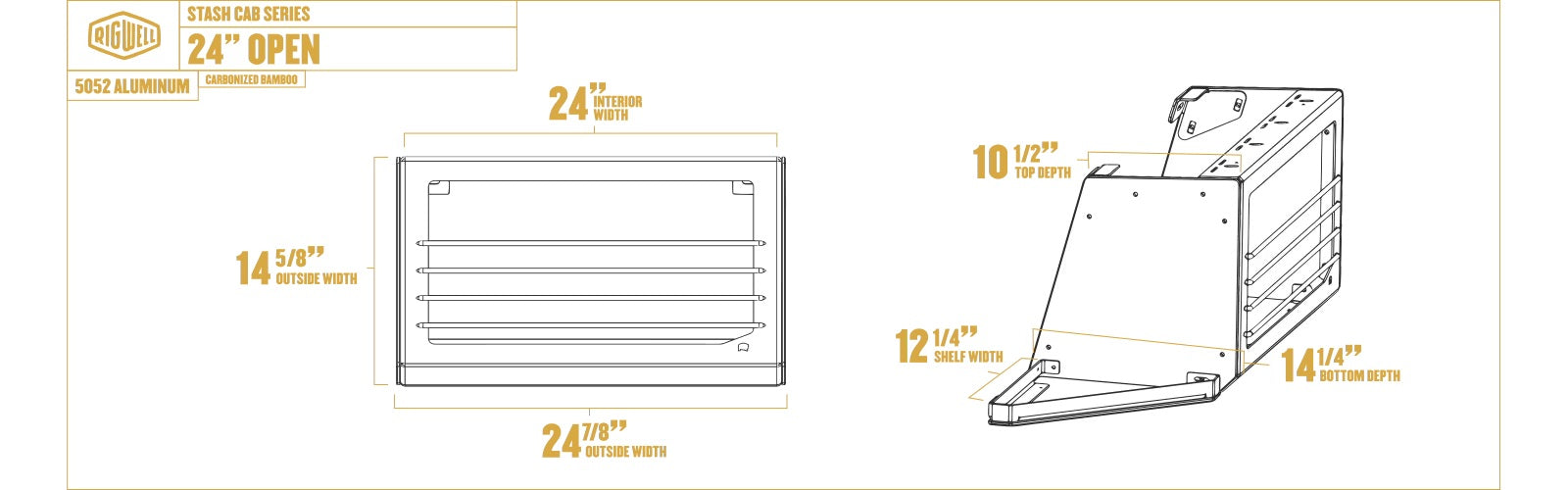

• DIMENSIONS OR CAPACITY: 24.75" Wide x 14" Deep x 14.5" Tall

• DIMENSIONS OR CAPACITY: Bamboo side panels add 0.25" thickness

• VEHICLE FITMENT: Sprinter High Roof 144", 170", 170" EXT

• VEHICLE FITMENT: ProMaster High Roof 136", 159", 159" EXT

• VEHICLE FITMENT: Transit High Roof 148", 148" EXT

FEATURES

• 5052 ALUMINUM FRAME: Uses laser-cut, CNC-formed, powder-coated construction.

• MODULAR MOUNTING: Supports cabinet combinations and flexible placement.

• VAN-SPECIFIC OPTIONS: Provides source-listed configurations for compatible chassis.

COMMON PAIRINGS

• MATCHING STASH CABS: Combine compatible sizes and access styles into one cabinet run.

• STASH SHELF: Add a matching Tall or Slim side surface.

• ADVENTURE WAGON BRACKETS: Use the separately sold bracket system where ceiling L-Track is installed.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter, Ford Transit, and Ram ProMaster high-roof configurations listed below.

• WHEELBASE: Sprinter 144, 170, and 170 EXT; Transit 148 and 148 EXT; ProMaster 136, 159, and 159 EXT.

• ROOF HEIGHT: High roof only.

• REQUIREMENTS: Select the correct vehicle variant. Adventure Wagon brackets are sold separately where used.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Which vans are supported?

A: Vehicle-specific options are listed for high-roof Sprinter, Transit, and ProMaster vans.

Q: Can multiple Stash Cabs connect?

A: Yes, the modular mounting system is designed for combining compatible Stash components.

Q: Are Adventure Wagon brackets included?

A: No, the compatible brackets are sold separately.

Q: Does the cabinet require professional assembly?

A: No, the source describes a DIY-friendly assembly, but secure structural mounting is still required.
