Rigwell Made Sprinter Stash Cab Single Door - Compact Storage

Rigwell Made Sprinter Stash Cab Single Door - Compact Storage

At West Coast Vans, over-bed storage should hold gear without crowding the person sleeping below it. The Rigwell Made Sprinter Stash Cab Single Door - Compact Storage uses a reduced-depth profile and upward-opening door for secure access; Ask Us Product Questions Anytime before selecting bamboo or aluminum sides.

WCV EXPERT TIP

Cycle the pop-up door above the finished mattress and wall panels to verify headroom and hinge clearance before final mounting.

PRODUCT OVERVIEW

Rigwell Made Sprinter Stash Cab Single Door - Compact Storage is a 24.75-inch-wide reduced-depth overhead cabinet with one upward-opening door and selectable bamboo or aluminum sides.

The technical specifications below retain the source-listed materials, dimensions, included components, options, exclusions, and lead-time information.

BEST FOR

• MODULAR OVERHEAD STORAGE: Builds an organized cabinet run using compatible Stash components.

• WEIGHT-CONSCIOUS BUILDS: Uses thin-wall 5052 aluminum to preserve interior capacity.

• DIY VAN INTERIORS: Provides pre-cut, formed components and flexible mounting points.

TECHNICAL SPECIFICATIONS

• VENDOR: Rigwell Made

• PRODUCT: Sprinter Stash Cab Single Door

• AVAILABLE OPTION: Color: Bamboo, Aluminum

• STORAGE OR FUNCTION: Pop-up door design for smooth, upward-opening access

• STORAGE OR FUNCTION: Compact profile built for over-bed storage

• MATERIAL OR CONSTRUCTION: Lightweight 5052 aluminum.

• MATERIAL OR CONSTRUCTION: Laser cut, CNC formed, and powder coated

• INSTALLATION: Pre-drilled modular mounting points

• DIMENSIONS OR CAPACITY: DIY friendly installation

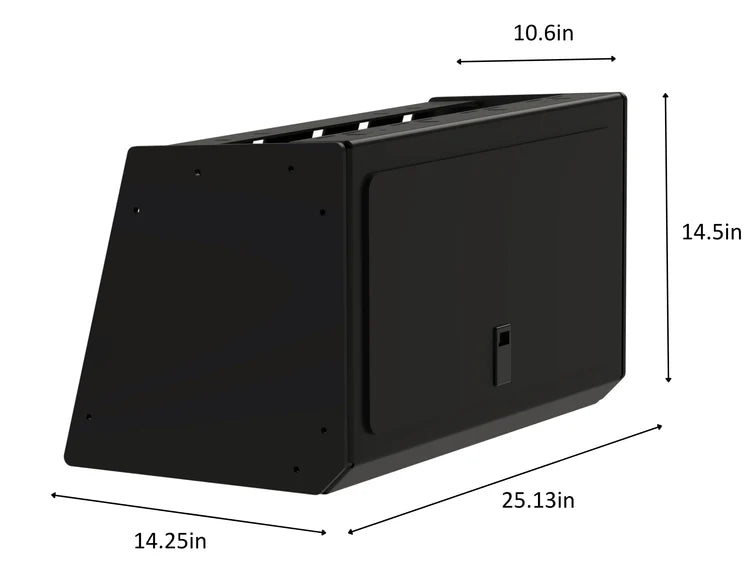

• DIMENSIONS OR CAPACITY: 24.75 " Wide x 14" Deep x 14.5" Tall

• DIMENSIONS OR CAPACITY: Bamboo side panels add 0.25" thickness

• ADDITIONAL INFORMATION: Compatible

• VEHICLE FITMENT: 2007+ Mercedes-Benz Sprinter 144" High Roof Vans

• STORAGE OR FUNCTION: The Stash Cab Single Hinged Door Cabinet is built for van owners who want secure overhead storage without sacrificing comfort.

• STORAGE OR FUNCTION: Matching the depth of our Stash Cab - Open Slim , its reduced depth creates additional headroom above your sleeping area while still offering generous internal capacity for gear, clothing, and everyday essentials.

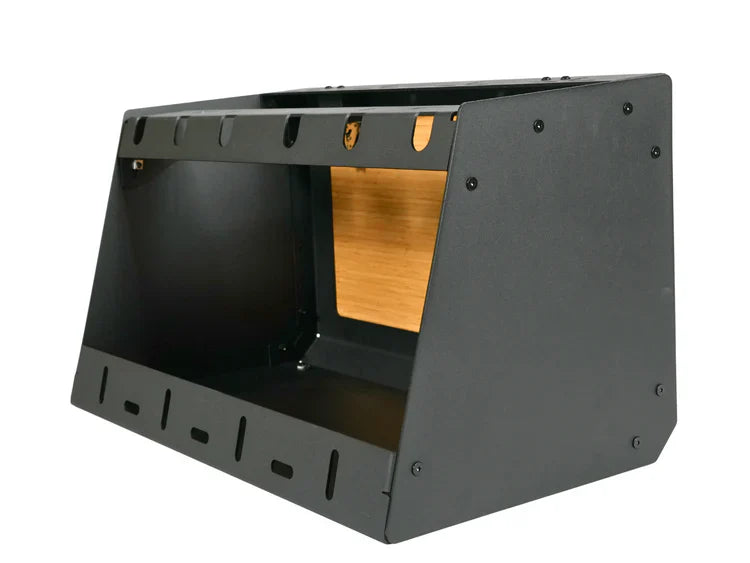

• DIMENSIONS OR CAPACITY: Crafted from rugged yet lightweight 5052 aluminum, the cabinet is laser cut and precision formed for strength that stands up to rough roads and long miles.

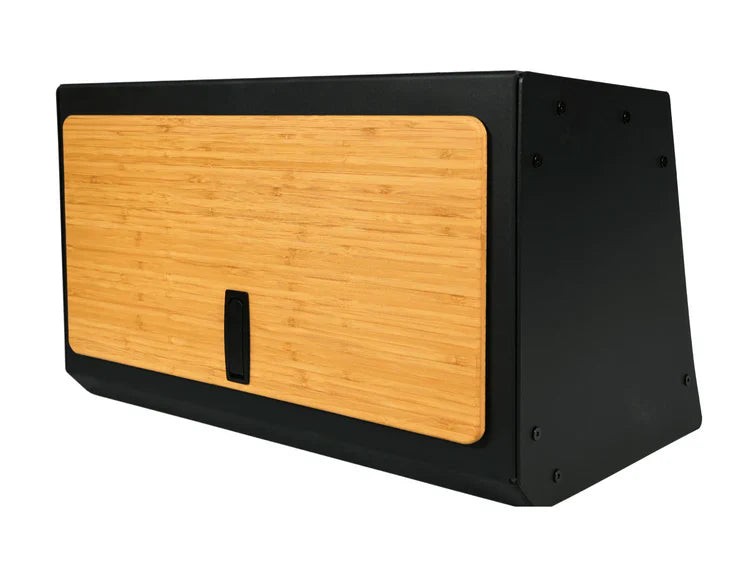

• MATERIAL OR CONSTRUCTION: A durable powder-coated finish protects the structure, while bamboo side panels bring warmth and contrast to the industrial aluminum frame.

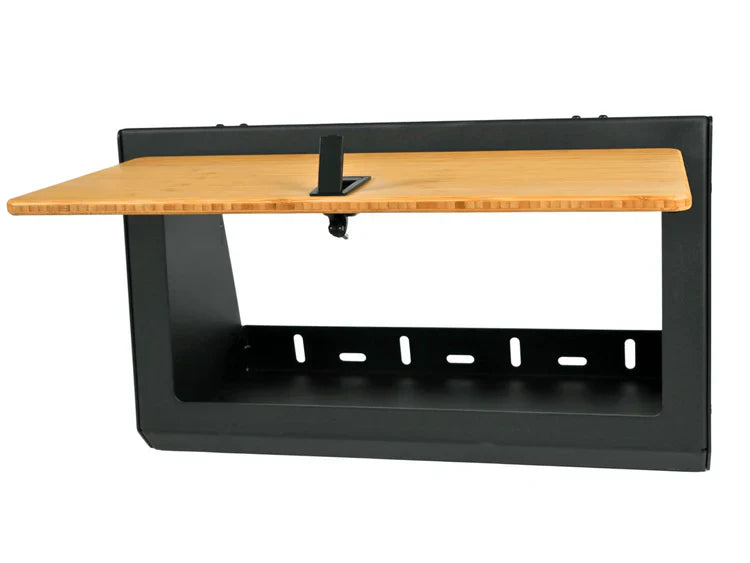

• STORAGE OR FUNCTION: The upward-opening pop-up door delivers full, unobstructed access to your storage space.

• ADDITIONAL INFORMATION: No sliding panels.

• STORAGE OR FUNCTION: No exposed gear.

• STORAGE OR FUNCTION: Just clean, enclosed storage that keeps your setup organized and trail-ready wherever the road leads.

FEATURES

• 5052 ALUMINUM FRAME: Uses laser-cut, CNC-formed, powder-coated construction.

• MODULAR MOUNTING: Supports cabinet combinations and flexible placement.

• VAN-SPECIFIC OPTIONS: Provides source-listed configurations for compatible chassis.

COMMON PAIRINGS

• MATCHING STASH CABS: Combine compatible sizes and access styles into one cabinet run.

• STASH SHELF: Add a matching Tall or Slim side surface.

• ADVENTURE WAGON BRACKETS: Use the separately sold bracket system where ceiling L-Track is installed.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter 144.

• WHEELBASE: 144-inch wheelbase.

• ROOF HEIGHT: High roof only.

• REQUIREMENTS: Confirm finished wall, bed, door-swing, and mounting clearances. Select bamboo or aluminum side panels.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Which van does this cabinet fit?

A: It is listed for 2007-current Mercedes-Benz Sprinter 144 high-roof vans.

Q: How does the door open?

A: The pop-up door opens upward for unobstructed access.

Q: What materials are used?

A: The cabinet uses laser-cut, CNC-formed, powder-coated 5052 aluminum with selectable bamboo or aluminum side panels.

Q: Is it intended for over-bed storage?

A: Yes, its reduced-depth profile is designed to preserve sleeping-area headroom.
