3M THINSULATE PRE-CUT VAN INSULATION KIT (HIGH-ROOF 144"WB)

3M THINSULATE PRE-CUT VAN INSULATION KIT (HIGH-ROOF 144"WB)

Let’s be real: nobody buys a premium adventure van just to sit inside a metal hot box that rattles like a tin can down the highway and freezes the second the sun drops. At WEST COAST VANS, we know that high-quality thermal and acoustic profiling is the absolute foundation of a comfortable cabin. If you’ve ever spent an entire weekend covered in synthetic fibers, wrestling with a utility knife, and trying to freehand-cut bulk insulation rolls into thousands of irregular, curved wall cavities, you know it is a total nightmare. We stock this pre-cut premium 3M Thinsulate insulation bundle because it completely bypasses that grueling fabrication work. This kit arrives engineered and precisely mapped to drop straight into your chassis lines—saving you dozens of hours of labor while keeping your build quiet, warm, and highly efficient. Ask Us Product Questions Anytime if you are building out a different wheelbase or roof height—we can easily source the perfect configuration for your layout!

WCV EXPERT TIP: While 3M Thinsulate is incredibly forgiving, lightweight, and pliable, using the right adhesive technique makes all the difference during installation. Pro Tip: Use a high-temperature, heavy-duty spray adhesive (like 3M Hi-Strength 90) to bond the white fiber side directly to the van's outer sheet metal skins. Spray both the metal panel and the insulation backing lightly, wait 30 seconds for it to get tacky, and press it firmly into place. Crucial Layering Step: The kit includes an easy-to-follow layout diagram showing exactly where every pre-profiled section lives. If your van features aftermarket windows, you will end up with extra material from those cutout zones—don’t throw these pieces away! Stuff those remnants inside the small, hollow structural support pillars and door ribs to completely eliminate hidden thermal bridges and maximize your climate control.

PRODUCT OVERVIEW

The 3M Thinsulate Pre-Cut Van Insulation Kit is a professional-grade, ready-to-install thermal and acoustic barrier tailored specifically for high-roof 144" wheelbase cargo platforms. Composed of an advanced non-woven matrix of ultra-fine polypropylene microfibers blended with structural polyester, this marine-grade insulation delivers elite thermal retention and middle-to-high frequency sound dampening. Every piece is CNC pre-cut to seamlessly conform inside the complex interior wall cavities, door panels, and roof corrugations of your cabin. Encased in a protective double-black, double-embossed scrim, this lightweight kit seals your living space against extreme external temperatures and highway road vibrations without absorbing moisture.

BEST FOR

• DIY COMFORT TRANSITIONS: The ultimate, time-saving upgrade for self-builders looking to insulate an entire high-roof interior over a single afternoon without complex measuring or hand-cutting.

• ALL-SEASON CLIMATE CONTROL: Perfect for four-season overlanders who need a high-loft thermal boundary to keep the cabin bone-dry and comfortable in desert heat or sub-zero mountain snowpacks.

• ACOUSTIC NOISE REDUCTION: Ideal for full-time van lifers and travelers looking to eliminate highway panel reverberation and cut down ambient road noise for a peaceful night's sleep.

TECHNICAL SPECIFICATIONS

• INSULATION UTILITY PROFILE: Ready-to-install pre-cut thermal and acoustic acoustic absorber kit

• FIBER MATERIAL MATRIX: Advanced non-woven polyester and ultra-fine polypropylene microfibers

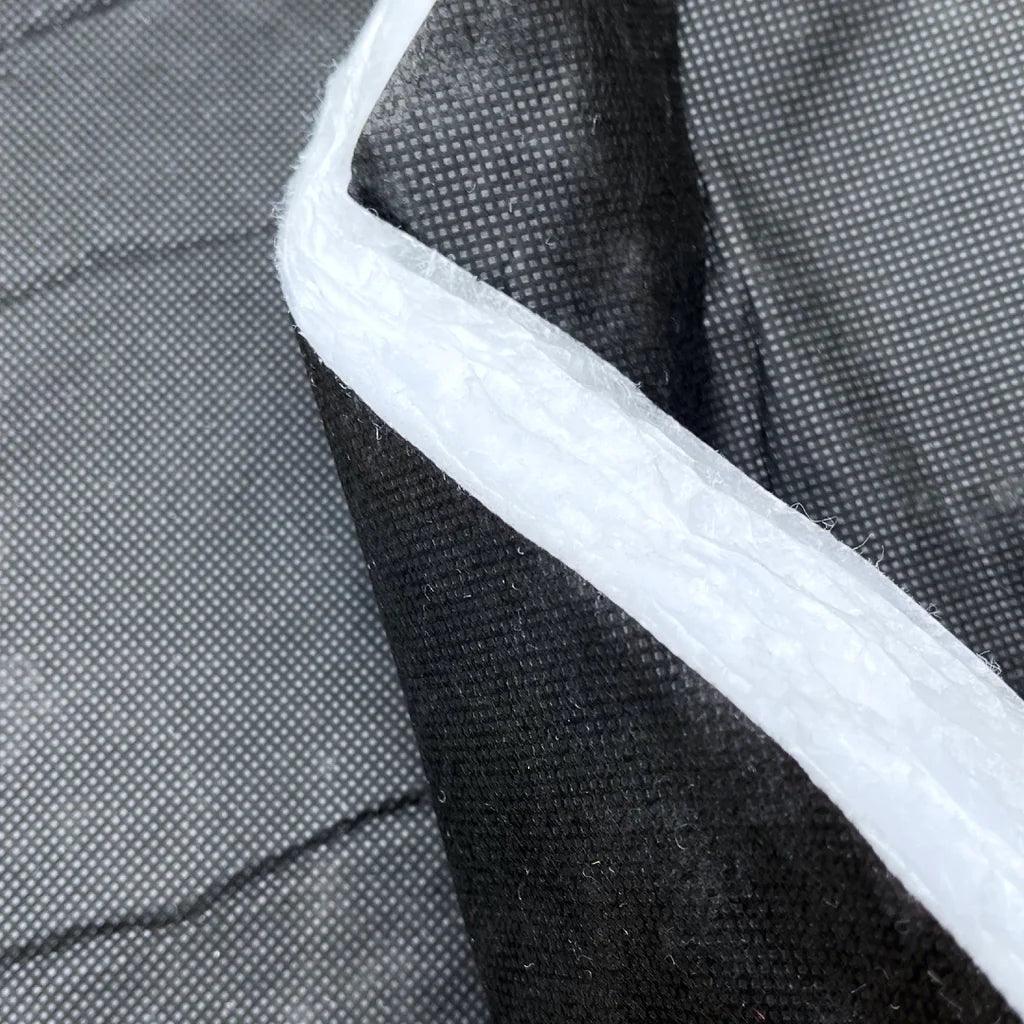

• PROTECTIVE SHEATH LAYER: Fibers fully contained in a premium double-black, double-embossed scrim

• THERMAL INSULATION SCORE: High-efficiency R-Value rated at 5.45 per inch of thickness (RSI 0.96)

• MATERIAL DEPTH CALIBRATION: 44mm uncompressed loft thickness for maximum energy absorption

• NET LAYER DENSITY: Lean, high-loft structural density measuring 16.1 kg/m³

• FIRE RESISTANCE RATING: Fully certified to meet strict FMVSS 302 automotive fire-safety standards

• SHIPPING PACKAGE LOGISTICS: Shipped straight to your door with 100% FREE SHIPPING across the Continental US

• VEHICLE CHASSIS COMPATIBILITY: Optimized specifically for High-Roof configurations on the 144" Wheelbase platform

• COVERAGE INCLUDE AREA: Includes pre-shaped panels for the main cargo ceiling channels, side walls, and rear/sliding door cavities (excludes cab overhead and cabin floor areas)

FEATURES

• CNC CAVITY-PRESET CUTS: Every panel arrives stamped to match the specific irregular nooks, deep crannies, and window cutouts of the 144" chassis, removing the headache of manual template making.

• ELITE ACUSTIC SOUND ABSORPTION: The fine microfibers are engineered to capture and dissolve annoying road vibrations, tire hum, and wind whistle, drastically reducing cabin fatigue at highway speeds.

• HYDROPHOBIC MOISTURE REJECTION: Formulated with advanced water-resistant fibers that refuse to hold moisture or condensation, permanently shielding your internal sheet metal panels against hidden rust, mold, and mildew.

• MASS-EFFICIENT BUILD WEIGHT: Delivers significantly higher thermal performance per unit weight than generic denim or fiberglass batts, ensuring your electrical and suspension payload stays light.

• COMPRESSIBLE HIGH-LOFT MEMORY: Easily squishes down to pass behind thin structural framing or wall trim panels, instantly springing back to its full 44mm depth once inside open cavities to maximize insulation values.

COMMON PAIRINGS

• 3M HI-STRENGTH 90 SPRAY ADHESIVE: The commercial-grade, high-temperature aerosol bonding agent required to permanently tack the insulation panels inside the vehicle walls.

• WHITE TOP ADVENTURES STRATA ROOF RACK: Works hand-in-hand with your exterior build by ensuring the massive interior ceiling area is fully insulated directly underneath your solar array footprint.

• VANSPEED REAR BED FLARES & SIDE CAPSULES: Provides extra raw insulation material to frame out your lateral bedroom alcoves for maximum cold-weather sleeping comfort.

COMPATIBILITY & FITMENT

• CHASSIS FITMENT RAIL: Engineered for modern cargo platforms (Fits generations covering NCV3 and VS30 lines).

• WHEELBASE & HEIGHT EXCLUSION: Specially tailored strictly for High-Roof models with the standard 144" wheelbase layout. Will not fit Medium-Roof variants or longer 170" long-wheelbase chassis lines without sourcing additional material.

• WINDOW SELECTION CONFIGURATION: This comprehensive bundle includes full coverage insulation sheets for the solid metal panel walls. If your van features factory or aftermarket bunk/sliding glass layouts, those matching window panels will serve as extra insulation material to distribute elsewhere in the rig.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Does this insulation package arrive pre-cut to cover my driver cab roof area and the floor panels?

A: No, it does not. This specialized kit is engineered to insulate your main rear living area, including the cargo ceiling channels, side structural walls, and entry doors. It does not include pre-cut sheets for the front cabin driver overhead area or any section of the horizontal subfloor footprint.

Q: Will 3M Thinsulate absorb sweat and condensation inside the walls and cause my van to rust out?

A: Absolutely not. Unlike generic fiberglass housing insulation or recycled denim batts which act like a sponge and trap interior condensation against your sheet metal, 3M Thinsulate utilizes completely hydrophobic fibers. It completely resists water retention, making it immune to rot, mold, and mildew.

Q: How do I know where every individual pre-cut insulation piece is supposed to go inside the van?

A: The installation process is incredibly straightforward. Every kit leaves our shop packaged with a comprehensive architectural location diagram. This blueprint maps out your entire cargo interior, clearly indexing every pre-shaped Thinsulate panel to its exact matching wall cavity or door rib.

Q: Can I use this specific kit if I have a 170" long-wheelbase van or a low-roof variant?

A: This specific bundle is custom-dimensioned strictly for the 144" wheelbase high-roof cargo layout. If you are building out a 170" wheelbase, a 170" Extended, or a different roof height line, please reach out to our shop team directly so we can build and route the exact ready-to-install package your chassis requires.

WHY TRUST WEST COAST VANS?

Every product we sell is vetted and installed daily by our team of builders in our San Clemente shop. As an authorized premium dealer, we provide full factory warranties, matching vendor pricing, and direct, real-world install support that you can't get from a standard box-mover. We don’t just sell the gear—we know exactly how it fits into your build.

SPECIFICATIONS: 3M™ THINSULATE™ VAN INSULATION KIT FOR MERCEDES SPRINTER
