At West Coast Vans, bed height is where garage storage, mattress comfort, and your ability to sit up all start negotiating. This panel system mounts from 16 to 38 inches and offers two-panel 144 or three-panel 170 Sprinter layouts; Ask Us Product Questions Anytime before locking in rail height and sleeping direction.

WCV EXPERT TIP

Mock up mattress height, garage cargo, and rear-door clearance at several rail positions before committing to wall reinforcement.

PRODUCT OVERVIEW

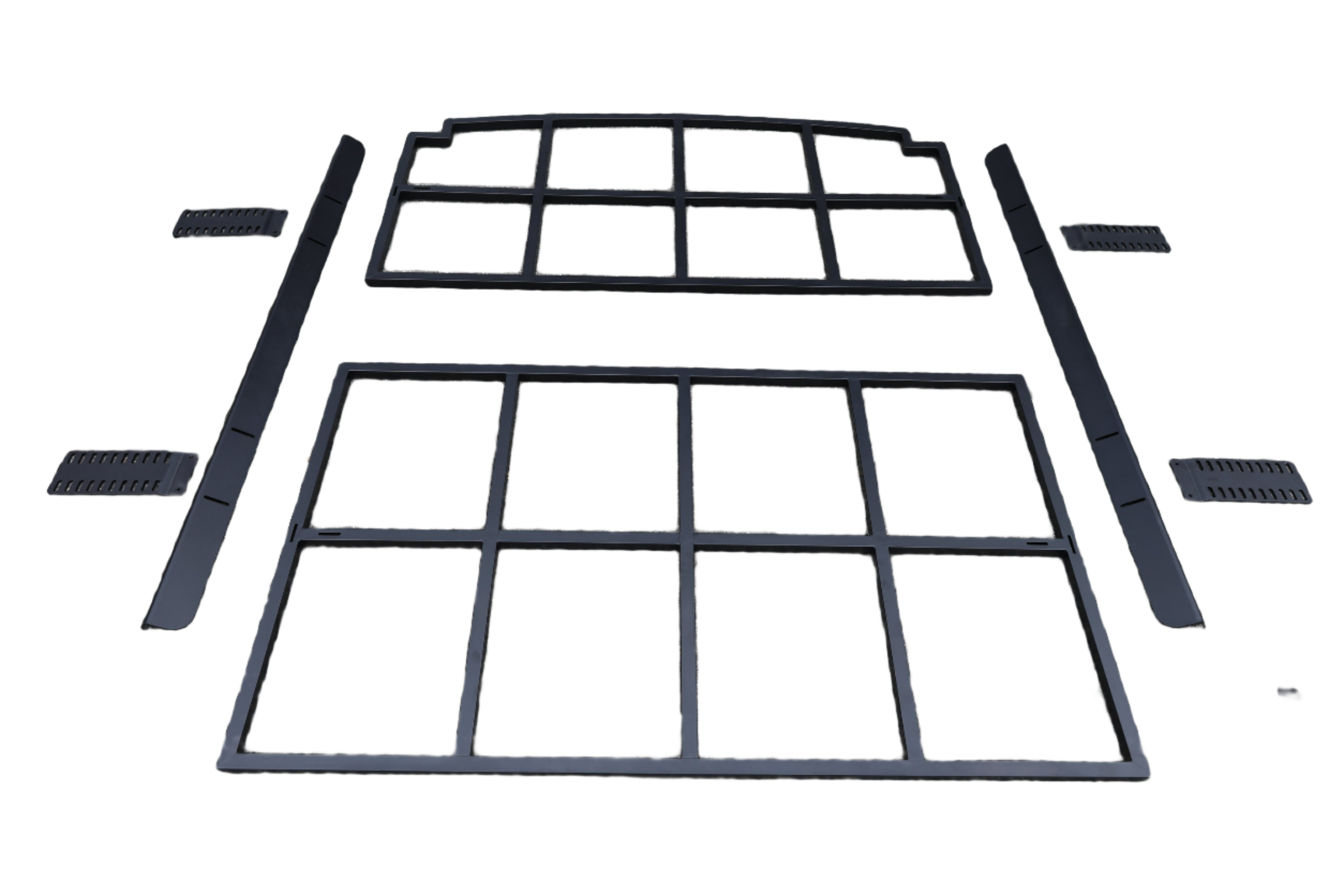

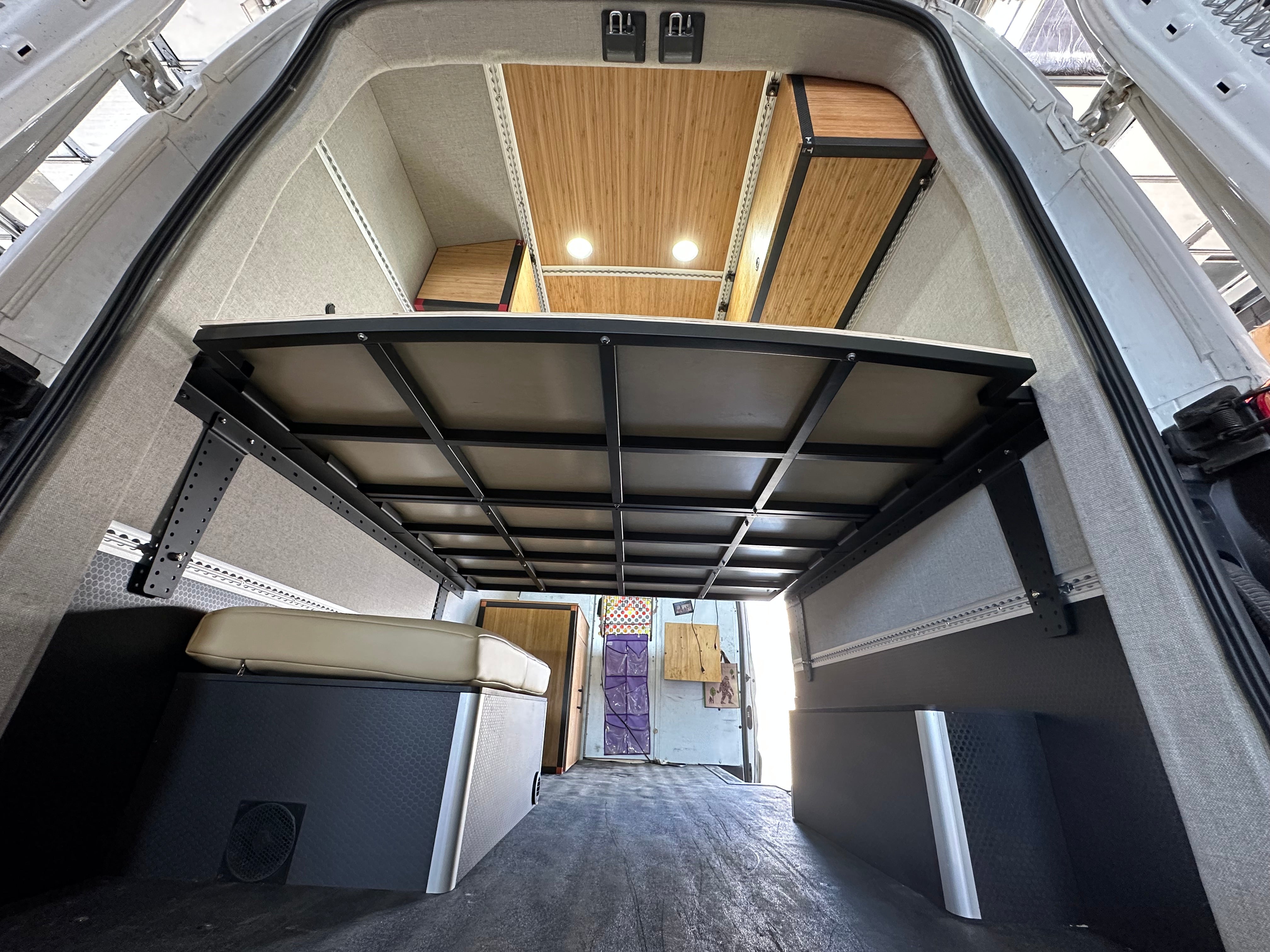

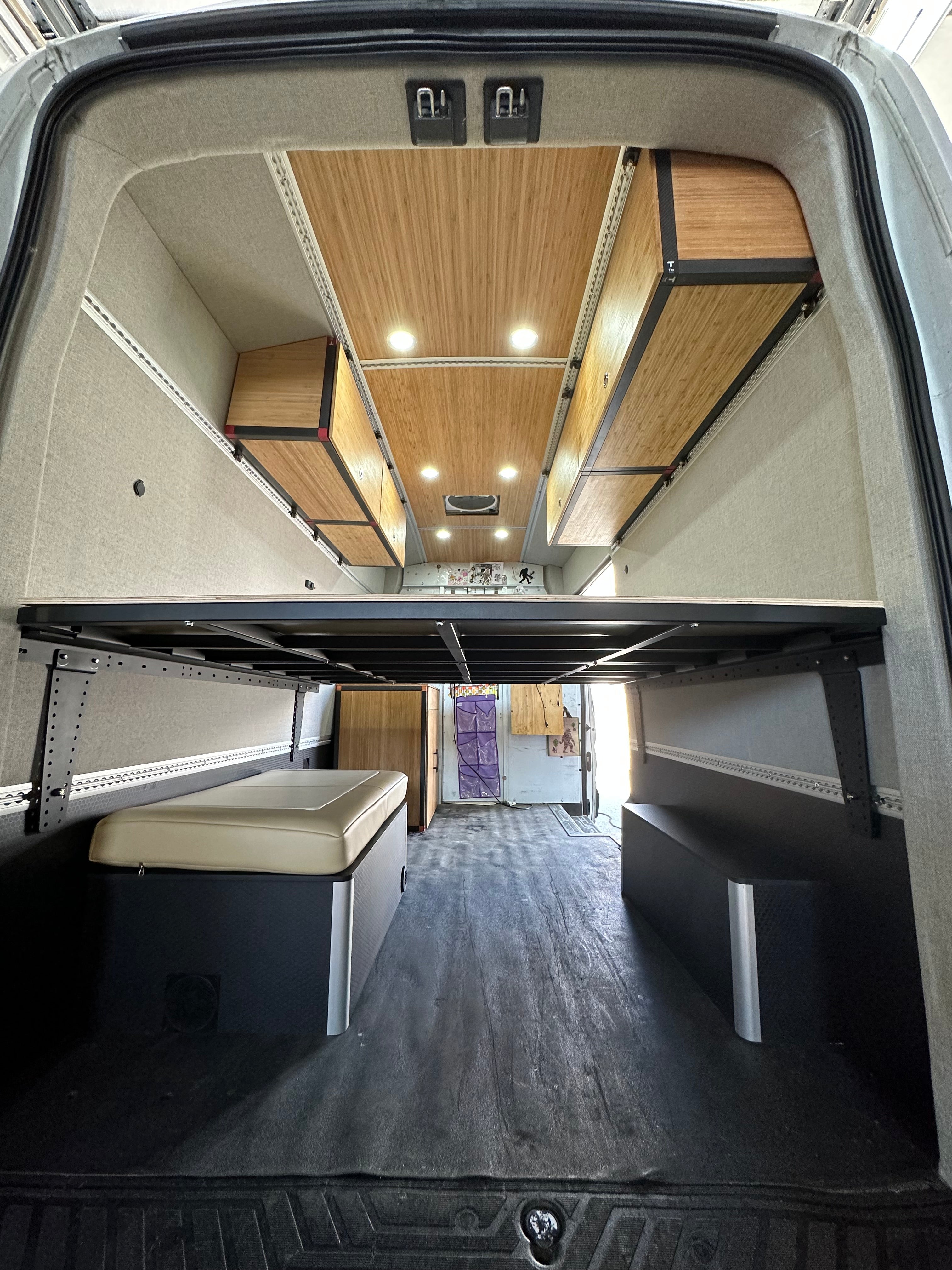

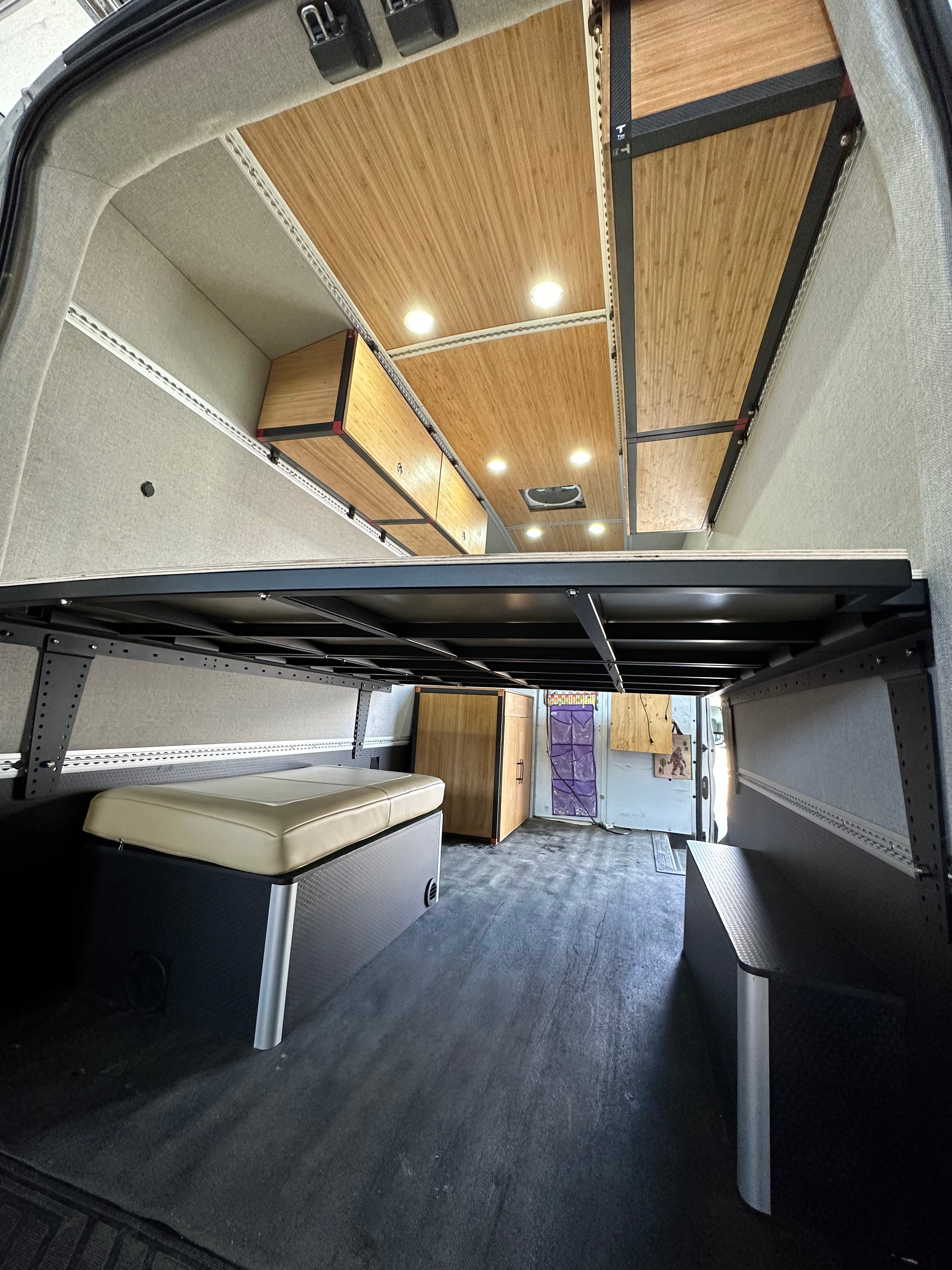

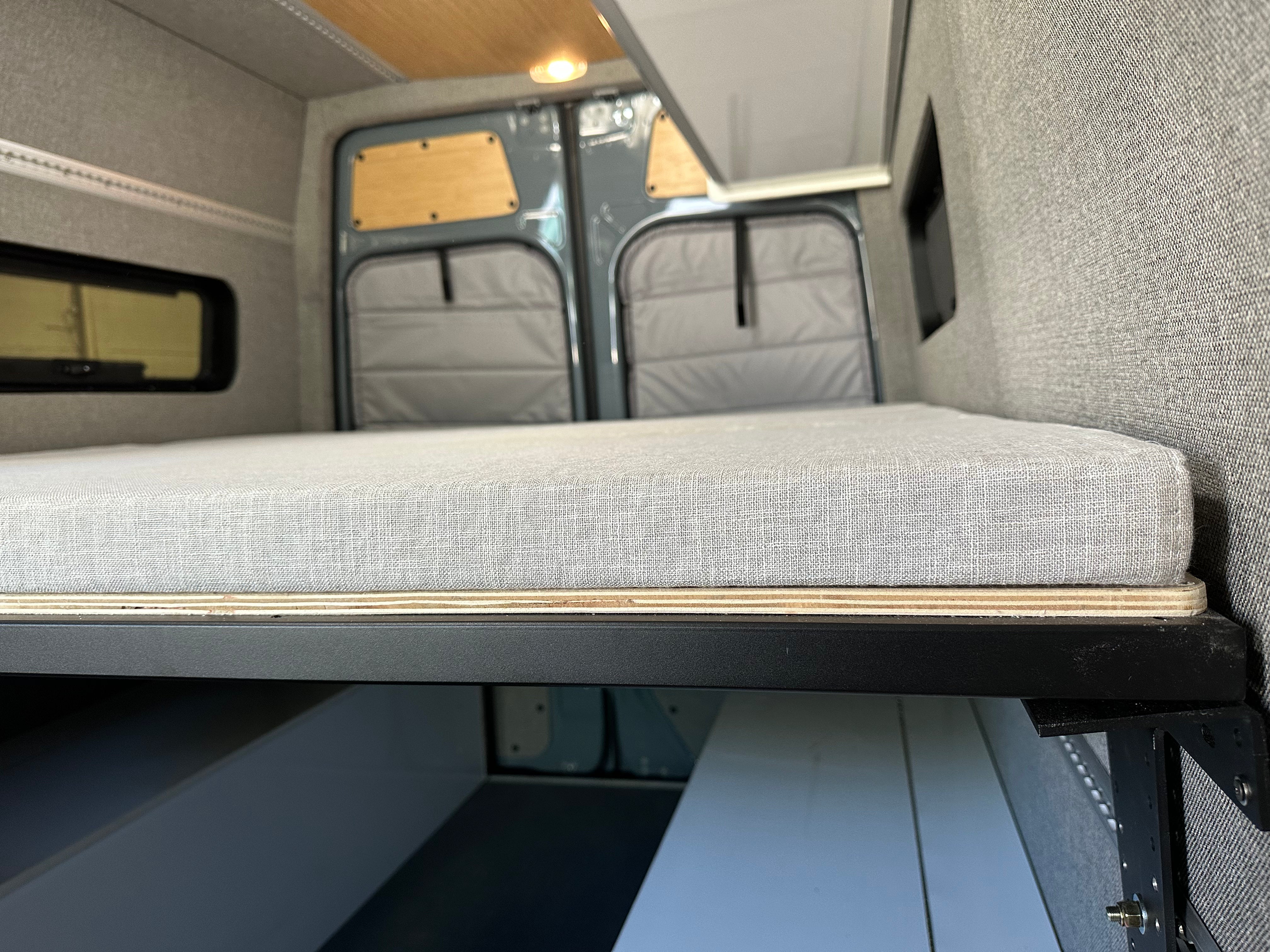

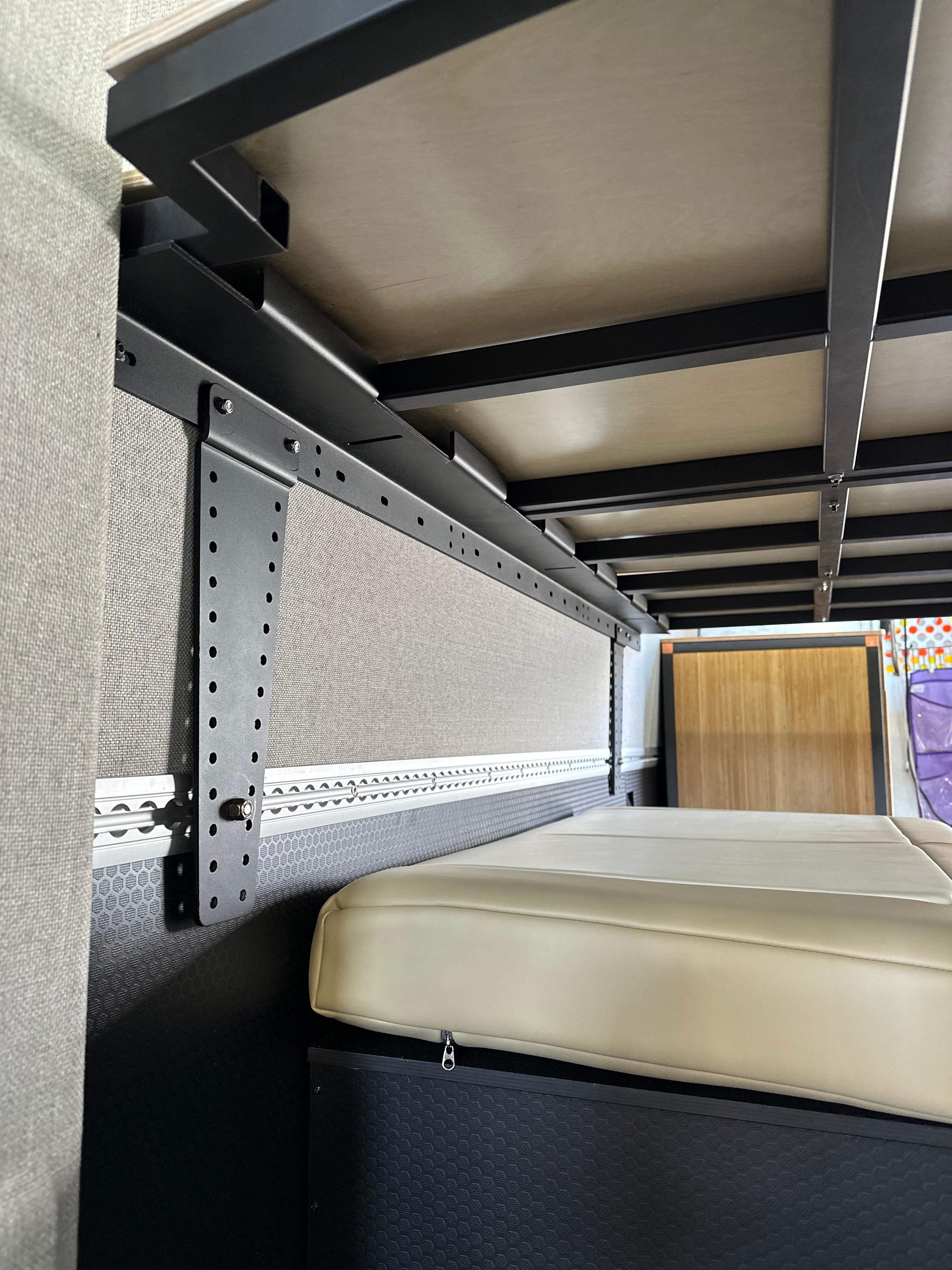

Tec Vanlife Sprinter Panel Bed System - Adjustable Platform creates a removable, height-adjustable sleeping platform using a stainless-steel frame and aluminum mounting rails.

The system adjusts from 16 to 38 inches high, uses 500-pound dynamic-load panels, and is configured with two panels for Sprinter 144 or three panels for Sprinter 170 layouts.

BEST FOR

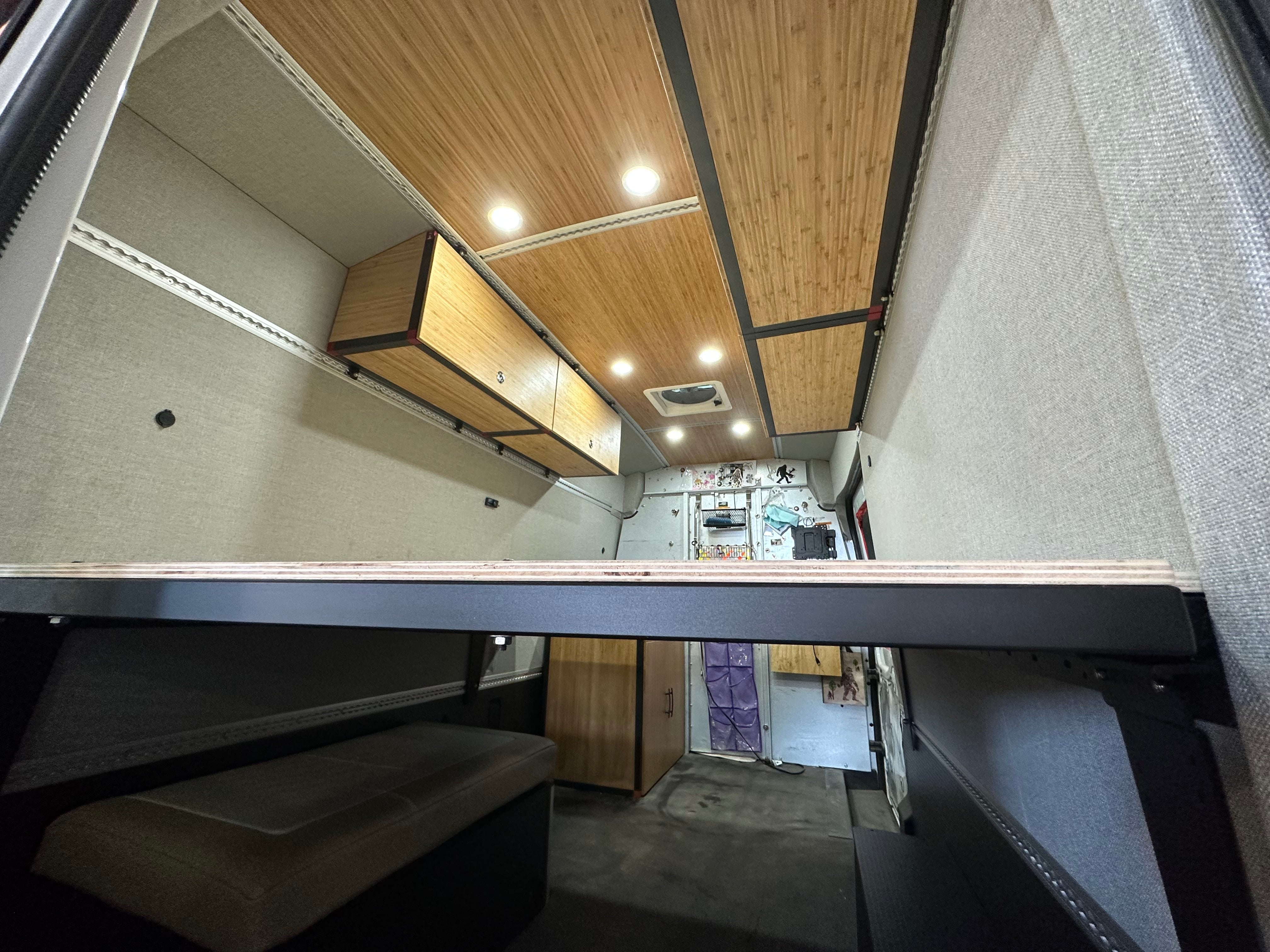

• ADJUSTABLE GARAGE HEIGHT: Moves the sleeping platform between 16 and 38 inches to balance mattress height and cargo space.

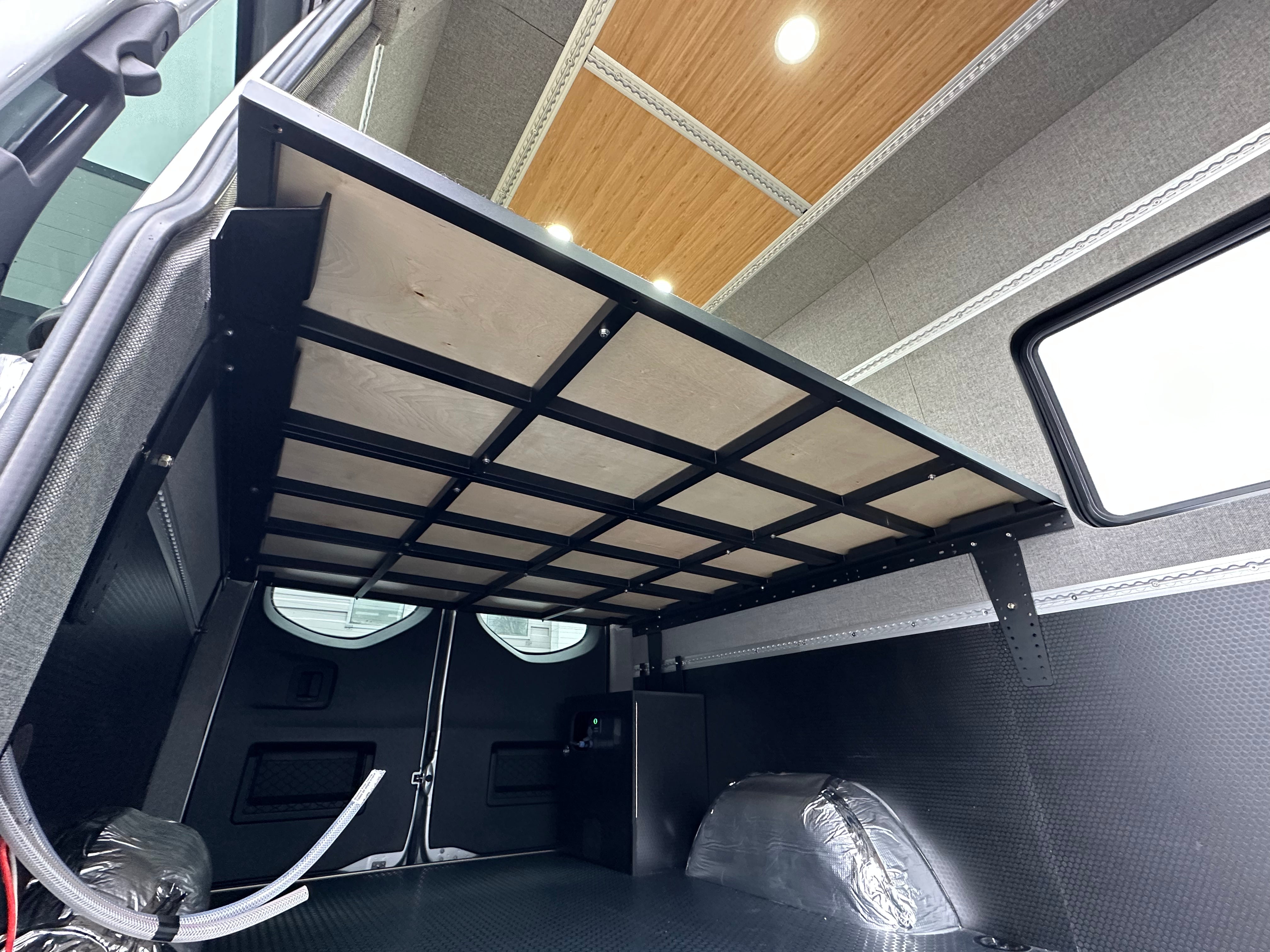

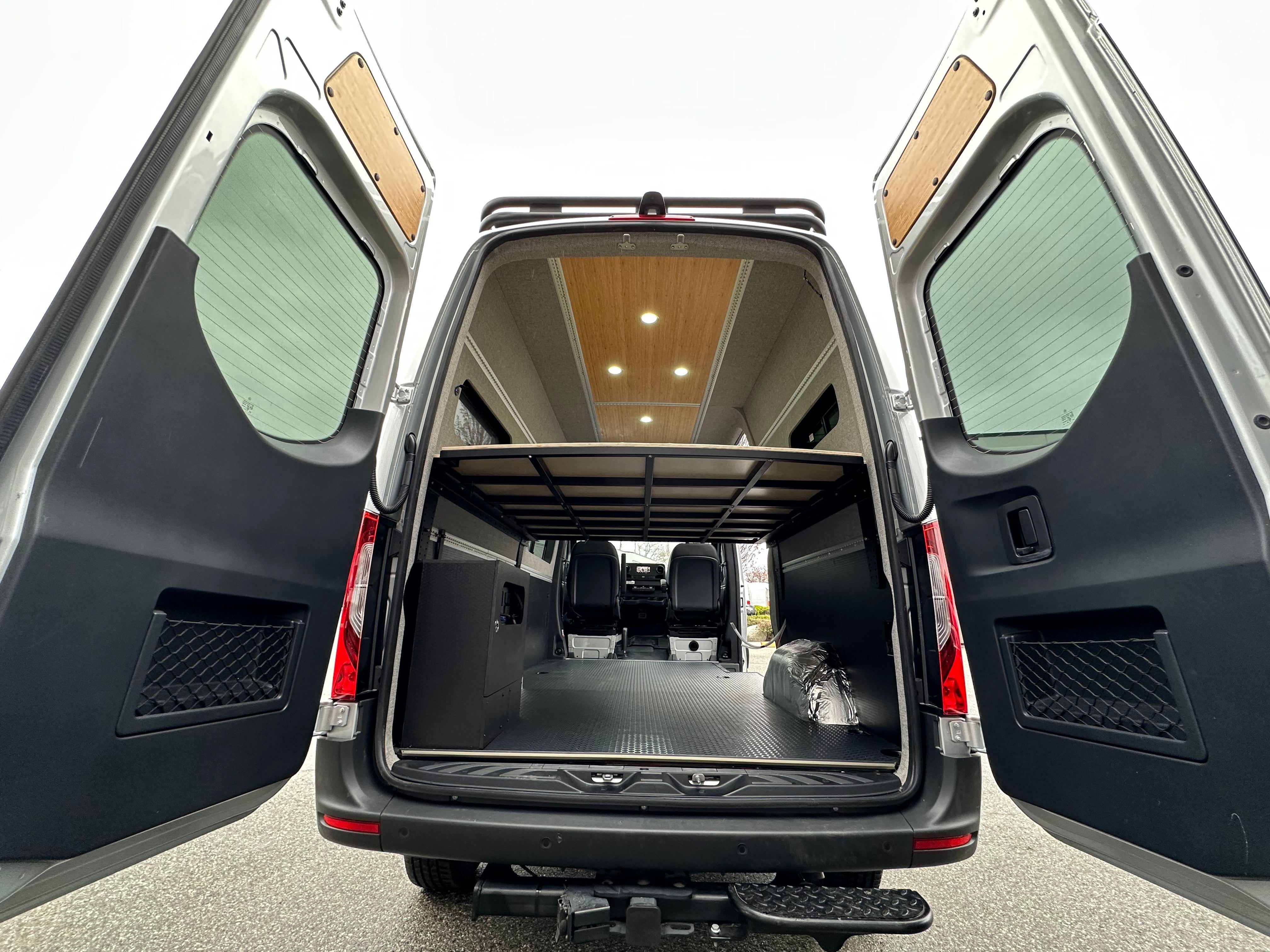

• REMOVABLE BED PANELS: Lets builders open the rear interior for taller cargo when the sleeping platform is not needed.

• SPRINTER 144 AND 170 BUILDS: Uses the listed two-panel or three-panel configuration for the selected wheelbase.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

• PRODUCT: Sprinter Panel Bed System - Adjustable Platform

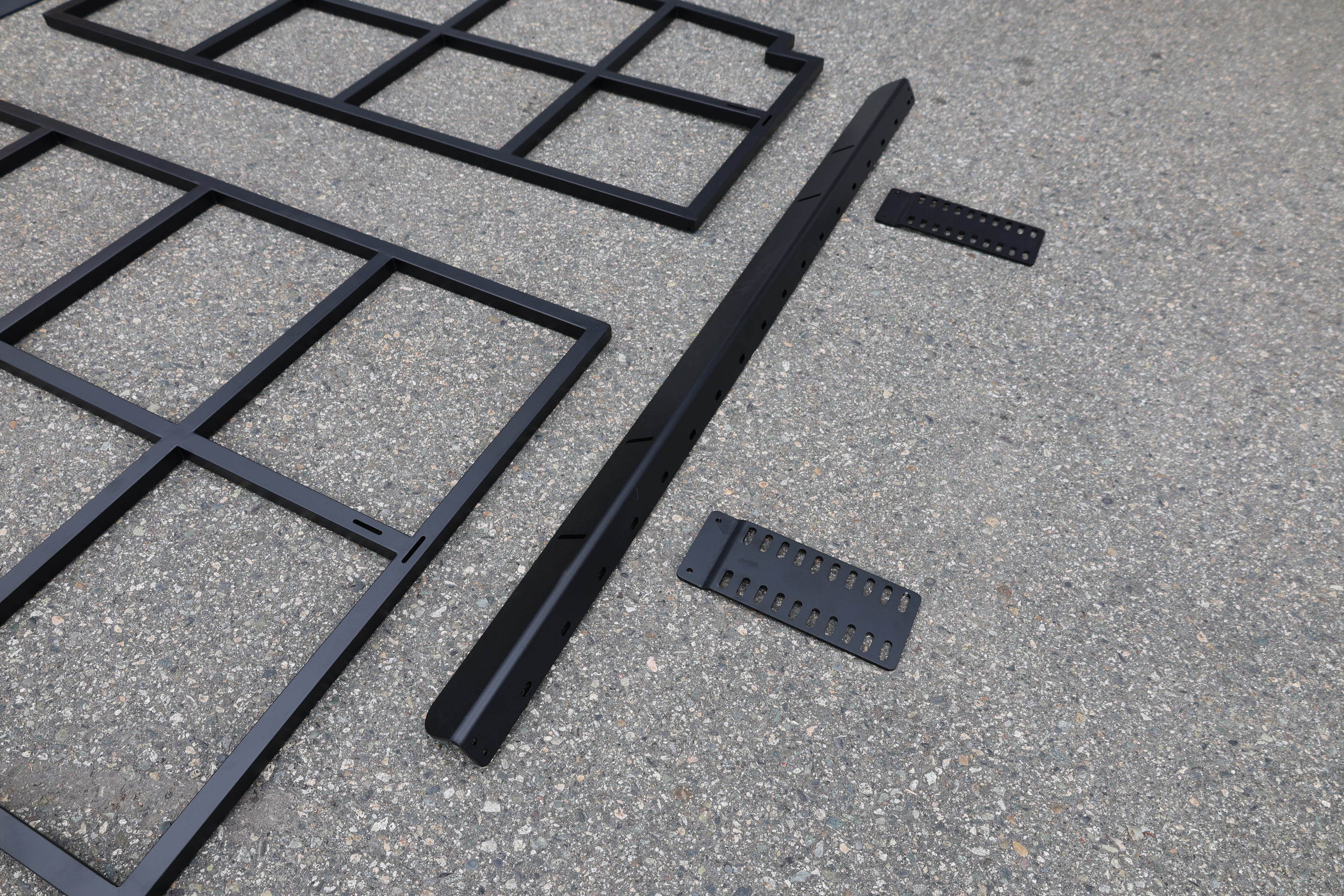

• STYLE: 170" Sprinter - 3-Panel Bed frame + mounting rails & 4x brackets ONLY, 144" Sprinter - 2-Panel Bed frame + mounting rails & 4x brackets ONLY

• SHIPPING: 300 flat rate shipping to the Lower 48 states. Free warehouse pickup available.

• VERSATILE AND ADAPTABLE: The Tec Vanlife Panel Bed System is designed to mount at heights between 16" and 38" , making it versatile and adaptable to a the full range of Sprinter & Transit vans only.

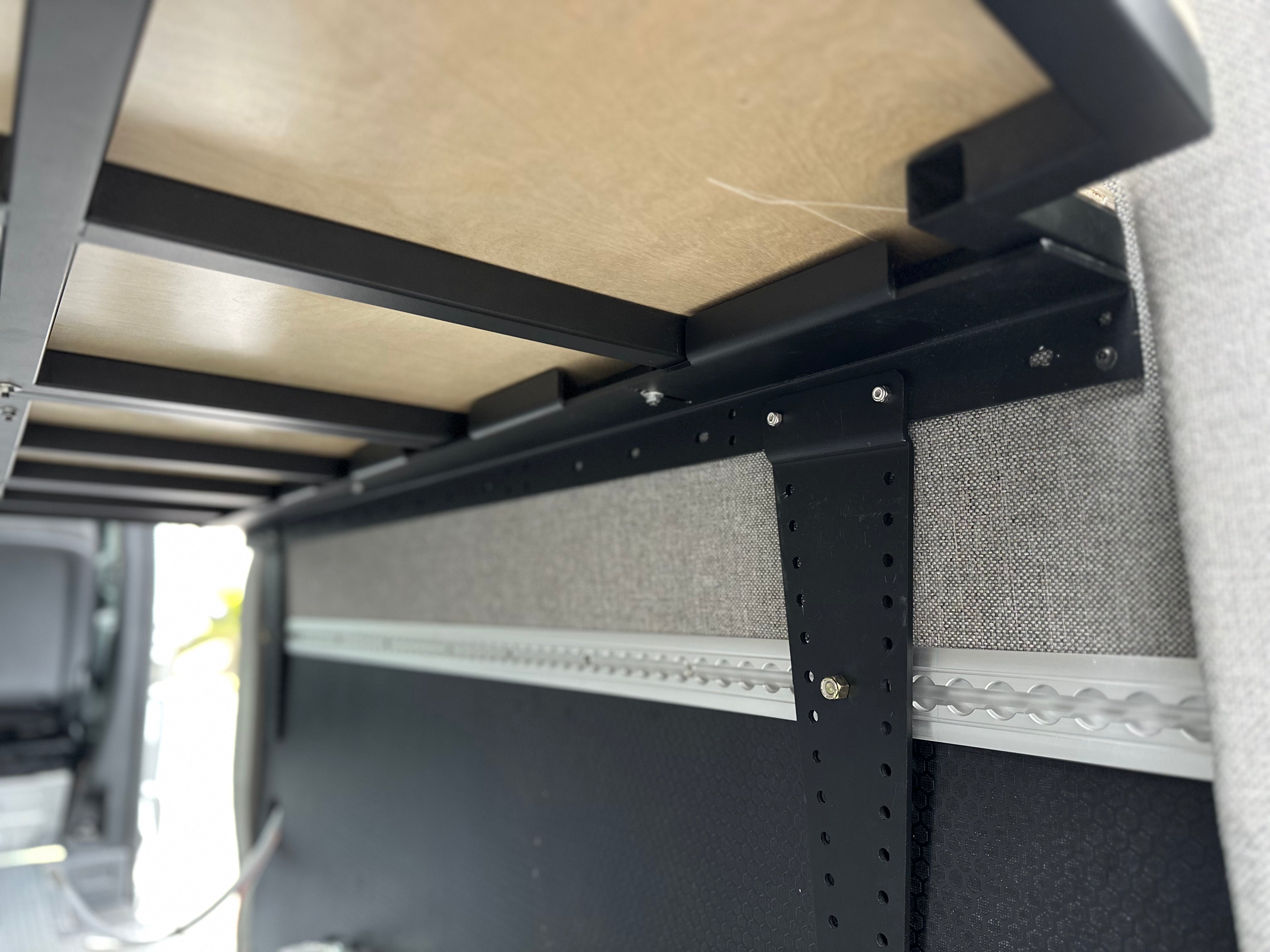

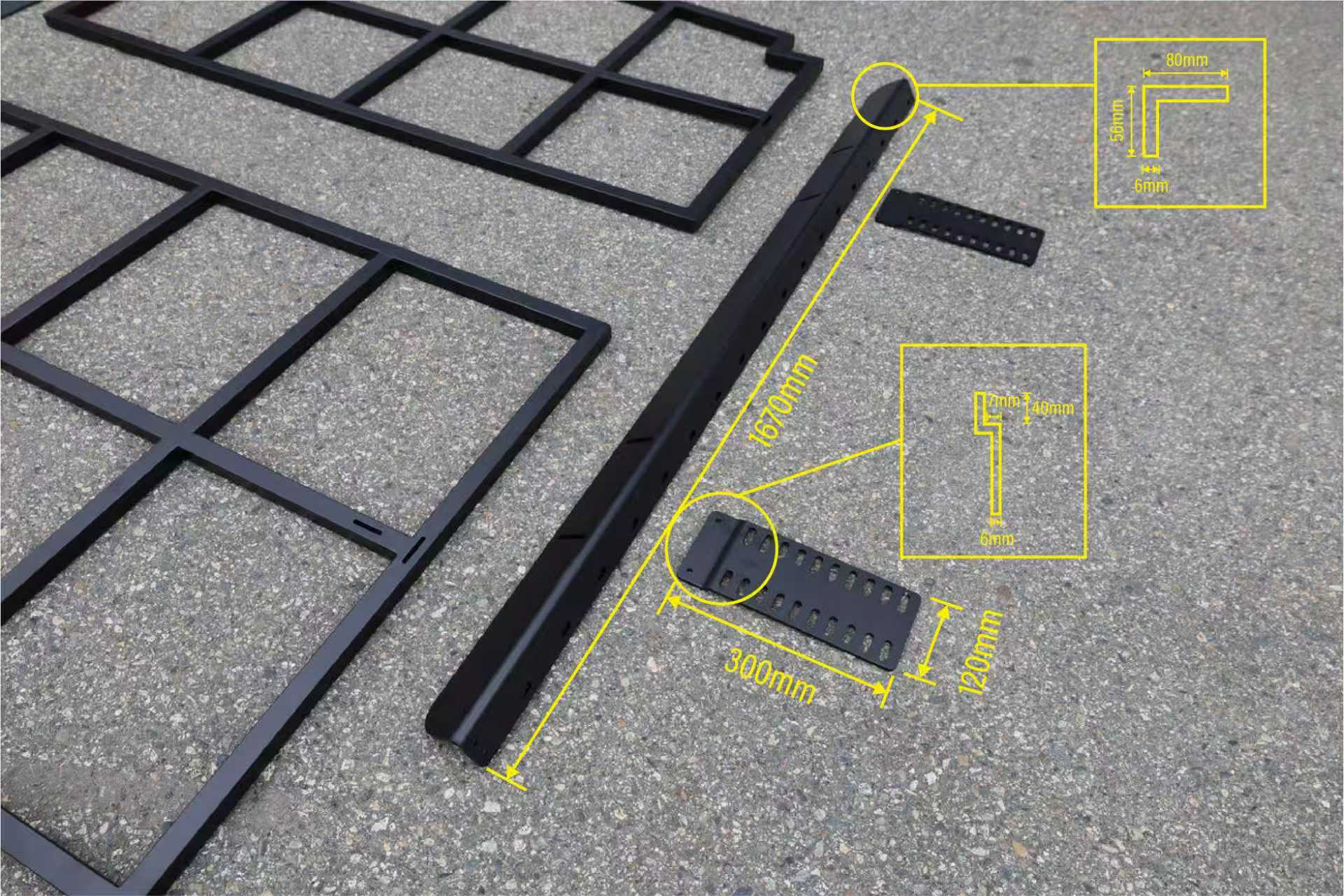

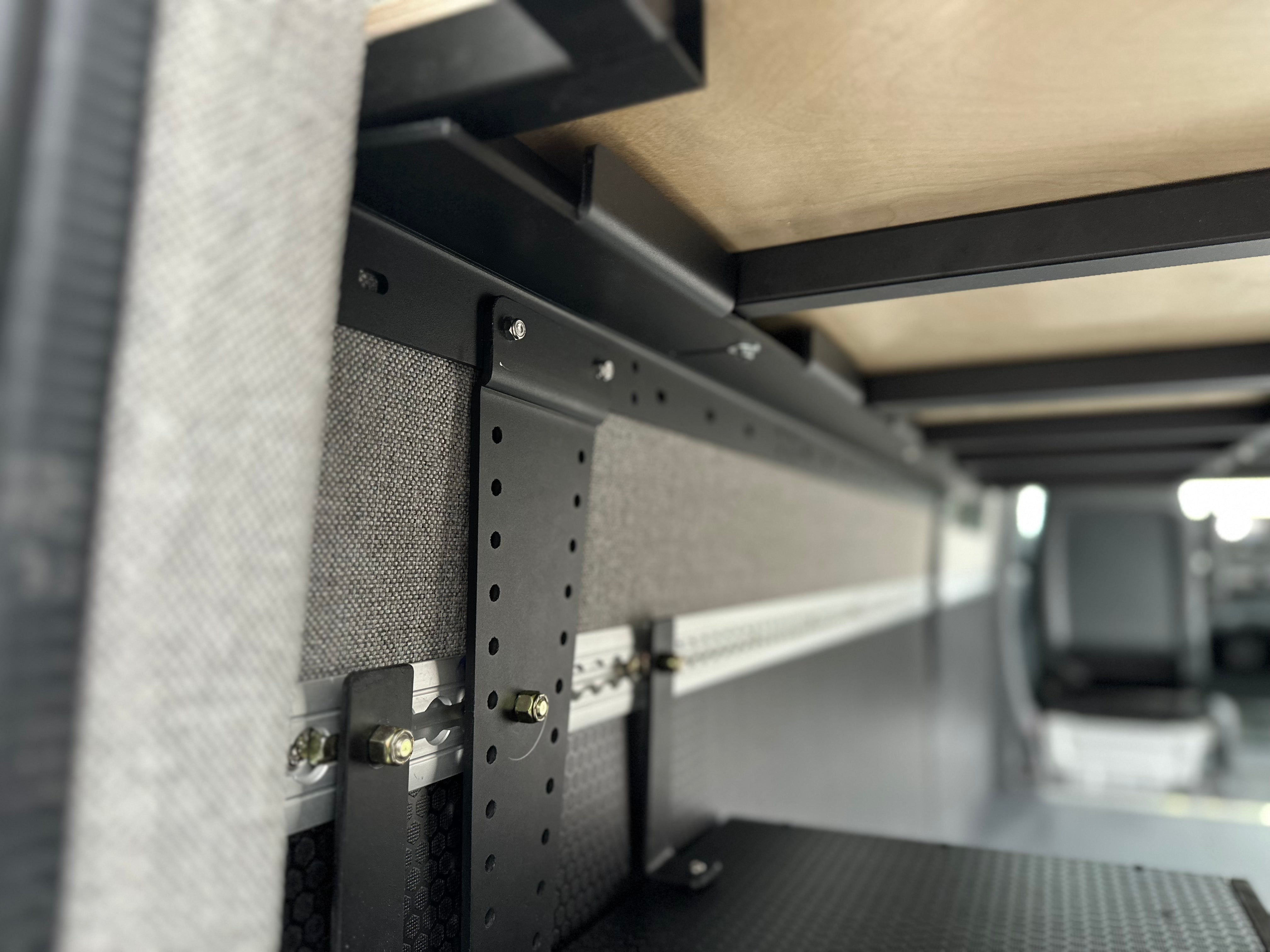

• HEAVY-DUTY: Built with heavy-duty 7/32" aluminum supporting rails and an extreme heavy-duty stainless steel frame, each panel is rated to support up to 500 lbs of dynamic load. This provides unparalleled strength and stability for a restful night's sleep.

• INSTALLATION: Discover our recommended installation method for a Sprinter camper van with our latest video.

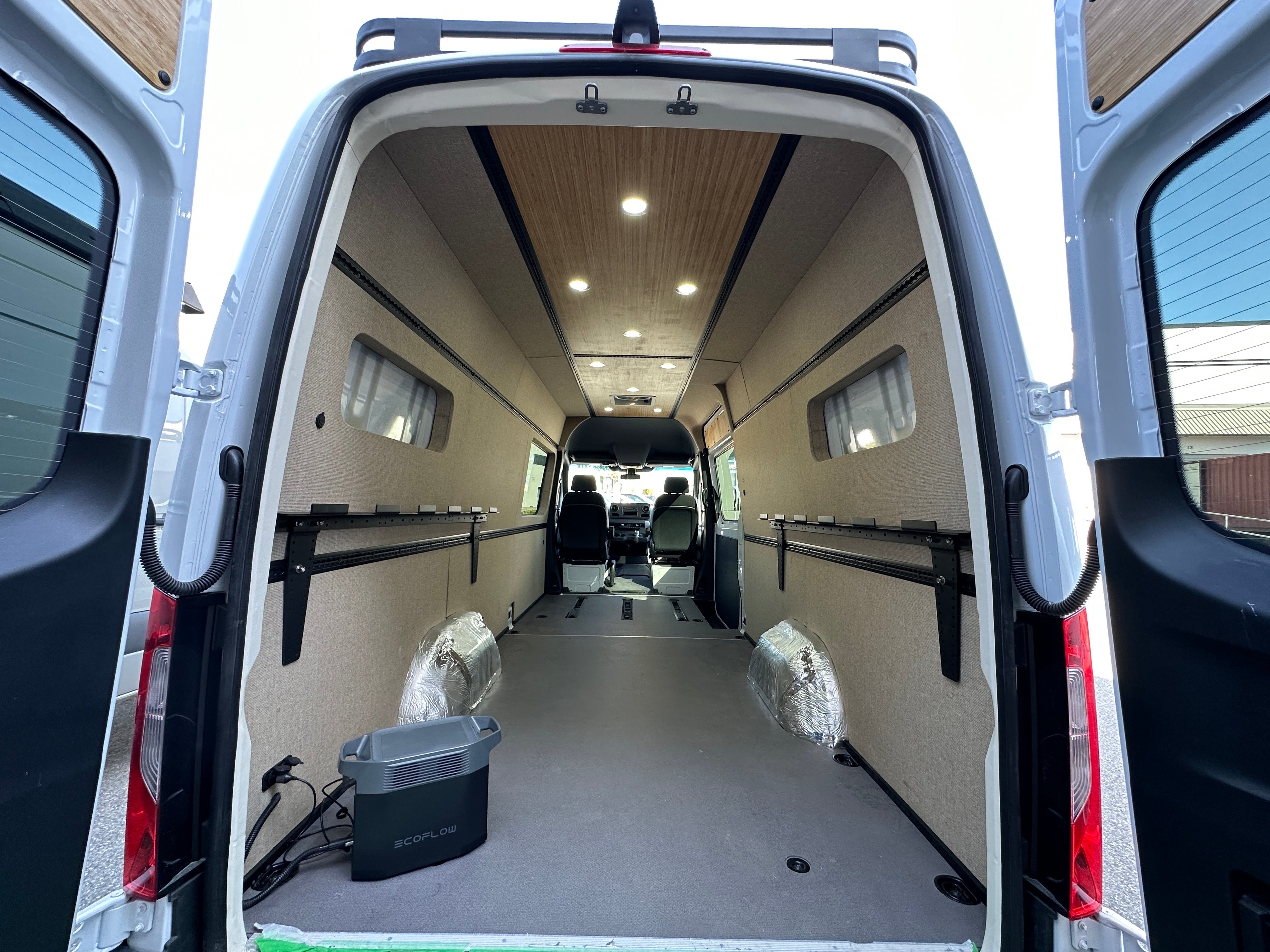

• NOTE: L Track and L Track Back Framing is recommended but not required for the panel bed installation.

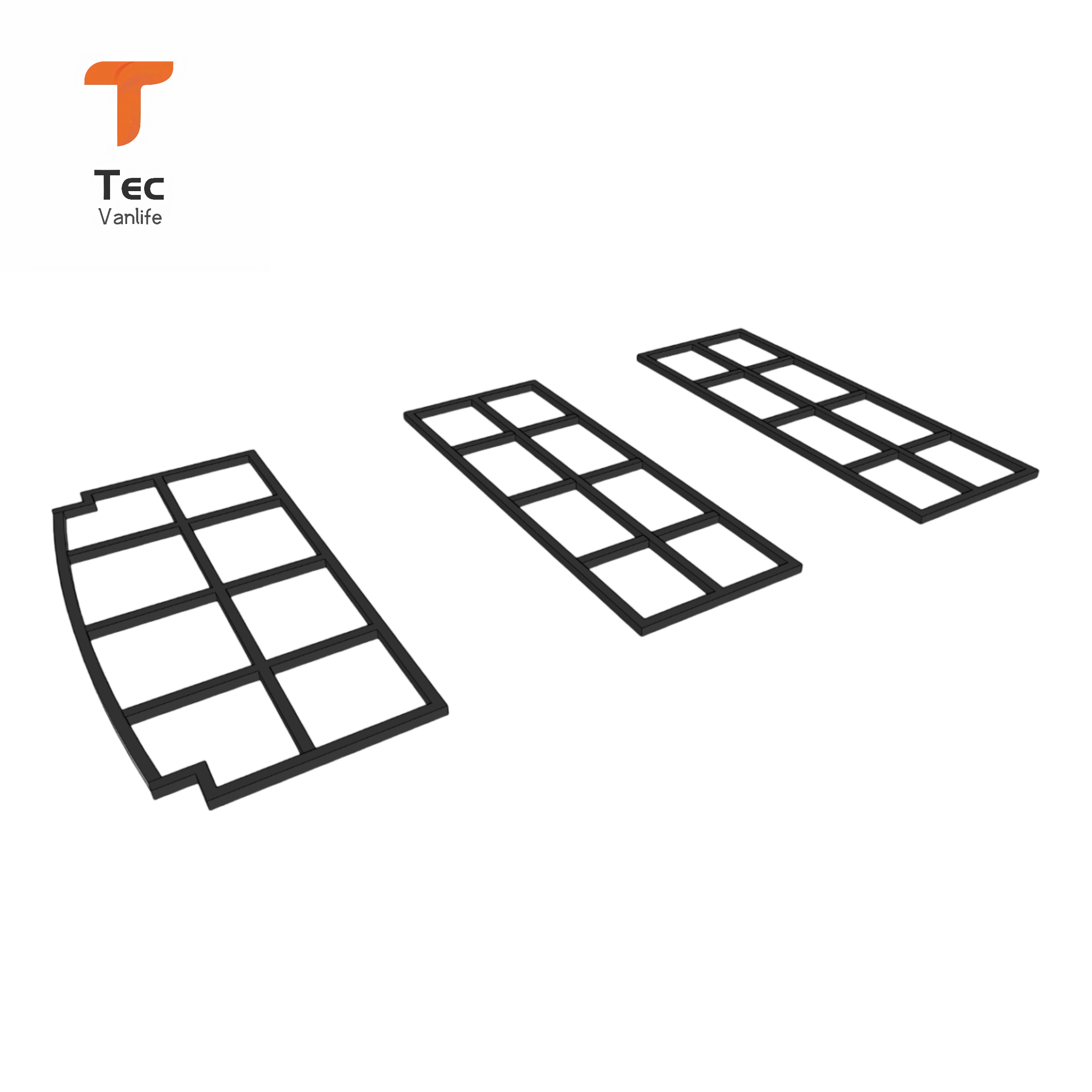

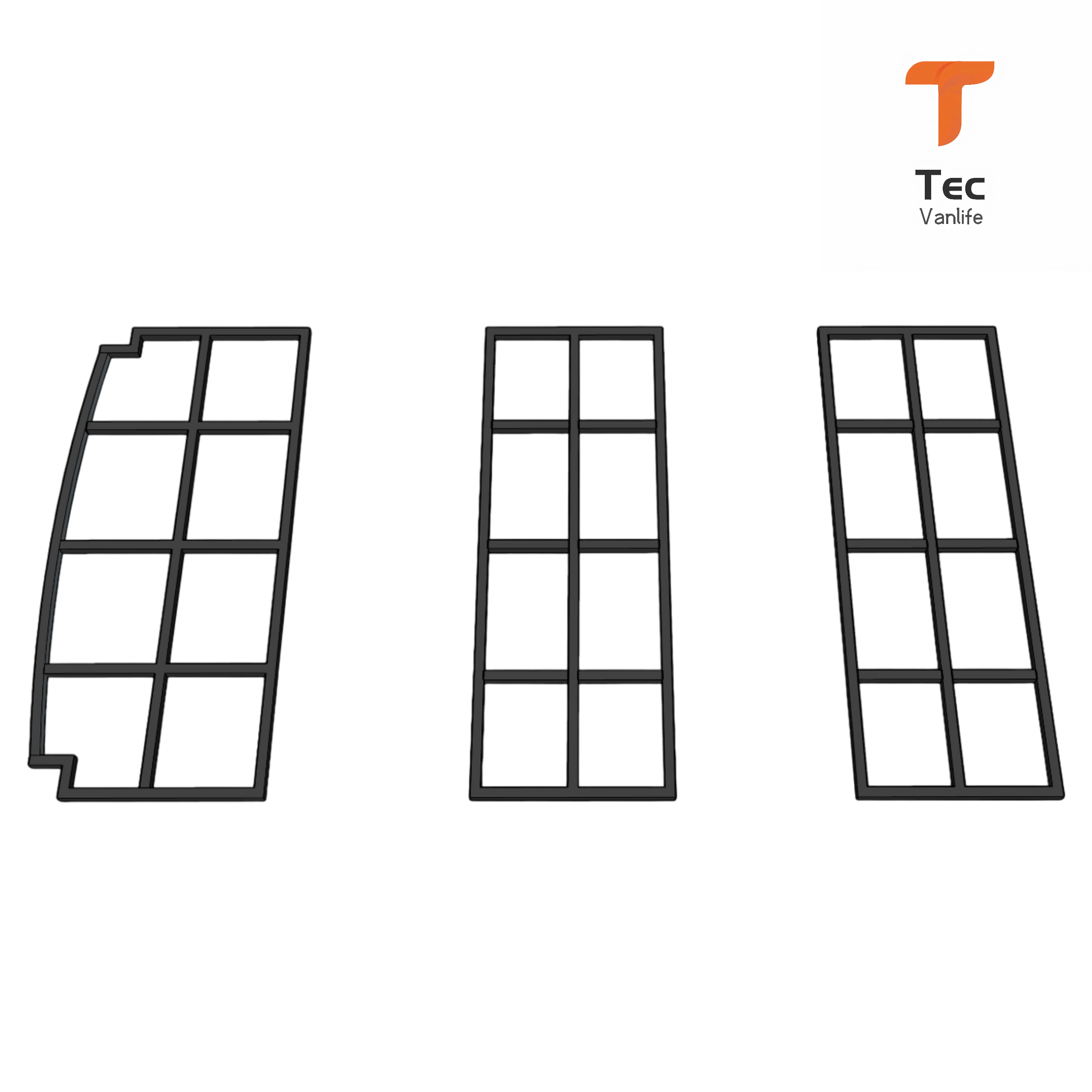

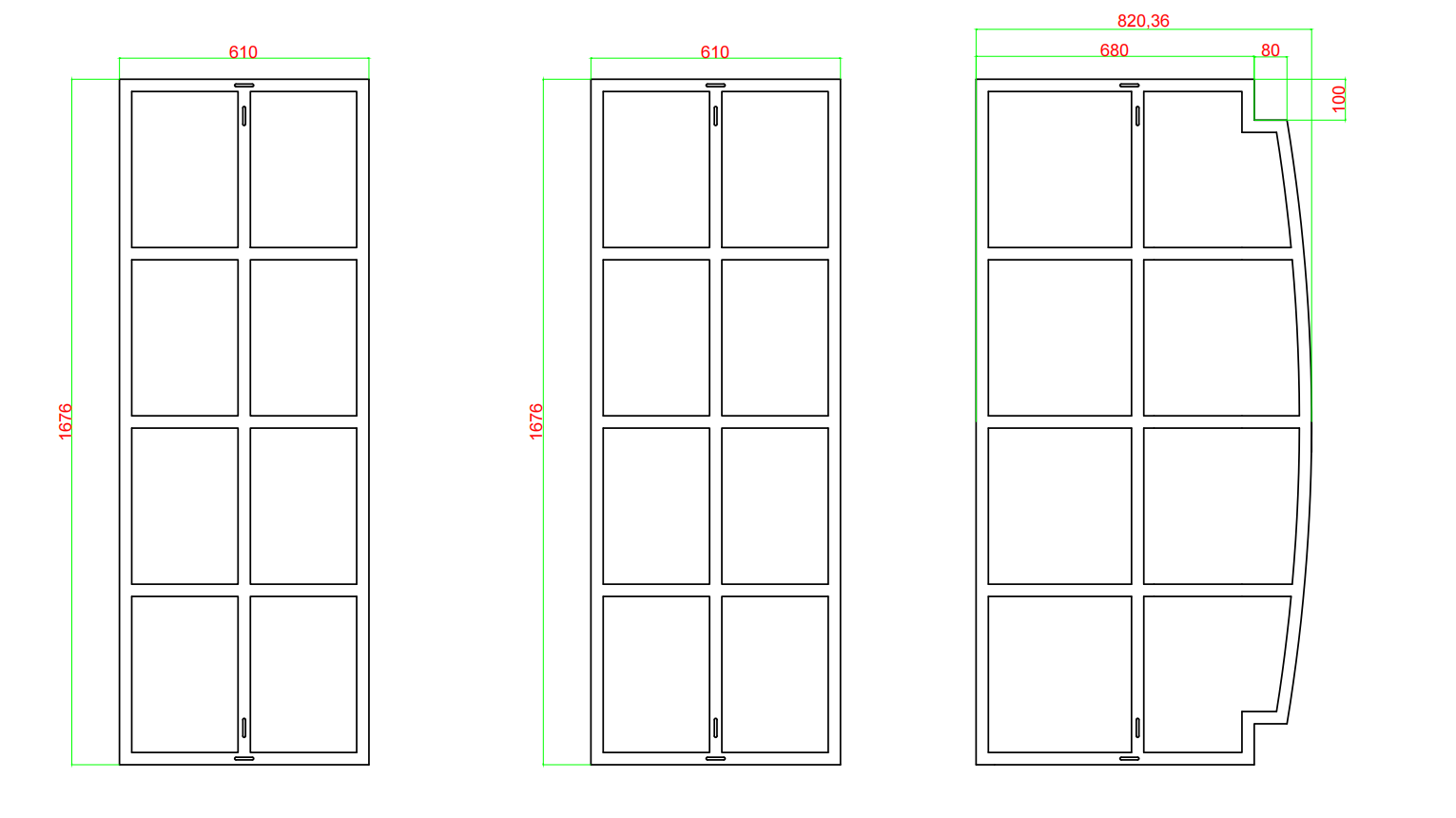

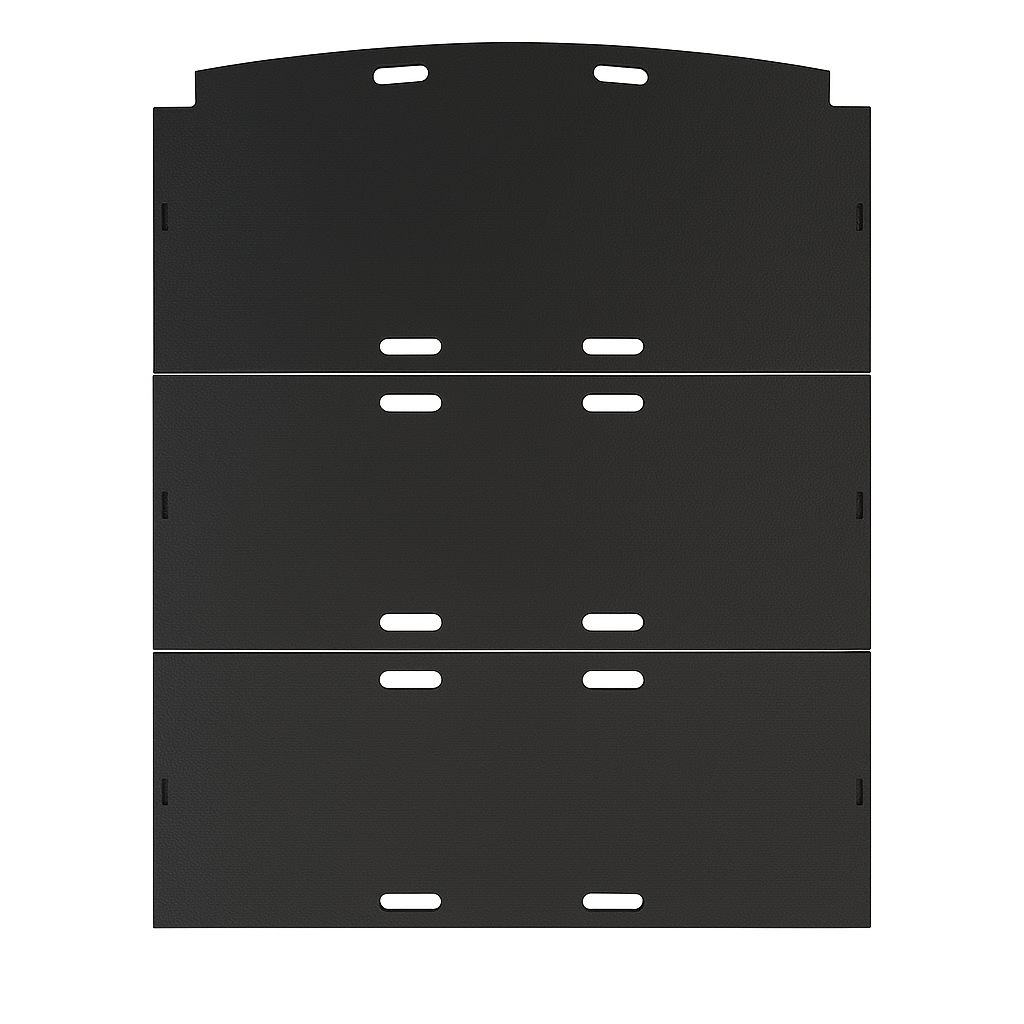

• BED SYSTEM: Three-Panel Bed System:

• FITMENT: Fits 170" Sprinter

• TOTAL DIMENSIONS: 79.5" (202 cm) long by 65.75" (167 cm) wide.

• BED SYSTEM: Panel Details:

• CONFIGURATION NOTE: One larger panel fitting the rear door contour for maximum space utilization: 32.3" x 65.75" (82 cm x 167 cm).

• TWO SMALLER PANELS: 23.6" x 65.75" (60 cm x 167 cm) each.

• MM THICKNESS: 1.18" (30mm) thickness.

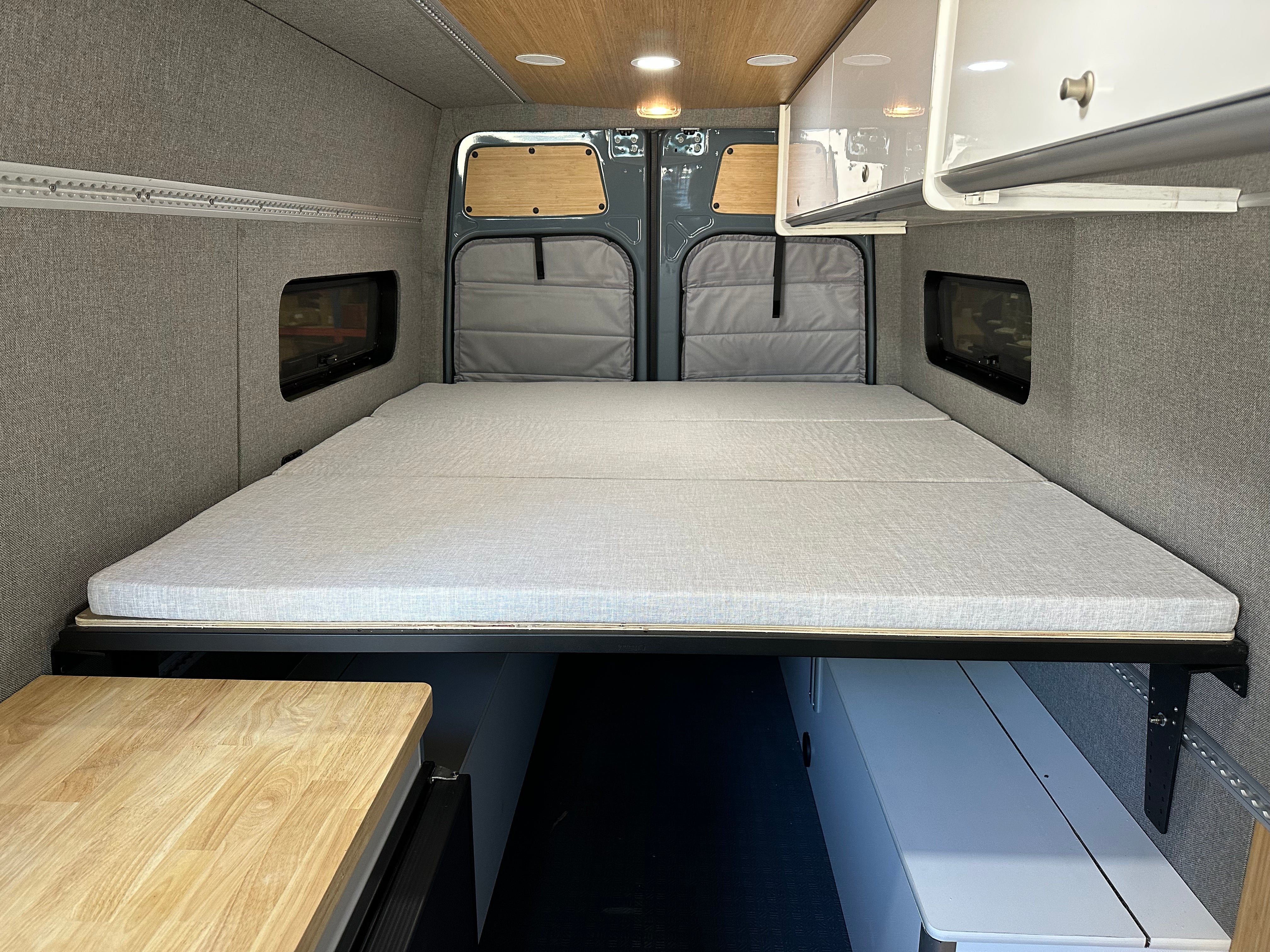

• DESIGN: Allows for both lengthwise and sideways sleeping arrangements, giving you the freedom to choose the most comfortable position.

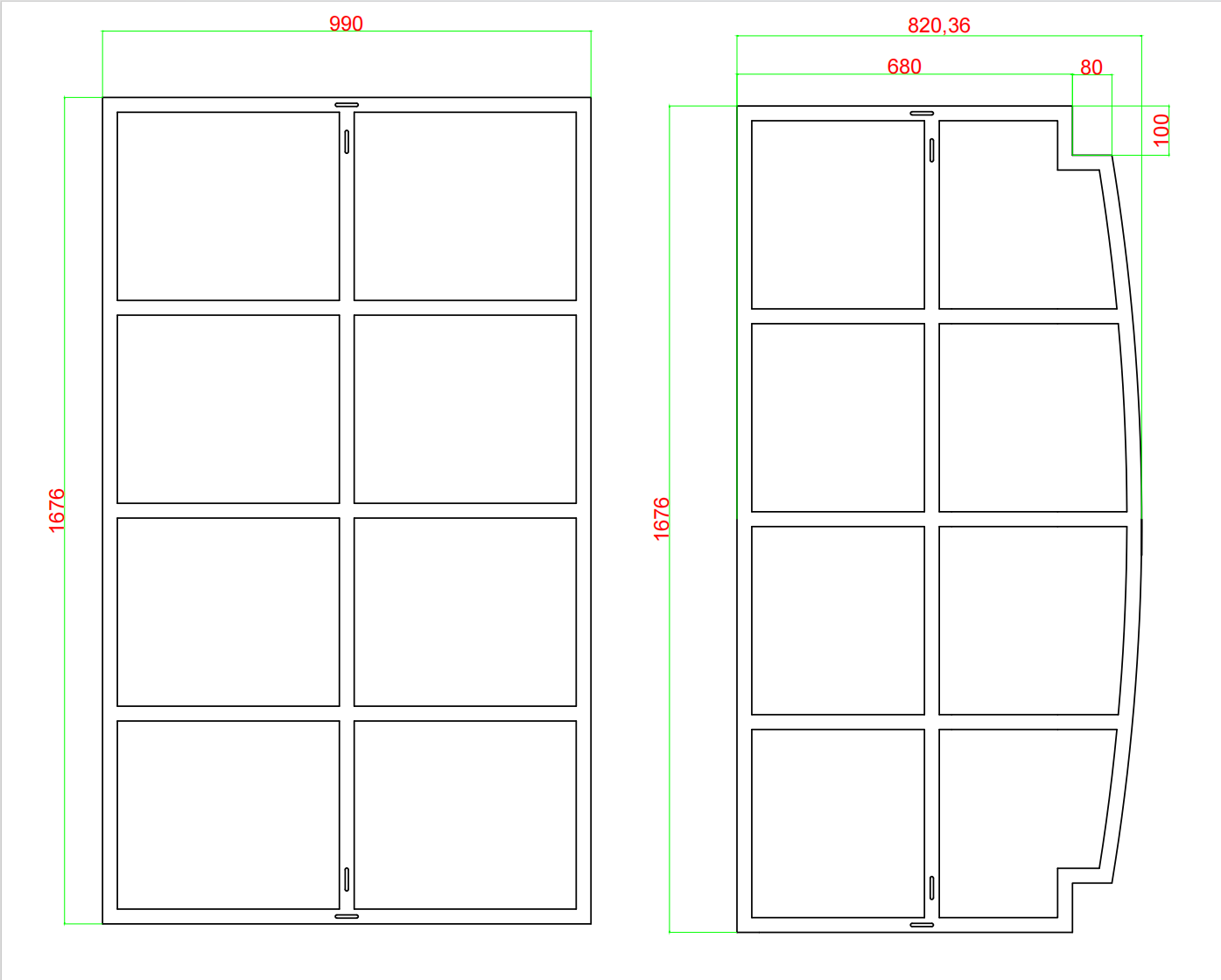

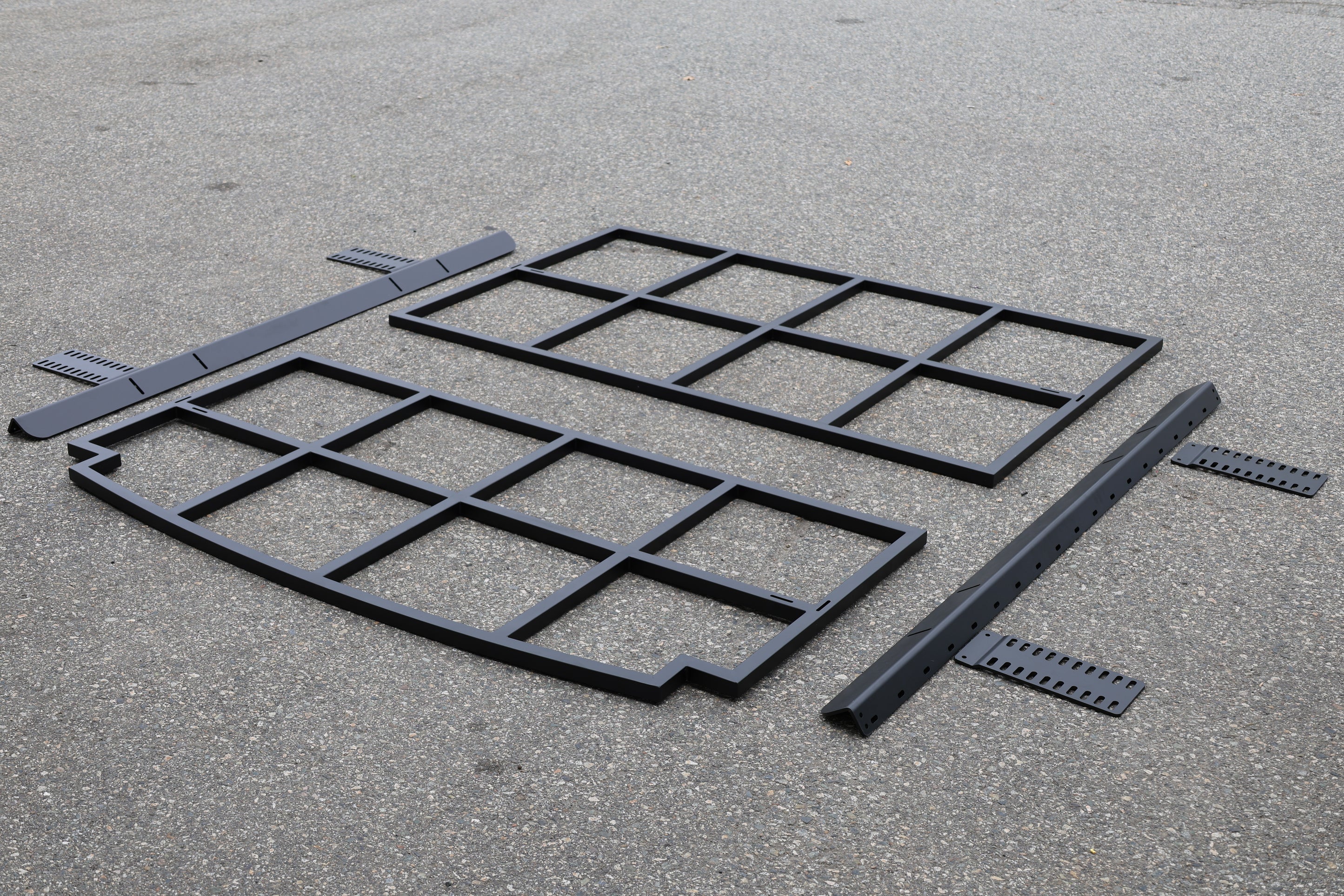

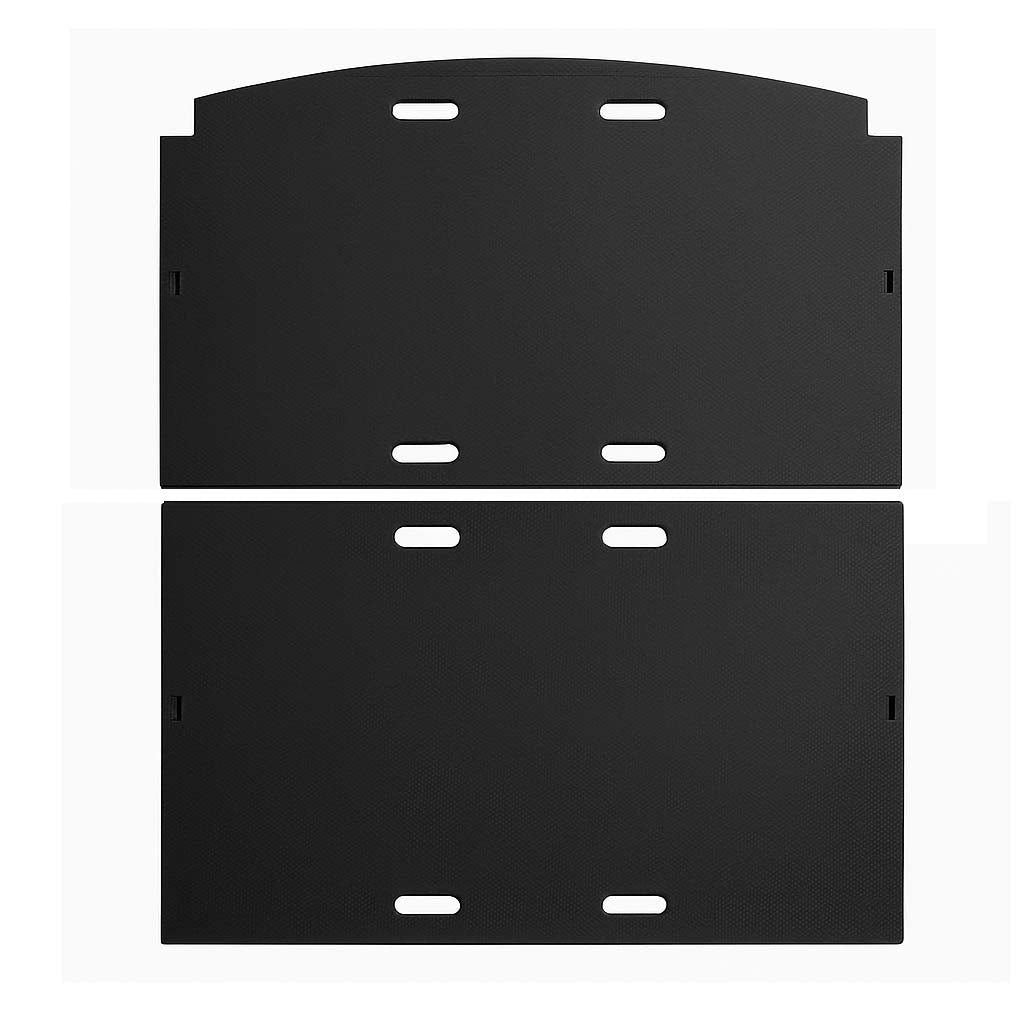

• BED SYSTEM: Two-Panel Bed System:

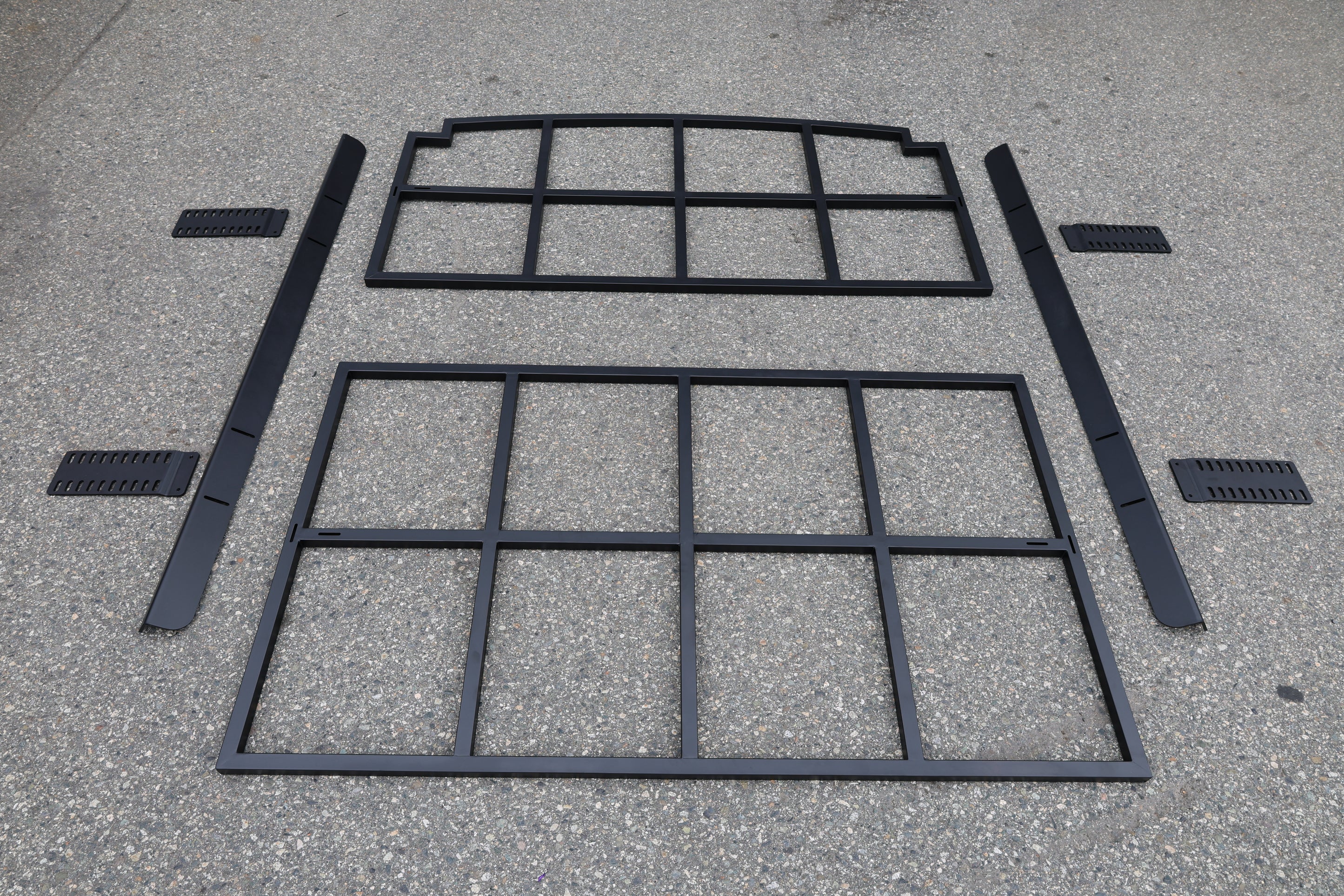

• FITMENT: Fits 144" Sprinter

• TOTAL DIMENSIONS: 71.3" (181cm) long by 65.75" (167 cm) wide.

• ONE PANEL FITTING THE REAR DOOR CONTOUR FOR MAXIMUM SPACE UTILIZATION: 32.3" x 65.75" (82 cm x 167 cm).

• ONE SQUARE PANEL: 39" x 65.75" (99 cm x 167 cm).

• RECOMMENDED PLYBOARD THICKNESS: 1/2"

• CONSTRUCTION: Experience the ultimate in vanlife luxury and convenience with the Tec Vanlife Panel Bed System. It's a premium product crafted with the highest quality materials and construction techniques. Don't settle for anything less than the best - invest in the Tec Vanlife Panel Bed System and make your vanlife dreams a reality.

FEATURES

• WHEELBASE-SPECIFIC PANEL COUNT: Uses two bed panels for Sprinter 144 and three for Sprinter 170 configurations.

• 500-POUND DYNAMIC RATING: Each panel carries the source-listed 500-pound dynamic-load rating when correctly installed.

• 16-TO-38-INCH ADJUSTMENT: Allows the platform height to change as garage and sleeping needs evolve.

COMMON PAIRINGS

• REINFORCED WALL STRUCTURE: Anchor the rails to suitable framing or structural backing.

• L-TRACK SYSTEM: L-track is recommended where the source calls for modular height adjustment and secure positioning.

• MATTRESS AND GARAGE LAYOUT: Confirm mattress thickness, panel seams, cargo height, and rear-door clearance together.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter variants listed for this product; the source also describes the system as adaptable to suitable Transit installations.

• WHEELBASE: Select Sprinter 144 for the two-panel layout or Sprinter 170 for the three-panel layout.

• ROOF HEIGHT: Confirm sleeping headroom, mattress height, garage clearance, and rail position in the completed interior.

• REQUIREMENTS: This listing is for the frame, rails, brackets, and source-listed hardware; bed boards are not included. Requires reinforced mounting structure, accurate rail alignment, compatible sleeping components, and installer verification of all loads and clearances.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: How high can the bed be mounted?

A: The source lists an adjustable range from 16 to 38 inches.

Q: How many panels are used?

A: Sprinter 144 configurations use two panels, while Sprinter 170 configurations use three.

Q: Are the bed boards included?

A: No, this listing includes the frame and mounting system without bed boards.

Q: What should be checked before drilling?

A: West Coast Vans recommends confirming wall reinforcement, rail alignment, mattress height, garage cargo, and rear-door clearance.
