At West Coast Vans, three well-placed roof bars can be more useful than a full platform when solar and cargo need simple, movable attachment points. This 2007+ high-roof Sprinter set clamps to roof rails with a 52-inch usable width and 100-pound rating; Ask Us Product Questions Anytime before spacing the bars.

WCV EXPERT TIP

Draw the roof to scale and mark every lid-opening arc, solar cable route, awning bracket, and usable walking area before setting crossbar positions.

PRODUCT OVERVIEW

Tec Vanlife Sprinter Roof Bars - Three-Piece Set expands rooftop carrying or access capability using the aluminum construction, crossbar or panel dimensions, rail requirements, and load information listed below.

Plan the complete roof as one system so fans, solar, air conditioning, awnings, deck panels, cargo, and safe walking paths do not compete for the same space.

BEST FOR

• MODULAR SPRINTER ROOFS: Ideal for high-roof Sprinter builds that need adjustable cargo, solar, and accessory mounting.

• ROOFTOP ACCESS AND DECKING: Supports the listed walkable panels and gear tie-down configurations.

• FUTURE-READY BUILDS: Lets builders position or add compatible rooftop components as the layout evolves.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

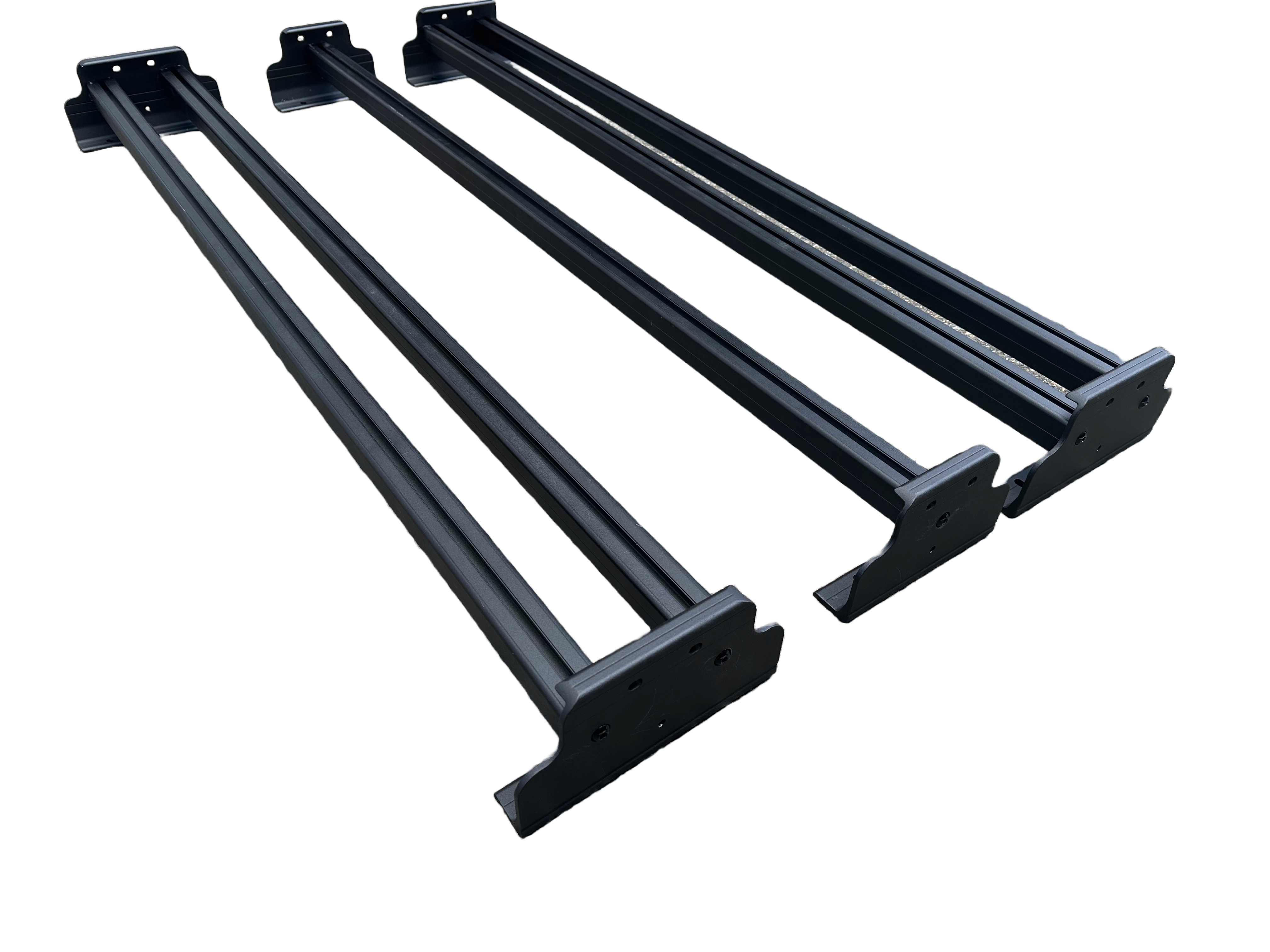

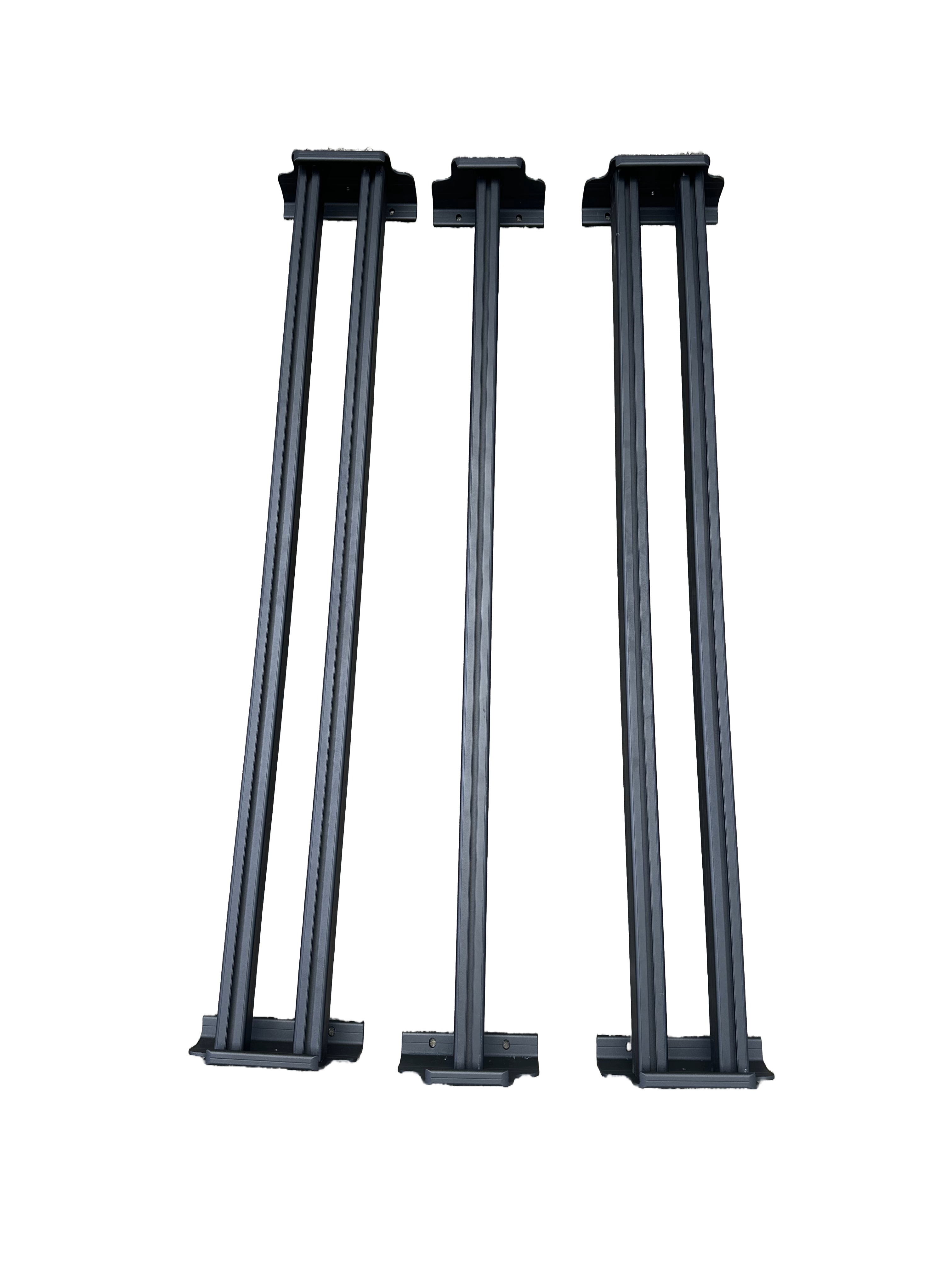

• PRODUCT: Sprinter Roof Bars - Three-Piece Set

• ROOF SYSTEM: Heavy duty, versatile roof bars for 2007+ Sprinter 144" & 170" High Roof vans.

• SHIPPING: Free shipping to the lower 48 states.

• INSTALLATION: Designed to mount seamlessly to factory or Tec Vanlife roof rails , this system provides a rigid foundation for solar panels, cargo boxes, and outdoor gear with a simple, no drill installation process.

• ROOF SYSTEM: Engineered specifically for 2007+ Mercedes Sprinter High Roof models equipped with roof rails

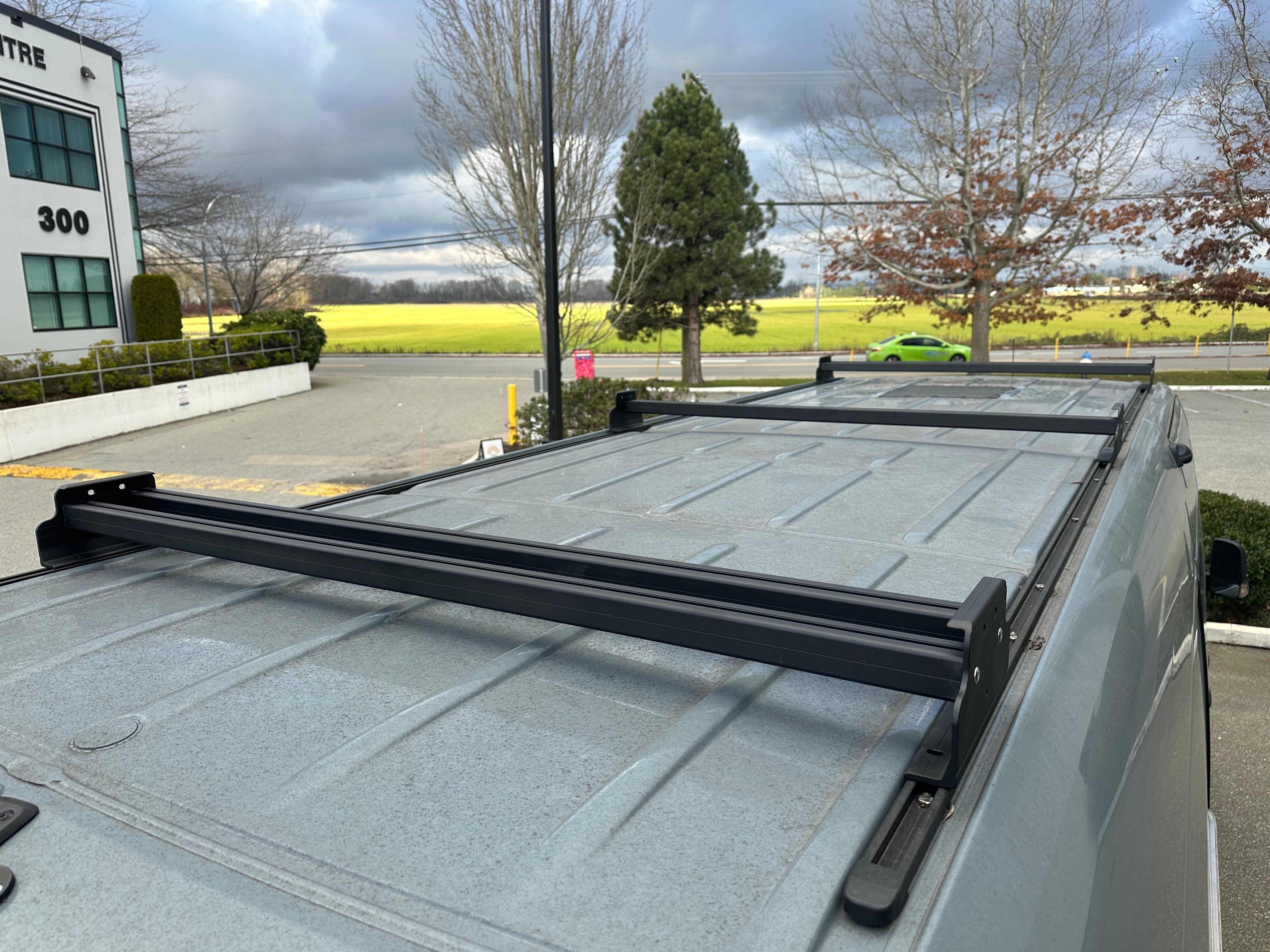

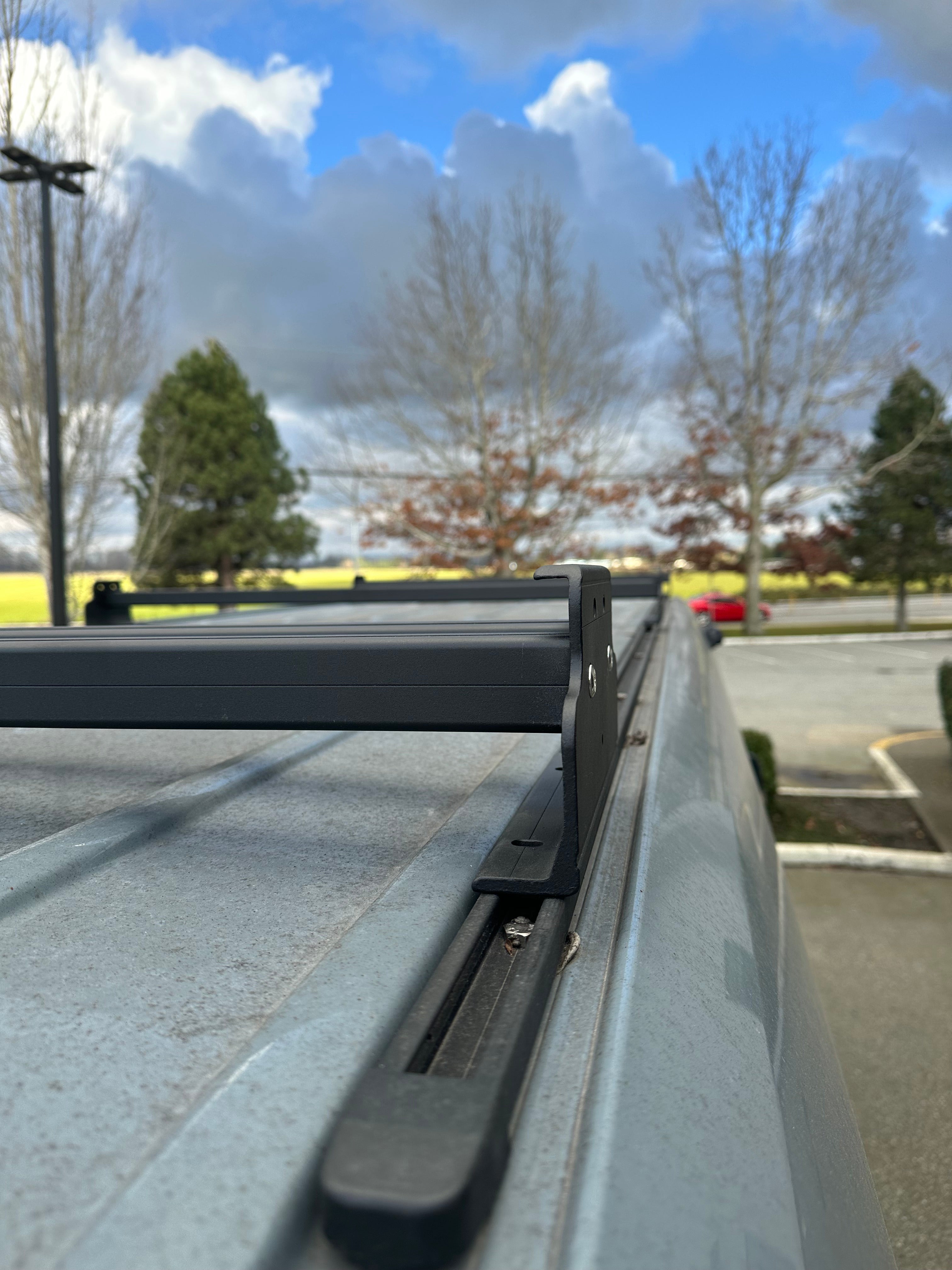

• INSTALLATION: Clamps directly to existing roof rails for a fast, drill free installation process

• CONSTRUCTION: Constructed from high strength extruded aluminum to handle heavy static and dynamic loads

• FINISHED WITH A TEXTURED BLACK POWDER: Finished with a textured black powder coat for superior durability and corrosion resistance

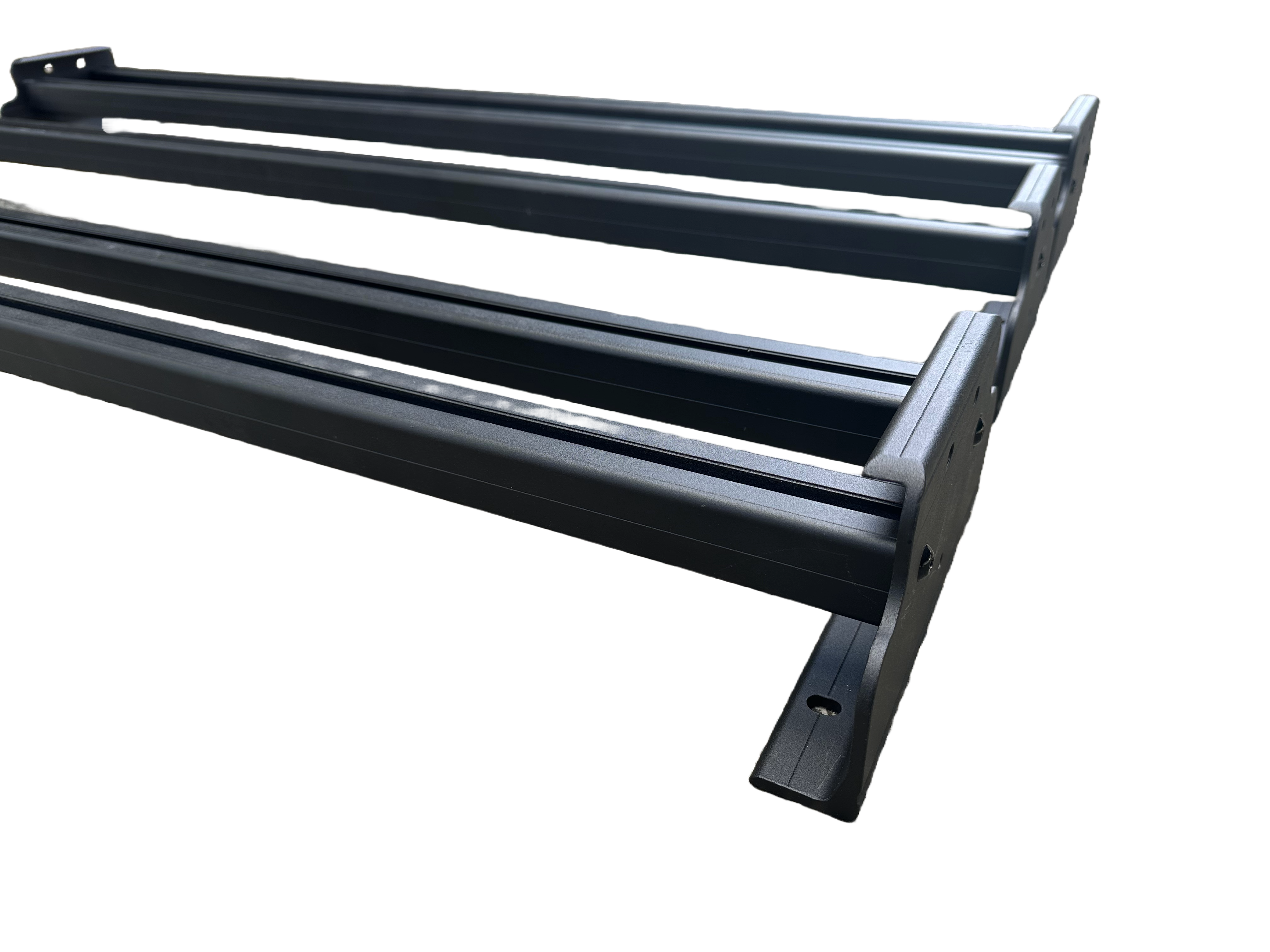

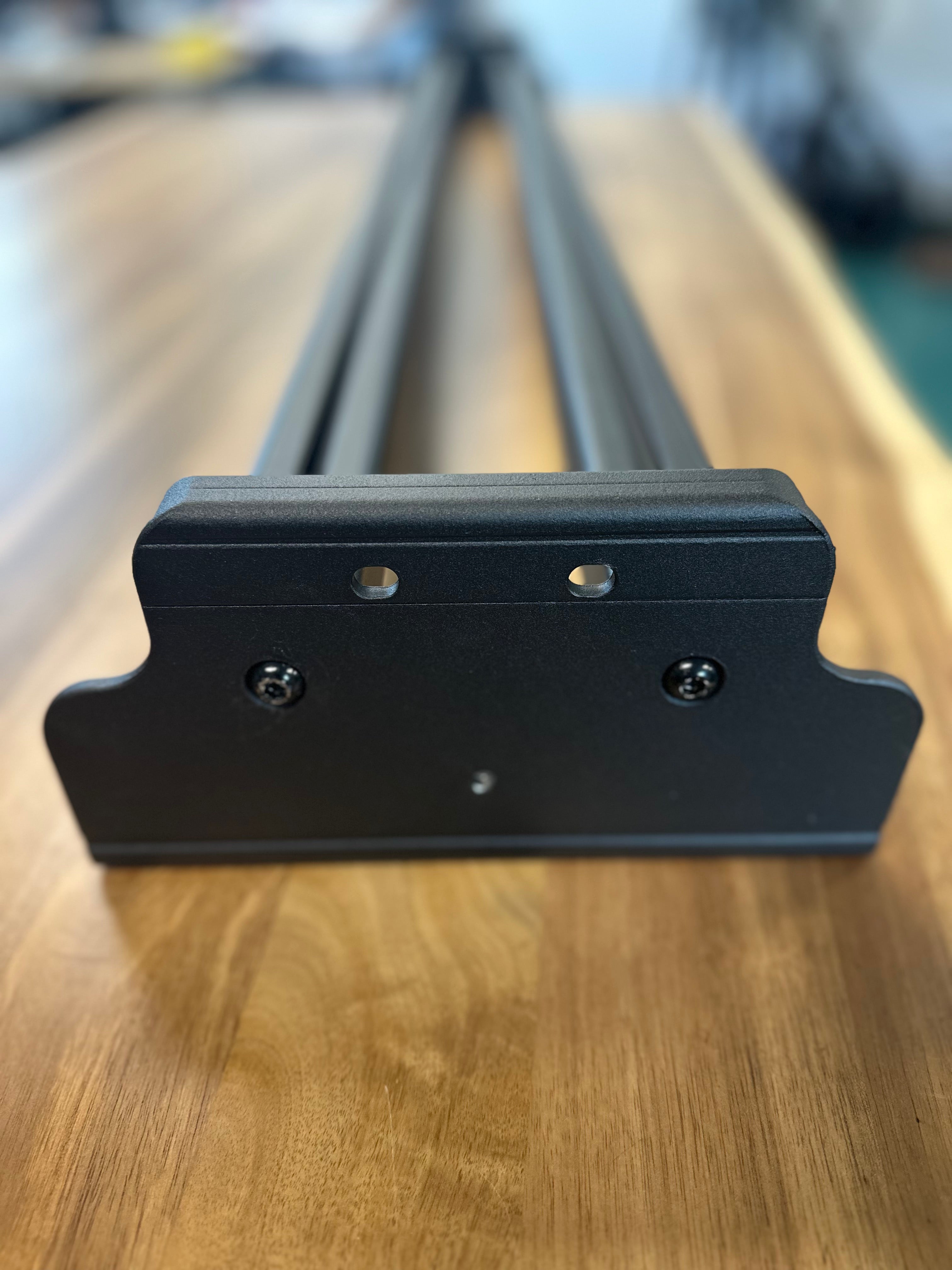

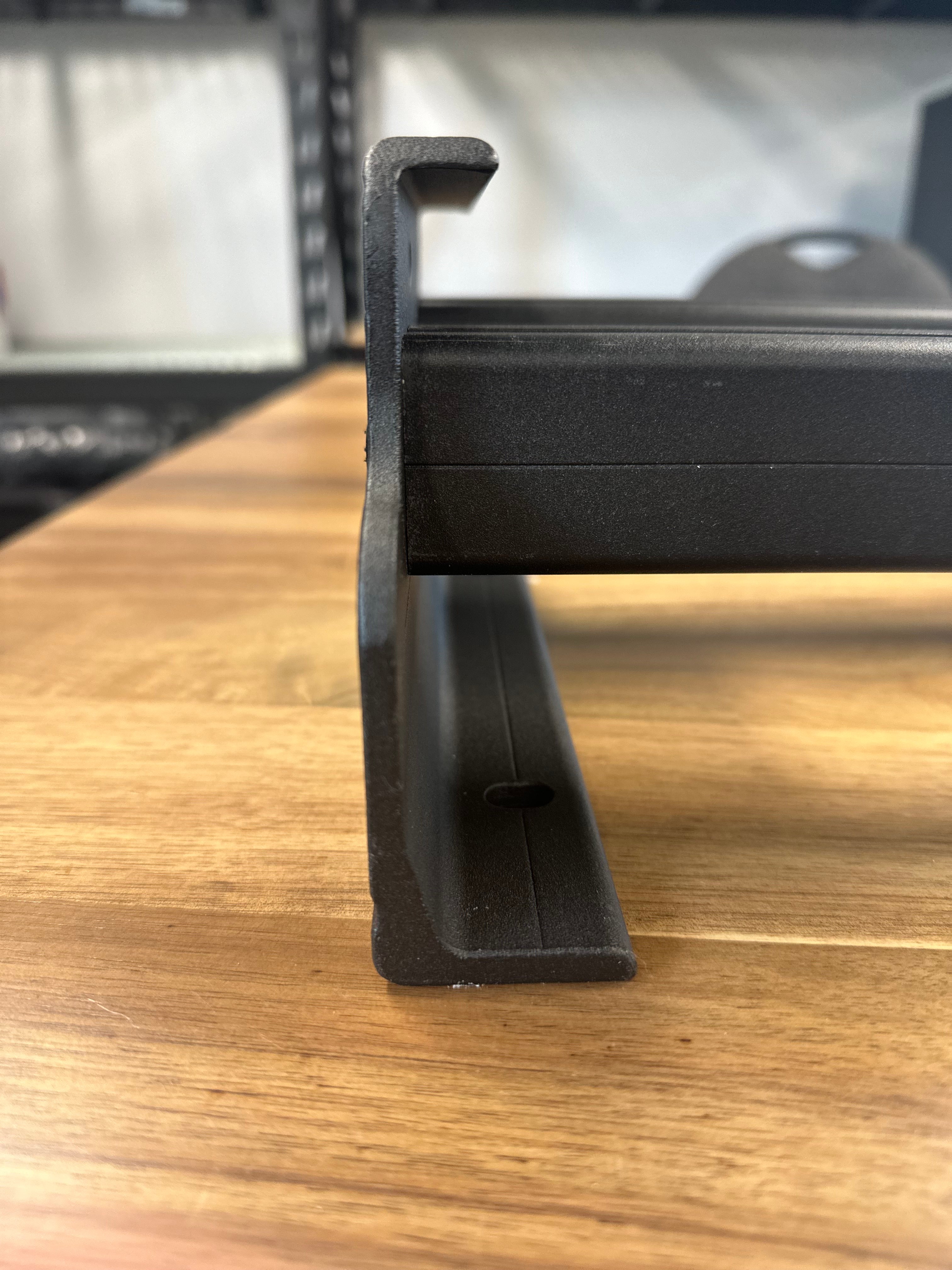

• DESIGN NOTE: Features reinforced corner brackets designed to withstand significant torsional stress

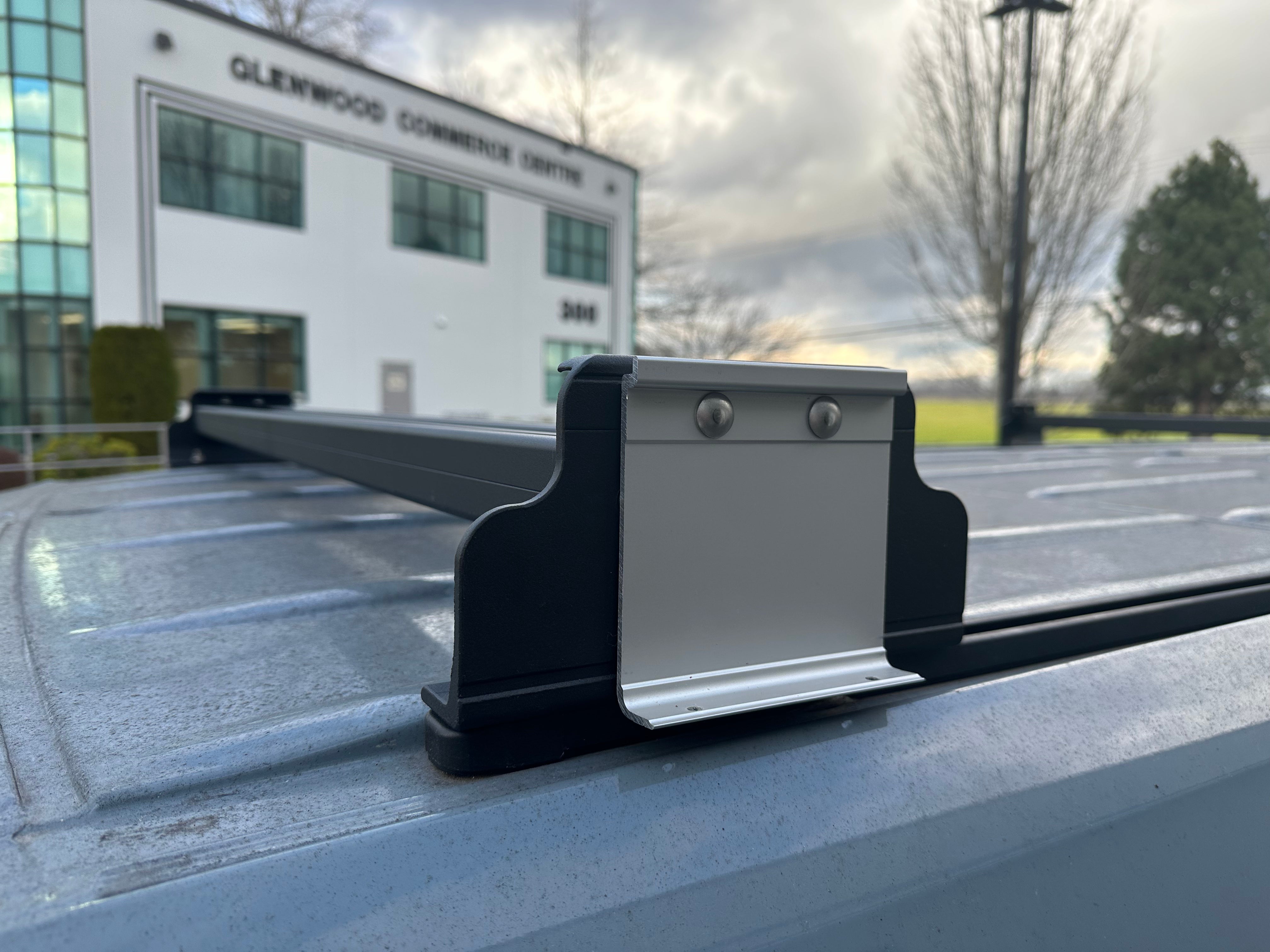

• ROOF SYSTEM: Integrates seamlessly with Fiamma F45 awnings for expanded functionality

• INSTALLATION: Utilizes a standard 1.5" T-slot profile to easily accommodate bolts and other mounting accessories

• USEABLE WIDTH: 52" (1325 mm)

• FRAME HEIGHT: 5 1/8" (130 mm)

• UNDER BAR CLEARANCE: 2 3/8" (60 mm)

• CROSS BAR PROFILE: 1.5" x 1.5" (38 mm)

• LOAD RATING: Load rating:

• SOURCE LOAD OR WEIGHT VALUE: 100 lb (45 kg)

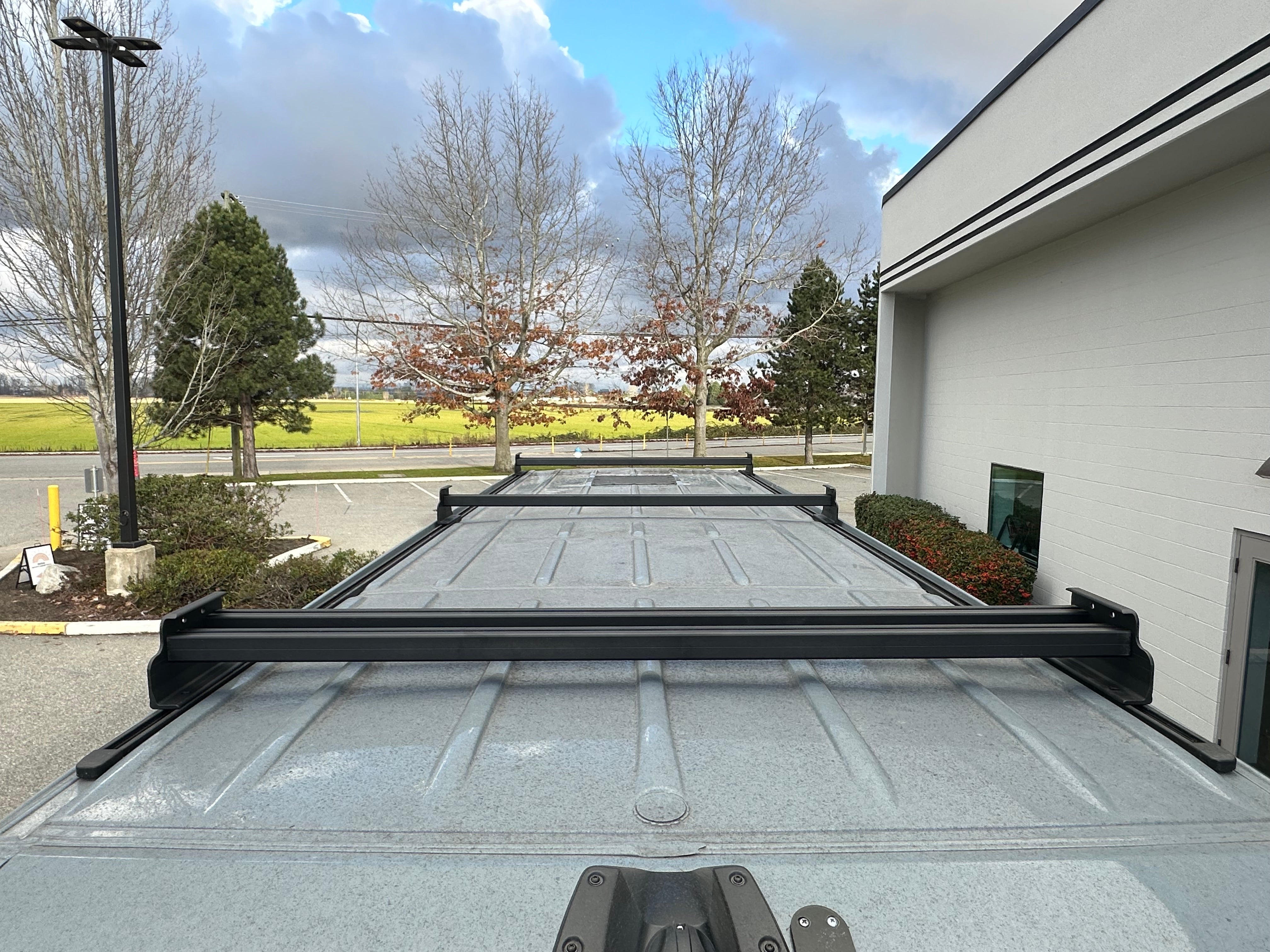

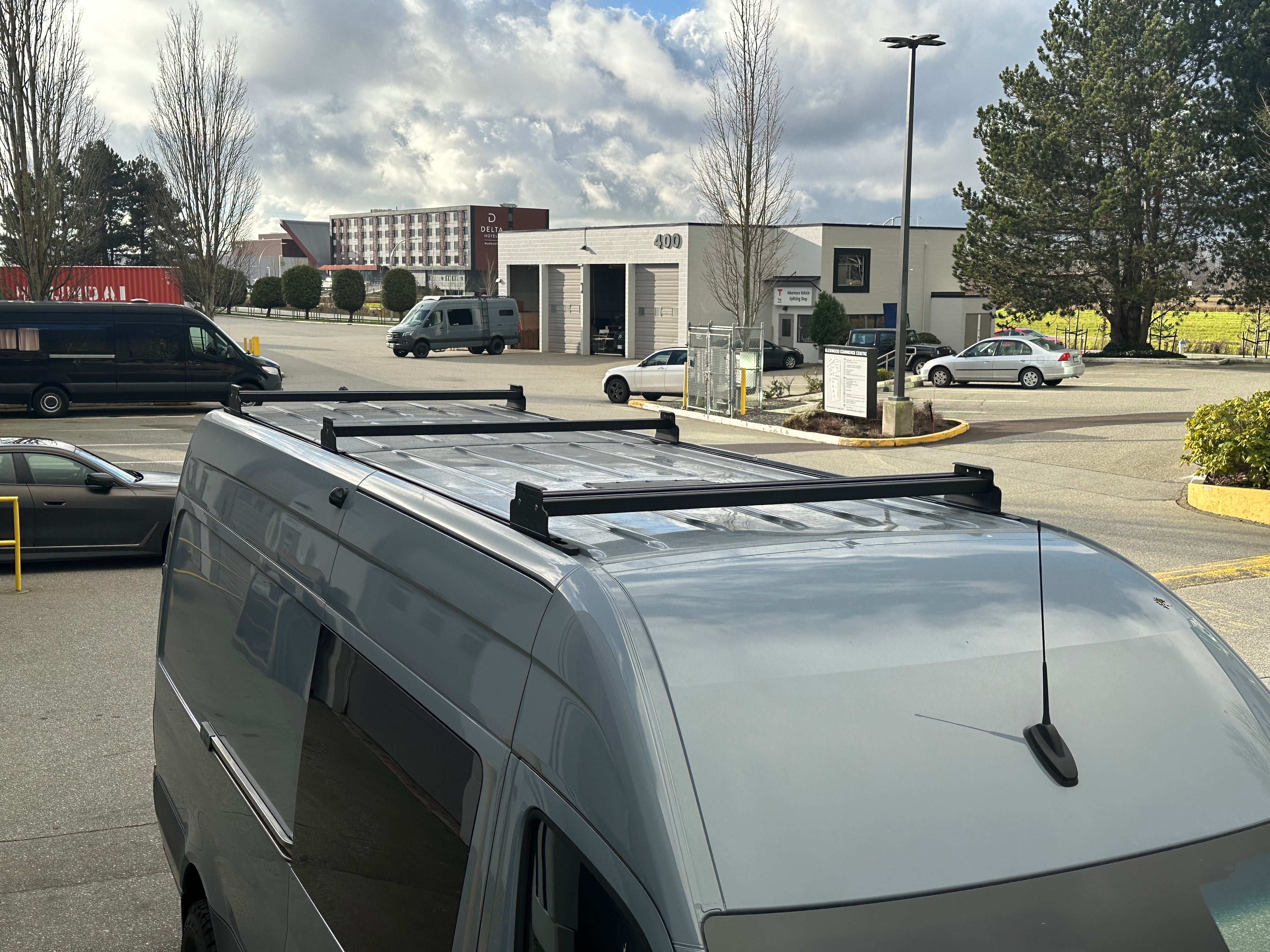

• INSTALLATION: This roof bar system transforms your Tec Vanlife or factory roof rails into a complete cargo management solution. By bridging the empty space between the rails, these bars create a stable platform essential for mounting solar arrays, cargo boxes, or recreational equipment. The system is fully adjustable, allowing you to slide the bars along the track to accommodate loads of

• ROOF SYSTEM: varying lengths from short storage cases to kayaks. The elevated brackets provide the necessary clearance for roof vents while maintaining a low profile to minimize wind noise.

• INSTALLATION: Manufactured from lightweight extruded aluminum, the system offers an exceptional strength to weight ratio. The brackets are reinforced to resist torsional twisting, ensuring load stability even when weight is unevenly distributed or during offroad travel. The roof bars utilize a standard T-slot channel, offering universal compatibility with a wide range of mounting hardware

• ROOF SYSTEM: and seamless integration with the Fiamma F45 Awning. Finished with a weather resistant black powder coating, these bars are built to withstand harsh environmental exposure while complementing the aesthetic of professional van builds.

FEATURES

• ALUMINUM CONSTRUCTION: Uses the source-listed extrusion, formed aluminum, coating, and weight-saving design.

• ADJUSTABLE LAYOUT: Supports configurable crossbar, deck-panel, T-slot, L-track, or accessory positioning.

• ROOF-RAIL MOUNTING: Preserves the factory or aftermarket rail requirements and included hardware notes.

COMMON PAIRINGS

• SOLAR AND VENTILATION: Map panels, fans, air conditioners, and cable routes before assembly.

• AWNING SYSTEM: Confirm Fiamma or other awning compatibility and curb-side clearance where stated.

• ROOF DECK PANELS: Use compatible panels and hardware while respecting rack and vehicle load limits.

COMPATIBILITY & FITMENT

• CHASSIS: Mercedes-Benz Sprinter fitment shown in the technical specifications; universal 8020 deck-panel use applies only where explicitly stated.

• WHEELBASE: Select the listed Sprinter 144 or 170 configuration where variants are offered.

• ROOF HEIGHT: High-roof fitment where stated; confirm rail spacing, fan and A/C clearance, and overall vehicle height.

• REQUIREMENTS: Requires compatible roof rails or 8020 crossbars, correct wheelbase selection, safe load planning, and clearance around every rooftop component.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Are roof rails included?

A: No, where the source states factory or aftermarket rails are required, they are not included.

Q: Can the layout work around fans and solar?

A: Yes, adjustable crossbars or modular panels allow placement around rooftop equipment within the listed system limits.

Q: Are the deck panels walkable?

A: The source describes them as stable access surfaces for foot traffic; use only with proper mounting and load planning.

Q: What should be mapped first?

A: West Coast Vans recommends mapping fans, solar, air conditioning, awnings, cable routes, and walking paths before assembly.
