Tensorgrip F80 Adhesive - Van Upholstery Bond

Tensorgrip F80 Adhesive - Van Upholstery Bond

At West Coast Vans, upholstery looks professional when the adhesive disappears into the job instead of telegraphing every spray line. The Tensorgrip F80 Adhesive - Van Upholstery Bond carries source-specific tack, coverage, heat, VOC, and shipping requirements; Ask Us Product Questions Anytime before matching it to foam, fabric, wood, or panels.

WCV EXPERT TIP

Spray a scrap test using the actual foam, fabric, and substrate so tack time, coverage, bleed-through, and repositioning are known before the finished panels.

PRODUCT OVERVIEW

Tensorgrip F80 Adhesive - Van Upholstery Bond is an interior-build adhesive for the foam, fabric, wood, vinyl, fiberglass, plastic, or other substrates identified by the source.

Application method, two-sided coverage, tack time, cure, temperature, VOC, storage, package size, and shipping restrictions vary by product and option, so follow the details below.

BEST FOR

• UPHOLSTERED WALL PANELS: For bonding compatible fabric and foam to van-interior substrates.

• FOAM AND CUSHION WORK: Useful where soft glue lines, quick tack, or foam-tearing strength are required.

• PRODUCTION-STYLE INTERIOR BUILDS: Source-listed spray patterns, package sizes, and cure characteristics support repeatable shop work.

TECHNICAL SPECIFICATIONS

• VENDOR: Campervan HQ

• PRODUCT: Tensorgrip F80 Adhesive

• SOURCE SKUS: QG-F80A, QG-F80C

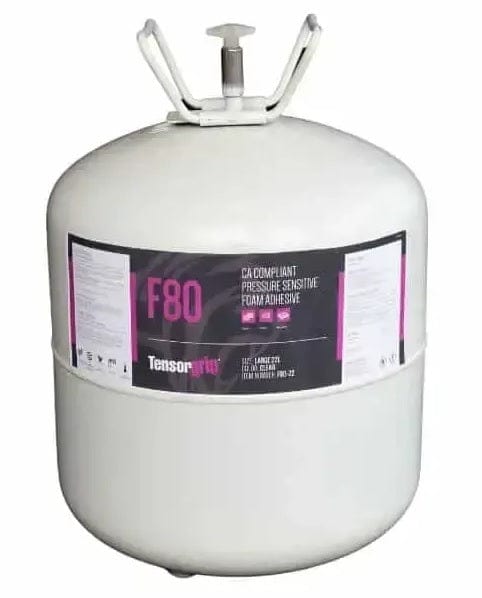

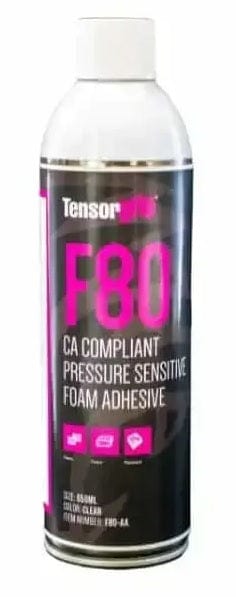

• VARIANT OPTIONS: Size: 21.9 Ounce Aerosol - CA COMPLIANT PRESSURE SENSITIVE FOAM ADHESIVE AEROSOL, 5.8 Gallon Canister - CA COMPLIANT PRESSURE SENSITIVE FOAM ADHESIVE

• VARIANT OPTIONS: Shipping: General Shipping, FREE Pickup - Portland OR

• DIMENSIONS: Want to put fabric, foam or wood in your camper van?

• ADHESIVE NOTE: Try it with Tensorgrip F80 Adhesive.

• APPLICATION SPECIFICATION: Tensorgrip F80 is a very aggressive, high build pressure sensitive adhesive designed to bond porous substrates while maintaining a high level of tack.

• SAFETY OR COMPLIANCE: Low VOC California Compliant SCAQMD 1168 Rule.

• MATERIAL: Useful for bonding for Foam, Fabric, and Wood.

• ADHESIVE PERFORMANCE: Formulated with CO-REZ Technology, which is an exceptional formulation incorporating a highly engineered resin and gas matrix.

• THE RESULT: Great Coverage from Less Canister Weight.

• ADHESIVE PERFORMANCE: Key Features

• ADHESIVE NOTE: Tensorgrip F80 Adhesive

• ADHESIVE PERFORMANCE: Repositionable

• SAFETY OR COMPLIANCE: California Compliant Low VOC SCAQMD Rule 1168

• APPLICATION SPECIFICATION: Very Aggressive, High Tack Adhesive

• ADHESIVE PERFORMANCE: Single Sided Application

• APPLICATION: High Build Web Spray

• ADHESIVE PERFORMANCE: HAPS Free

• APPLICATION: High-strength, long-term bond

• ADHESIVE NOTE: 100% Adhesive Transfer to Substrate

• ADHESIVE PERFORMANCE: Fully Portable

• ADHESIVE PERFORMANCE: No ODS (ozone depleting substances)

• APPLICATION: Directions for Use

• APPLICATION: Tensorgrip F80 is designed as a portable, self-contained spray system for field or shop applications.

• APPLICATION SPECIFICATION: Apply adhesive to one or both surfaces to be mated, at 80% to 100% coverage.

• DIMENSIONS: Spraying both surfaces will result in a stronger, more permanent bond.

• APPLICATION SPECIFICATION: Allow enough time (2-4 minutes or until dry to the touch)for the adhesive to become tacky before bonding.

• APPLICATION: Parts should be mated with as much pressure as practical.

• APPLICATION SPECIFICATION: Normal coverage required with web spray pattern is approximately 80%; however, porous surfaces may need a second coat.

• DIMENSIONS: Initial bond is strong enough to allow cutting or trimming immediately, although ultimate strength is achieved in 1-3 days.

• APPLICATION: Canister system will spray adequately above 60 F.

• DIMENSIONS: Canister system should be kept in a warm area.

• DIMENSIONS: In the event that the canister gets abnormally chilled, freezes or give poor or sputtering spray, it should be warmed up before continued usage.

• DIMENSIONS: Warming canister by immersion in warm water is recommended.

• CERTIFICATION: Notice!!!

• OPERATING RANGE: Do not store at temperatures over 120 F.

• APPLICATION: Canister Storage/Change Over

• DIMENSIONS: If you choose to leave the hose and spray gun on the canister, leave the canister valve in the open position.

• APPLICATION: Do not disconnect the hose/gun from the canister.

• APPLICATION: Close and lock the spray gun.

• TO CHANGE OR DISCONNECT CANISTER: Turn canister valve to the off position, spray out remaining adhesive from the hose, disconnect the hose and spray gun from the canister

• APPLICATION: Reconnect the hose and spray gun to a new canister of adhesive and turn the canister valve to re-pressurize.

• APPLICATION: Or if you are NOT connecting to a new canister, connect hose to canister of cleaner (sold separately) and spray out until liquid is clear as the indication the hose/gun is clean

• SAFETY OR COMPLIANCE: Chemical Technical Data

• ADHESIVE PERFORMANCE: Typical Properties

• ADHESIVE PERFORMANCE: Total Solids 30-38%

• WEIGHT OR SIZE: VOC Content 43.13 g/L (Canister) & 32.5% by weight (Aerosol)

• COLOR NOTE: Color Clear or Red

• CERTIFICATION: System Flammability Flammable

• SAFETY OR COMPLIANCE: Solvent System Methyl Acetate

• OPERATING RANGE: Dry time 2-4 mins dependent on temp & humidity

• APPLICATION SPECIFICATION: Open time Long (1+ hours)

• CERTIFICATION: Shelf Life 12 months from date of manufacture

• SHIPPING: Only the 21.9 oz cans can be sent via UPS!!

• SHIPPING: 5.8-gallon cans can only be delivered locally, cannot be shipped UPS or USPS.

FEATURES

• SOURCE-SPECIFIC TACK: Maintains the listed fast-tack, pressure-sensitive, or permanent-bond behavior.

• VAN INTERIOR SUBSTRATES: Supports the foam, fabric, wood, vinyl, fiberglass, plastic, or metal applications stated below.

• APPLICATION OPTIONS: Preserves aerosol, canister, gallon, spray-pattern, cure, and shipping details by variant.

COMMON PAIRINGS

• MATCHED FOAM OR FABRIC: Test compatibility with the actual upholstery and substrate before production work.

• SPRAY GUN, HOSE, OR CLEANER: Canister products may require compatible application and cleaning equipment.

• RESPIRATORY AND SHOP SAFETY: Follow the product SDS, ventilation, temperature, flammability, and shipping restrictions.

COMPATIBILITY & FITMENT

• CHASSIS: Universal interior-build consumable for Sprinter, Transit, ProMaster, RV, and custom upholstery projects.

• WHEELBASE: Not wheelbase-specific; calculate package quantity from coverage and whether one or both surfaces are coated.

• ROOF HEIGHT: All roof heights; total panel area determines adhesive quantity.

• REQUIREMENTS: Confirm substrate compatibility, package size, spray equipment, coverage, tack and cure time, shop temperature, ventilation, PPE, storage limits, VOC rules, and hazardous-material shipping restrictions.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What materials can this adhesive bond?

A: Use the exact substrate list above; products vary across foam, fabric, wood, vinyl, fiberglass, plastic, metal, and other porous or non-porous materials.

Q: Should I spray one side or both sides?

A: Follow the product directions above because two-sided application can change coverage and bond strength.

Q: Can it ship normally?

A: Not always; aerosol, canister, gallon, hazardous-material, carrier, and commercial-address restrictions are preserved in the technical specifications.

Q: What should I test first?

A: West Coast Vans recommends a scrap test for tack time, bleed-through, texture, repositioning, heat resistance, and final bond.
