RB Components Sprinter TPO Coin Flooring - Chemical Resistant

RB Components Sprinter TPO Coin Flooring - Chemical Resistant

At West Coast Vans, we choose RB Components gear for builders who want purpose-built van hardware with clear dimensions and real installation requirements. Need help confirming fitment or planning the surrounding build? Ask Us Product Questions Anytime.

WCV EXPERT TIP

Unroll and acclimate the material, dry-fit the oversized sheet, and trim wheel wells only after confirming final floor position.

PRODUCT OVERVIEW

RB Components Sprinter TPO Coin Flooring - Chemical Resistant is a coin-pattern thermoplastic polyolefin floor covering offered by linear foot or in the listed Sprinter lengths.

The source details include roll width, precut dimensions, chemical resistance, FMVSS 302 certification, color choices, trimming allowance, and adhesive requirements.

BEST FOR

• SPRINTER FLOOR BUILDS: Available in precut lengths for listed Sprinter wheelbases with trimming allowance.

• HIGH-TRAFFIC VAN INTERIORS: Designed for areas requiring resistance to weather, chemicals, and repeated foot traffic.

• CUSTOM FLOOR TEMPLATES: Sold by linear foot for builders cutting a vehicle-specific floor layout.

TECHNICAL SPECIFICATIONS

• VENDOR: RB Components

• PRODUCT: Sprinter TPO Coin Flooring - Chemical Resistant

• COLOR: Black, Grey

• CHOOSE SIZE: Sold by Foot, 144 Sprinter Van, 170 Sprinter Van, 170 EX Sprinter Van

• PRODUCT DETAIL 1: State-of-the-art technology advanced TPO (thermoplastic polyolefin) flooring membrane

• PRODUCT DETAIL 2: Versatile enough to meet almost any interior or exterior application requiring resistance to weather, chemicals and traffic.

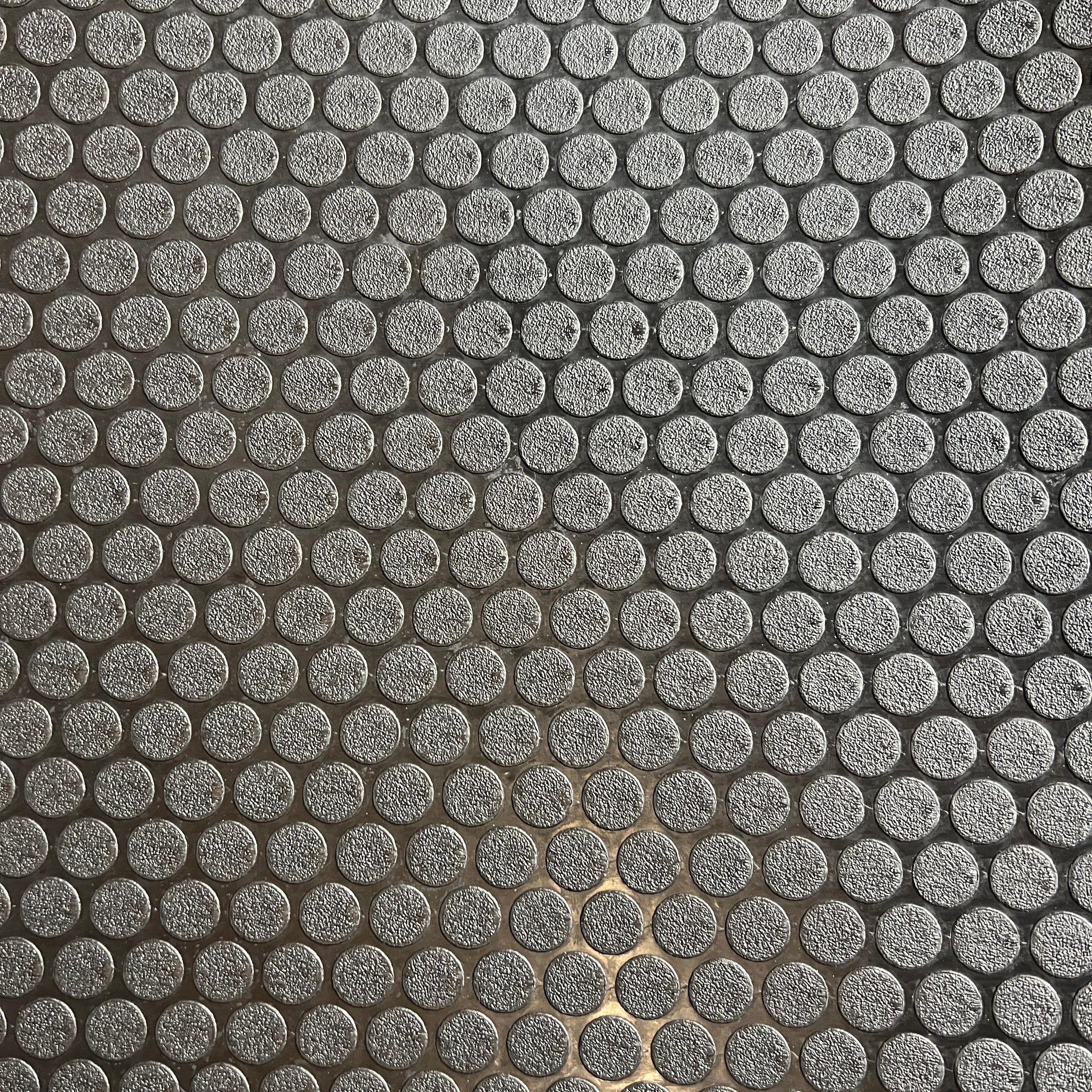

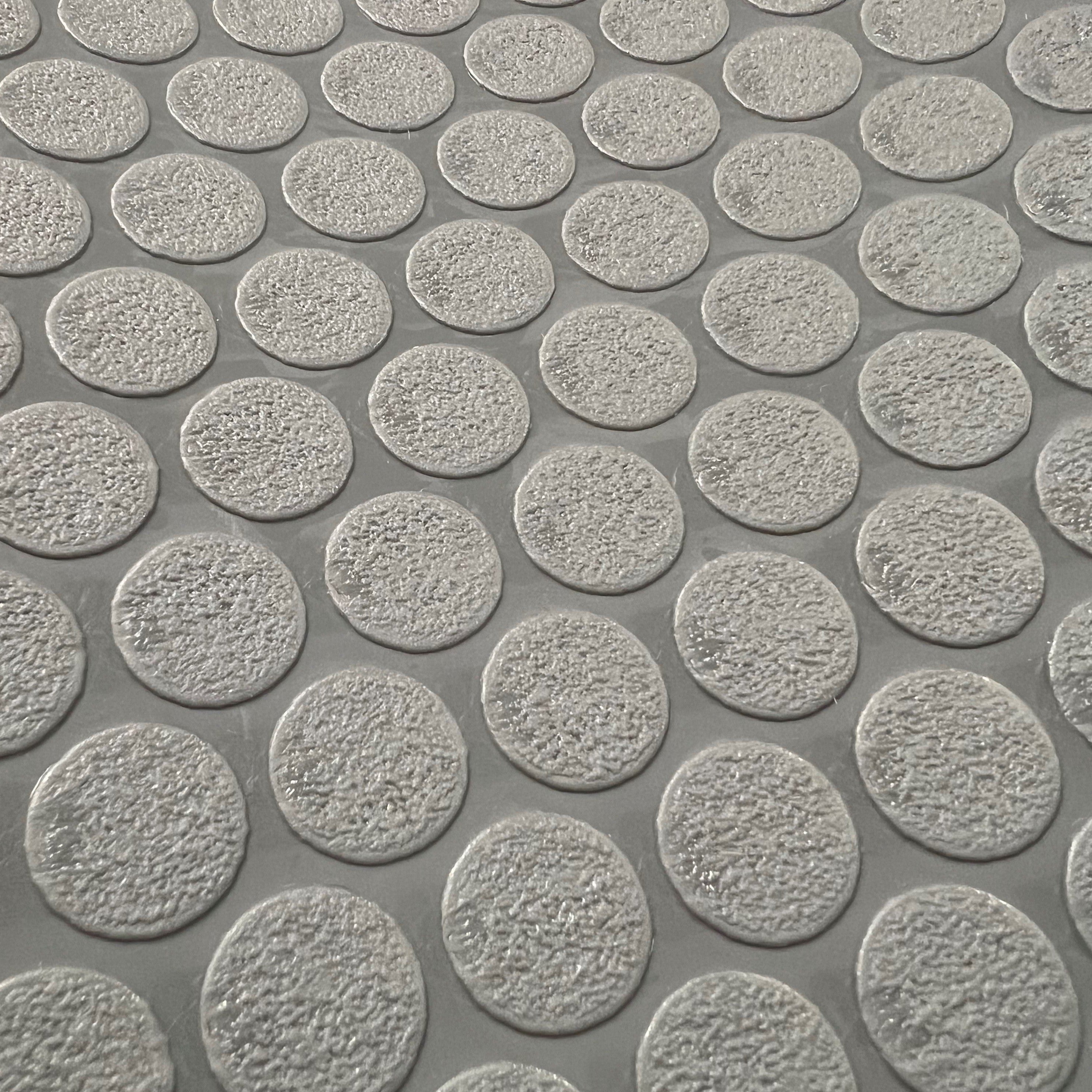

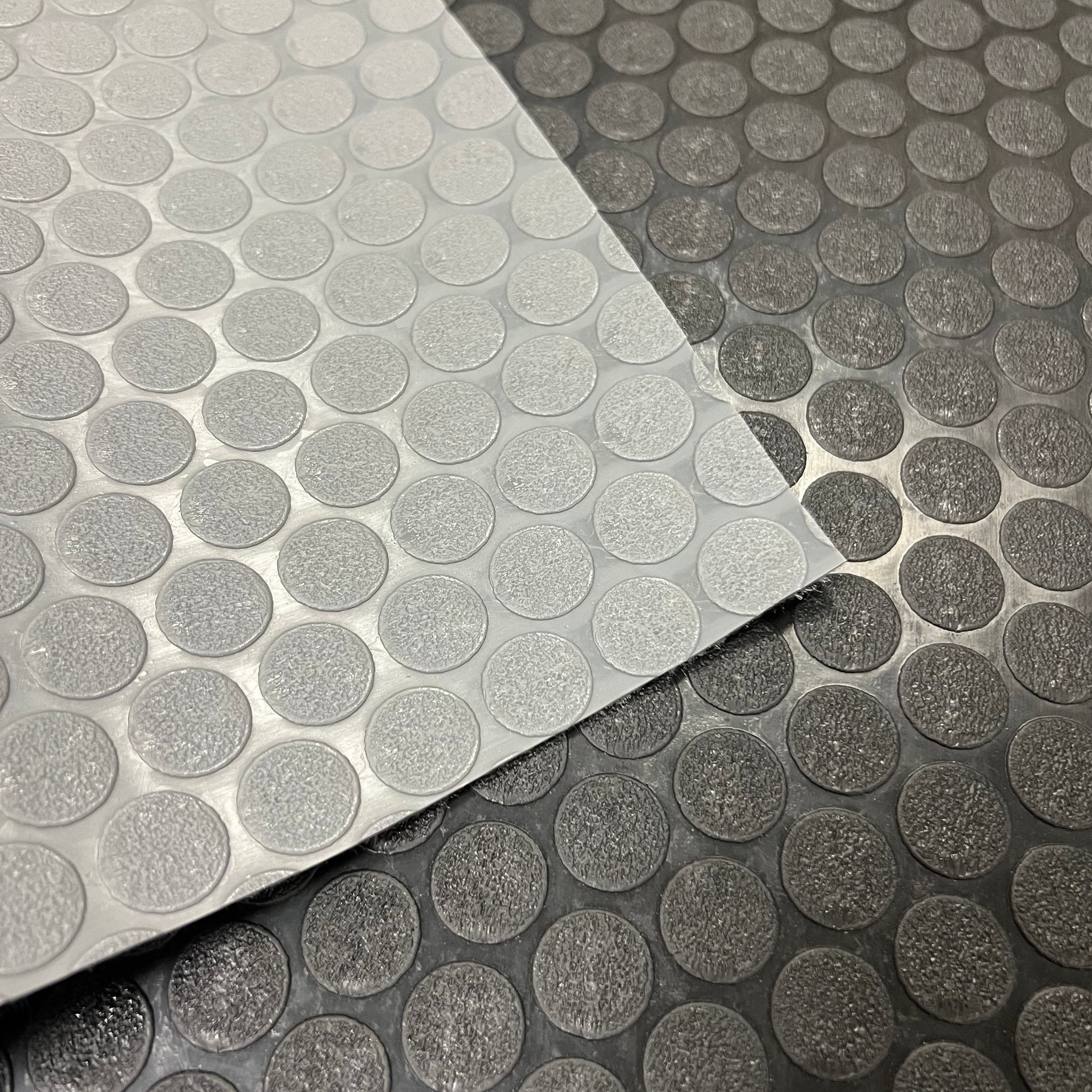

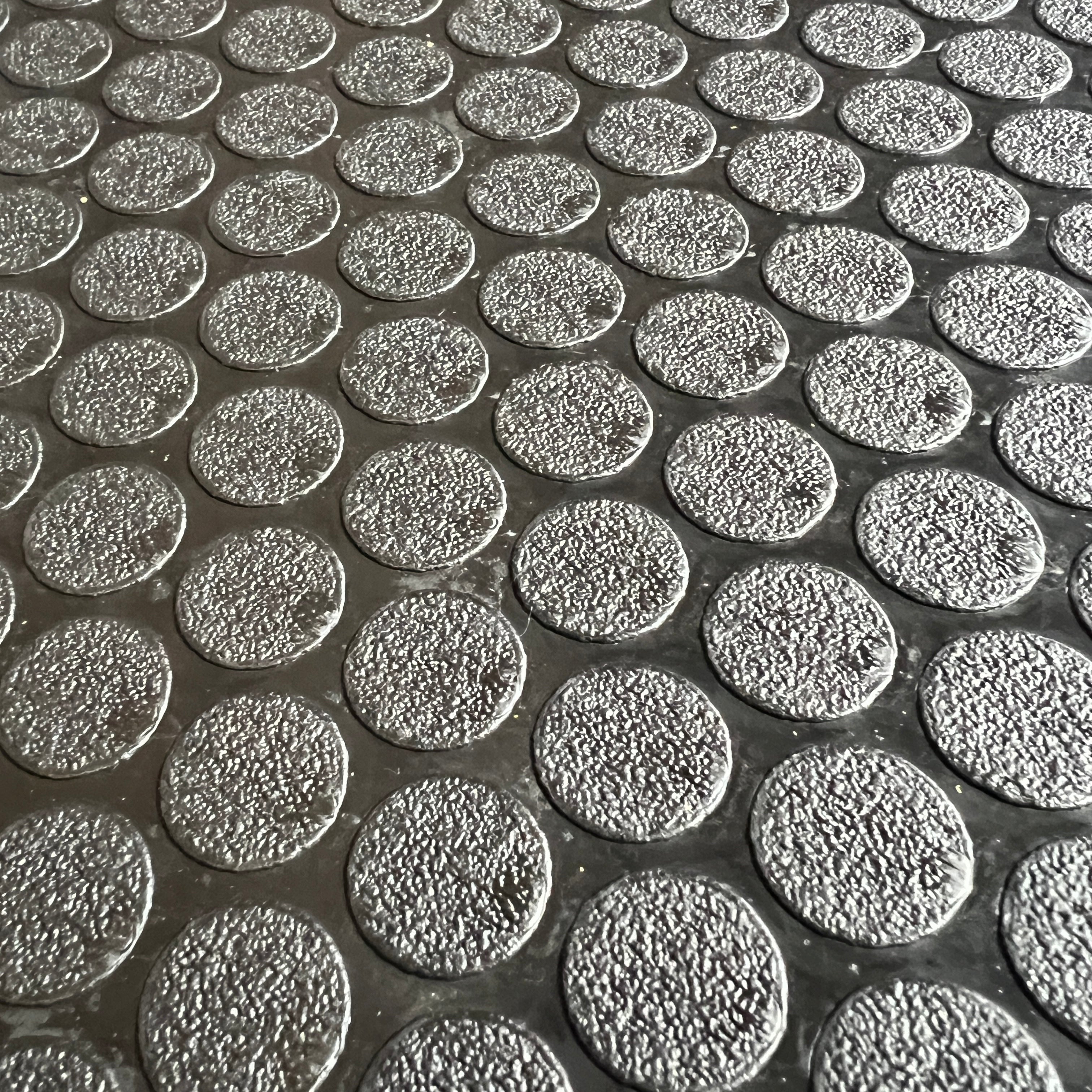

• PRODUCT DETAIL 3: Black or Gray nickel plate design

• PRODUCT DETAIL 4: Stocked in 97" wide roll and sold per linear foot (97" x 12") individual

• PRODUCT DETAIL 5: Or purchase in pre-cut lengths per van size (see below). Sheets come slightly oversized so you can trim wheel wells and overall length to correct sizing.

• PRODUCT DETAIL 6: Save 10% on TPO Coin Adhesive (#61511) when added to your flooring order. *Not Valid with any other discounts*

• PRODUCT DETAIL 7: Sold by Linear Foot |

• PRODUCT DETAIL 8: 97" wide x 12" long (just add qty to cart)

• PRODUCT DETAIL 9: Sprinter 144 |

• PRODUCT DETAIL 10: 72" wide x 146" long (12ft) |

• PRODUCT DETAIL 11: Sprinter 170 |

• PRODUCT DETAIL 12: 72" wide x 174" long (14'6"ft)

• PRODUCT DETAIL 13: Sprinter 170 EX |

• PRODUCT DETAIL 14: 72" wide x 190" long (15'10" )

• PRODUCT DETAIL 15: What's So Amazing?

• PRODUCT DETAIL 16: D cor TPO is highly chemical resistant to gasoline, diesel fuel, antifreeze, battery acid, engine oil, transmission fluid, brake fluid, cleansers and many other common chemicals.

• PRODUCT DETAIL 17: It meets all safety regulation criteria for Federal Motor Vehicle Safety Standard (FMVSS) #302 Certification. Unlike competitive vinyl (PVC) membrane products, the TPO will not emit toxic fumes when burnt.

• PRODUCT DETAIL 18: D cor TPO has excellent weathering characteristics, durability and mechanical performance with inherent UV stability and skid resistance. This makes it a tremendous high traffic and extreme exposure membrane.

• PRODUCT DETAIL 19: It does not emit any notable odor commonly experienced with competitive rubber-based membranes.

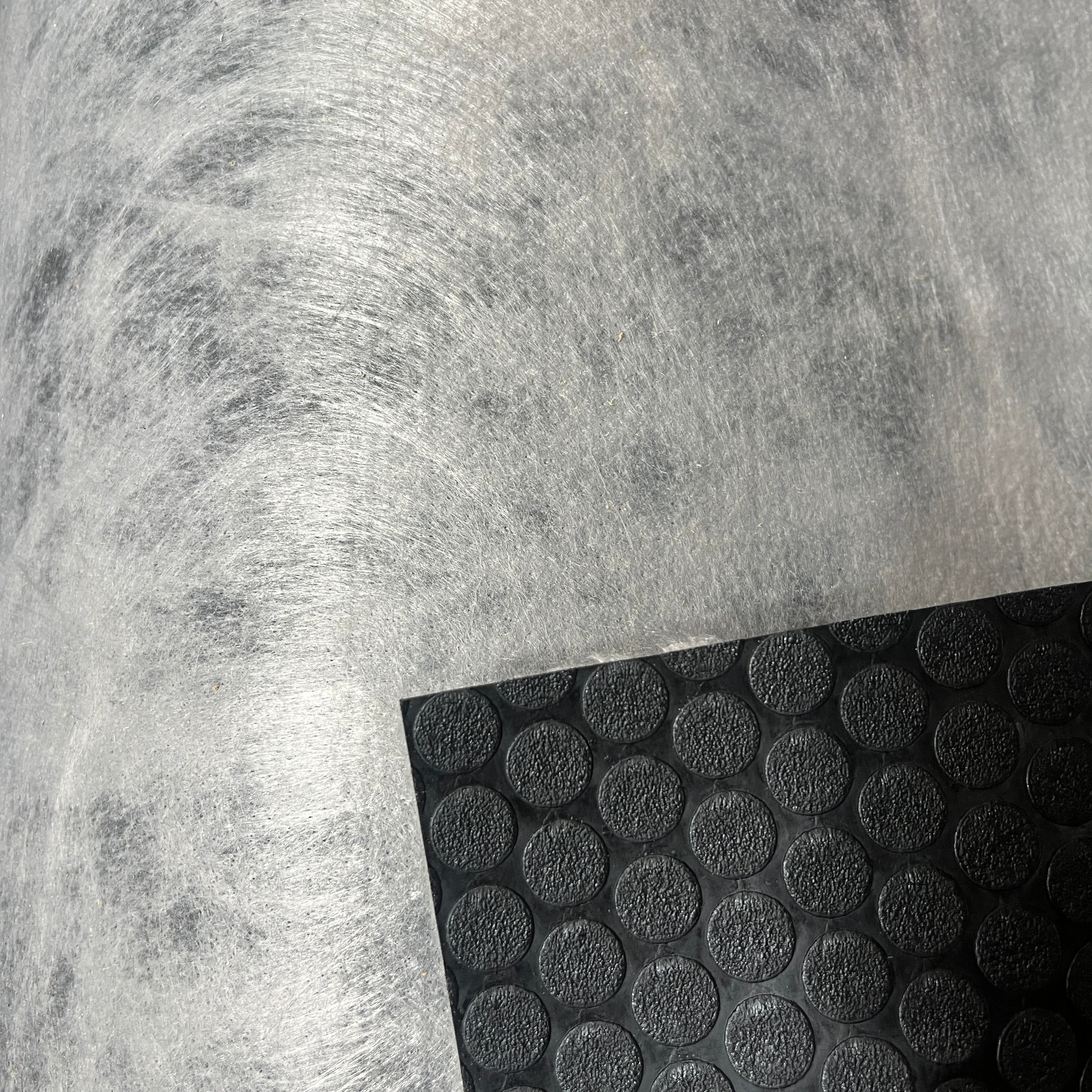

• PRODUCT DETAIL 20: TPO flooring incorporates a spun polyester (fleece) backing, which is mechanically attached during the extrusion manufacturing process. This backing enables TPO flooring to be easily bonded to a variety of porous wood surfaces. Alpha Systems 3080 TPO Flooring Adhesive is recommended for bonding TPO flooring.

• PRODUCT DETAIL 21: Installation Instructions:

• PRODUCT DETAIL 22: Alpha Systems 3080 TPO Flooring Adhesive may be applied with brush, roller or trowel. Surface should be free of dirt, oil, or other contaminants. Apply a coat of adhesive to one surface (16-20 mils thick). Mate the two surfaces as soon as possible (approx. open time 5-10 minutes. Use a 70 lb. linoleum roller (or equivalent) to apply pressure so that adhesive can properly

• PRODUCT DETAIL 23: penetrate into the fleece.

• PRODUCT DETAIL 24: IMMEDIATELY following the adhesive application and rolling process mechanically fasten the perimeter of the TPO flooring.

• PRODUCT DETAIL 25: Technical Information

FEATURES

• CHEMICAL-RESISTANT TPO: Uses the source-listed thermoplastic polyolefin membrane and resistance profile.

• COIN SURFACE: Available in the listed black or grey nickel-plate pattern.

• MULTIPLE SIZE OPTIONS: Choose linear-foot material or the listed Sprinter 144, 170, and 170 Extended lengths.

COMMON PAIRINGS

• RB TPO COIN ADHESIVE: Use the specially formulated adhesive and gallon coverage specified for the vehicle length.

• SUBFLOOR SYSTEM: Install over a clean, stable, smooth subfloor prepared for full-surface bonding.

• ENTRY TRIM: Finish exposed flooring edges with compatible thresholds or step trim.

COMPATIBILITY & FITMENT

• CHASSIS: Universal by-the-foot material plus listed Mercedes-Benz Sprinter precut length options.

• WHEELBASE: Options include Sprinter 144, 170, and 170 Extended dimensions shown below.

• ROOF HEIGHT: All roof heights; floor area and wheelbase determine material length.

• REQUIREMENTS: Dry-fit and trim the oversized sheet, prepare the subfloor, and use compatible TPO flooring adhesive in the required quantity.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Is the material sold by the foot?

A: Yes, it is available by linear foot and in the listed Sprinter precut lengths.

Q: Do the precut sheets require trimming?

A: Yes, the source states they are slightly oversized for final wheel-well and length trimming.

Q: Which adhesive should I use?

A: Use the specially formulated RB TPO Coin Flooring Adhesive and follow its coverage guidance.

Q: Is it certified for vehicle interiors?

A: Yes, the source states that the flooring meets FMVSS 302 criteria.
