Alpine Van Works Transit 148 Extended Panel Kit - Insulated Finish

Alpine Van Works Transit 148 Extended Panel Kit - Insulated Finish

At West Coast Vans, panel kits earn their keep by eliminating weeks of templates, trimming, and do-overs - while still leaving room for a real electrical and furniture plan. The Alpine Van Works Transit 148 Extended Panel Kit - Insulated Finish brings CNC-cut upholstered panels, insulation layers, trim, and mounting details together; Ask Us Product Questions Anytime before choosing openings and finishes.

WCV EXPERT TIP

Finalize fan, air-conditioner, window, wiring, L-track, bed, and cabinet locations before installing upholstered panels.

PRODUCT OVERVIEW

Alpine Van Works Transit 148 Extended Panel Kit - Insulated Finish is a CNC-cut, professionally upholstered wall-and-ceiling package for the exact chassis, wheelbase, and roof configuration shown below.

The system includes source-listed trim and door panels plus foam and reflective backing, while insulation, wiring, fans, and other separately sold build components remain installer selections.

BEST FOR

• PRECISION-CUT VAN INTERIORS: For builders who want upholstered walls and ceilings without full-scale templating.

• INSULATED FINISH SYSTEMS: Adds foam, radiant backing, trim, and door panels in one coordinated package.

• CABINET AND BED BUILDS: Supports planned L-track, rivnut, furniture, and bed-platform integration.

TECHNICAL SPECIFICATIONS

• VENDOR: Alpine Van Works, LLC

• PRODUCT: Transit 148" High Roof Extended Interior Panel Kit

• SOURCE SKUS: AVW-T-PNLKIT

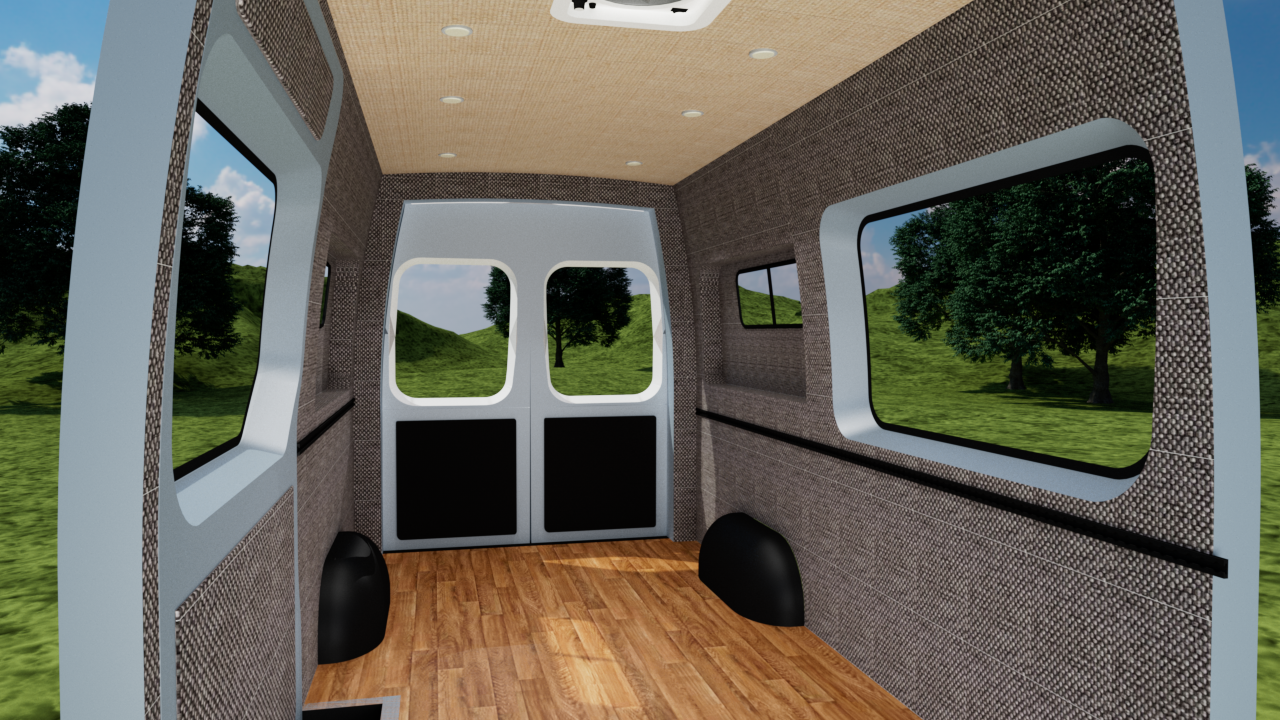

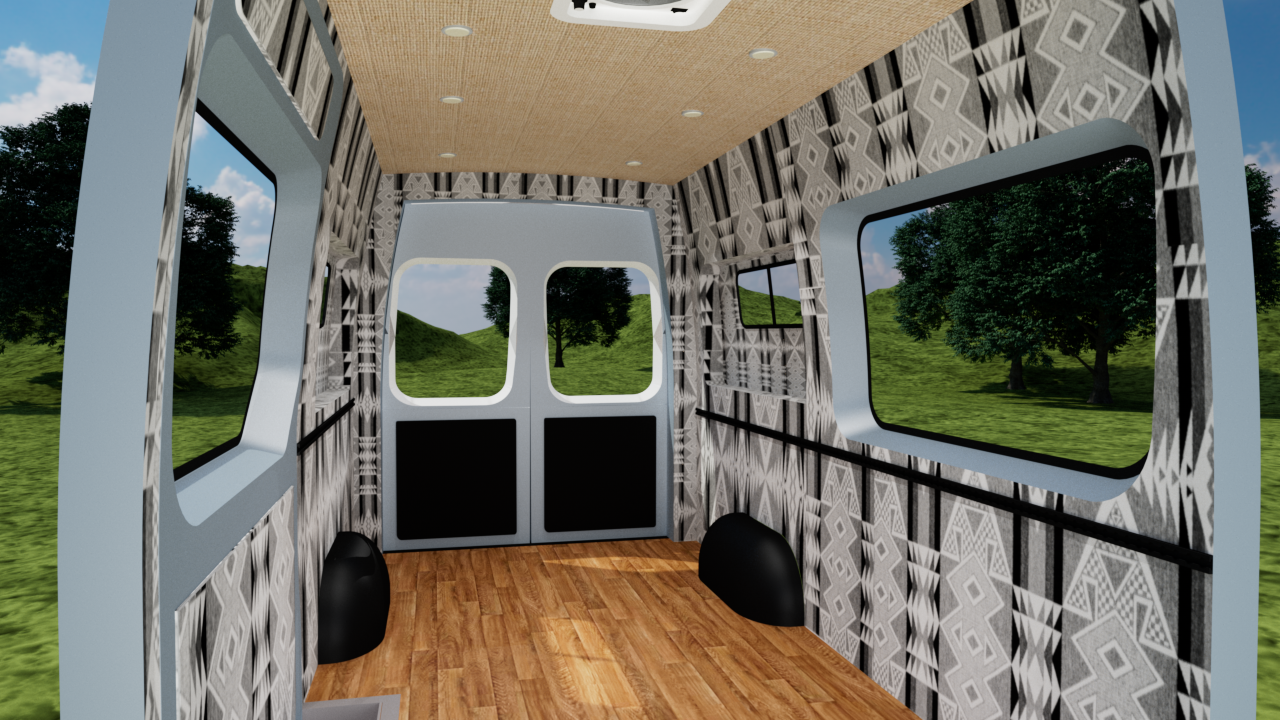

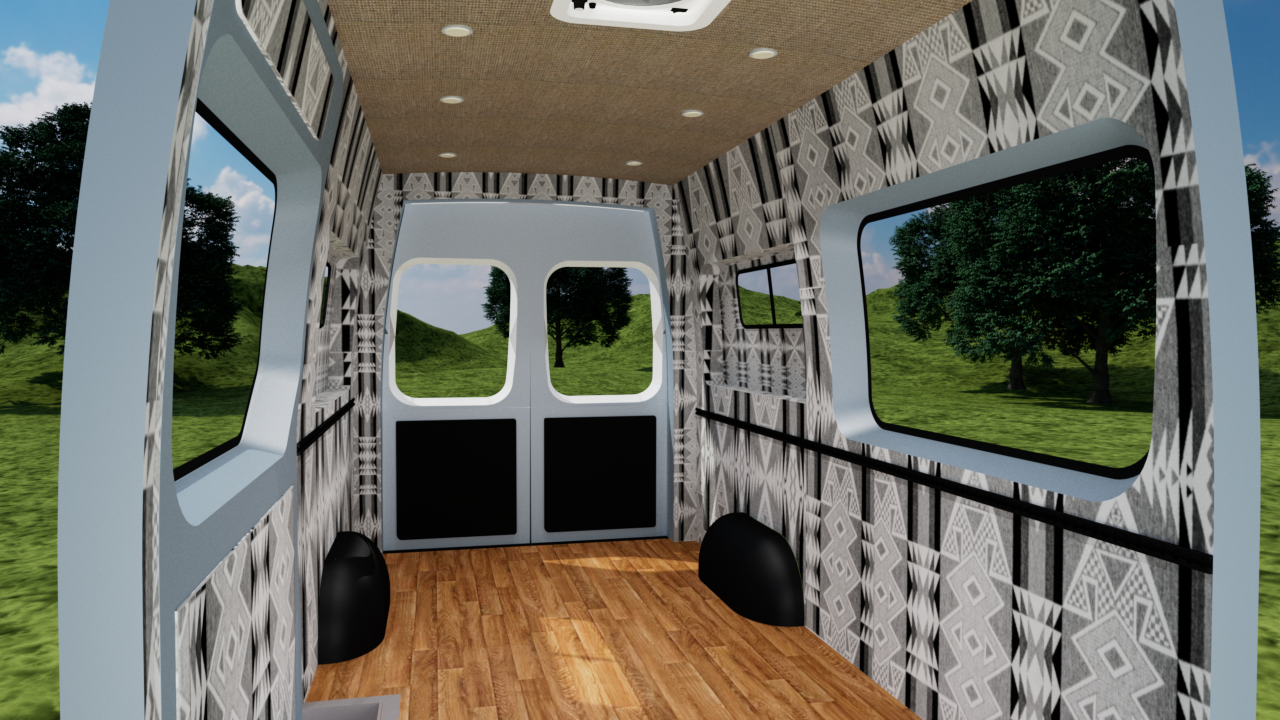

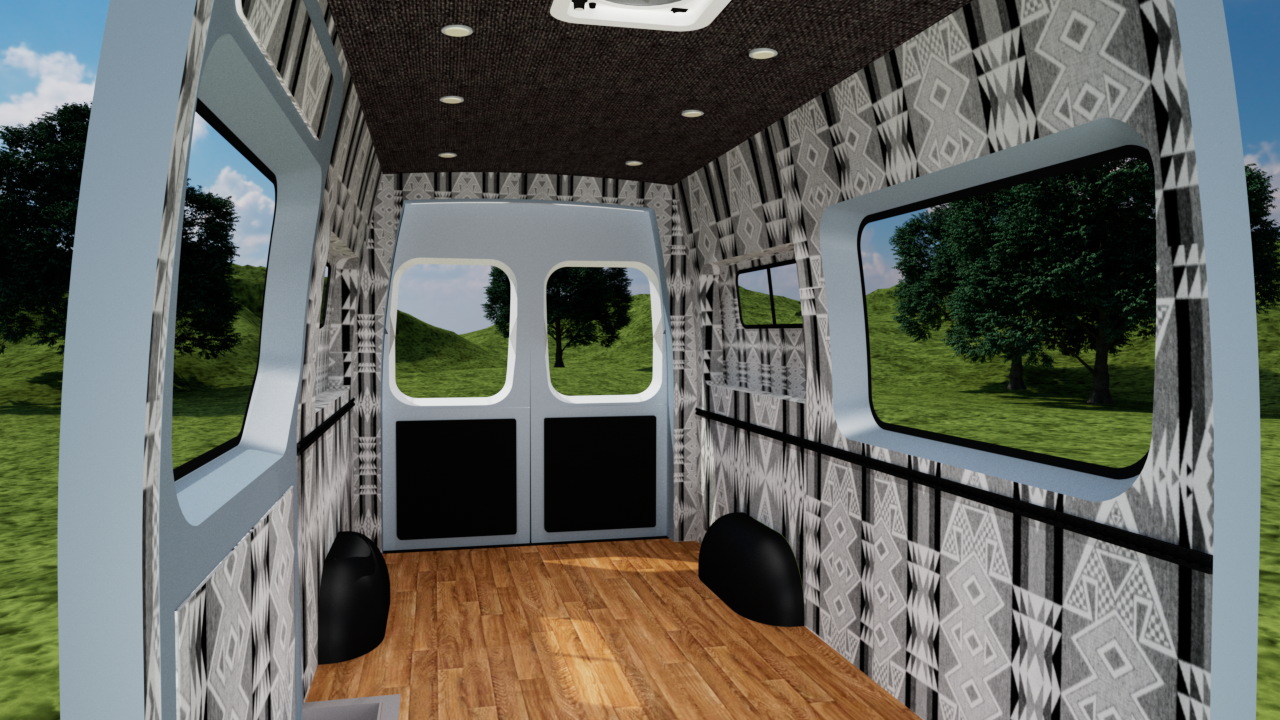

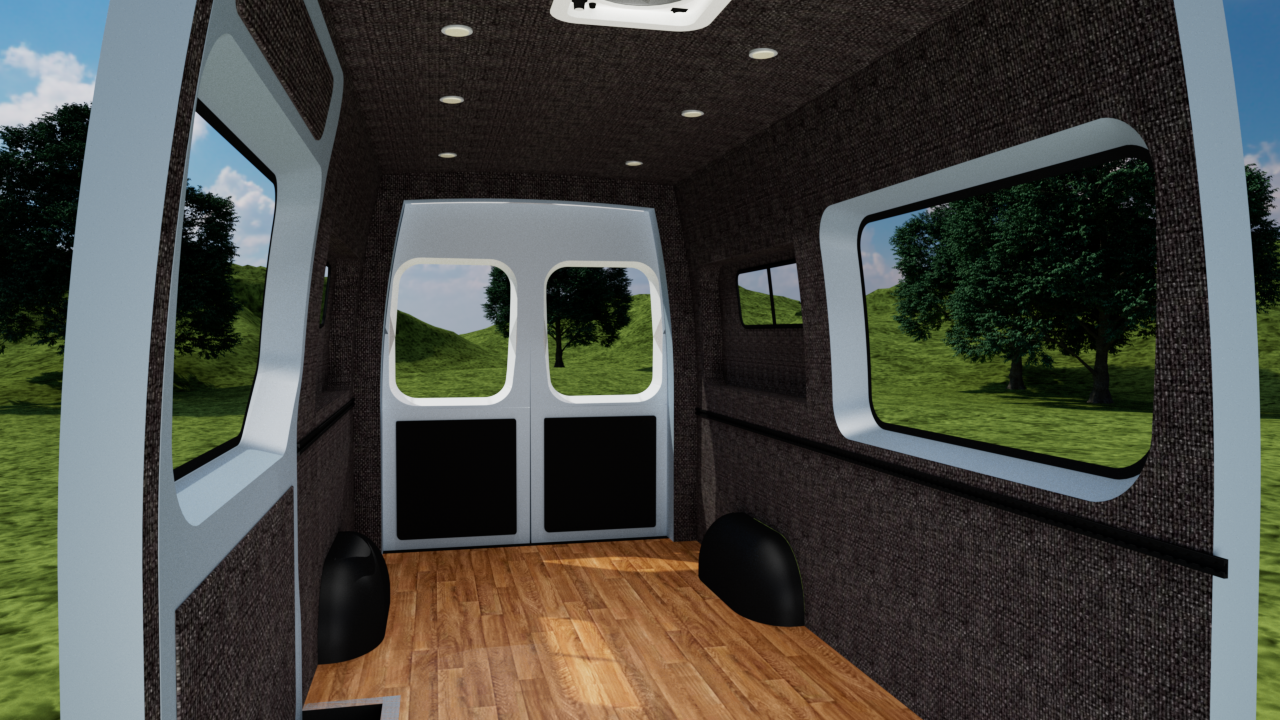

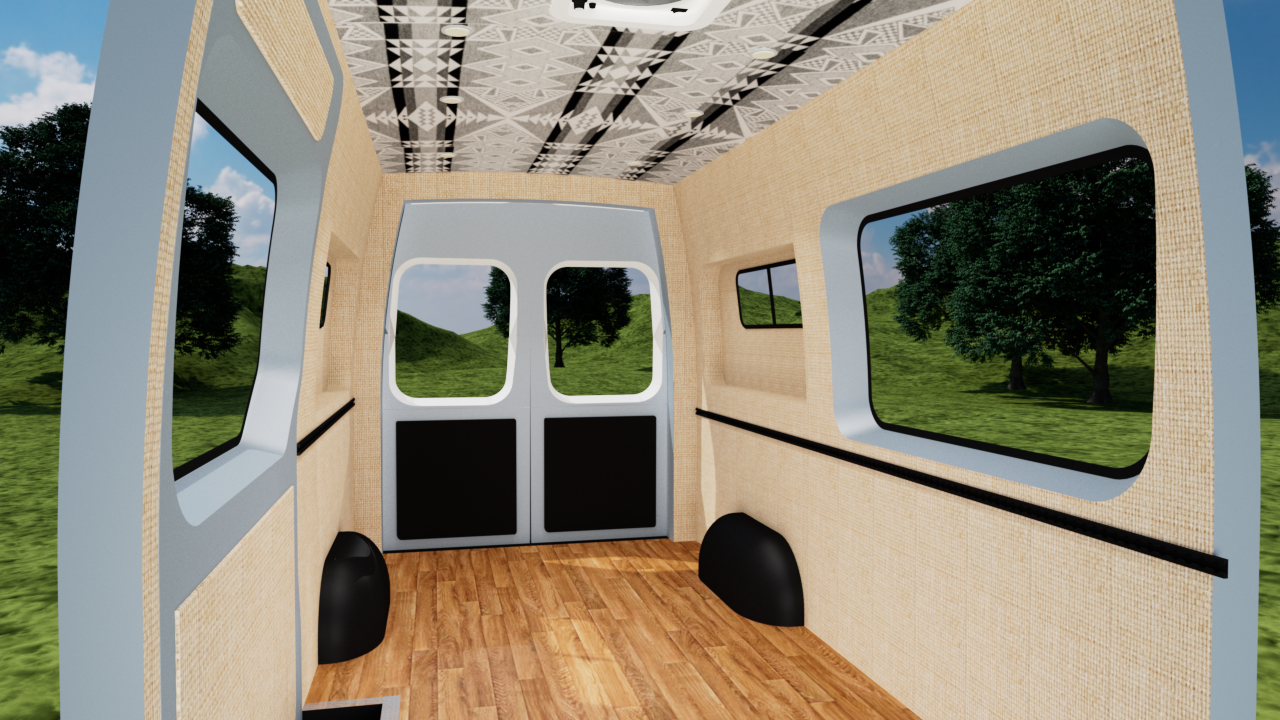

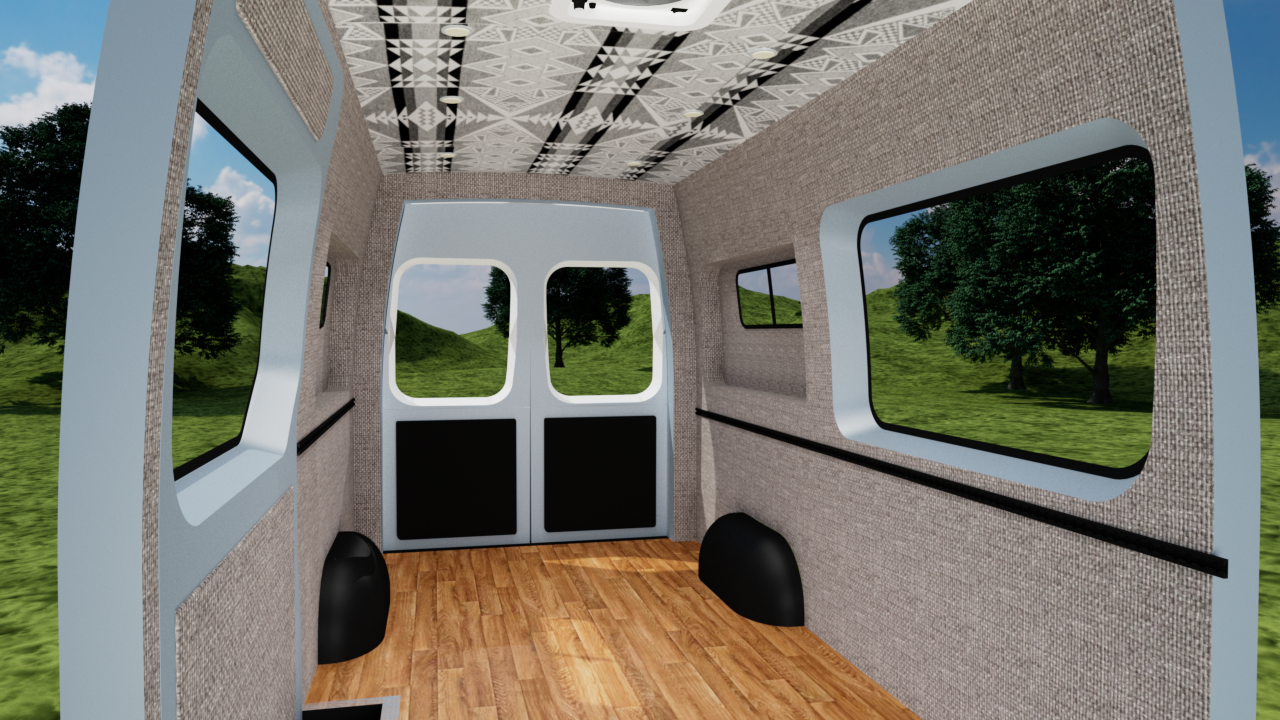

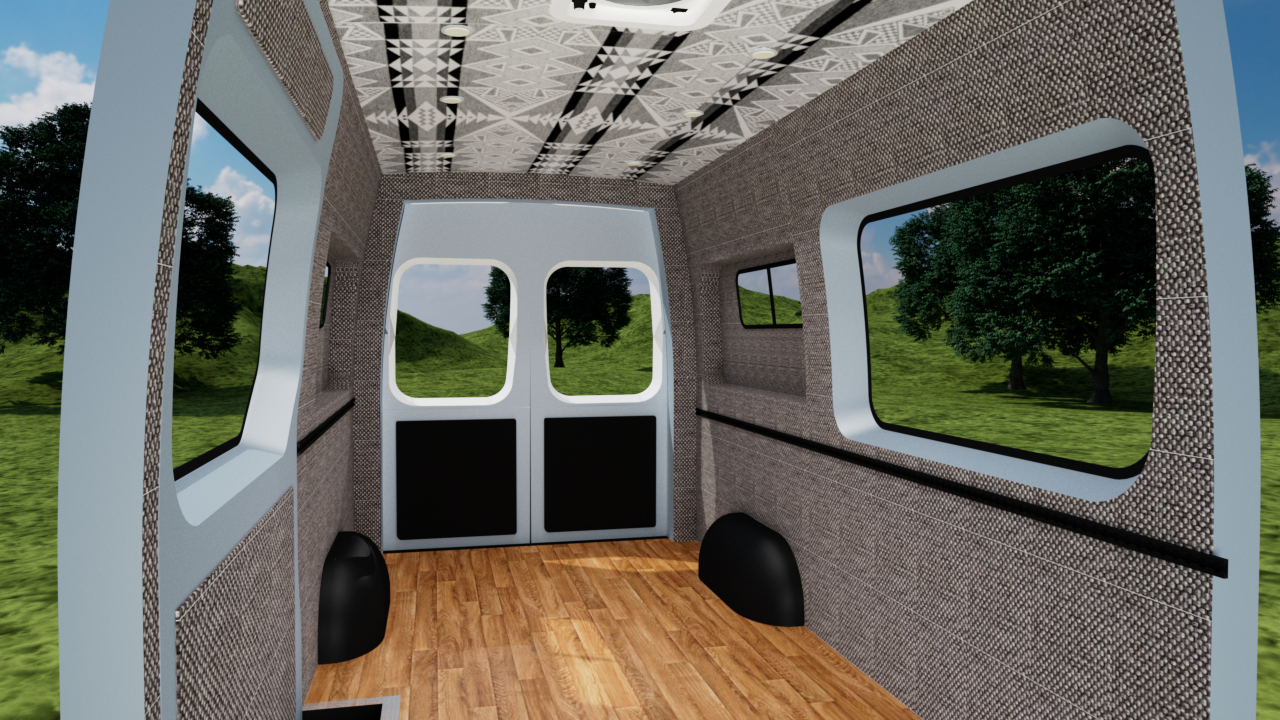

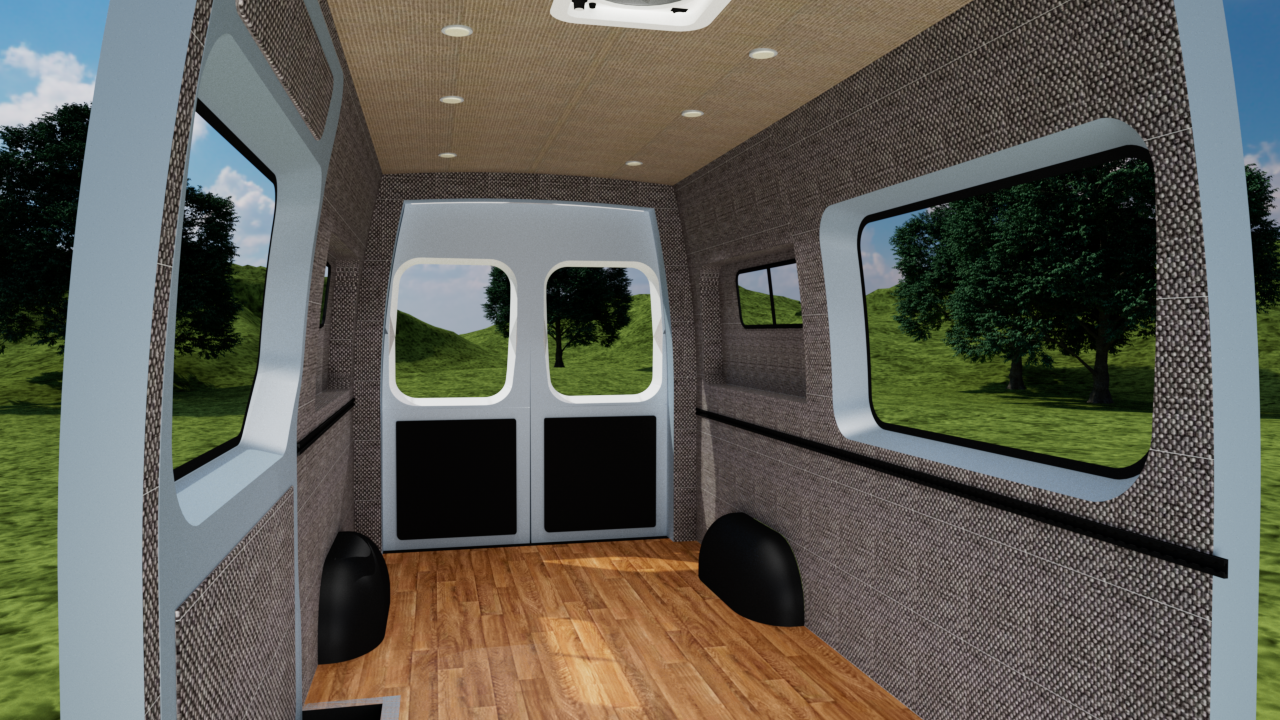

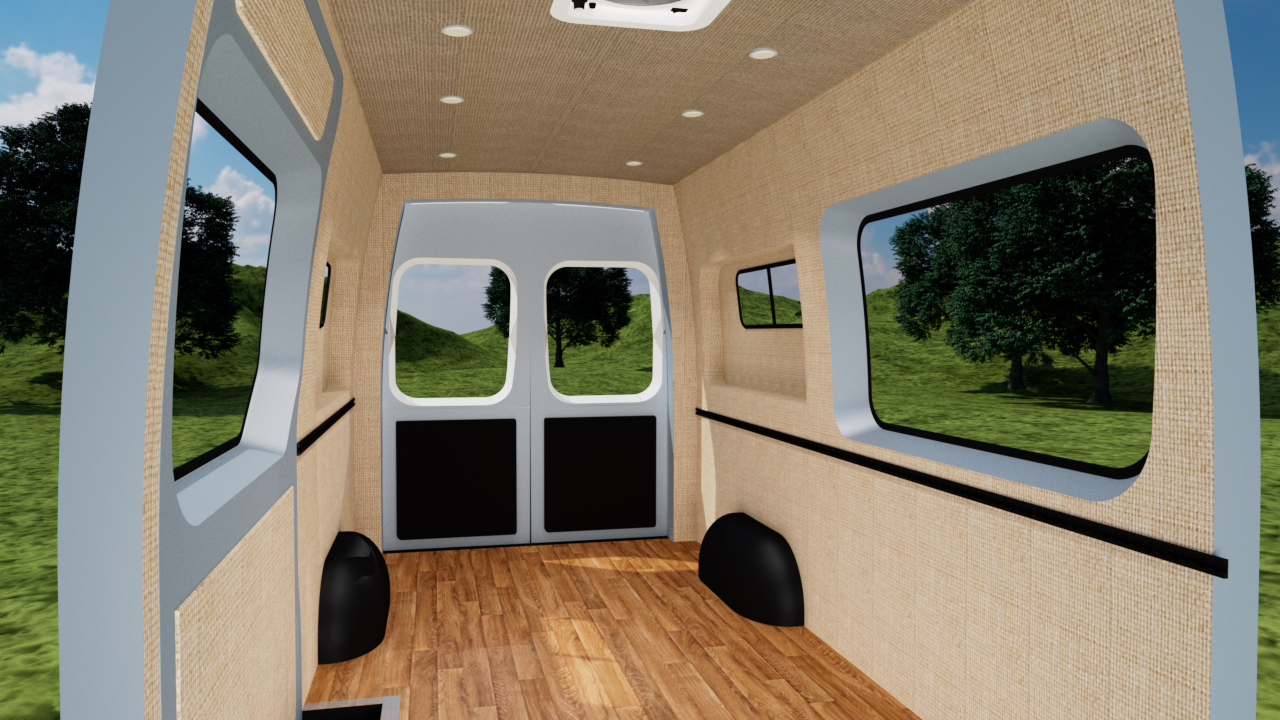

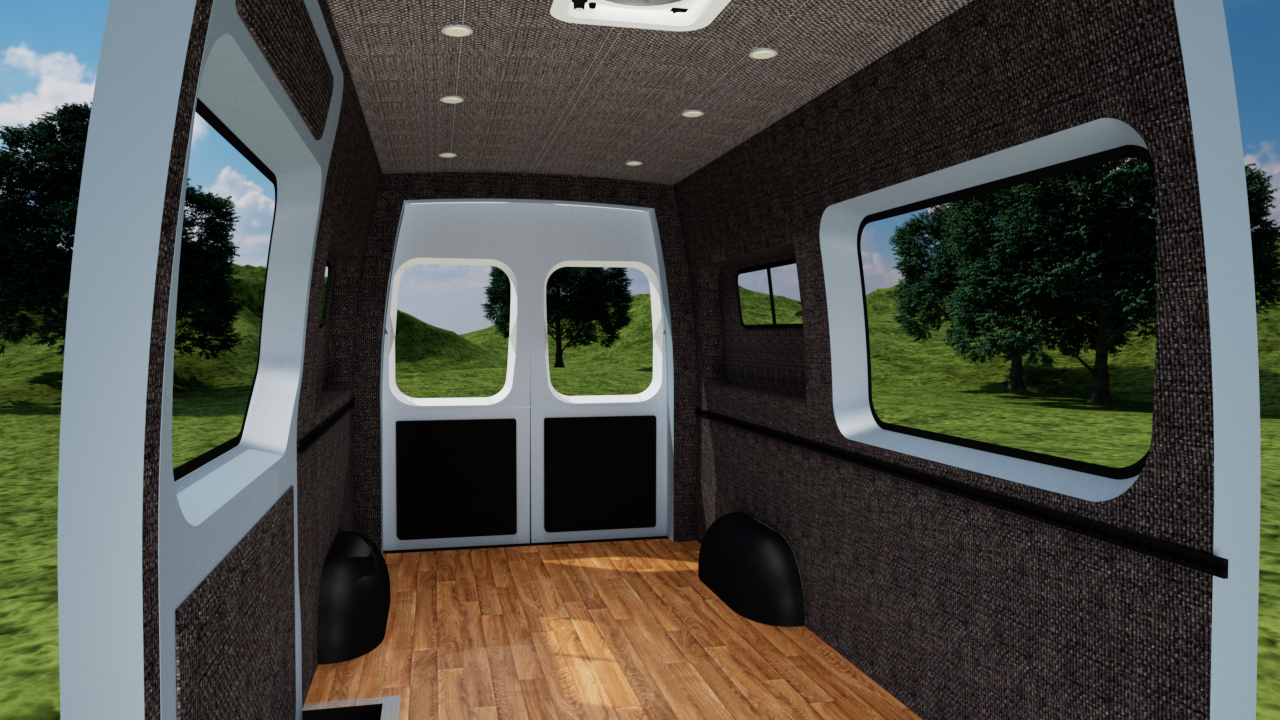

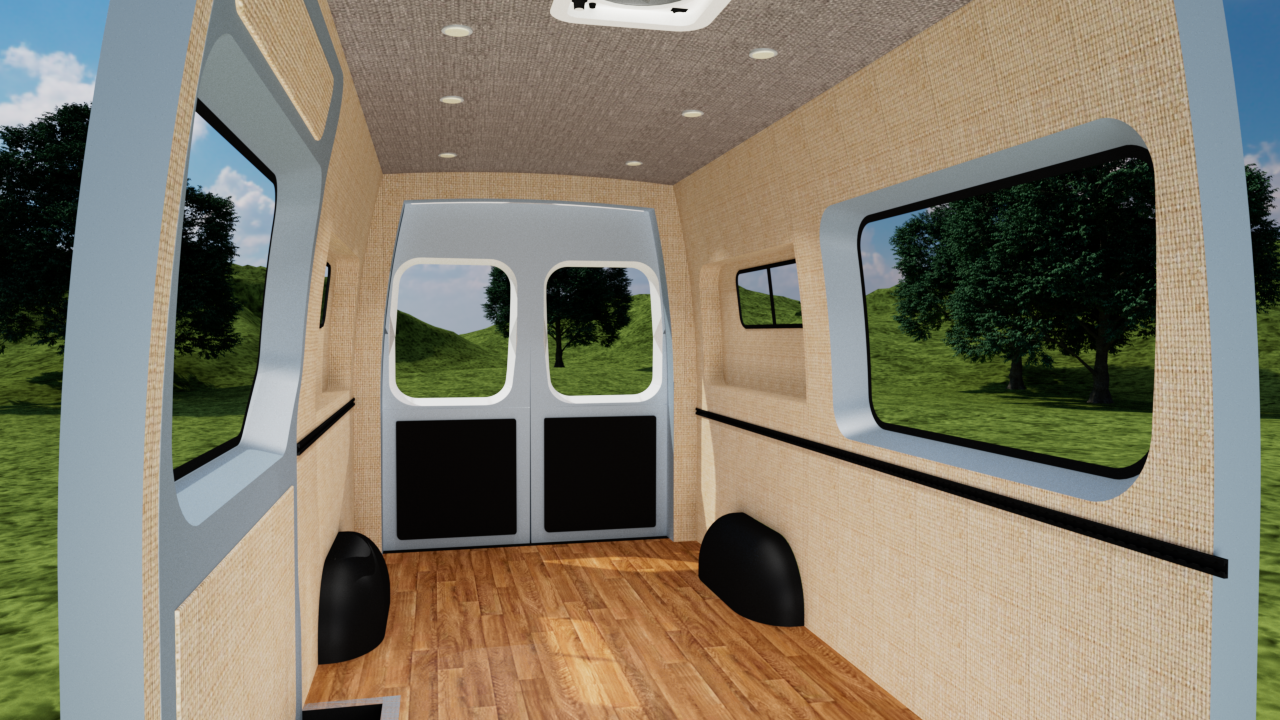

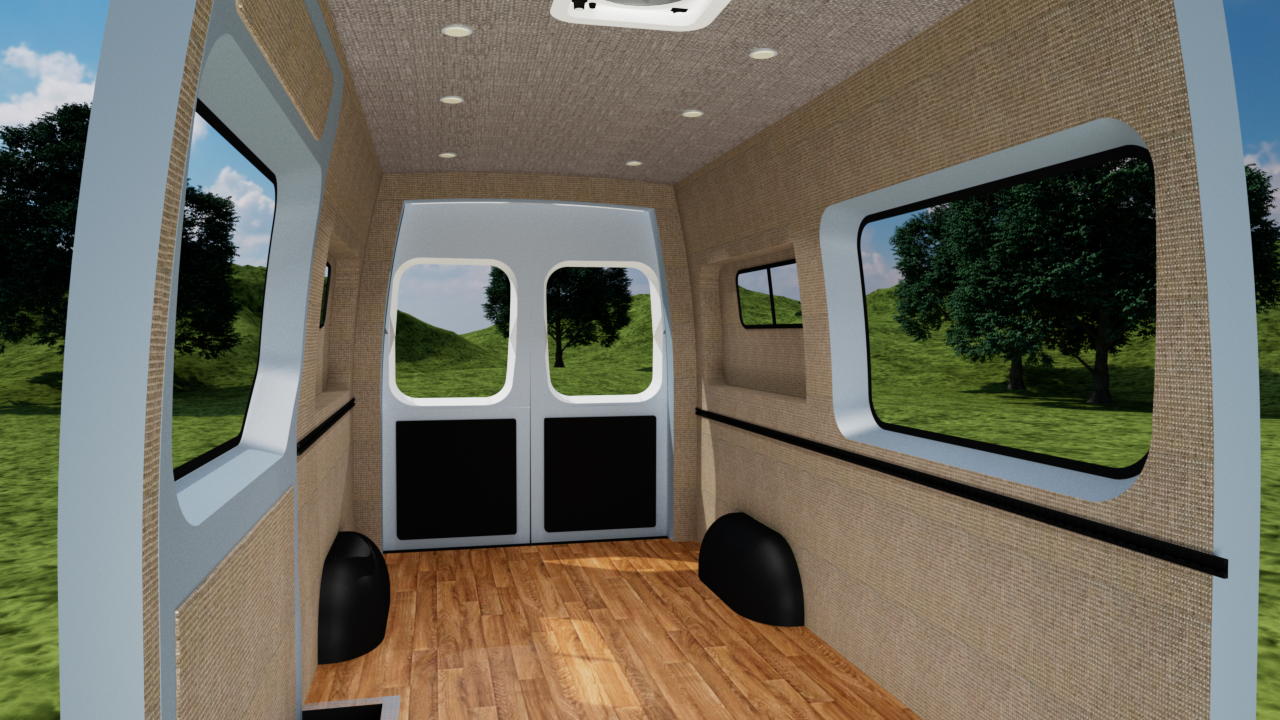

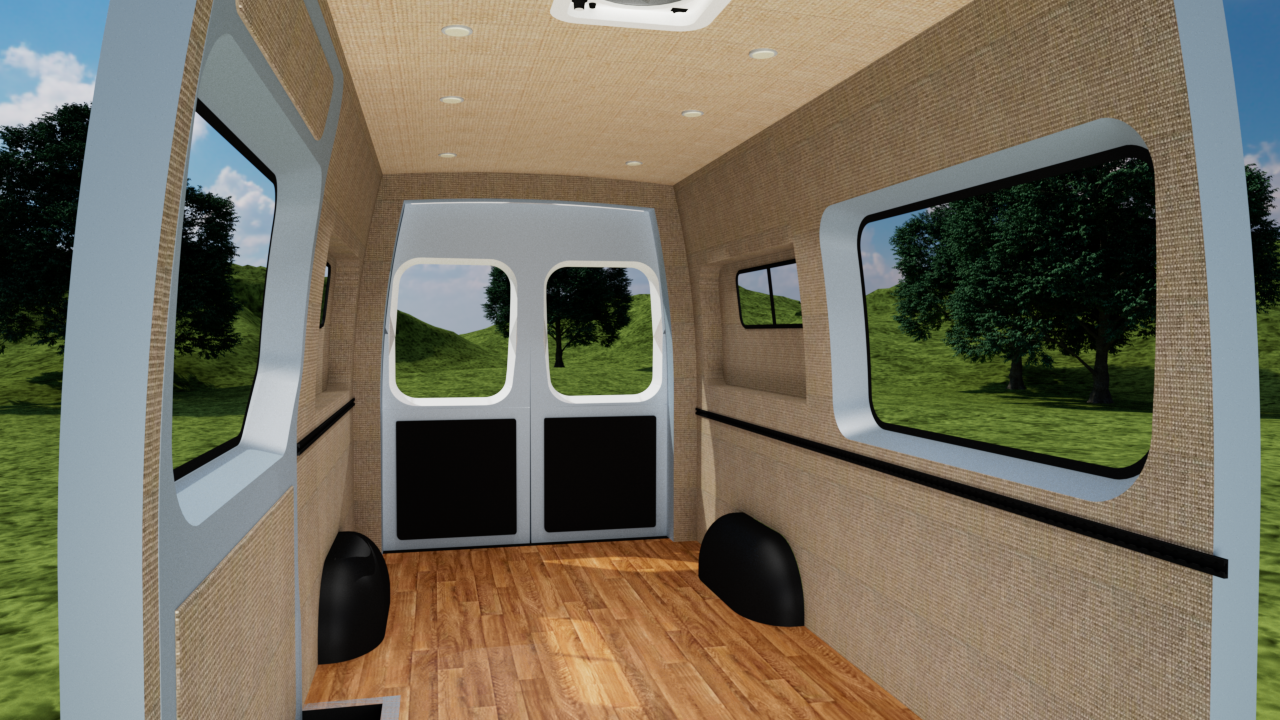

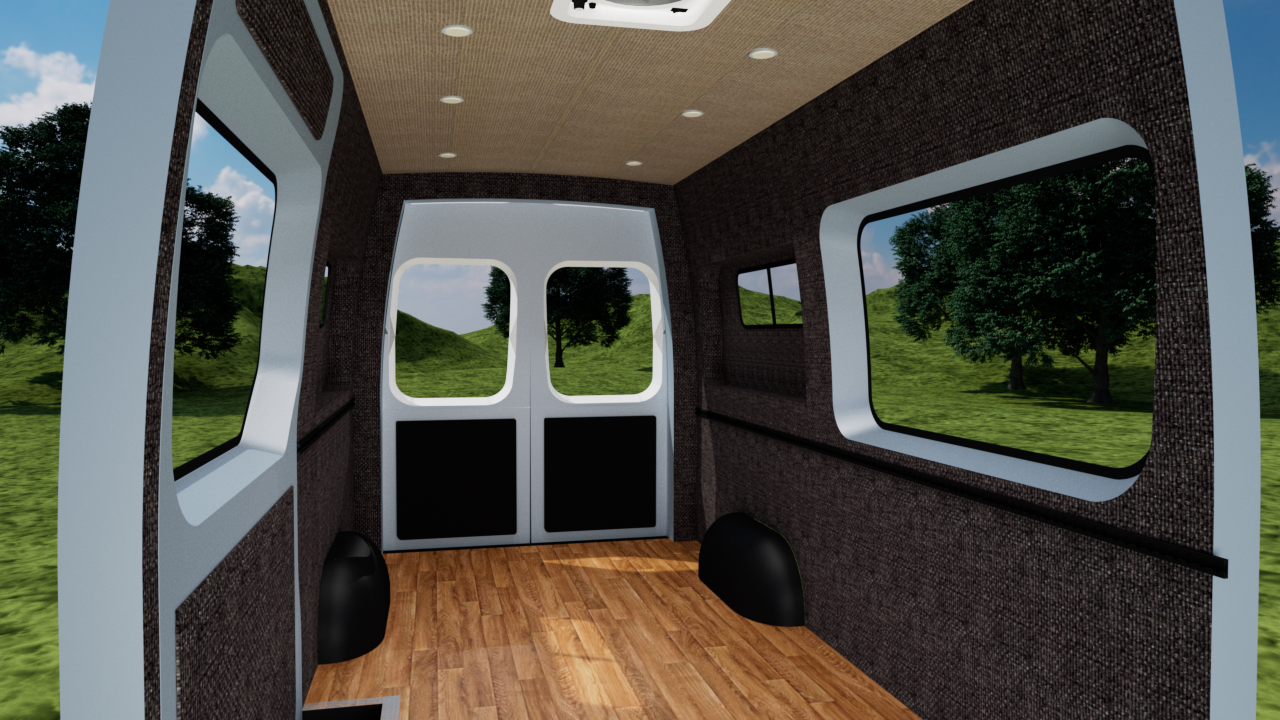

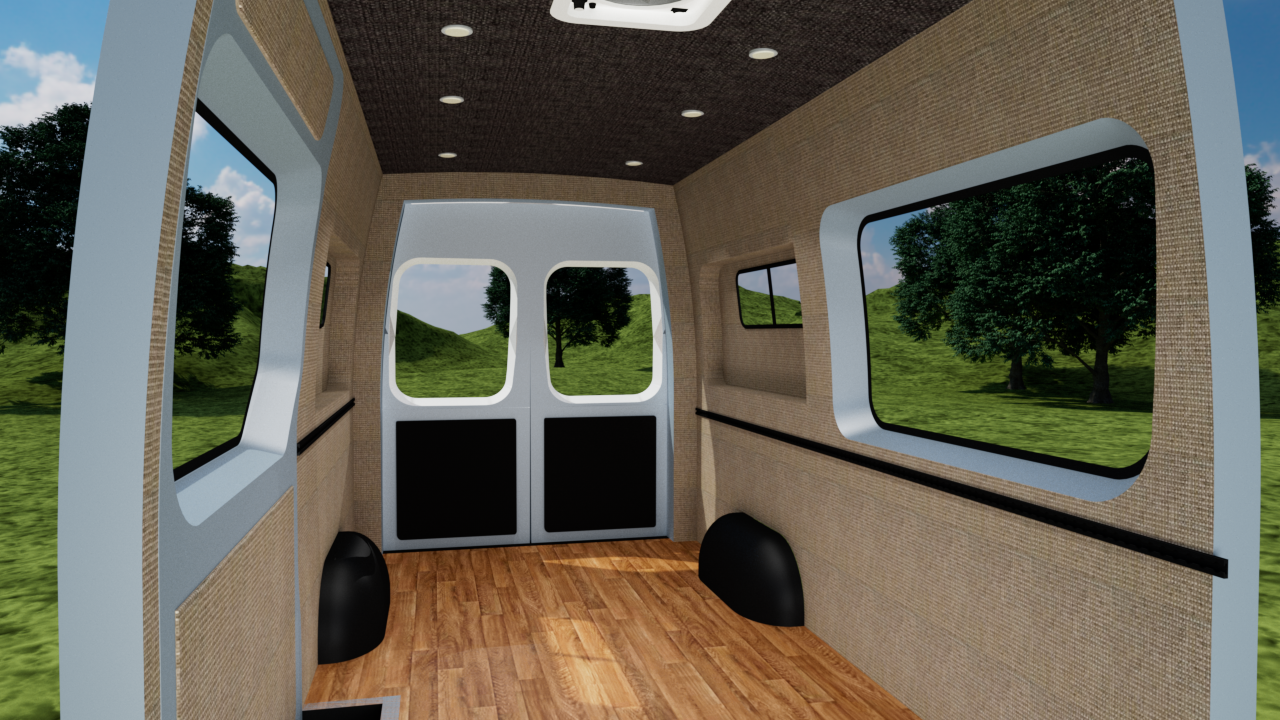

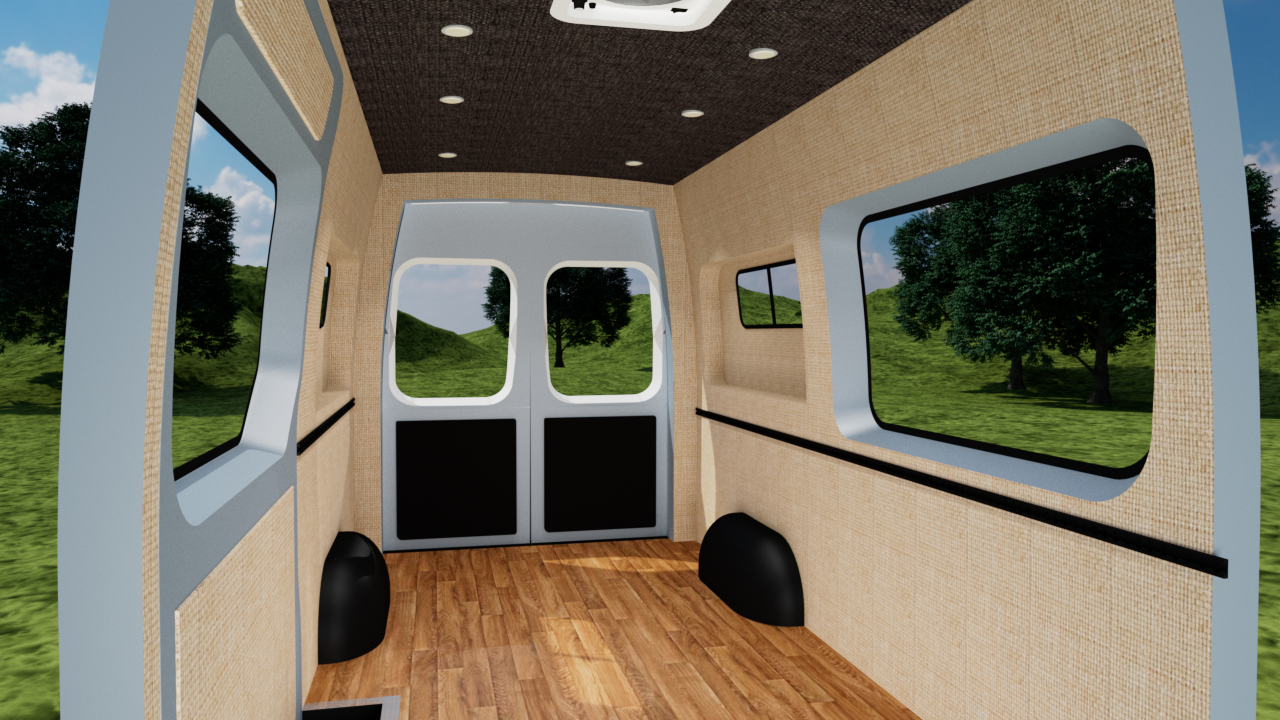

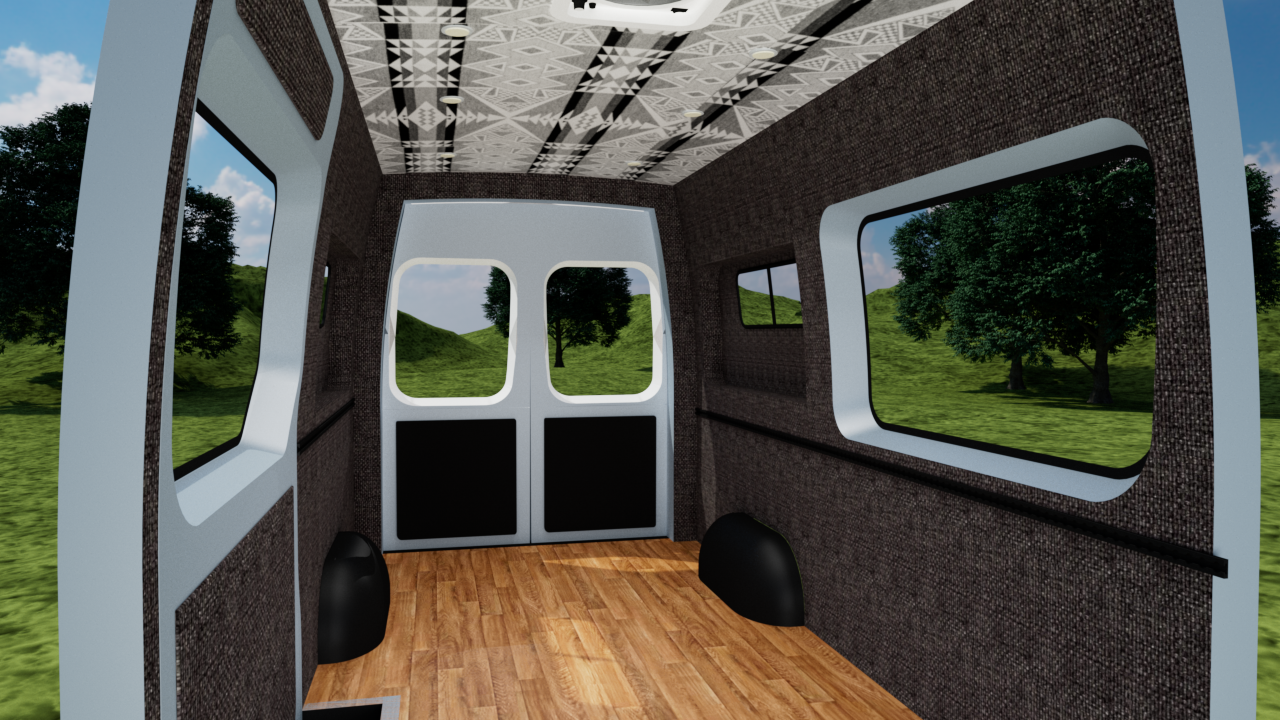

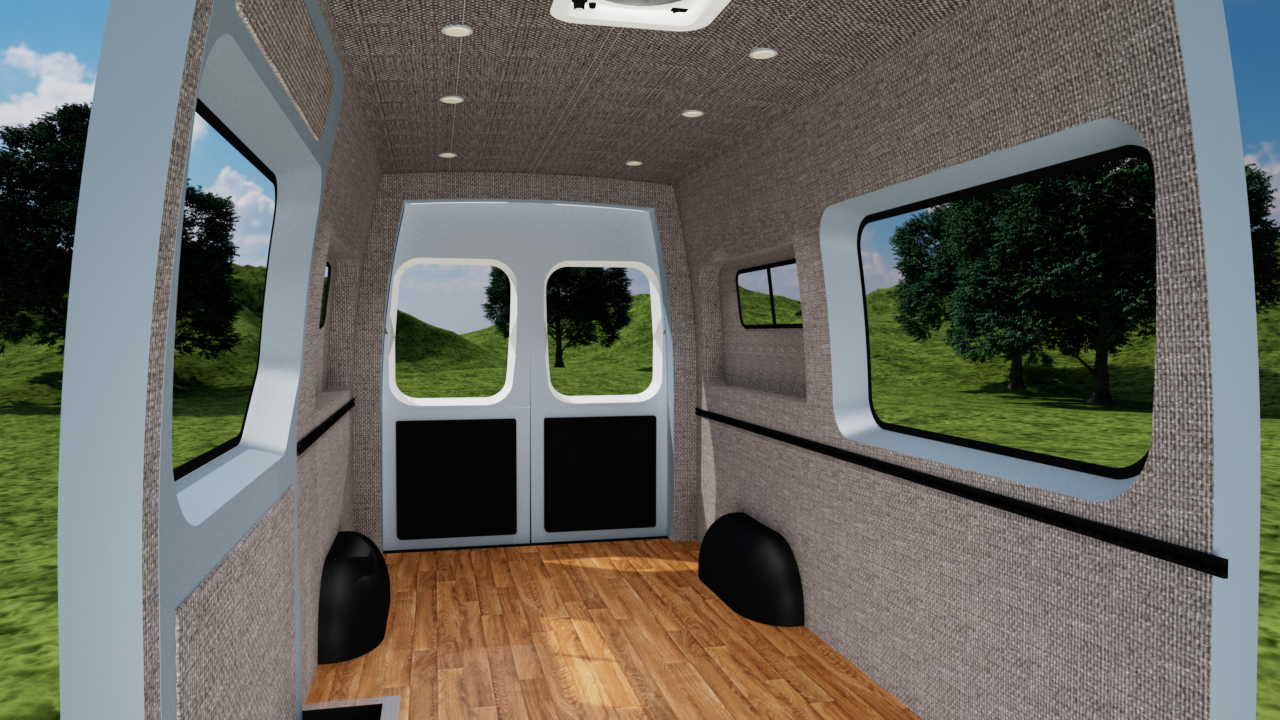

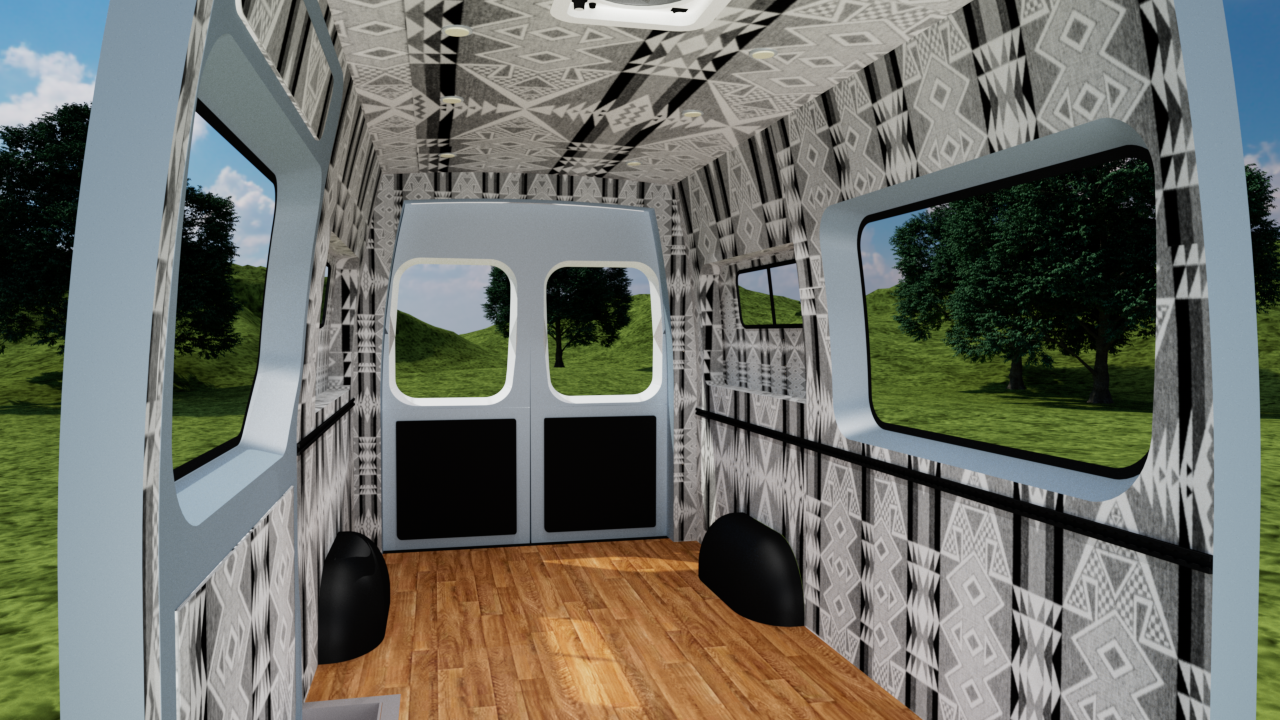

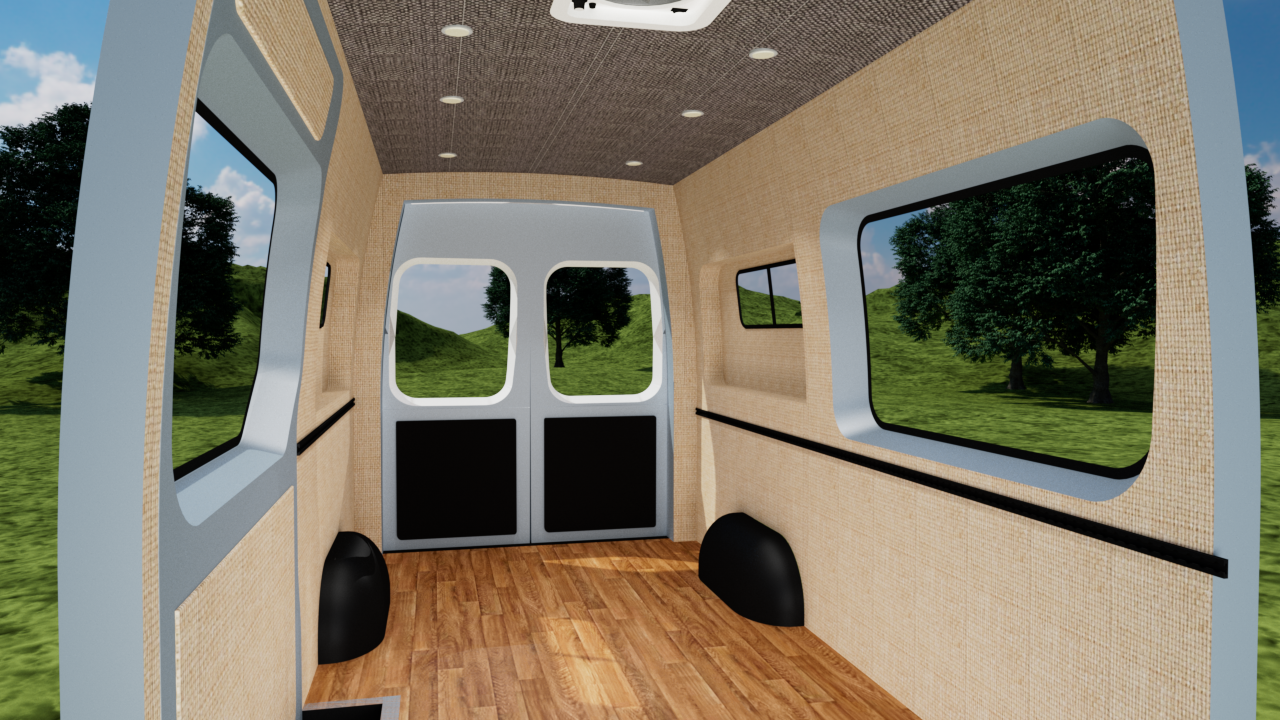

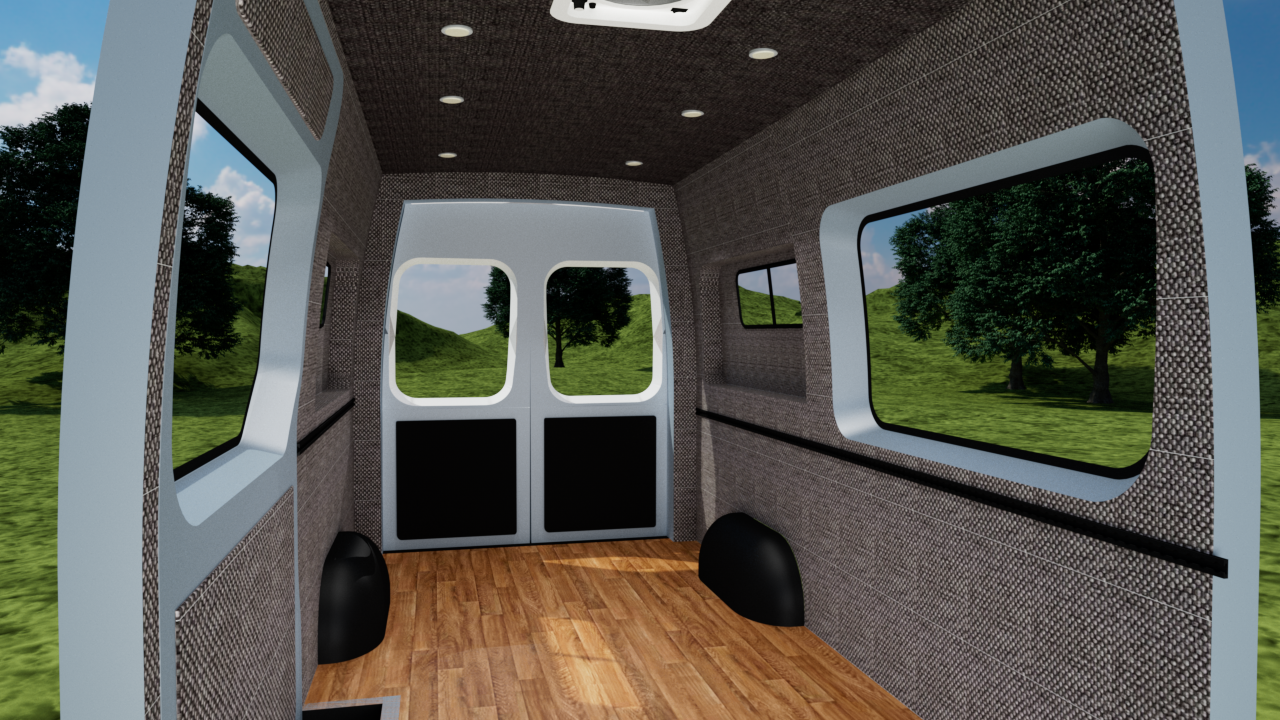

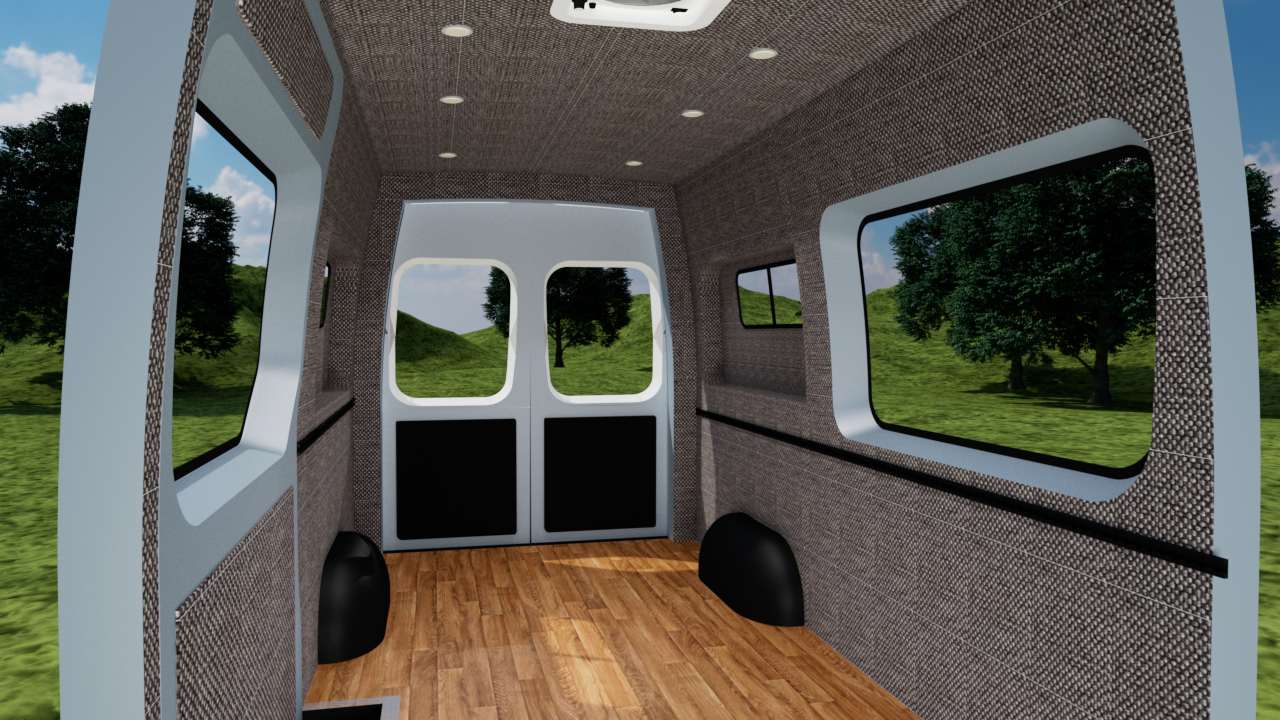

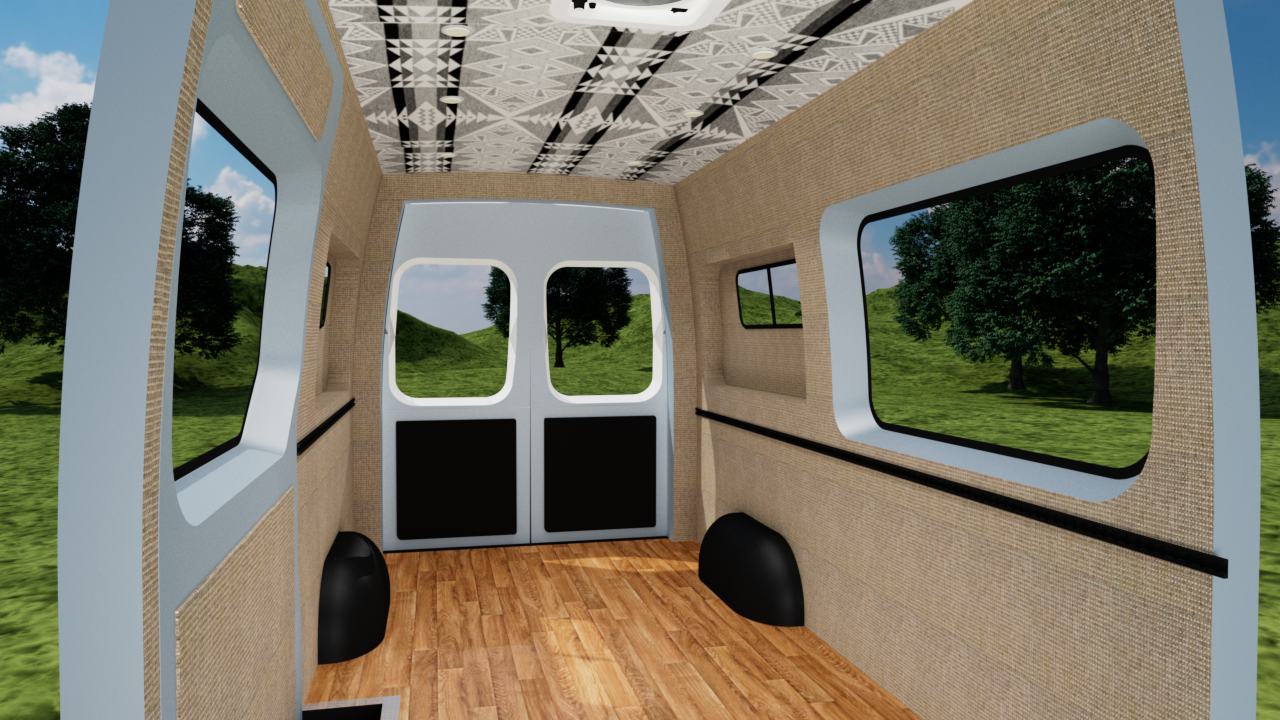

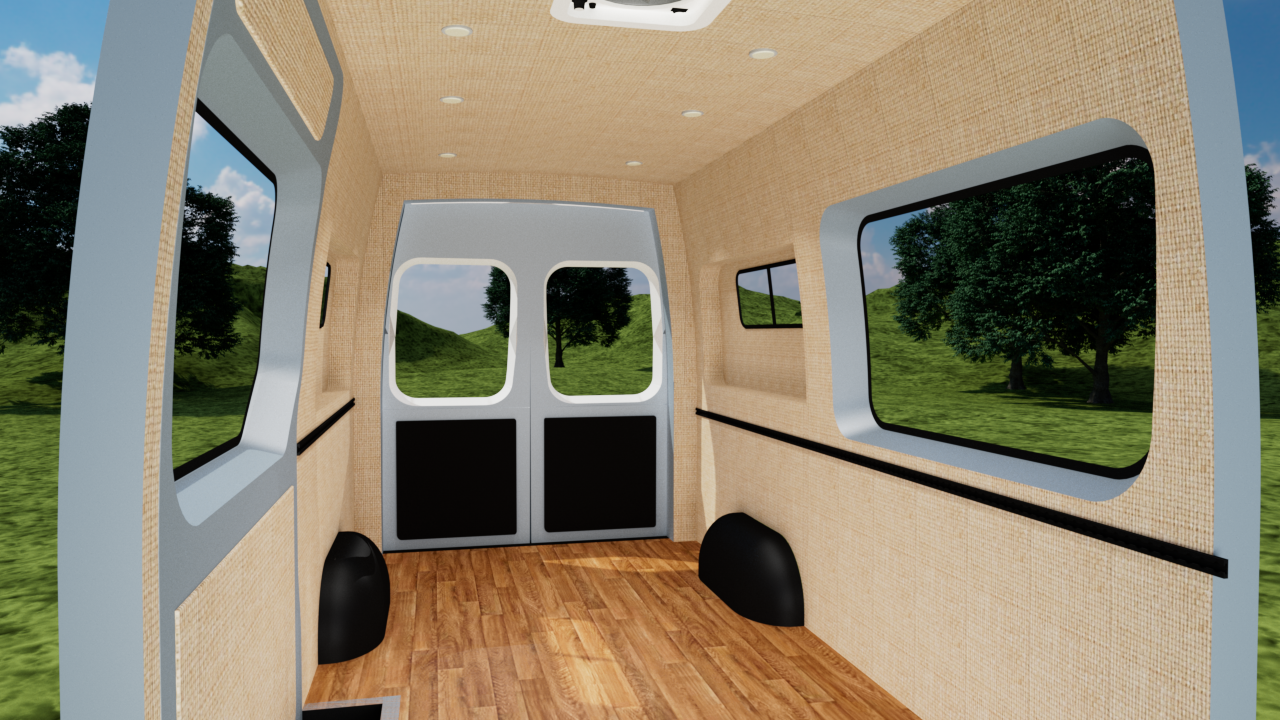

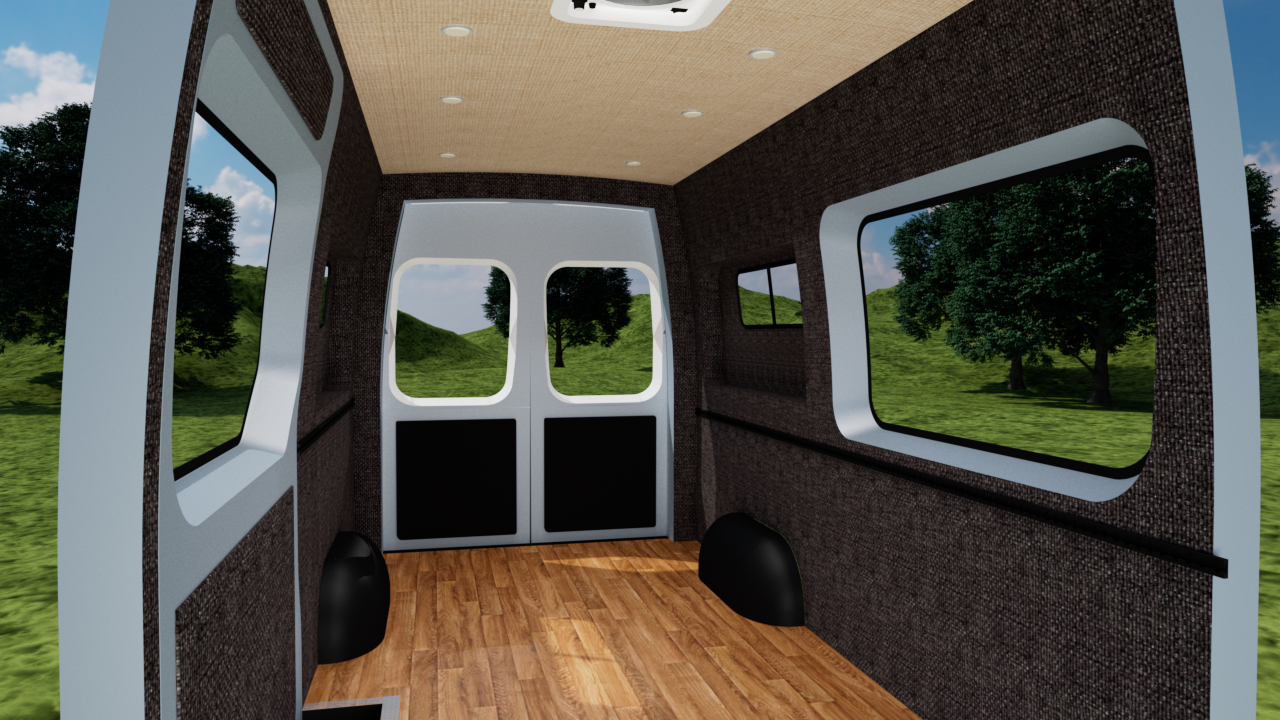

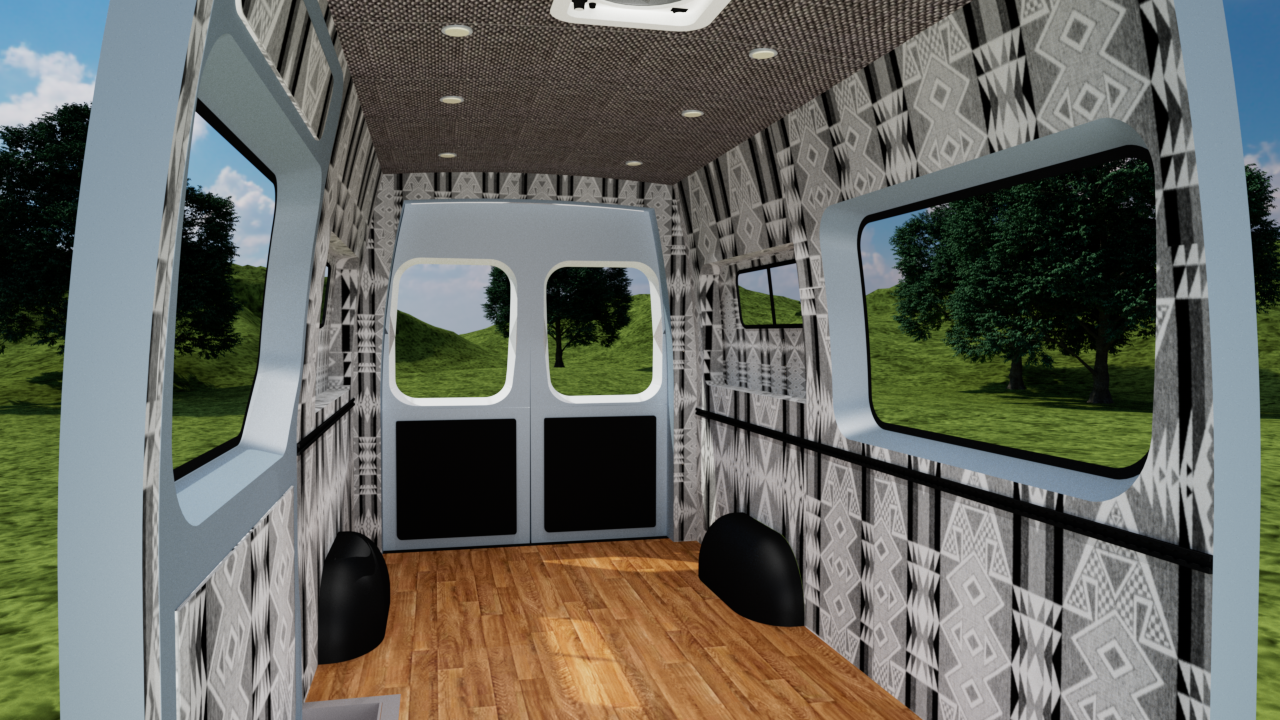

• VARIANT OPTIONS: Wall Panel Color: Marathon-1026 Toast, Marathon-1019 Oat, Marathon-1010 Grey Heather, Marathon-1011 Grey Mix, Marathon-1020 Pewter, Custom

• VARIANT OPTIONS: Ceiling Panel Color: Marathon-1026 Toast, Marathon-1019 Oat, Marathon-1010 Grey Heather, Marathon-1011 Grey Mix, Marathon-1020 Pewter, Custom

• PANEL SYSTEM NOTE: A refined, lightweight, versatile, interior paneling kit that has everything you need and nothing that you don't.

• PANEL SYSTEM NOTE: The kit goes together in less than a day, so you can spend less time building and more time adventuring!

• PANEL SYSTEM NOTE: Our wall & ceiling panels are CNC cut and professionally upholstered.

• INSTALLATION: This interior panel kit is designed for a perfect fit and is bolted into the frame of your van using nearly all stock holes.

• INCLUDED COMPONENTS: Due to the uneven nature of the transit van, this kit includes steel wall and ceiling reinforcement throughout the van that will also help you mount your cabinets and accessories.

• INSTALLATION: These do not install into stock holes and we recommend the use of a rivet gun to install.

• DIMENSIONS: Our kit features 1/8" upholstery foam behind the fabric to give a plush feel and reduce noise in your van.

• DIMENSIONS: It also has a 1/4" reflective foam insulation backing, creating a radiant barrier, as well as, a thermal break from the hot/cold metal of the van.

• THERMAL OR ACOUSTIC: No other kit has this much intrinsic insulation!

• THERMAL OR ACOUSTIC: Pair our kit with one of our pre-cut insulation kits and you will have one of the most insulated vans in town!

• INCLUDED COMPONENTS: Our Interior Panel Kit includes wall panels, ceiling panels, over-the-slider-door trim, corbels (the corner where the wall meets the headliner) , rear door panels, slider door panel, and rear D-pillar trim.

• REQUIREMENT OR EXCLUSION: It does not include the middle window panels for the back doors or the slider door.

• REQUIREMENT OR EXCLUSION: We know every DIY project is different, which is why we do not include insulation, wiring harness, fan or other accessories and we sell everything a-la-carte.

• PANEL SYSTEM NOTE: That way you aren't paying for things you don't need!

• PANEL SYSTEM NOTE: Let us help you make the perfect selections

• PANEL SYSTEM NOTE: Want something easier to clean?

• MATERIAL OR CONSTRUCTION: Select the Sunbrella Horizon fabric option for an easy to wipe down surface!

• PANEL SYSTEM NOTE: Need something even more durable down low for dogs or cargo?

• MATERIAL OR CONSTRUCTION: Select the Black Hexaply lower panels for a pvc coated-textured back finish below the L-track.

• OPENING OR DOOR NOTE: Have a roof vent or air conditioner?

• OPENING OR DOOR NOTE: It is quite easy to cut in openings for fans and AC units, because the trim ring covers up your cut lines.

• VEHICLE FITMENT: We do not offer any pre-cut openings because there is no stock location on the Transit.

• PANEL SYSTEM NOTE: Speaking of cutting openings, we only offer the opening that are the same every time.

• OPENING OR DOOR NOTE: If you want to add 10x33 bunk windows you will want to order the Flatline Van Co.

• OPENING OR DOOR NOTE: Bunk Window Trim so you can cut the openings wherever your window lands.

• INSTALLATION: Use the provided Riv-nuts and L-track to mount all your cabinets and accessories, as well as, other AVW components !

• INSTALLATION: Mounting a bed?

• PANEL SYSTEM NOTE: Our kit is compatible with Flatline Van Co.

• INSTALLATION: Bed Platforms to mount to the L-track and is often used with Van Wife Components bed platforms although you will need to add more rivnuts to mount the J-channel as it does not work with L-track.

• VEHICLE FITMENT: Transit Mid-Roof coming soon!

FEATURES

• CNC-CUT PANELS: Provides the source-listed vehicle fit and professionally upholstered finish.

• LAYERED COMFORT: Uses upholstery foam and reflective backing for feel, noise reduction, radiant control, and a thermal break.

• COORDINATED TRIM: Includes the source-listed wall, ceiling, door, corbel, slider, and D-pillar components.

COMMON PAIRINGS

• PRE-CUT INSULATION: Plan separately sold cavity insulation before closing the walls.

• L-TRACK AND RIVNUT HARDWARE: Coordinate cabinets, beds, and accessories with the supplied mounting system.

• WINDOW, FAN, AND A/C TRIM: Confirm every opening before installing upholstered panels.

COMPATIBILITY & FITMENT

• CHASSIS: Ford Transit configuration stated in the source.

• WHEELBASE: Transit 148 high roof extended only.

• ROOF HEIGHT: High roof extended only; mid-roof is not included.

• REQUIREMENTS: Confirm chassis, wheelbase, roof height, rear-door plastic, colors, lower-panel option, openings, L-track, rivnuts, wiring, insulation, fans, A/C, windows, bed, and cabinet plan. Several accessories are explicitly not included.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What is included in the panel kit?

A: The source-listed wall, ceiling, door, corbel, slider, and D-pillar panels are included; review the technical specifications for exclusions.

Q: Are insulation and wiring included?

A: No, cavity insulation, wiring harnesses, fans, and other accessories are sold separately unless explicitly listed.

Q: Can I add windows, a fan, or air conditioning?

A: Yes, but openings and trim must be planned before installation; some cuts are intentionally left to the builder.

Q: How long does installation take?

A: The source states the panel kit can be assembled in less than a day when the van and supporting systems are prepared.
