At West Coast Vans, we know templating and cutting interior panels can consume weeks of a Transit build, and this AVC Rig wall kit provides a cleaner, faster path to professional walls and ceilings. Have configuration questions before ordering? Ask Us Product Questions Anytime.

WCV EXPERT TIP

Confirm your window, Innie, rear-window, mounting-point, and lighting layout before ordering because each panel set is cut for the selected configuration.

PRODUCT OVERVIEW

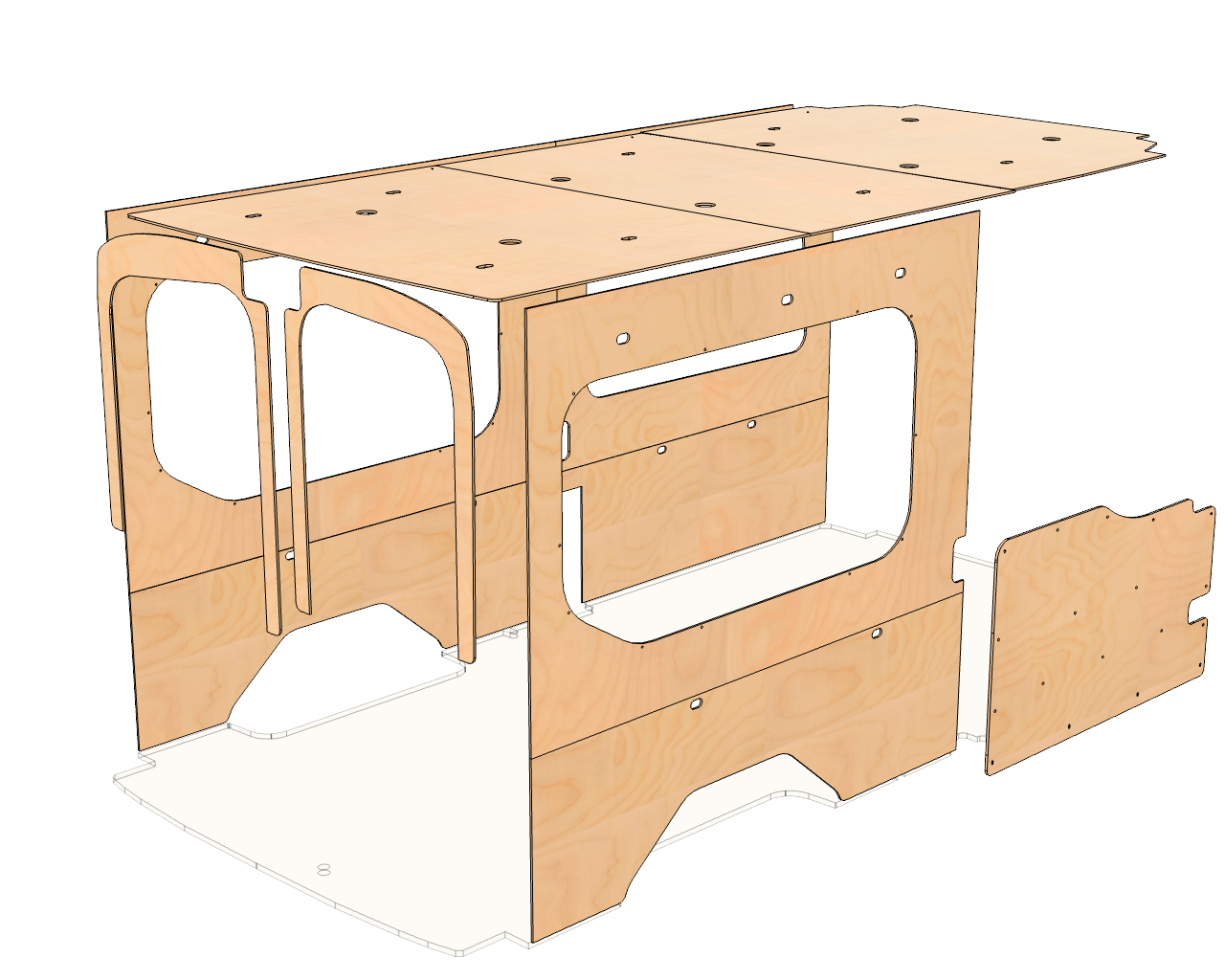

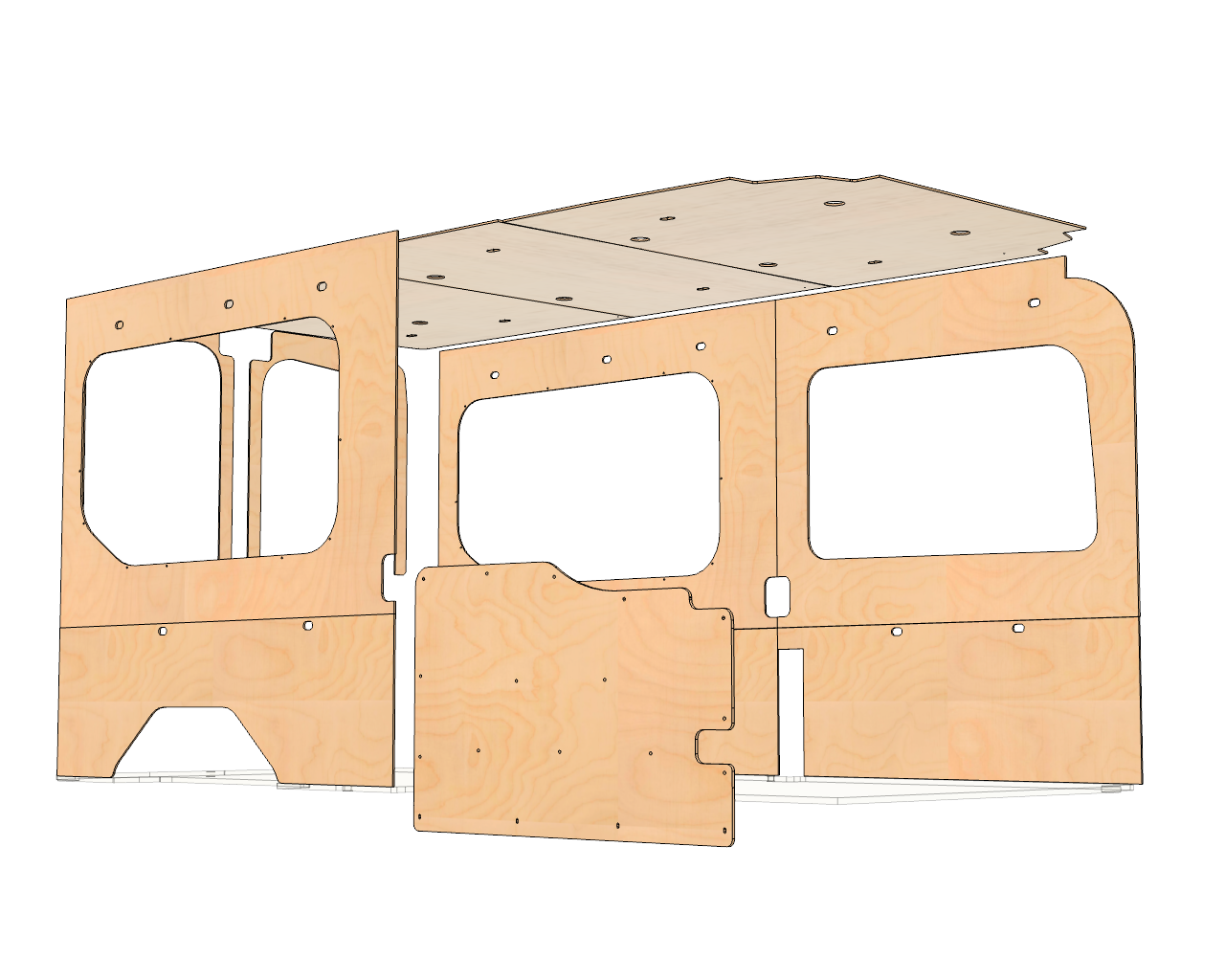

The AVC Rig Ford Transit 148 Medium Roof Wood Wall Kit is a precision-cut interior panel system designed to eliminate time-consuming measuring, templating, and fabrication. It includes wall panels, ceiling panels, rear-door panels, and wall-to-ceiling supports for a clean, professional interior foundation.

Multiple cutout and mounting configurations allow builders to match the kit to their windows, Innie sleeper system, rear-door windows, factory mounting points, roof-rib rivnuts, and ceiling lighting plan.

BEST FOR

• FORD TRANSIT 148 MEDIUM ROOF BUILDS: Ideal for DIY builders who want a complete, precision-cut wall and ceiling package.

• CUSTOM WINDOW AND SLEEPER LAYOUTS: Built for vans requiring selectable front-window, Innie, and rear-window cutouts.

• TIME-SAVING INTERIOR INSTALLATIONS: Great for builders who want to avoid a week or more of panel templating and fabrication.

TECHNICAL SPECIFICATIONS

• VENDOR: AVC Rig

• PRODUCT: Ford Transit 148 Medium Roof Wood Wall Kit

• VEHICLE FITMENT: Ford Transit

• WHEELBASE: 148-inch

• ROOF HEIGHT: Medium Roof

• INCLUDED PANELS: Wall panels, ceiling panels, and rear-door panels

• WALL-TO-CEILING SUPPORTS: Four 60-inch supports included

• BALTIC BIRCH MATERIAL OPTION: 1/4-inch Baltic birch plywood

• BALTIC BIRCH CONSTRUCTION: Higher-quality, multi-ply material with better screw retention

• BALTIC BIRCH APPLICATION: Commonly considered the standard material in the van-building industry

• UNDERLAYMENT MATERIAL OPTION: 1/4-inch underlayment

• UNDERLAYMENT CHARACTERISTICS: Cost-effective and less rigid, allowing it to conform to contours more easily

• OPTIONAL CEILING UPGRADE: 1/4-inch natural bamboo ply ceiling upgrade available; contact West Coast Vans for pricing

• CEILING LIGHT OPTION: Available patterned for eight light locations

• LIGHT HOLE DIAMETER: 2.375 inches

• LIGHT COMPATIBILITY: Patterned for Acegoo lights

• MOUNTING OPTIONS: Solid panels with no holes; OEM and ceiling mounting points; OEM and ceiling mounting points with lights; or OEM wall mounting points without ceiling mounting points or lights

• MOUNTING-POINT FITMENT: Options are available for factory Ford Transit threaded inserts and AVC Rig rivnut locations on the roof ribs

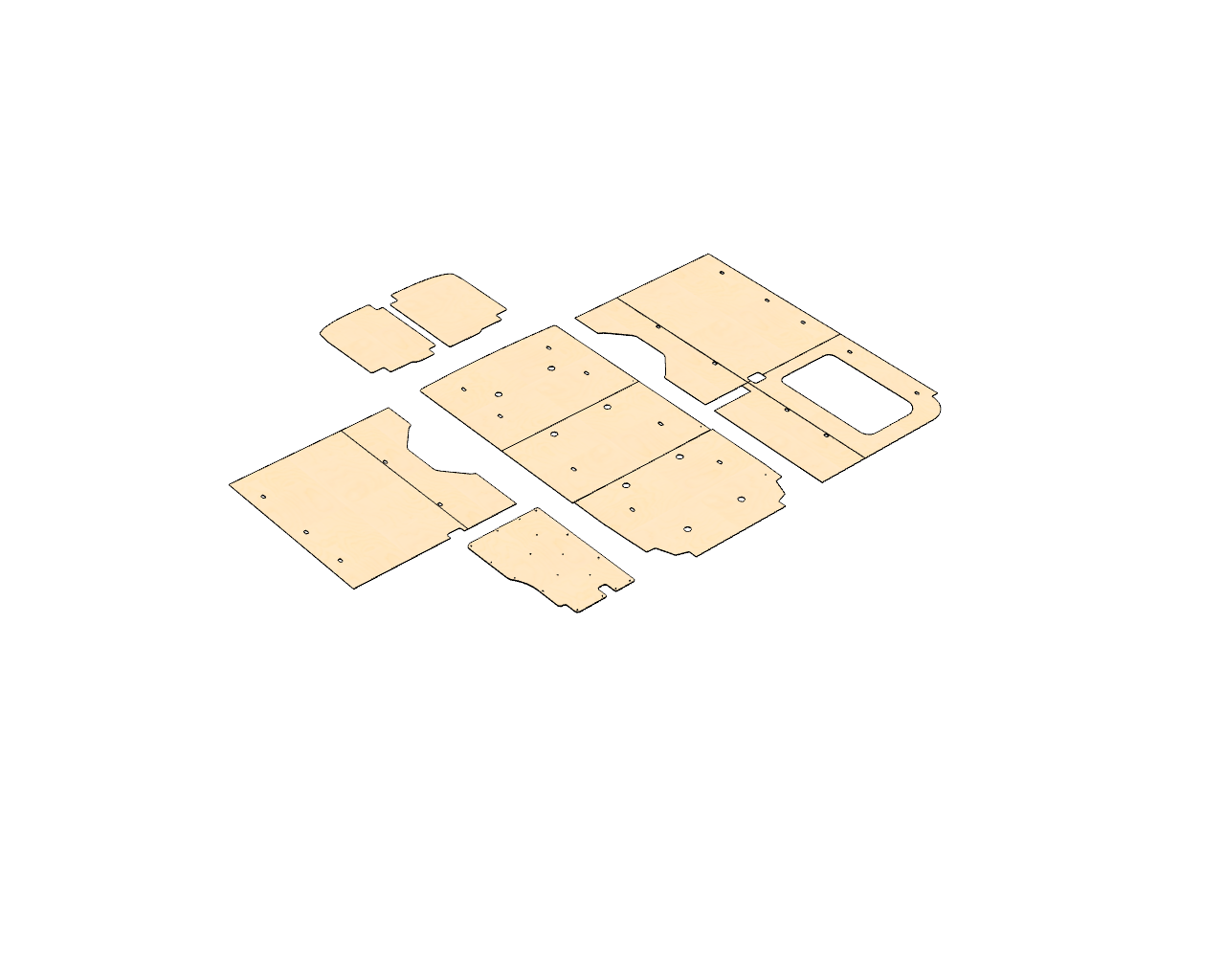

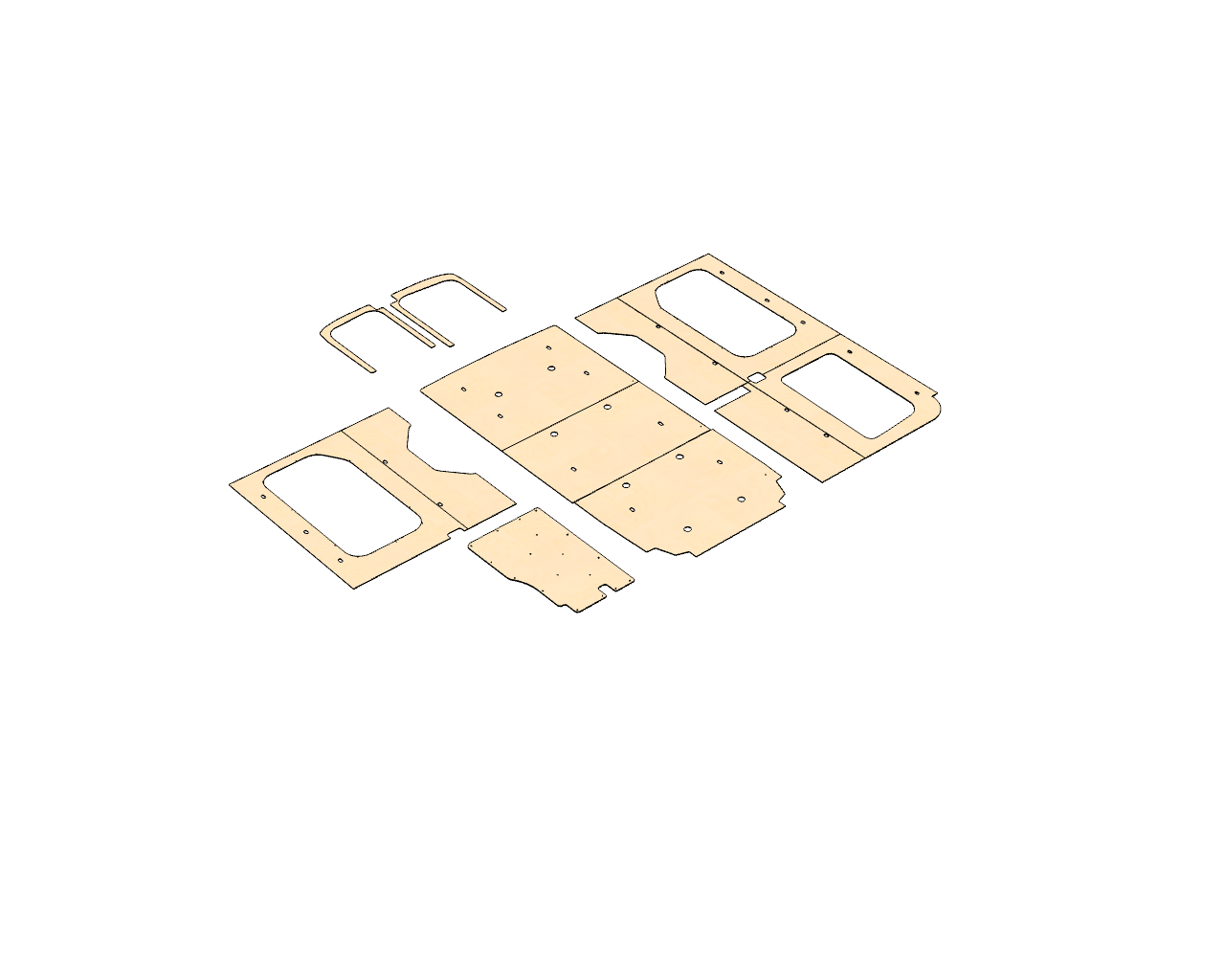

• FRONT-WINDOW OPTIONS: Driver-front solid, CRL FW293L, or GoCode AMA Trim configurations

• INNIE OPTIONS: Available with or without an Innie cutout

• REAR-WINDOW OPTIONS: Available with or without rear-window cutouts

• DRIVER-SIDE WINDOW TRIM NOTE: Kits with front windows no longer include the driver-side window trim frame

• FREIGHT: $200 flat-rate freight

• LEAD TIME: 3-5 weeks

FEATURES

• PRECISION-CUT CONSTRUCTION: Reduces the measuring, templating, and cutting required to finish the walls, ceiling, and rear doors.

• COMPLETE PANEL PACKAGE: Includes the primary wall, ceiling, and rear-door panels needed to establish the interior shell.

• CONFIGURABLE WINDOW CUTOUTS: Supports multiple driver-front and rear-window layouts.

• INNIE SLEEPER COMPATIBILITY: Selectable Innie cutouts accommodate compatible recessed sleeping systems.

• FLEXIBLE MOUNTING PATTERNS: Choose solid panels or pre-patterned mounting locations based on your installation plan.

• OPTIONAL LIGHTING PATTERN: Eight pre-cut 2.375-inch ceiling openings simplify compatible Acegoo light installation.

• MATERIAL OPTIONS: Choose Baltic birch for strength and screw retention or underlayment for lower cost and easier contouring.

COMMON PAIRINGS

• FORD TRANSIT WINDOW SYSTEMS: Match the panel cutouts to the selected driver-front and rear-window configuration.

• INNIE SLEEPER SYSTEMS: Select an Innie-compatible variant when installing recessed sleeping pockets.

• ACEGOO CEILING LIGHTS: Pair with the optional eight-location, 2.375-inch ceiling-light pattern.

COMPATIBILITY & FITMENT

• CHASSIS: Ford Transit

• WHEELBASE: 148-inch

• ROOF HEIGHT: Medium Roof

• REQUIREMENTS: Select the correct material, front-window configuration, Innie cutout, rear-window cutout, mounting-point pattern, and lighting pattern. Front-window kits do not include the driver-side window trim frame.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What is included with the Ford Transit 148 Medium Roof wall kit?

A: The kit includes wall panels, ceiling panels, rear-door panels, and four 60-inch wall-to-ceiling supports.

Q: Can I order the ceiling with holes for lights?

A: Yes, an optional ceiling configuration includes eight 2.375-inch holes patterned for Acegoo lights.

Q: Does the kit support different window and Innie layouts?

A: Yes, selectable configurations include multiple driver-front window treatments, optional Innie cutouts, and optional rear-window cutouts. West Coast Vans can help confirm the correct configuration before ordering.

Q: Are the driver-side window trim frames included?

A: No, kits configured with front windows no longer include the driver-side window trim frame.
