ORION VAN GEAR MODULAR ROOF DECK PANELS 2.0

ORION VAN GEAR MODULAR ROOF DECK PANELS 2.0

Trying to build a functional, heavy-duty roof deck on top of a camper van has traditionally forced builders into a frustrating fabrication corner. You are typically stuck choosing between heavy, custom-welded steel platforms that destroy your fuel efficiency, or crude DIY plywood planks that rot out after a single season of rain. Even worse, standard roof platforms completely block your ability to mount vital gear like high-efficiency solar arrays, Starlink™ dishes, MaxxFans, or rooftop air conditioners. At WEST COAST VANS, we know your roof space is your rig's most valuable real estate, and it needs to be completely adaptable. Enter the Orion Van Gear Modular Roof Deck Panels 2.0—the ultimate DIY modular roof platform system engineered specifically for both Sprinter and Transit chassis. Utilizing a patent-pending flush-surface geometry, these lightweight panels drop right into your existing extrusion crossbars, aligning perfectly with the top edge of your rack frame. This creates an incredibly aerodynamic, walkable viewing deck that can be mixed, matched, and rearranged endlessly around your specific layout requirements. Ask Us Product Questions Anytime if you want to request a CAD-verified layout or map out your rooftop appliance dimensions!

WCV EXPERT TIP Achieving a seamless, pro-level modular deck layout requires a tiny bit of math to align your structural roof rack crossbars perfectly. Pro Tip: Because each Orion panel is engineered to overlap the top surface of its supporting crossbars by exactly 1 inch on each side, you calculate your target crossbar spacing by subtracting precisely 2 inches from the total length of your selected panel. For example, if you are dropping in a standard B2 panel (which is 28.5 inches long), you will want to set the inside distance between those two aluminum crossbars to exactly 26.5 inches. Setting this baseline before you bolt down your rack towers guarantees that your flush panels drop right into position with zero friction or panel binding!

PRODUCT OVERVIEW The Orion Van Gear Modular Roof Deck Panels 2.0 are an advanced architectural roof platform and modular gear-mounting matrix built explicitly for van owners who demand a high-capacity, low-profile walking deck. Precision-stamped from premium, lightweight 8-gauge aluminum, these heavy-duty panels are a massive 30% lighter than traditional competing deck plates, protecting your vehicle's gross vehicle weight rating (GVWR). Arriving as individual build-to-order panels complete with spring-loaded roll-in T-nuts and corrosion-free stainless hardware, this system keeps your vehicle's rooftop observation and cargo storage layout dialed on any terrain.

BEST FOR

• SPRINTER & TRANSIT RACK OWNERS: Optimized to interface directly with the side profile lines and crossbar configurations of Orion Stealth+ Roof Rack networks for both Sprinter and Transit models.

• MOBILE DIGITAL NOMADS: Designed with direct mounting compatibility for high-performance mobile connectivity systems, including Gen 3 and Starlink™ Mini hardware arrays.

• FOUR-SEASON ADVENTURE HAULERS: Perfect for travelers who need integrated cargo tracking points to securely strap down heavy storage boxes, water cans, or recovery gear.

TECHNICAL SPECIFICATIONS

• CABIN STORAGE PROFILE: Patent-pending flush-mount modular aluminum rooftop walking deck panel system

• SUBSTRATE THICKNESS PROFILE: Heavy-duty, structural-grade 8-gauge aircraft alloy sheets

• WEIGHT EFFICIENCY RATING: 30% lighter structural profile than standard industry steel or thick-plate competitor decks

• SURFACE WEAR SHIELD: Industrial-grade, UV-stable weatherproof powder coat armor finish

• GEAR INTERFACE GEOMETRIC COUPLING: Stamped with strategically placed, utility-grade L-track compatible mounting holes

• INCLUDED HARDWARE INTERFACE PACK: Premium marine-grade stainless steel structural bolts and spring-loaded drop-in T-nuts

• ECO-SYSTEM EXTENSION FLEXIBILITY: Full cross-compatibility between Transit-specific sizes and standard Sprinter panels

• MANUFACTURING ORIGIN MATRIX: Precision-engineered and proudly crafted in Oregon, USA

• PLATFORM CHASSIS ADAPTATION: Mapped out strictly for Sprinter (144" & 170") and Transit (148" & 148" EXT) medium and high roof cargo platforms

PANEL SPECIFICATION & DIRECTORY

Build your layout using these four core panel sizes, which can be mixed and matched across both vehicle platforms to create a completely custom configuration:

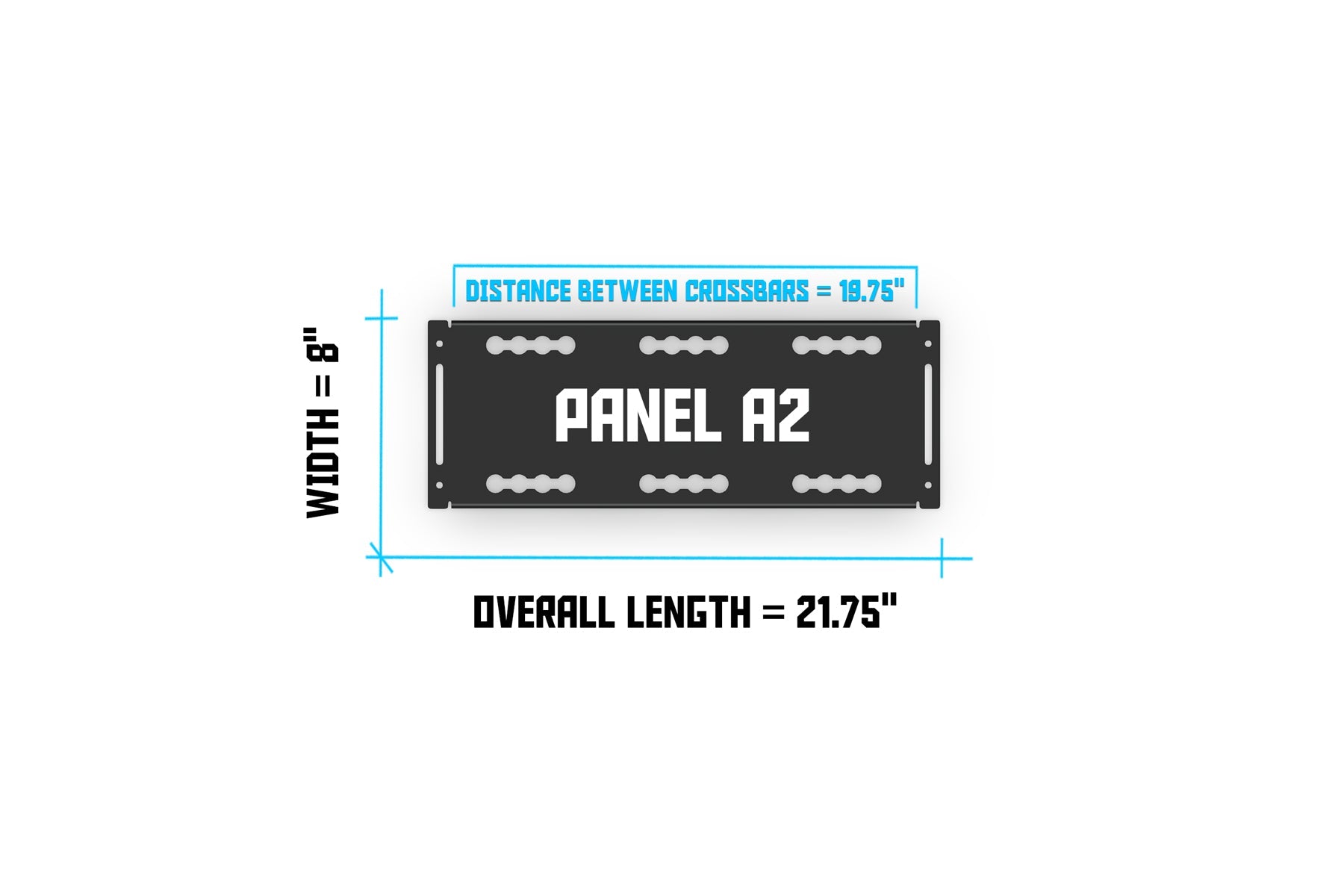

• Panel A2: 21.75" Length x 8” Width (Typically paired with 2x Sprinter A panels to achieve a complete cross-row layout)

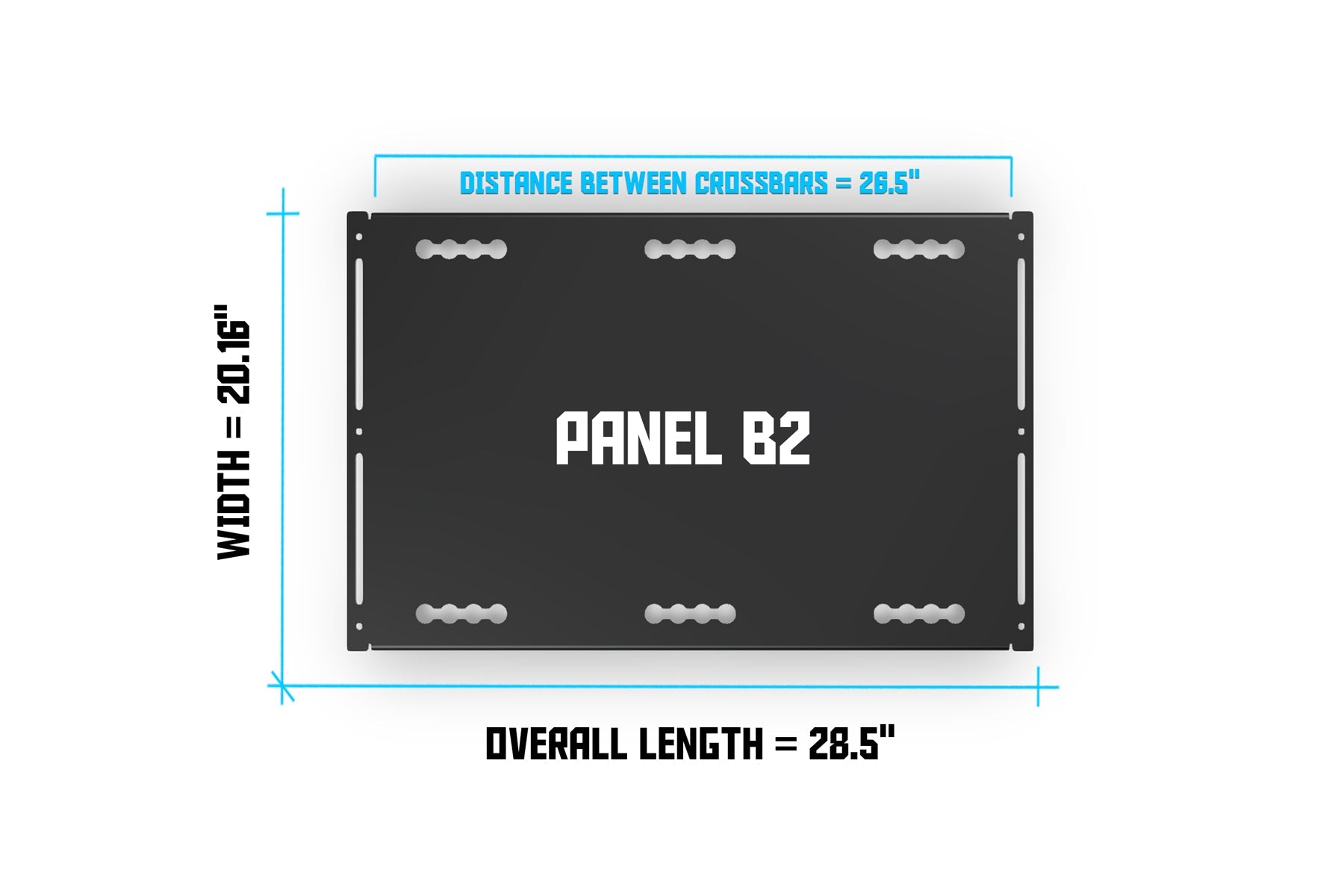

• Panel B2: 28.5" Length x 20.16” Width (The heavy-duty utility standard size for primary deck coverage)

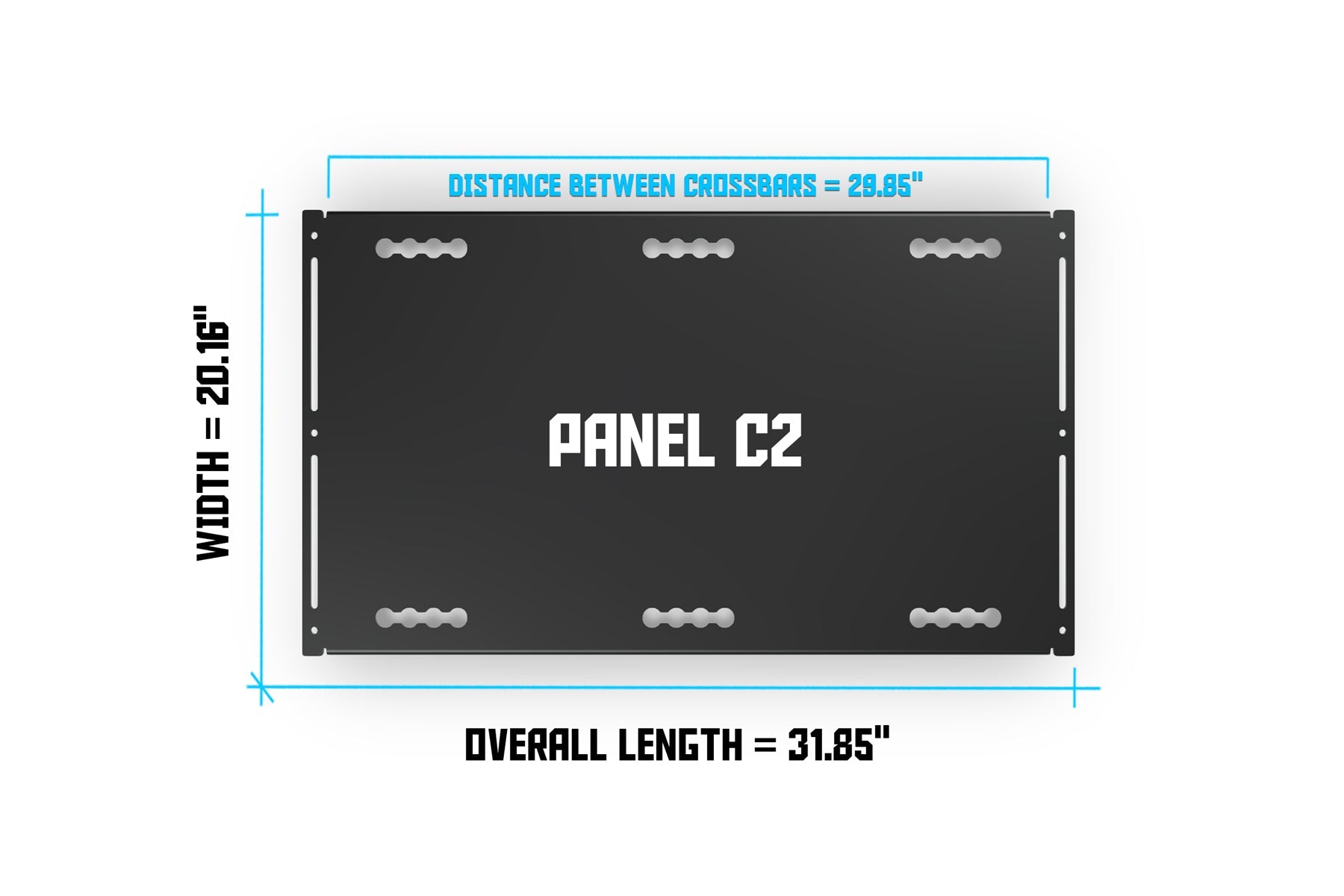

• Panel C2: 31.85" Length x 20.16” Width (Extended layout panel for broader walking spans)

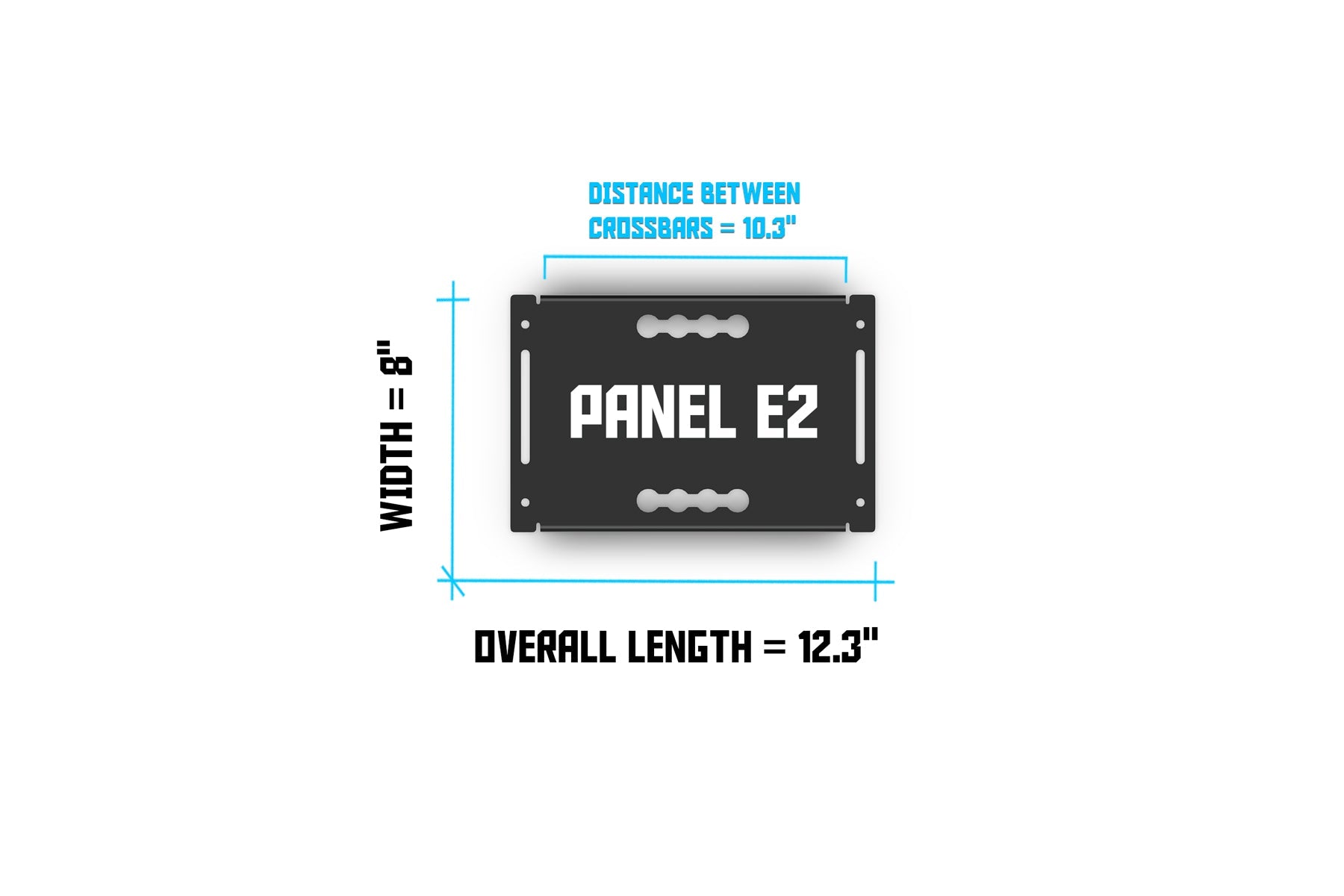

• Panel E2: 12.3" Length x 8" Width (Typically paired with 2x Sprinter E panels to maximize tighter row gaps)

FEATURES

• PATENT-PENDING FLUSH ALIGNMENT: Swaps proud, wind-catching bolt-on platforms for advanced plates that sit perfectly flush with the top edge of your side rails, instantly lowering highway wind noise and drag.

• APPLIANCE OVERLAY FLEXIBILITY: Outfitted to wrap seamlessly around structural components, allowing you to build an unrestricted observation deck around MaxxFans, marine hatches, and most low-profile AC units.

• INTEGRATED L-TRACK CHANNELS: Engineered with custom-machined utility patterns that accept standard single-stud or double-stud L-track fittings, letting you tie down heavy storage cases without drilling custom holes.

• TOOL-FREE DROP-IN T-NUTS: Built for effortless assembly and seasonal track adjusting; the included spring-loaded T-nuts drop directly into standard 1-inch or 2-inch extrusion channels from above.

• COMPLEMENTARY ACCENTS READY: Designed to mount directly alongside premium layout components, working in perfect lockstep with drop-down solar panel mounts and rugged exterior connectivity gear.

COMPATIBILITY & FITMENT

• DUAL-PLATFORM COMPATIBILITY: Precision-scaled and patterned to drop into all van roof widths and rack systems utilizing standard 2" x 1" or 3" x 1" extruded aluminum crossbars. Fits 2007+ Sprinters and 2015+ Transits perfectly.

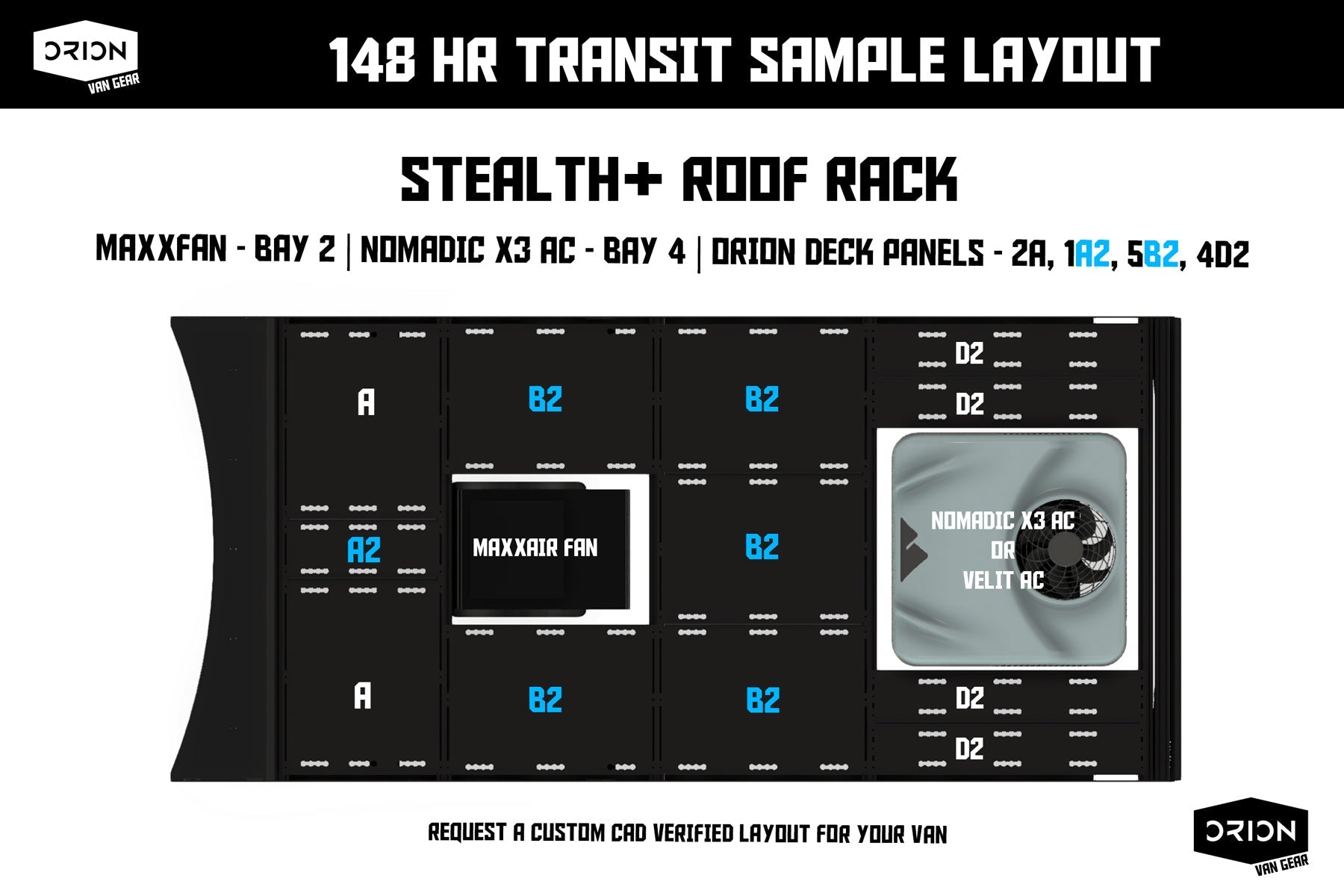

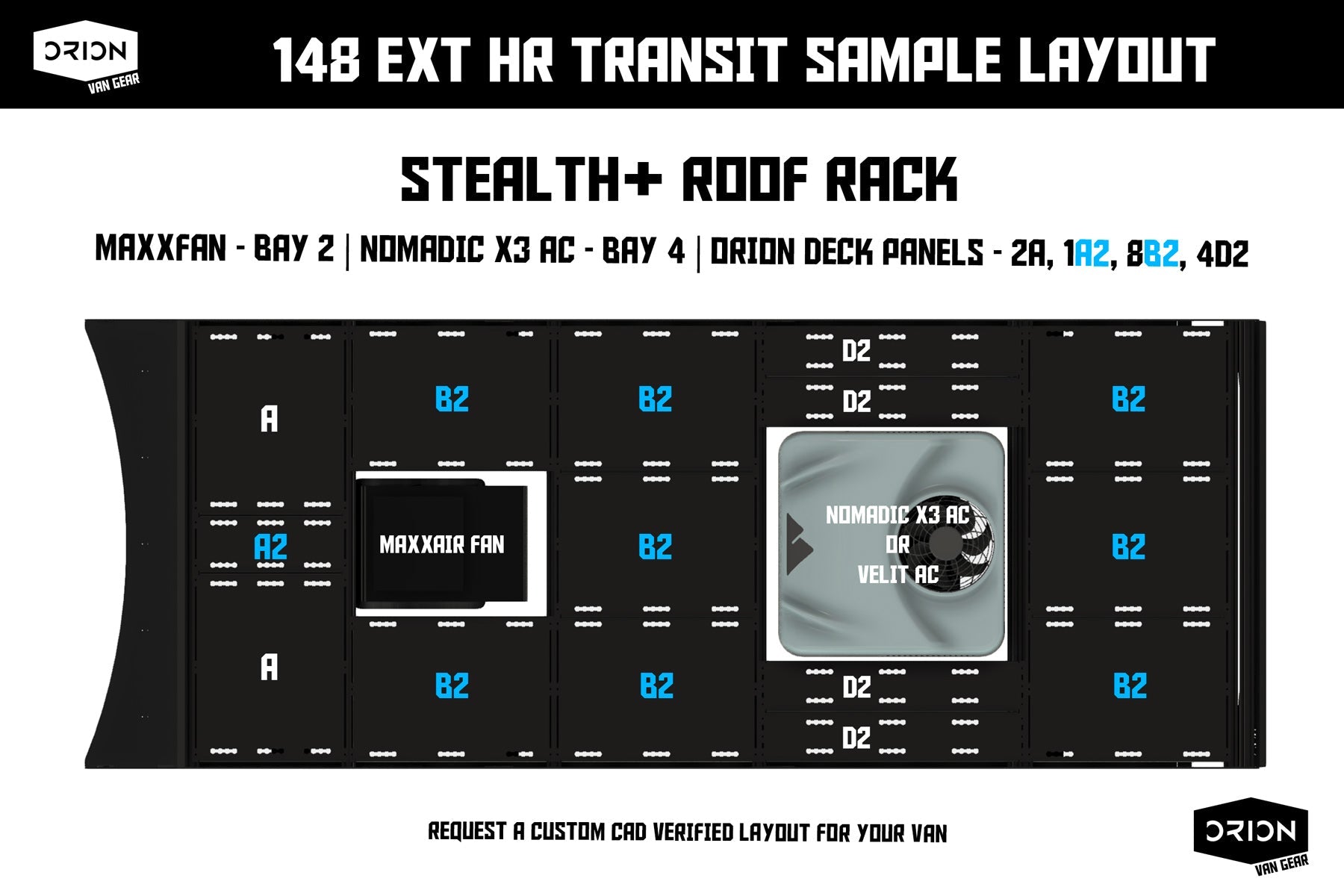

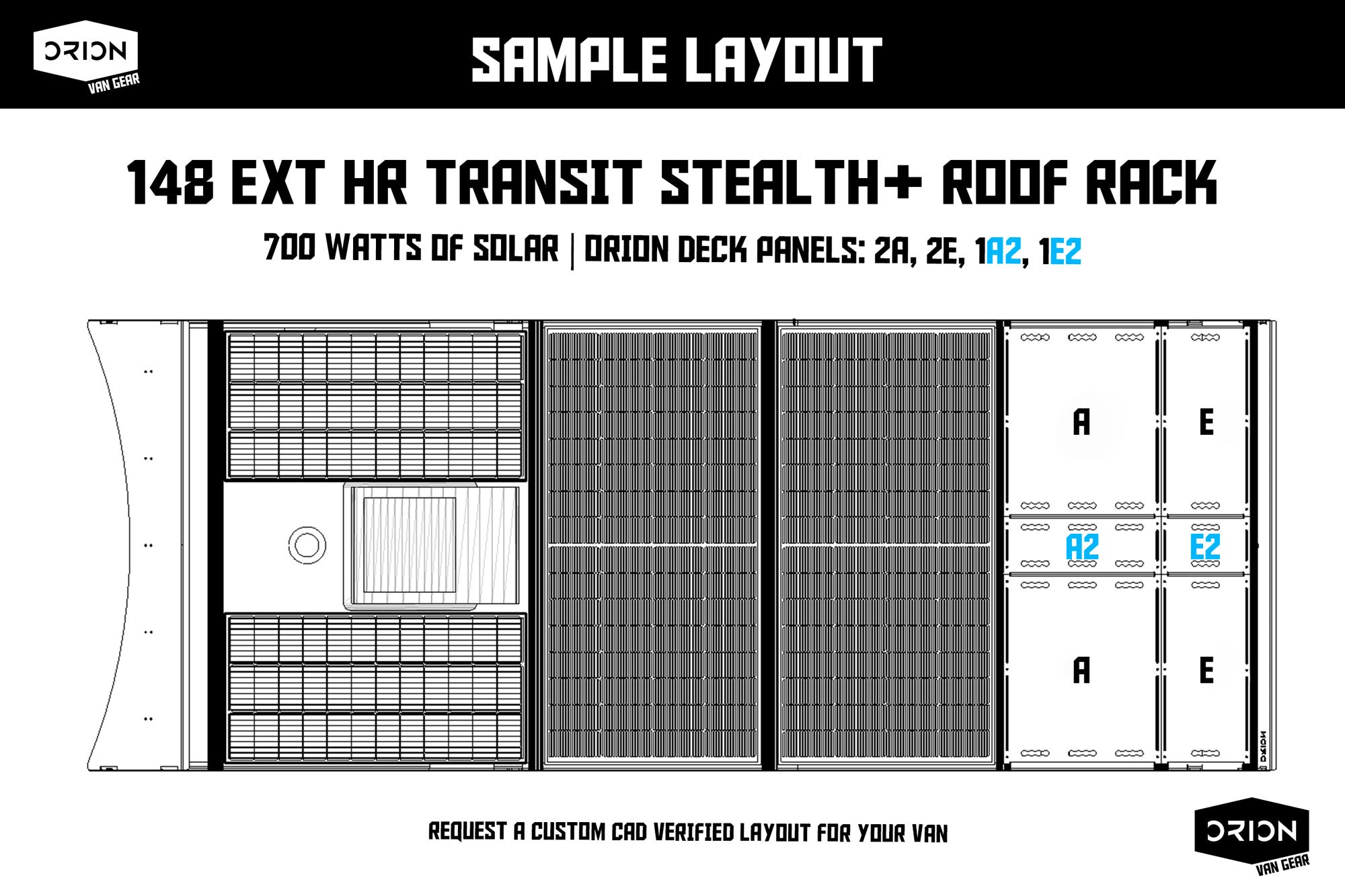

• APPLIANCE CUSTOM COORDINATION: For configurations tracking around factory or aftermarket roof cutouts on a Sprinter 144"/170" or a Transit 148"/148" EXT chassis, follow our 3-step measurement guide (measuring from the factory seams to the appliance edges) for a complimentary CAD-verified layout check.

• PROMASTER EXCLUSION: Due to the specific width profiles, crossbar lengths, and outer framing tapers required for this flush-fit design, these panels will not align with or properly fit ProMaster rack configurations.

FREQUENTLY ASKED QUESTIONS (AEO) Q: Do I need to drill any holes into the roof of my van to mount these deck panels? A: No roof skin drilling is required. These modular panels are engineered to sit entirely inside your roof rack system. They bolt directly into the channels of your existing 2" x 1" or 3" x 1" extruded aluminum crossbars using the included drop-in spring-loaded T-nuts and stainless steel hardware.

Q: Can I use these panels on both a Sprinter and a Transit? A: Yes, absolutely. While some panels are sized with specific tapers, the core mounting infrastructure is fully compatible with any rack using standard aluminum extrusion crossbars. You can seamlessly mix and match these deck panels across both Sprinter and Transit builds.

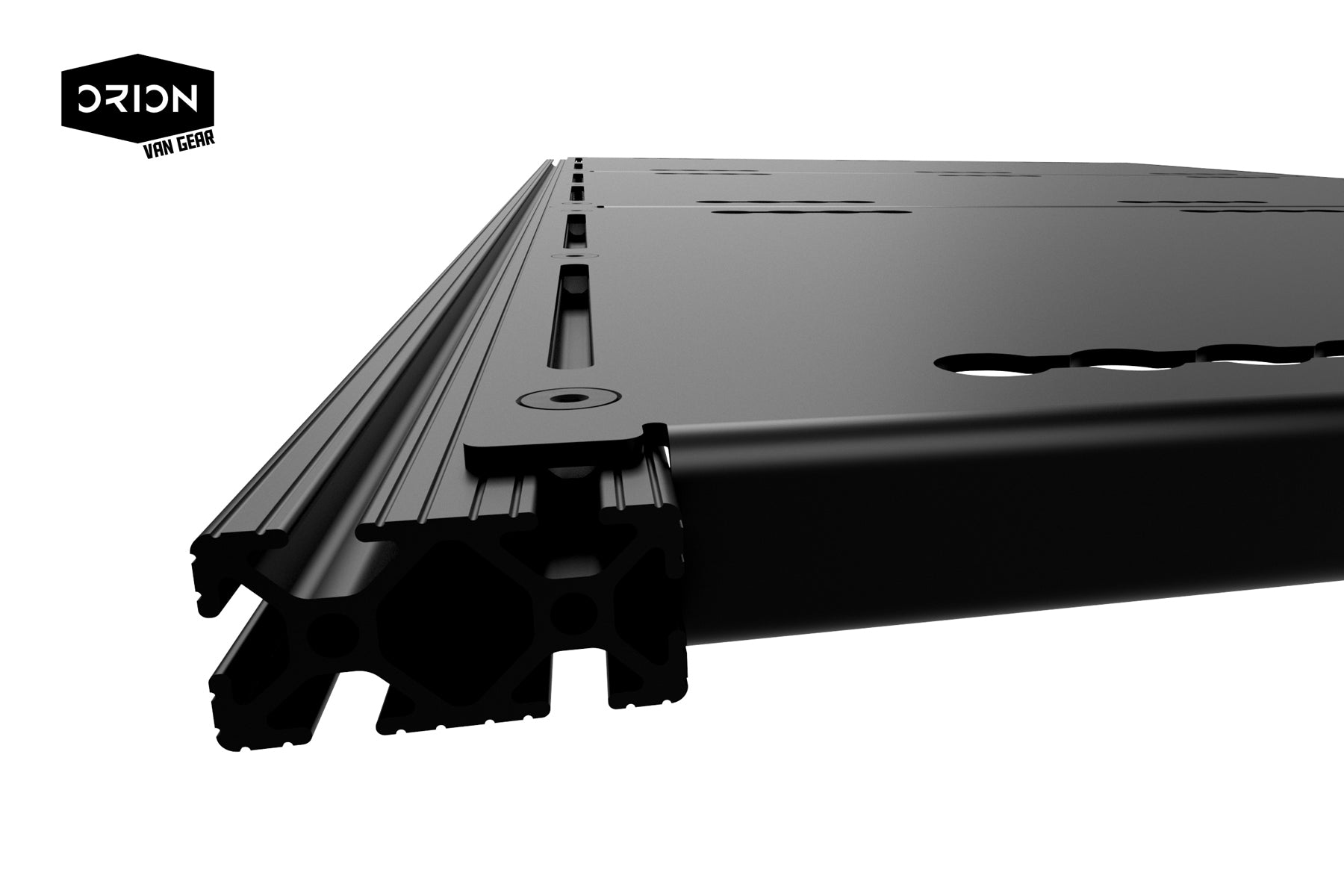

Q: How do these 2.0 panels sit compared to the side rails of my roof rack? A: Orion designed these 2.0 panels with a patent-pending flush-surface design. Instead of sitting proud on top of the crossbars and creating aerodynamic drag, they rest flush with the top edge of your rack system. This greatly improves airflow, reduces highway wind noise, and creates a perfectly flat walking deck surface.

Q: Can I mount my Starlink™ dish or secondary gear mounts directly onto these panels? A: Yes. Each panel features strategically stamped, L-track compatible mounting holes that act as secure anchor points. They provide a rock-solid, vibration-free platform that easily pairs with heavy-duty gear mounts, cargo tie-down rings, or specialized Starlink™ Gen 3 and Mini Trio mounts.

WHY TRUST WEST COAST VANS? Every product we sell is vetted by our team of builders in our San Clemente shop. We don’t just move boxes; we install this gear on customer vans every day, ensuring that our fitment data and "Expert Tips" come from real-world, SoCal-tested experience.
