WHITE TOP ADVENTURES TRANSIT 130" LOW ROOF STRATA ROOF RACK

WHITE TOP ADVENTURES TRANSIT 130" LOW ROOF STRATA ROOF RACK

At WEST COAST VANS, our build team knows that maximizing a short-wheelbase van layout requires pushing your bulky cargo up top to preserve every inch of your indoor living room. The White Top Adventures Transit 130" Low Roof Strata Roof Rack supplies an ultra-sleek, full-length cargo platform tailored specifically to reclaim your upper real estate. This heavy-duty safari platform gives you the ultimate modular footprint to cleanly stage high-efficiency solar arrays, heavy-duty rooftop tents, and rugged gear lockers without adding unnecessary height to your low-profile stealth rig. Ask Us Product Questions Anytime to map out your component clearance, lighting layout, or custom crossbar arrangements before you spin your first wrench!

WCV EXPERT TIP: Getting a quiet, rattle-free rooftop platform layout requires loose-fitting your sub-components during the initial bench assembly. WCV builders recommend keeping all your tower brackets and side blade fasteners finger-tight until the entire aluminum framework is resting directly on your Transit's roof track points. Once the 6 alignment towers are seated square within the factory roof channels, apply a dab of blue threadlocker and torque all the hardware down evenly to guarantee a perfectly flush, wind-quiet installation over rugged washboard tracks.

PRODUCT OVERVIEW

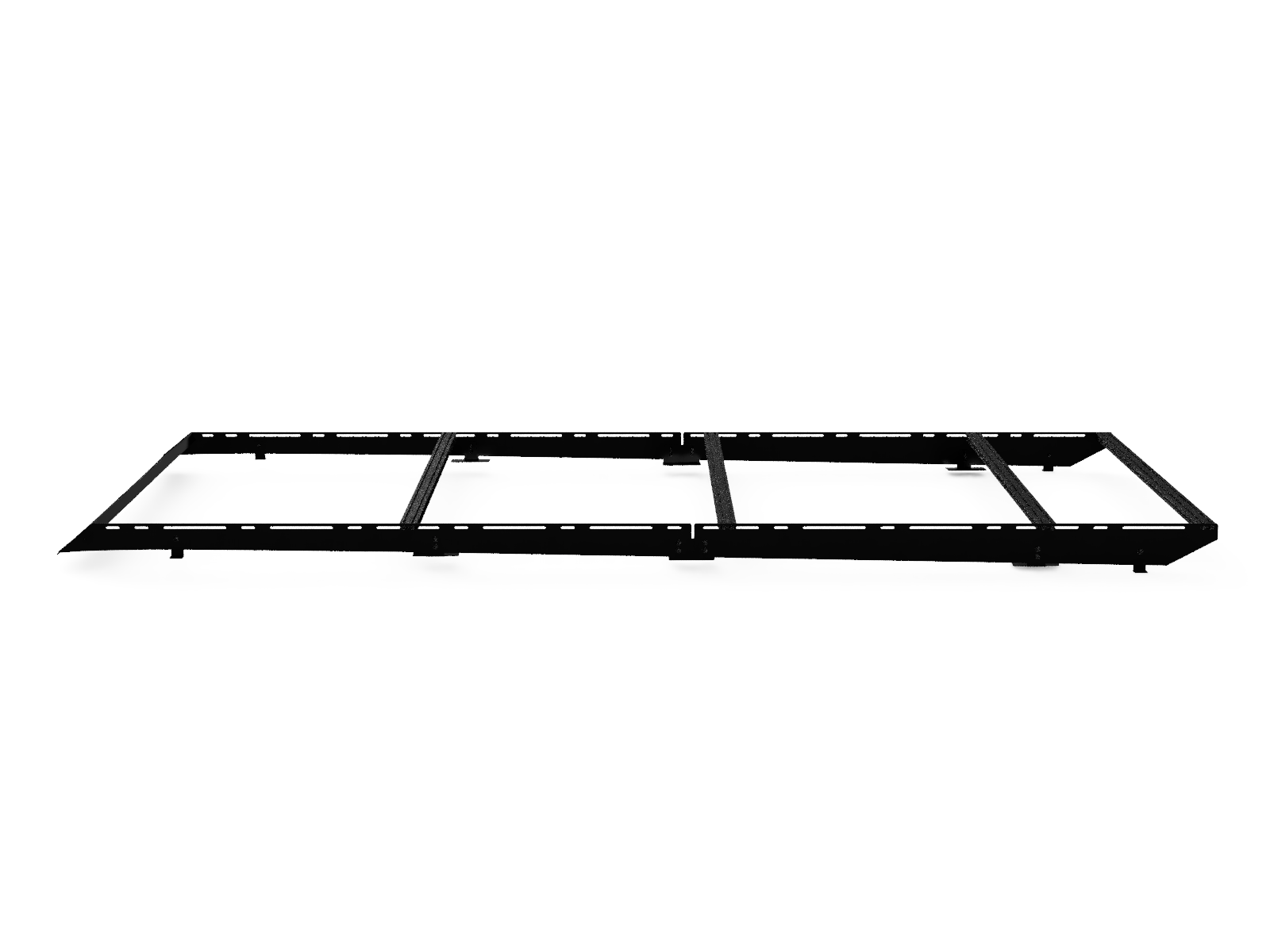

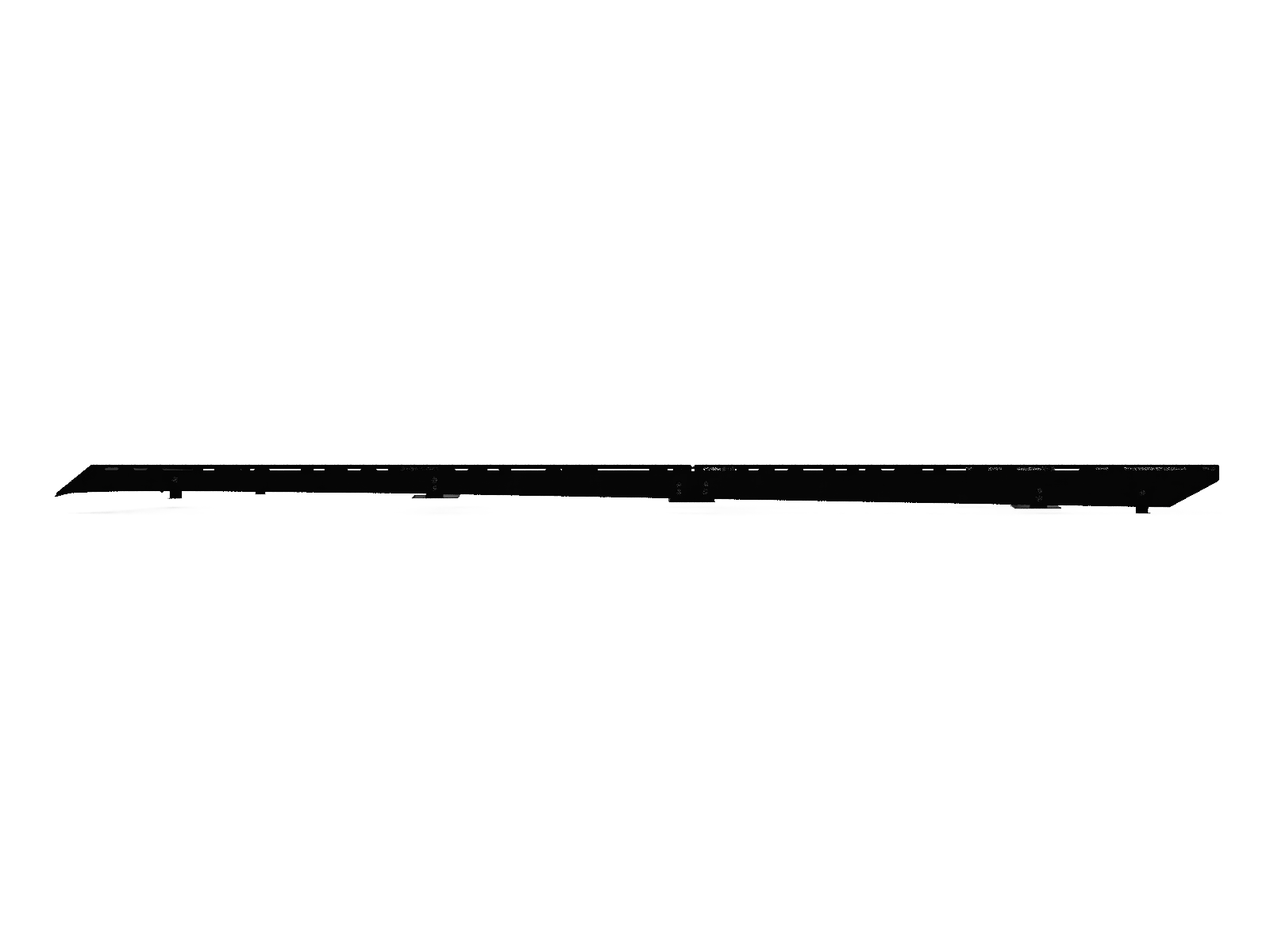

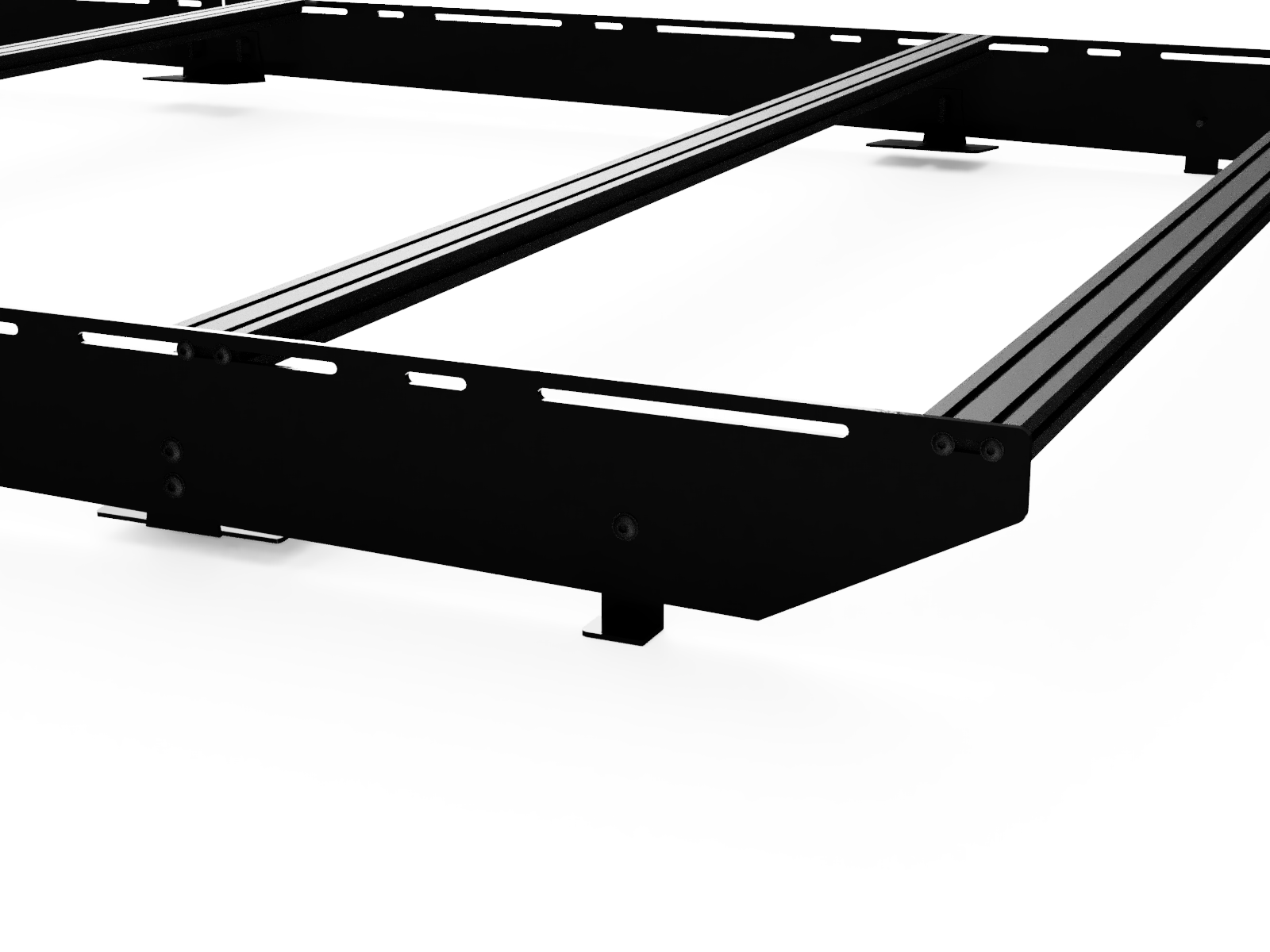

The White Top Adventures Transit 130" Low Roof Strata Roof Rack is a premium, full-length aluminum cargo platform engineered as a direct bolt-on system requiring zero permanent vehicle modifications. The side blades are masterfully constructed from ultra-rugged 3/16” thick aircraft-grade aluminum and bound together by heavy-duty extruded aluminum T-slot crossbars. Mounted firmly to the vehicle utilizing 6 precision-bent aluminum towers that anchor directly into the Ford factory mounting locations, the entire assembly is primed and wrapped in a durable, lightly textured matte black powder coat finish. Arriving standard with 5 adjustable crossbars, it serves as an incredibly rigid, drill-free staging deck built for seasoned overland upfit facilities and first-time DIY self-builders alike.

BEST FOR

• LOW-CLEARANCE STEALTH RIGS: Perfect for short-wheelbase, low-roof Transit builders who need a high-capacity storage tray that easily slips under standard garage entries and drive-thrus.

• ADJUSTABLE OFF-GRID SOLAR UPGRADES: Ideal for self-builders wanting an adaptable T-slot track system to slide and position structural cross-members smoothly around specialized solar panels.

• DRILL-FREE DIY EXPEDITION PLATFORMS: Designed for adventurers looking for a rugged bolt-together utility basket that anchors cleanly into factory infrastructure to preserve vehicle resale value.

TECHNICAL SPECIFICATIONS

• RACK CHASSIS BASE LINE: Full-length low-profile aluminum modular safari cargo platform basket

• SIDE BLADE SUBSTRATE MATERIAL: 3/16” Thick heavy-duty high-tensile aircraft-grade aluminum plating

• SUPPORT TOWER ARCHITECTURE: Six (6) precision CNC-bent structural aluminum mounting towers

• SURFACE PROTECTION COATING: Multi-stage primer base finished with a durable, lightly textured black powder coat armor

• INTERNAL SYSTEM CROSSBARS: Five (5) adjustable extruded aluminum T-slot crossbars included (1 for wind fairing, 4 for structural utility cargo staging)

• MECHANICAL FASTENER TRACKS: Complete kit of corrosion-resistant stainless steel black oxide coated mounting hardware

• VEHICLE CHASSIS COMPATIBILITY: Custom dimensioned for 2015-Present Transit 130" Wheelbase Low Roof platforms

FEATURES

• MODULAR BOLT-ON UTILITY: Engineered as a 100% direct bolt-on architectural framework that mounts straight to the factory roof locations with absolutely zero drilling or cutting required.

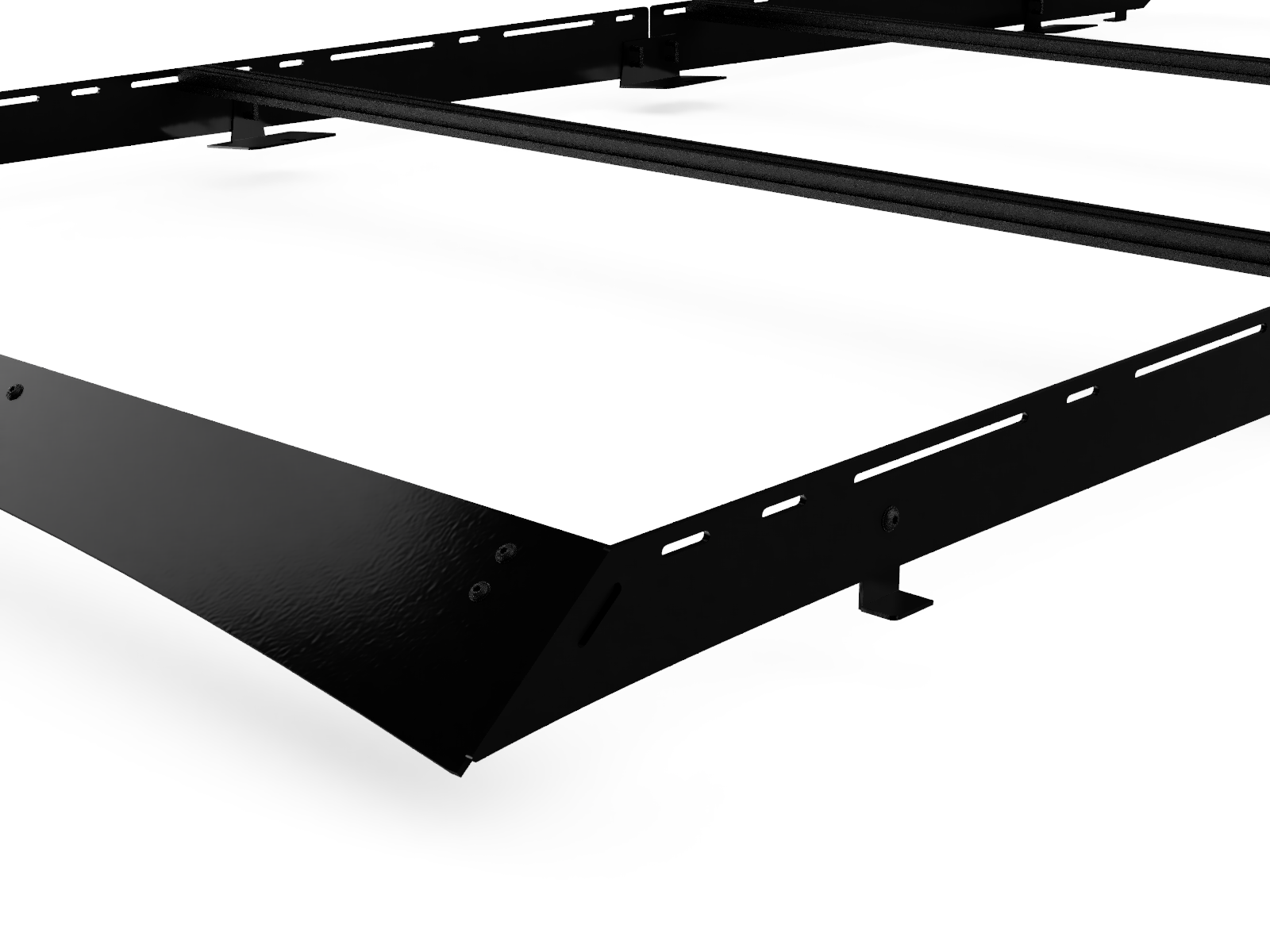

• AERODYNAMIC INTEGRATED FAIRING: Features a low-profile contoured front silhouette and a dedicated wind fairing crossbar that deflects high-velocity highway airflow to virtually eliminate cab cabin noise and buffeting drag.

• INFINITE T-SLOT ANCHORING: The high-strength extruded aluminum crossbars feature dual-channel tracking that accepts standard T-slot hardware, enabling you to bolt down storage boxes, traction boards, or camp gear anywhere on the grid.

• EXPANDABLE CARGO INTERFACE: Supplied standard with 4 heavy-duty structural crossbars, the rugged side blades are pre-machined to easily accept numerous additional crossbars to scale up to a complete walk-on deck surface.

• RUST-PROOF WEATHER SHEETING: Built using a specialized marine-grade aluminum core and UV-resistant powder coating to guarantee zero rust streaks or finish oxidation when exposed to prolonged coastal salt air or heavy winter snowpack.

COMMON PAIRINGS

• TRANSIT SIDE-MOUNT ACCESS LADDER: Provides safe, high-traction side access to comfortably reach, strap down, and manage your upper roof cargo tray accessories.

• 10-SERIES DROP-IN T-SLOT NUTS: The cleanest, highest-strength mounting fasteners to quickly lock solar brackets or storage boxes directly into the crossbar channels.

• HEAVY-DUTY WATERPROOF ROOFTOP CARGO VAULTS: Heavy-duty, locking exterior storage cases designed to bolt directly down into the T-slot cross-members.

COMPATIBILITY & FITMENT

• CHASSIS FITMENT: Transit Platforms (2015-Present Models)

• WHEELBASE REQUIREMENT: 130" Short Wheelbase Only

• ROOF PROFILE COMPATIBILITY: Low Roof models only (will not contour correctly to Medium or High Roof chassis lines)

• MOUNTING REQUIREMENTS: Anchors strictly into the 6 factory-installed roof attachment points provided along the vehicle's factory roof seam.

• LOGISTICAL FACTOR: Standard shipment transit processing features an efficient 48-hour lead time if the kit layout is fully verified in stock.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Do I need to drill any holes into my Low Roof Transit's roof skin to secure this rack?

A: No, you can leave the power drill away. The Strata Roof Rack is meticulously engineered to bolt directly into the 6 factory-installed roof mounting points provided by the manufacturer along your van's roof seam. This direct bolt-on DIY layout ensures a 100% drill-free exterior installation.

Q: Can I add more crossbars to this rack if I want to build a complete platform walking deck?

A: Yes, absolutely. While the package comes supplied standard with 5 total crossbars (1 specialized for the front wind fairing and 4 for general structural load placement), the heavy-duty 3/16" side blades feature an expansive layout of pre-machined mounting slots. This modular architecture allows you to easily buy and slide in numerous additional crossbars to build out a custom dense platform grid.

Q: What type of hardware accessories can I mount to the extruded crossbars?

A: The inner crossbars are constructed from standard anodized aluminum extrusions that feature built-in channel tracking. This design allows you to smoothly slide in standard drop-in T-slot hardware or carriage bolts to easily tie down, bracket, or strap down your solar panels, recovery boards, awning mounts, and rugged storage vaults.

Q: Will the black oxide finish on the mounting bolts rust over time when exposed to winter road salt?

A: No, it will not. White Top Adventures supplies this package exclusively with high-grade, corrosion-resistant stainless steel hardware wrapped in a premium black oxide coating. This commercial-grade fastener matrix ensures your structural rack links maintain an unyielding hold and a clean, blacked-out aesthetic without ever generating ugly rust streaks down your paint.
