WHITE TOP ADVENTURES 148" HIGH ROOF STRATA ROOF RACK (10-SERIES 80/20 PLATFORM)

WHITE TOP ADVENTURES 148" HIGH ROOF STRATA ROOF RACK (10-SERIES 80/20 PLATFORM)

Here at WEST COAST VANS, we have a golden rule: buy it right, or buy it twice. There is nothing worse than dropping thousands on a rigid, pre-welded safari basket only to find out it blocks your MaxxAir fan, forces you to mount your solar panels in the shade, or whistles like a freight train down the highway. We know the roof layout on a 148" chassis is a complex landscape of fans, radio antennas, and AC shrouds, which is why our shop crew swears by the modular flexibility of the White Top Adventures Strata Rack. This "pro-builder" platform uses industry-standard 10-series 80/20 crossbars, allowing you to slide, lock, and bolt on your off-grid gear exactly where you need it without any custom metal fabrication. It delivers high-end modular precision at a smart price point that keeps your build moving forward. Ask Us Product Questions Anytime to map out your solar array footprint or coordinate an awning install before you spin your first wrench!

WCV EXPERT TIP: Roof seams on this platform are notorious for "weeping" moisture at the factory mounting points if they aren’t sealed up tight during assembly. The Strata rack features an updated double-pad weather-sealed landing mount system, which is a massive structural upgrade. When you're ready to mount the feet, make sure to thoroughly prep and clean the factory roof paint with isopropyl alcohol first. Even with the advanced dual-layer rubber seals doing the heavy lifting, our builders always apply a tiny bead of Sikaflex 221 around the bolt threads—it’s a quick step that provides absolute "peace of mind" for four-season travelers heading into heavy snow or torrential rain.

WCV COMPARISON: The Strata is your undisputed "Modular Value" champion for this chassis platform. While premium alternatives offer specialized "No-Drill" brackets or heavier 15-series aluminum extrusions at a steep cost premium, the Strata delivers a rock-solid, incredibly rigid 10-series 80/20 framework. It achieves this while remaining significantly lighter than the competition—tipping the scales at a lean 62 lbs—giving you maximum customization freedom without unnecessarily raising your vehicle's center of gravity.

PRODUCT OVERVIEW

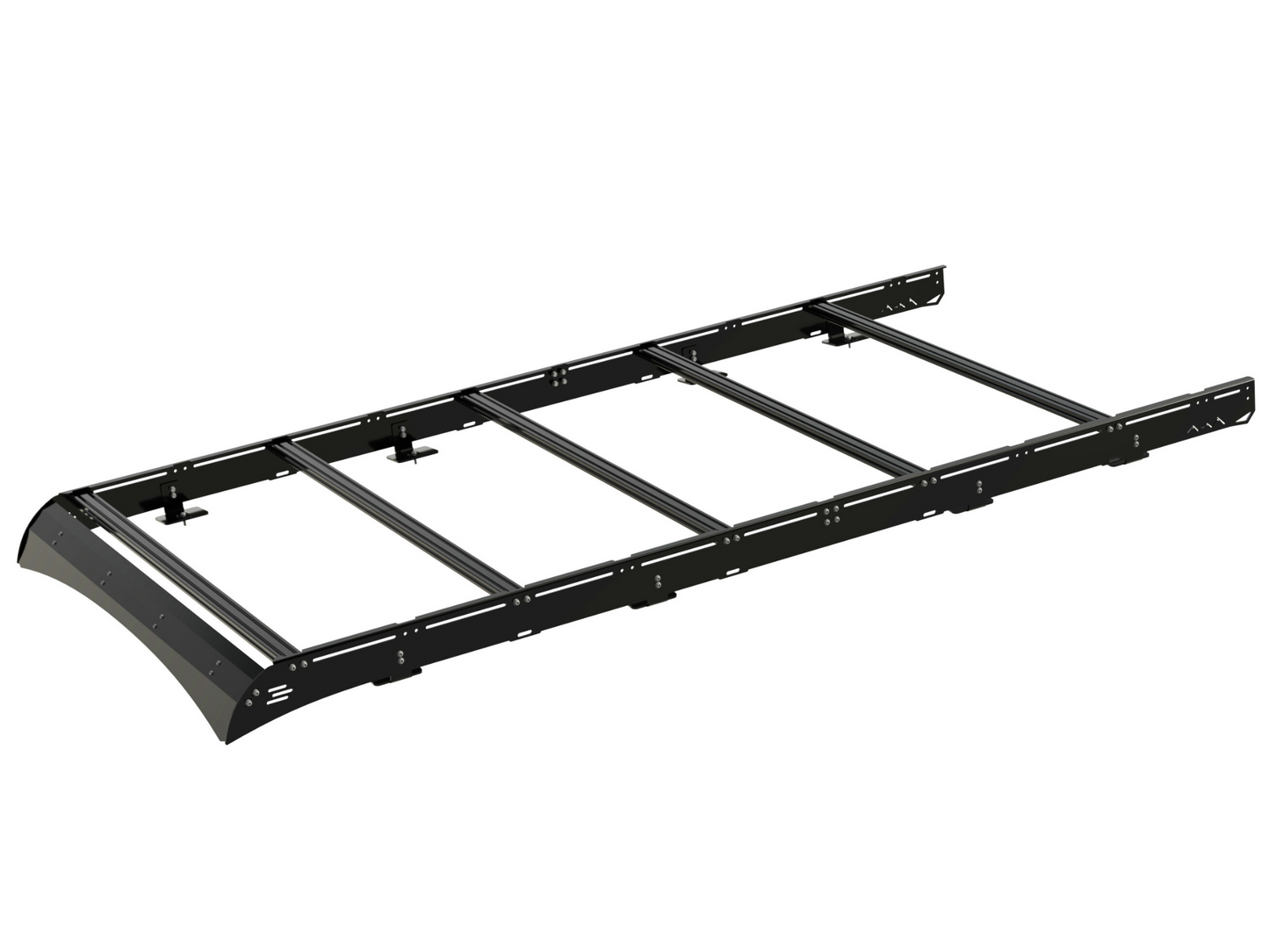

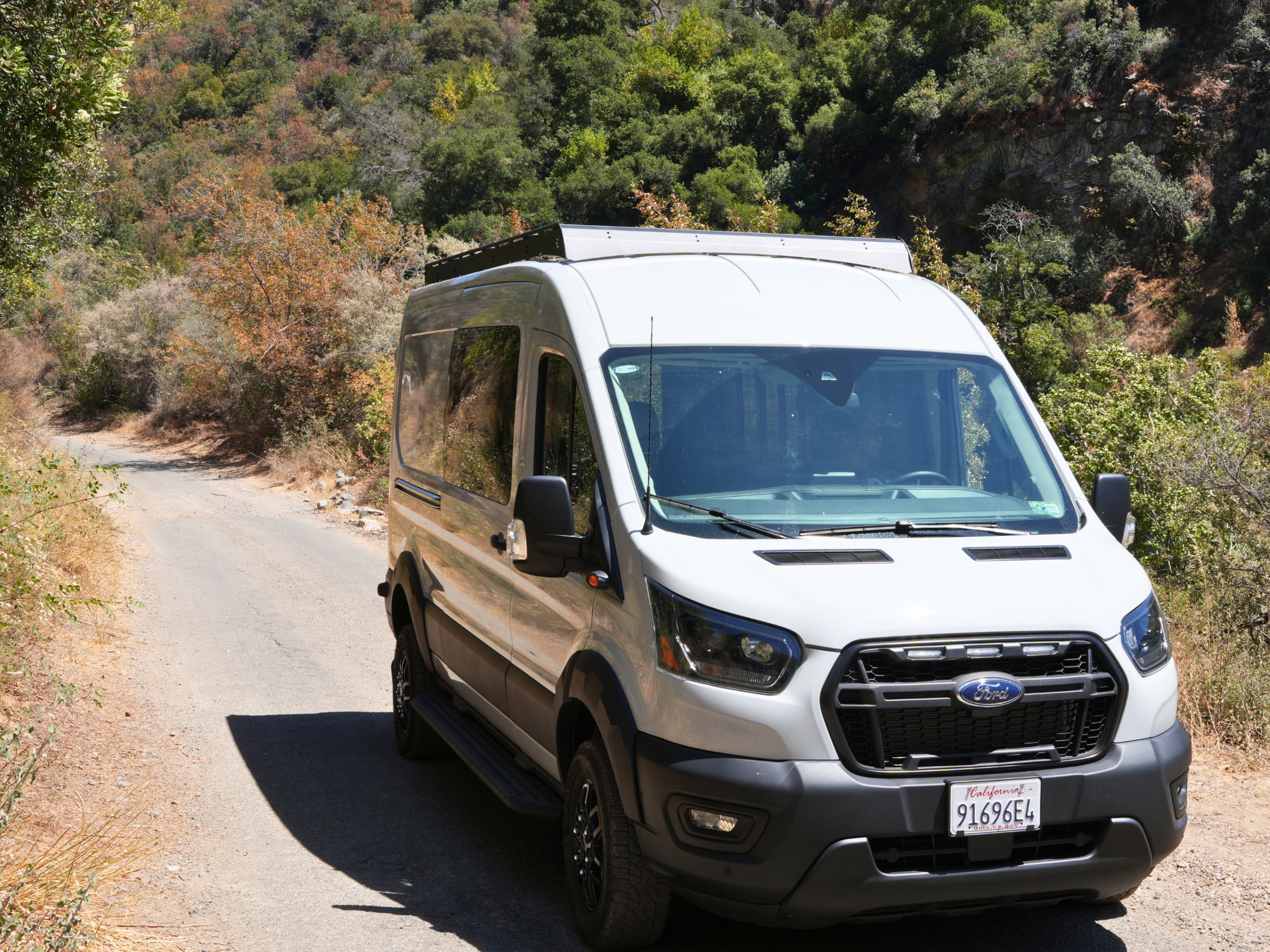

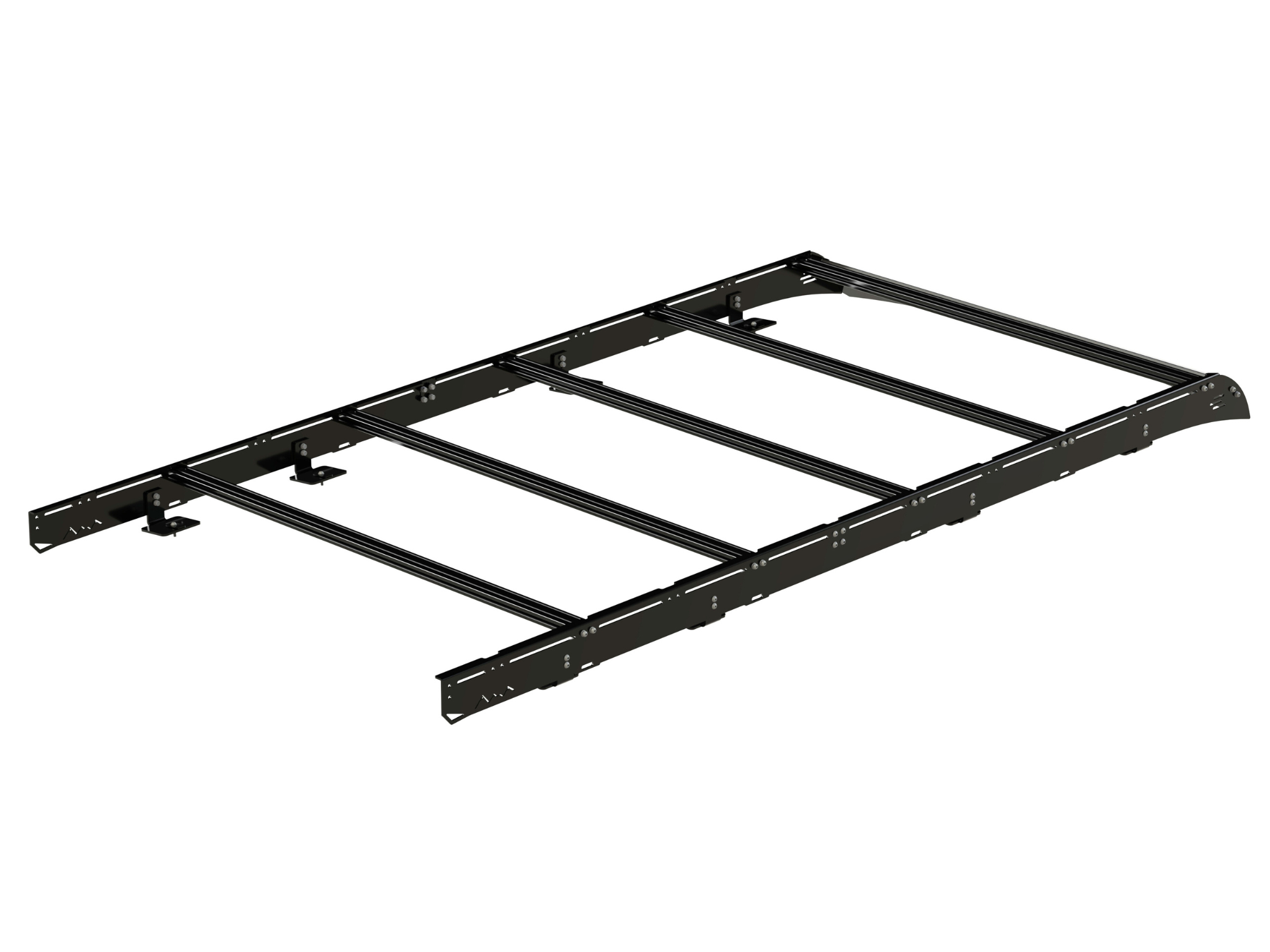

The White Top Adventures Strata Roof Rack for the 148" High Roof is a lightweight, low-profile, and fully adjustable deck network. Engineered specifically to match the 2015+ 148" standard non-extended chassis lines, this premium platform features contoured side rails that closely follow the van's natural roof curve to drastically cut down on high-speed drag and cabin wind noise. Complete with six anodized 10-series 80/20 compatible cross-members and an integrated wind fairing designed to effortlessly host heavy off-road LED lighting arrays, this rack serves as the ultimate basecamp foundation for overlanders and full-time vanlifers demanding high-capacity storage.

BEST FOR

• HIGH-CAPACITY MODULAR OVERLANDING: Perfect for self-builders who need a highly adjustable tracking system to dynamically position off-grid solar panels, recovery tracks, and cargo boxes around roof obstructions.

• WEIGHT-CONSCIOUS HIGH-ROOF BUILDS: Ideal for van owners looking to minimize top-heavy roof weight to preserve highway fuel economy and protect stock suspension driving dynamics.

• INTEGRATED EXTERIOR LIGHTING & SHADE: Designed for travelers who plan to mount full-length side awnings and high-output front light bars for rapid campsite illumination and late-night trail navigation.

TECHNICAL SPECIFICATIONS

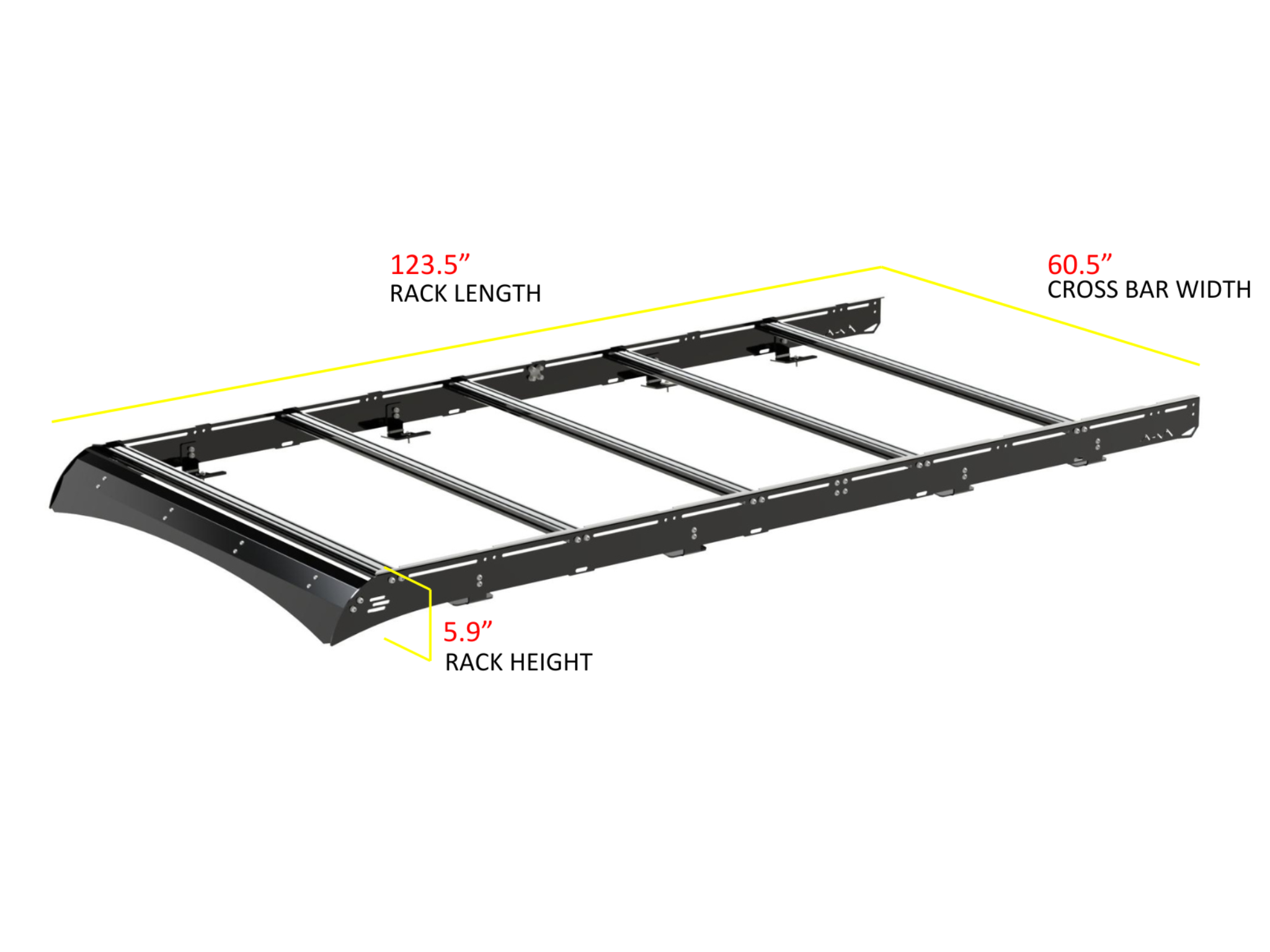

• DECK PLATFORM PROFILE: Low-profile aerodynamic modular T-slot utility roof rack system

• STRUCTURAL MATERIAL MATRIX: Lightweight, high-strength 6061-T6 structural aluminum frame

• SURFACE PROTECTION COATING: Industrial-grade, UV-stabilized textured black powder coat

• TOTAL HARDWARE NET WEIGHT: Extremely lean 62 lbs total system mass weight

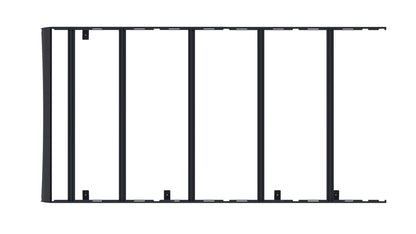

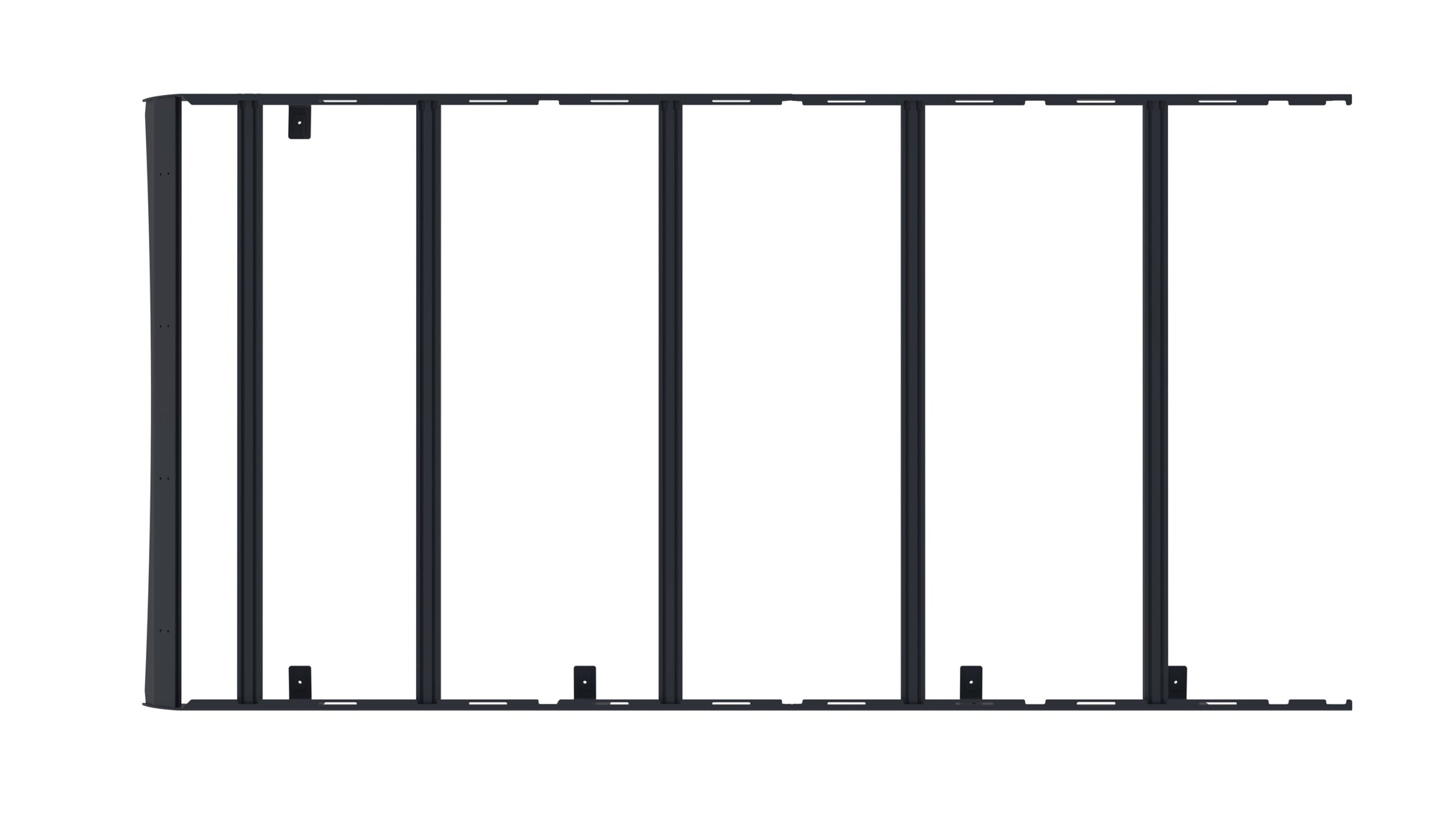

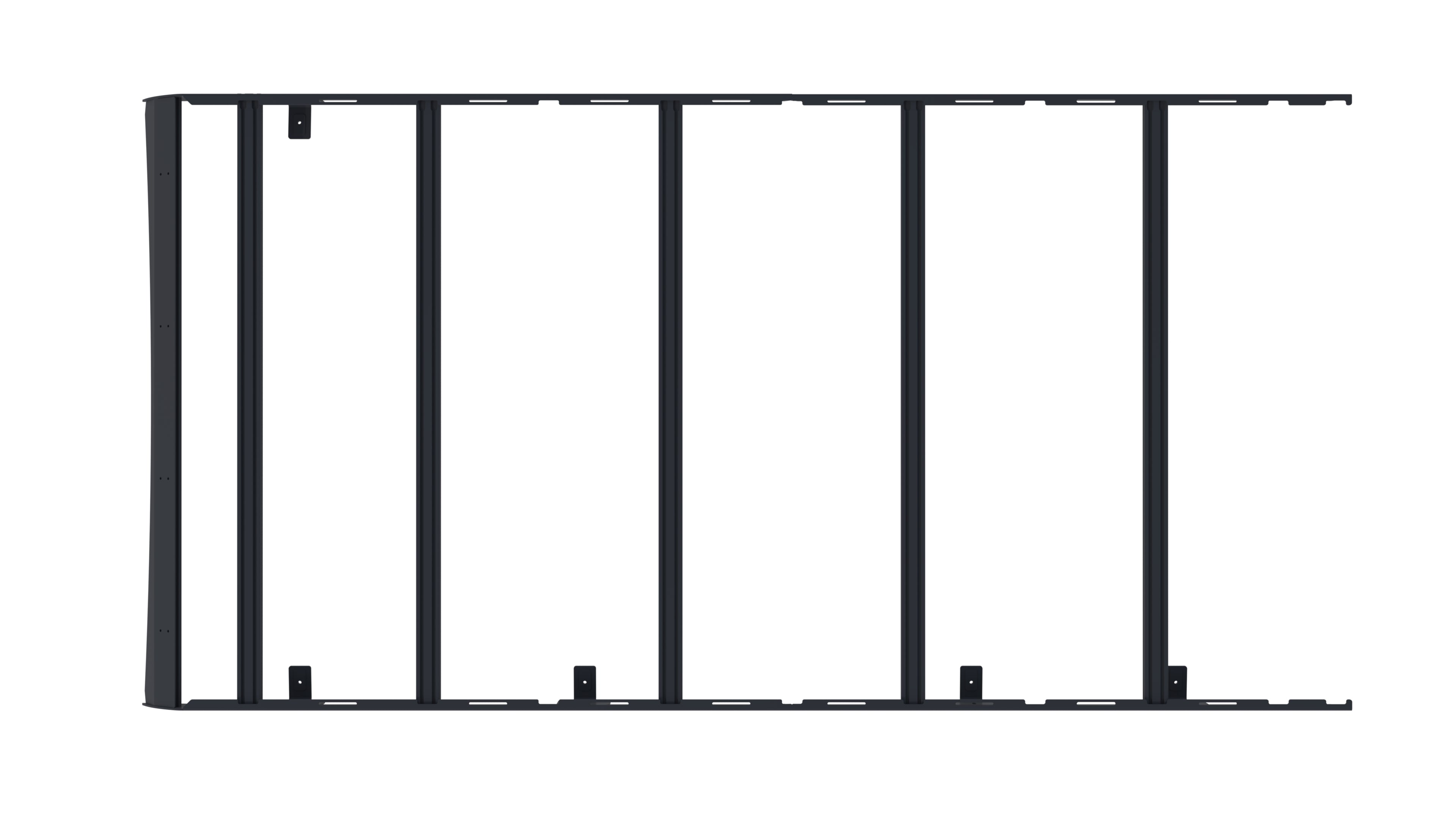

• CROSSBAR COMPONENT MATRIX: Includes six (6) heavy-duty anodized 10-series 80/20 compatible crossbars

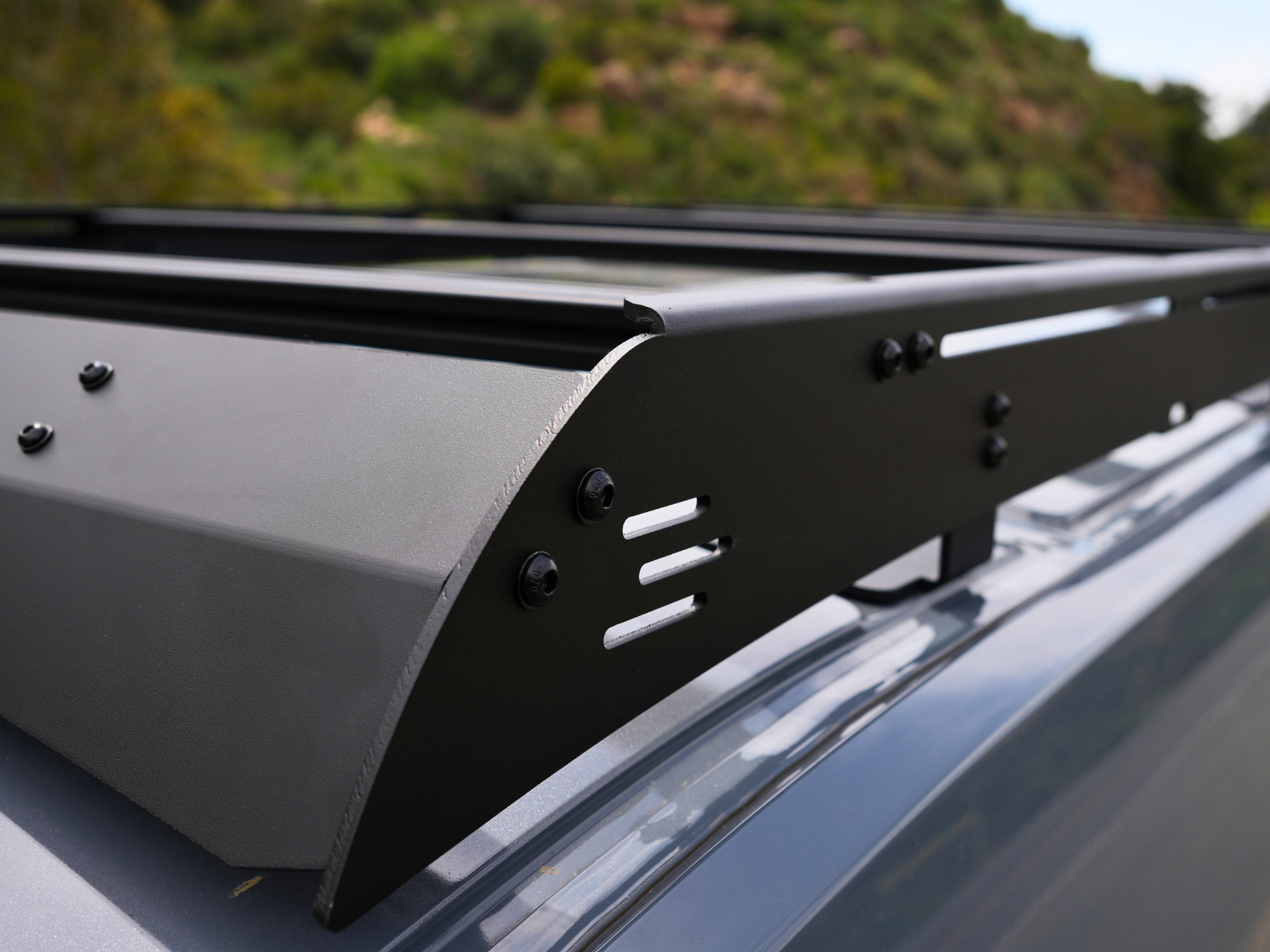

• FRONT AERODYNAMIC FAIRING: Integrated aluminum wind deflector (pre-slotted for 40" to 50" LED light bars)

• MOUNTING INTERFACE PROTECTION: Double-pad weather-sealed landing pads for maximum moisture exclusion

• FASTENER COMPONENT GRADE: Full marine-grade rust-proof stainless steel assembly hardware kit

• VEHICLE CHASSIS FITMENT: Fits standard platform lines (2015-Present / High Roof variants only)

• WHEELBASE SPECS DESIGN: 148" Wheelbase Standard (Not compatible with 148" Extended/EL chassis variant)

FEATURES

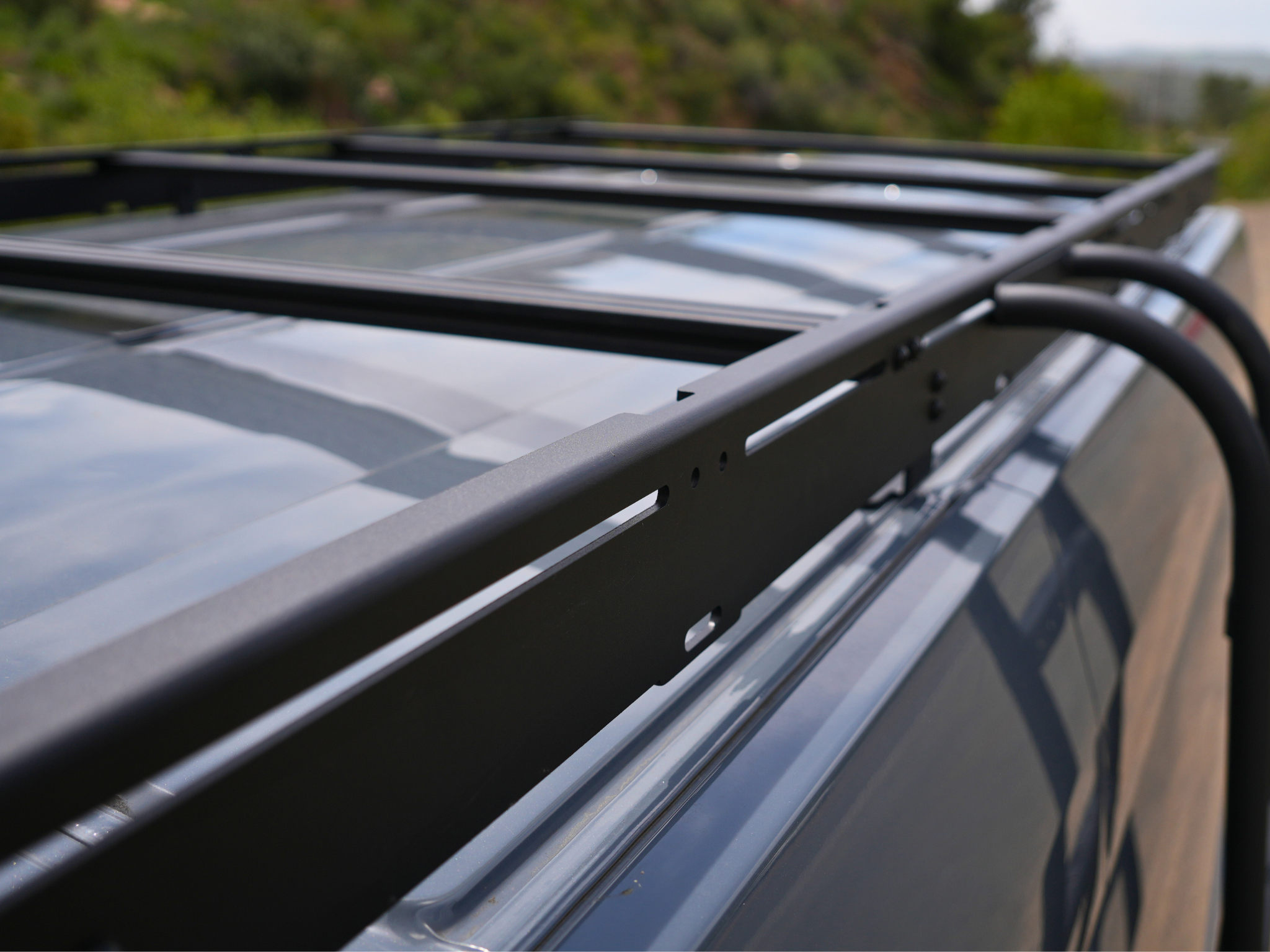

• INFINITE 80/20 CROSSBAR TRACKING: The six included 10-series cross-members feature dual-slotted tracks on all sides, allowing you to drop in standard T-nuts to lock down gear trays, rooftop tents, or solar panels within minutes.

• LEAK-PROOF DUAL-LAYER LANDING PADS: Outfitted with an advanced dual-layer rubber isolation pad network designed specifically to seal the factory roof points against relentless highway rain and melting snowpacks.

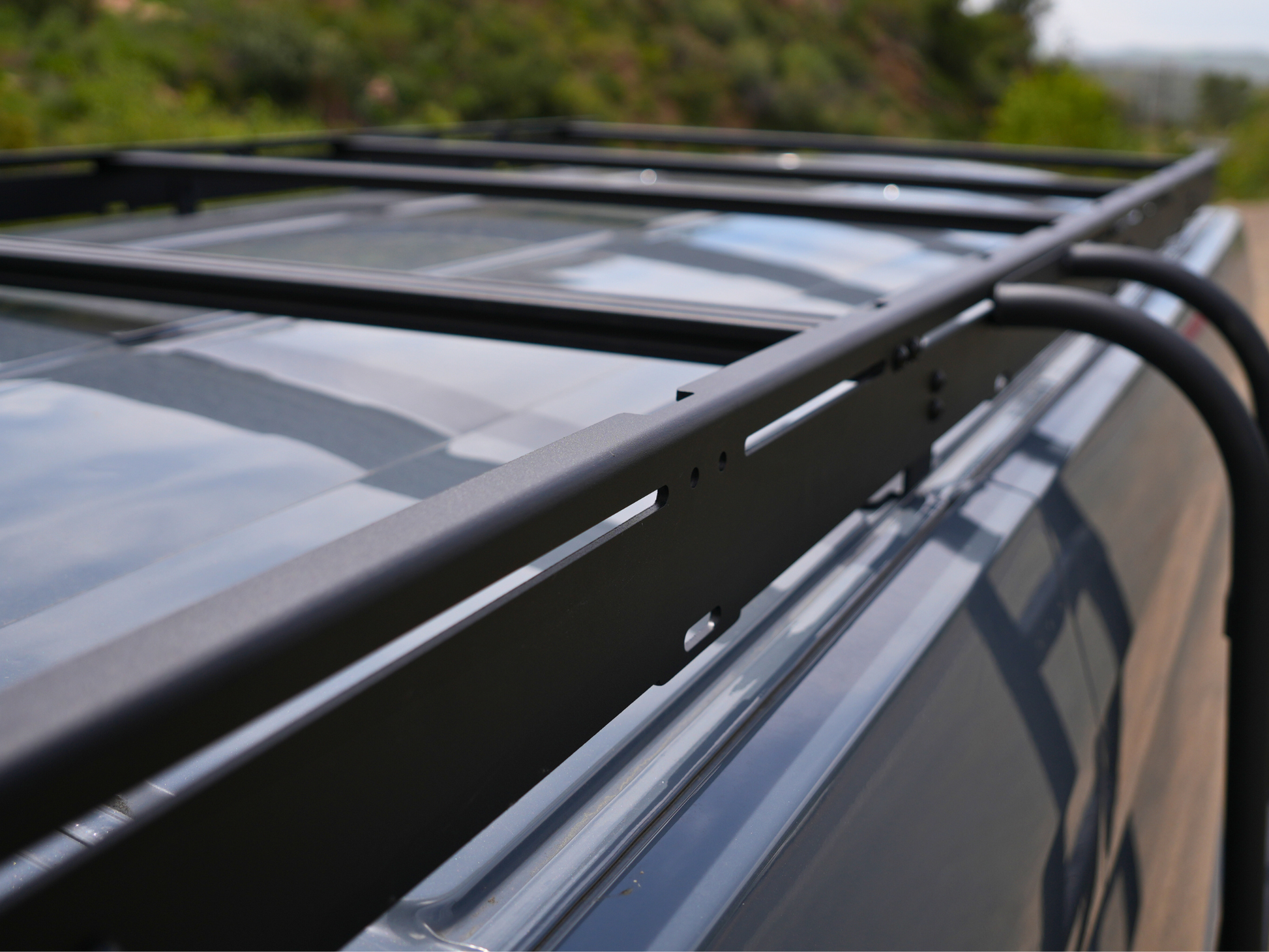

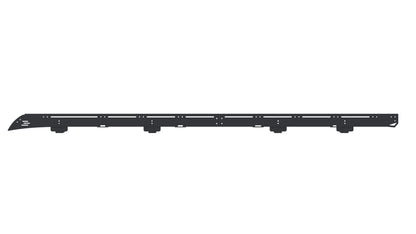

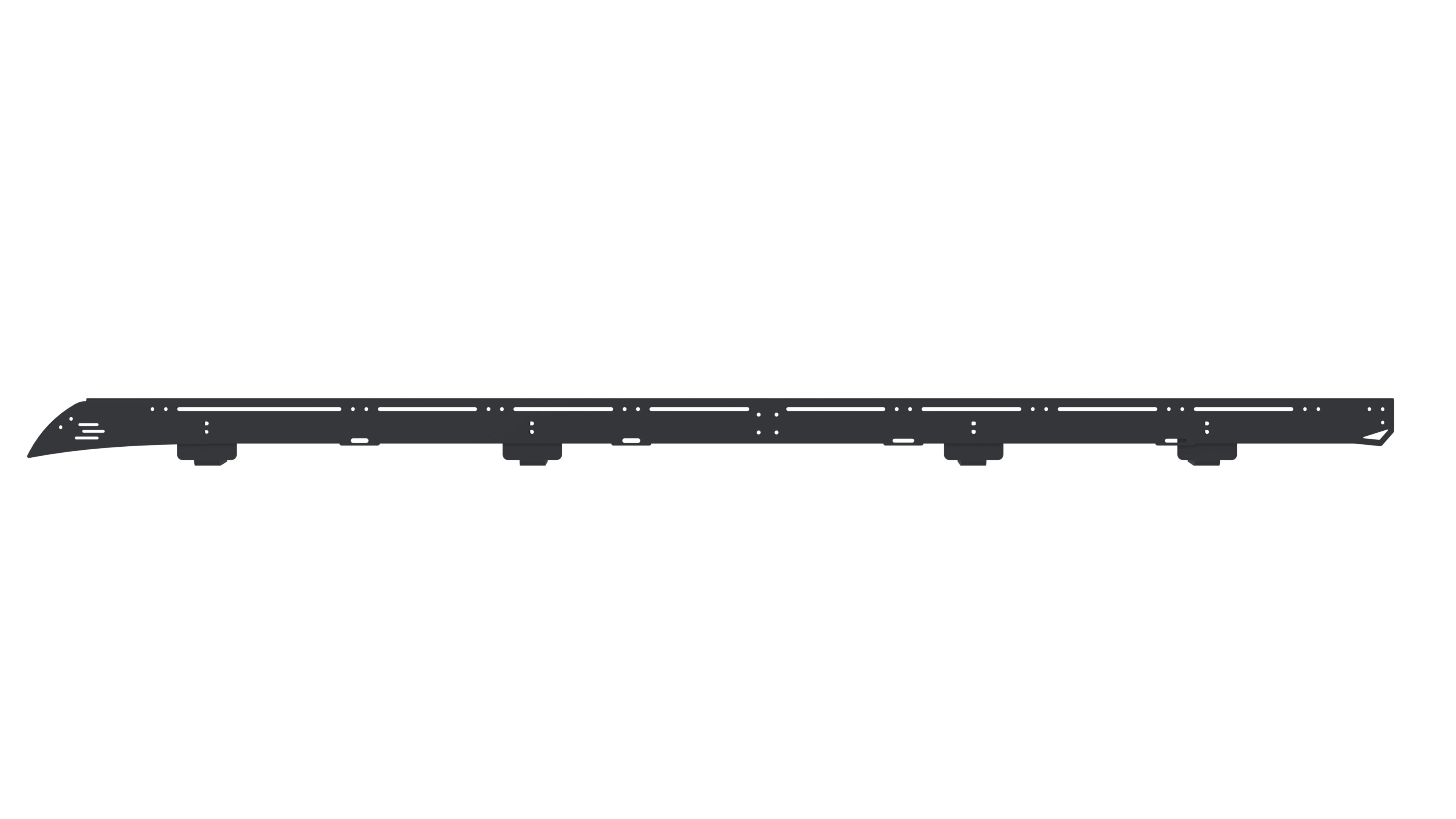

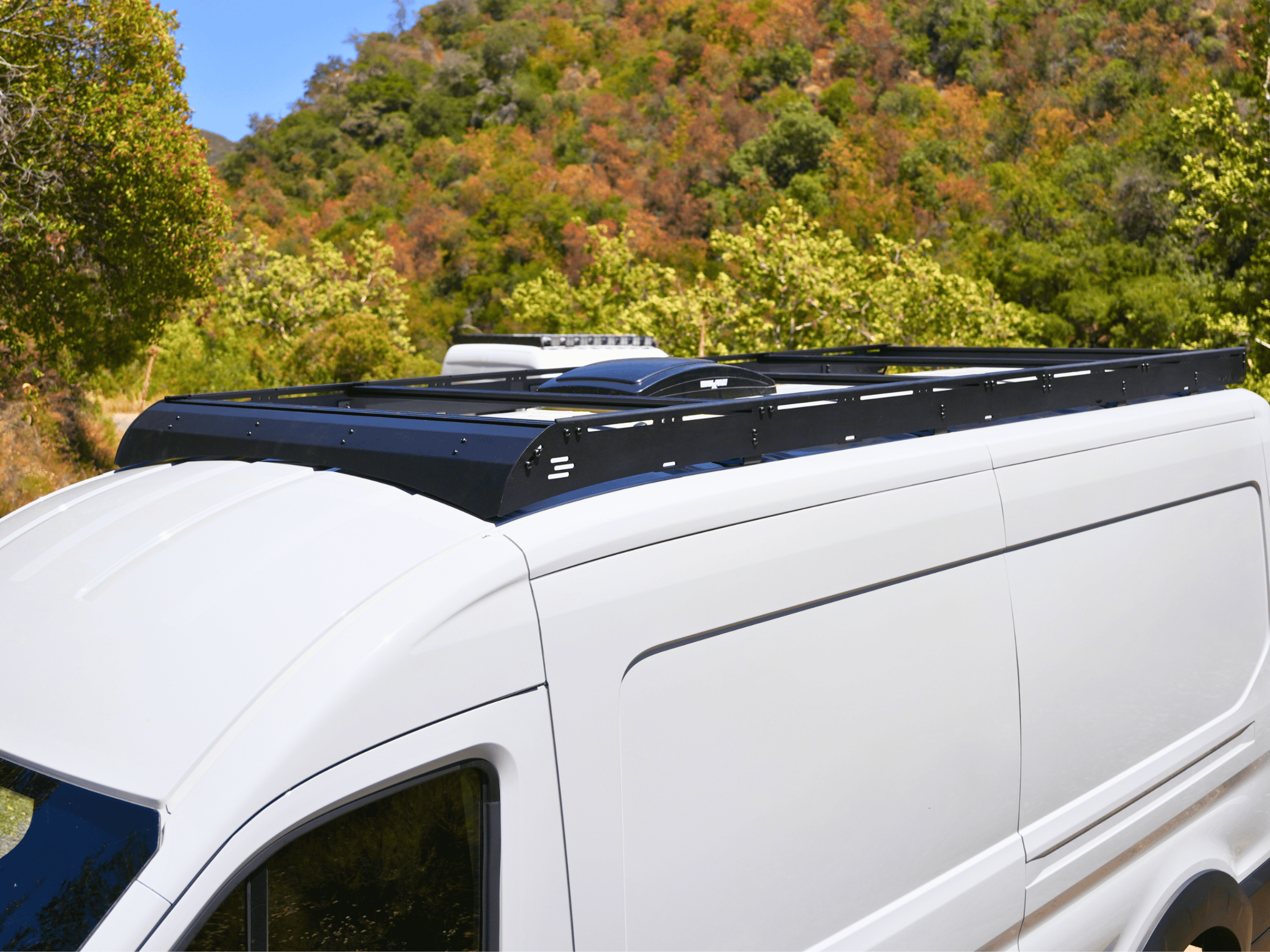

• CONTOURED HIGH-AND-TIGHT RAIL PROFILE: The Strata side plates are CAD-profiled to hug the roofline of the 148" chassis, creating a seamless, sleek look while driving down wind resistance and cabin whistling.

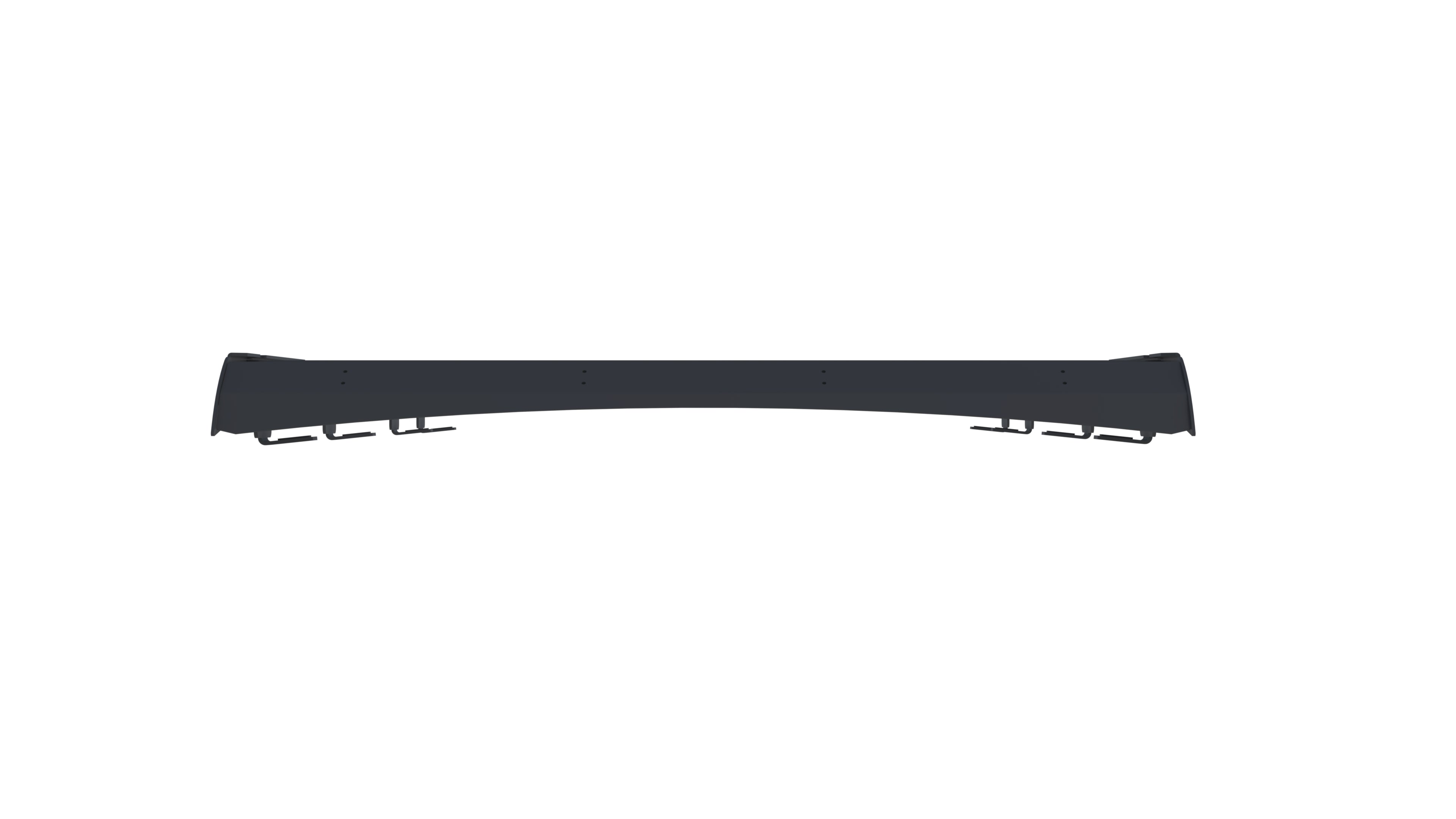

• LIGHT-BAR READY COCKPIT DEFLECTOR: The front wind fairing features integrated layout slots engineered for a fast drop-in fit of 40-inch to 50-inch LED bars, specifically optimized for premium Baja Designs or GG Lighting units.

• DIRECT AWNING INTEGRATION: Pre-drilled and structurally reinforced to accept a clean, direct bolt-on fitment with standard Fiamma F45S 300 awnings without needing to source expensive adapter brackets.

COMMON PAIRINGS

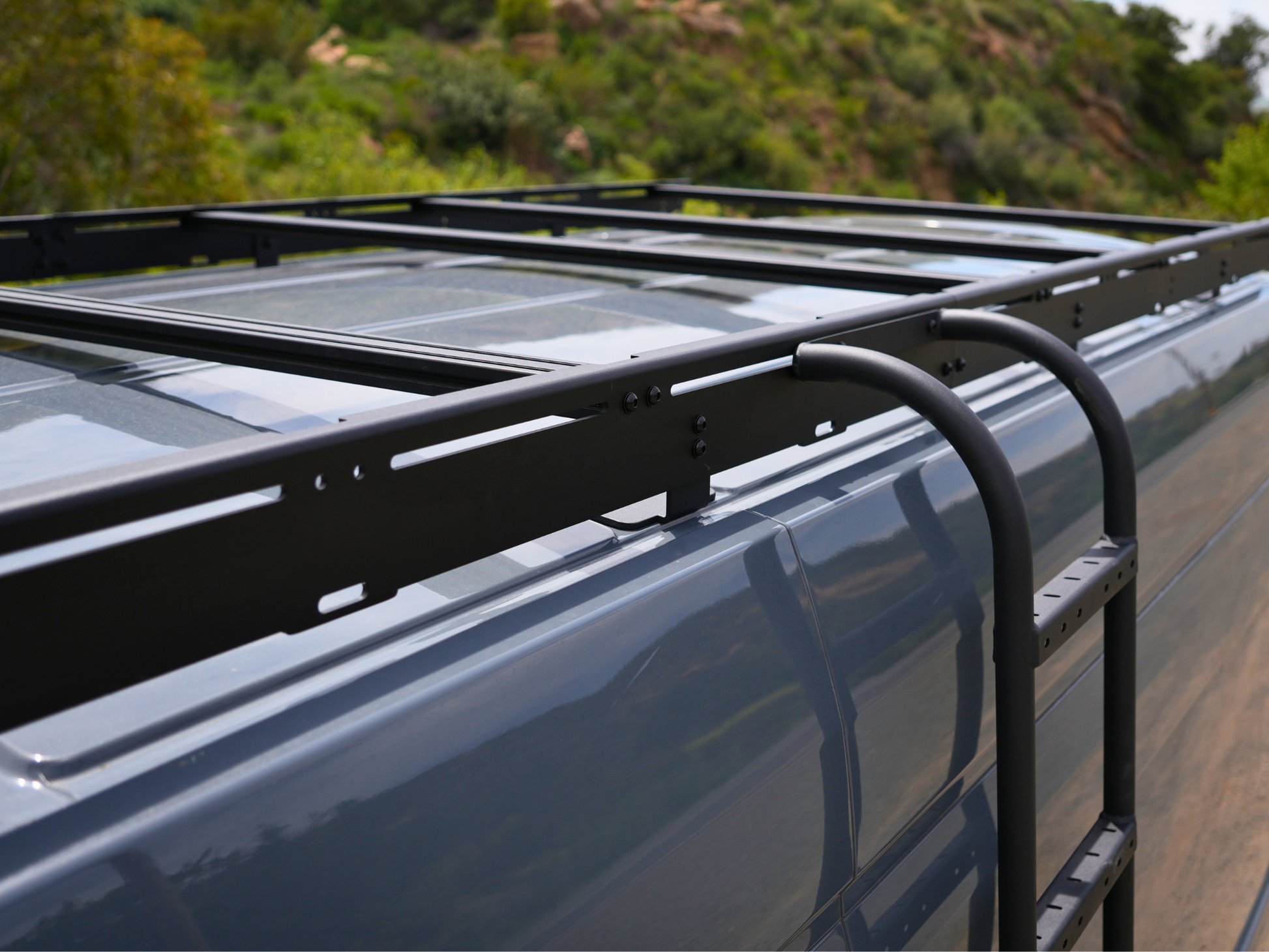

• WHITE TOP ADVENTURES 148" HIGH ROOF SIDE LADDER: Bolts directly into the pre-drilled side rail locations to build a unified, continuous climbing path.

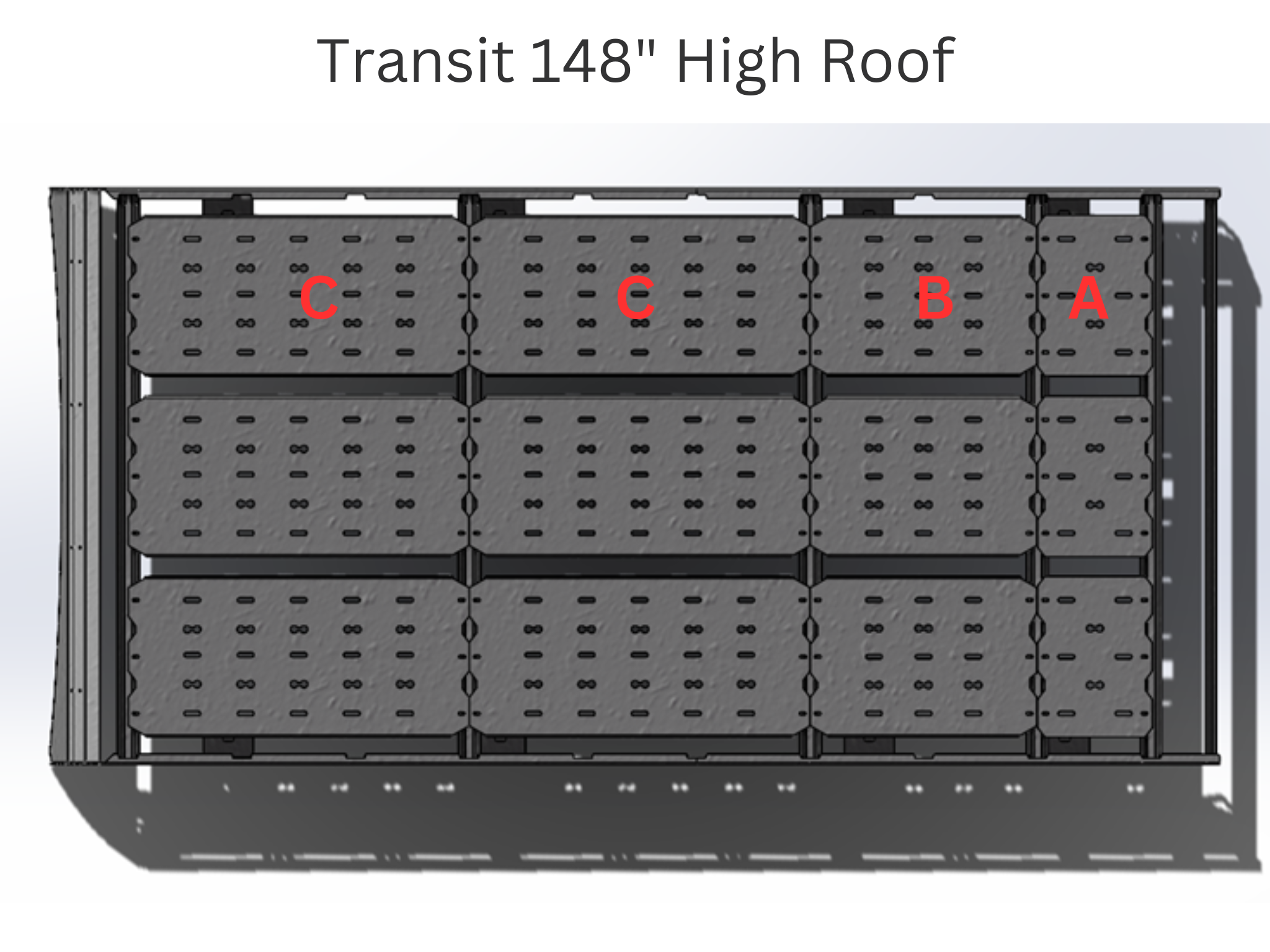

• WHITE TOP ADVENTURES STRATA DECKING PANELS: Drops directly over the 10-series crossbars to establish a high-traction, safe, and stable walking platform on your top deck.

• FIAMMA F45S 300 ROOF AWNING: Mounts flush against the passenger-side rail structure to provide instant, structural campsite shade.

COMPATIBILITY & FITMENT

• CHASSIS COMPATIBILITY: Fits full-size platform configurations (2015-Present Models).

• ROOF HEIGHT & WHEELBASE: Tailored exclusively for High Roof models utilizing the standard 148" (Non-Extended) body lines. Will not fit Medium Roof or Extended Length (EL) van bodies.

• MODULAR EXPANSION PROFILE: Seamlessly accepts additional third-party 10-series 80/20 structural bars if your cargo layout demands extra load support points.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Can I order and add more crossbars to this rack later if I buy a rooftop tent?

A: Yes, absolutely. Because the Strata's aluminum side rails feature continuous horizontal slot tracking, you are never locked into a single configuration. You can source and drop in additional 10-series 80/20 crossbars at any point down the line to evenly distribute heavier dynamic loads like hardshell rooftop tents.

Q: Can I safely walk directly on the 80/20 crossbars to wash my solar panels or check gear?

A: The heavy-duty aluminum side frame and structural 10-series crossbars are incredibly rigid and built to easily handle body weight. However, to create a safe, stable, and slip-free walking surface that won't strain your ankles, we highly recommend anchoring our matching Strata Rack Decking Panels over the gaps.

Q: Will this roof platform clear a factory rear AC unit or a MaxxAir fan?

A: Yes, it clears them beautifully. This is the main benefit of a modular T-slot design. Instead of being stuck with fixed cross-members, you can slide and space the included six bars anywhere along the side rails, allowing you to perfectly "frame out" and clear AC shrouds, skylights, or roof ventilation fans.

Q: Does this comprehensive Strata platform package include a side ladder?

A: No, it does not. This listing includes the complete modular roof rack frame, six 10-series crossbars, the front wind fairing, and the dual-pad weather hardware kit. The matching companion side ladder is sold completely separately, but the Strata rack comes pre-drilled to accept it for a flawless, no-drill hookup.

WHY TRUST WEST COAST VANS?

Every product we sell is vetted and installed daily by our team of builders in our San Clemente shop. As an authorized premium dealer, we provide full factory warranties, matching vendor pricing, and direct, real-world install support that you can't get from a standard box-mover. We don’t just sell the gear—we know exactly how it fits into your build.
