White Top Adventures Transit 148" EXT High Roof Strata Roof Rack

White Top Adventures Transit 148" EXT High Roof Strata Roof Rack

At WEST COAST VANS, we help you blast through off-grid layout limits by turning empty, extended rooflines into high-capacity gear staging platforms. Ask Us Product Questions Anytime to iron out your component placement or to grab the ultimate structural finishing touches for your rig.

WCV EXPERT TIP

Because the EXT configuration pushes the rack forward over the front cab area, the structural crossbars handle immense wind shear forces at highway speeds. When adjusting the position of your six included crossbars around your roof obstacles, note that they slide via T-slot channels. Our shop builders emphasize that these crossbars are designed to be slid into place from an open side rail channel during assembly, rather than being dropped directly into place from above. Take your time squaring the frame on a clean workbench before lifting it onto the van roof to guarantee a perfectly quiet, rattle-free highway cruise.

PRODUCT OVERVIEW

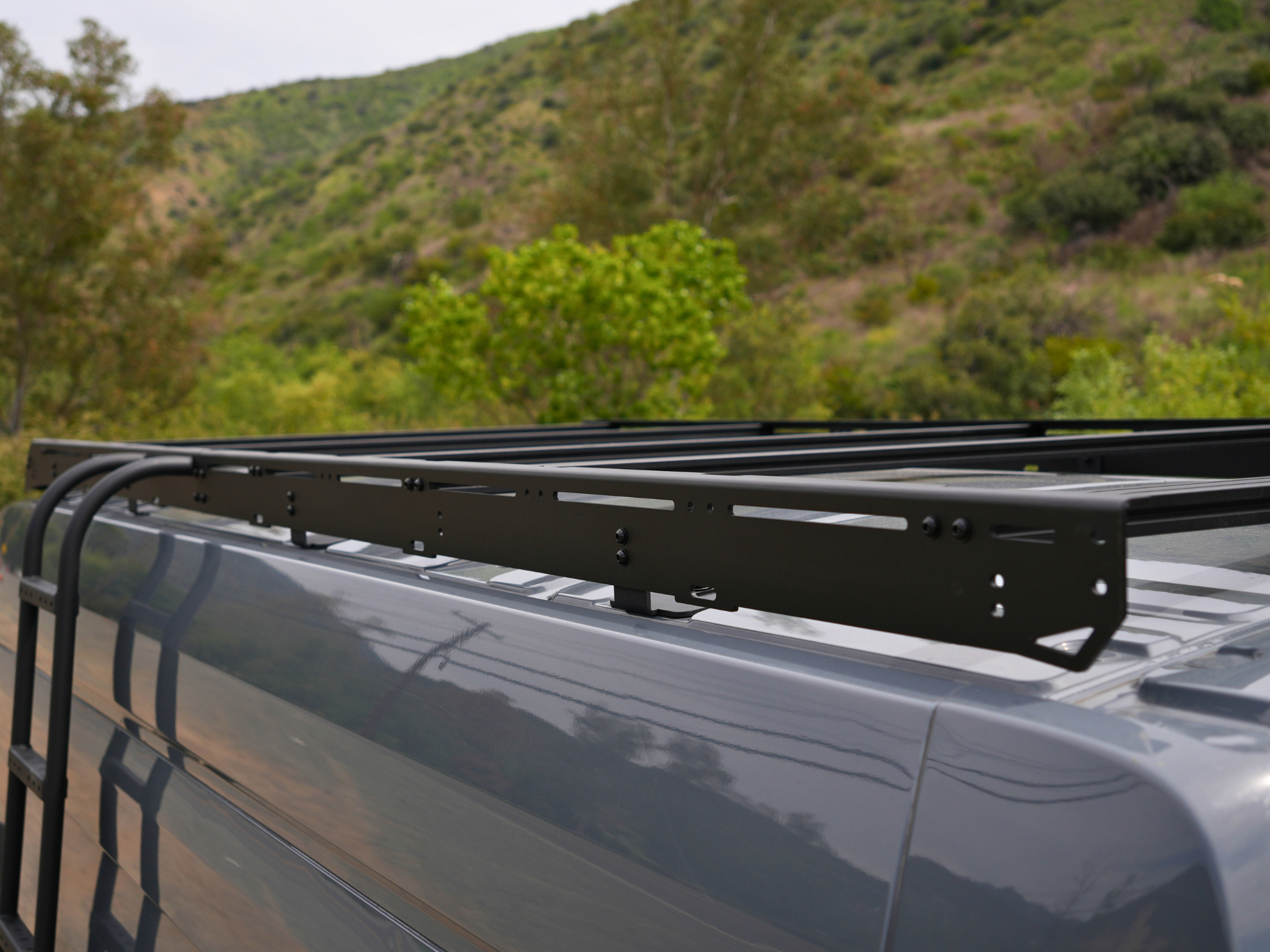

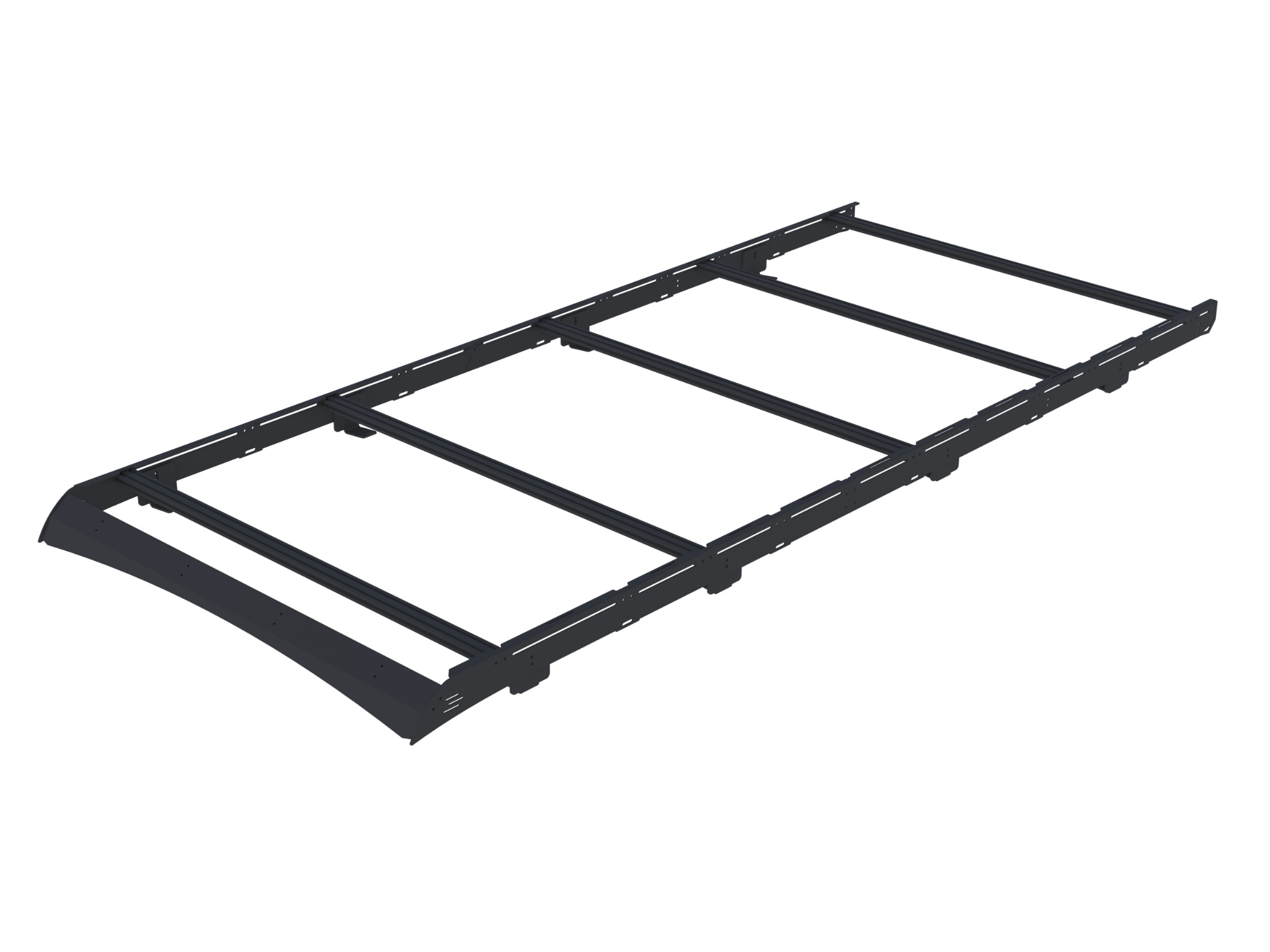

The White Top Adventures Strata Roof Rack System represents the next generation of rugged, lightweight, and modular overland roof storage. Precision engineered with an industry-first integrated rigidity bend on the side rails, it delivers exceptional structural strength while doubling as a safe, comfortable grab bar when climbing up your side ladder. Featuring updated, form-fitted landing pads with dual weather-sealing barriers to eliminate water intrusion, this all-aluminum platform arrives 100% ready to handle demanding weight loads.

BEST FOR

• EXTENDED COMPONENT LAYOUTS: Ideal for builders running maximum-capacity solar arrays alongside roof fans, air conditioners, and recovery boards who need every available inch of vertical roof space.

• NIGHT RIDING & SEARCH LIGHTING: Perfect for overlanders looking to mount heavy-duty auxiliary forward lighting without custom fabrication, thanks to a pre-cut, light bar ready wind fairing.

• WEATHER-EXPOSED CLIMATES: Designed for Pacific Northwest or coastal vanlifers who need a completely rust-proof aluminum frame secured by fully weather-sealed roof mounts to block heavy rain and snow.

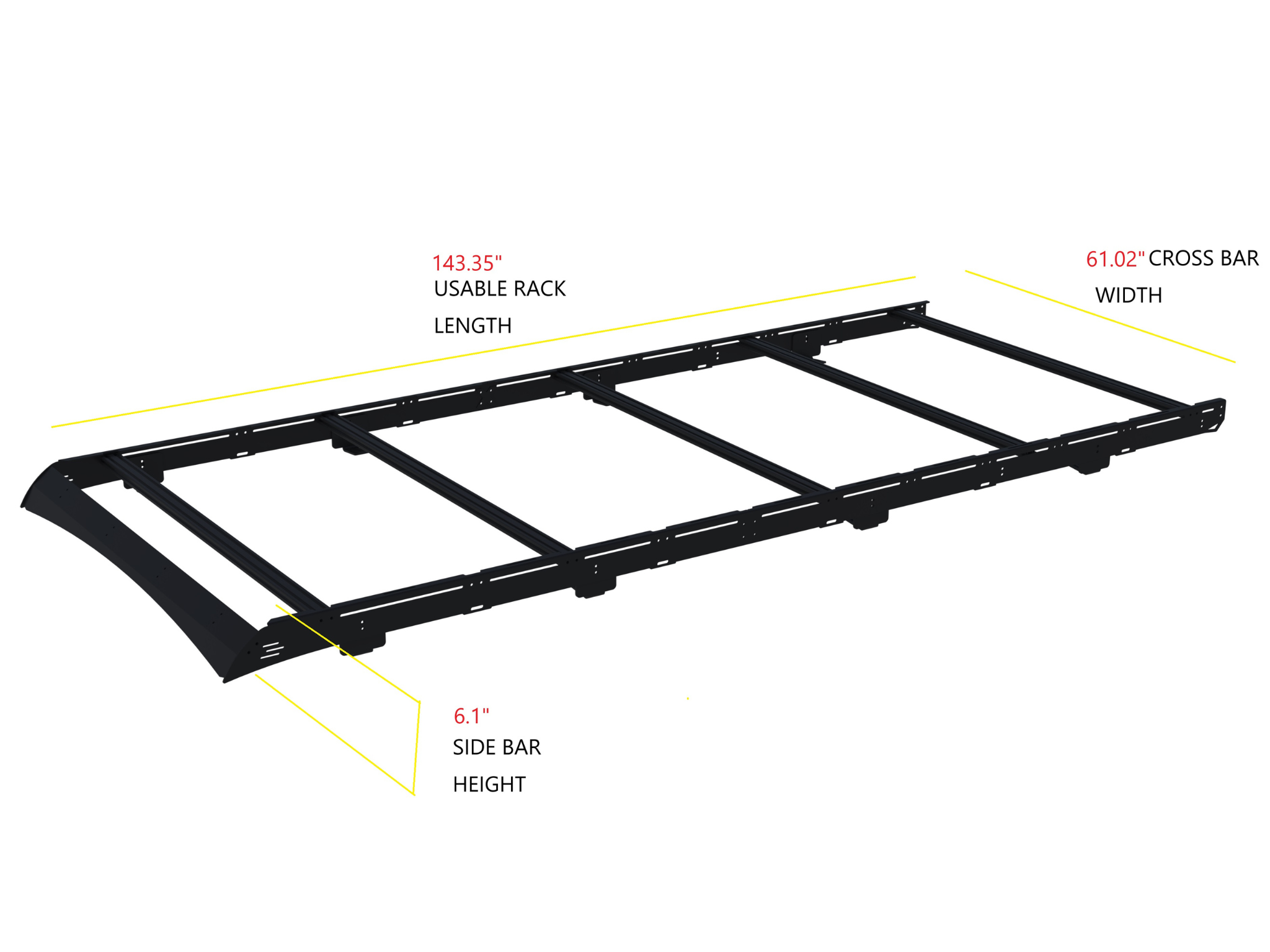

TECHNICAL SPECIFICATIONS

• CHASSIS FITMENT: Transit (2015-Present)

• WHEELBASE & ROOF SPEC: 148" Extended (EXT), High Roof models only

• TOTAL WEIGHT: Ultra-lightweight at just 62 lbs

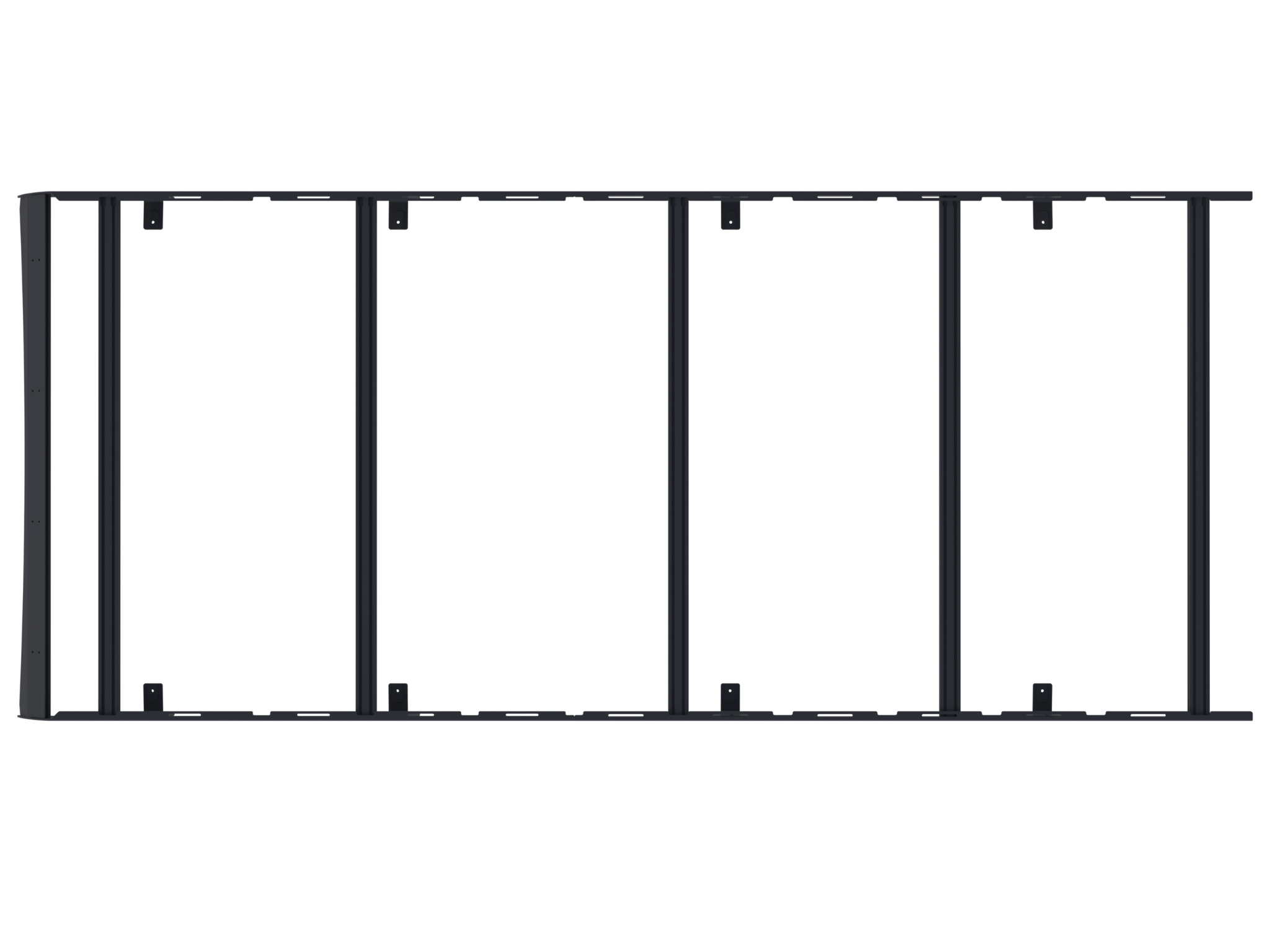

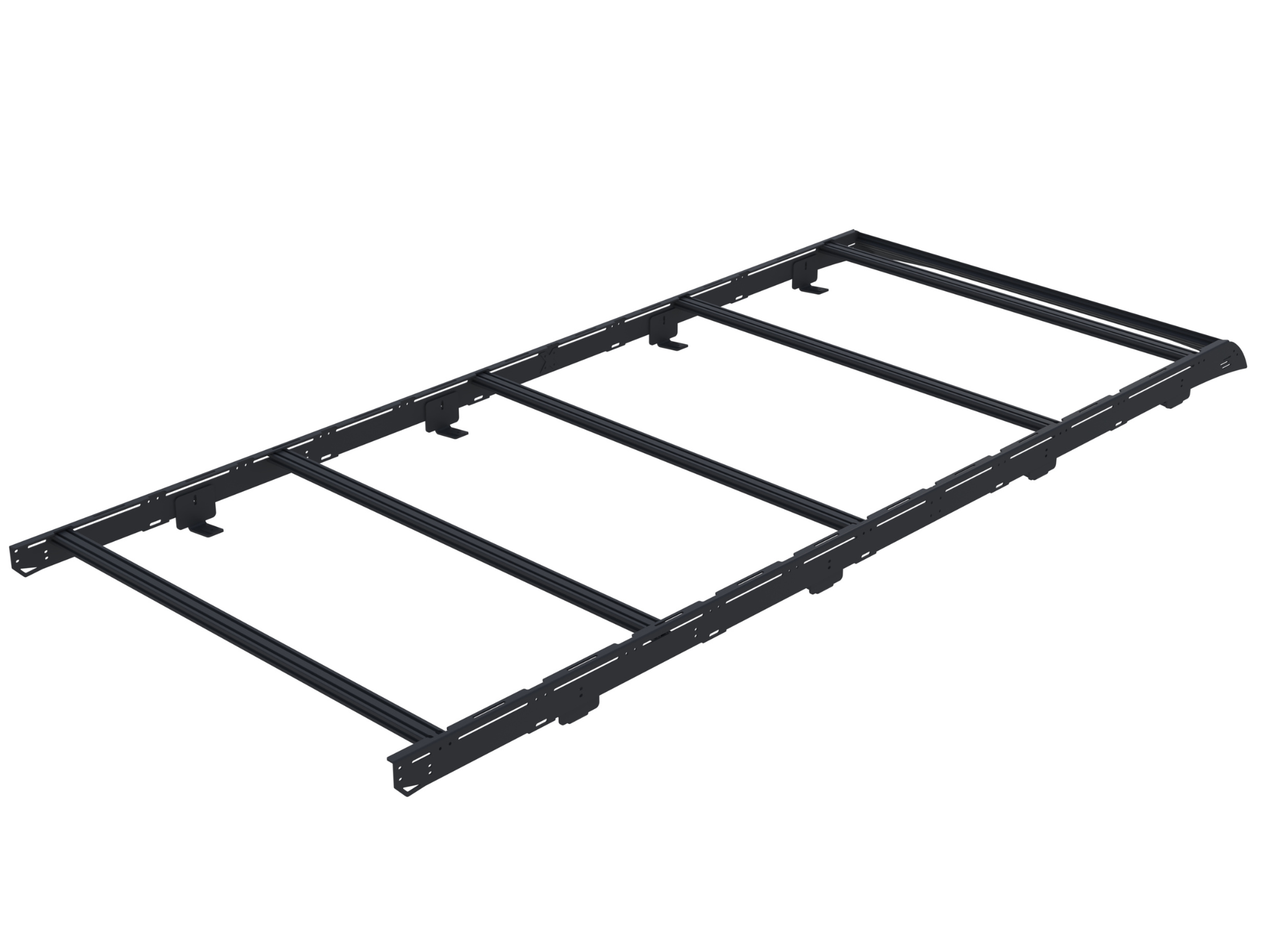

• CROSSBAR COUNT: Includes 6 anodized aluminum crossbars standard

• CROSSBAR STYLE: 10-series 80/20 universal T-slot compatible profile

• HARDWARE SPECIFICATION: 100% High-Tensile Stainless Steel

• MATERIAL: Aircraft-Grade Extruded Aluminum with a Matte Black Powder Coat

• FAIRING COMPATIBILITY: Accommodates most 40" to 50" aftermarket LED light bars

FEATURES

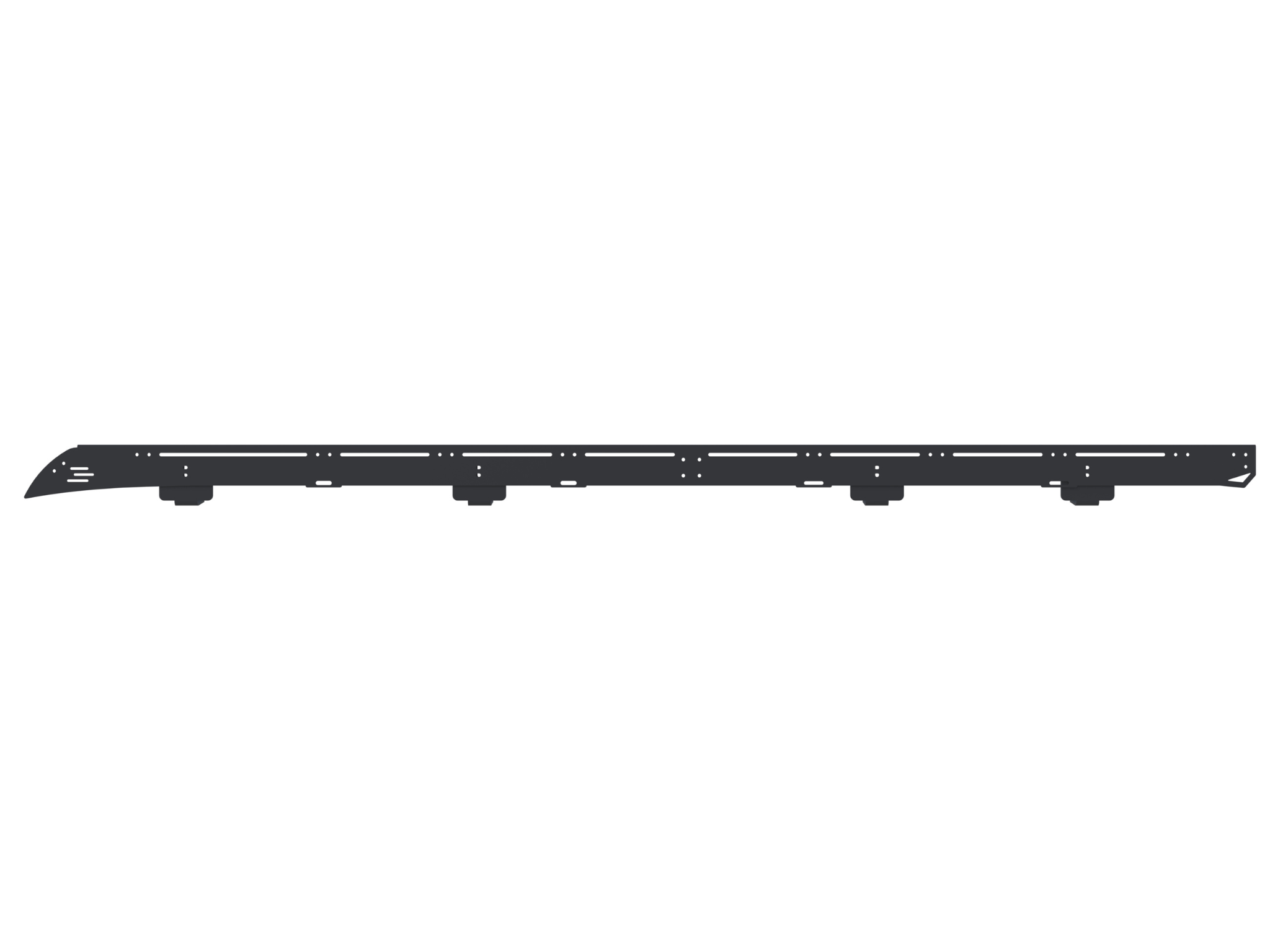

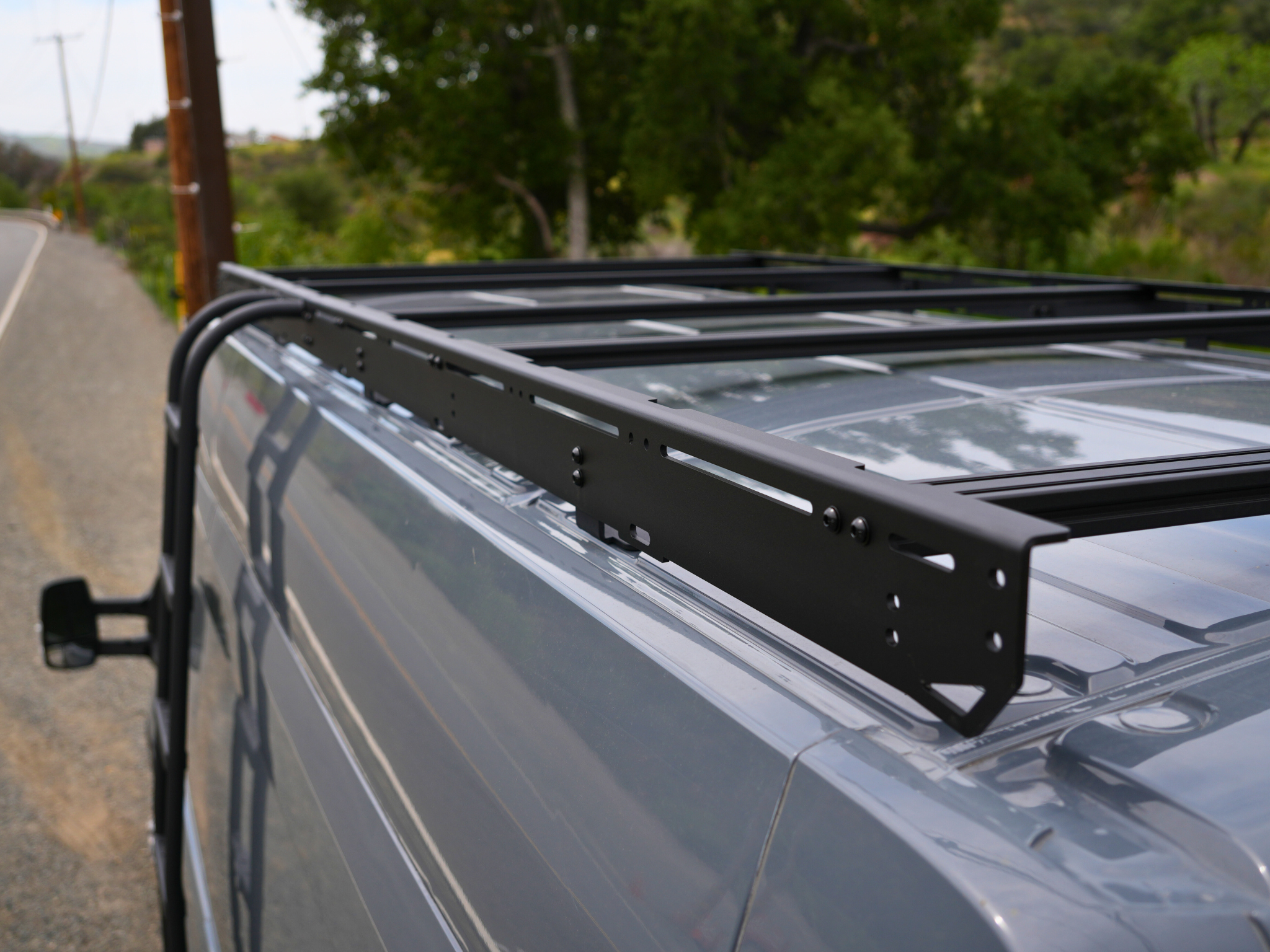

• INTEGRATED RIGIDITY BEND: Engineered with a specialized structural bend in the side rails that significantly minimizes vertical flexing under load while serving as an ergonomic hand grip when navigating the roof.

• DOUBLE-SEALED LANDING PADS: Features form-fitted mounting pads with dual weather seals that securely spread cargo weight across the van's strongest factory anchoring points while preventing water from leaking into the roof skin.

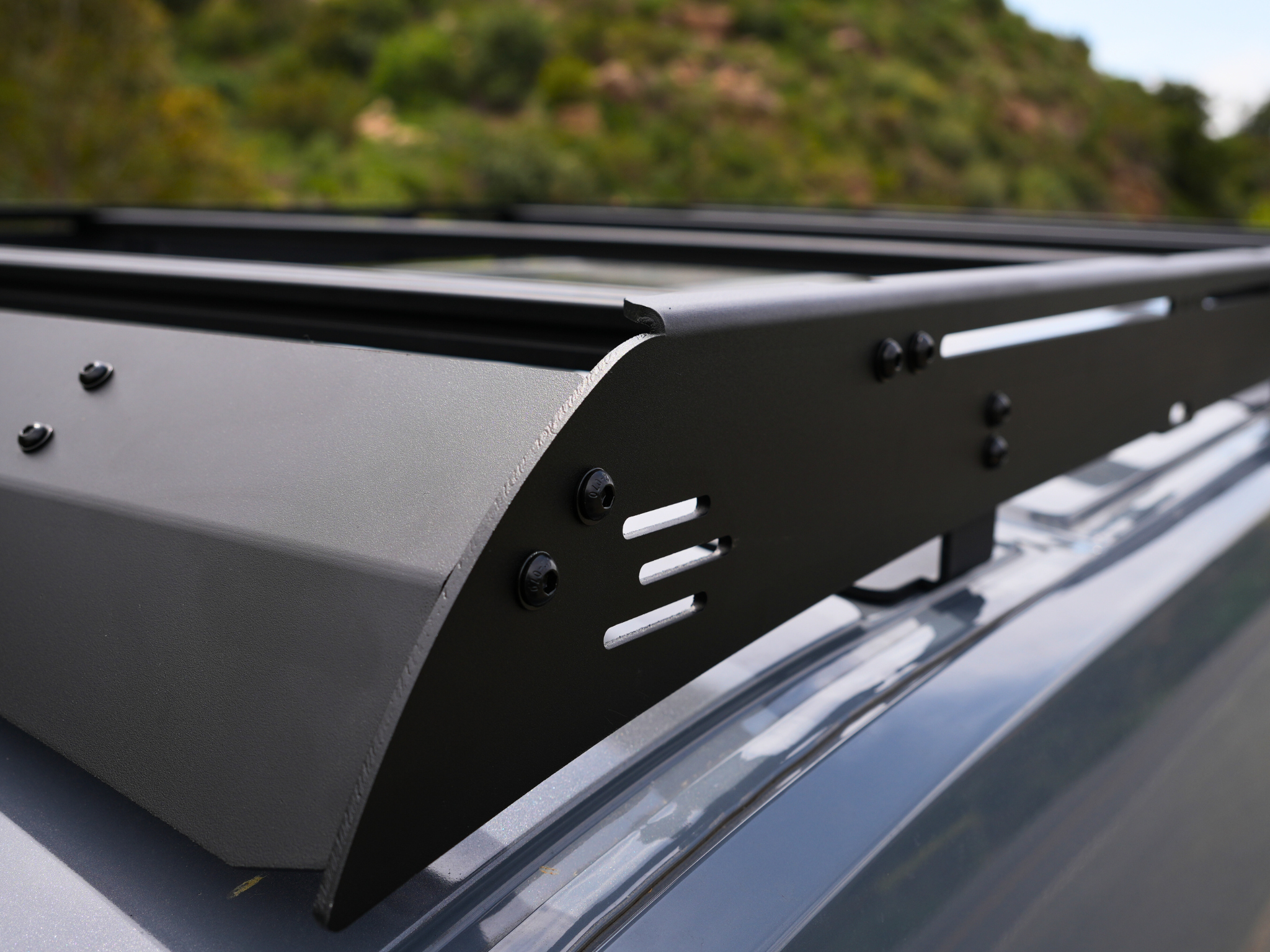

• WIND-DEFYING FORWARD FAIRING: Shipped with a lightweight aluminum wind deflector that drastically cuts down highway drag, aerodynamic resistance, and interior cabin noise.

• 10-SERIES SLIDER CROSSBARS: The six included anodized crossbars are fully compatible with standard 80/20 t-slot fasteners, giving you total creative control to slide, lock, and bolt down custom solar brackets or gear boxes.

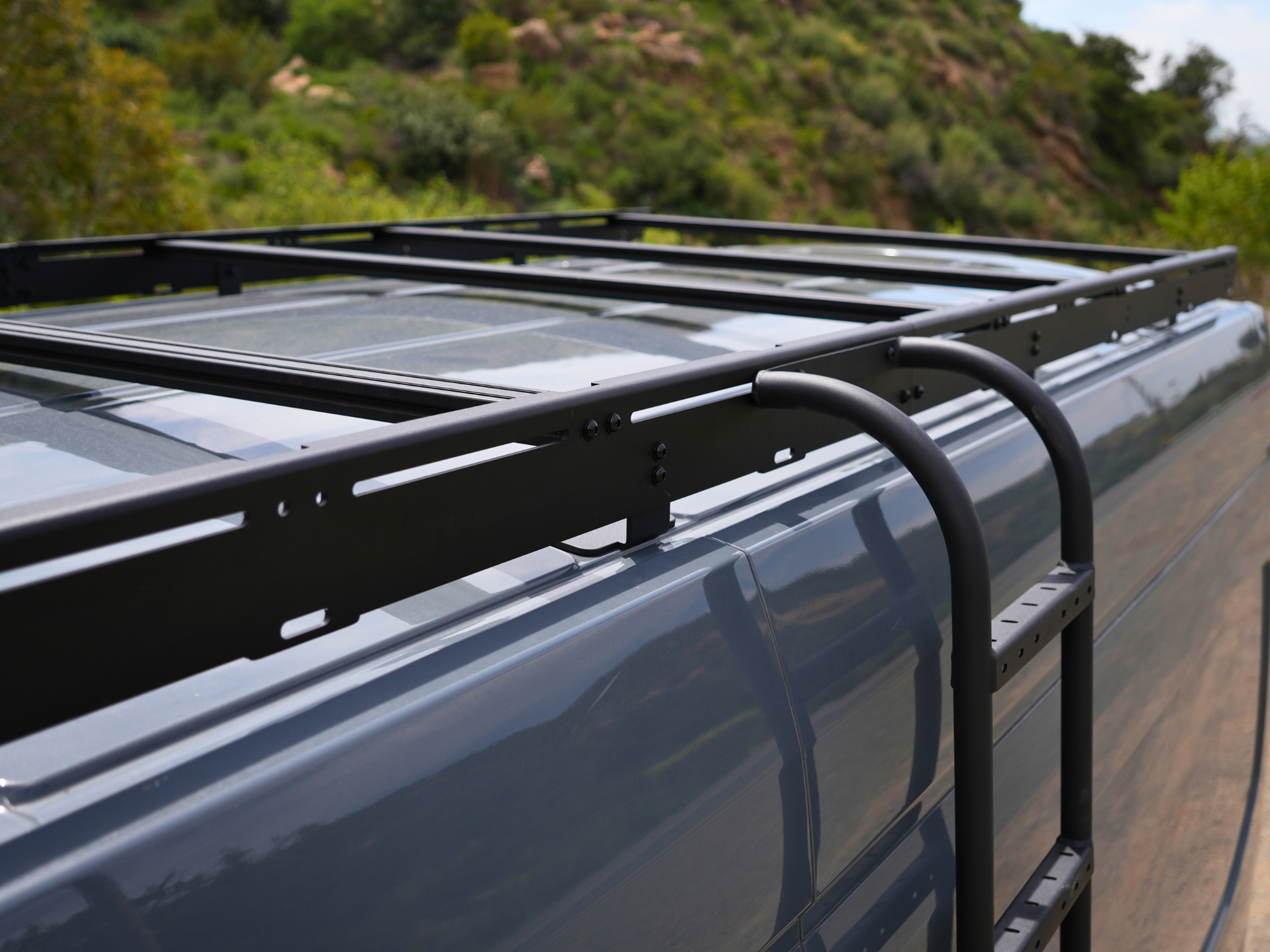

• COMPLETE LADDER & ECOSYSTEM INTEGRATION: Designed to bolt directly onto the White Top High Roof Transit Side Ladder and pair natively with modular Strata Top Deck Panels and Fiamma F45S 300 awnings.

COMMON PAIRINGS

• White Top Adventures Transit High Roof Strata Side Ladder

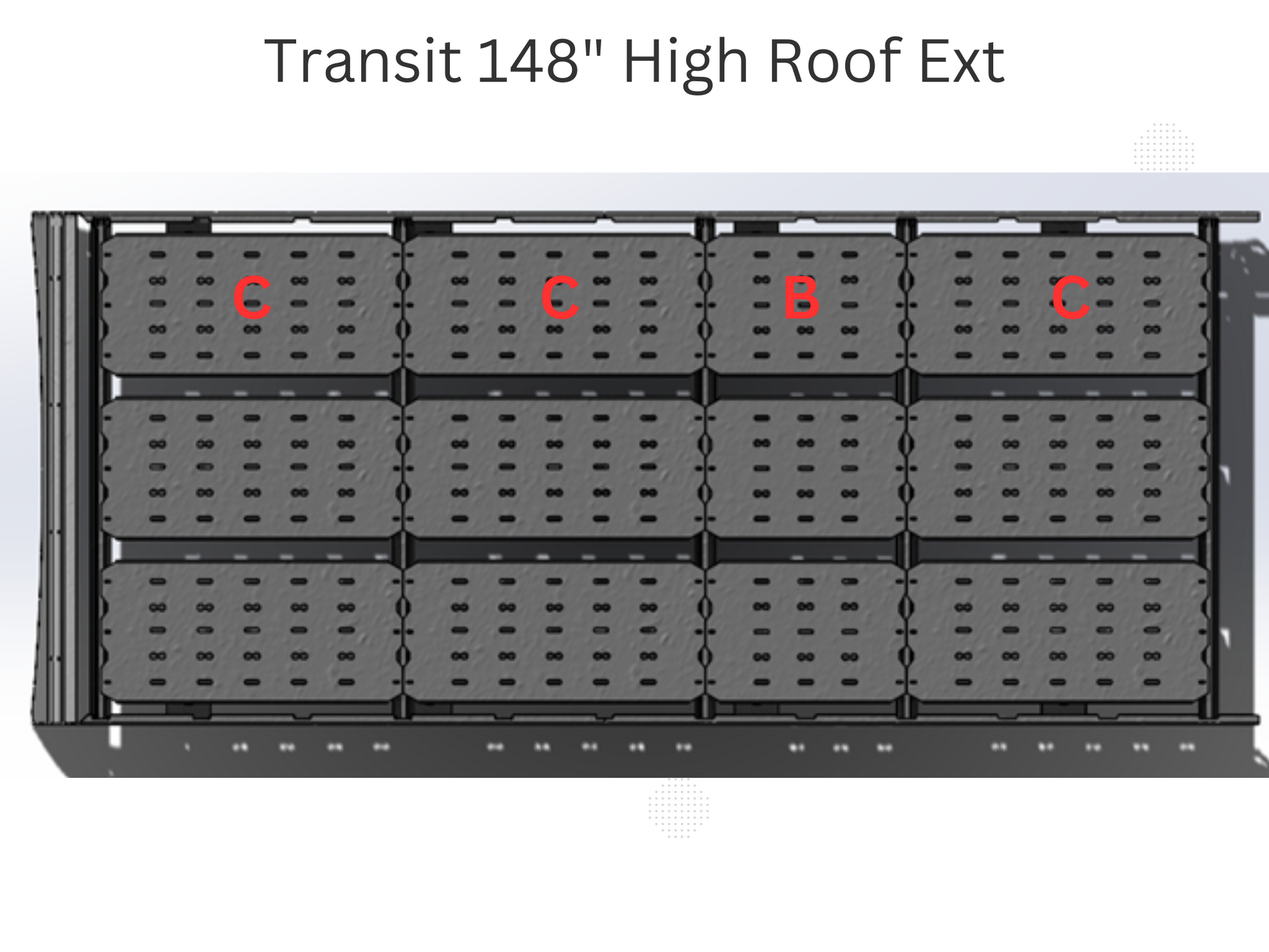

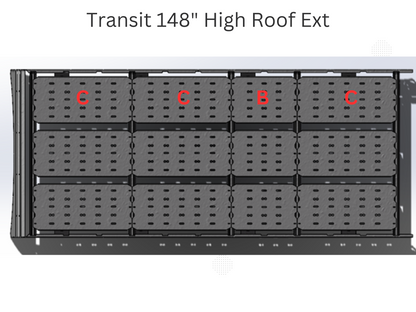

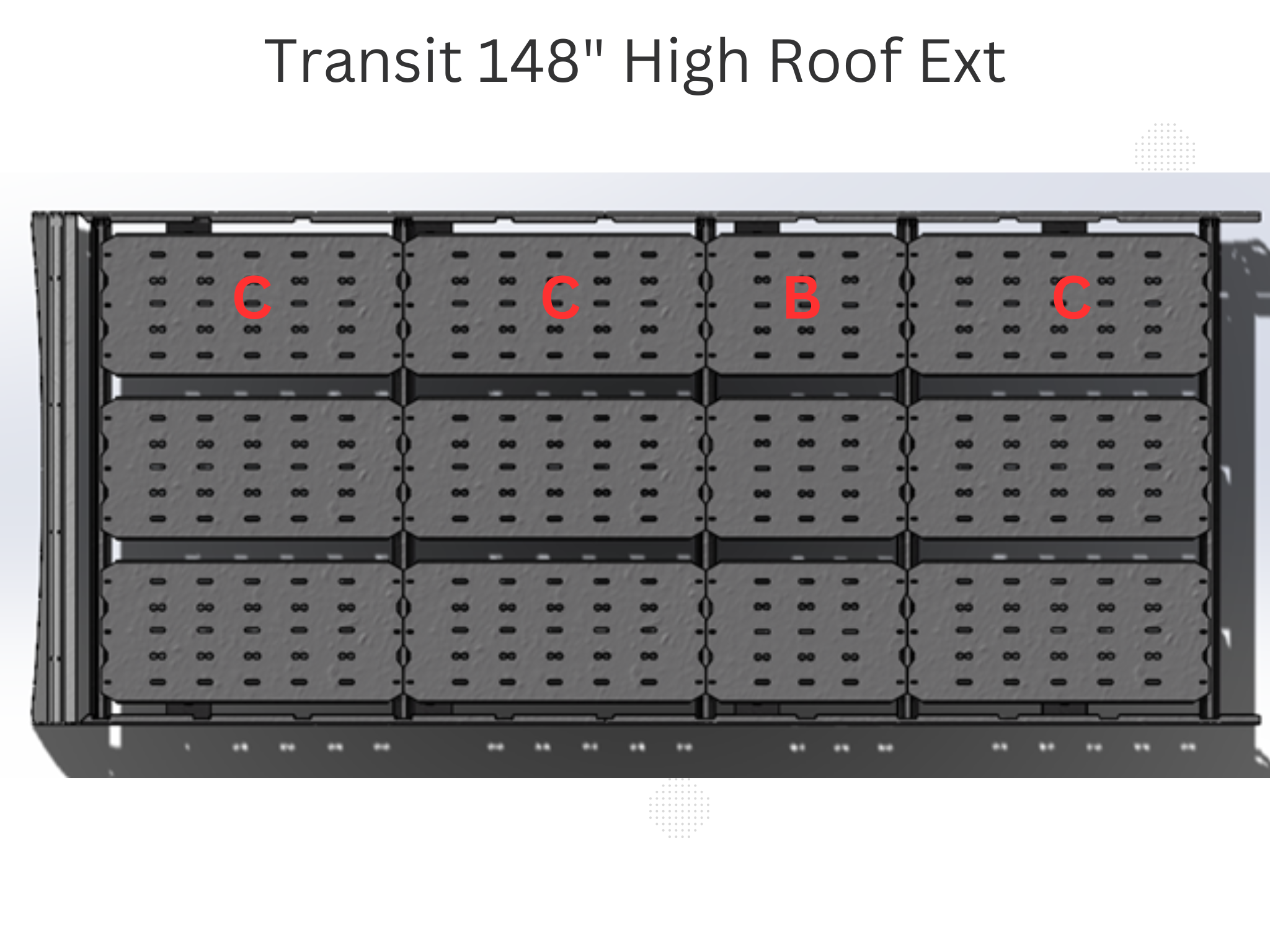

• White Top Adventures Strata Modular Roof Top Deck Panels

• Fiamma F45S 300 Awning System & Strata Mount Brackets

COMPATIBILITY & FITMENT

• CHASSIS: Transit (2015-Present).

• WHEELBASE: 148" Extended (EXT) platforms only.

• ROOF HEIGHT: High Roof models only.

• REQUIREMENTS: Form-fitted specifically for Transit 148" Extended High Roof van lines. Direct mounting holes are integrated into the frame layout to accept optional Strata Decking Panels and official Fiamma F45S rack-mount awning brackets (sold separately).

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Will this Strata roof rack fit a standard 148" wheelbase Transit or only the Extended version?

A: This specific model is engineered exclusively for the 148" Extended (EXT) High Roof Transit chassis. The rail dimensions stretch forward over the cab to accommodate the elongated rooflines of the EXT body style.

Q: What size LED light bar can I mount to the front aluminum wind fairing?

A: The included wind fairing features pre-cut mounting slots designed to accept almost any aftermarket 40" to 50" LED light bar fast and frustration-free without custom cutting or drilling.

Q: Does this roof rack require any drilling or modifications into my Transit's roof skin?

A: No. This rack bolts straight onto your van's strongest factory roof mounting points using the included stainless steel hardware and form-fitted, double-sealed weather pads to ensure zero leaks.

Q: Can I use standard 80/20 hardware to bolt down my custom solar panels to these crossbars?

A: Yes. The six included anodized aluminum crossbars are entirely 10-series compatible, giving you complete freedom to slide and secure universal t-slot nuts, brackets, and custom overland accessories anywhere along the track.

WHY TRUST WEST COAST VANS?

Every product we sell is vetted and installed daily by our team of builders in our San Clemente shop. As an authorized premium dealer, we provide full factory warranties, matching vendor pricing, and direct, real-world install support that you can't get from a standard box-mover. We don’t just sell the gear—we know exactly how it fits into your build.
