RB Components Ford Transit Wall Cabinet 18 x 16 x 14 - Aluminum

RB Components Ford Transit Wall Cabinet 18 x 16 x 14 - Aluminum

At West Coast Vans, we choose RB Components gear for builders who want purpose-built van hardware with clear dimensions and real installation requirements. Need help confirming fitment or planning the surrounding build? Ask Us Product Questions Anytime.

WCV EXPERT TIP

Dry-fit the cabinet with the refrigerator, countertop, wall reinforcement, door swing, and service clearances planned before drilling permanent mounting points.

PRODUCT OVERVIEW

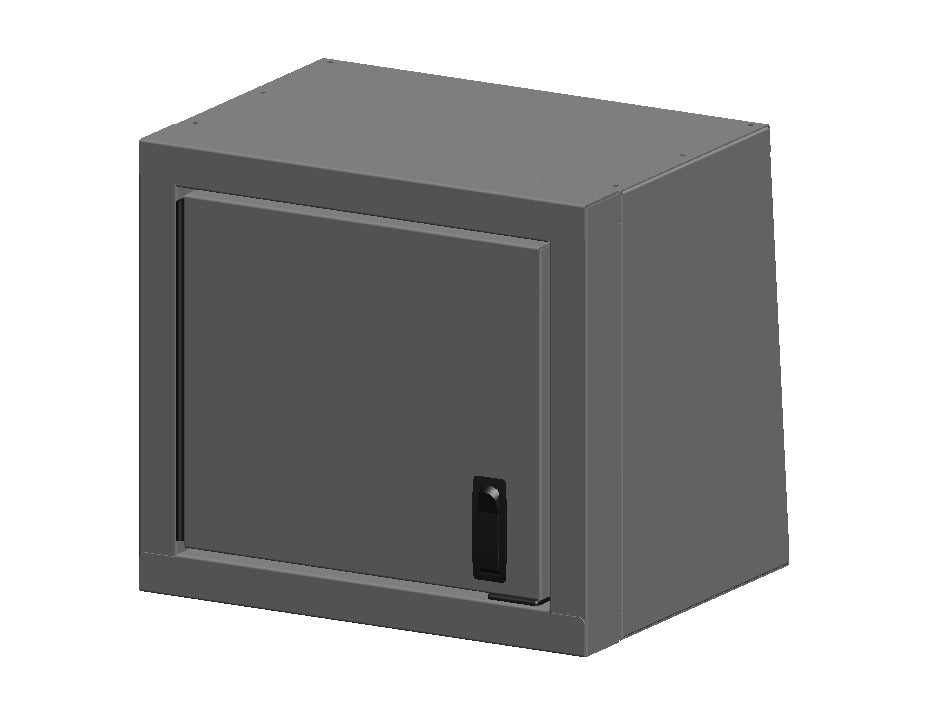

RB Components Ford Transit Wall Cabinet 18 x 16 x 14 - Aluminum is an aluminum interior cabinet built to organize a camper van, work van, trailer, or RV with the dimensions and appliance fitment listed below.

Use the source fitment, color, hinge, refrigerator, drawer, flat-pack, backing, and mounting notes to select the correct configuration before installation.

BEST FOR

• MODULAR VAN GALLEYS: Ideal for builders creating a durable kitchen or storage run with lightweight aluminum cabinetry.

• APPLIANCE-SPECIFIC BUILDS: Useful when the cabinet is designed around the listed Isotherm or Norcold refrigerator model.

• PROFESSIONAL INTERIOR STORAGE: Built for conversions that need organized drawers, pantry space, or wall-mounted storage.

TECHNICAL SPECIFICATIONS

• VENDOR: RB Components

• PRODUCT: Ford Transit Wall Cabinet 18 x 16 x 14 - Aluminum

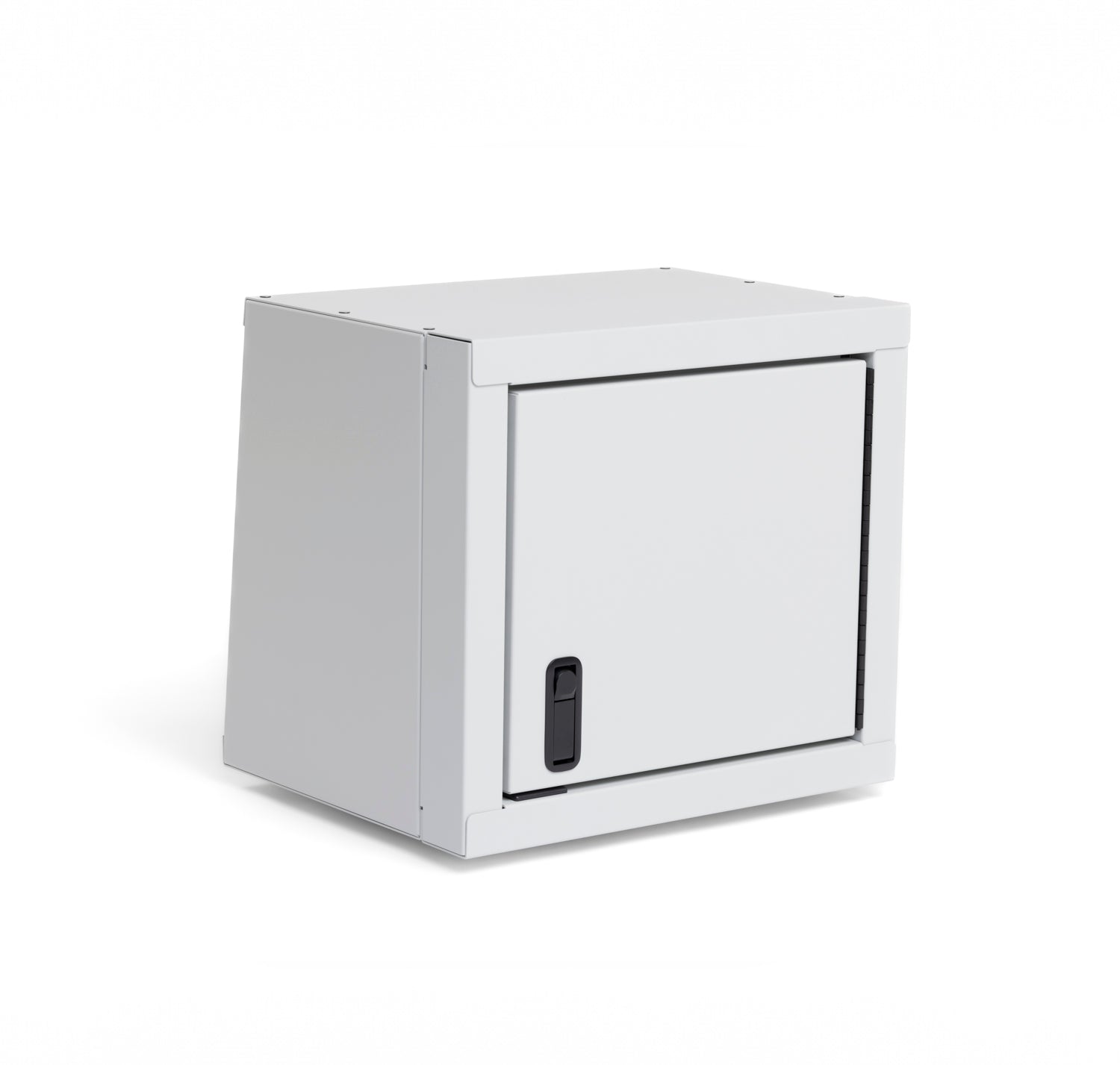

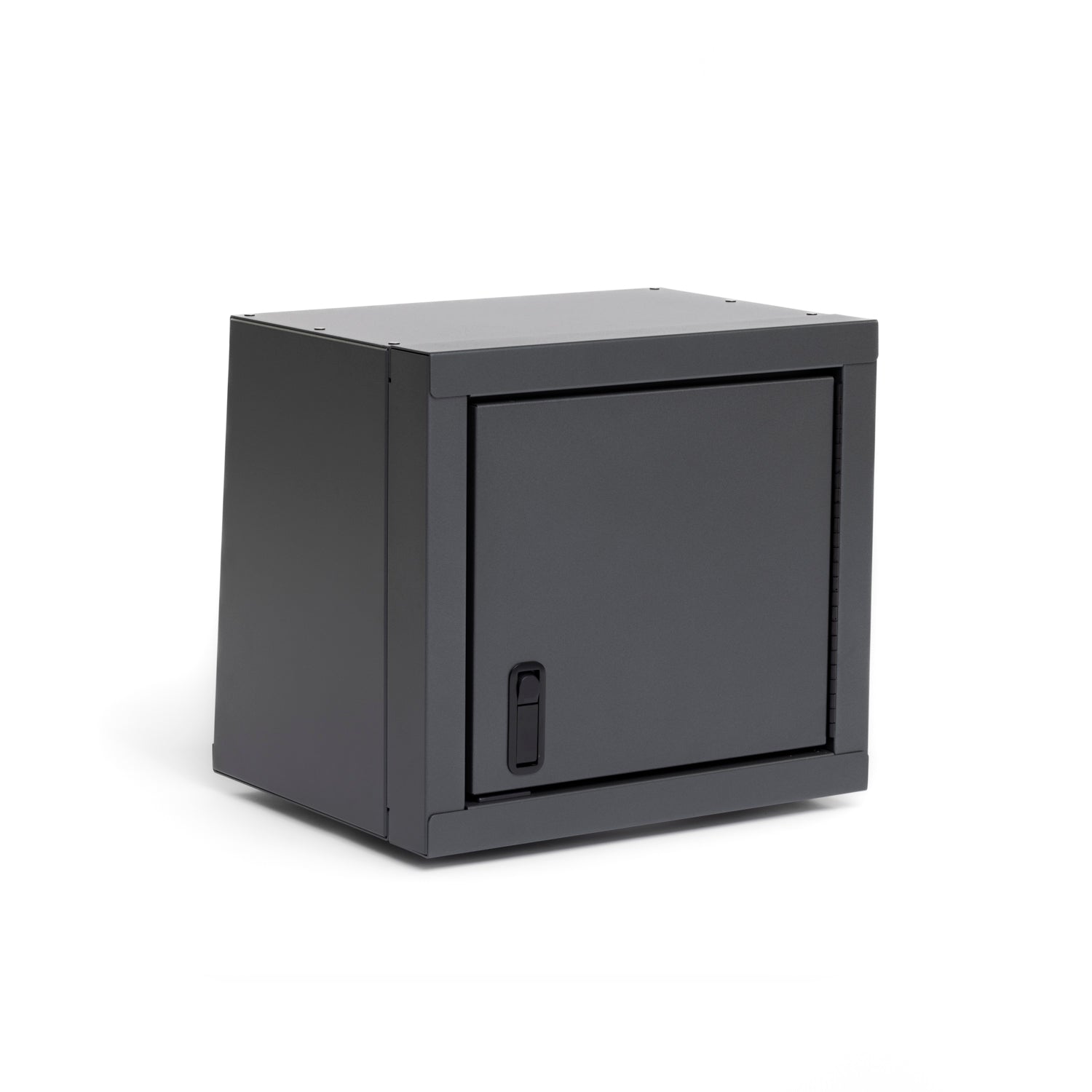

• COLOR OPTIONS: Steel Grey, Dove Grey

• HINGE LOCATION: Right Side, Left Side

• PRODUCT DETAIL 1: Available in Steel Grey or Dove Grey Powder Coated Frame and Panels

• PRODUCT DETAIL 2: Double Lined Doors, Interior Black Panel

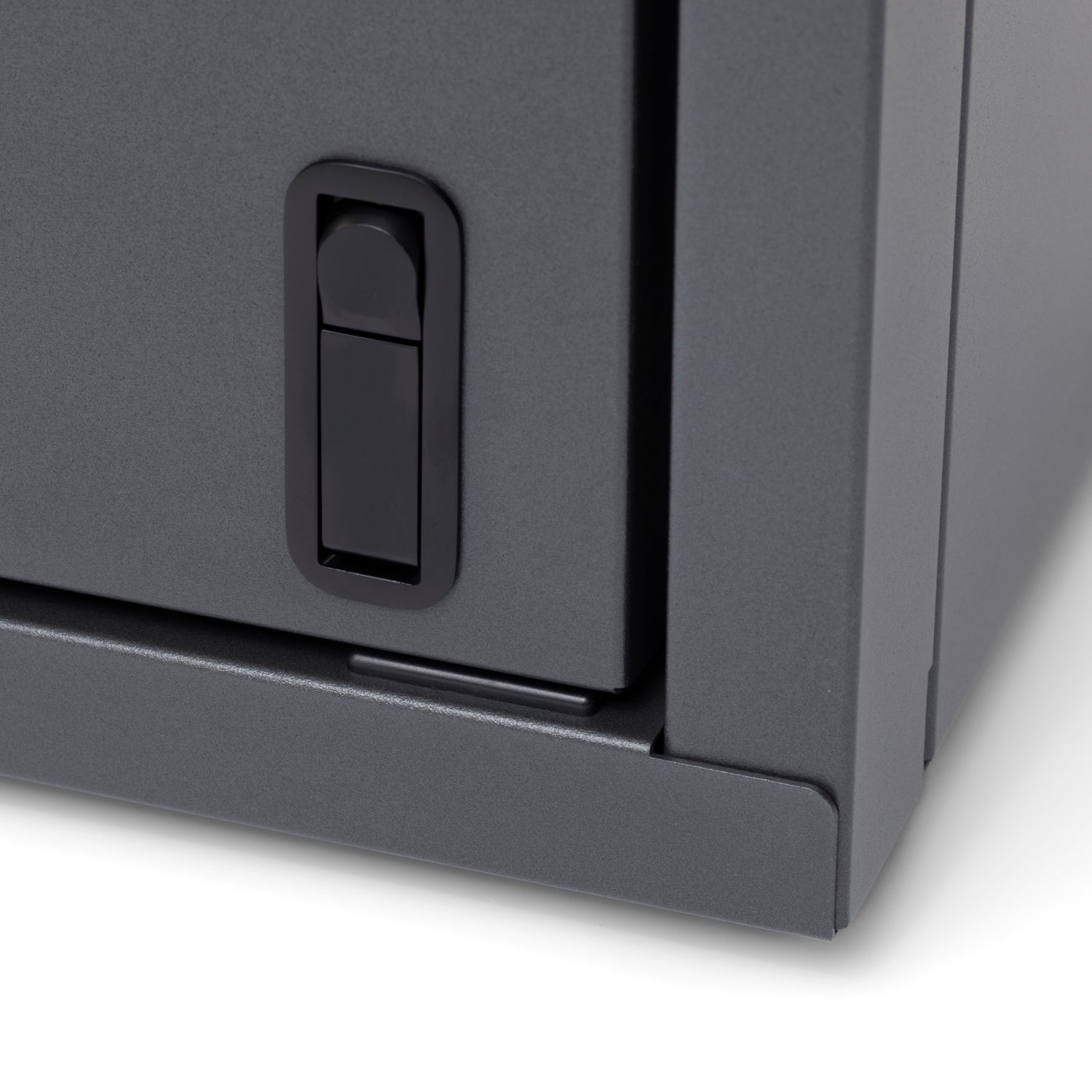

• PRODUCT DETAIL 3: Textured Black Trigger Latch for Easy Opening and Closing

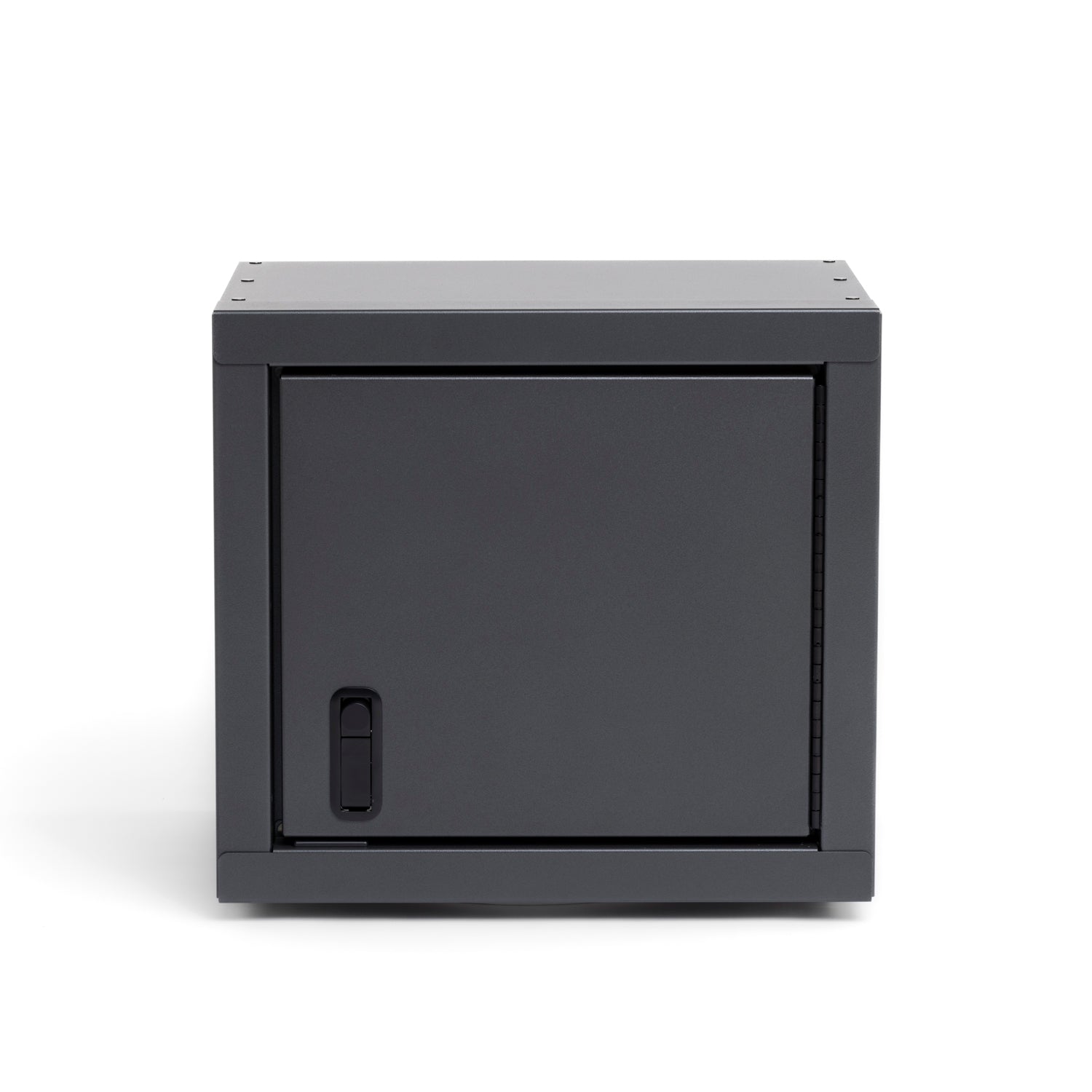

• PRODUCT DETAIL 4: Single, Horizontal Swinging Door, Left or Right Side Hinge

• PRODUCT DETAIL 5: Black Full Length Piano Hinge

• PRODUCT DETAIL 6: Mounting Flanges, Full Rear Perimeter

• PRODUCT DETAIL 7: Lightweight Aluminum Design

• MADE IN: the U.S.A

• PRODUCT DETAIL 9: Manufactured using 5052 Aluminum, RB Components Wall Cabinets are built to last with the finest materials. The lightweight durable design allows these cabinets to be mounted just about anywhere. Gives your garage/trailer/van that professional finished look.

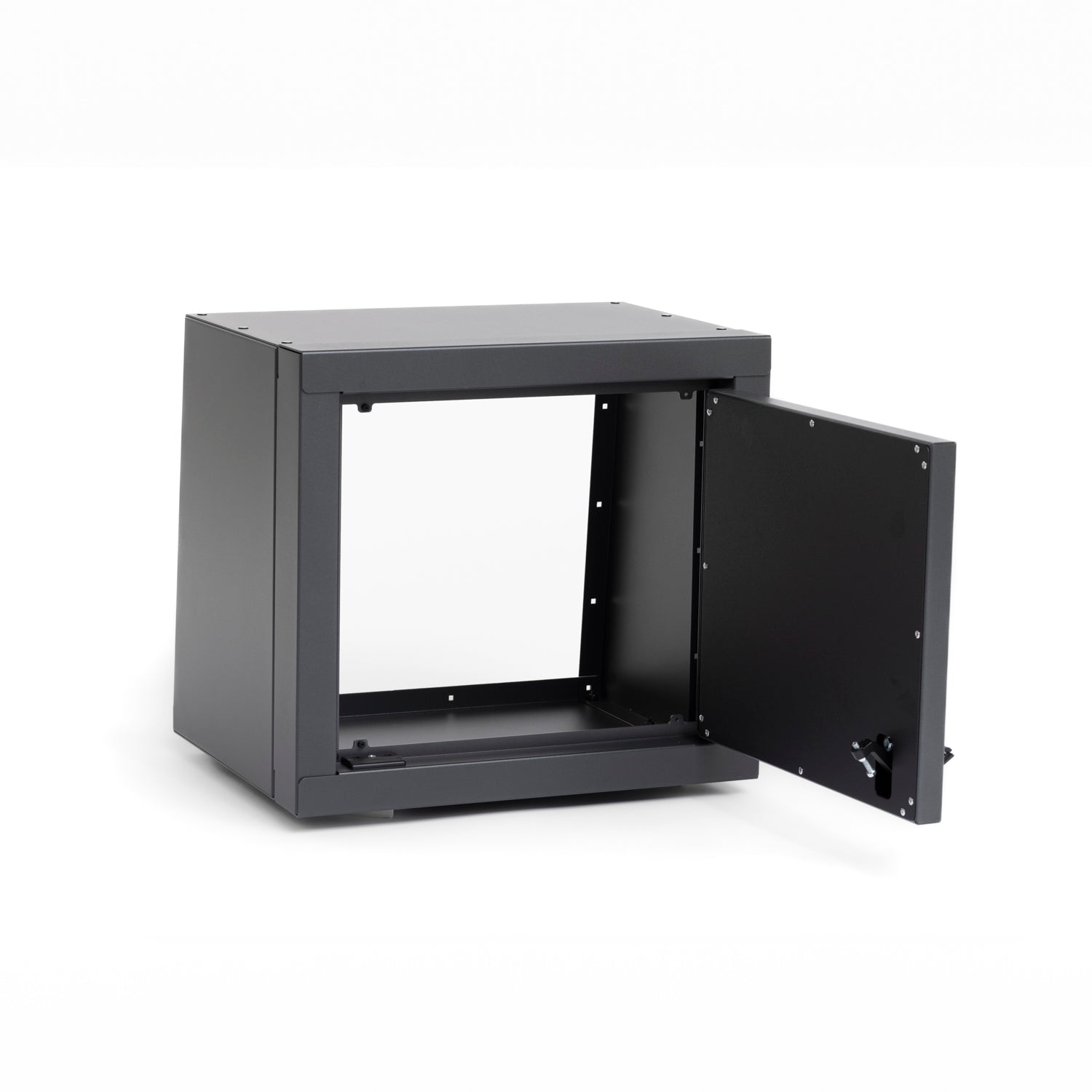

• PRODUCT DETAIL 10: No back panel included with cabinet. Whatever van wall finishing you have or are missing will be what you see inside the cabinet.

• PRODUCT DETAIL 11: All Transit Wall Cabinets ship flat-packed to save shipping cost. These cabinets are assembled using custom step bolts and nylon lock nuts for easy assembly with included assembly instructions. Inside door liner panels are pop-riveted on, but the complete face with door, hinge, latch will come completely assembled. You will only need to attach side panels, top, and bottom

• PRODUCT DETAIL 12: panels. Cabinets can be shipped completely assembled for no additional cost except for the higher shipping charges. Due to the various wall reinforcement materials and applications, mounting fasteners are not included.

• PRODUCT DETAIL 13: Cabinet dimensions are overall dimensions. For door opening, subtract 2" from Length & Width.

• PRODUCT DETAIL 14: When installing multiple cabinets side-by-side, be sure to bolt them together through the side panels on a work bench before installing multiple cabinets as one assembly. This will make it easier to line the cabinets up and prevent any noise from cabinets rubbing due to van wall flexing.

• WIDTH:

• PRODUCT DETAIL 16: 18" |

• HEIGHT:

• PRODUCT DETAIL 18: 16" |

• DEPTH:

• PRODUCT DETAIL 20: 14" |

• WEIGHT:

• PRODUCT DETAIL 22: 10.04 lbs. |

FEATURES

• ALUMINUM CONSTRUCTION: Uses the aluminum construction and powder-coated finish specified in the source details.

• CONFIGURATION OPTIONS: Preserves the listed fitment, color, hinge, drawer, and appliance choices.

• BUILDER-FOCUSED INSTALLATION: Designed for permanent attachment with the reinforcement, floor, wall, or backing requirements listed below.

COMMON PAIRINGS

• MATCHING REFRIGERATOR: Pair with the exact appliance model listed; refrigerators are not included unless explicitly stated.

• COUNTERTOP AND GALLEY HARDWARE: Plan sink, faucet, cooktop, countertop, and backsplash locations around the cabinet dimensions.

• STRUCTURAL WALL OR FLOOR BACKING: Use suitable reinforcement and fasteners for the selected cabinet and vehicle layout.

COMPATIBILITY & FITMENT

• CHASSIS: Use the Standard straight-back or Sprinter curved-back fitment when offered; forward-facing Sprinter models require the listed Sprinter wall profile.

• WHEELBASE: Not wheelbase-specific unless stated; verify the complete cabinet width and planned interior layout.

• ROOF HEIGHT: Not roof-height-specific; confirm countertop height, overhead clearance, and door or drawer travel.

• REQUIREMENTS: Confirm refrigerator model, fitment profile, color, hinge orientation, wall reinforcement, backing, assembly, and mounting hardware requirements.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Is the refrigerator included?

A: No, the refrigerator is not included unless the technical specifications explicitly say otherwise.

Q: How do I choose Standard or Sprinter fitment?

A: Choose Standard for a straight back or Sprinter for the curved wall profile when those options are offered.

Q: Are these cabinets built to order?

A: Yes, where stated in the source, production can take approximately 5-7 days before shipment.

Q: What should I confirm before installation?

A: West Coast Vans recommends confirming dimensions, appliance clearance, reinforcement, door or drawer travel, and service access.
