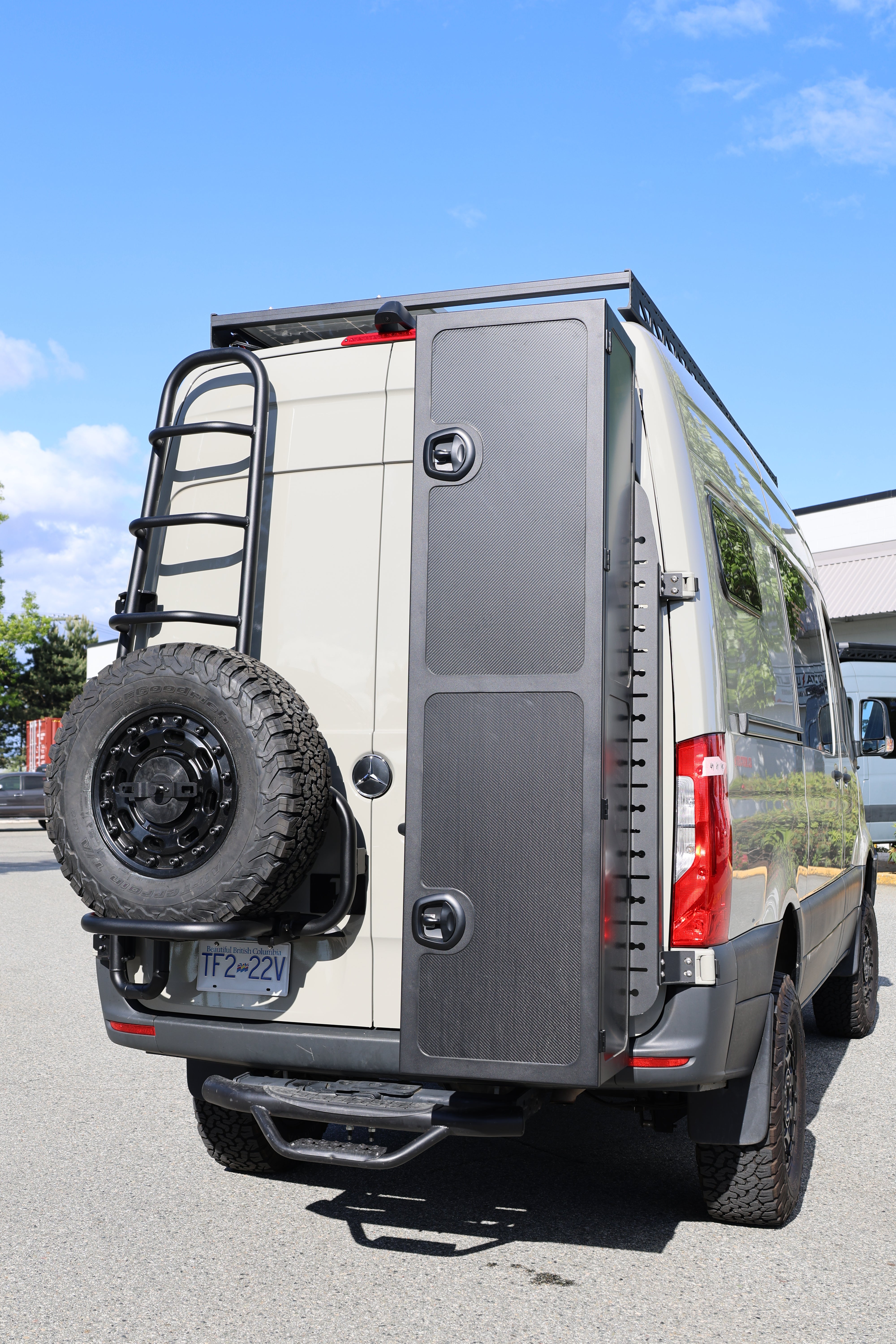

At West Coast Vans, long skis and fishing rods are wonderful outside and spectacularly awkward inside a finished van. The 75.6-inch Trenta box combines carbon-fiber panels, an aluminum frame, weather sealing, and 49-pound weight; Ask Us Product Questions Anytime before planning rear-door rack capacity.

WCV EXPERT TIP

Mock up the loaded center of gravity and cycle both rear doors before drilling; exterior cargo changes hinge load and body clearance quickly.

PRODUCT OVERVIEW

Tec Vanlife Trenta Carbon Fiber Storage Box - Long Gear adds rear-door cargo capacity using the aluminum construction, mounting pattern, weather sealing, door-side choice, and dimensions listed below.

Confirm the rear-door hinge generation, supporting rack or bracket system, door load, latch access, and complete opening clearance before installation.

BEST FOR

• REAR-DOOR GEAR STORAGE: Moves bulky equipment outside the living area for easier access.

• MODULAR EXTERIOR SYSTEMS: Uses MOLLE, slots, carriage bolts, shelves, or accessory mounting patterns described below.

• ADVENTURE EQUIPMENT BUILDS: Useful for recovery gear, outdoor equipment, and other properly secured cargo.

TECHNICAL SPECIFICATIONS

• VENDOR: Tec Vanlife USA

• PRODUCT: Trenta Carbon Fiber Storage Box - Long Gear

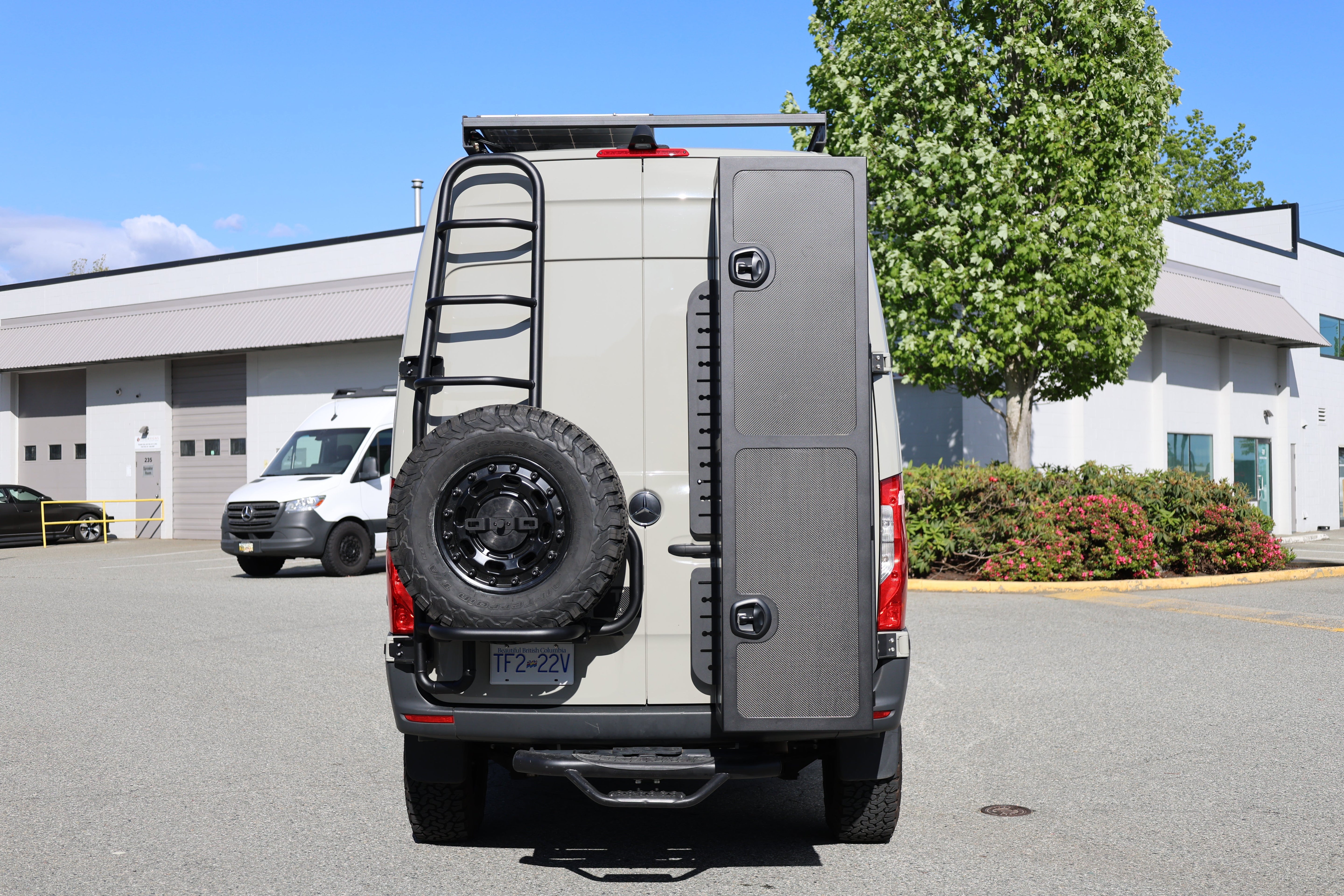

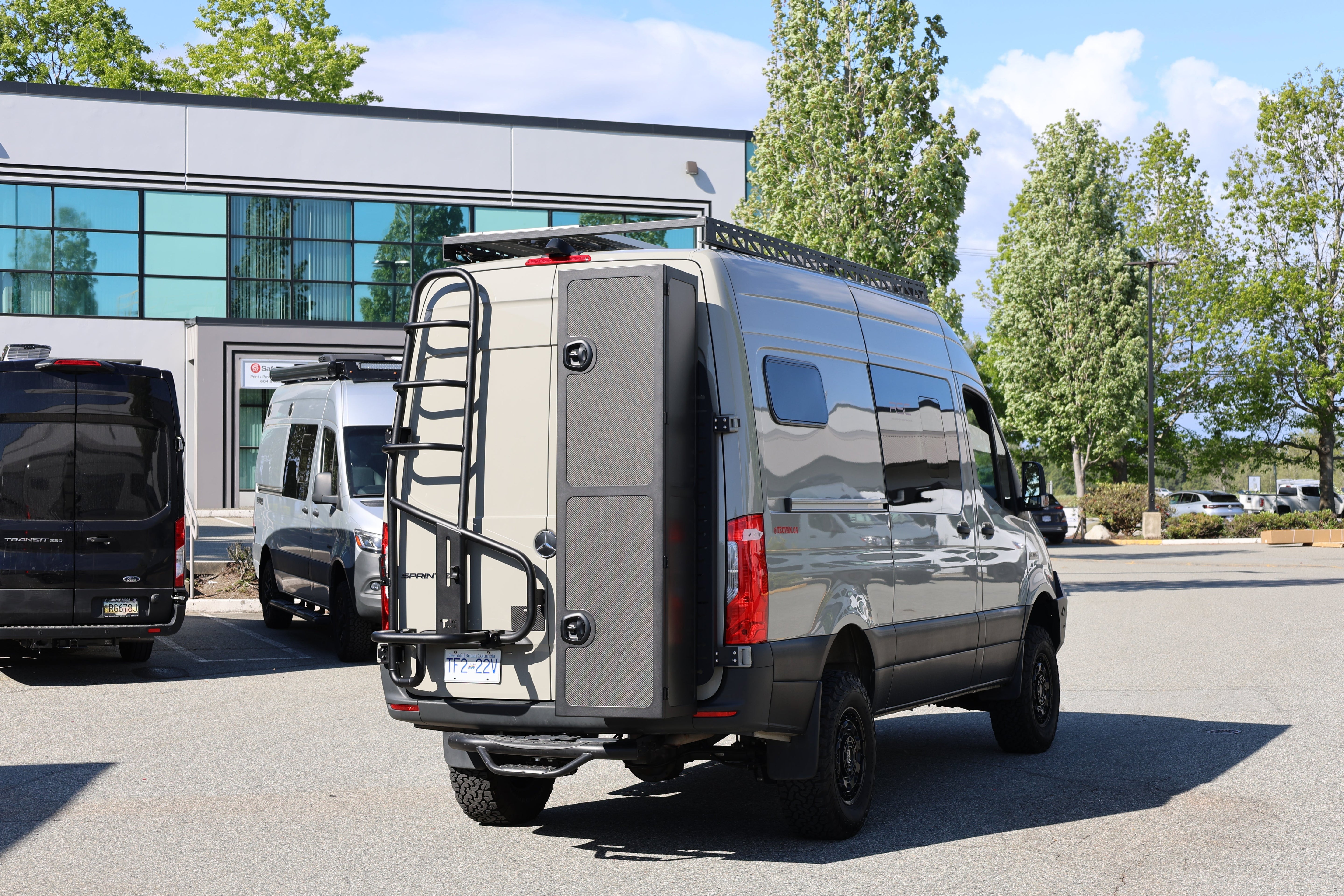

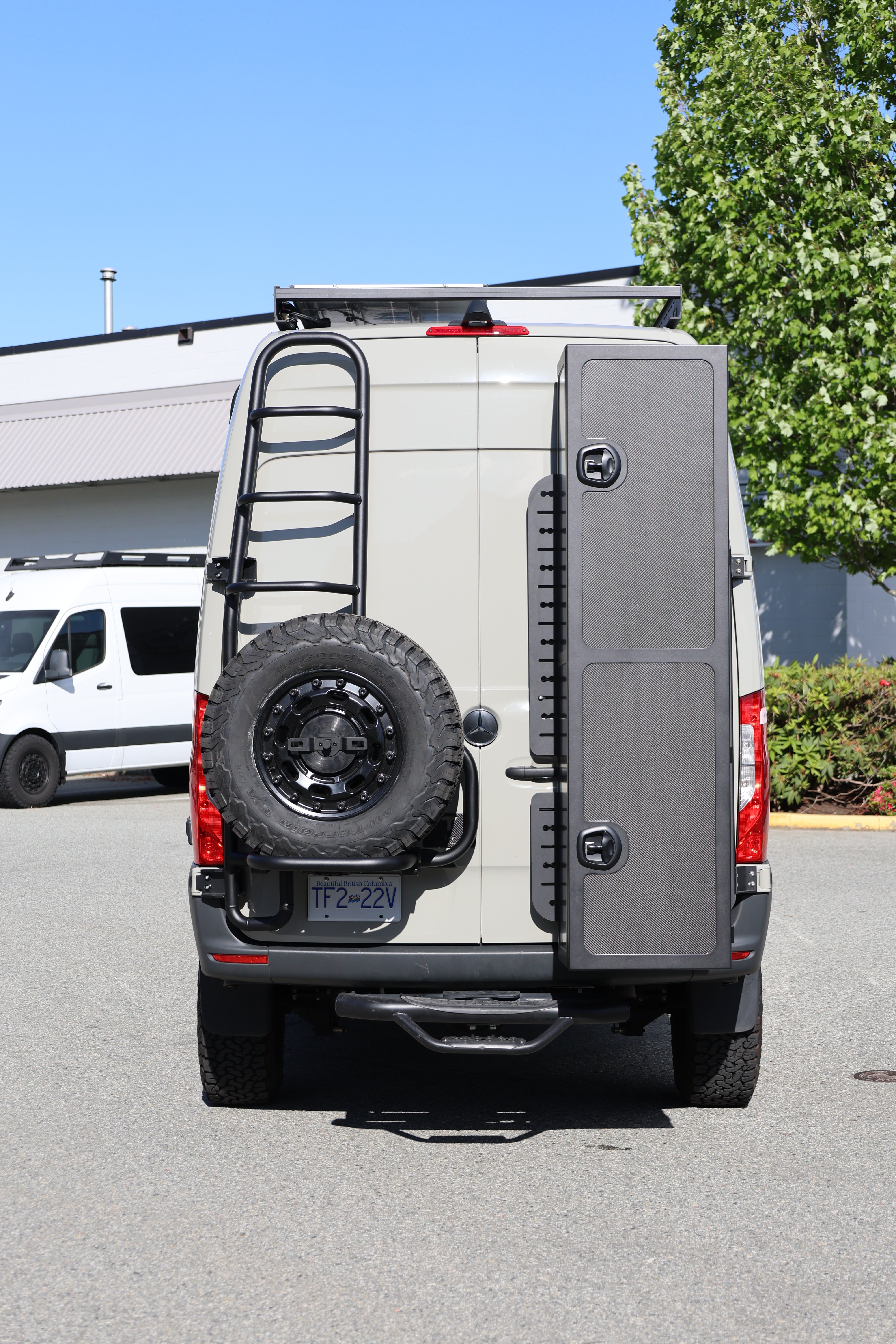

• FITMENT: Lightweight carbon fiber and aluminum storage box designed for the Sprinter rear door gear rack.

• SHIPPING: 200 flat rate shipping to the Lower 48 states. Free warehouse pickup available.

• WEATHER PROTECTION: Secure, weather sealed protection for long equipment such as skis, snowboards, golf bags, fishing rods, and recovery gear.

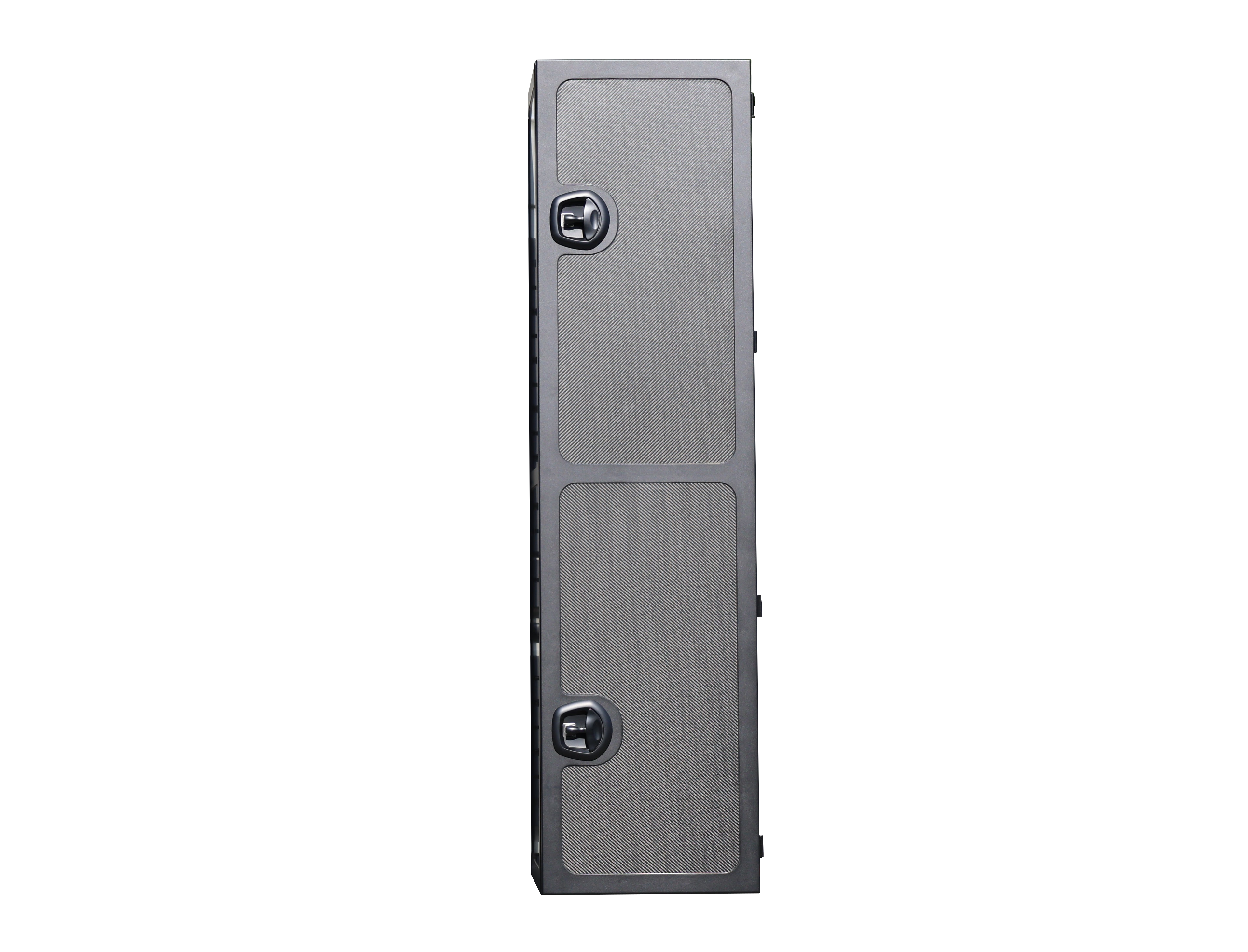

• CONSTRUCTION: Constructed from an aluminum frame and carbon fiber panels for high strength to weight ratio

• TALL PROFILE ACCOMMODATES LONG SKIS SNOWBOARDS: Tall 75" profile accommodates long skis, snowboards, and golf clubs

• LOAD RATING: Weighs only 49 lbs (22.2 kg) to minimize load on rear door hinges

• BED SYSTEM: Includes two removable internal panels for customized storage configuration

• DESIGN NOTE: Zero rust design eliminates corrosion from road salt and snow exposure

• CONSTRUCTION: Carbon fiber panels secured by full perimeter screws for maximum rigidity

• PLUMBING: Premium rubber seal creates a watertight, dustproof barrier against highway driving rain

• INCLUDED COMPONENTS: Includes built in locking mechanism with option for secondary padlock

• EXTERIOR DIMENSIONS: 21.7" W x 15.7" D x 75.6" H (550 mm x 400 mm x 1920 mm)

• BEZEL WIDTH: 1.26" (32 mm)

• INTERIOR DIMENSIONS: 19.1" W x 13.2" D x 73.1" H (486 mm x 336 mm x 1856 mm)

• SOURCE LOAD OR WEIGHT VALUE: 49 lbs (22.2 kg)

• CONSTRUCTION: The Trenta Hybrid Storage Box combines a rigid aluminum frame with carbon fiber side panels to deliver maximum volume with minimal weight. This hybrid construction keeps the unit at just 49 lbs while completely eliminating steel components, ensuring zero rust or corrosion even after prolonged exposure to road salt and winter conditions.

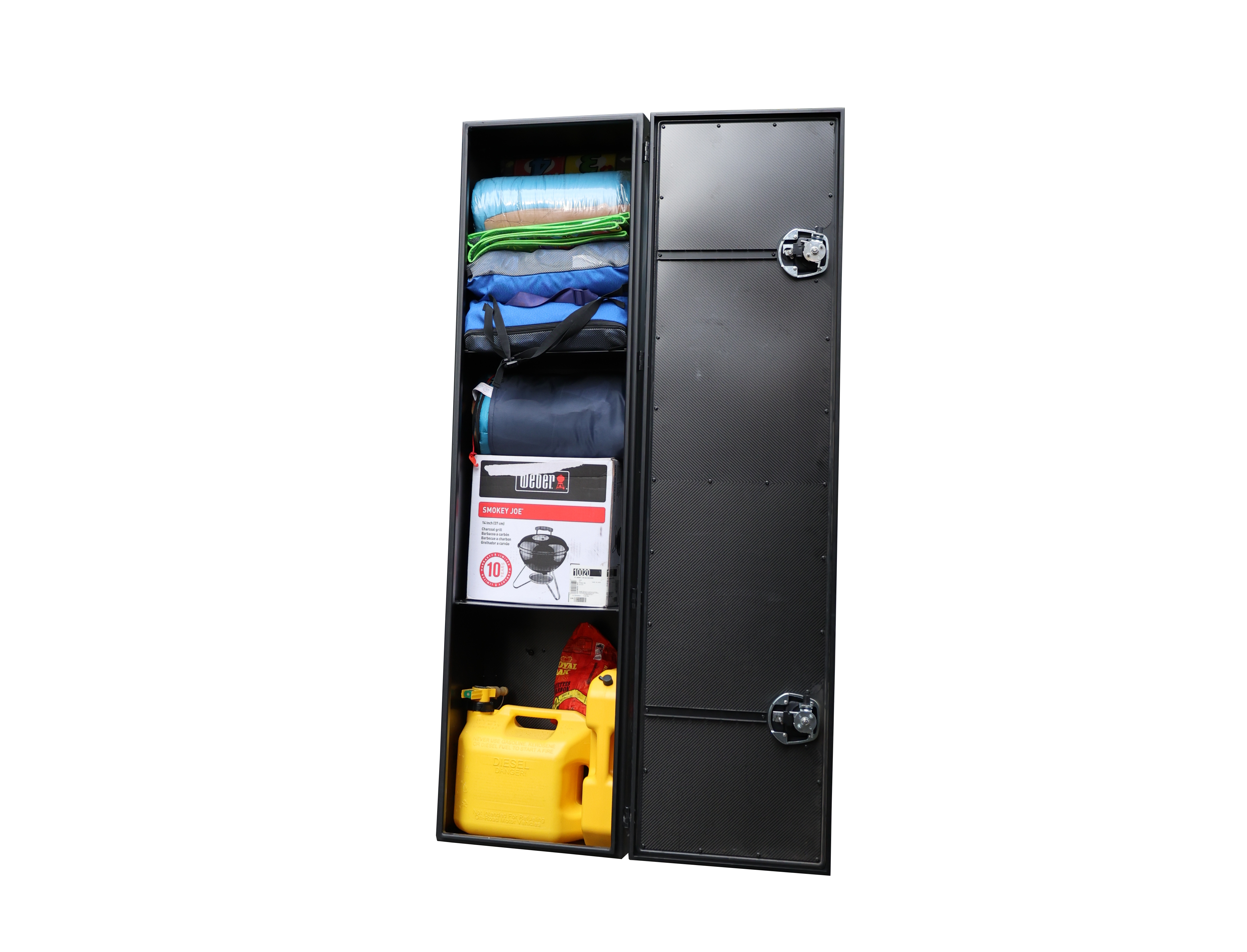

• FITMENT: Designed for a direct fit to the Sprinter rear door gear rack, the box's vertical profile is optimized for oversized gear. With a usable internal height of 75 inches (1905 mm), it securely houses skis, snowboards, golf bags, and other long equipment that does not fit in standard square cargo boxes. This model features two removable internal panels, allowing you to secure

• SMALLER ITEMS OR CUSTOMIZE THE INTERIOR: smaller items or customize the interior layout to fit your specific loadout.

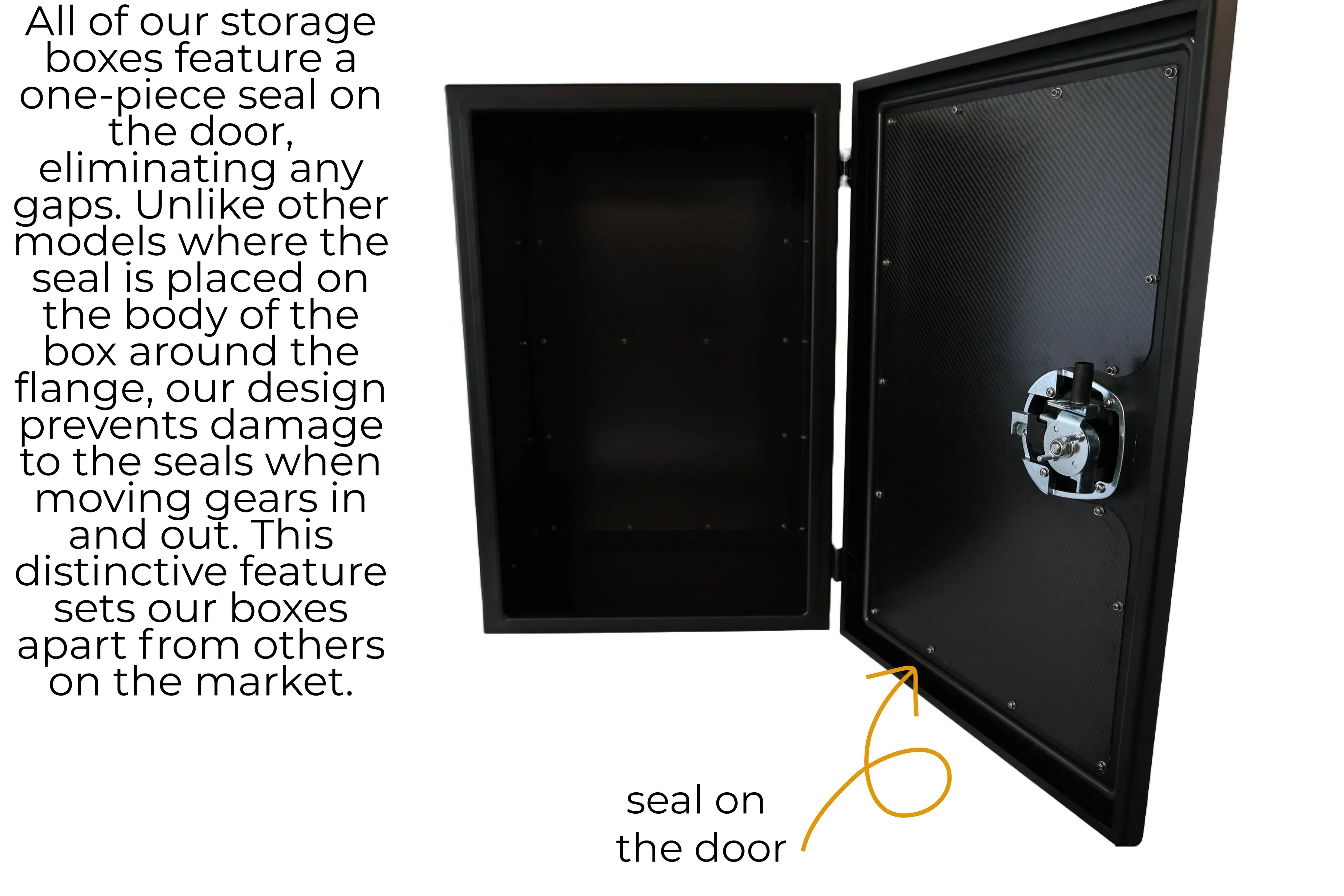

• CONFIGURATION NOTE: The door utilizes a continuous rubber seal to create a watertight and dustproof barrier. This effectively blocks high pressure water spray and rain at highway speeds. For security, a robust locking handle keeps the door tightly closed and your gear safe.

• INSTALLATION: 1. Will mounting a box this size damage my rear door hinges or cause the door to sag over time?

• CONFIGURATION NOTE: No, the box weighs only 49 lbs, so it will not damage your hinges. However, please make sure the total weight does not exceed your rack's limit. If you are using our gear rack, the limit is 180 lbs. If you use another brand, please check their specific rating.

• DOES THE BOX OBSTRUCT THE REAR: 2. Does the box obstruct the rear parking sensors or cause the blind spot monitoring system to beep constantly in reverse?

• INSTALLATION: This depends on how high you mount it. If it is mounted too low, it might trigger the sensors. You can fix this by mounting the box higher up or adjusting the angle of your sensors.

• FITMENT: 3. Is this box compatible with existing Sprinter carrier plates from brands like Owl Vans, Aluminess, or other standard panels?

• FITMENT: Due the larger size, this box is not compatible with some gear racks. Please confirm the measurements of the gear rack and contact us before purchasing to ensure it fits your setup.

• ROOF SYSTEM: 4. Is the weatherproof seal capable of withstanding high pressure car washes and driving rain at highway speeds?

• PLUMBING: Yes, it is waterproof. The rubber seal keeps water and dust out, even during heavy rain or car washes.

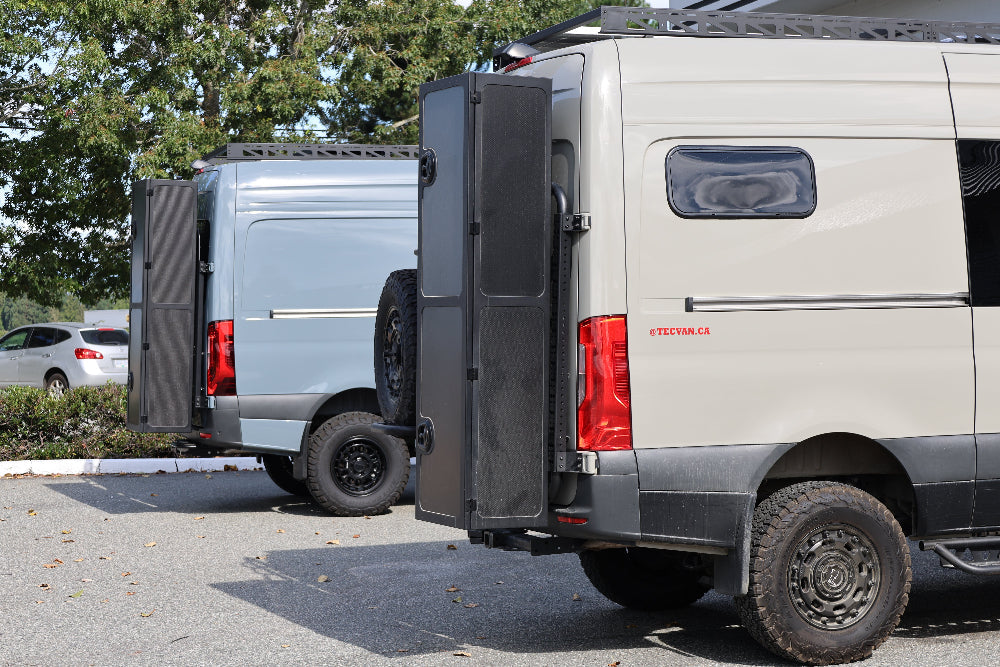

• CONFIGURATION NOTE: 5. Does the box interfere with the rear door opening fully (180 vs 270 hinges) or hitting the side of the van?

• INSTALLATION: This depends on your gear rack settings. After installing, check the door opening angle carefully to make sure the box doesn't hit the side of the van. You may need to install a limit stop on your door hinge or use a check strap to stop the door earlier.

• HOW SECURE IS THE LOCKING MECHANISM: 6.How secure is the locking mechanism against theft for high value items?

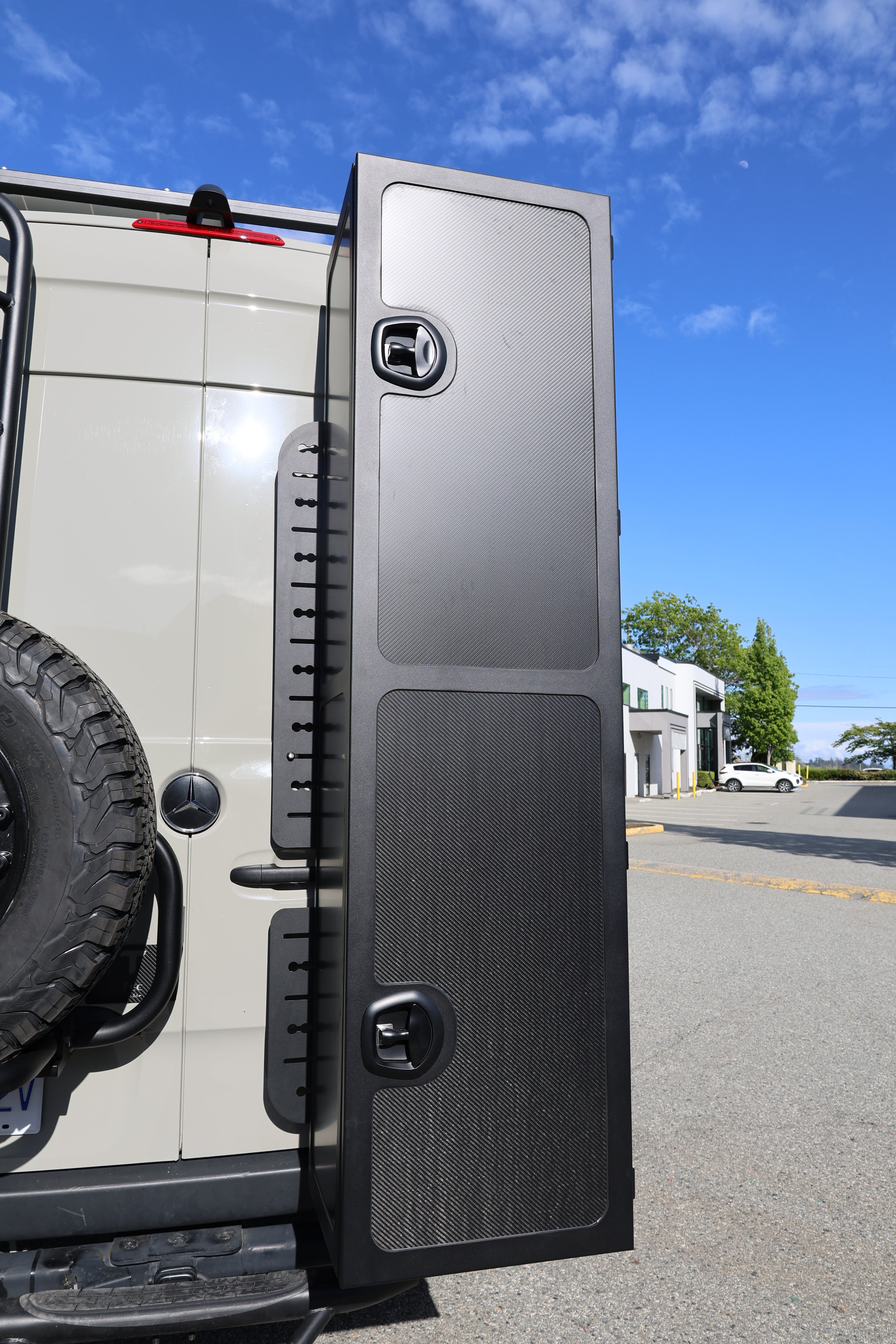

• CONSTRUCTION: The box features a dual point locking system to resist prying, with the option to add secondary padlocks for double security. Structurally, the carbon fiber panels are anchored by a full perimeter of screws. This reinforced assembly prevents the panels from being kicked in or pried off the frame.

FEATURES

• ALUMINUM CONSTRUCTION: Uses the welded or formed aluminum and powder-coated finish stated below.

• MODULAR MOUNTING: Provides the source-listed hole, slot, MOLLE, shelf, or accessory interface.

• DOOR-SPECIFIC CONFIGURATION: Preserves driver/passenger side, hinge-generation, latch, seal, and limit-cable details.

COMMON PAIRINGS

• COMPATIBLE REAR-DOOR RACK: Use the required supporting rack or approved mounting structure for the selected box.

• OPTIONAL STORAGE SHELVES: Choose shelves sized for the exact horizontal, vertical, or box-width configuration.

• CARGO RESTRAINTS: Secure every stored item and respect the complete door and mounting-system load capacity.

COMPATIBILITY & FITMENT

• CHASSIS: Vehicle rear-door installation with a compatible RB rack or approved supporting structure; confirm chassis before ordering.

• WHEELBASE: Not wheelbase-specific; rear-door geometry and supporting hardware determine fit.

• ROOF HEIGHT: Confirm vertical clearance for the selected horizontal or vertical box and full door opening.

• REQUIREMENTS: Verify door side, hinge generation, supporting rack, fasteners, door load, latch access, weather seal, shelves, and body clearance.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Does the gear rack fit pre-2019 Sprinter hinges?

A: No, the source states that the rear-door gear rack works only with 2019+ rear-door hinges.

Q: Can the boxes use shelves?

A: Yes, compatible adjustable shelf options are listed separately.

Q: Can the box hinge left or right?

A: Where stated, the storage box can be mounted with either left- or right-hand hinging.

Q: What should be checked before loading?

A: West Coast Vans recommends checking the supporting rack, door load, hinges, latch access, and full opening clearance.
