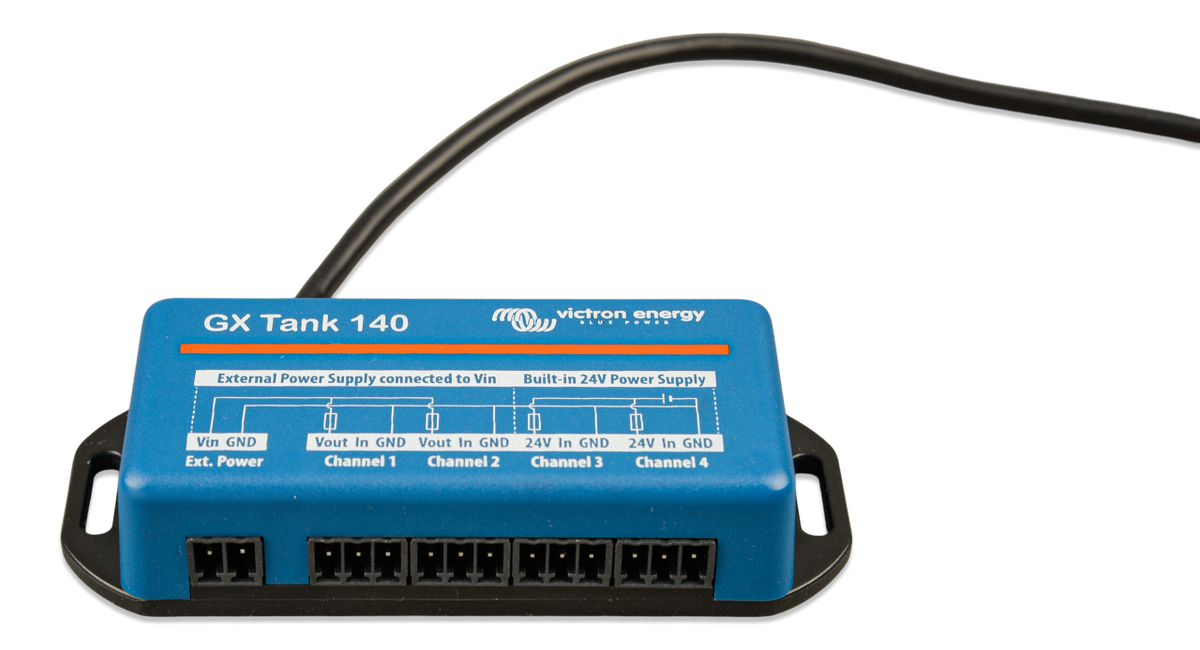

Victron BPP920140100 GX Tank 140 for Analog Sensors 4-20ma 0-10V - System Monitoring

Victron BPP920140100 GX Tank 140 for Analog Sensors 4-20ma 0-10V - System Monitoring

At West Coast Vans, system monitoring makes a power build easier to understand, troubleshoot, and live with. The Victron BPP920140100 GX Tank 140 for Analog Sensors 4-20ma 0-10V - System Monitoring keeps the build moving with Victron-specific electrical hardware; Ask Us Product Questions Anytime before matching it to your system diagram.

WCV EXPERT TIP

Map each data cable and sensor before mounting displays so troubleshooting later is painless.

PRODUCT OVERVIEW

Victron BPP920140100 GX Tank 140 for Analog Sensors 4-20ma 0-10V - System Monitoring is a Victron monitoring component for making system information easier to view, connect, or interpret.

The technical specifications below retain the available model, rating, connection, warranty, and source-product details from the export.

BEST FOR

• SYSTEM VISIBILITY: Makes electrical data easier to view or connect inside a larger Victron setup.

• TROUBLESHOOTING: Helps builders understand what the power system is doing before problems grow.

• CONNECTED POWER BUILDS: Supports layouts that rely on Victron communication and monitoring components.

TECHNICAL SPECIFICATIONS

• VENDOR: Victron

• SHOPIFY SUPPLIER: Victron Guy

• SKU / MPN: BPP920140100

• ORIGINAL PRODUCT TITLE: Victron BPP920140100 GX Tank 140 for Analog Sensors 4-20ma 0-10V Auth Dealer

• SOURCE PRODUCT TYPE: System Monitoring

• SOURCE PRODUCT CATEGORY: Hardware > Tools > Measuring Tools & Sensors > Levels

• SOURCE DETAIL: The GX Tank 140 takes readings from up to four tank level sensors.

• SOURCE DETAIL: It is an accessory for our range of GX system monitoring products, of which the Cerbo GX is the most commonly used model.

• SOURCE DETAIL: Tank levels can be read-out locally in the system, see screenshot, as well remotely through our VRM Portal.

• ELECTRICAL RATING: The GX Tank 140 is compatible with current senders (4 to 20 mA) as well as voltage senders (0 to 10 V).

• SOURCE DETAIL: The connection to the GX Device is via USB, which is also how the GX Tank is powered: no additional power wires required.

• SOURCE DETAIL: Tank sender wiring is kept as simple as possible: two of the four inputs provide a 24 V power supply, to power the sender.

• SOURCE DETAIL: The other two channels do require an external power supply, and there is a power in terminal together with fused outputs to facilitate that.

• ELECTRICAL RATING: Upper and lower limits are configurable, to allow using senders that provide only part of the scale, for example 0 to 5 V.

• ELECTRICAL RATING: To provide a stable reading, the readings are averaged damping.

• ELECTRICAL RATING: The damping can be configured between 1 and 60 seconds.

• SOURCE DETAIL: Faulty sensors and wiring issues are detected: an alarm will be raised when values are out of range.

• SOURCE DETAIL: For marine applications, the GX Device can transmit these tank levels on the NMEA 2000 network to be picked up by other displays such as an MFD.

• SOURCE DETAIL: Some items have a longer shipping time and will normally ship within 1 week.

• WARRANTY NOTE: All items except batteries come with a 5 Year Warranty.

FEATURES

• SYSTEM DATA ACCESS: Adds the listed Victron monitoring function.

• COMPATIBLE SENSOR OR DEVICE SUPPORT: Signal or device compatibility details are preserved below.

• CLEANER TROUBLESHOOTING: Helps builders view or connect system information.

COMMON PAIRINGS

• VICTRON COMMUNICATION CABLES: Use the correct data cable for the connected devices.

• CERBO GX OR GX DISPLAY: Pair with compatible monitoring hardware where the system requires it.

• BATTERY OR CHARGE EQUIPMENT: Connect to the devices shown in the final electrical diagram.

COMPATIBILITY & FITMENT

• CHASSIS: Universal van electrical application

• WHEELBASE: Not wheelbase-specific.

• ROOF HEIGHT: Not roof-height-specific.

• REQUIREMENTS: Requires compatible Victron devices, sensors, signal type, and communication cabling.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Does this replace the main power equipment?

A: No. It adds monitoring, display, sensor, or communication capability to compatible equipment.

Q: Is this vehicle-specific?

A: No. This is a universal electrical component for compatible van power systems.

Q: Should I confirm compatibility before ordering?

A: Yes. Match the part number, voltage, current rating, connection type, and system design before ordering.

Q: Can West Coast Vans help with system planning?

A: Yes. West Coast Vans can help confirm how this component fits into a complete van power system.
