At West Coast Vans, battery combining needs a clear plan for current flow and bank protection. The Victron CYR010230010 Cyrix-ct 12/24V-230A intelligent battery combiner - Battery Combining supports a cleaner van power build; Ask Us Product Questions Anytime before matching it to your system diagram.

WCV EXPERT TIP

Confirm both battery banks, current rating, and protection strategy before adding a combiner.

PRODUCT OVERVIEW

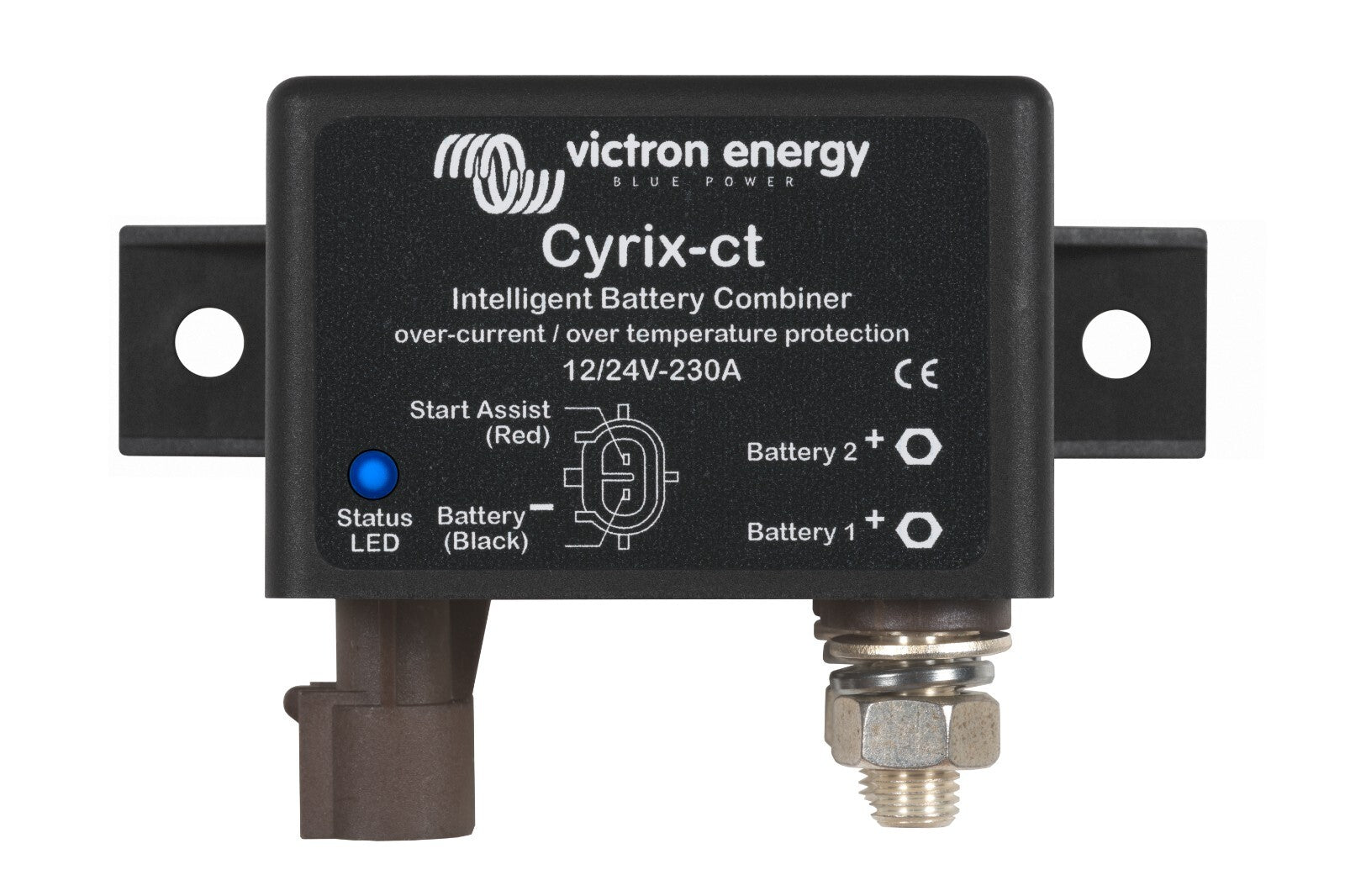

Victron CYR010230010 Cyrix-ct 12/24V-230A intelligent battery combiner - Battery Combining is a Victron battery combiner for compatible van, RV, marine, and mobile power systems.

The technical specifications below retain the available model, rating, connection, warranty, and source-product details from the export.

BEST FOR

• DUAL-BATTERY SYSTEMS: Combines supported battery banks according to the electrical design.

• CHARGING MANAGEMENT: Supports controlled current paths between batteries.

• SERVICEABLE POWER BUILDS: Keeps battery-combining hardware clear and identifiable.

TECHNICAL SPECIFICATIONS

• VENDOR: Victron

• SHOPIFY SUPPLIER: Victron Guy

• SKU / MPN: CYR010230010

• ORIGINAL PRODUCT TITLE: Victron CYR010230010 Cyrix-ct 12/24V-230A intelligent battery combiner

• SOURCE PRODUCT TYPE: Battery Combiner

• SOURCE PRODUCT CATEGORY: Electronics > Electronics Accessories > Power > Battery Accessories

• ELECTRICAL RATING: Victron CYR010230010 Cyrix-ct 12/24V-230A intelligent battery combiner

• ELECTRICAL RATING: The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged).

• SOURCE DETAIL: Cyrix Battery Combiners are an excellent replacement for diode isolators.

• ELECTRICAL RATING: The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.

• CONSTRUCTION NOTE: Some items have a longer shipping time and will normally ship within 1 week.

• WARRANTY NOTE: All items except batteries come with a 5 Year Warranty.

FEATURES

• BATTERY COMBINING: Supports the listed battery-combiner function.

• CURRENT RATING: Amp rating is preserved below.

• SYSTEM CLARITY: Keeps battery-combining hardware identifiable.

COMMON PAIRINGS

• POWER DISTRIBUTION: Pair with properly sized busbars, breakers, and fusing.

• BATTERY SYSTEM: Match the component to the voltage and layout of the battery bank.

• INSTALL SUPPORT: Ask West Coast Vans before combining components in a high-current system.

COMPATIBILITY & FITMENT

• CHASSIS: Universal van electrical application

• WHEELBASE: Not wheelbase-specific.

• ROOF HEIGHT: Not roof-height-specific.

• REQUIREMENTS: Requires matching battery-bank layout, current rating, cable sizing, and overcurrent protection.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Is a combiner needed for every battery system?

A: No. It depends on the battery layout, charging strategy, and required current flow.

Q: Is this vehicle-specific?

A: No. This is a universal electrical component for compatible van power systems.

Q: Should I confirm compatibility before ordering?

A: Yes. Match the part number, voltage, current rating, connection type, and system design before ordering.

Q: Can West Coast Vans help with system planning?

A: Yes. West Coast Vans can help confirm how this component fits into a complete van power system.
