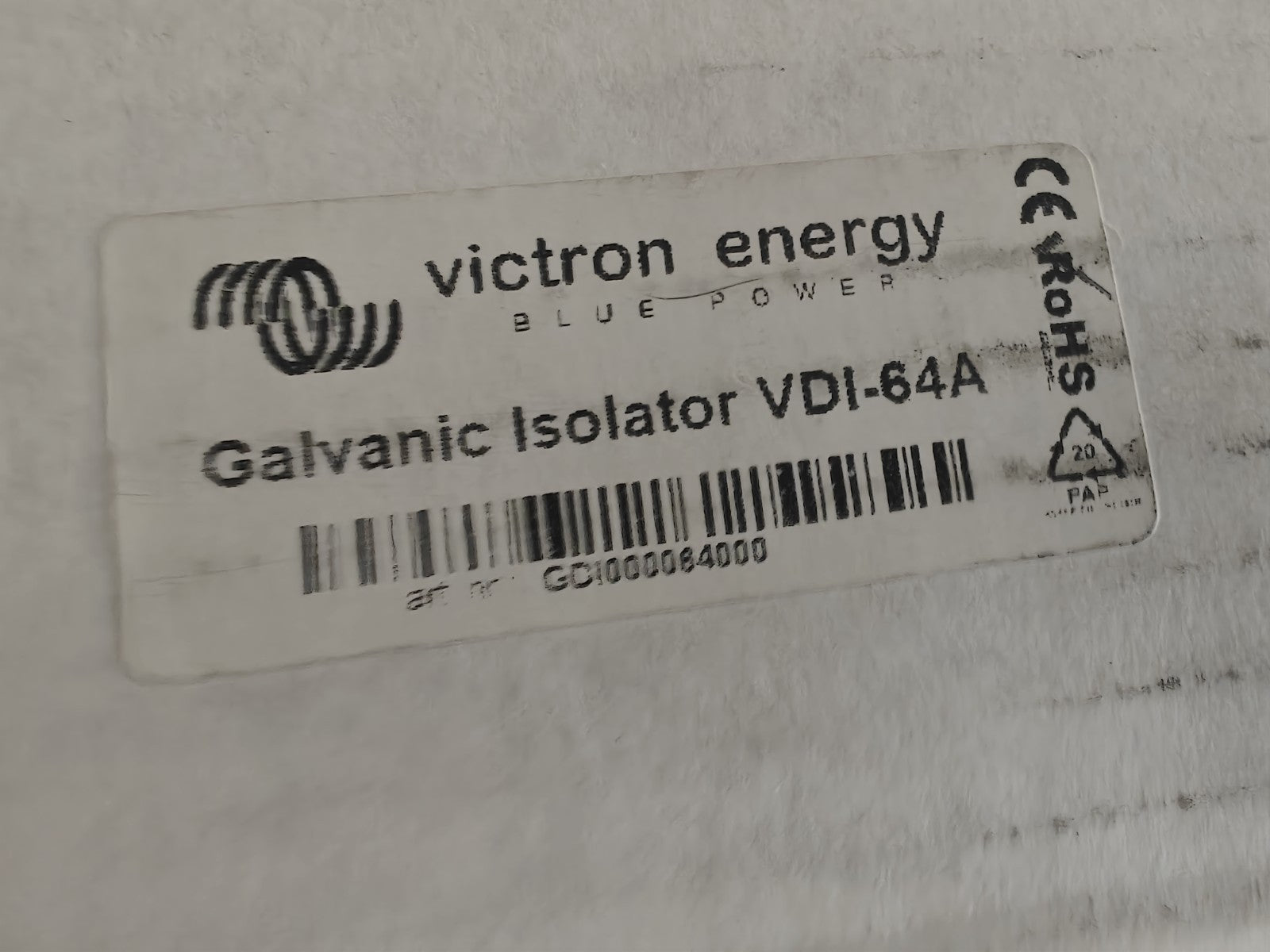

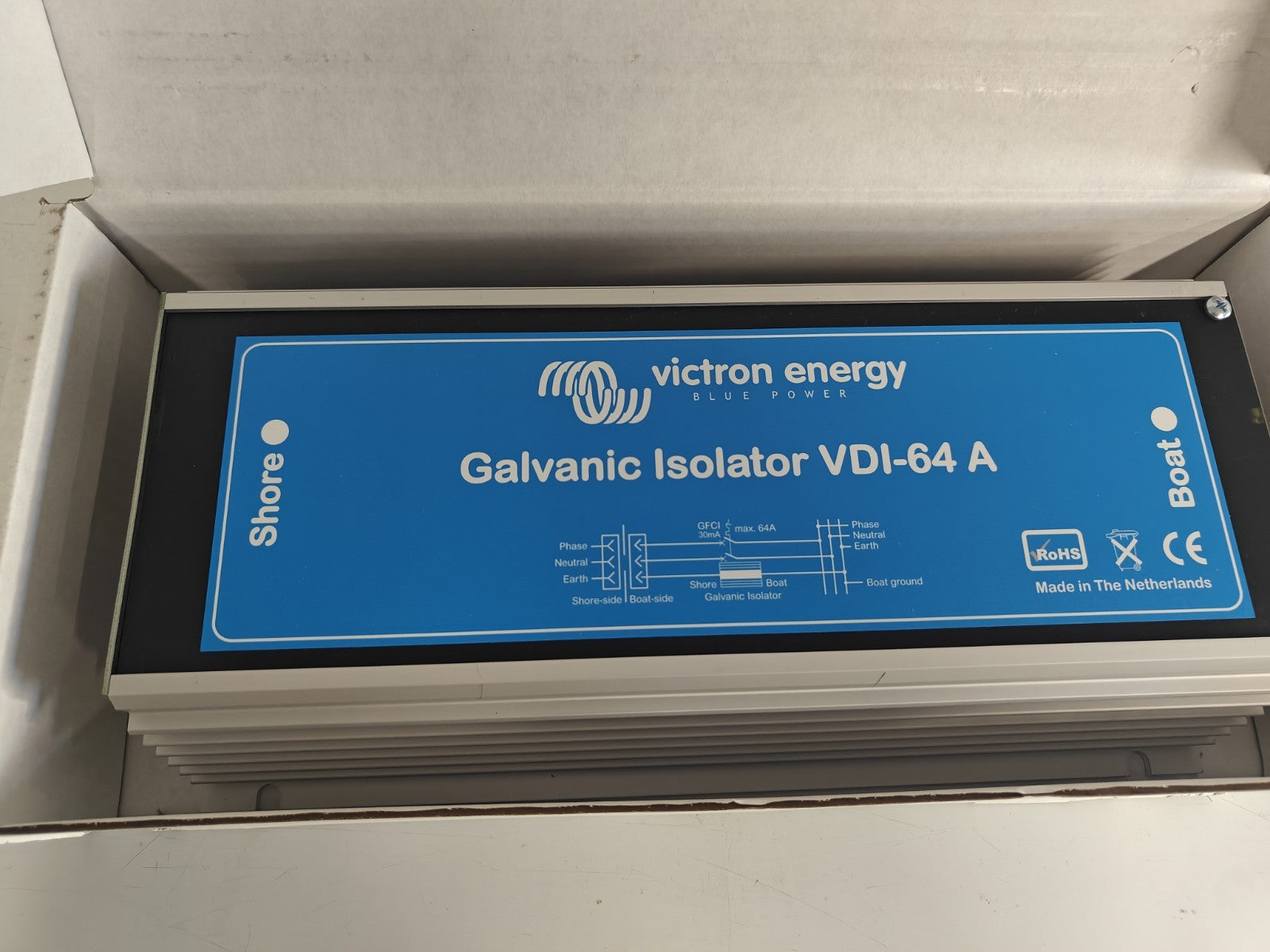

Victron GDI000064000 Galvanic Isolator VDI-64 A - Battery Isolation

Victron GDI000064000 Galvanic Isolator VDI-64 A - Battery Isolation

At West Coast Vans, battery isolation protects the system when multiple batteries or shore-power paths are involved. The Victron GDI000064000 Galvanic Isolator VDI-64 A - Battery Isolation supports a cleaner van power build; Ask Us Product Questions Anytime before matching it to your system diagram.

WCV EXPERT TIP

Confirm the isolation type, current rating, battery count, and shore-power layout before installation.

PRODUCT OVERVIEW

Victron GDI000064000 Galvanic Isolator VDI-64 A - Battery Isolation is a Victron isolator for compatible van, RV, marine, and mobile power systems.

The technical specifications below retain the available model, rating, connection, warranty, and source-product details from the export.

BEST FOR

• BATTERY ISOLATION: Separates battery banks or shore-power paths according to the system design.

• MULTI-BATTERY BUILDS: Supports electrical layouts with more than one battery path.

• PROTECTED CHARGING SYSTEMS: Helps manage current flow when correctly sized and installed.

TECHNICAL SPECIFICATIONS

• VENDOR: Victron

• SHOPIFY SUPPLIER: Victron Guy

• SKU / MPN: GDI000064000

• ORIGINAL PRODUCT TITLE: Victron GDI000064000 Galvanic Isolator VDI-64 A 5 Yr Warranty Auth Dealer

• SOURCE PRODUCT TYPE: Galvanic Isolater

• SOURCE PRODUCT CATEGORY: Electronics

• WARRANTY NOTE: Victron GDI000064000 Galvanic Isolator VDI-64 A 5 Yr Warranty Auth Dealer

• SOURCE DETAIL: The galvanic isolator prevents electrolytic corrosion.

• ELECTRICAL RATING: It blocks low voltage DC currents that enter your boat via the shore power earth wire.

• SOURCE DETAIL: These currents can cause corrosion to the boat's underwater metals, like the hull, propeller, shaft and so on.

• SOURCE DETAIL: The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion.

• ELECTRICAL RATING: When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage.

• ELECTRICAL RATING: The voltage at which diodes conduct is about 1.4 Vdc.

• ELECTRICAL RATING: The isolator is installed directly behind your boat's 230V connection.

• ELECTRICAL RATING: The forward voltage from the galvanic isolator is higher than the potential difference between metals.

• ELECTRICAL RATING: As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current.

• ELECTRICAL RATING: However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.

• CONSTRUCTION NOTE: Some items have a longer shipping time and will normally ship within 1 week.

• WARRANTY NOTE: All items except batteries come with a 5 Year Warranty.

FEATURES

• ISOLATION FUNCTION: Supports the listed isolator function.

• CURRENT AND BATTERY COUNT: Amp rating and battery-count details are preserved below.

• PROTECTED SYSTEM DESIGN: Fits planned multi-battery or shore-power layouts.

COMMON PAIRINGS

• POWER DISTRIBUTION: Pair with properly sized busbars, breakers, and fusing.

• BATTERY SYSTEM: Match the component to the voltage and layout of the battery bank.

• INSTALL SUPPORT: Ask West Coast Vans before combining components in a high-current system.

COMPATIBILITY & FITMENT

• CHASSIS: Universal van electrical application

• WHEELBASE: Not wheelbase-specific.

• ROOF HEIGHT: Not roof-height-specific.

• REQUIREMENTS: Requires matching current rating, battery count, cable sizing, and system-isolation plan.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: Is an isolator needed for every van?

A: No. It is used when the electrical design calls for battery or shore-power path isolation.

Q: Is this vehicle-specific?

A: No. This is a universal electrical component for compatible van power systems.

Q: Should I confirm compatibility before ordering?

A: Yes. Match the part number, voltage, current rating, connection type, and system design before ordering.

Q: Can West Coast Vans help with system planning?

A: Yes. West Coast Vans can help confirm how this component fits into a complete van power system.
