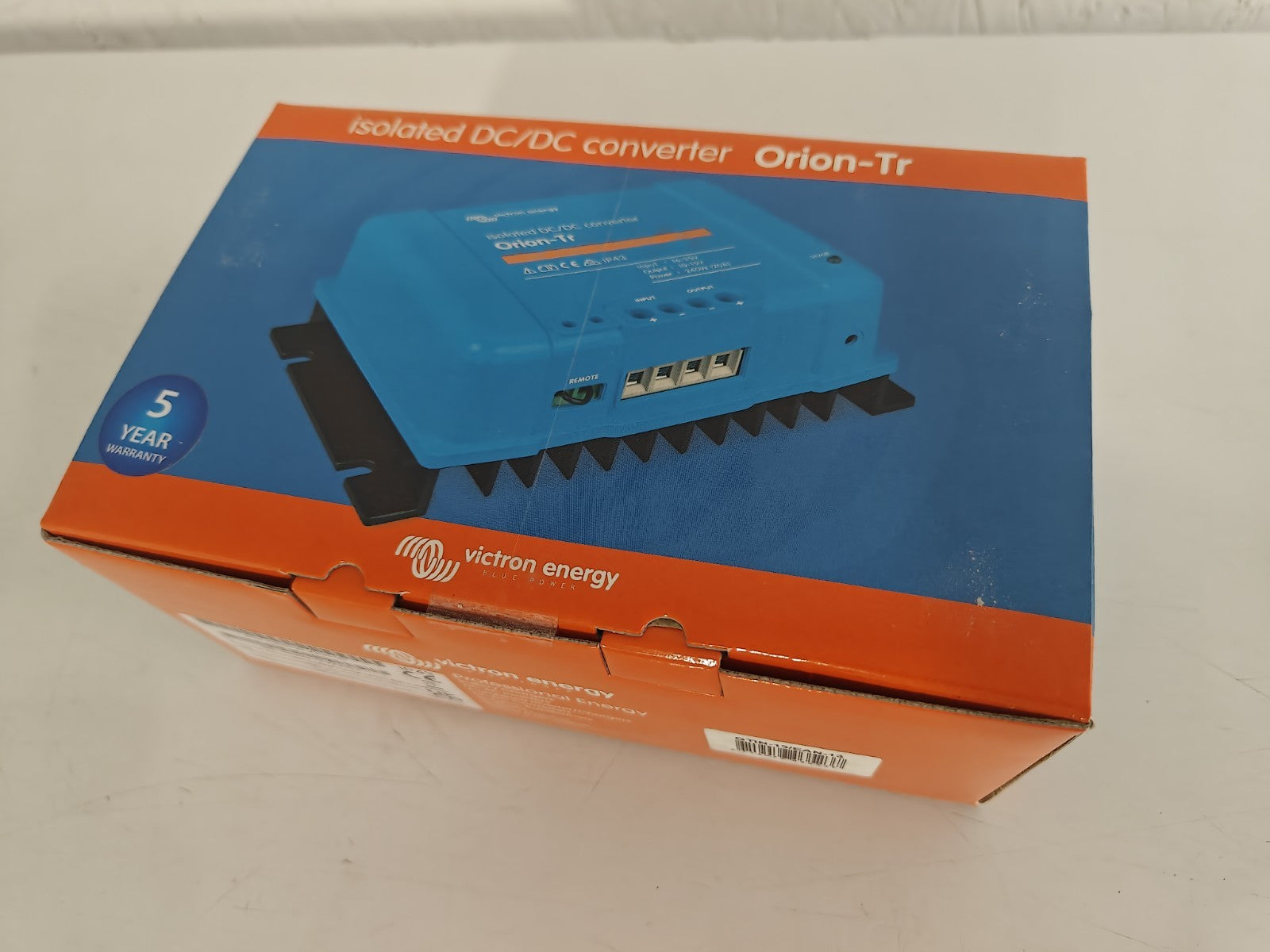

Victron ORI121222110 Orion-Tr 12/12-18A (220W) Isolated DC-DC converter - DC-DC Voltage Conversion

Victron ORI121222110 Orion-Tr 12/12-18A (220W) Isolated DC-DC converter - DC-DC Voltage Conversion

At West Coast Vans, voltage conversion has to match the devices on both sides of the circuit. The Victron ORI121222110 Orion-Tr 12/12-18A (220W) Isolated DC-DC converter - DC-DC Voltage Conversion supports a cleaner van power build; Ask Us Product Questions Anytime before matching it to your system diagram.

WCV EXPERT TIP

Verify input voltage, output voltage, current rating, isolation requirement, and waterproof rating before wiring.

PRODUCT OVERVIEW

Victron ORI121222110 Orion-Tr 12/12-18A (220W) Isolated DC-DC converter - DC-DC Voltage Conversion is a Orion DC-DC converter for compatible van, RV, marine, and mobile power systems.

The technical specifications below retain the available model, rating, connection, warranty, and source-product details from the export.

BEST FOR

• VOLTAGE CONVERSION: Steps DC voltage to the level required by compatible equipment.

• MIXED-VOLTAGE BUILDS: Supports systems that use more than one DC voltage.

• DEDICATED DEVICE CIRCUITS: Feeds specific loads that need a controlled converted output.

TECHNICAL SPECIFICATIONS

• VENDOR: Victron

• SHOPIFY SUPPLIER: Victron Guy

• SKU / MPN: ORI121222110

• ORIGINAL PRODUCT TITLE: Victron ORI121222110 Orion-Tr 12/12-18A (220W) Isolated DC-DC converter

• SOURCE PRODUCT TYPE: DC-DC Converter

• SOURCE PRODUCT CATEGORY: Hardware > Power & Electrical Supplies > Power Converters

• ELECTRICAL RATING: Victron ORI121222110 Orion-Tr 12/12-18A (220W) Isolated DC-DC converter

• SOURCE DETAIL: Remote on/off The remote on/off eliminates the need for a high current switch in the input wiring.

• ELECTRICAL RATING: The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

• SOURCE DETAIL: All models are short circuit proof and can be paralleled to increase output current.

• SOURCE DETAIL: An unlimited number of units can be connected in parallel.

• CONSTRUCTION NOTE: IP43 protection

• SOURCE DETAIL: When installed with the screw terminals oriented downwards.

• SOURCE DETAIL: Screw terminals No special tools needed for installation.

• ELECTRICAL RATING: Input fuse On 12V and 24V input models only.

• ELECTRICAL RATING: Models: 12 / 24 / 48 Volt

• CONSTRUCTION NOTE: Some items have a longer shipping time and will normally ship within 1 week.

• WARRANTY NOTE: All items except batteries come with a 5 Year Warranty.

FEATURES

• DC VOLTAGE CONVERSION: Converts between the listed DC voltage levels.

• ISOLATION DETAILS: Isolated, non-isolated, IP, and waterproof details are preserved when supplied.

• DEVICE-SPECIFIC OUTPUT: Useful for circuits that need a stable converted voltage.

COMMON PAIRINGS

• BATTERY BANK: Match voltage, chemistry, and capacity to the selected Victron component.

• PROPER FUSING: Size protection for the wire, load, and charging source.

• SYSTEM MONITORING: Add compatible Victron monitoring for easier setup and troubleshooting.

COMPATIBILITY & FITMENT

• CHASSIS: Universal van electrical application

• WHEELBASE: Not wheelbase-specific.

• ROOF HEIGHT: Not roof-height-specific.

• REQUIREMENTS: Requires matching input voltage, output voltage, current rating, isolation needs, wire sizing, and fuse protection.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What should I check before installing a DC-DC converter?

A: Confirm input voltage, output voltage, current rating, isolation needs, cable gauge, and fuse protection.

Q: Is this vehicle-specific?

A: No. This is a universal electrical component for compatible van power systems.

Q: Should I confirm compatibility before ordering?

A: Yes. Match the part number, voltage, current rating, connection type, and system design before ordering.

Q: Can West Coast Vans help with system planning?

A: Yes. West Coast Vans can help confirm how this component fits into a complete van power system.
