At West Coast Vans, clean AC power starts with the right inverter for the battery bank and load profile. The Victron PIN485010500 Phoenix Inverter 48/500 120V VE.Direct NEMA 5-15R - AC Inverter Power supports a cleaner van power build; Ask Us Product Questions Anytime before matching it to your system diagram.

WCV EXPERT TIP

Match inverter voltage and output capacity to the battery bank, wiring, protection, and real AC loads.

PRODUCT OVERVIEW

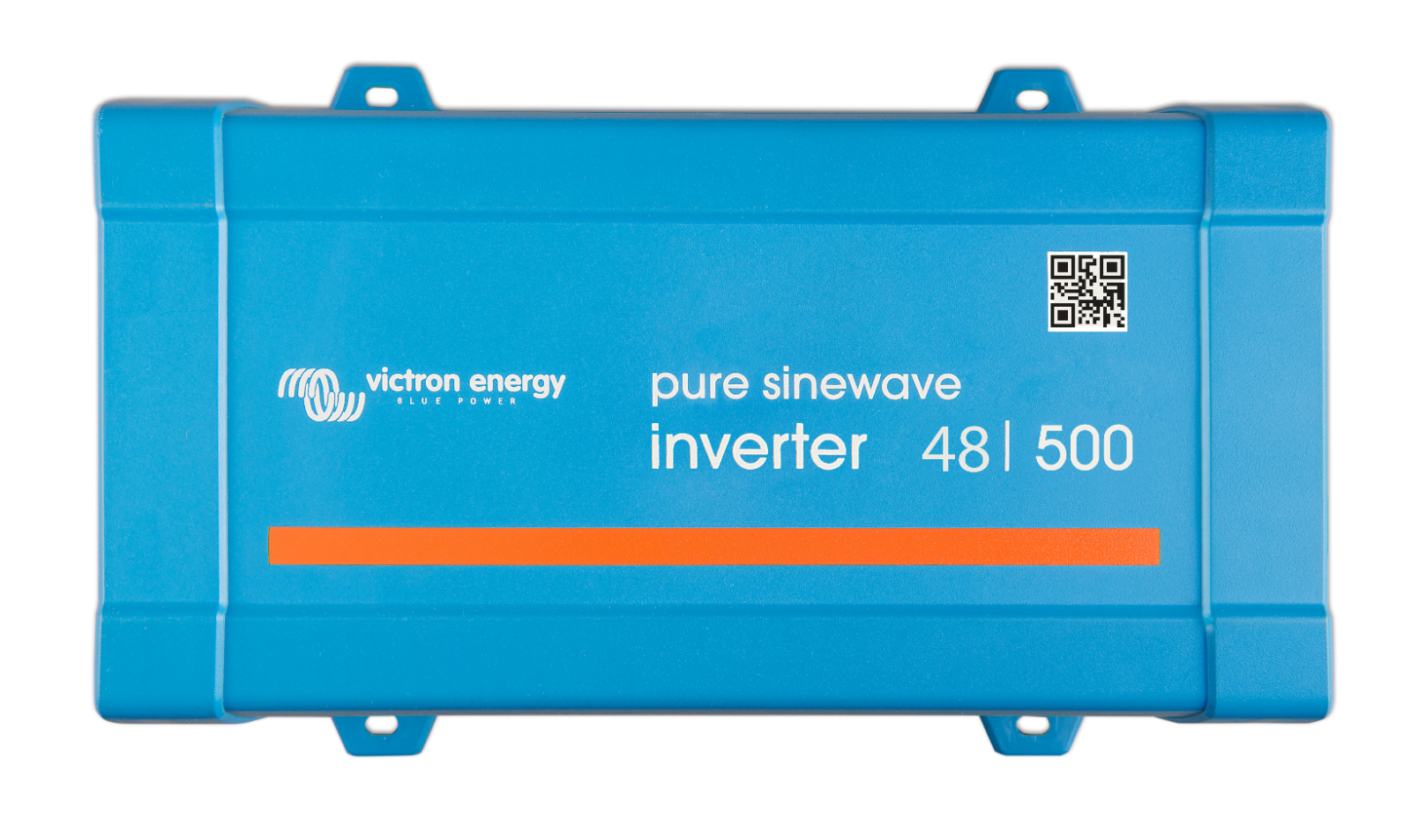

Victron PIN485010500 Phoenix Inverter 48/500 120V VE.Direct NEMA 5-15R - AC Inverter Power is a Phoenix inverter for compatible van, RV, marine, and mobile power systems.

The technical specifications below retain the available model, rating, connection, warranty, and source-product details from the export.

BEST FOR

• AC-POWERED ACCESSORIES: Provides inverter-supplied AC power for compatible loads.

• COMPACT POWER SYSTEMS: Works where inverter output is needed without charger functionality.

• SERVICEABLE ELECTRICAL BAYS: Keeps inverter planning separate from charging and distribution.

TECHNICAL SPECIFICATIONS

• VENDOR: Victron

• SHOPIFY SUPPLIER: Victron Guy

• SKU / MPN: PIN485010500

• ORIGINAL PRODUCT TITLE: Victron PIN485010500 Phoenix Inverter 48/500 120V VE.Direct NEMA 5-15R

• SOURCE PRODUCT TYPE: Inverter

• SOURCE PRODUCT CATEGORY: Hardware > Power & Electrical Supplies > Power Inverters

• ELECTRICAL RATING: Victron PIN485010500 Phoenix Inverter 48/500 120V VE.Direct NEMA 5-15R

• ELECTRICAL RATING: This unit has 120V AC output, the input is 48V DC, and the capacity is 500 VA.

• ELECTRICAL RATING: Inverters allow you to power domestic equipment - requiring 120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

• SOURCE DETAIL: Models Available in other listings: 250VA, 375VA, 500VA, 800VA, 1200VA

• CONSTRUCTION NOTE: Some items have a longer shipping time and will normally ship within 1 week.

• WARRANTY NOTE: All items except batteries come with a 5 Year Warranty.

FEATURES

• DEDICATED INVERTER OUTPUT: Provides AC power from the battery bank.

• VE.DIRECT DETAILS: Communication details are preserved where supplied.

• LOAD PLANNING: Best used with a clear AC load list.

COMMON PAIRINGS

• BATTERY BANK: Match voltage, chemistry, and capacity to the selected Victron component.

• PROPER FUSING: Size protection for the wire, load, and charging source.

• SYSTEM MONITORING: Add compatible Victron monitoring for easier setup and troubleshooting.

COMPATIBILITY & FITMENT

• CHASSIS: Universal van electrical application

• WHEELBASE: Not wheelbase-specific.

• ROOF HEIGHT: Not roof-height-specific.

• REQUIREMENTS: Requires matching battery voltage, AC load planning, cable sizing, ventilation, and overcurrent protection.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What should I match before choosing an inverter?

A: Match battery voltage, AC load demand, wiring, fuse protection, and ventilation.

Q: Is this vehicle-specific?

A: No. This is a universal electrical component for compatible van power systems.

Q: Should I confirm compatibility before ordering?

A: Yes. Match the part number, voltage, current rating, connection type, and system design before ordering.

Q: Can West Coast Vans help with system planning?

A: Yes. West Coast Vans can help confirm how this component fits into a complete van power system.
