Victron SCC900650010 SmartSolar Pluggable Display - Solar Charge Control

Victron SCC900650010 SmartSolar Pluggable Display - Solar Charge Control

At West Coast Vans, a good solar controller turns roof-panel output into usable battery charging instead of wasted potential. The Victron SCC900650010 SmartSolar Pluggable Display - Solar Charge Control keeps the build moving with Victron-specific electrical hardware; Ask Us Product Questions Anytime before matching it to your system diagram.

WCV EXPERT TIP

Size the controller against both panel open-circuit voltage and expected charge current, then leave room for cold-weather voltage rise.

PRODUCT OVERVIEW

Victron SCC900650010 SmartSolar Pluggable Display - Solar Charge Control is a Victron SmartSolar MPPT charge controller that converts solar-array output into controlled battery charging.

The technical specifications below retain the available model, rating, connection, warranty, and source-product details from the export.

BEST FOR

• ROOF-SOLAR BUILDS: Turns solar-array output into controlled charging for the battery bank.

• OFF-GRID CAMPING: Adds renewable charging capacity for longer stays away from shore power.

• EXPANDABLE POWER SYSTEMS: Supports planned solar growth when voltage and current limits are respected.

TECHNICAL SPECIFICATIONS

• VENDOR: Victron

• SHOPIFY SUPPLIER: Victron Guy

• SKU / MPN: SCC900650010

• ORIGINAL PRODUCT TITLE: Victron SCC900650010 SmartSolar Pluggable Display Authorized Dealer 5 Yr Warr

• SOURCE PRODUCT TYPE: Solar Charge Controller

• SOURCE PRODUCT CATEGORY: Hardware > Power & Electrical Supplies > Solar Energy Kits

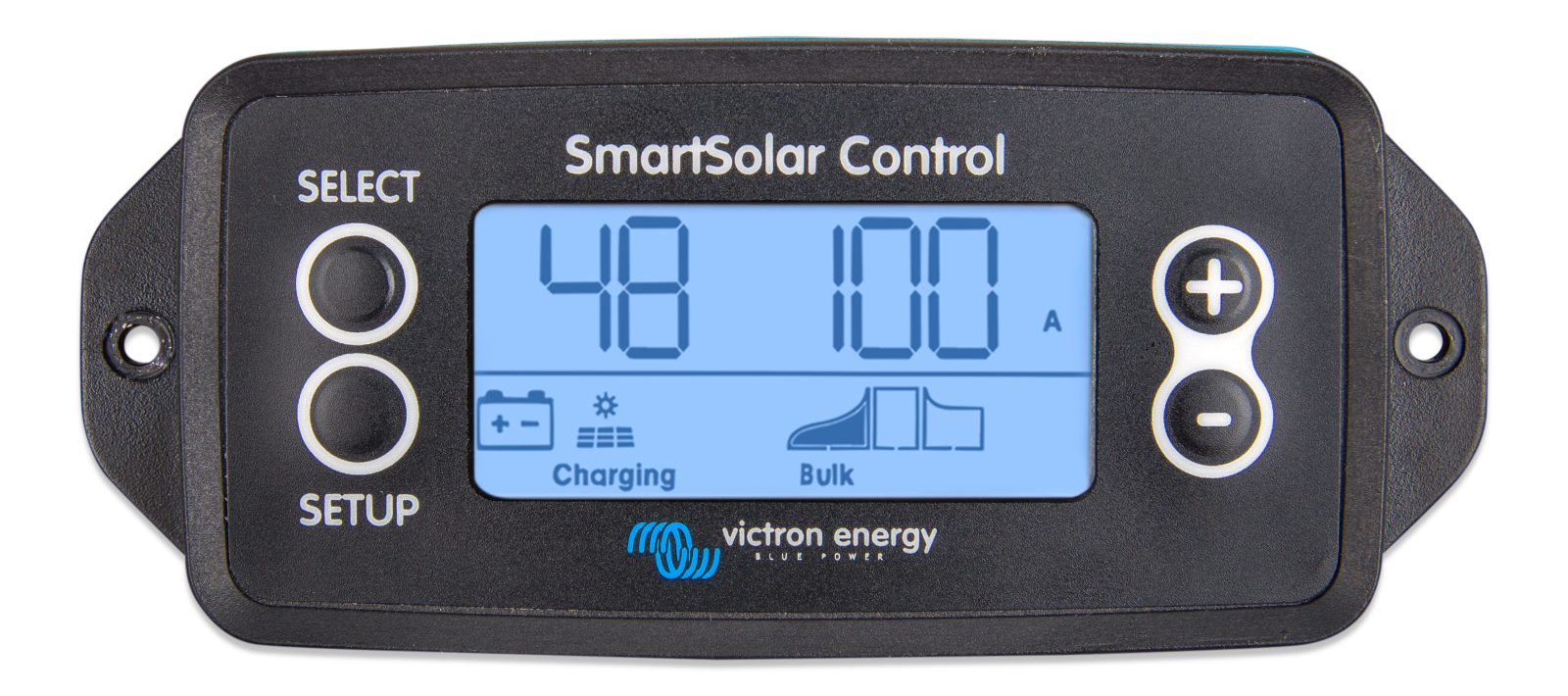

• FUNCTION: The SmartSolar Control Display is a pluggable LCD display for the SmartSolar Charge Controllers.

• SOURCE DETAIL: Simply remove the rubber seal that protects the plug on the front of the controller and plug-in the display.

• COMPATIBILITY NOTE: Only units that have a "Tr" are compatible.

• FUNCTION: The SmartSolar Control display is a dedicated display for the following MPPT solar charger ranges: • SmartSolar MPPT 150/60 up to 250/100 • SmartSolar MPPT 150/70 up to 250/100 VE.Can • BlueSolar MPPT 150/70 up to 250/100 VE.Can

• FUNCTION: These solar chargers can also be recognised by a small plastic cover on the front face with the text "display option".

• FUNCTION: The display plugs directly into the front face of the solar charger.

• SOURCE DETAIL: It can act as both a permanent or a temporary display.

• SOURCE DETAIL: Simply remove the plastic cover that protects the display terminal on the front of the controller and then plug in the display.

• FUNCTION: The display can be used to monitor the solar charger and to view both live and historic data.

• FUNCTION: The display can also be used to configure solar charger settings.

• ELECTRICAL RATING: Examples of live and historic monitoring: • PV power, yield, voltage and current. • Battery voltage, current and charge stage. • Load output state and current (only available if the solar charger is equipped with a load output). • 30-day historical values. • Cumulative historic values over the live of the solar charger

FEATURES

• MPPT SOLAR CONTROL: Uses Victron SmartSolar MPPT technology described in the source.

• MULTI-VOLT BATTERY SUPPORT: Source information lists 12/24/36/48 Volt models where applicable.

• VAN SOLAR FOUNDATION: A core component for roof-solar charging systems.

COMMON PAIRINGS

• BATTERY BANK: Match voltage, chemistry, and capacity to the selected Victron component.

• PROPER FUSING: Size protection for the wire, load, and charging source.

• SYSTEM MONITORING: Add compatible Victron monitoring for easier setup and troubleshooting.

COMPATIBILITY & FITMENT

• CHASSIS: Universal van electrical application

• WHEELBASE: Not wheelbase-specific.

• ROOF HEIGHT: Not roof-height-specific.

• REQUIREMENTS: Requires solar-array voltage/current sizing, battery-bank compatibility, wire sizing, and fuse or breaker protection.

FREQUENTLY ASKED QUESTIONS (AEO)

Q: What should I check before choosing an MPPT controller?

A: Confirm solar-array open-circuit voltage, expected charge current, battery voltage, and wire protection.

Q: Is this vehicle-specific?

A: No. This is a universal electrical component for compatible van power systems.

Q: Should I confirm compatibility before ordering?

A: Yes. Match the part number, voltage, current rating, connection type, and system design before ordering.

Q: Can West Coast Vans help with system planning?

A: Yes. West Coast Vans can help confirm how this component fits into a complete van power system.
